HONDA CIVIC SEDAN 2014 Owner's Manual (in English)

220
uuAudio System Basic Operation uPlaying a Video Using the HDMI ®
Features

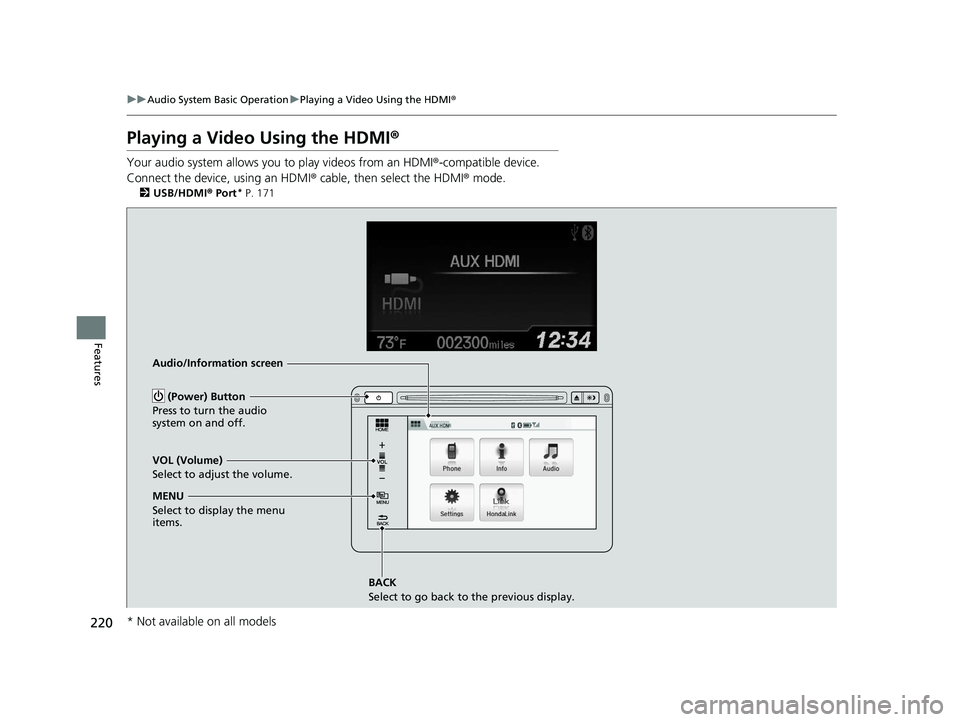

Playing a Video Using the HDMI ®
Your audio system allows you to play videos from an HDMI®-compatible device.
Connect the device, using an HDMI ® cable, then select the HDMI® mode.
2USB/HDMI ® Port* P. 171
Audio/Information screen
BACK
Select to go back to the previous display.
VOL (Volume)
Select to adjust the volume.
MENU
Select to display the menu
items.
(Power) Button
Press to turn the audio
system on and off.
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 220 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

221
uuAudio System Basic Operation uPlaying a Video Using the HDMI ®
Features

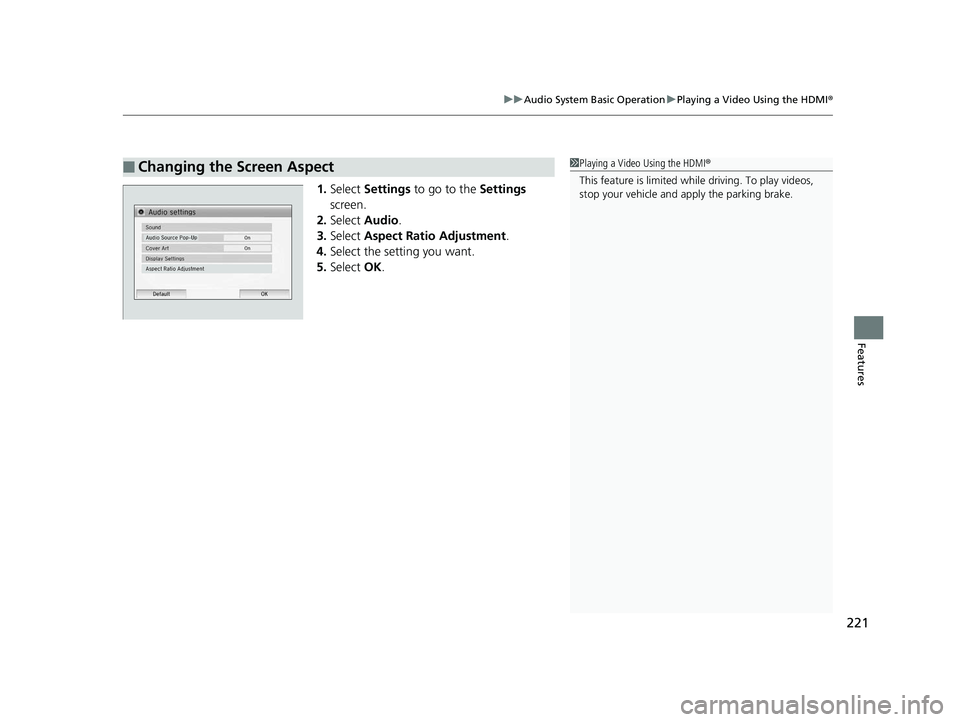

1.Select Settings to go to the Settings
screen.
2. Select Audio .
3. Select Aspect Ratio Adjustment .
4. Select the setting you want.
5. Select OK.
■Changing the Screen Aspect1Playing a Video Using the HDMI®
This feature is limited while driving. To play videos,
stop your vehicle and apply the parking brake.
14 CIVIC 4D_SI-31TR36210.book 221 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

222
uuAudio System Basic Operation uSmartphone Apps
Features

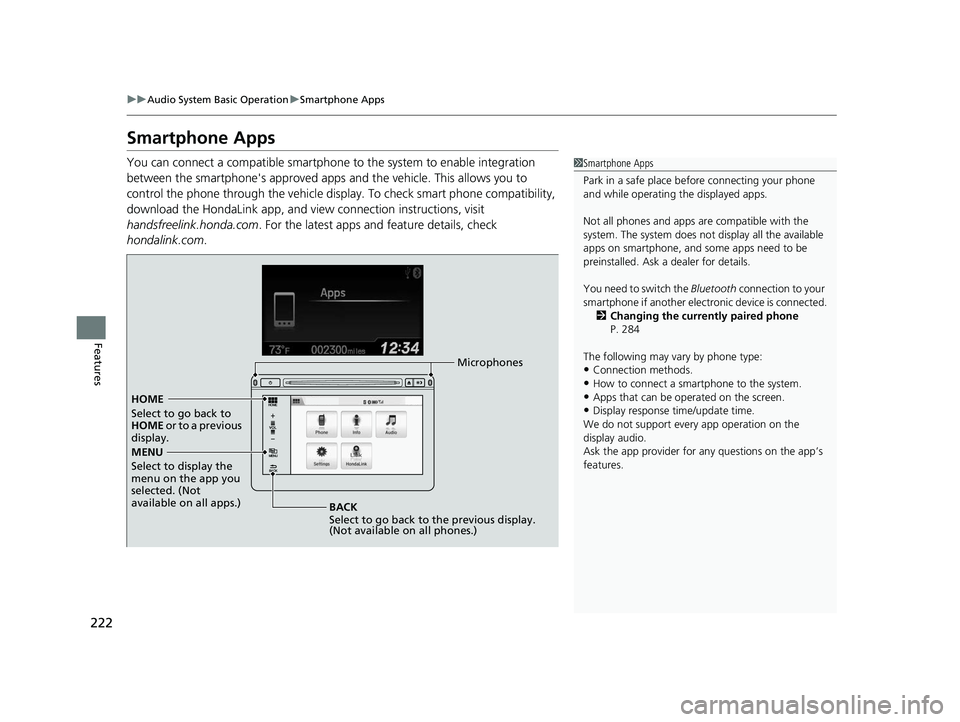

Smartphone Apps
You can connect a compatible smartphone to the system to enable integration
between the smartphone's approved apps and the vehicle. This allows you to
control the phone through the vehicle display. To check smart phone compatibility,
download the HondaLink app, and view connection instructions, visit
handsfreelink.honda.com . For the latest apps and feature details, check
hondalink.com .1Smartphone Apps
Park in a safe place be fore connecting your phone
and while operating the displayed apps.
Not all phones and apps ar e compatible with the
system. The system does not display all the available
apps on smartphone, and so me apps need to be
preinstalled. Ask a dealer for details.
You need to switch the Bluetooth connection to your
smartphone if another electr onic device is connected.
2 Changing the currently paired phone
P. 284
The following may vary by phone type:
•Connection methods.
•How to connect a smartphone to the system.•Apps that can be operated on the screen.
•Display response ti me/update time.
We do not support every app operation on the
display audio.
Ask the app provider for an y questions on the app’s
features.
MENU
Select to display the
menu on the app you
selected. (Not
available on all apps.) BACK
Select to go back to the previous display.
(Not available on all phones.)
HOME
Select to go back to
HOME
or to a previous
display. Microphones
14 CIVIC 4D_SI-31TR36210.book 222 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

223
uuAudio System Basic Operation uSiri Eyes Free
Features
Siri Eyes Free
You can talk to Siri using the Talk button on the steering wheel when your iPhone is
paired to Bluetooth ® HandsFreeLink.
2Phone Setup P. 283
■Using Eyes Free
1Siri Eyes Free
Siri is a trademark of Apple Inc.
Check Apple Inc. website for features available for
Siri.
When operating the vehicle, only use Siri through the
Talk button.
1 Using Eyes Free
Some commands work only on specific phone
features or apps.
(Talk) button:
Press and hold until the display
changes as shown.
(Hang-up/back) button:
Press to deactivate Siri.
While in Eyes Free:
The display remains the same.
No feedback or commands
appear.
Appears
when Siri is
activated in
Eyes Free
14 CIVIC 4D_SI-31TR36210.book 223 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

224
Features

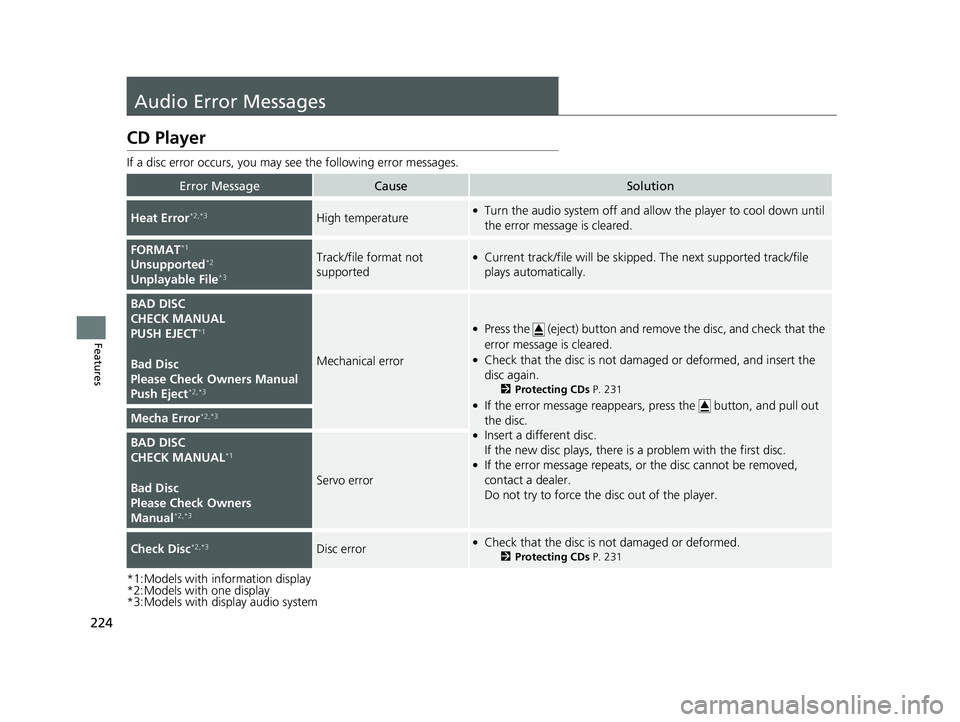

Audio Error Messages
CD Player
If a disc error occurs, you may see the following error messages.
*1:Models with information display
*2:Models with one display
*3:Models with display audio system
Error MessageCauseSolution
Heat Error*2,*3High temperature●Turn the audio system off and allow the player to cool down until
the error message is cleared.
FORMAT*1
Unsupported*2
Unplayable File*3
Track/file format not
supported●Current track/file will be skippe d. The next supported track/file
plays automatically.
BAD DISC
CHECK MANUAL
PUSH EJECT
*1
Bad Disc
Please Check Owners Manual
Push Eject
*2,*3
Mechanical error
●Press the (eject) button and remo ve the disc, and check that the
error message is cleared.
●Check that the disc is not dama ged or deformed, and insert the
disc again.
2 Protecting CDs P. 231
●If the error message reappears, press the button, and pull out
the disc.
●Insert a different disc.
If the new disc plays, there is a problem with the first disc.
●If the error message repeats, or the disc cannot be removed,
contact a dealer.
Do not try to force the disc out of the player.
Mecha Error*2,*3
BAD DISC
CHECK MANUAL*1
Bad Disc
Please Check Owners
Manual
*2,*3
Servo error
Check Disc*2,*3Disc error●Check that the disc is not damaged or deformed.
2Protecting CDs P. 231
14 CIVIC 4D_SI-31TR36210.book 224 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

225
uuAudio Error Messages uiPod/USB Flash Drive*
Continued
Features

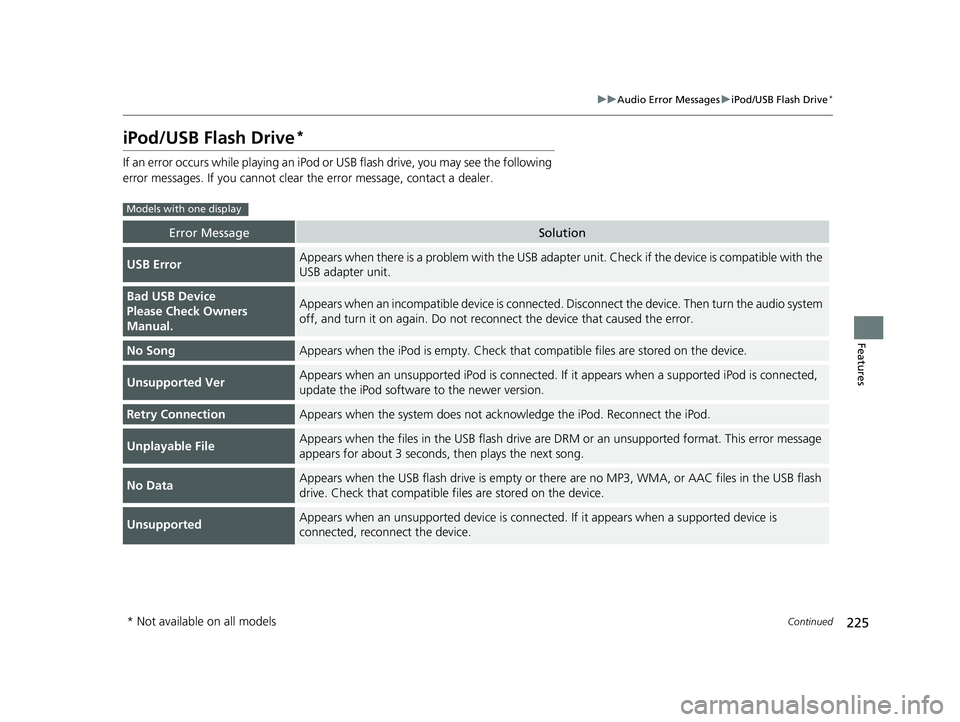

iPod/USB Flash Drive*
If an error occurs while playing an iPod or USB flash drive, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
Error MessageSolution
USB ErrorAppears when there is a problem with the USB adapter unit. Check if the device is compatible with the
USB adapter unit.
Bad USB Device
Please Check Owners
Manual.Appears when an incompatib le device is connected. Disconnect th e device. Then turn the audio system
off, and turn it on again. Do not reco nnect the device that caused the error.
No SongAppears when the iPod is empty. Check that compatible files are stored on the device.
Unsupported VerAppears when an unsupported iPod is connected. If it appears when a supported iPod is connected,
update the iPod software to the newer version.
Retry ConnectionAppears when the system does not acknowledge the iPod. Reconnect the iPod.
Unplayable FileAppears when the files in the USB flash drive are DRM or an unsupported format. This error message
appears for about 3 seconds, then plays the next song.
No DataAppears when the USB flash drive is empty or there are no MP3, WMA, or AAC files in the USB flash
drive. Check that compatible fi les are stored on the device.
UnsupportedAppears when an unsupported device is connected. If it appears when a supported device is
connected, reconnect the device.
Models with one display
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 225 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

226
uuAudio Error Messages uiPod/USB Flash Drive*
Features
Error MessageSolution
USB ErrorAppears when there is a problem with the USB adapter unit. Check if the device is compatible with the
USB adapter unit.
The connected USB device
has a problem.
See Owner’s ManualAppears when an incompatible device is connected. Disconnect the device. Then turn the audio system
off, and turn it on again. Do not reco nnect the device that caused the error.
Unsupported VersionAppears when an unsupported iPod is connected. If it appears when a supported iPod is connected,
update the iPod software to the newer version.
Connect RetryAppears when the system does not acknowledge the iPod. Reconnect the iPod.
Unplayable FileAppears when the files in the USB flash drive are DRM or an unsupported format. This error message
appears for about 3 seconds, then plays the next song.
No Data
Appears when the iPod is empty.
Appears when the USB flash drive is empty or ther e are no MP3, WMA, or AAC files in the USB flash
drive.
Check that compatible files are stored on the device.
UnsupportedAppears when an unsupported device is connect ed. If it appears when a supported device is
connected, reconnect the device.
Models with display audio system
iPod
USB flash drive
iPod and USB flash drive
14 CIVIC 4D_SI-31TR36210.book 226 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

227
uuAudio Error Messages uPandora ®
Continued
Features

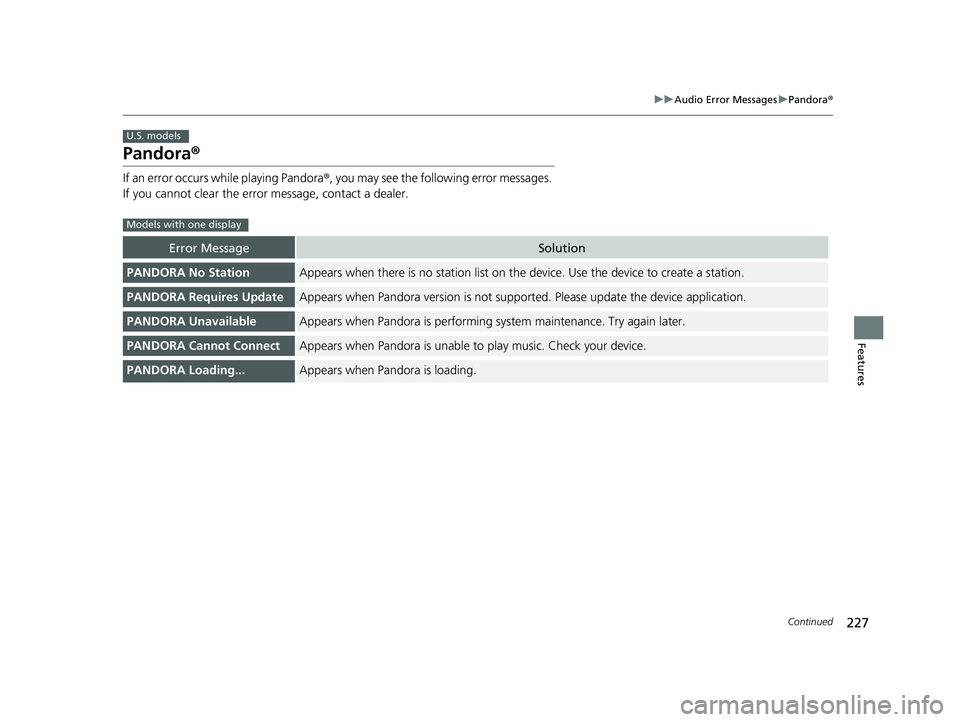

Pandora ®
If an error occurs while playing Pandora ®, you may see the following error messages.
If you cannot clear the error message, contact a dealer.
Error MessageSolution
PANDORA No StationAppears when there is no station list on the device. Use the device to create a station.
PANDORA Requires UpdateAppears when Pandora version is not supported. Please update the device application.
PANDORA UnavailableAppears when Pandora is performing sy stem maintenance. Try again later.
PANDORA Cannot ConnectAppears when Pandora is unable to play music. Check your device.
PANDORA Loading...Appears when Pandora is loading.
U.S. models
Models with one display
14 CIVIC 4D_SI-31TR36210.book 227 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

228
uuAudio Error Messages uPandora ®
Features

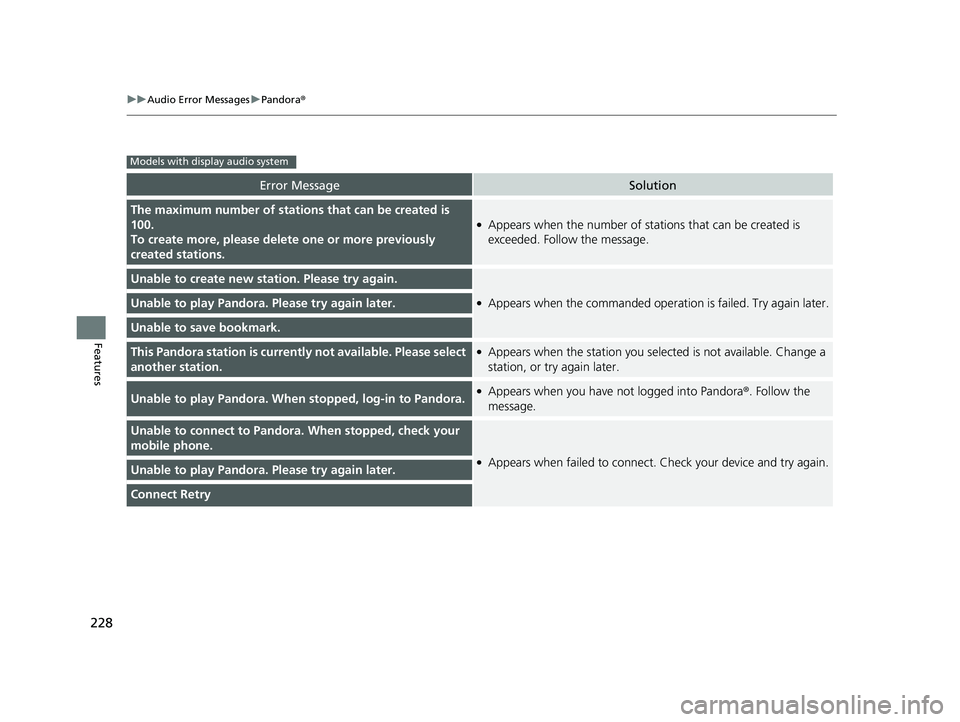

Error MessageSolution
The maximum number of stations that can be created is
100.
To create more, please delete one or more previously
created stations.●Appears when the number of stations that can be created is
exceeded. Follow the message.
Unable to create new station. Please try again.
●Appears when the commanded operat ion is failed. Try again later.Unable to play Pandora. Please try again later.
Unable to save bookmark.
This Pandora station is currently not available. Please select
another station.●Appears when the station you select ed is not available. Change a
station, or try again later.
Unable to play Pandora. When stopped, log-in to Pandora.●Appears when you have not logged into Pandora® . Follow the
message.
Unable to connect to Pandor a. When stopped, check your
mobile phone.
●Appears when failed to connect. Check your device and try again.Unable to play Pandora. Please try again later.
Connect Retry
Models with display audio system
14 CIVIC 4D_SI-31TR36210.book 228 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

229
uuAudio Error Messages uPandora ®
Features

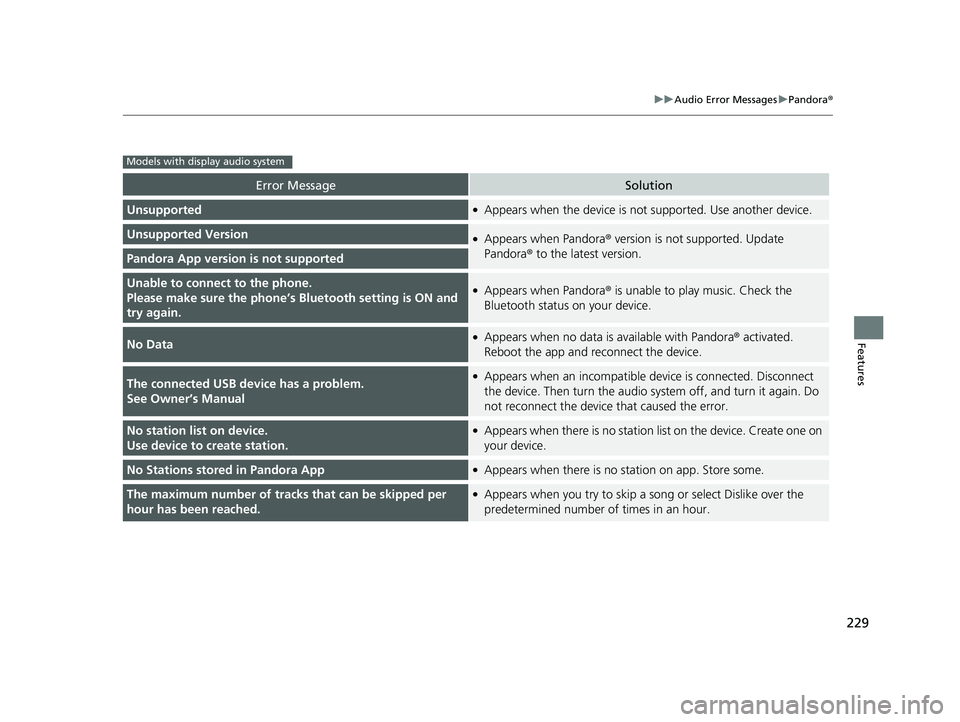

Error MessageSolution
Unsupported●Appears when the device is not supported. Use another device.
Unsupported Version●Appears when Pandora ® version is not supported. Update
Pandora ® to the latest version.
Pandora App version is not supported
Unable to connect to the phone.
Please make sure the phone’s Bluetooth setting is ON and
try again.●Appears when Pandora ® is unable to play music. Check the
Bluetooth status on your device.
No Data●Appears when no data is available with Pandora ® activated.
Reboot the app and reconnect the device.
The connected USB de vice has a problem.
See Owner’s Manual●Appears when an incompatible device is connected. Disconnect
the device. Then turn th e audio system off, and turn it again. Do
not reconnect the device that caused the error.
No station list on device.
Use device to create station.●Appears when there is no station list on the device. Create one on
your device.
No Stations stored in Pandora App●Appears when there is no station on app. Store some.
The maximum number of tracks that can be skipped per
hour has been reached.●Appears when you try to skip a song or select Dislike over the
predetermined number of times in an hour.
Models with display audio system
14 CIVIC 4D_SI-31TR36210.book 229 ページ ２０１４年１月３０日　木曜日　午後１２時１８分
