remote control HONDA CIVIC SEDAN 2014 Owner's Manual (in English)

Contents
Child Safety P. 52Exhaust Gas Hazard P. 64Safety Labels P. 65
Opening and Closing the Trunk P. 121 Security System P. 125 Opening and Closing the Windows P. 128
Operating the Switches Around the Steering Wheel P. 131 Adjusting the Mirrors P. 144
Interior Lights/Interior Convenience Items P. 154 Heating and Cooling
* P. 161
Audio Error Messages P. 224General Information on the Audio System P. 230
When Driving P. 313 Braking P. 337Parking Your Vehicle P. 341
Accessories and Modifications P. 347
Maintenance Under the Hood P. 361 Replacing Light Bulbs P. 376
Checking and Maintaining Tires P. 391 Battery P. 400 Remote Transmitter Care* P. 401
Cleaning P. 404
Engine Does Not Start P. 426 Jump Starting P. 429 Shift Lever Does Not Move P. 432
Fuses P. 439 Emergency Towing P. 442
Devices that Emit Radio Waves P. 449 Reporting Safety Defects P. 450
Authorized Manuals P. 455 Customer Service Information P. 456
Quick Reference GuideP. 2
Safe DrivingP. 27
Instrument PanelP. 67
ControlsP. 103
FeaturesP. 169
DrivingP. 303
MaintenanceP. 349
Handling the UnexpectedP. 409
InformationP. 443
IndexP. 457
14 CIVIC 4D_SI-31TR36210.book 1 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

14
Quick Reference Guide
Features (P 169)
Audio Remote Controls*
(P 174)
●
(+ / ( - Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/CD/AUX.
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
(+ / (- / / Button
SOURCE
Button
Audio system (P 170)
For navigation system operation () See the Navigation System Manual
AM Button
FM Button
CD/AUX
Button CD Slot
SCAN Button
Preset Buttons (1-6) TUNE/SOUND

Knob
/
( SEEK/SKIP )
Buttons
(P 176)Models with information display
A.SEL (Auto Select)
Button
VOL/PWR

(Volume/Power)
Knob
DISP Button
(CD Eject) Button
14 CIVIC 4D_SI-31TR36210.book 14 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

103
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 104
Locking and Unlocking the Doors Key Types and Functions .................. 106
Low Smart Entry Remote Signal Strength*....... 108Locking/Unlocking the Doors from the Outside .......................................... 109
Locking/Unlocking the Doors from the Inside ............................................. 114
Childproof Door Locks ..................... 116
Auto Door Locking/Unlocking
*........ 117
Opening and Closing the Trunk ....... 121
Security System Immobilizer System .......................... 125
Security System Alarm
*.................... 125Opening and Closing the Windows ..... 128Opening and Closing the Moonroof*..... 130
Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 131
ENGINE START/STOP Button*........... 132
Ignition Switch and Power Mode Comparison ................................... 135
Turn Signals ..................................... 136
Light Switches.................................. 136
Fog Lights
*...................................... 139
Daytime Running Lights ................... 139
Wipers and Washers ........................ 140
Brightness Control ........................... 141
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 142
Adjusting the Steering Wheel........... 143 Adjusting the Mirrors
Interior Rearview Mirror ................... 144
Power Door Mirrors ......................... 144
Adjusting the Seats .......................... 146
Interior Lights/Interior Convenience
ItemsInterior Lights .................................. 154
Interior Convenience Items .............. 156
Heating and Cooling
*
Using Vents, Heating and A/C*........ 161
Climate Control System*
Using Automatic Climate Control .... 165Automatic Climate Control Sensors ...... 167
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 103 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

106
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, to lock and unlock the doors and to open
the trunk. You can also use the remote transmitter or smart entry system
* to lock
and unlock the doors and to open the trunk.
■Smart entry remote*
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.
■Master Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 125
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
Black
Master key without
remote transmitterMaster key with remote transmitter
without trunk buttonwith trunk button
Smart entry
remote
Built-in Key
Release Knob
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 106 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

108
uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*
Controls
Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors, opening the trunk, or to start the engine.
In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.1Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on re gularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 108 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

109
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
lock, and the security system sets.
Twice (within five se conds after the first
push):
u The beeper sounds and verifies the
security system is set.
■Using the Remote Transmitter*1Using the Remote Transmitter*
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
You can change the relock timer setting.
2 Customized Features P. 90
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 154
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
You can lock or unlock doors using the remote
transmitter or smart entry system only when the
power mode in VEHICLE OFF.
The remote will not lock th e vehicle when a door is
open.
Models without smart entry system
Models with smart entry system
All models
LED
Unlock Button
Lock Button
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 109 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
110
Controls
■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver's door unlocks.
Twice: u The remaining doors unlock.1Using the Remote Transmitter*
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 401
You can customize the door unlock mode setting. 2 Customized Features P. 90
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 110 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

Continued111
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
When you carry the sm art entry remote, you
can lock/unlock the doors and open the trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.
■Locking the doors and the trunk Press the door lock button on the front door.u Some exterior lights flash; the beeper
sounds; all the doors lock; and the
security system sets.
■Using the Smart Entry with Push Button Start System*
Door Lock Button
1Using the Smart Entry with Push Button Start System*
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
•If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•You cannot unlock the door by gripping the handle
after two seconds of unlocking it.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the smart
entry remote if it is a bove or below the outside
handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 401
You can customize the door lock mode and keyless
lock acknowledge ment setting.
2 Customized Features P. 90, 233
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 111 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

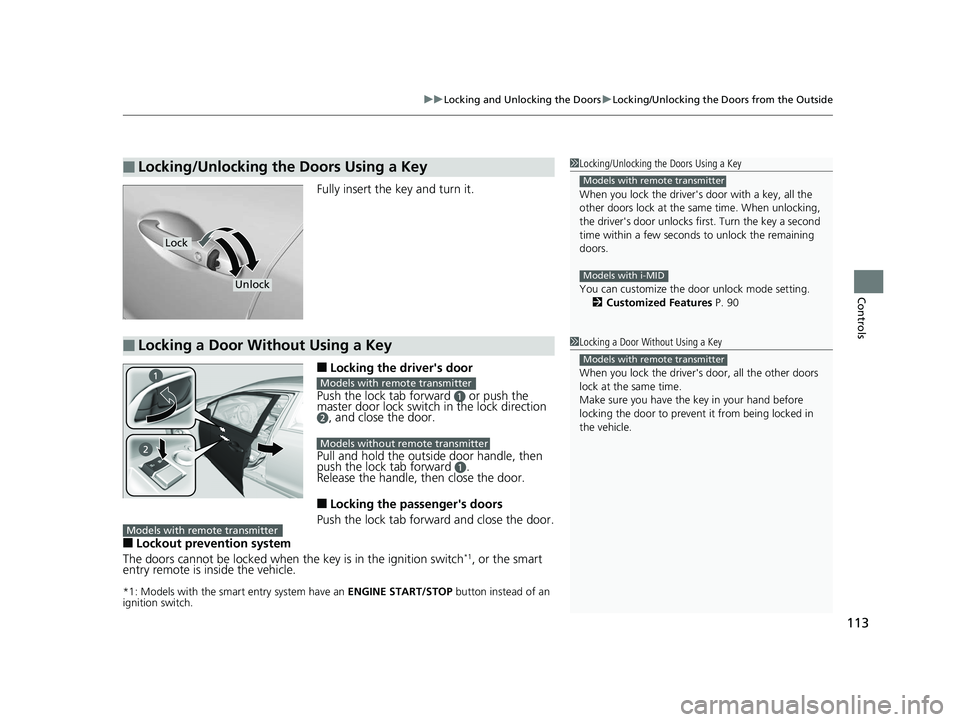

113
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Fully insert the key and turn it.
■Locking the driver's door
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
Pull and hold the outside door handle, then
push the lock tab forward
a.
Release the handle, then close the door.
■Locking the passenger's doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors cannot be locked when the key is in the ignition switch*1, or the smart
entry remote is inside the vehicle.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Locking/Unlocking the Doors Using a Key1 Locking/Unlocking the Doors Using a Key
When you lock the driver's door with a key, all the
other doors lock at the sa me time. When unlocking,
the driver's door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.
You can customize the door unlock mode setting. 2 Customized Features P. 90
Models with remote transmitter
Models with i-MID
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver's door, all the other doors
lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.
Models with remote transmitter
Models with remote transmitter
Models without remote transmitter
Models with remote transmitter
14 CIVIC 4D_SI-31TR36210.book 113 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

114
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

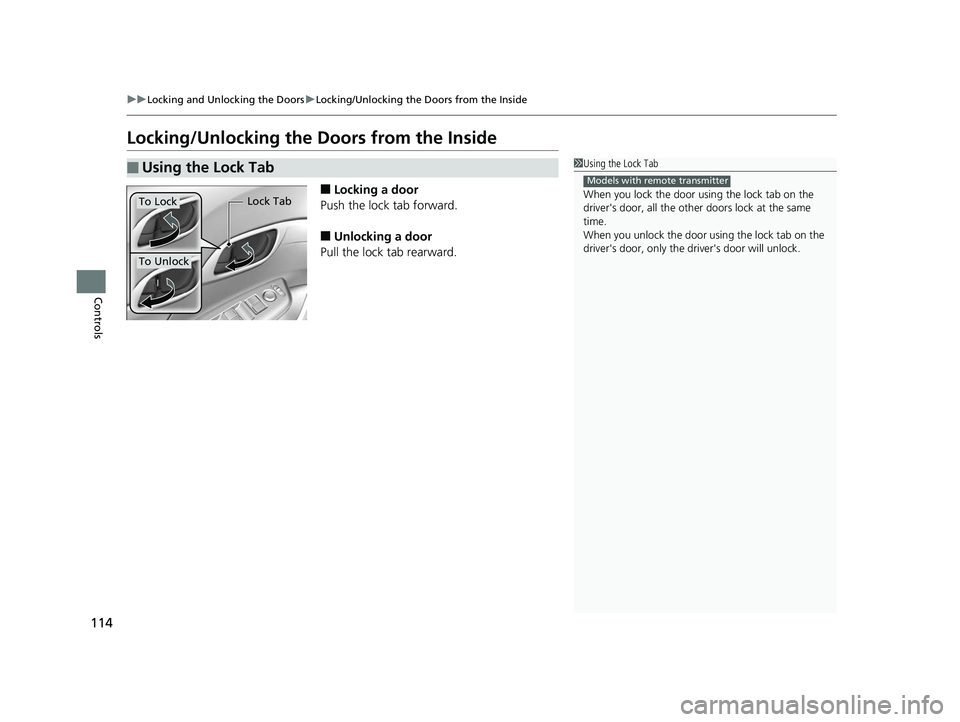

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, all the other doors lock at the same
time.
When you unlock the door using the lock tab on the
driver's door, only the driv er's door will unlock.
Models with remote transmitter
To UnlockLock Tab
To Lock
14 CIVIC 4D_SI-31TR36210.book 114 ページ ２０１４年１月３０日　木曜日　午後１２時１８分
