roof HONDA CIVIC SEDAN 2014 Owner's Manual (in English)

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 27
For Safe Driving P. 28 Seat Belts P. 32 Airbags P. 39
2Instrument Panel P. 67
Indicators P. 68 Gauges and Displays P. 82
2Controls P. 103
Clock P. 104 Locking and Unlocking the Doors P. 106
Opening and Closing the Moonroof* P. 130
Adjusting the Seats P. 146
Climate Control System
* P. 165
2 Features P. 169
Audio System P. 170 Audio System Basic Operation P. 176, 179, 197
Customized Features* P. 233 Bluetooth® HandsFreeLink ®* P. 246, 277
2Driving P. 303
Before Driving P. 304 Towing a Trailer P. 309
Rearview Camera* P. 342 Refueling P. 343 Fuel Economy P. 346
2Maintenance P. 349
Before Performing Maintenance P. 350 Maintenance MinderTM P. 353
Checking and Maintaining Wiper Blades P. 389
Heating and Cooling System
*/Climate Control System* Maintenance P. 403
2 Handling the Unexpected P. 409
Tools P. 410 If a Tire Goes Flat P. 411
Overheating P. 433 Indicator, Coming On/Blinking P. 435
2Information P. 443
Specifications P. 444 Identification Numbers P. 448
Emissions Testing P. 451 Warranty Coverages P. 453
14 CIVIC 4D_SI-31TR36210.book 0 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

5
Quick Reference Guide❙Seat Belt to Secure a Child Seat (P 61)
❙Seat Belt (Installing a Child Seat) (P 59)
❙Sun Visors
❙Vanity Mirrors
❙Moonroof Switch* (P 130)
❙Map Lights* (P 155)
❙USB Adapter Cable*
(P 172)
❙Front Seat (P 146)
❙Seat Belts (P 32)
❙Side Airbags (P 46)
❙Rear Seat (P 152)
❙LATCH to Secure a Child Seat (P 57)
❙Ceiling Light (P 154)
❙Side Curtain Airbags (P 48)
❙Coat Hook (P 159)
❙Grab Handle
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 5 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

22
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear
door with the outside door handle.
To cancel this function, push the lever
to the unlock position.
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?
If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:
●The key is left in the ignition switch*.
●The power mode* is in ACCESSORY.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger are not wearing their seat belts.
●The parking brake lever is not fully released.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Models with remote transmitter
14 CIVIC 4D_SI-31TR36210.book 22 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

48
uuAirbags uSide Curtain Airbags
Safe Driving
Side Curtain Airbags
The side curtain airbags help protect the heads of the driver and passengers in outer
seating positions during a moderate-to-sever e side impact. The side curtain airbags
equipped in this vehicle are also designed to help reduce the likelihood of partial and
complete ejection of vehicle occupants thr ough side windows in crashes, particularly
rollover crashes.
The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.
The side curtain airbag is designed to deploy
in a rollover or a moderate-to-severe side
impact.
■Housing Locations
1Side Curtain Airbags
If the SRS control unit sens es that your vehicle is
about to rollover, it imme diately deploys both side
curtain airbags and activates both front seat belt
tensioners.
If the impact is on the passenger’s side, the
passenger’s side curtain airbag will inflate even if
there are no occupants on that side of the vehicle.
To get the best protecti on from the side curtain
airbags, occupants should wear their seat belts
properly and sit upr ight and well back in their seats.
Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.
Side Curtain Airbag Storage
■Operation
Deployed Side Curtain Airbag
14 CIVIC 4D_SI-31TR36210.book 48 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

103
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 104
Locking and Unlocking the Doors Key Types and Functions .................. 106
Low Smart Entry Remote Signal Strength*....... 108Locking/Unlocking the Doors from the Outside .......................................... 109
Locking/Unlocking the Doors from the Inside ............................................. 114
Childproof Door Locks ..................... 116
Auto Door Locking/Unlocking
*........ 117
Opening and Closing the Trunk ....... 121
Security System Immobilizer System .......................... 125
Security System Alarm
*.................... 125Opening and Closing the Windows ..... 128Opening and Closing the Moonroof*..... 130
Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 131
ENGINE START/STOP Button*........... 132
Ignition Switch and Power Mode Comparison ................................... 135
Turn Signals ..................................... 136
Light Switches.................................. 136
Fog Lights
*...................................... 139
Daytime Running Lights ................... 139
Wipers and Washers ........................ 140
Brightness Control ........................... 141
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 142
Adjusting the Steering Wheel........... 143 Adjusting the Mirrors
Interior Rearview Mirror ................... 144
Power Door Mirrors ......................... 144
Adjusting the Seats .......................... 146
Interior Lights/Interior Convenience
ItemsInterior Lights .................................. 154
Interior Convenience Items .............. 156
Heating and Cooling
*
Using Vents, Heating and A/C*........ 161
Climate Control System*
Using Automatic Climate Control .... 165Automatic Climate Control Sensors ...... 167
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 103 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

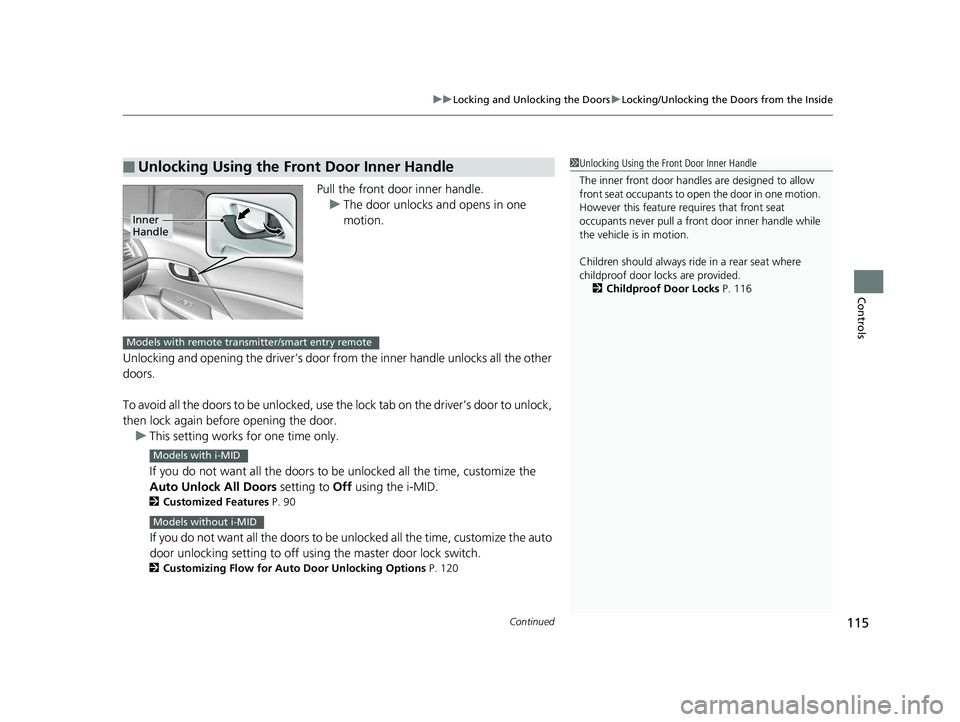

Continued115
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only.
If you do not want all the doors to be unlocked all the time, customize the
Auto Unlock All Doors setting to Off using the i-MID.
2Customized Features P. 90
If you do not want all the doors to be unlocked all the time, customize the auto
door unlocking setting to off using the master door lock switch.
2 Customizing Flow for Auto Door Unlocking Options P. 120
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The inner front door handl es are designed to allow
front seat occupants to open the door in one motion.
However this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 116
Inner
Handle
Models with remote transmitter/smart entry remote
Models with i-MID
Models without i-MID
14 CIVIC 4D_SI-31TR36210.book 115 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

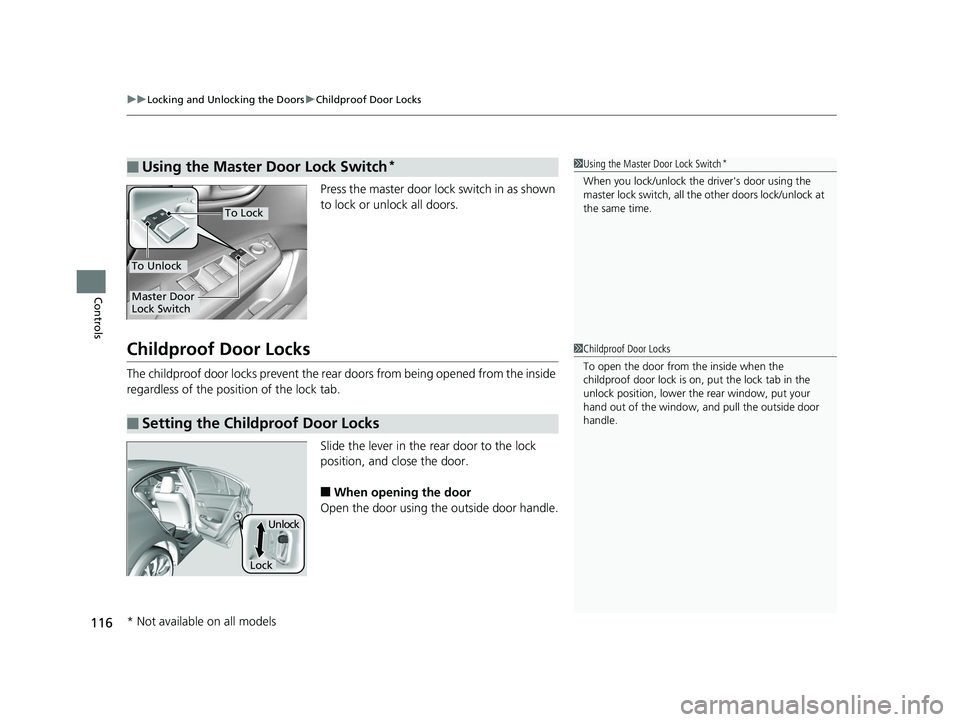

uuLocking and Unlocking the Doors uChildproof Door Locks
116
Controls
Press the master door lock switch in as shown
to lock or unlock all doors.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch*1 Using the Master Door Lock Switch*
When you lock/unlock the driver's door using the
master lock switch, all th e other doors lock/unlock at
the same time.
To Unlock
Master Door
Lock Switch
To Lock
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock
Unlock
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 116 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

130
Controls
Opening and Closing the Moonroof*
You can only operate the moonroof when the ignition switch is in ON (w*1. Use the
switch in the front of the ceiling to open and close the moonroof.
■Automatic operation
To open: Pull the switch back firmly.
To close: Push the switch forward firmly.
The moonroof will automatically open or close
all the way. To stop the moonroof midway,
touch the switch briefly.
■Manual operation
To open: Pull the switch back, and hold it
until the desired position is reached.
To close: Push the switch forward, and hold it
until the desired position is reached.
■Tilting the moonroof up
To tilt: Push on the center of the moonroof
switch.
To close: Push the switch fo rward firmly, then
release.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Opening/Closing the Moonroof1 Opening/Closing the Moonroof
NOTICE
Opening the moonroof in below freezing
temperature or when it is covered with snow or ice
can damage the moonr oof panel or motor.
The power moonroof can be operated for up to 10
minutes after you turn the ignition switch off.
Opening either front door cancels this function.
When resistance is detected, the auto reverse
function causes the moonroof to change directions,
then stop. Auto reverse stops sensing when the
moonroof is almost closed to ensure that it fully
closes. Make sure that al l objects, including fingers,
are clear of the moonroof.
3WARNING
Opening or closing the moonroof on
someone's hands or fingers can cause
serious injury.
Make sure all hands and fingers are clear of
the moonroof before opening or closing it.
Open
CloseTilt
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 130 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

304
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressure, check for damage and excessive wear.
2 Checking and Maintaining Tires P. 391
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal.
Also check under the hood fo r leftover flammable
materials after you or so meone else has performed
maintenance on your vehicle.
14 CIVIC 4D_SI-31TR36210.book 304 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

440
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1HAC Option*(20 A)
2ACG10 A
3SRS10 A
4Fuel Pump15 A
5Meter7.5 A
6Power Window7.5 A
7VB SOL*(15 A)
8Door Lock Motor 2 (Unlock)15 A
9Door Lock Motor 1 (Unlock)15 A
10−−
11Moonroof*(20 A)
12Accessory Power Socket
(Center Console)*(20 A)
13−−
14Seat Heaters*(15 A)
15Driver’s Door Lock Motor (Unlock)*(10 A)
16−−
17−−
18−−
19ACC7.5 A
20ACC Key Lock7.5 A
21Daytime Running Lights7.5 A
22HAC7.5 A
23HAC*(7.5 A)
24ABS/VSA7.5 A
25ACC*(7.5 A)
26−−
27Accessory Power Socket (Front)20 A
28Washer(15 A)
29ODS7.5 A
30Driver’s Door Lock Motor
(Lock)*(10 A)
31SMART*(10 A)
32Door Lock Motor 2 (Lock)15 A
Circuit ProtectedAmps
33Door Lock Motor 1 (Lock)15 A
34Small Lights7.5 A
35Illumination7.5 A
36−−
37−−
38Left Headlight High Beam10 A
39Right Headlight High Beam10 A
40TPMS*(7.5 A)
41Door Lock20 A
42Driver’s Power Window20 A
43Rear Passenger’s Side Power Window(20 A)
44Front Passenger’s Side Power Window20 A
45Rear Driver’s Side Power Window(20 A)
46Wiper(30 A)
−STS*(7.5 A)
Circuit ProtectedAmps
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 440 ページ ２０１４年１月３０日　木曜日　午後１２時１８分
