HONDA CIVIC SEDAN 2019 Owner's Manual (in English)

Continued119
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

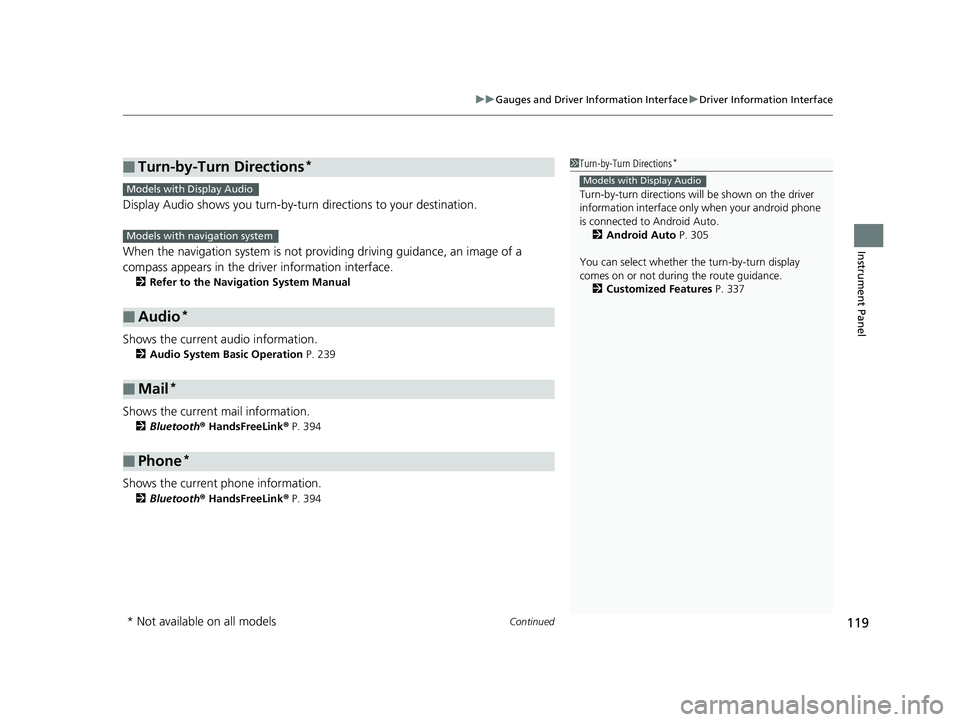

Display Audio shows you turn-by-turn directions to your destination.
When the navigation system is not prov iding driving guidance, an image of a
compass appears in the driver information interface.
2 Refer to the Navigation System Manual
Shows the current audio information.
2Audio System Basic Operation P. 239
Shows the current mail information.
2Bluetooth ® HandsFreeLink ® P. 394
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 394
■Turn-by-Turn Directions*
■Audio*
■Mail*
■Phone*
1 Turn-by-Turn Directions*
Turn-by-turn directions wi ll be shown on the driver
information interface only when your android phone
is connected to Android Auto. 2 Android Auto P. 305
You can select whether the turn-by-turn display
comes on or not during the route guidance. 2 Customized Features P. 337
Models with Display AudioModels with Display Audio
Models with navigation system
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 119 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

120
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

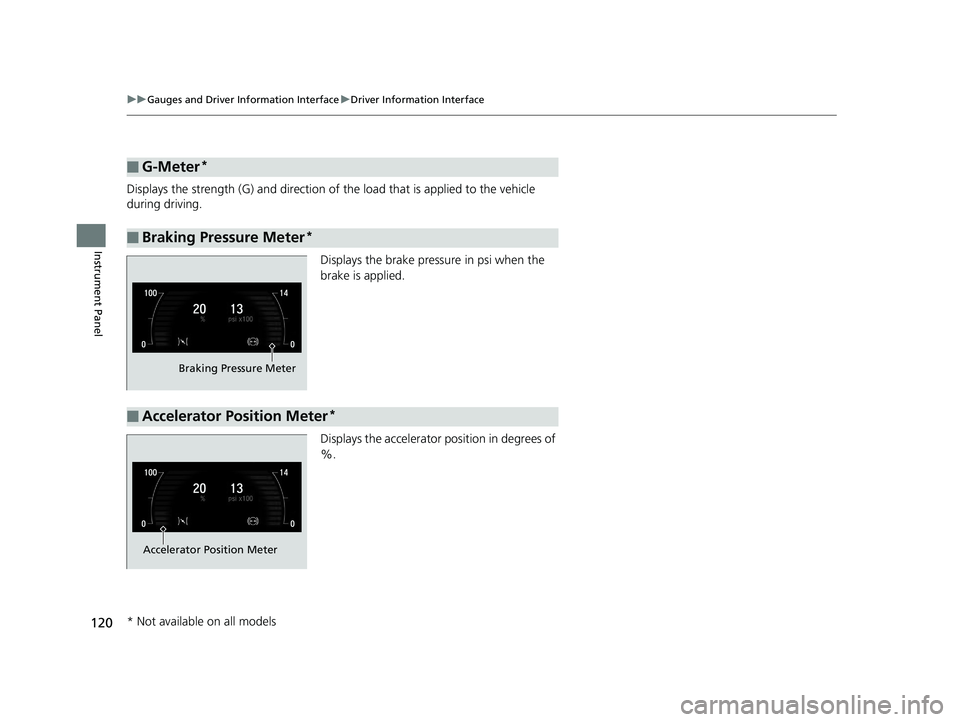

Displays the strength (G) and direction of the load that is applied to the vehicle
during driving.
Displays the brake pressure in psi when the
brake is applied.
Displays the accelerator position in degrees of
%.
■G-Meter*
■Braking Pressure Meter*
Braking Pressure Meter
■Accelerator Position Meter*
Accelerator Position Meter
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 120 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

121
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

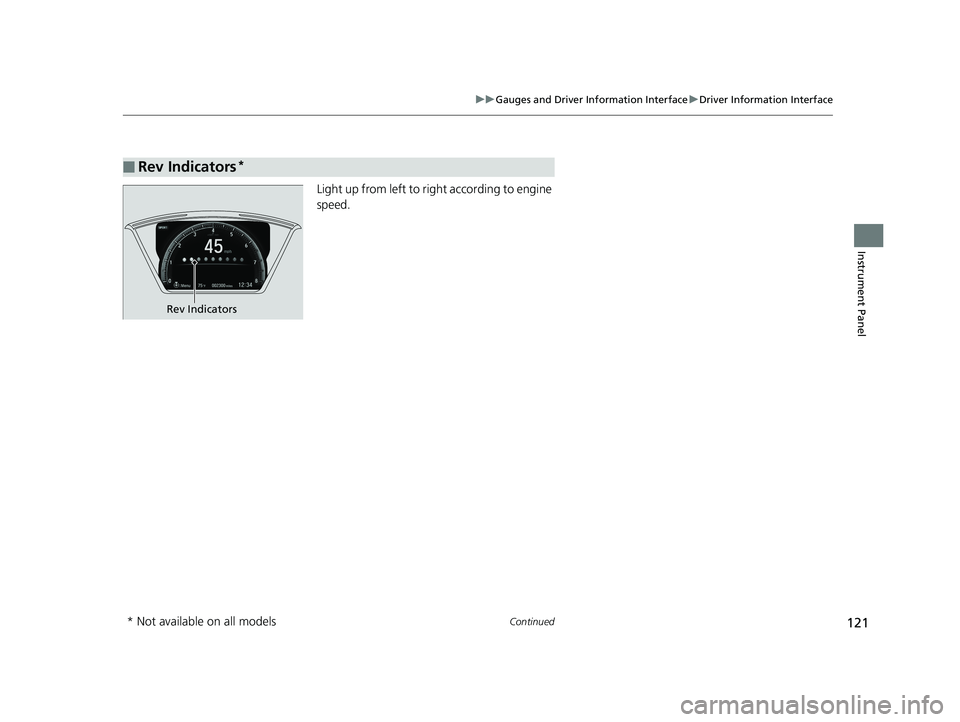

Light up from left to righ t according to engine
speed.
■Rev Indicators*
Rev Indicators
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 121 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

uuGauges and Driver Information Interface uDriver Information Interface
122
Instrument Panel

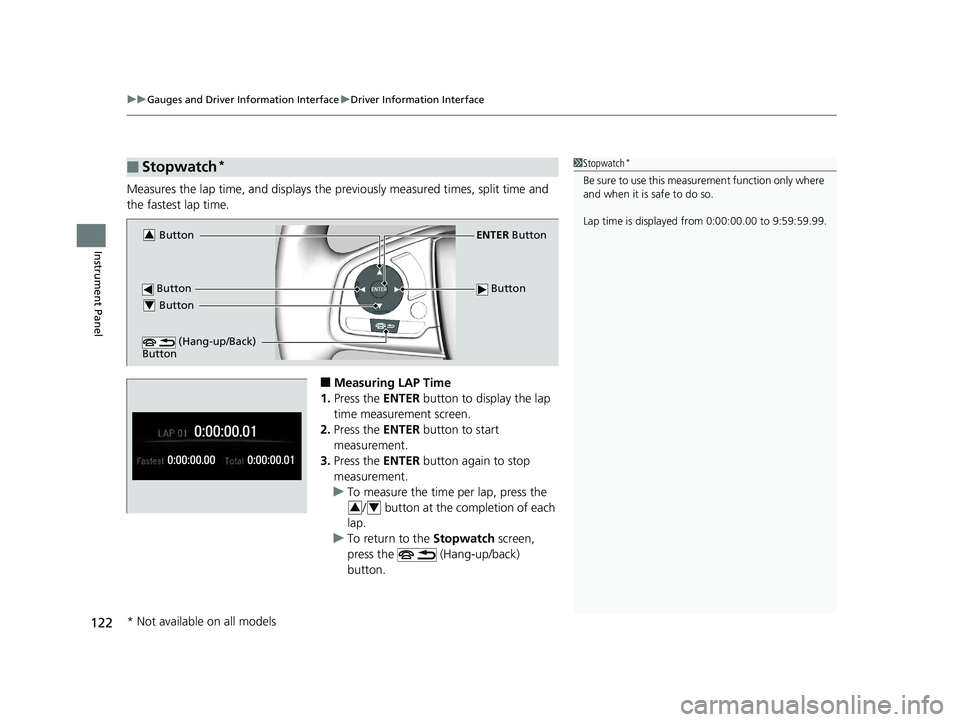

Measures the lap time, and displays the previously measured ti mes, split time and
the fastest lap time.
■Measuring LAP Time
1. Press the ENTER button to display the lap
time measurement screen.
2. Press the ENTER button to start
measurement.
3. Press the ENTER button again to stop
measurement.
u To measure the time per lap, press the
/ button at the completion of each
lap.
u To return to the Stopwatch screen,
press the (Hang-up/back)
button.
■Stopwatch*1 Stopwatch*
Be sure to use this measurement function only where
and when it is safe to do so.
Lap time is displayed fr om 0:00:00.00 to 9:59:59.99.
Button
ENTER Button
Button Button3
Button4
(Hang-up/Back)
Button
34
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 122 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

123
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

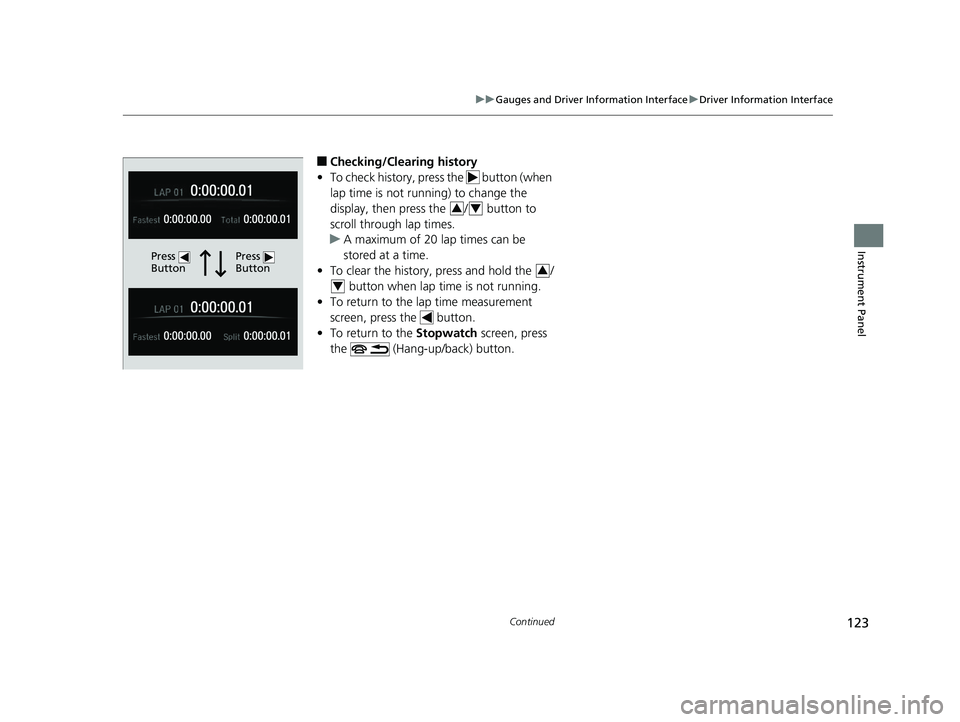

■Checking/Clearing history
• To check history, press the button (when
lap time is not running) to change the
display, then pres s the / button to
scroll through lap times.
u A maximum of 20 lap times can be
stored at a time.
• To clear the history, press and hold the /
button when lap time is not running.
• To return to the lap time measurement
screen, press the button.
• To return to the Stopwatch screen, press
the (Hang-up/back) button.
Press
ButtonPress
Button
34
3
4
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 123 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

uuGauges and Driver Information Interface uDriver Information Interface
124
Instrument Panel

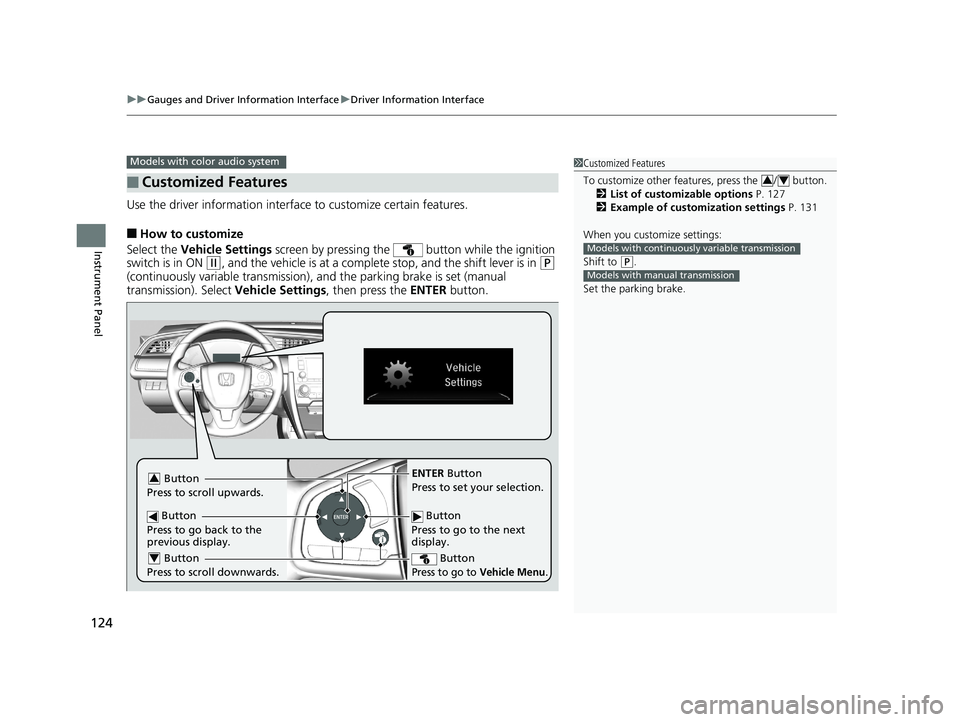

Use the driver information interfac e to customize certain features.
■How to customize
Select the Vehicle Settings screen by pressing the button while the ignition
switch is in ON
(w, and the vehicle is at a complete stop, and the shift lever is in (P
(continuously variable transmission), and the parking brake is set (manual
transmission). Select Vehicle Settings, then press the ENTER button.
■Customized Features
Models with color audio system1Customized Features
To customize other features, press the / button.
2 List of customizable options P. 127
2 Example of customization settings P. 131
When you customize settings:
Shift to
( P.
Set the parking brake.
34
Models with continuousl y variable transmission
Models with manual transmission
Button
Press to go to the next
display.
ENTER Button
Press to set your selection.
Button
Press to go to Vehicle Menu.
Button
Press to scroll upwards.3
Button
Press to go back to the
previous display.
Button
Press to scroll downwards.4
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 124 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

125
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

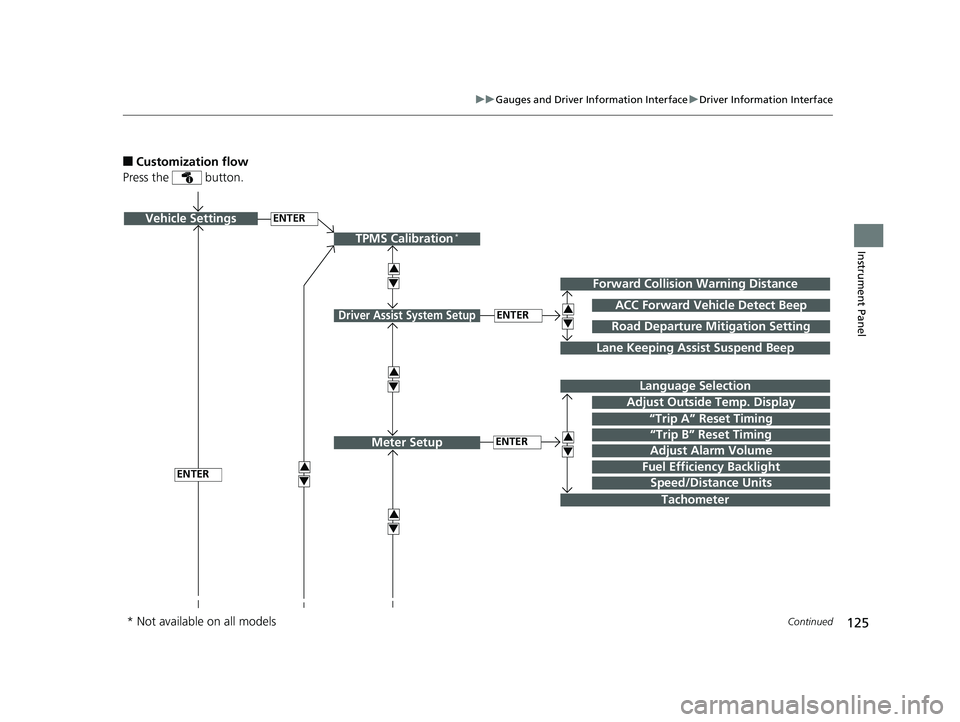

■Customization flow
Press the button.
ENTERVehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
3
4
TPMS Calibration*
ENTER
“Trip B” Reset Timing
Fuel Efficiency Backlight3
4
ACC Forward Vehicle Detect Beep
3
4
Tachometer
ENTER
Forward Collision Warning Distance
3
4
3
4
Lane Keeping Assist Suspend Beep
Road Departure Mi tigation Setting
Adjust Alarm Volume
Speed/Distance Units
3
4
ENTER
Driver Assist System Setup
Meter Setup
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 125 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

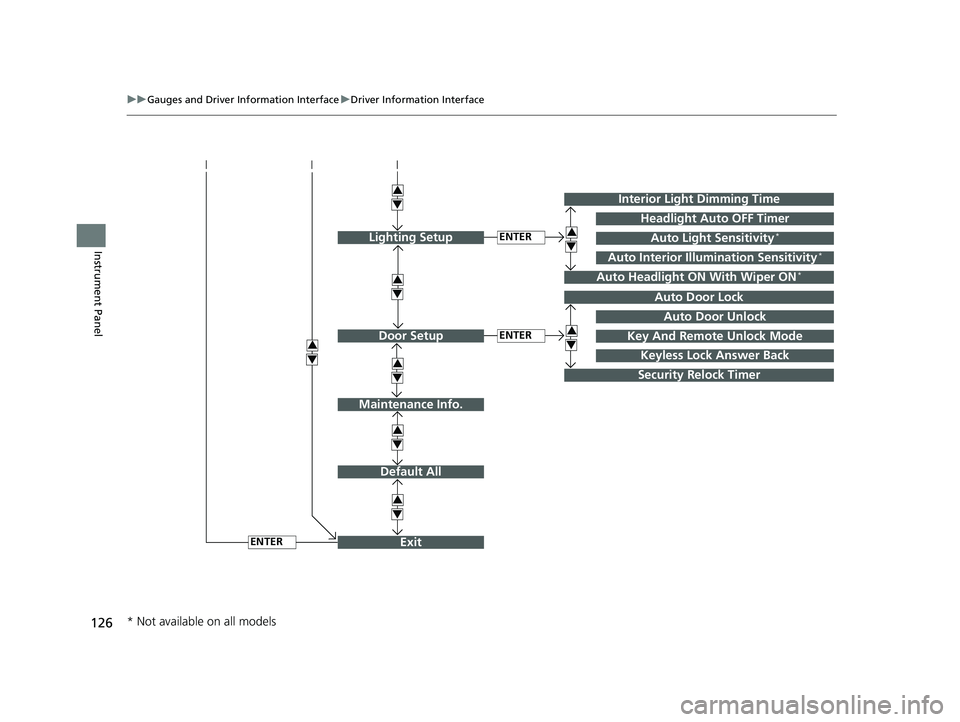

126
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Exit
3
4
3
4
3
4
Maintenance Info.
Default All
3
4
ENTER
3
4
3
4
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Security Relock Timer
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity*3
4
3
4
Auto Headlight ON With Wiper ON*
ENTER
ENTER
Auto Interior Illumination Sensitivity*
Lighting Setup
Door Setup
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 126 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

127
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

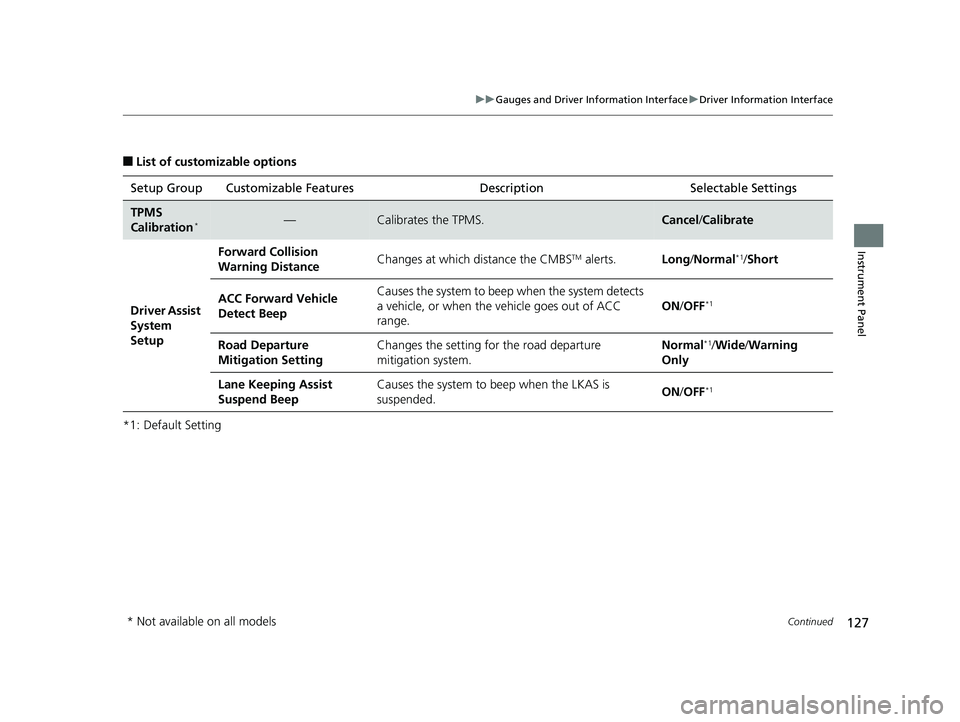

■List of customizable options
*1: Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
Calibration*—Calibrates the TPMS.Cancel/Calibrate
Driver Assist
System
Setup Forward Collision
Warning Distance
Changes at which distance the CMBS
TM alerts.
Long/Normal*1/ Short
ACC Forward Vehicle
Detect Beep Causes the system to beep
when the system detects
a vehicle, or when the vehicle goes out of ACC
range. ON
/OFF
*1
Road Departure
Mitigation Setting Changes the setting fo
r the road departure
mitigation system. Normal*1/
Wide /Warning
Only
Lane Keeping Assist
Suspend Beep Causes the system to b
eep when the LKAS is
suspended. ON
/OFF
*1
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 127 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

128
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

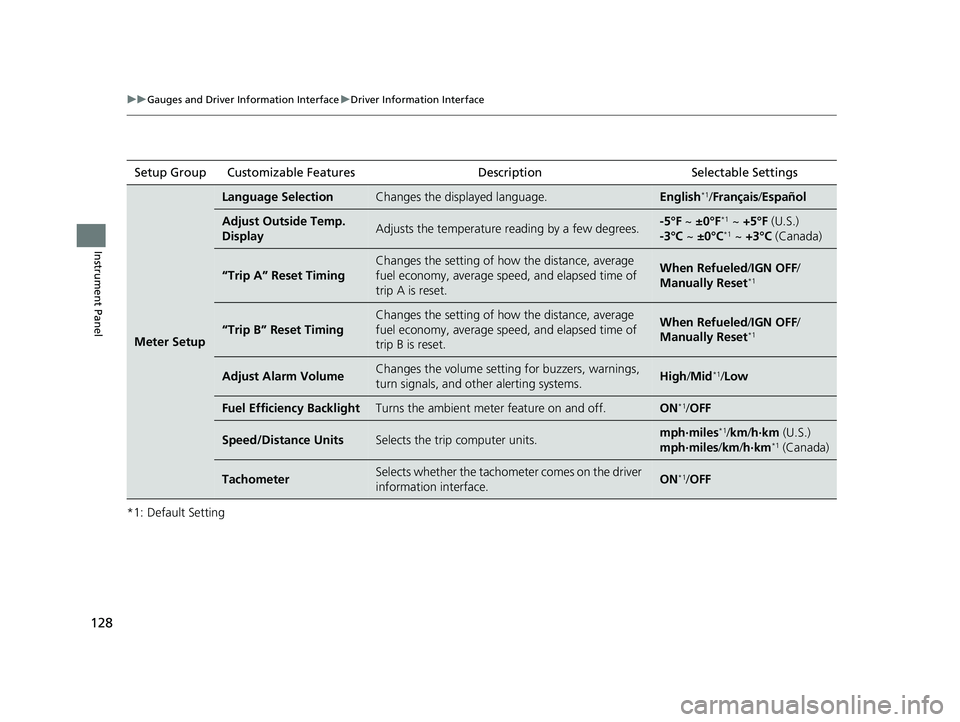

*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
“Trip A” Reset Timing
Changes the setting of how the distance, average
fuel economy, average sp eed, and elapsed time of
trip A is reset.When Refueled /IGN OFF /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how the distance, average
fuel economy, average sp eed, and elapsed time of
trip B is reset.When Refueled /IGN OFF /
Manually Reset*1
Adjust Alarm VolumeChanges the volume setti ng for buzzers, warnings,
turn signals, and other alerting systems.High /Mid*1/Low
Fuel Efficiency BacklightTurns the ambient meter feature on and off.ON*1/ OFF
Speed/Distance UnitsSelects the trip computer units.mph∙miles*1/km /h∙km (U.S.)
mph∙miles /km/ h∙km*1 (Canada)
TachometerSelects whether the tachometer comes on the driver
information interface.ON*1/OFF
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 128 ページ ２０１８年１０月２６日　金曜日　午前７時４２分
