HONDA CIVIC SEDAN 2019 Owner's Manual (in English)

659
Information

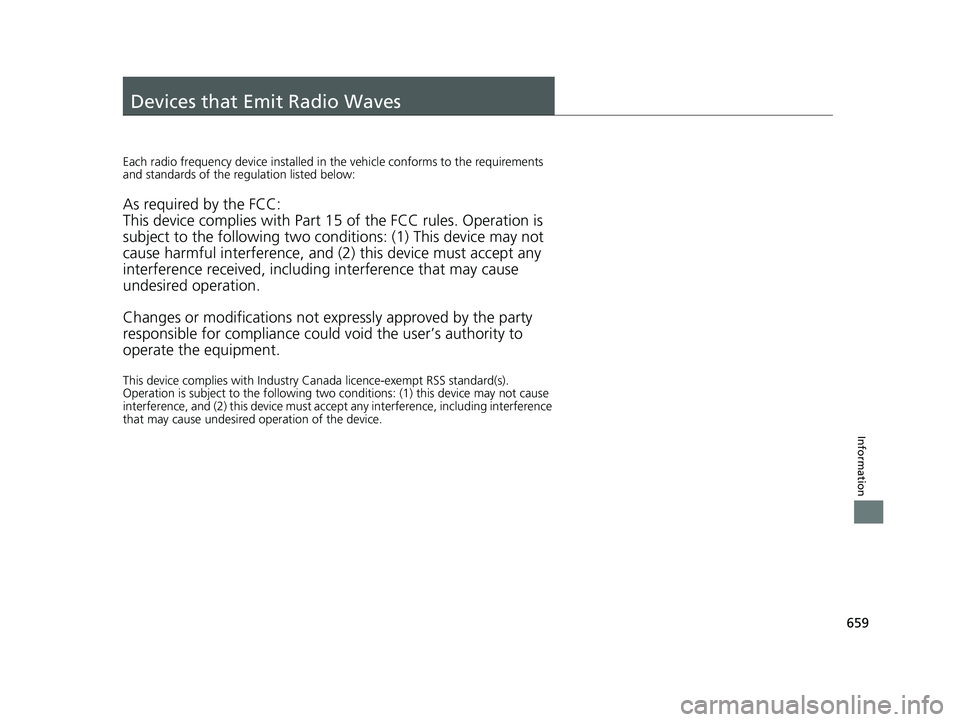

Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 659 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

660
Information

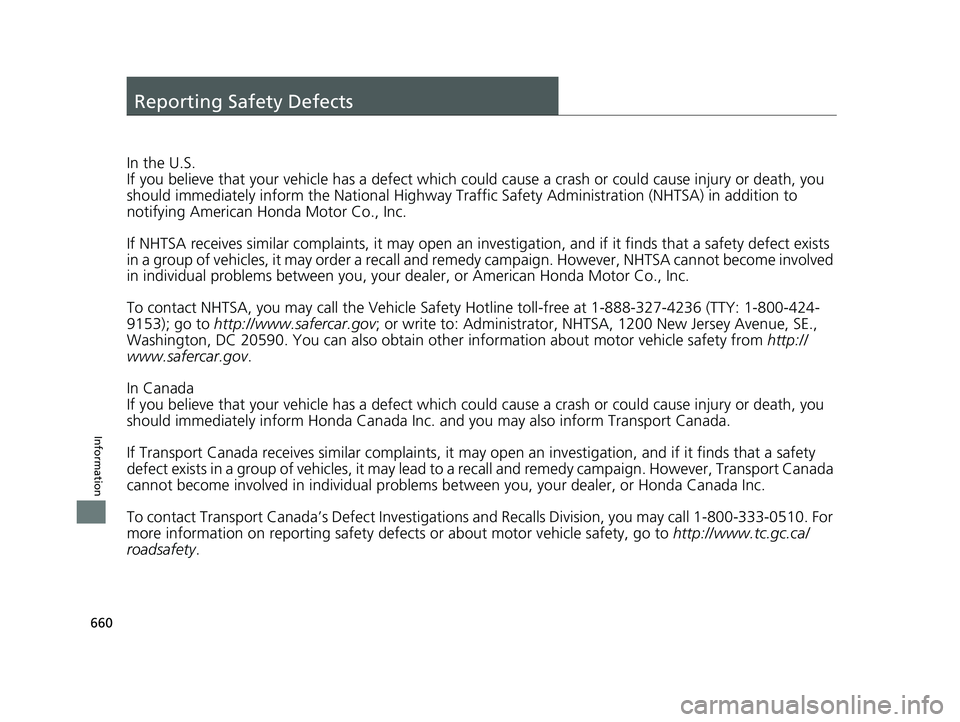

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 660 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

661Continued
Information

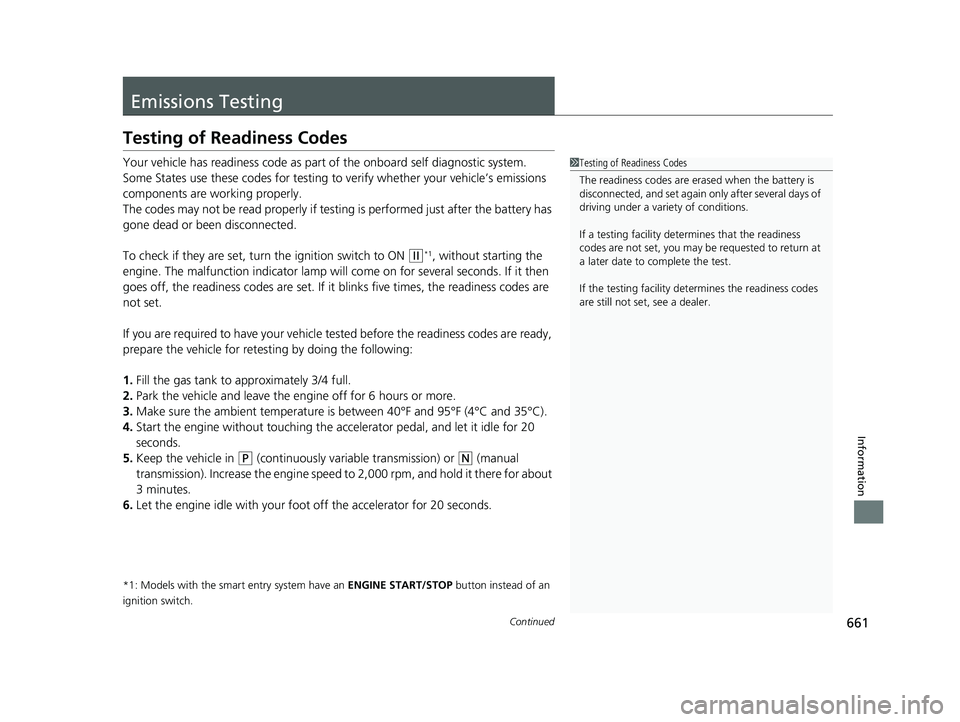

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 661 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

662

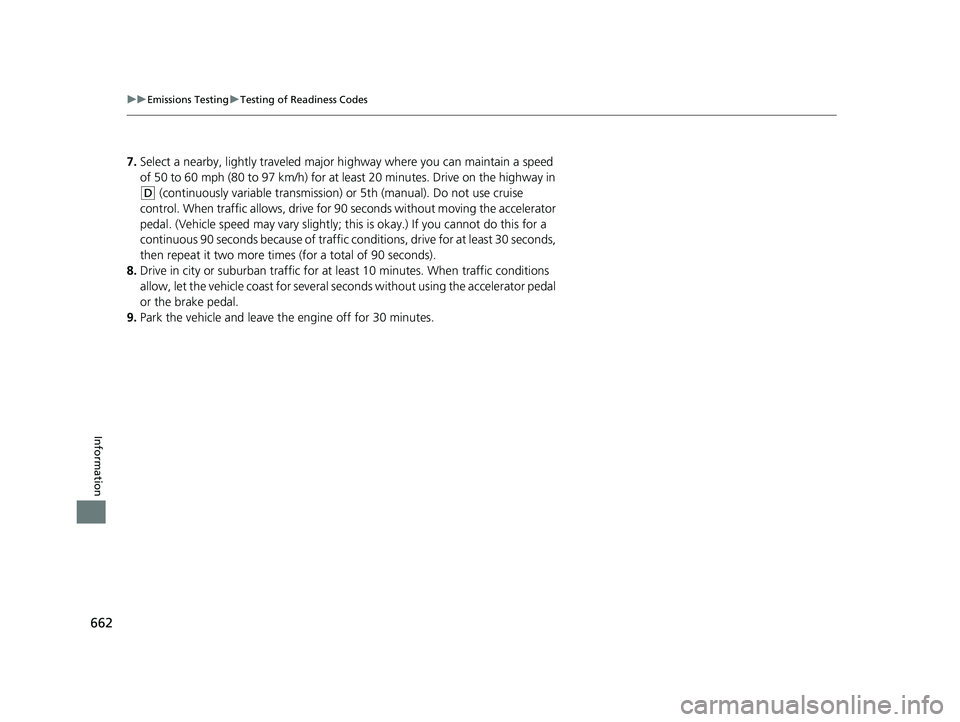

uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (continuously variable transmission) or 5th (manual). Do not use cruise
control. When traffic allows , drive for 90 seconds without moving the accelerator
pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do this for a
continuous 90 seconds because of traffic conditions, drive for at least 30 seconds,
then repeat it two more time s (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 662 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

663Continued
Information

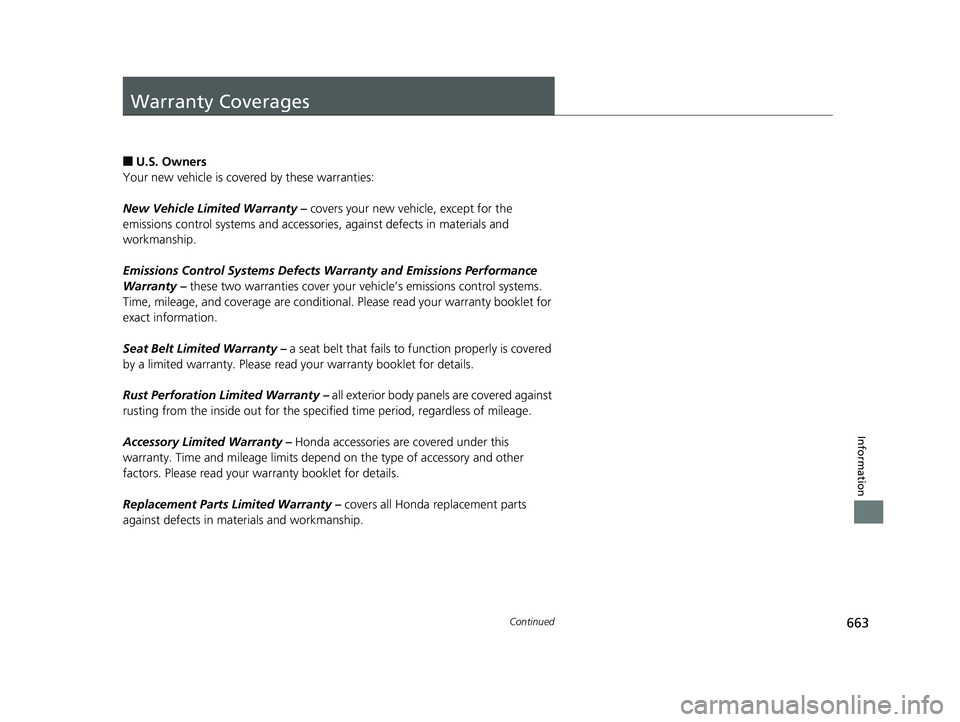

Warranty Coverages
■U.S. Owners
Your new vehicle is cove red by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limite d Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 663 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

664

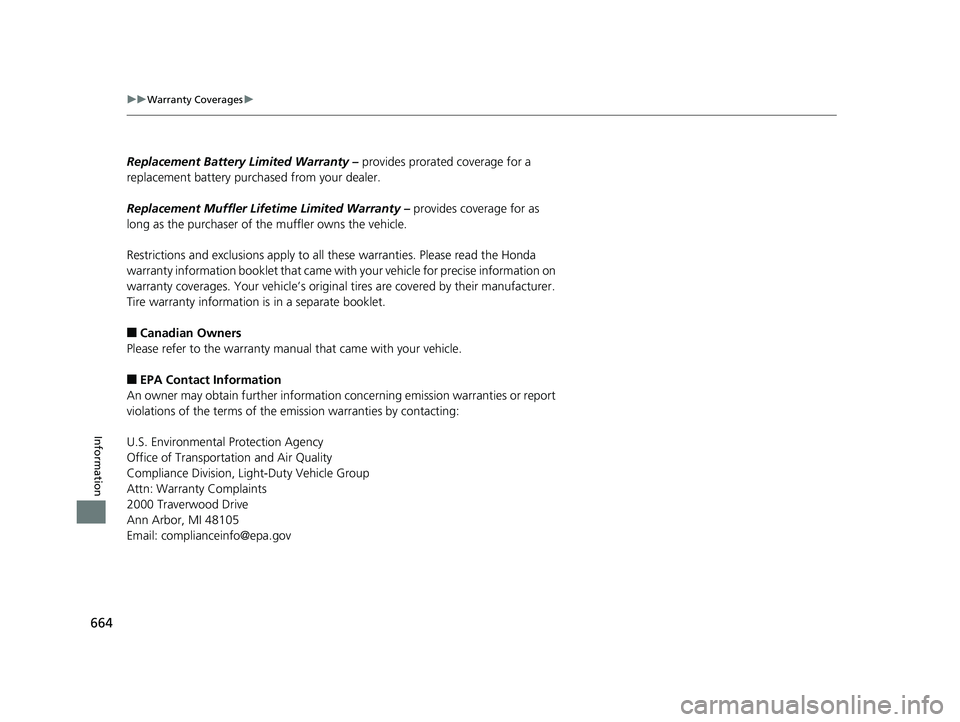

uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from your dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Li ght-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: [email protected]
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 664 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

665
Information

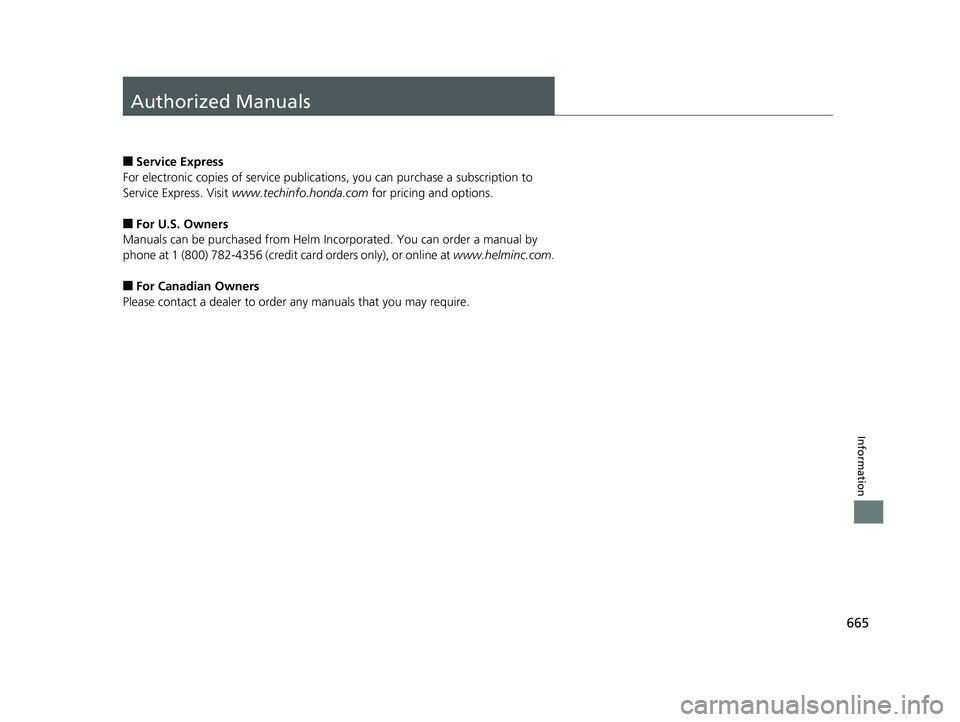

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 665 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

666
Information

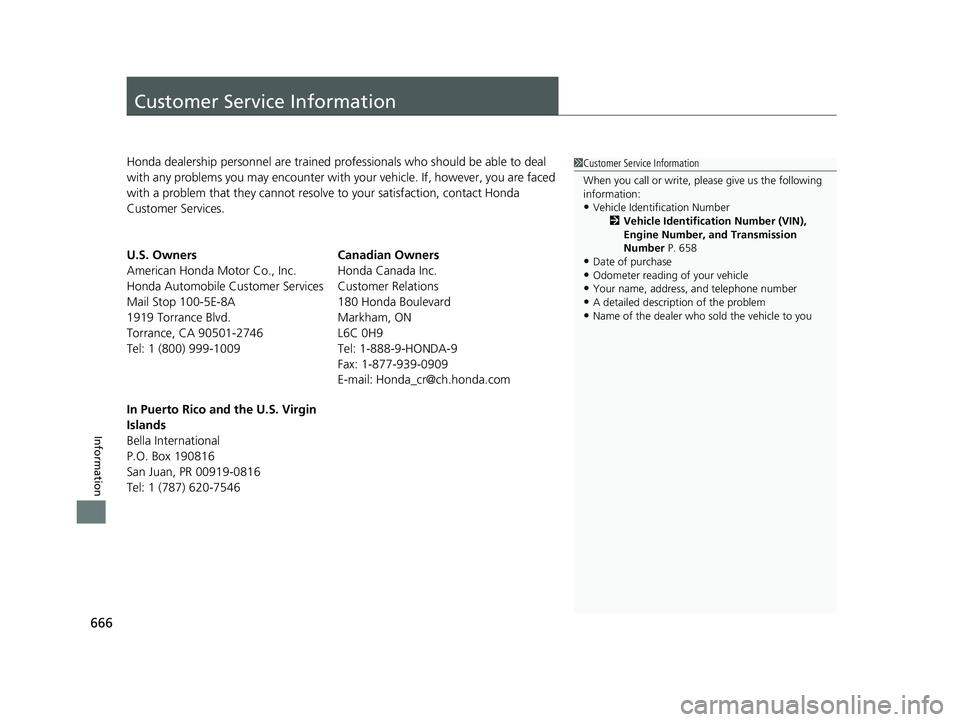

Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolv e to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico an d the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 658
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 666 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

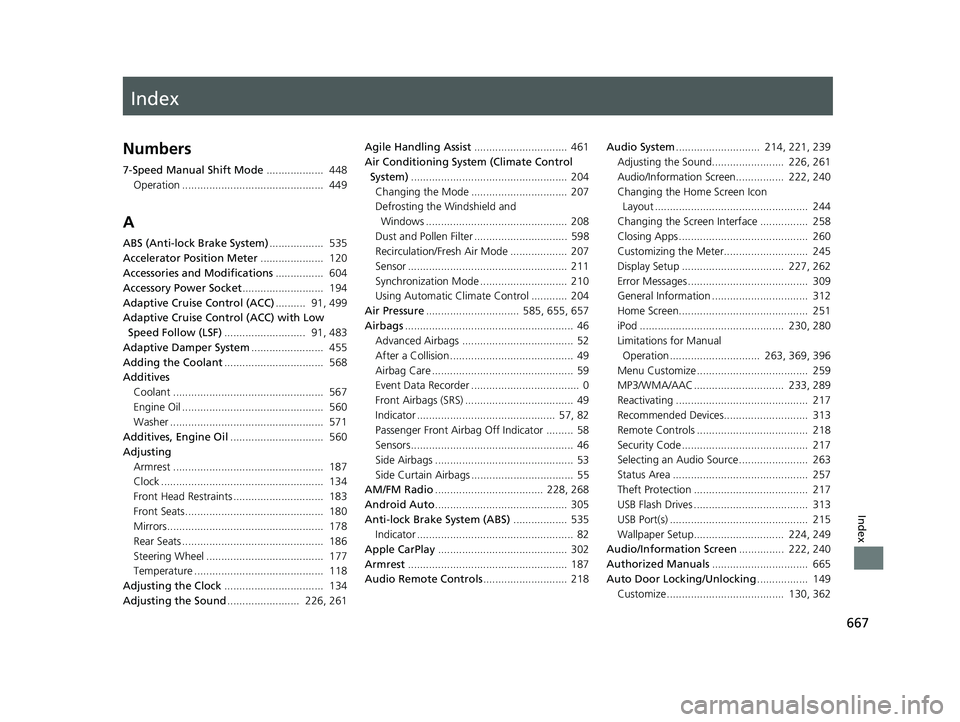

Index
667
Index
Index
Numbers
7-Speed Manual Shift Mode................... 448
Operation ............................................... 449
A
ABS (Anti-lock Brake System) .................. 535
Accelerator Position Meter ..................... 120
Accessories and Modifications ................ 604
Accessory Power Socket ........................... 194
Adaptive Cruise Control (ACC) .......... 91, 499
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 91, 483
Adaptive Damper System ........................ 455
Adding the Coolant ................................. 568
Additives
Coolant .................................................. 567
Engine Oil ............................................... 560
Washer ................................................... 571
Additives, Engine Oil ............................... 560
Adjusting
Armrest .................................................. 187
Clock ...................................................... 134
Front Head Restraints .............................. 183
Front Seats.............................................. 180
Mirrors.................................................... 178
Rear Seats ............................................... 186
Steering Wheel ....................................... 177
Temperature ........................................... 118
Adjusting the Clock ................................. 134
Adjusting the Sound ........................ 226, 261 Agile Handling Assist
............................... 461
Air Conditioning System (Climate Control
System) .................................................... 204
Changing the Mode ................................ 207
Defrosting the Windshield and
Windows ............................................... 208
Dust and Pollen Filter ............................... 598
Recirculation/Fresh Air Mode ................... 207
Sensor ..................................................... 211
Synchronization Mode ............................. 210
Using Automatic Climate Control ............ 204
Air Pressure ............................... 585, 655, 657
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 82
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio .................................... 228, 268
Android Auto ............................................ 305
Anti-lock Brake System (ABS) .................. 535
Indicator .................................................... 82
Apple CarPlay ........................................... 302
Armrest ..................................................... 187
Audio Remote Controls ............................ 218 Audio System
............................ 214, 221, 239
Adjusting the Sound........................ 226, 261
Audio/Information Screen................ 222, 240
Changing the Home Screen Icon Layout ................................................... 244
Changing the Screen Interface ................ 258
Closing Apps ........................................... 260
Customizing the Meter............................ 245
Display Setup .................................. 227, 262
Error Messages ........................................ 309
General Information ................................ 312
Home Screen........................................... 251
iPod ................................................ 230, 280
Limitations for Manual Operation .............................. 263, 369, 396
Menu Customize ..................................... 259
MP3/WMA/AAC .............................. 233, 289
Reactivating ............................................ 217
Recommended Devices............................ 313
Remote Controls ..................................... 218
Security Code .......................................... 217
Selecting an Audio Source ....................... 263
Status Area ............................................. 257
Theft Protection ...................................... 217
USB Flash Drives ...................................... 313
USB Port(s) .............................................. 215
Wallpaper Setup.............................. 224, 249
Audio/Information Screen ............... 222, 240
Authorized Manuals ................................ 665
Auto Door Locking/Unlocking ................. 149
Customize ....................................... 130, 362
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 667 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

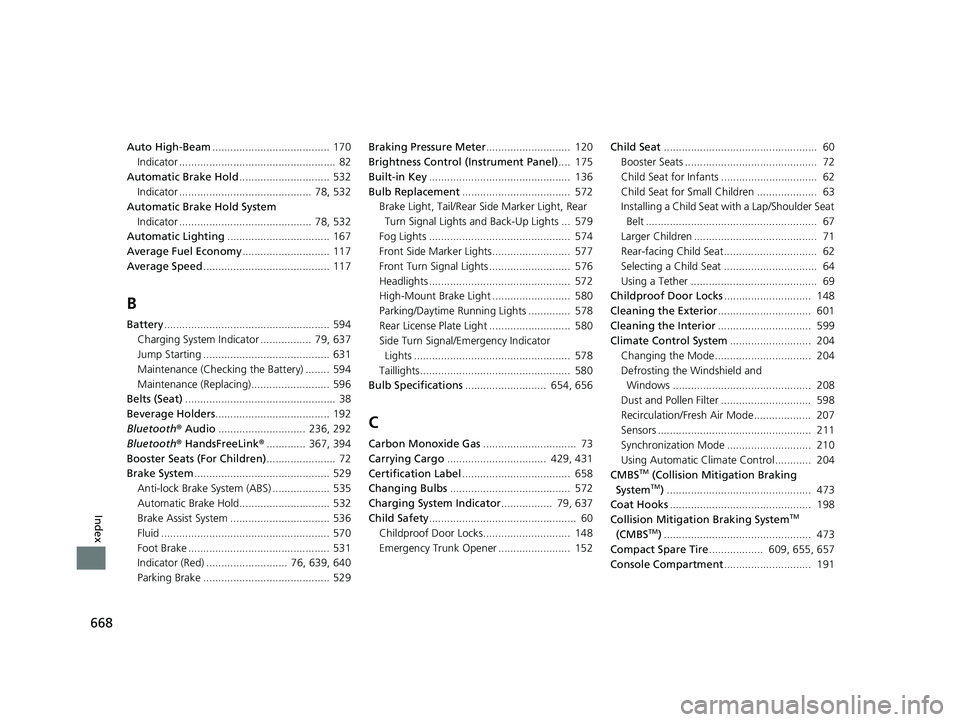

668
Index
Auto High-Beam....................................... 170
Indicator .................................................... 82
Automatic Brake Hold .............................. 532
Indicator ............................................ 78, 532
Automatic Brake Hold System
Indicator ............................................ 78, 532
Automatic Lighting .................................. 167
Average Fuel Economy ............................. 117
Average Speed .......................................... 117
B
Battery....................................................... 594
Charging System Indicator ................. 79, 637
Jump Starting .......................................... 631
Maintenance (Checking the Battery) ........ 594
Maintenance (Replacing).......................... 596
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 192
Bluetooth ® Audio ............................. 236, 292
Bluetooth ® HandsFreeLink ®............. 367, 394
Booster Seats (For Children) ....................... 72
Brake System ............................................. 529
Anti-lock Brake System (ABS) ................... 535
Automatic Brake Hold.............................. 532
Brake Assist System ................................. 536
Fluid ........................................................ 570
Foot Brake ............................................... 531
Indicator (Red) ........................... 76, 639, 640
Parking Brake .......................................... 529 Braking Pressure Meter
............................ 120
Brightness Control (Instrument Panel).... 175
Built-in Key ............................................... 136
Bulb Replacement .................................... 572
Brake Light, Tail/Rear Side Marker Light, Rear
Turn Signal Lights and Back-Up Lights ... 579
Fog Lights ............................................... 574
Front Side Marker Lights.......................... 577
Front Turn Signal Lights ........................... 576
Headlights ............................................... 572
High-Mount Brake Light .......................... 580
Parking/Daytime Running Lights .............. 578
Rear License Plate Light ........................... 580
Side Turn Signal/Emergency Indicator
Lights .................................................... 578
Taillights.................................................. 580
Bulb Specifications ........................... 654, 656
C
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 429, 431
Certification Label .................................... 658
Changing Bulbs ........................................ 572
Charging System Indicator ................. 79, 637
Child Safety ................................................. 60
Childproof Door Locks............................. 148
Emergency Trunk Opener ........................ 152 Child Seat
................................................... 60
Booster Seats ............................................ 72
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Larger Children ......................................... 71
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Using a Tether .......................................... 69
Childproof Door Locks ............................. 148
Cleaning the Exterior ............................... 601
Cleaning the Interior ............................... 599
Climate Control System ........................... 204
Changing the Mode................................ 204
Defrosting the Windshield and Windows .............................................. 208
Dust and Pollen Filter .............................. 598
Recirculation/Fresh Air Mode................... 207
Sensors ................................................... 211
Synchronization Mode ............................ 210
Using Automatic Climate Control............ 204
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 473
Coat Hooks ............................................... 198
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 473
Compact Spare Tire .................. 609, 655, 657
Console Compartment ............................. 191
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 668 ページ ２０１８年１０月２６日　金曜日　午前７時４２分
