display HONDA CIVIC SEDAN 2020 Owner's Manual (in English)

5
Quick Reference Guide❙Headlights/Turn Signals (P165)
❙ (TRIP) Knob (P116)
❙Brightness Control (P176)
❙LaneWatchTM * (P465)
❙Fog Lights* (P169)
❙Wipers/Washers (P173)
❙ (Display/Information) Button (P114)
❙Navigation System Voice Control Buttons*
(P264), () See the Navigation System Manual
❙Bluetooth ® HandsFreeLink ® System
Voice Control Buttons
(P367, 394)
❙Paddle Shifter (Shift up)* (P448)
❙Paddle Shifter (Shift down)* (P448)
❙ / / / Buttons (P114, 218)34
❙ENTER Button (P114, 218)
❙Lane Keeping Assist System (LKAS) Button
(P513)
❙Interval Button (P490)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P482)
❙Adaptive Cruise Control (ACC) Buttons*
(P498)
❙MAIN Button (P468, 481, 497, 513)
❙Horn (Press an area around .)
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 5 ページ ２０２０年７月６日　月曜日　午後３時０分

9
Quick Reference Guide
Eco Assist® System*(P 454)
Ambient Meter●The color of the ambient meter changes
to green to indicate that the vehicle is
being driven in a fuel efficient manner.
ECON Button (P 454)
Helps maximize fuel economy.
ECON Mode Indicator (P 88)
Comes on when the ECON button is pressed.
The message is displayed for a few seconds when the
ECON button is pressed.
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 9 ページ ２０２０年７月６日　月曜日　午後３時０分

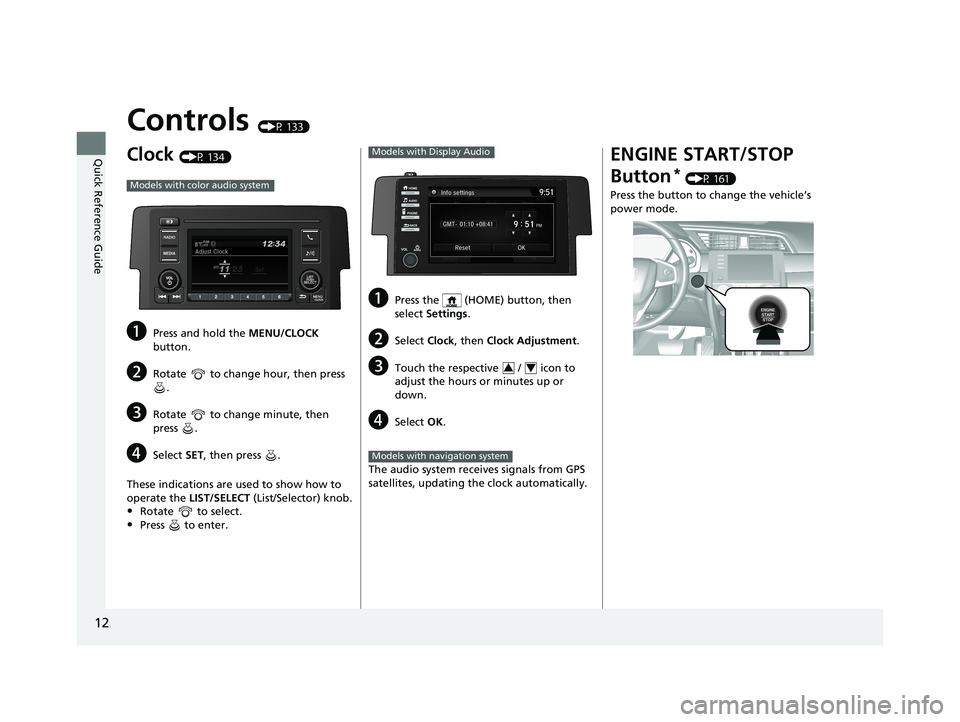

12
Quick Reference Guide
Controls (P 133)
Clock (P 134)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
aPress the (HOME) button, then
select Settings .
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
The audio system receives signals from GPS
satellites, updating the clock automatically.
Models with Display Audio
34
Models with navigation system
ENGINE START/STOP
Button
* (P 161)
Press the button to change the vehicle’s
power mode.
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 12 ページ ２０２０年７月６日　月曜日　午後３時０分

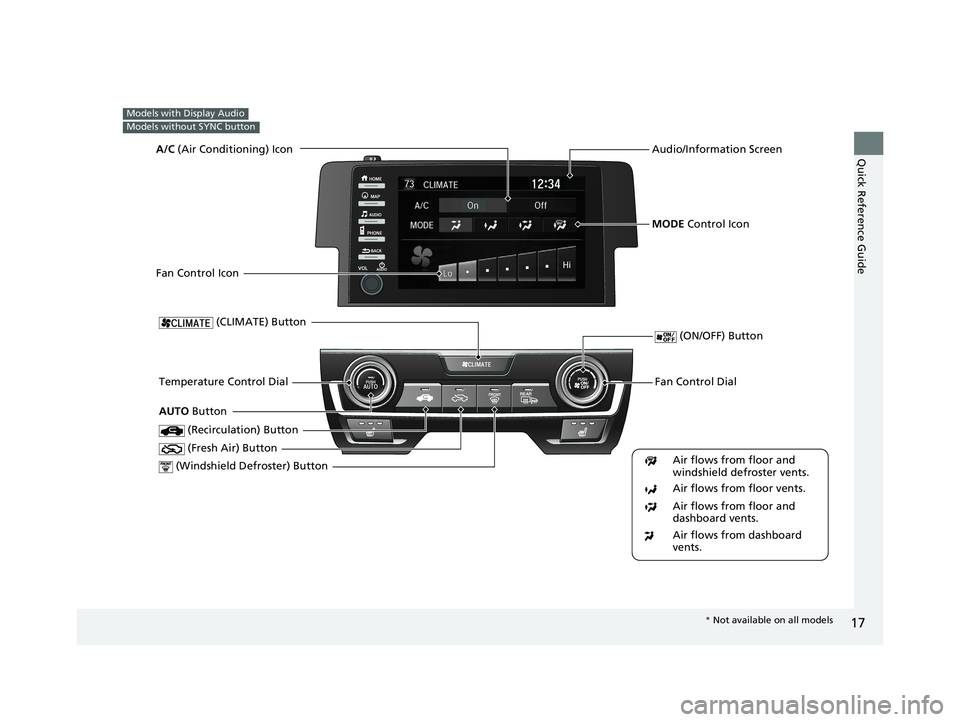

17
Quick Reference Guide
Models with Display Audio
Models without SYNC button
Fan Control Dial
(Windshield Defroster) ButtonTemperature Control Dial Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(CLIMATE) Button
(Fresh Air) Button
(ON/OFF) Button
AUTO Button
Audio/Information Screen
MODE Control Icon
A/C
(Air Conditioning) Icon
Fan Control Icon
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 17 ページ ２０２０年７月６日　月曜日　午後３時０分

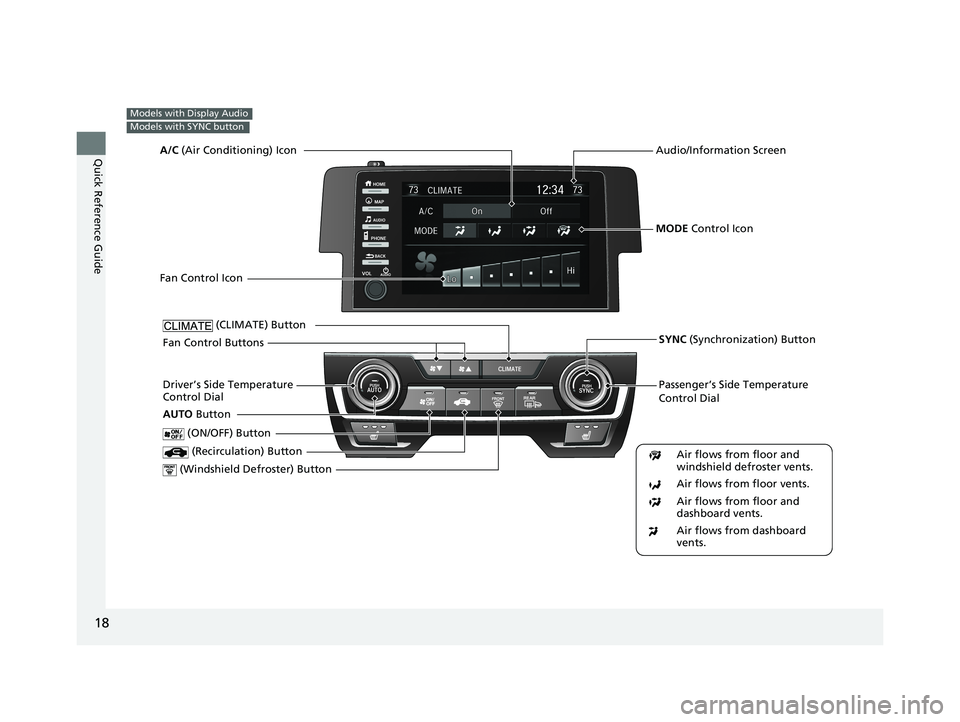

18
Quick Reference Guide
Models with Display Audio
Models with SYNC button
Passenger’s Side Temperature
Control Dial
(Windshield Defroster) ButtonDriver’s Side Temperature
Control Dial (Recirculation) Button
(CLIMATE) Button
(ON/OFF) Button
AUTO Button
SYNC (Synchronization) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
Audio/Information Screen
MODE Control Icon
A/C
(Air Conditioning) Icon
Fan Control Icon
Fan Control Buttons
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 18 ページ ２０２０年７月６日　月曜日　午後３時０分

Quick Reference Guide
19
Features (P 213)
Audio Remote Controls
(P 218)
●
(+ / (- Bar
Press to adjust the volume up/down.
● / Button
Press or to cycl e through the audio
mode as follows:
FM AM USB iPod Bluetooth®Audio
FM AM SiriusXM ®
*USB iPod
Bluetooth ®Audio Pandora ®*Apps
ENTER Button
/ / / Button34
(+ / (- Bar
34
34
Models with color audio system
Models with Display Audio
● ENTER Button
•When listening to the radio and
SiriusXM ®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
Models with Display Audio
34
34
34
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
• When listening to Internet Radio
*
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
34
34
34
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 19 ページ ２０２０年７月６日　月曜日　午後３時０分

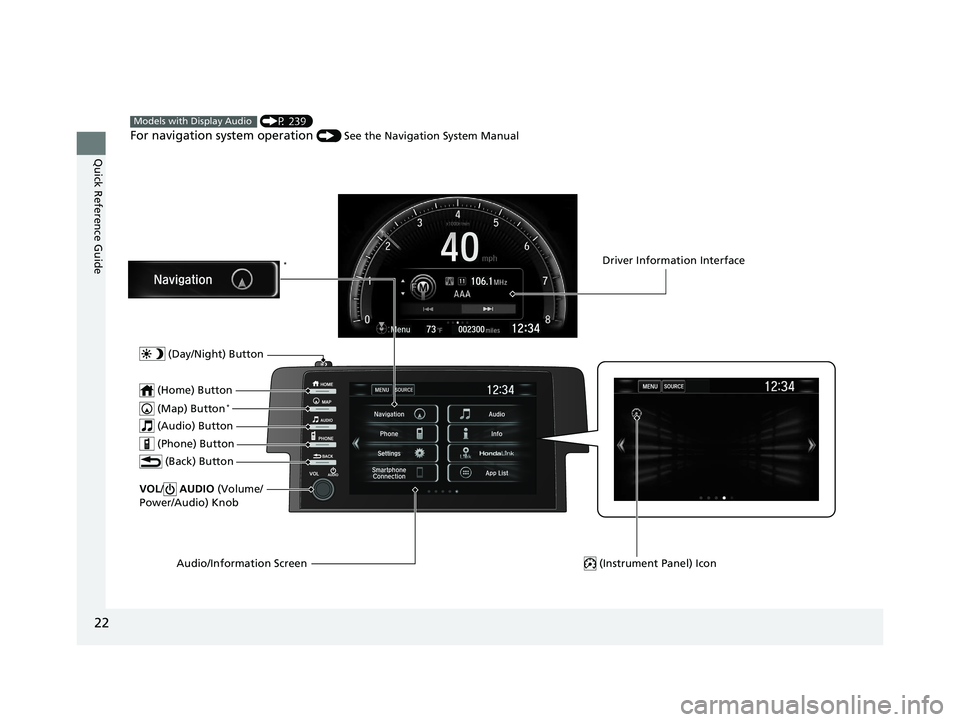

22
Quick Reference Guide
(P 239)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Map) Button*
VOL/ AUDIO (Volume/
Power/Audio) Knob
(Home) Button
(Back) Button
Audio/Information Screen
(Audio) Button
Driver Information Interface
(Instrument Panel) Icon
(Day/Night) Button
*
(Phone) Button
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 22 ページ ２０２０年７月６日　月曜日　午後３時０分

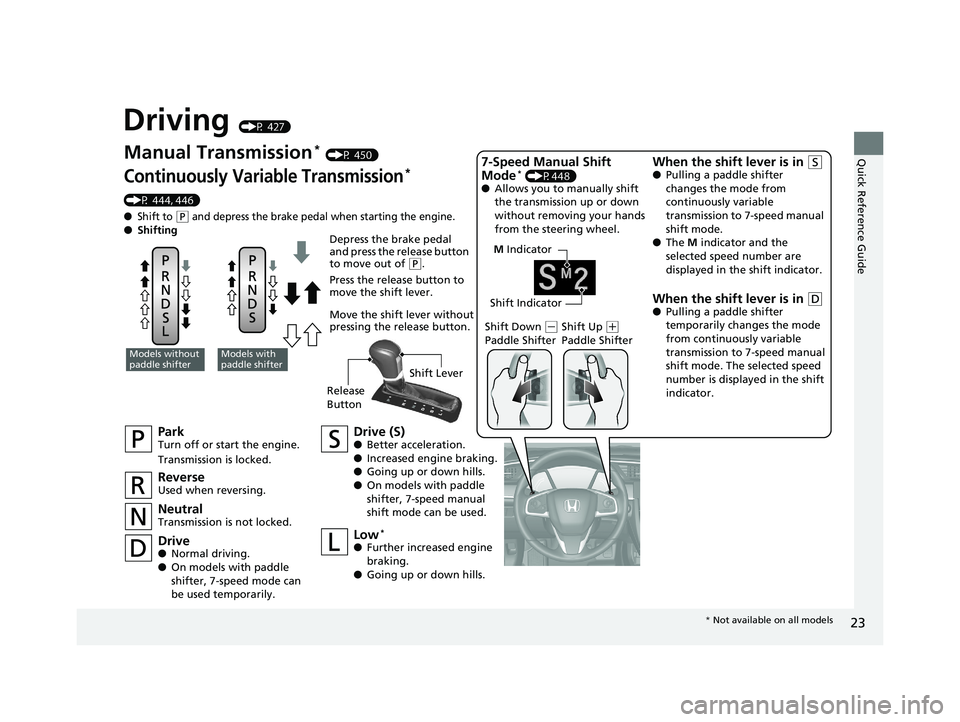

23
Quick Reference Guide
Driving (P 427)
Manual Transmission* (P 450)
Continuously Variable Transmission*
(P 444, 446)
●Shift to (P and depress the brake pedal when starting the engine.● Shifting
M Indicator
Shift Indicator
ParkTurn off or start the engine.
Transmission is locked.
NeutralTransmission is not locked.
Drive (S)● Better acceleration.
● Increased engine braking.
● Going up or down hills.
● On models with paddle
shifter, 7-speed manual
shift mode can be used.
Models without
paddle shifterModels with
paddle shifter
Depress the brake pedal
and press the release button
to move out of
(P.
Press the release button to
move the shift lever.
Move the shift lever without
pressing the release button.
ReverseUsed when reversing.
Drive● Normal driving.
● On models with paddle
shifter, 7-speed mode can
be used temporarily.
Low*
●Further increased engine
braking.
● Going up or down hills. Shift Down
(
-
Paddle Shifter Shift Up (
+
Paddle Shifter
7-Speed Manual Shift
Mode* (P448)
● Allows you to manually shift
the transmission up or down
without removing your hands
from the steering wheel.
When the shift lever is in (S●Pulling a paddle shifter
changes the mode from
continuously variable
transmission to 7-speed manual
shift mode.
● The M indicator and the
selected speed number are
displayed in the shift indicator.
When the shift lever is in (D● Pulling a paddle shifter
temporarily chan ges the mode
from continuously variable
transmission to 7-speed manual
shift mode. The selected speed
number is displayed in the shift
indicator.
Release
Button Shift Lever
*
Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 23 ページ ２０２０年７月６日　月曜日　午後３時０分

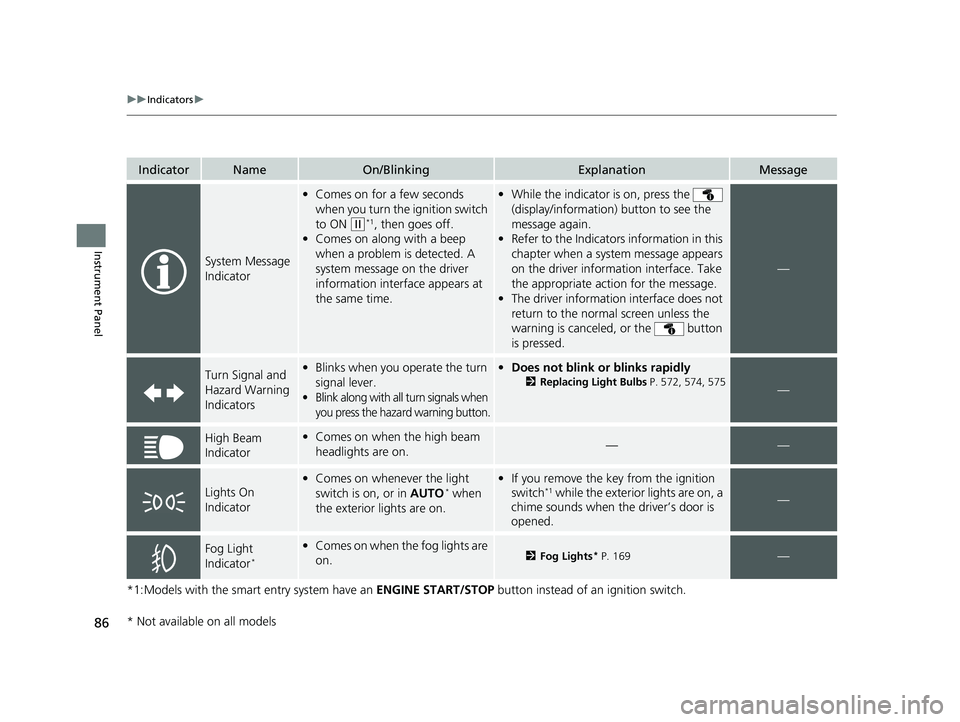

86
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
•Comes on for a few seconds
when you turn the ignition switch
to ON
(w*1, then goes off.
• Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.
•While the indicator is on, press the
(display/information) button to see the
message again.
• Refer to the Indicators information in this
chapter when a system message appears
on the driver inform ation interface. Take
the appropriate action for the message.
• The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
Turn Signal and
Hazard Warning
Indicators• Blinks when you operate the turn
signal lever.
•Blink along with all turn signals when
you press the hazard warning button.
• Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 572, 574, 575—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
Lights On
Indicator
•Comes on whenever the light
switch is on, or in AUTO* when
the exterior lights are on.
• If you remove the key from the ignition
switch*1 while the exterior lights are on, a
chime sounds when the driver’s door is
opened.—
Fog Light
Indicator*
• Comes on when the fog lights are
on.2 Fog Lights* P. 169—
* Not available on all models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 86 ページ ２０２０年７月６日　月曜日　午後３時０分

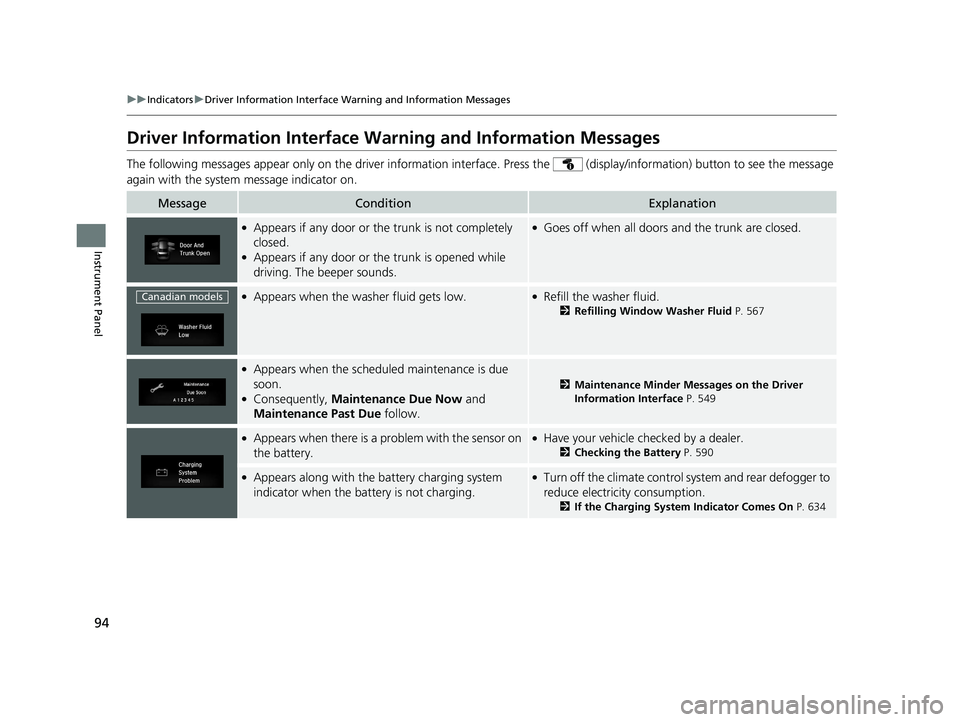

94
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (display/information) button to see the mess age
again with the system message indicator on.
MessageConditionExplanation
●Appears if any door or the trunk is not completely
closed.
●Appears if any door or the trunk is opened while
driving. The beeper sounds.
●Goes off when all doors and the trunk are closed.
●Appears when the washer fluid gets low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 567
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 549
●Appears when there is a pr oblem with the sensor on
the battery.●Have your vehicle ch ecked by a dealer.
2Checking the Battery P. 590
●Appears along with the battery charging system
indicator when the batte ry is not charging.●Turn off the climate control sy stem and rear defogger to
reduce electricity consumption.
2 If the Charging System Indicator Comes On P. 634
Canadian models
20 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6401.book 94 ページ ２０２０年７月６日　月曜日　午後３時０分
