HONDA CIVIC SEDAN 2021 (in English) Owners Manual

89

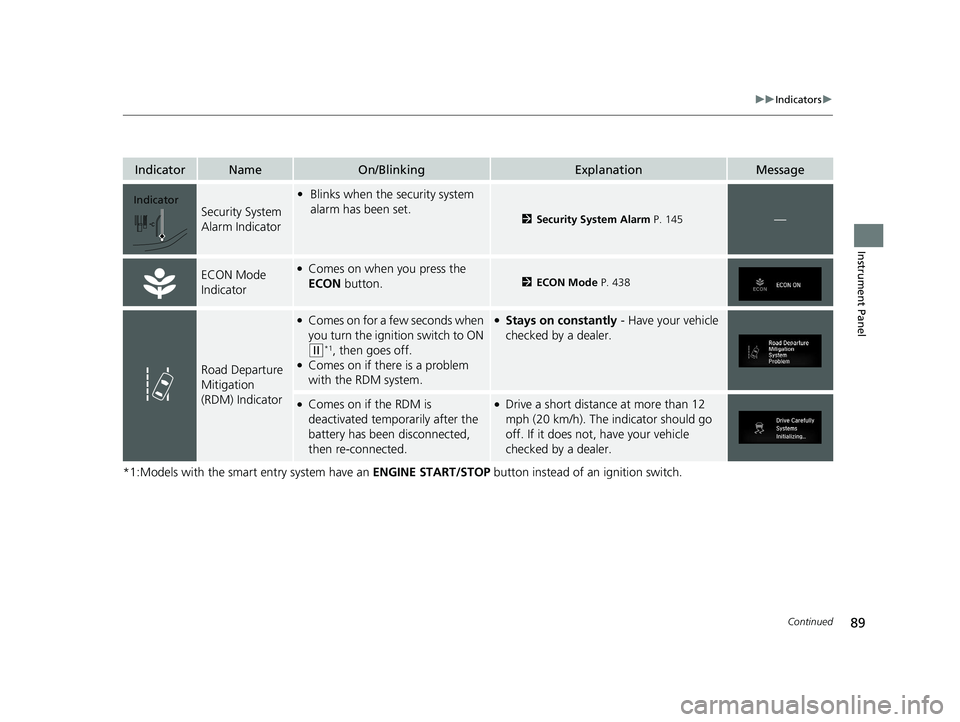

uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator
•Blinks when the security system
alarm has been set.
2 Security System Alarm P. 145—
ECON Mode
Indicator●Comes on when you press the
ECON button.2ECON Mode P. 438
Road Departure
Mitigation
(RDM) Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if there is a problem
with the RDM system.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on if the RDM is
deactivated temporarily after the
battery has been disconnected,
then re-connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
Indicator
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 89 ページ ２０２０年８月２５日　火曜日　午後２時６分

90

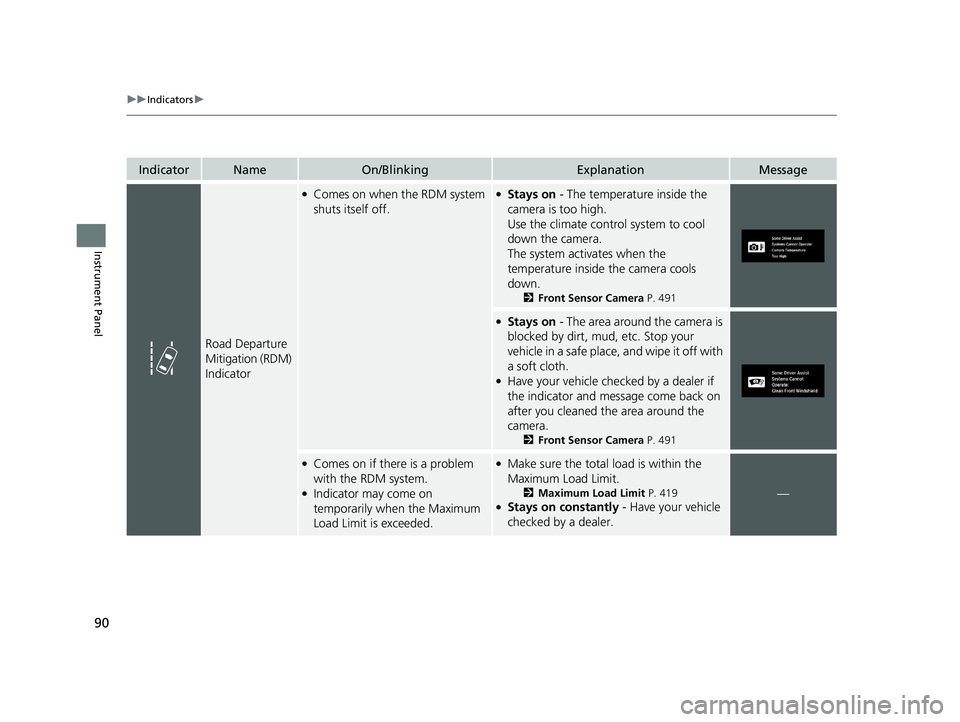

uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Road Departure
Mitigation (RDM)
Indicator
●Comes on when the RDM system
shuts itself off.●Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system acti vates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 491
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off with
a soft cloth.
●Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
2 Front Sensor Camera P. 491
●Comes on if there is a problem
with the RDM system.
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.
●Make sure the total load is within the
Maximum Load Limit.
2Maximum Load Limit P. 419●Stays on constantly - Have your vehicle
checked by a dealer.
—
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 90 ページ ２０２０年８月２５日　火曜日　午後２時６分

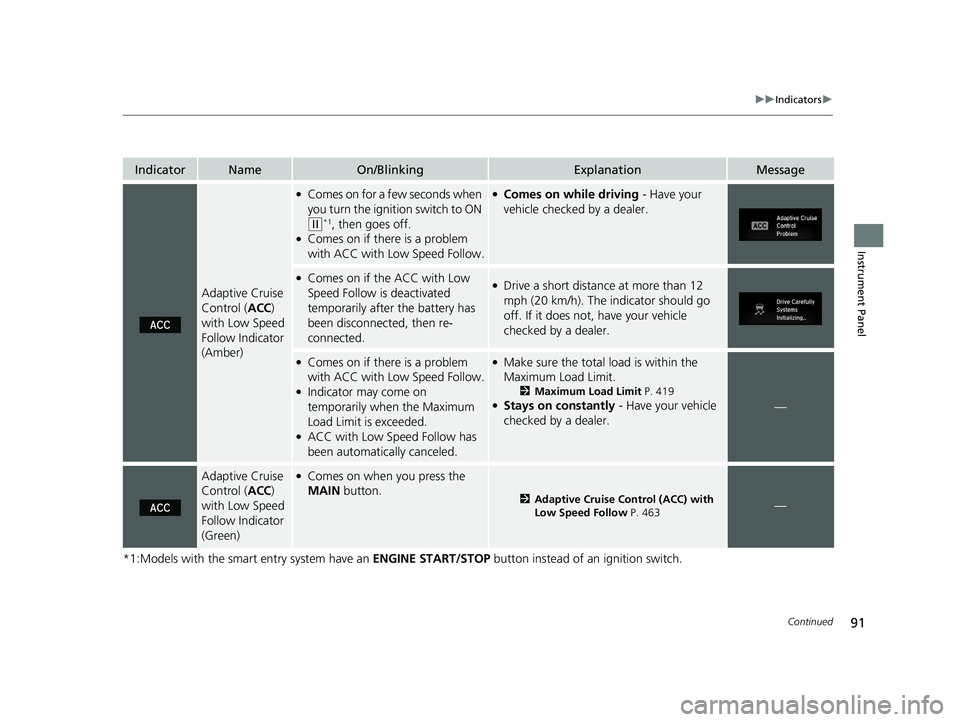

91
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
with Low Speed
Follow Indicator
(Amber)
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Comes on if there is a problem
with ACC with Low Speed Follow.
●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on if the ACC with Low
Speed Follow is deactivated
temporarily after the battery has
been disconnected, then re-
connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
●Comes on if there is a problem
with ACC with Low Speed Follow.
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.
●ACC with Low Speed Follow has
been automatically canceled.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 419●Stays on constantly - Have your vehicle
checked by a dealer.—
Adaptive Cruise
Control ( ACC)
with Low Speed
Follow Indicator
(Green)●Comes on when you press the
MAIN button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow P. 463—
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 91 ページ ２０２０年８月２５日　火曜日　午後２時６分

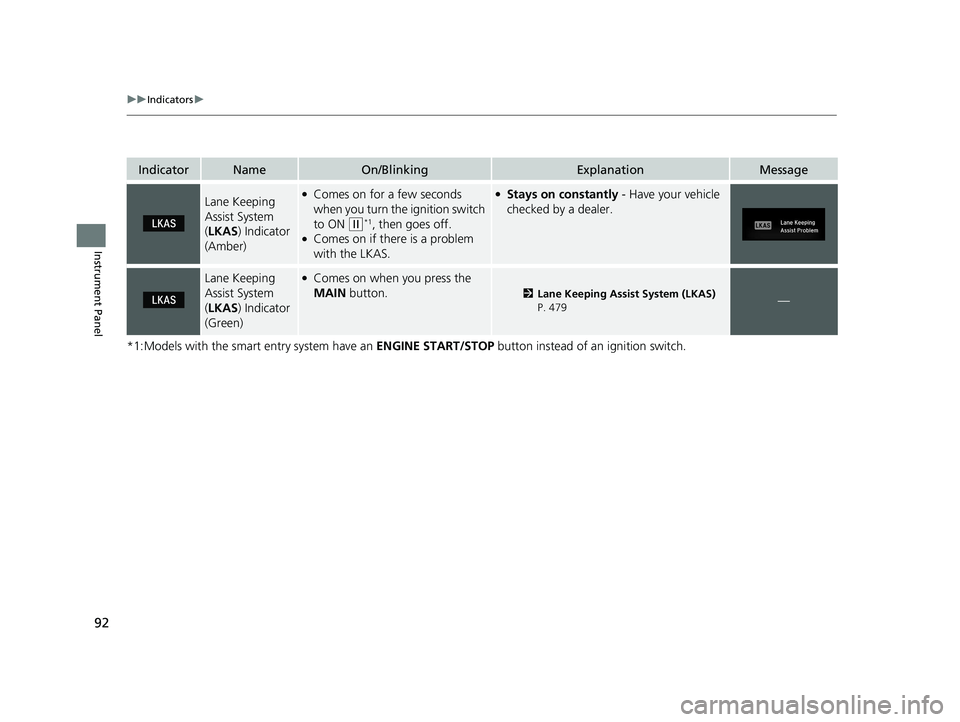

92
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Lane Keeping
Assist System
(LKAS ) Indicator
(Amber)●Comes on for a few seconds
when you turn the ignition switch
to ON
(w*1, then goes off.●Comes on if there is a problem
with the LKAS.
●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
(Green)●Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)
P. 479—
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 92 ページ ２０２０年８月２５日　火曜日　午後２時６分

93

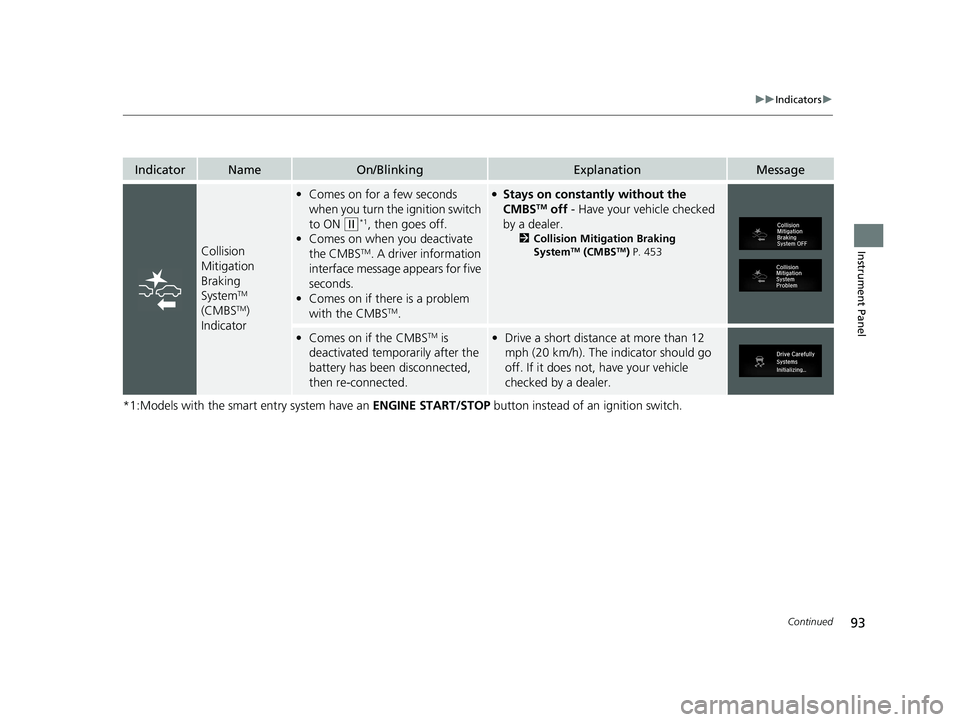

uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
• Comes on for a few seconds
when you turn the ignition switch
to ON
(w*1, then goes off.
• Comes on when you deactivate
the CMBS
TM. A driver information
interface message appears for five
seconds.
• Comes on if there is a problem
with the CMBS
TM.
●Stays on constantly without the
CMBSTM off - Have your vehicle checked
by a dealer.
2 Collision Mitigation Braking
SystemTM (CMBSTM) P. 453
• Comes on if the CMBSTM is
deactivated temporarily after the
battery has been disconnected,
then re-connected.• Drive a short distance at more than 12
mph (20 km/h). The in dicator should go
off. If it does not, have your vehicle
checked by a dealer.
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 93 ページ ２０２０年８月２５日　火曜日　午後２時６分

94

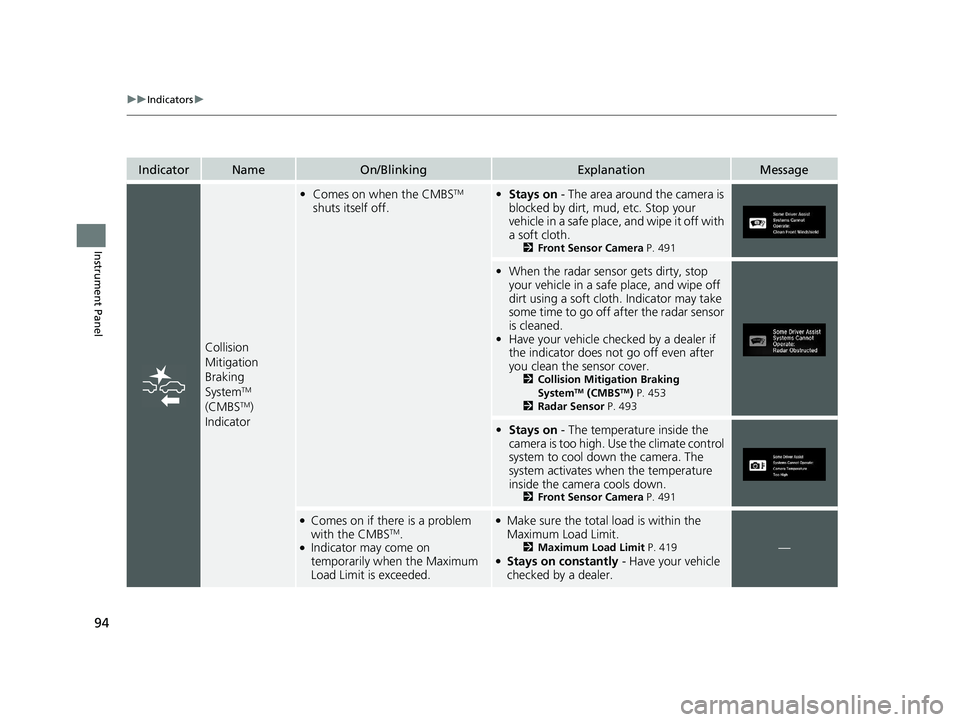

uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator
• Comes on when the CMBSTM
shuts itself off.• Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off with
a soft cloth.
2 Front Sensor Camera P. 491
•When the radar sensor gets dirty, stop
your vehicle in a safe place, and wipe off
dirt using a soft cloth. Indicator may take
some time to go off after the radar sensor
is cleaned.
• Have your vehicle checked by a dealer if
the indicator does not go off even after
you clean the sensor cover.
2 Collision Mitigation Braking
SystemTM (CMBSTM) P. 453
2 Radar Sensor P. 493
•Stays on - The temperature inside the
camera is too high. Use the climate control
system to cool down the camera. The
system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera P. 491
●Comes on if there is a problem
with the CMBSTM.●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.
●Make sure the total load is within the
Maximum Load Limit.
2Maximum Load Limit P. 419●Stays on constantly - Have your vehicle
checked by a dealer.
—
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 94 ページ ２０２０年８月２５日　火曜日　午後２時６分

95
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel

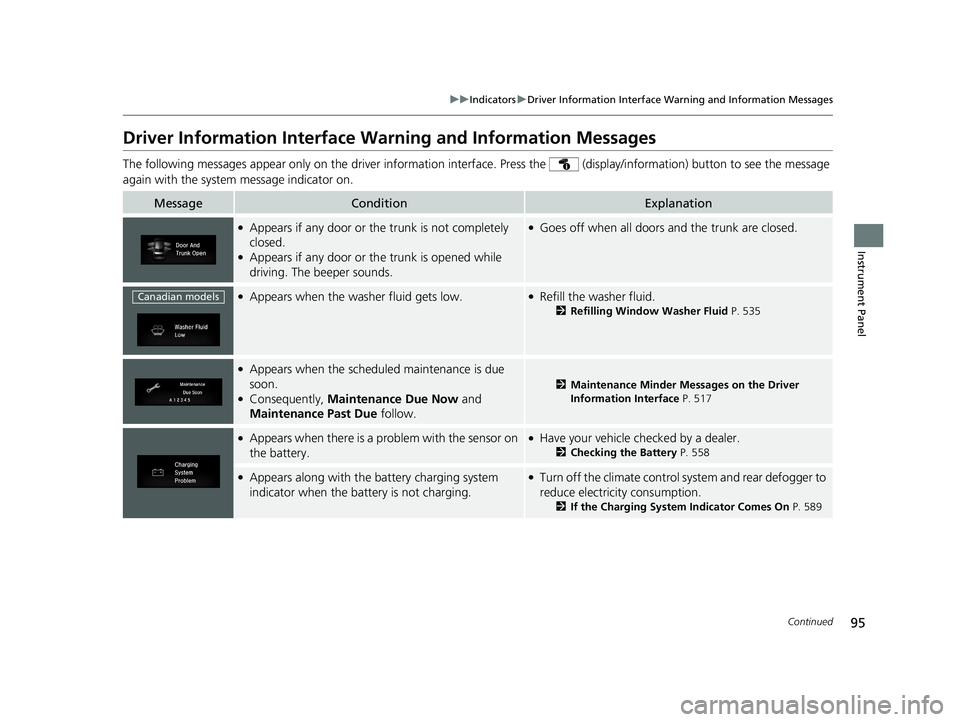

Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (d isplay/information) button to see the message
again with the system message indicator on.
MessageConditionExplanation
●Appears if any door or the trunk is not completely
closed.
●Appears if any door or th e trunk is opened while
driving. The beeper sounds.
●Goes off when all doors and the trunk are closed.
●Appears when the washer fluid gets low.●Refill the washer fluid.
2 Refilling Window Washer Fluid P. 535
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 517
●Appears when there is a problem with the sensor on
the battery.●Have your vehicle checked by a dealer.
2Checking the Battery P. 558
●Appears along with the ba ttery charging system
indicator when the battery is not charging.●Turn off the climate control sy stem and rear defogger to
reduce electricity consumption.
2 If the Charging System Indicator Comes On P. 589
Canadian models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 95 ページ ２０２０年８月２５日　火曜日　午後２時６分

96

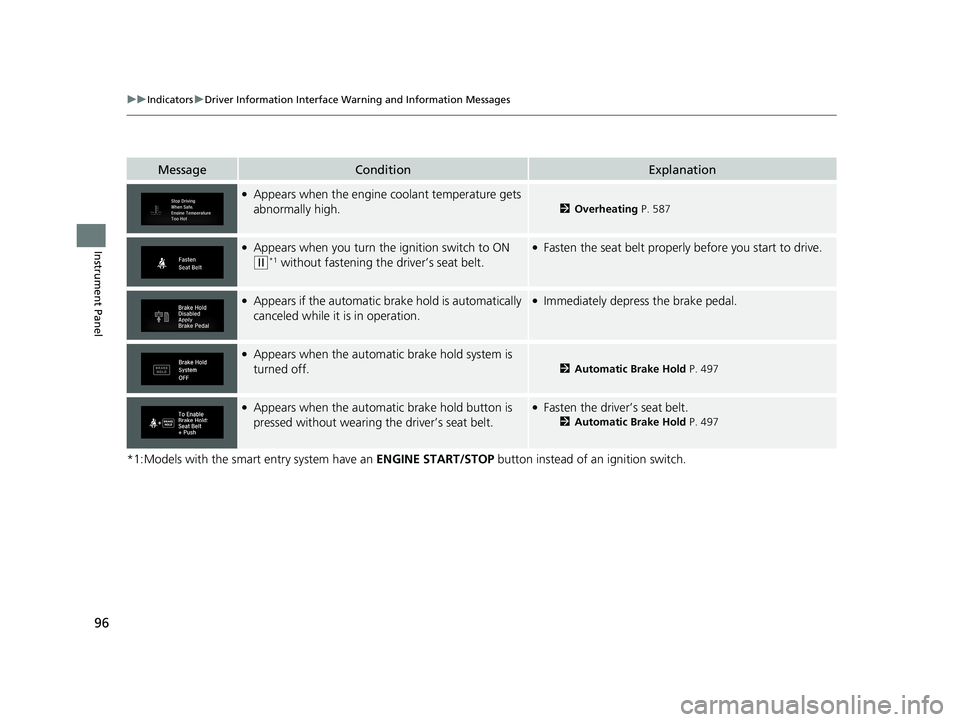

uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
MessageConditionExplanation
●Appears when the engine coolant temperature gets
abnormally high.
2 Overheating P. 587
●Appears when you turn the ignition switch to ON
(w*1 without fastening the driver’s seat belt.
●Fasten the seat belt properly before you start to drive.
●Appears if the automatic brake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the automa tic brake hold system is
turned off.
2 Automatic Brake Hold P. 497
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 497
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 96 ページ ２０２０年８月２５日　火曜日　午後２時６分

97

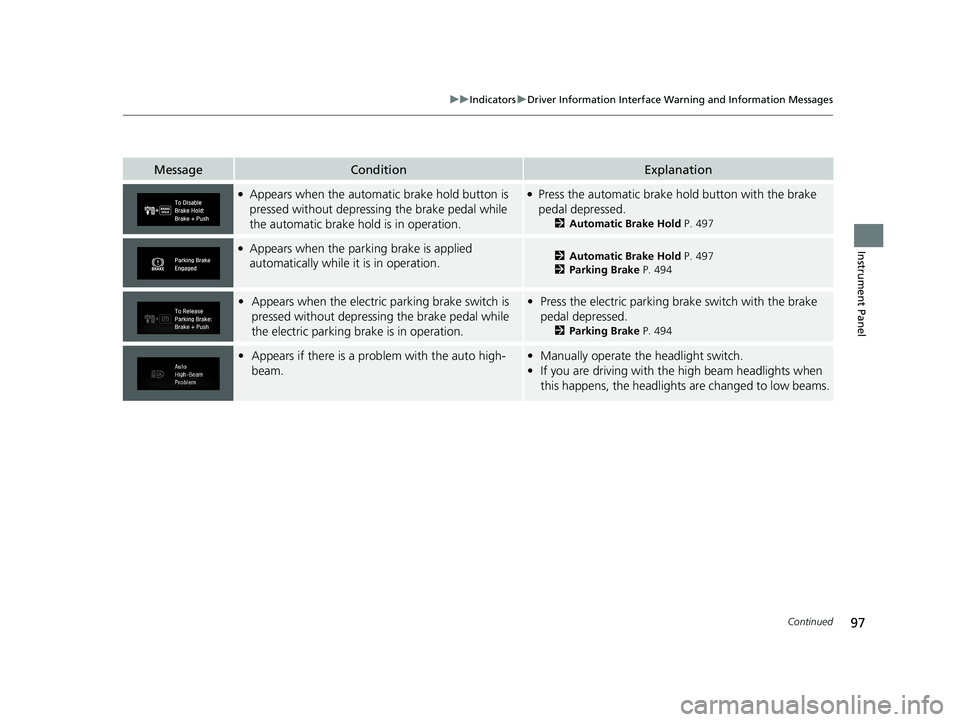

uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the automatic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2Automatic Brake Hold P. 497
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 497
2 Parking Brake P. 494
•Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.• Press the electric parking brake switch with the brake
pedal depressed.
2 Parking Brake P. 494
•Appears if there is a prob lem with the auto high-
beam.• Manually operate the headlight switch.
• If you are driving with the high beam headlights when
this happens, the headlights are changed to low beams.
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 97 ページ ２０２０年８月２５日　火曜日　午後２時６分

98

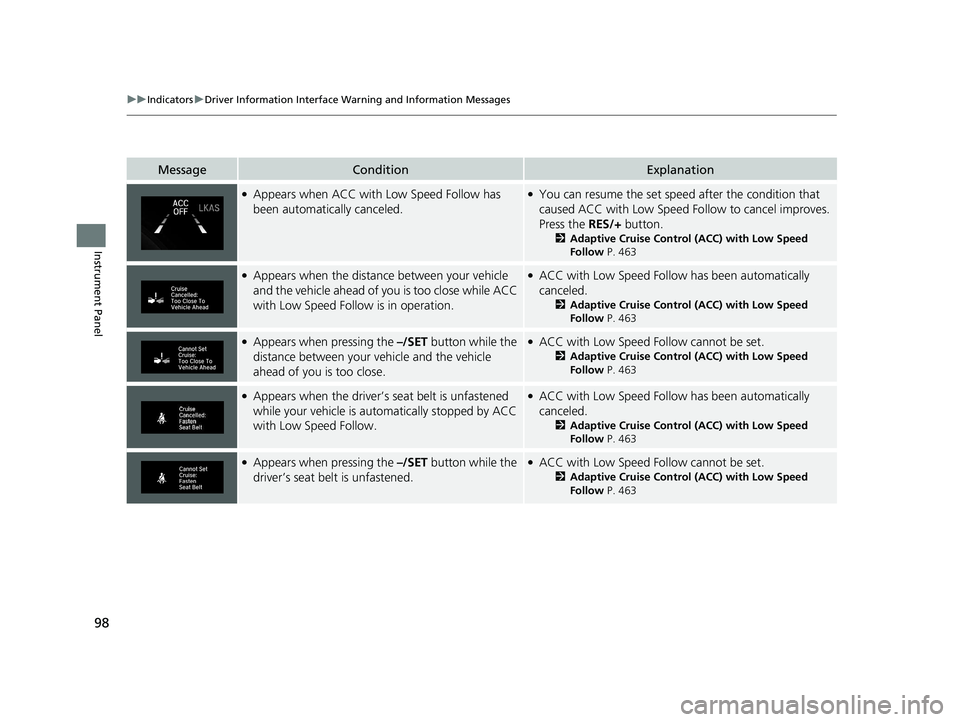

uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when ACC with Low Speed Follow has
been automatically canceled.●You can resume the set speed after the condition that
caused ACC with Low Speed Fo llow to cancel improves.
Press the RES/+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 463
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
with Low Speed Follow is in operation.●ACC with Low Speed Follow has been automatically
canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 463
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle
ahead of you is too close.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 463
●Appears when the driver’s seat belt is unfastened
while your vehicle is automatically stopped by ACC
with Low Speed Follow.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 463
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 463
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 98 ページ ２０２０年８月２５日　火曜日　午後２時６分
