HONDA CIVIC SEDAN 2021 Owner's Manual (in English)

109
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

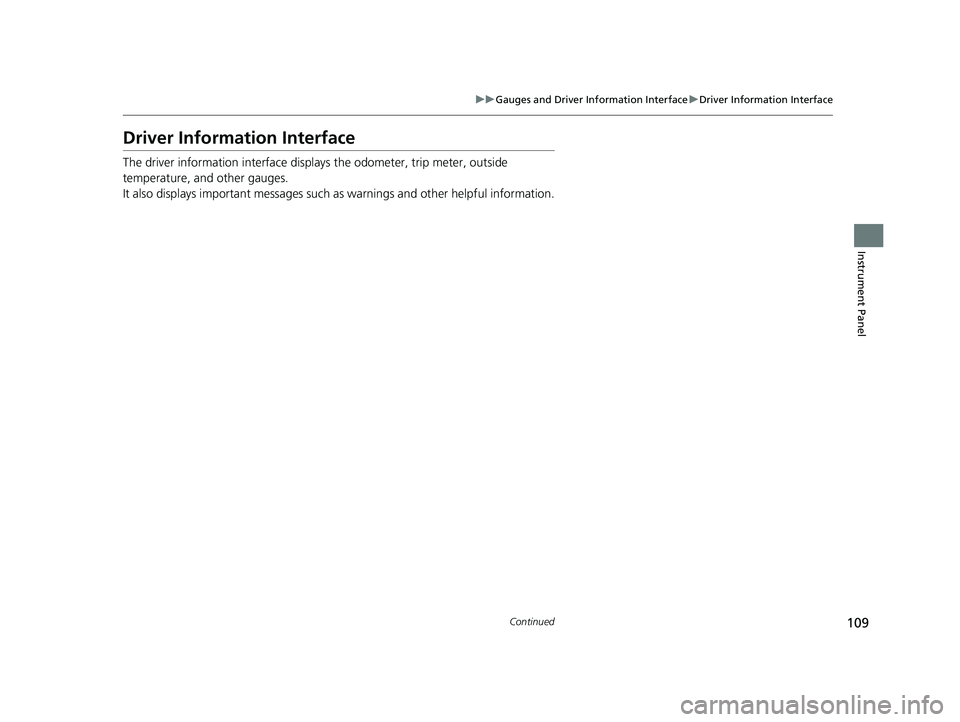

Driver Information Interface
The driver information interface displa ys the odometer, trip meter, outside
temperature, and other gauges.
It also displays important messages such as warnings and other helpful information.
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 109 ページ ２０２０年８月２５日　火曜日　午後２時６分

110
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

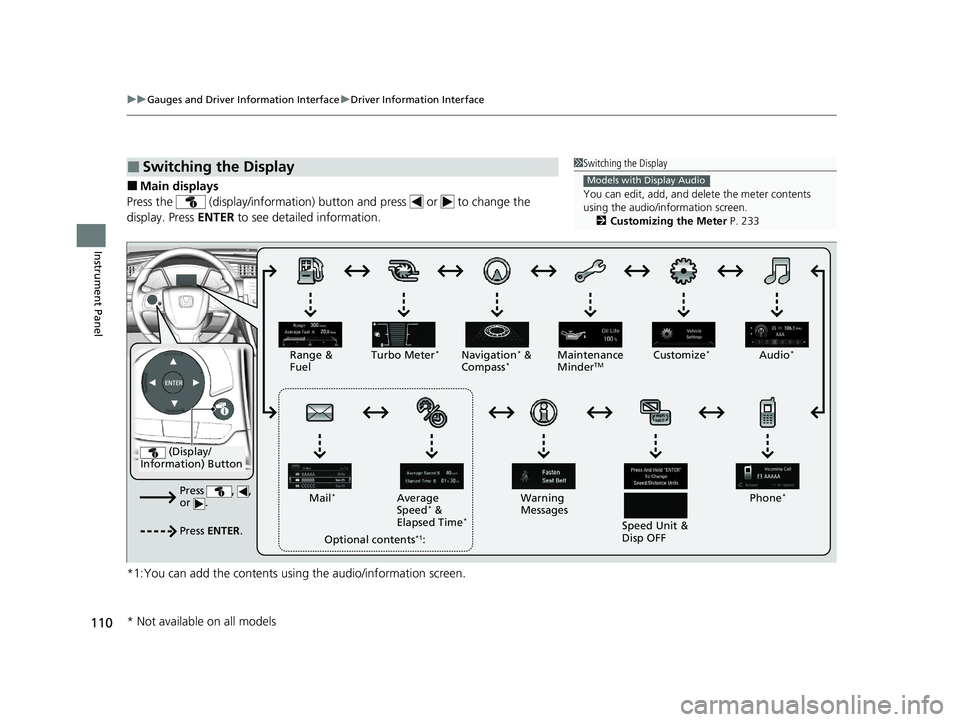

■Main displays
Press the (display/information) butto n and press or to change the
display. Press ENTER to see detailed information.
*1:You can add the contents usin g the audio/information screen.
■Switching the Display1Switching the Display
You can edit, add, and de lete the meter contents
using the audio/information screen. 2 Customizing the Meter P. 233
Models with Display Audio
(Display/
Information) Button
Press , ,
or .
Press ENTER .
Range &
Fuel Turbo Meter*Navigation* &
Compass*Maintenance
MinderTMCustomize*Audio*
Phone*
Speed Unit &
Disp OFF
Warning
Messages
Average
Speed
* &
Elapsed Time*
Mail*
Optional contents*1:
* Not available on all models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 110 ページ ２０２０年８月２５日　火曜日　午後２時６分

Continued111
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

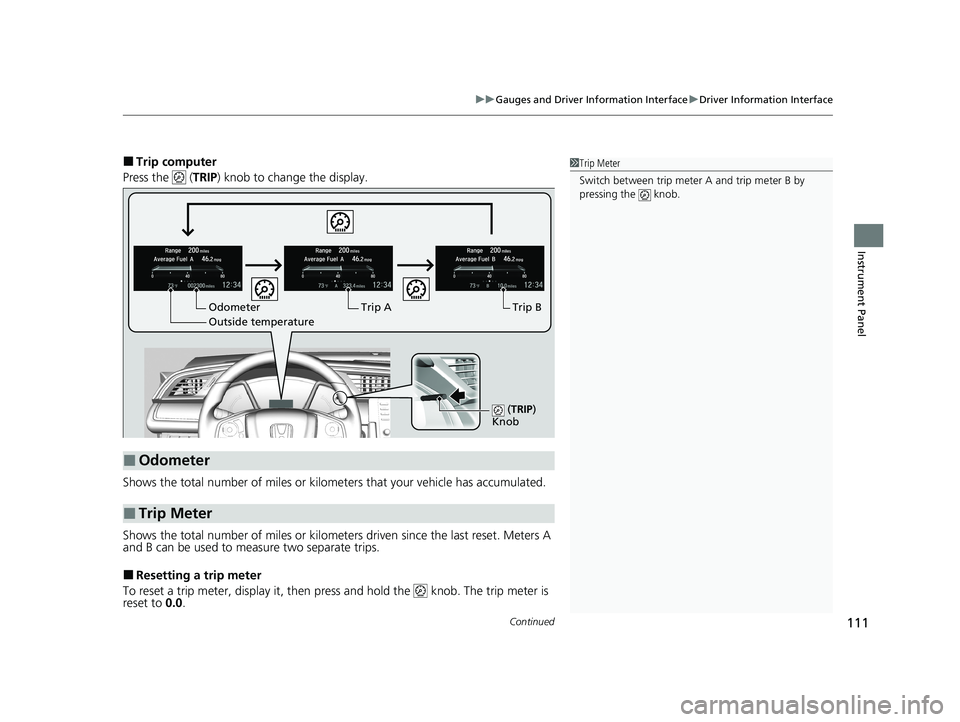

■Trip computer
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
■Odometer
■Trip Meter
Odometer
Outside temperature Trip ATrip B
(
TRIP)
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 111 ページ ２０２０年８月２５日　火曜日　午後２時６分

uuGauges and Driver Information Interface uDriver Information Interface
112
Instrument Panel

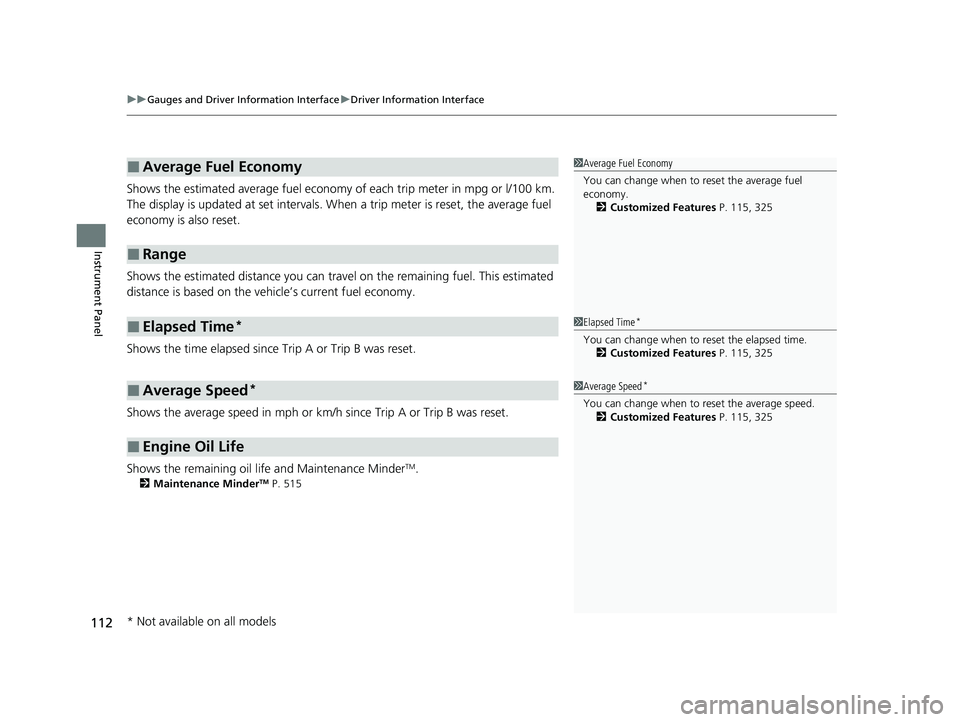

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the ve hicle’s current fuel economy.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 515
■Average Fuel Economy
■Range
■Elapsed Time*
■Average Speed*
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 115, 325
1Elapsed Time*
You can change when to reset the elapsed time.
2 Customized Features P. 115, 325
1Average Speed*
You can change when to reset the average speed.
2 Customized Features P. 115, 325
* Not available on all models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 112 ページ ２０２０年８月２５日　火曜日　午後２時６分

Continued113
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

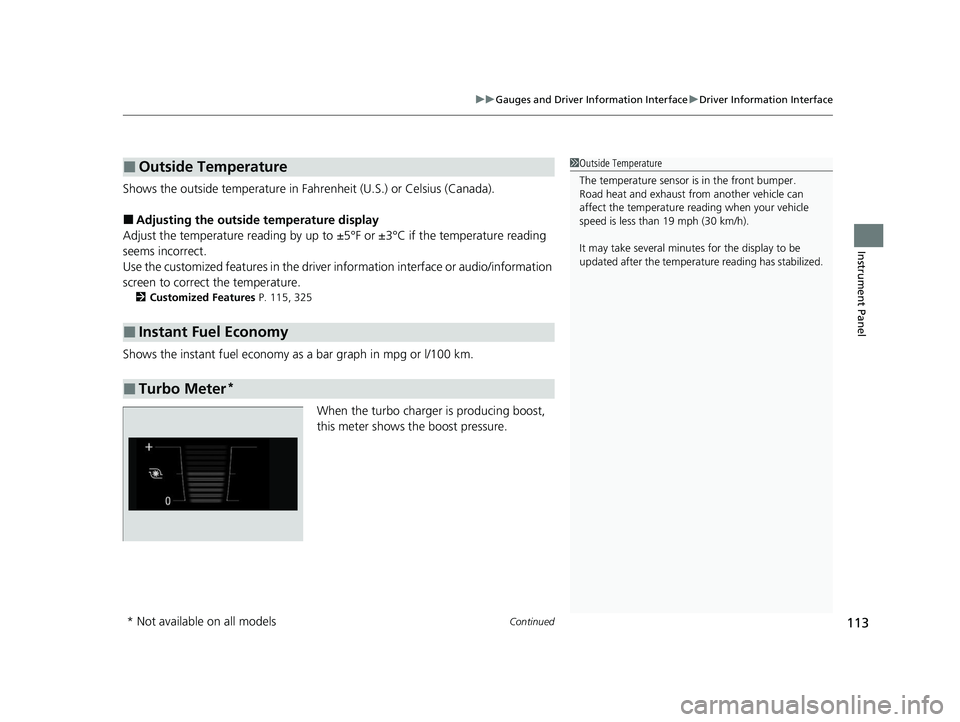

Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the customized features in the driver information interface or audio/information
screen to correct the temperature.
2 Customized Features P. 115, 325
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
When the turbo charger is producing boost,
this meter shows the boost pressure.
■Outside Temperature
■Instant Fuel Economy
■Turbo Meter*
1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
* Not available on all models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 113 ページ ２０２０年８月２５日　火曜日　午後２時６分

uuGauges and Driver Information Interface uDriver Information Interface
114
Instrument Panel

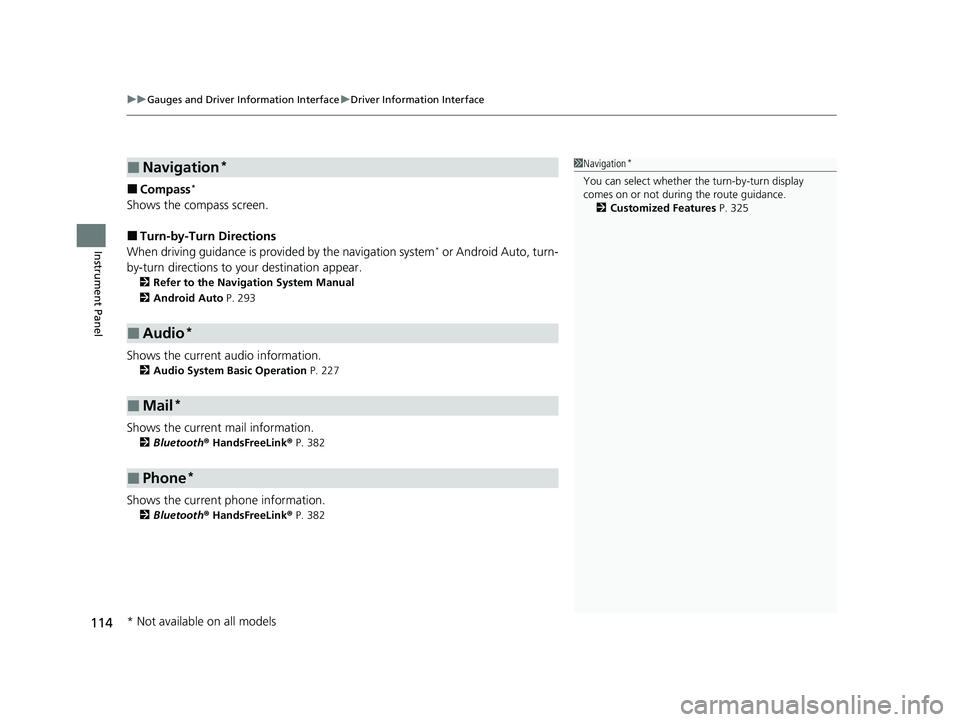

■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 293
Shows the current audio information.
2Audio System Basic Operation P. 227
Shows the current mail information.
2Bluetooth ® HandsFreeLink ® P. 382
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 382
■Navigation*
■Audio*
■Mail*
■Phone*
1 Navigation*
You can select whether the turn-by-turn display
comes on or not during the route guidance.
2 Customized Features P. 325
* Not available on all models
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 114 ページ ２０２０年８月２５日　火曜日　午後２時６分

Continued115
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

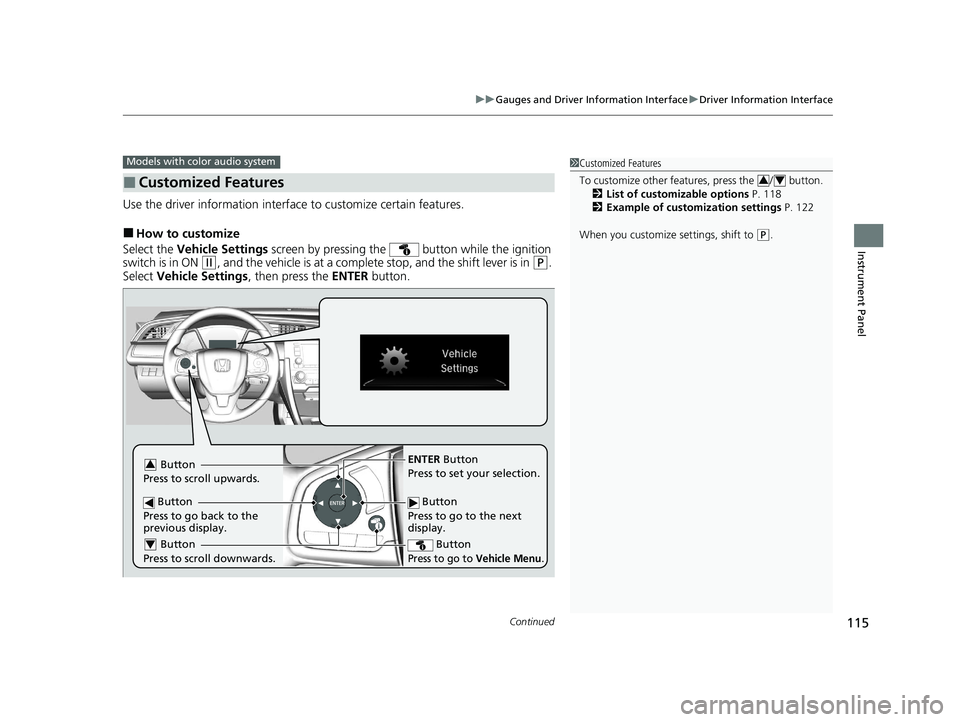

Use the driver information interface to customize certain features.
■How to customize
Select the Vehicle Settings screen by pressing the button while the ignition
switch is in ON
(w, and the vehicle is at a complete stop, and the shift lever is in (P.
Select Vehicle Settings, then press the ENTER button.
■Customized Features
Models with color audio system1Customized Features
To customize other features, press the / button.
2 List of customizable options P. 118
2 Example of customization settings P. 122
When you customize settings, shift to
( P.
34
Button
Press to go to the next
display.
ENTER Button
Press to set your selection.
Button
Press to go to Vehicle Menu.
Button
Press to scroll upwards.3
Button
Press to go back to the
previous display.
Button
Press to scroll downwards.4
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 115 ページ ２０２０年８月２５日　火曜日　午後２時６分

116
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

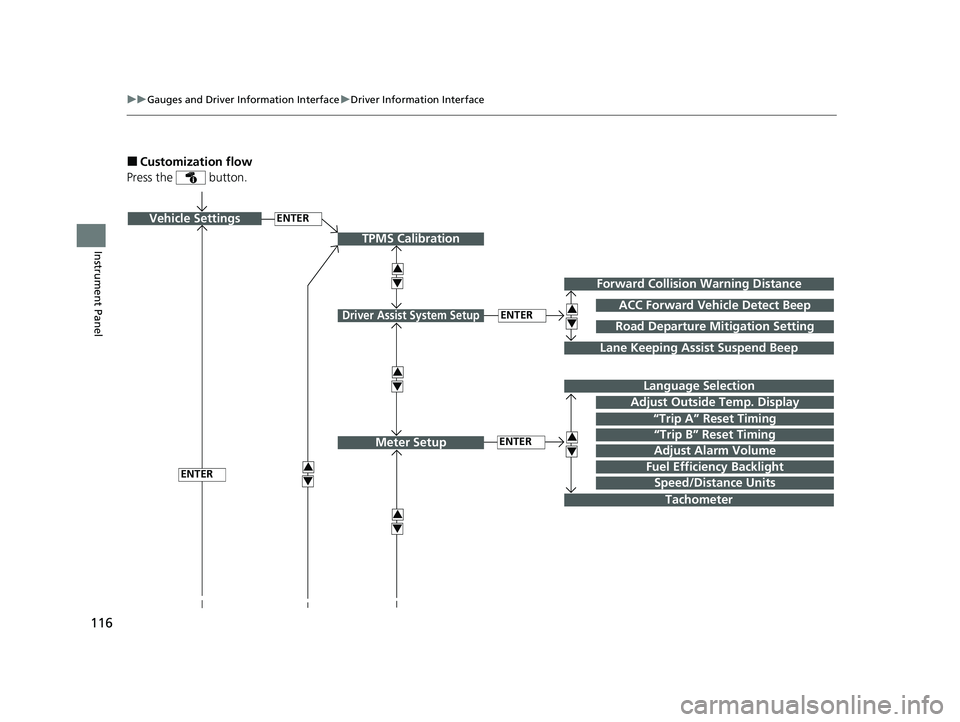

■Customization flow
Press the button.
ENTERVehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
3
4
TPMS Calibration
ENTER
“Trip B” Reset Timing
Fuel Efficiency Backlight3
4
ACC Forward Vehicle Detect Beep
3
4
Tachometer
ENTER
Forward Collision Warning Distance
3
4
3
4
Lane Keeping Assist Suspend Beep
Road Departure Mi tigation Setting
Adjust Alarm Volume
Speed/Distance Units
3
4
ENTER
Driver Assist System Setup
Meter Setup
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 116 ページ ２０２０年８月２５日　火曜日　午後２時６分

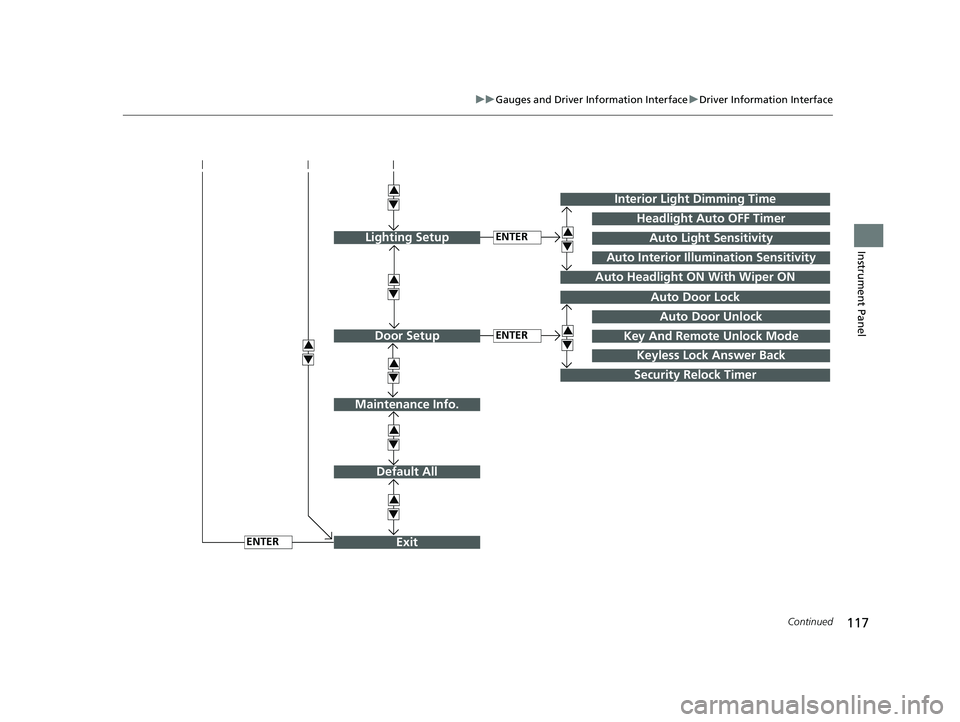

117
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
Exit
3
4
3
4
3
4
Maintenance Info.
Default All
3
4
ENTER
3
4
3
4
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Security Relock Timer
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity3
4
3
4
Auto Headlight ON With Wiper ON
ENTER
ENTER
Auto Interior Illumination Sensitivity
Lighting Setup
Door Setup
21 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6500.book 117 ページ ２０２０年８月２５日　火曜日　午後２時６分

118
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

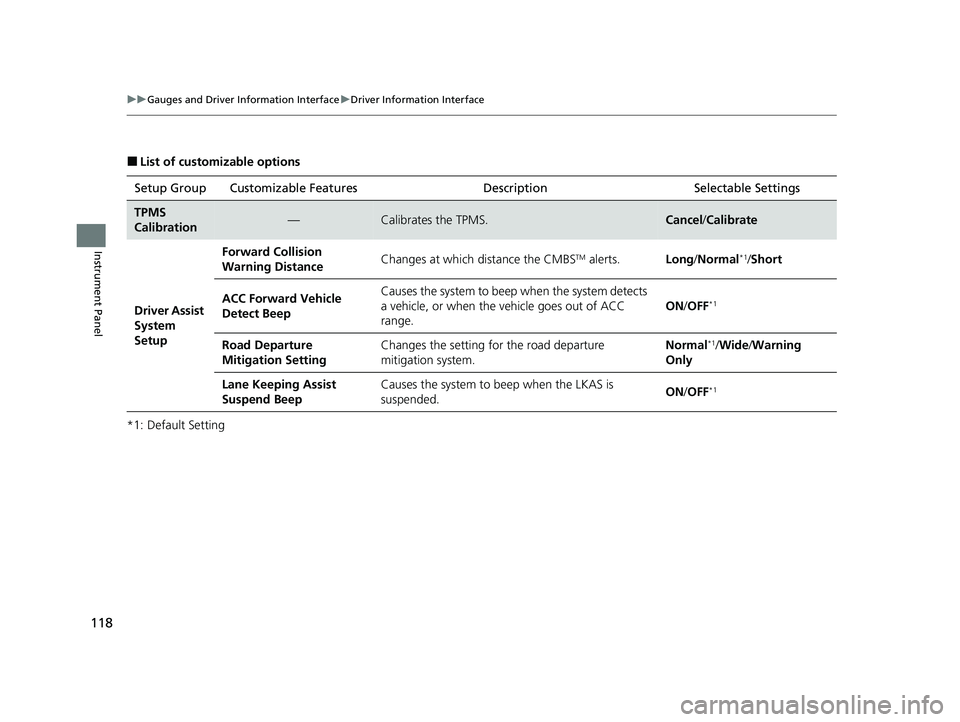

■List of customizable options
*1: Default Setting Setup Group Customizable Features Description Selectable Settings
TPMS
Calibration—Calibrates the TPMS.Cancel
/Calibrate
Driver Assist
System
Setup Forward Collision
Warning Distance
Changes at which distance the CMBS
TM alerts.
Long/Normal*1/Short
ACC Forward Vehicle
Detect Beep Causes the system to beep
when the system detects
a vehicle, or when the vehicle goes out of ACC
range. ON
/OFF
*1
Road Departure
Mitigation Setting Changes the setting for the road departure
mitigation system. Normal*1/
Wide /Warning
Only
Lane Keeping Assist
Suspend Beep Causes the system to beep when the LKAS is
suspended.
ON
/OFF
*1
