This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 37
For Safe Driving P. 38 Seat Belts P. 42 Airbags P. 50
2Instrument Panel P. 79
Indicators P. 80 Gauges and Driver Information Interface P. 114
2Controls P. 127
Clock P. 128 Locking and Unlocking the Doors P. 129
Operating the Switches Ar ound the Steering Wheel P. 149
Interior Lights/Interior Convenience Items P. 173
2 Features P. 191
Audio System P. 192 Audio System Basic Operation P. 198
Customized Features P. 280 HomeLink® Universal Transceiver P. 306
2 Driving P. 343
Before Driving P. 344 Towing a Trailer P. 349
Multi-View Rear Camera P. 421 Charging P. 423
2 Maintenance P. 441
Before Performing Maintenance P. 442 Maintenance MinderTM P. 445
Checking and Maintaining Wiper Blades P. 456
Climate Control System Main tenance P. 471 Cleaning P. 472
2Handling the Unexpected P. 481
If a Tire Goes Flat P. 482 Handling of the Jack P. 494
Indicator, Coming On/Blinking P. 502 Fuses P. 508
When You Cannot Disengage the Charging Connector P. 517
2Information P. 519
Specifications P. 520 Identification Numbers P. 522
Warranty Coverages P. 525 Authorized Manuals P. 527
17 CLARITY BEV CSS-31TRV6000.book 2 ページ ２０１７年４月１４日　金曜日　午前１１時８分

Visual Index
6
Quick Reference Guide❙Power Window Switches (P 147)
❙Trunk Opener (P 141)
❙Driver’s Knee Airbag (P 57)
❙Door Mirror Controls (P 165)
❙Power Door Lock Master Switch (P 139)❙Memory Buttons (P 162)
❙SET Button (P 162)
❙Interior Fuse Box (P 510)
❙Automatic Brake Hold Button (P 407)
❙Driver’s Front Airbag (P 53)
❙Passenger’s Front Airbag (P 53)
❙Rearview Mirror (P 164)
❙SPORT Button (P 361)
❙Glove Box (P 175)
❙Electric Parking Brake Switch (P 404)
❙Shift Button
Electronic Gear Selector
(P 355)
❙Accessory Power Socket (P 179)
❙Hood Release Handle (P 450)
❙ECON Button (P365 )
17 CLARITY BEV CSS-31TRV6000.book 6 ページ ２０１７年４月１４日　金曜日　午前１１時８分

Visual Index
8
Quick Reference Guide
❙Maintenance Under the Hood (P 449)
❙Windshield Wipers (P 157, 456)
❙Tires (P 459, 482)
❙Door Lock/Unlock Control (P 131)
❙Power Door Mirrors (P 165)
❙Headlights (P 153, 454)
❙Front Turn Signal Lights (P 152, 454)
❙Parking/Daytime Running Lights (P 153, 156, 454)
❙Front Side Marker Lights (P 153, 454)
❙How to Charge (P425, 427)
17 CLARITY BEV CSS-31TRV6000.book 8 ページ ２０１７年４月１４日　金曜日　午前１１時８分

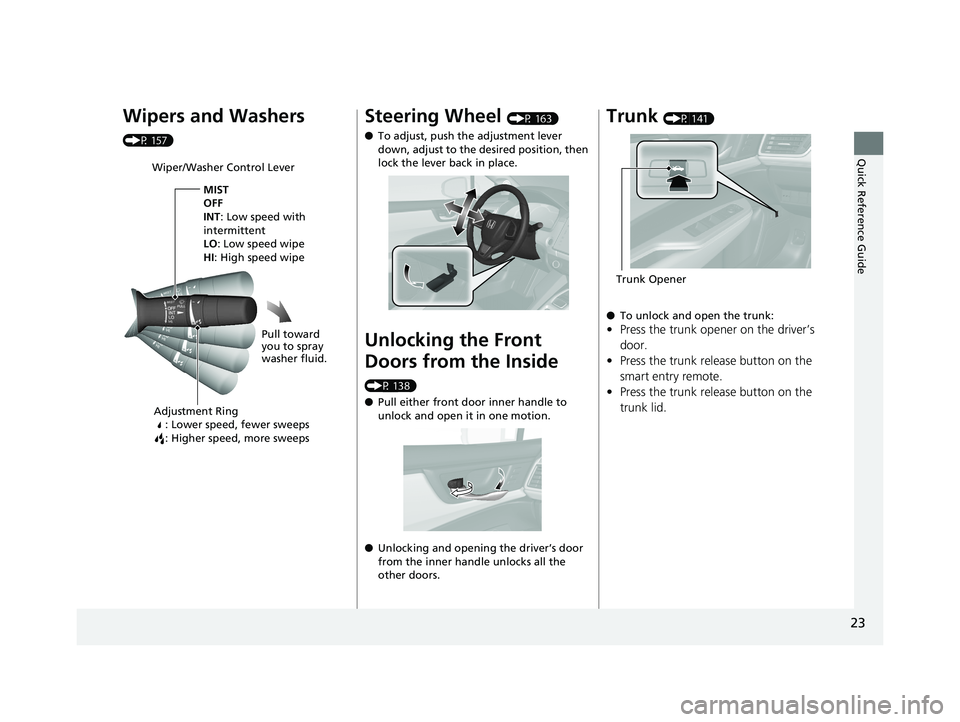

23
Quick Reference Guide
Wipers and Washers
(P 157)
Wiper/Washer Control LeverAdjustment Ring : Lower speed, fewer sweeps
: Higher speed, more sweeps
MIST
OFF
INT: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Steering Wheel (P 163)
● To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P 138)
●Pull either front door inner handle to
unlock and open it in one motion.
● Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors.
Trunk (P 141)
● To unlock and open the trunk:
•Press the trunk opener on the driver’s
door.
• Press the trunk release button on the
smart entry remote.
• Press the trunk release button on the
trunk lid.
Trunk Opener
17 CLARITY BEV CSS-31TRV6000.book 23 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

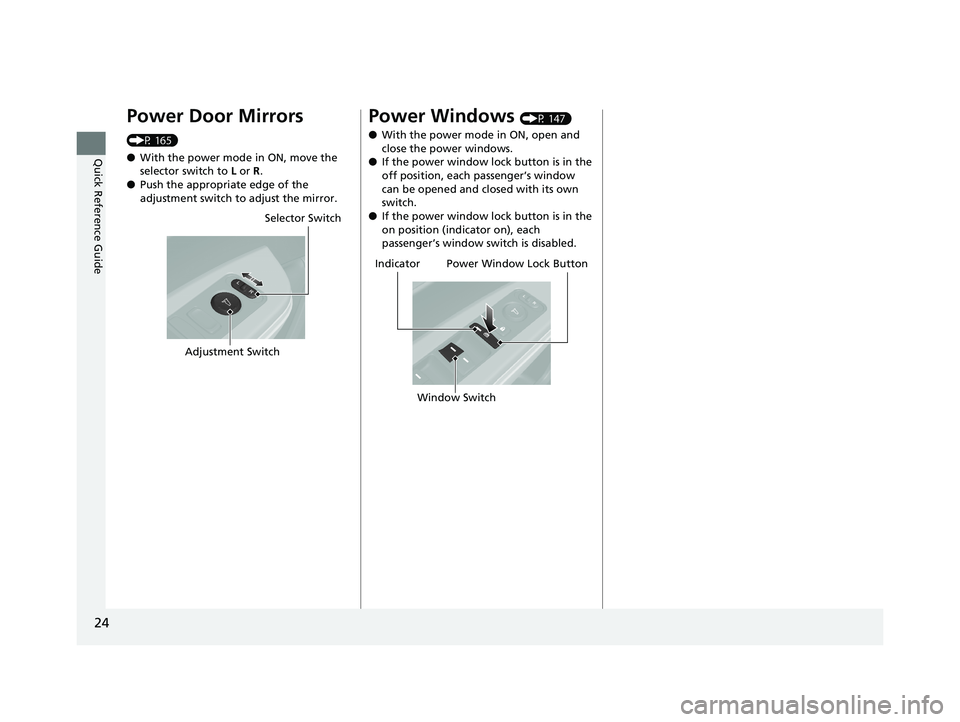

24
Quick Reference Guide
Power Door Mirrors
(P 165)
●With the power mode in ON, move the
selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P 147)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window SwitchIndicator
17 CLARITY BEV CSS-31TRV6000.book 24 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

34
Quick Reference Guide
What to Do If
Why do I hear an operating
noise when applying the
brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P409)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever up to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
17 CLARITY BEV CSS-31TRV6000.book 34 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

40
uuFor Safe Driving uYour Vehicle’s Safety Features
Safe Driving
Your Vehicle’s Safety Features
The following checklist will help you take an active role in protecting yourself and
your passengers.
1 Your Vehicle’s Safety Features
Your vehicle is equipped wi th many features that
work together to help protect you and your
passengers during a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zones, a collapsi ble steering
column, and tensioners that tighten the front seat
belts in a sufficient crash.
However, you and your passe ngers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
67
9101112
Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Door Locks Side Airbags
Seat Belt Tensioners
7
7
1010
9
9
11
11
6
12
8Knee Airbag
8
17 CLARITY BEV CSS-31TRV6000.book 40 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

41
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passengers, make a habit of checking these items
each time before you drive. Check if the charging cable is connected to the vehicle
and disconnect it if it is. The vehicle will not operate with the cable connected.
• After everyone has entered the vehicle, be sure all doors are closed and locked.
Locking the doors helps prevent an occupant from being ejected and an outsider
from unexpectedly opening a door.
2 Locking/Unlocking the Doors from the Inside P. 137
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 166
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2Adjusting the Front Head Restraints Positions P. 168
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 45
•Protect children by using seat belts or chil d seats according to a child’s age, height
and weight.
2 Child Safety P. 65
1Safety Checklist
If the door and/or trunk open message appears on
the driver information inte rface, a door and/or the
trunk is not completely cl osed. Close all doors and
the trunk tightly until the message disappears.
2 Driver Information Interface Warning and
Information Messages P. 106
17 CLARITY BEV CSS-31TRV6000.book 41 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

uuChild Safety uProtecting Child Passengers
66
Safe Driving
• Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secu red to the vehicle using either the seat
belt or the lower anchor s of the LATCH system.
• Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child an d cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Do not allow children to operate the doors, windows or seat adjustments.
• Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.1 Protecting Child Passengers
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the pa ssenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels. 2 Safety Labels P. 78
3WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is buckled, fully retracted,
and locked.
17 CLARITY BEV CSS-31TRV6000.book 66 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

127
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 128
Locking and Unlocking the Doors Key Types and Functions .................. 129
Low Smart Entry Remote Signal Strength .. 130Locking/Unlocking the Doors from the Outside .......................................... 131
Locking/Unlocking the Doors from the Inside ............................................. 137
Childproof Door Locks ..................... 139
Auto Door Locking/Unlocking .......... 140
Opening and Closing the Trunk ....... 141
Security System ................................ 144
Immobilizer System .......................... 144 Security System Alarm...................... 144
Opening and Closing the Windows ... 147
Operating the Switches Around the
Steering Wheel POWER Button................................. 149
Turn Signals ..................................... 152
Light Switches.................................. 153
Daytime Running Lights ................... 156
Wipers and Washers ........................ 157
Brightness Control ........................... 159
Rear Defogger/Heated Door Mirror Button........................................ 160
Driving Position Memory System ...... 161 Adjusting the Steering Wheel .......... 163
Adjusting the Mirrors ....................... 164
Interior Rearview Mirror ................... 164
Power Door Mirrors ......................... 165
Adjusting the Seats .......................... 166
Front Seats ...................................... 166
Interior Lights/Interior Convenience Items ................................................ 173
Interior Lights .................................. 173
Interior Convenience Items .............. 175
Climate Control System ................... 183
Using Automatic Climate Control .... 183
Automatic Climate Control Sensors ... 190
17 CLARITY BEV CSS-31TRV6000.book 127 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分
