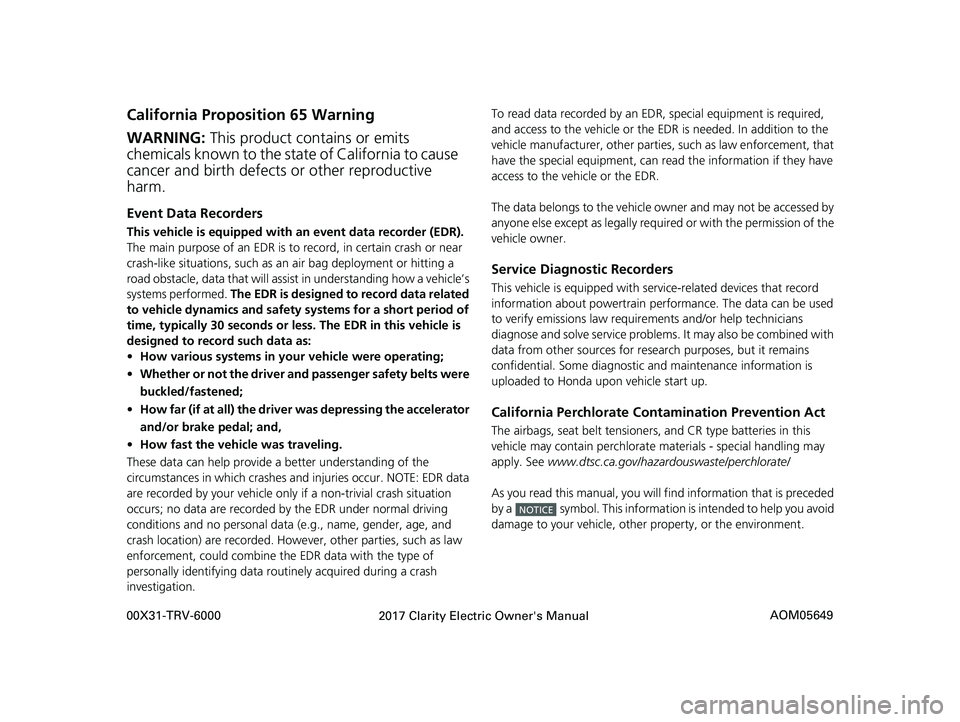

California Proposition 65 Warning
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or le ss. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howe ver, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
WARNING: This product contains or emits
chemicals known to the state of California to cause
cancer and birth defects or other reproductive
harm.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can re ad the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle ow ner and may not be accessed by
anyone else except as legally requir ed or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with se rvice-related devices that record
information about powertrain perfo rmance. The data can be used
to verify emissions law requirem ents and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for res earch purposes, but it remains
confidential. Some diagnostic and maintenance information is
uploaded to Honda upon vehicle start up.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate ma terials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
NOTICE
17 CLARITY BEV CSS-31TRV6000.book 0 ページ 2017年4月14日 金曜日 午前11時8分
00X31-TRV-6000
2017 Clarity
Electric Owner's Manual AOM05649
Page 3 of 543
High-Voltage Battery Monitoring System
This vehicle is equipped with a monitoring system that compiles
data about your vehicle and driving conditions and transmits that
data to Honda at regular intervals as determined at the discretion
of Honda. This data includes information on but not limited to the
following:
● Vehicle location, distance driven, warning indicators and
messages, and vehicle speed
● High-Voltage Battery system control and power generation
The system does not record audio or images.
Data collected is used for the sole purposes of technical diagnoses,
preventive maintenance, resear ch and vehicle development.
Neither Honda nor any third party receiving data will use the data
for any other purpose withou t first obtaining customer
authorization.

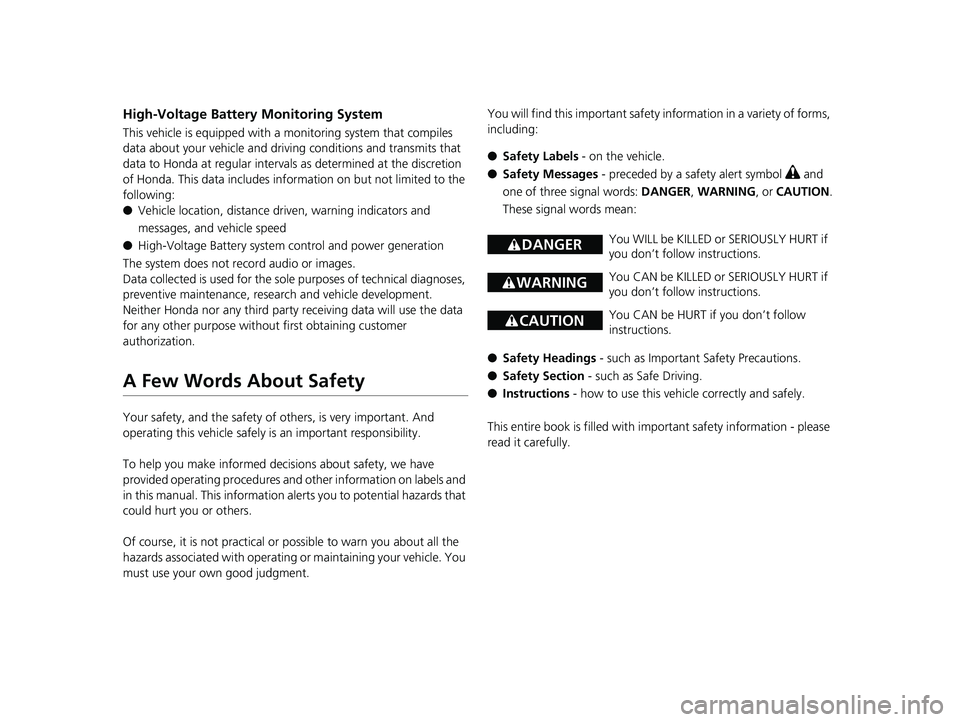

A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment. You will find this impo
rtant safety information in a variety of forms,
including:
● Safety Labels - on the vehicle.
● Safety Messages - preceded by a safety alert symbol
3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
● Safety Headings - such as Important Safety Precautions.
● Safety Section - such as Safe Driving.
● Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3CAUTIONYou CAN be HURT if you don’t follow
instructions.
17 CLARITY BEV CSS-31TRV6000.book 1 ページ 2017年4月14日 金曜日 午前11時8分
Page 4 of 543
Contents

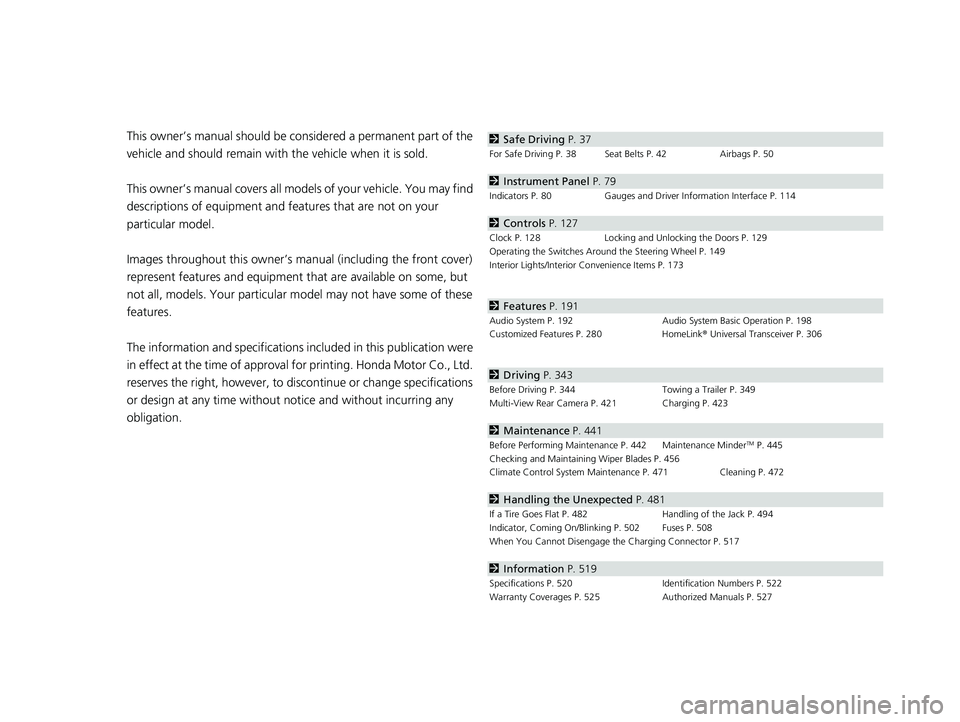

This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 37
For Safe Driving P. 38 Seat Belts P. 42 Airbags P. 50
2Instrument Panel P. 79
Indicators P. 80 Gauges and Driver Information Interface P. 114
2Controls P. 127
Clock P. 128 Locking and Unlocking the Doors P. 129
Operating the Switches Ar ound the Steering Wheel P. 149
Interior Lights/Interior Convenience Items P. 173
2 Features P. 191
Audio System P. 192 Audio System Basic Operation P. 198
Customized Features P. 280 HomeLink® Universal Transceiver P. 306
2 Driving P. 343
Before Driving P. 344 Towing a Trailer P. 349
Multi-View Rear Camera P. 421 Charging P. 423
2 Maintenance P. 441
Before Performing Maintenance P. 442 Maintenance MinderTM P. 445
Checking and Maintaining Wiper Blades P. 456
Climate Control System Main tenance P. 471 Cleaning P. 472
2Handling the Unexpected P. 481
If a Tire Goes Flat P. 482 Handling of the Jack P. 494
Indicator, Coming On/Blinking P. 502 Fuses P. 508
When You Cannot Disengage the Charging Connector P. 517
2Information P. 519
Specifications P. 520 Identification Numbers P. 522
Warranty Coverages P. 525 Authorized Manuals P. 527
17 CLARITY BEV CSS-31TRV6000.book 2 ページ 2017年4月14日 金曜日 午前11時8分
Page 5 of 543
Contents
Child Safety P. 65Safety Labels P. 78
Opening and Closing the Trunk P. 141 Security System P. 144 Opening and Closing the Windows P. 147
Adjusting the Mirrors P. 164 Adjusting the Seats P. 166
Climate Control System P. 183
Audio Error Messages P. 270 General Information on the Audio System P. 274
Bluetooth® HandsFreeLink ® P. 309
When Driving P. 350 Braking P. 404Parking Your Vehicle P. 419
Energy Economy P. 439
Maintenance Under the Hood P. 449 Replacing Light Bulbs P. 454
Checking and Maintaining Tires P. 459 12-Volt Battery P. 468 Remote Transmitter Care P. 470
Accessories and Modifications P. 478
Power System Won’t Start P. 495 Jump Starting P. 498 Overheating P. 501
Emergency Towing P. 515 When You Cannot Open the Charge Lid P. 516
When You Cannot Open the Trunk P. 518
Devices that Emit Radio Waves P. 523 Reporting Safety Defects P. 524
Customer Service Information P. 528
Quick Reference GuideP. 4
Safe DrivingP. 37
Instrument PanelP. 79
ControlsP. 127
FeaturesP. 191
DrivingP. 343
MaintenanceP. 441
Handling the UnexpectedP. 481
InformationP. 519
IndexP. 530
17 CLARITY BEV CSS-31TRV6000.book 3 ページ 2017年4月14日 金曜日 午前11時8分
Page 6 of 543
4
Quick Reference Guide
Quick Reference Guide

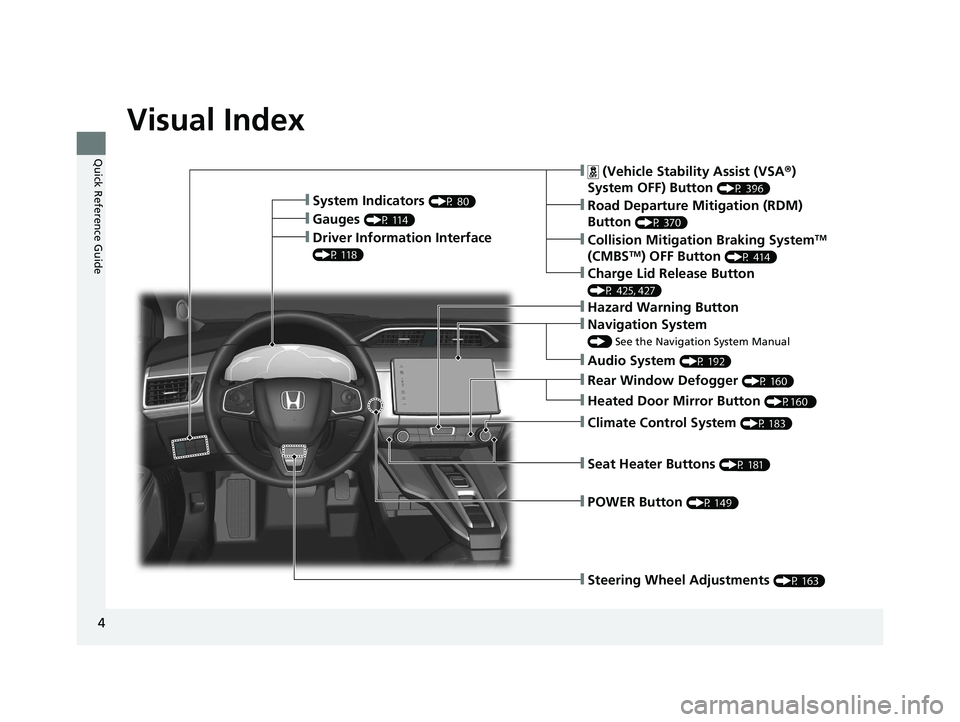

Visual Index
❙Steering Wheel Adjustments (P 163)
❙ (Vehicle Stability Assist (VSA®)
System OFF) Button
(P 396)
❙Road Departure Mitigation (RDM)
Button
(P 370)
❙System Indicators (P 80)
❙Gauges (P 114)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P 414)
❙Charge Lid Release Button
(P 425, 427)
❙Driver Information Interface
(P 118)
❙Navigation System
() See the Navigation System Manual
❙Climate Control System (P 183)
❙Rear Window Defogger (P 160)
❙POWER Button (P 149)
❙Seat Heater Buttons (P 181)
❙Audio System (P 192)
❙Hazard Warning Button
❙Heated Door Mirror Button (P160 )
17 CLARITY BEV CSS-31TRV6000.book 4 ページ 2017年4月14日 金曜日 午前11時8分
Page 7 of 543
5

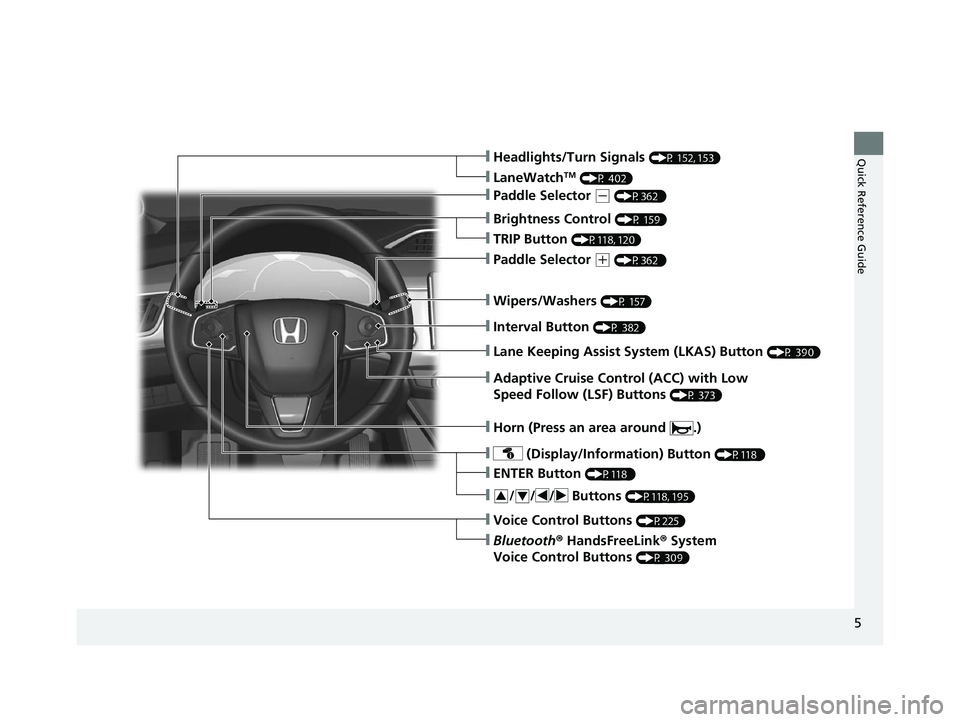

Quick Reference Guide
❙Wipers/Washers (P 157)
❙Headlights/Turn Signals (P 152, 153)
❙Brightness Control (P 159)
❙LaneWatchTM (P 402)
❙TRIP Button (P118, 120)
❙Interval Button (P 382)
❙Lane Keeping Assist System (LKAS) Button (P 390)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons
(P 373)
❙ (Display/Information) Button (P118 )
❙/ / / Buttons (P118, 195)34
❙ENTER Button (P118 )
❙Voice Control Buttons (P225)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 309)
❙Horn (Press an area around .)
❙Paddle Selector (+ (P362 )
❙Paddle Selector (- (P362 )
17 CLARITY BEV CSS-31TRV6000.book 5 ページ 2017年4月14日 金曜日 午前11時8分
Page 8 of 543

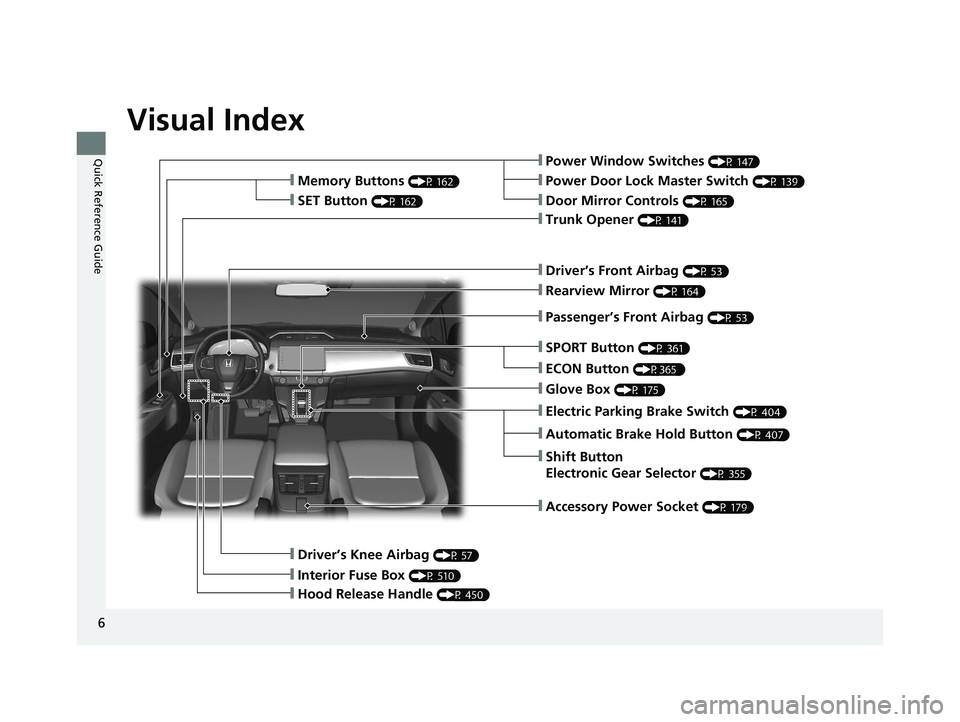

Visual Index
6
Quick Reference Guide❙Power Window Switches (P 147)
❙Trunk Opener (P 141)
❙Driver’s Knee Airbag (P 57)
❙Door Mirror Controls (P 165)
❙Power Door Lock Master Switch (P 139)❙Memory Buttons (P 162)
❙SET Button (P 162)
❙Interior Fuse Box (P 510)
❙Automatic Brake Hold Button (P 407)
❙Driver’s Front Airbag (P 53)
❙Passenger’s Front Airbag (P 53)
❙Rearview Mirror (P 164)
❙SPORT Button (P 361)
❙Glove Box (P 175)
❙Electric Parking Brake Switch (P 404)
❙Shift Button
Electronic Gear Selector
(P 355)
❙Accessory Power Socket (P 179)
❙Hood Release Handle (P 450)
❙ECON Button (P365 )
17 CLARITY BEV CSS-31TRV6000.book 6 ページ 2017年4月14日 金曜日 午前11時8分
Page 9 of 543
7
Quick Reference Guide

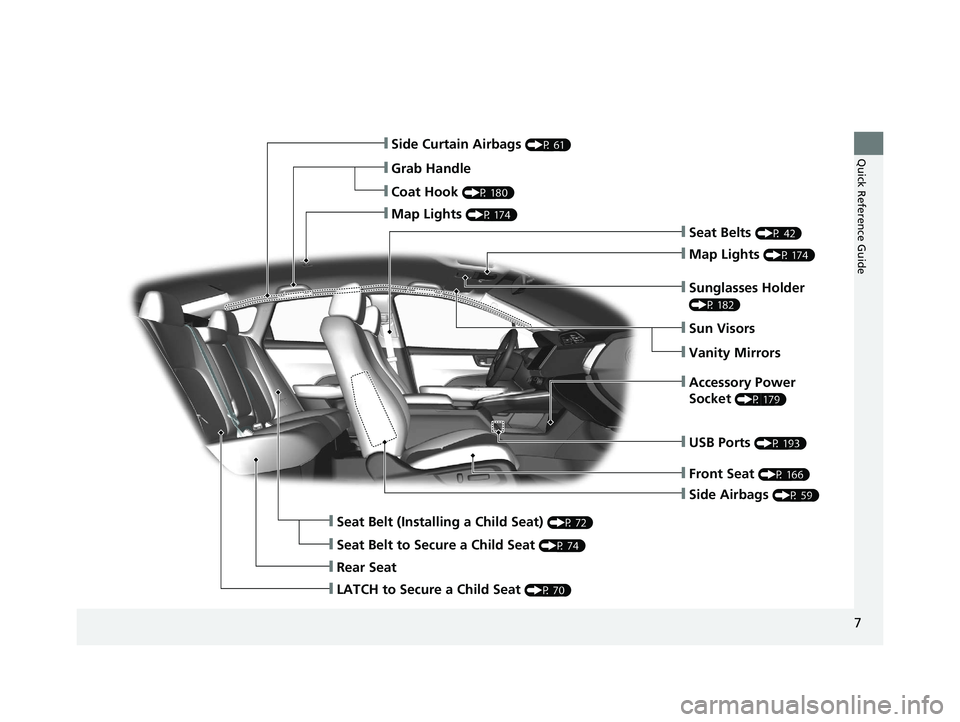

❙Side Airbags (P 59)
❙Side Curtain Airbags (P 61)
❙Seat Belts (P 42)
❙Seat Belt (Installing a Child Seat) (P 72)
❙Rear Seat
❙Coat Hook (P 180)
❙Map Lights (P 174)
❙Sun Visors
❙Vanity Mirrors
❙Seat Belt to Secure a Child Seat (P 74)
❙Map Lights (P 174)
❙Grab Handle
❙Sunglasses Holder
(P 182)
❙Accessory Power
Socket
(P 179)
❙Front Seat (P 166)
❙USB Ports (P 193)
❙LATCH to Secure a Child Seat (P 70)
17 CLARITY BEV CSS-31TRV6000.book 7 ページ 2017年4月14日 金曜日 午前11時8分
Page 10 of 543
Visual Index

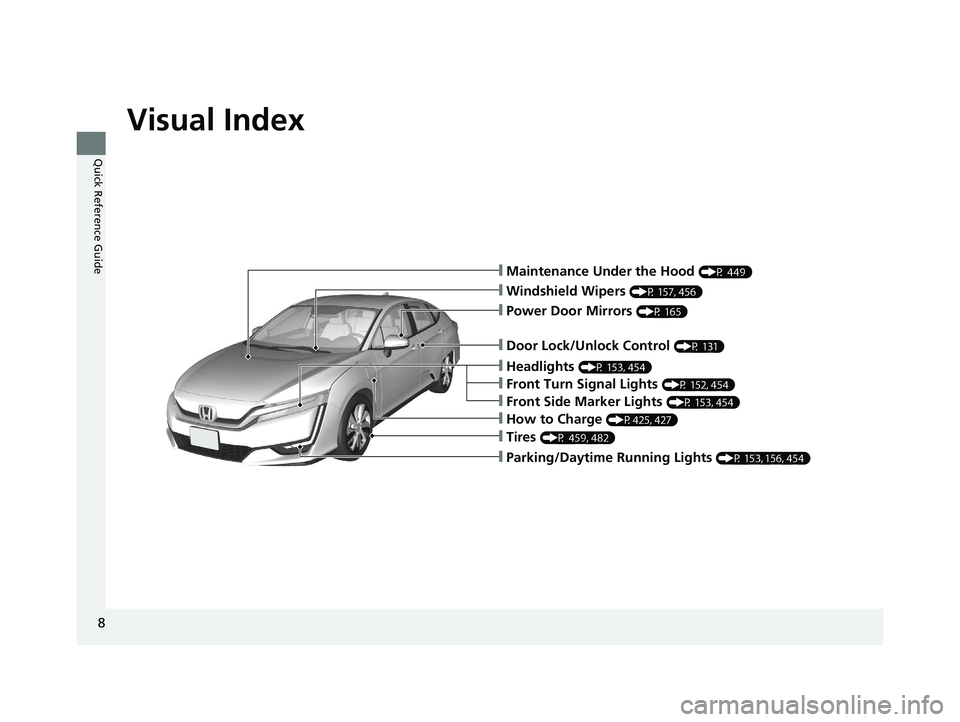

8
Quick Reference Guide
❙Maintenance Under the Hood (P 449)
❙Windshield Wipers (P 157, 456)
❙Tires (P 459, 482)
❙Door Lock/Unlock Control (P 131)
❙Power Door Mirrors (P 165)
❙Headlights (P 153, 454)
❙Front Turn Signal Lights (P 152, 454)
❙Parking/Daytime Running Lights (P 153, 156, 454)
❙Front Side Marker Lights (P 153, 454)
❙How to Charge (P425, 427)
17 CLARITY BEV CSS-31TRV6000.book 8 ページ 2017年4月14日 金曜日 午前11時8分
