HONDA CLARITY ELECTRIC 2018 (in English) User Guide
Manufacturer: HONDA, Model Year: 2018, Model line: CLARITY ELECTRIC, Model: HONDA CLARITY ELECTRIC 2018Pages: 559, PDF Size: 27.8 MB
Page 11 of 559
9
Quick Reference Guide

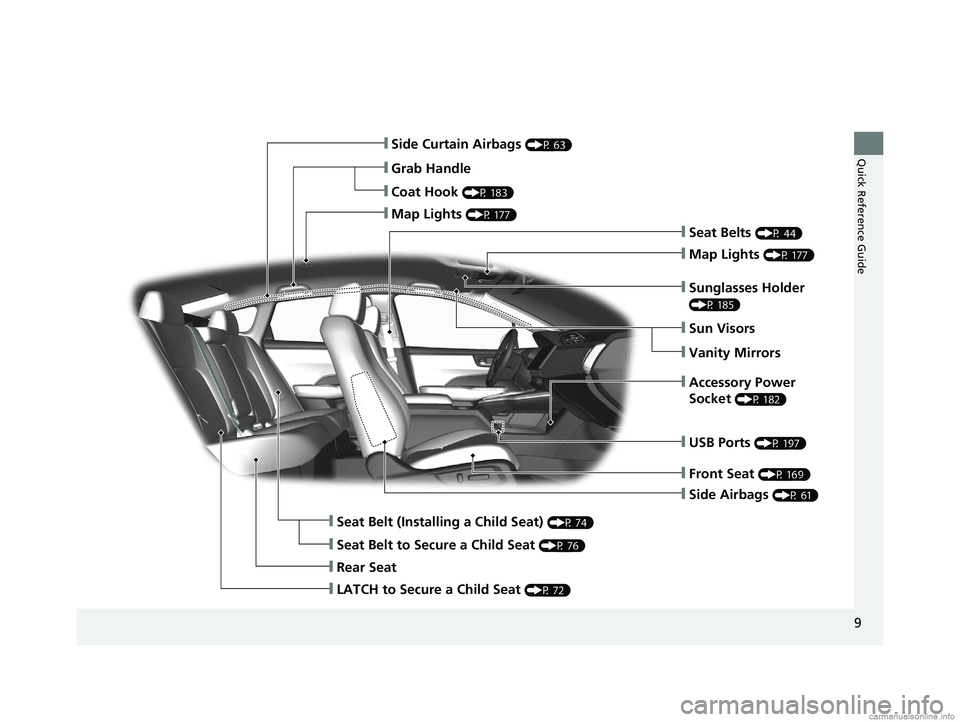

❙Side Airbags (P 61)
❙Side Curtain Airbags (P 63)
❙Seat Belts (P 44)
❙Seat Belt (Installing a Child Seat) (P 74)
❙Rear Seat
❙Coat Hook (P 183)
❙Map Lights (P 177)
❙Sun Visors
❙Vanity Mirrors
❙Seat Belt to Secure a Child Seat (P 76)
❙Map Lights (P 177)
❙Grab Handle
❙Sunglasses Holder
(P 185)
❙Accessory Power
Socket
(P 182)
❙Front Seat (P 169)
❙USB Ports (P 197)
❙LATCH to Secure a Child Seat (P 72)
18 CLARITY ELECTRIC CSS-31TRV6100.book 9 ページ 2018年2月5日 月曜日 午後12時0分
Page 12 of 559

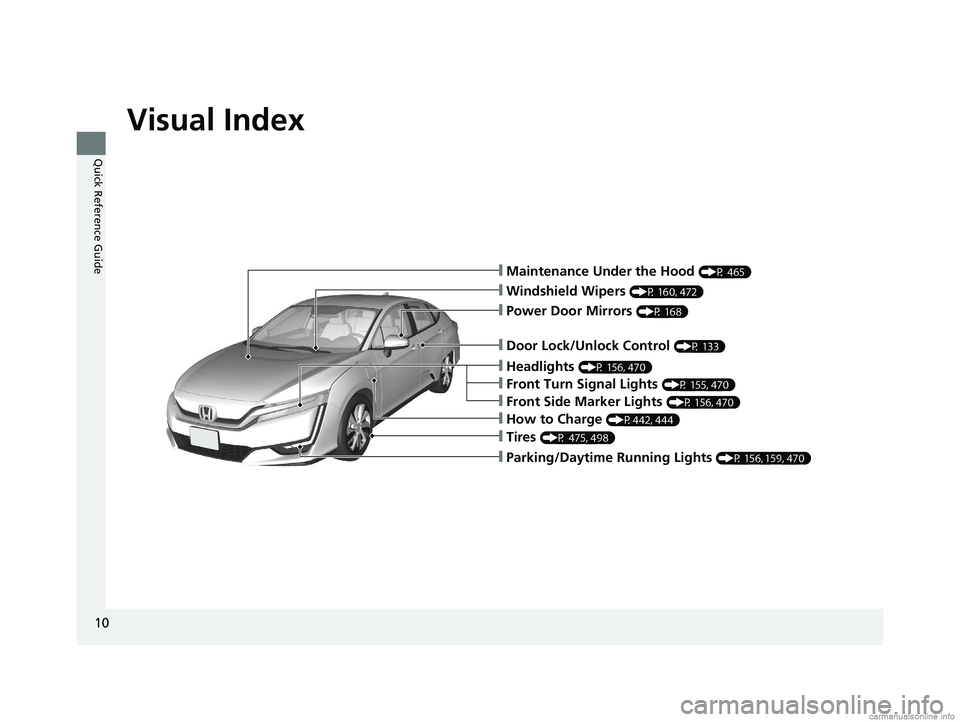

Visual Index
10
Quick Reference Guide
❙Maintenance Under the Hood (P 465)
❙Windshield Wipers (P 160, 472)
❙Tires (P 475, 498)
❙Door Lock/Unlock Control (P 133)
❙Power Door Mirrors (P 168)
❙Headlights (P 156, 470)
❙Front Turn Signal Lights (P 155, 470)
❙Parking/Daytime Running Lights (P 156, 159, 470)
❙Front Side Marker Lights (P 156, 470)
❙How to Charge (P442, 444)
18 CLARITY ELECTRIC CSS-31TRV6100.book 10 ページ 2018年2月5日 月曜日 午後12時0分
Page 13 of 559
11
Quick Reference Guide

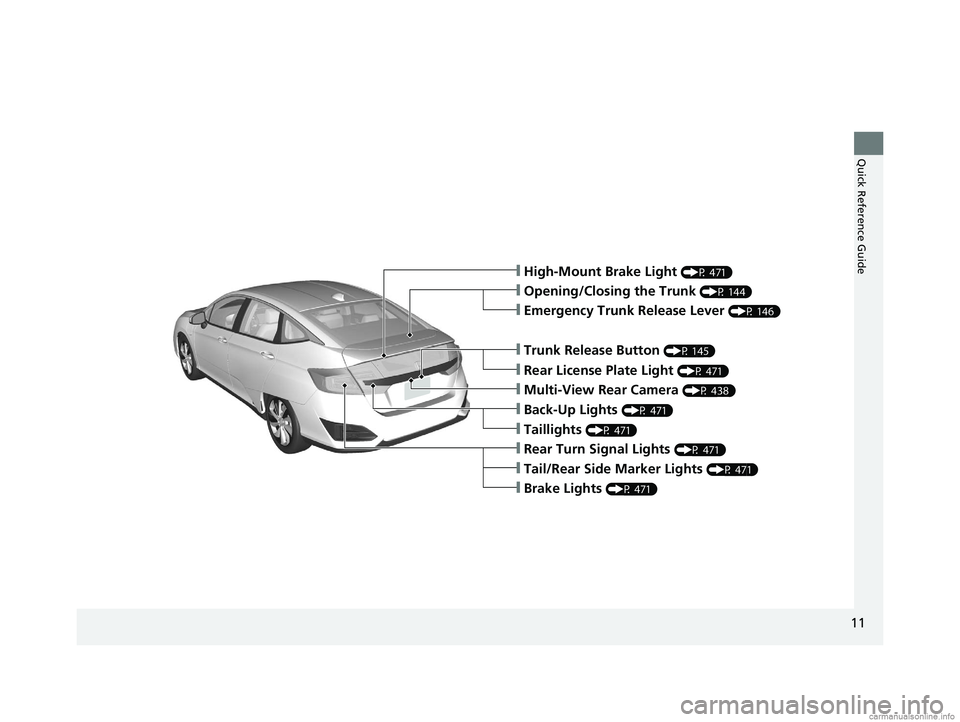

❙High-Mount Brake Light (P 471)
❙Opening/Closing the Trunk (P 144)
❙Tail/Rear Side Marker Lights (P 471)
❙Brake Lights (P 471)
❙Rear Turn Signal Lights (P 471)
❙Back-Up Lights (P 471)
❙Taillights (P 471)
❙Trunk Release Button (P 145)
❙Rear License Plate Light (P 471)
❙Multi-View Rear Camera (P 438)
❙Emergency Trunk Release Lever (P 146)
18 CLARITY ELECTRIC CSS-31TRV6100.book 11 ページ 2018年2月5日 月曜日 午後12時0分
Page 14 of 559
12
Quick Reference Guide

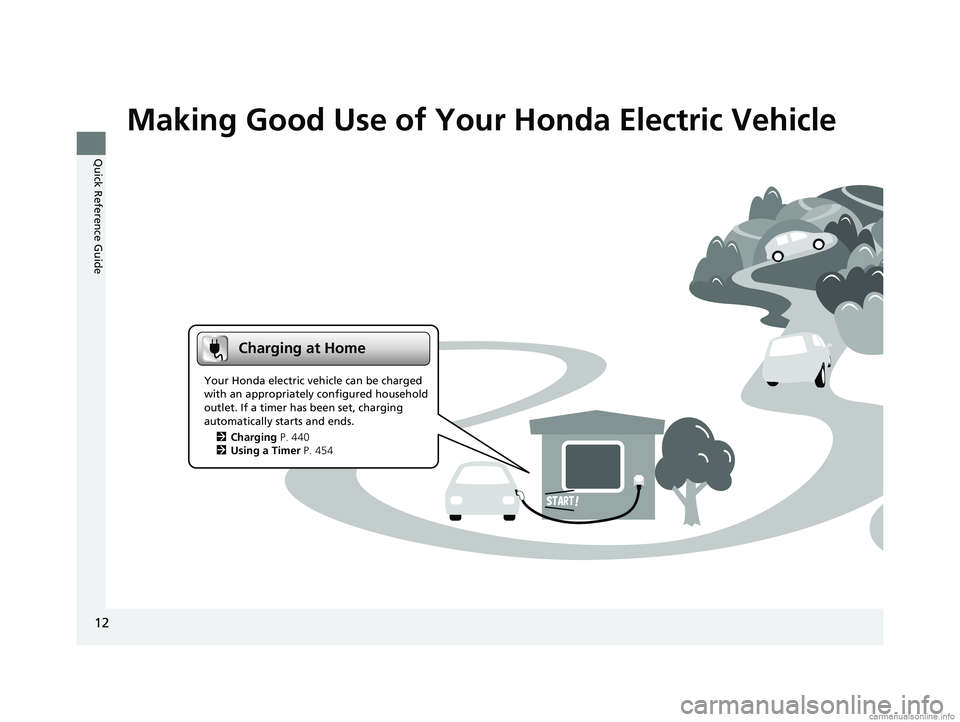

Making Good Use of Your Honda Electric Vehicle
Charging at Home
Your Honda electric vehicle can be charged
with an appropriately configured household
outlet. If a timer has been set, charging
automatically starts and ends.2 Charging P. 440
2 Using a Timer P. 454
18 CLARITY ELECTRIC CSS-31TRV6100.book 12 ページ 2018年2月5日 月曜日 午後12時0分
Page 15 of 559
13
Quick Reference Guide

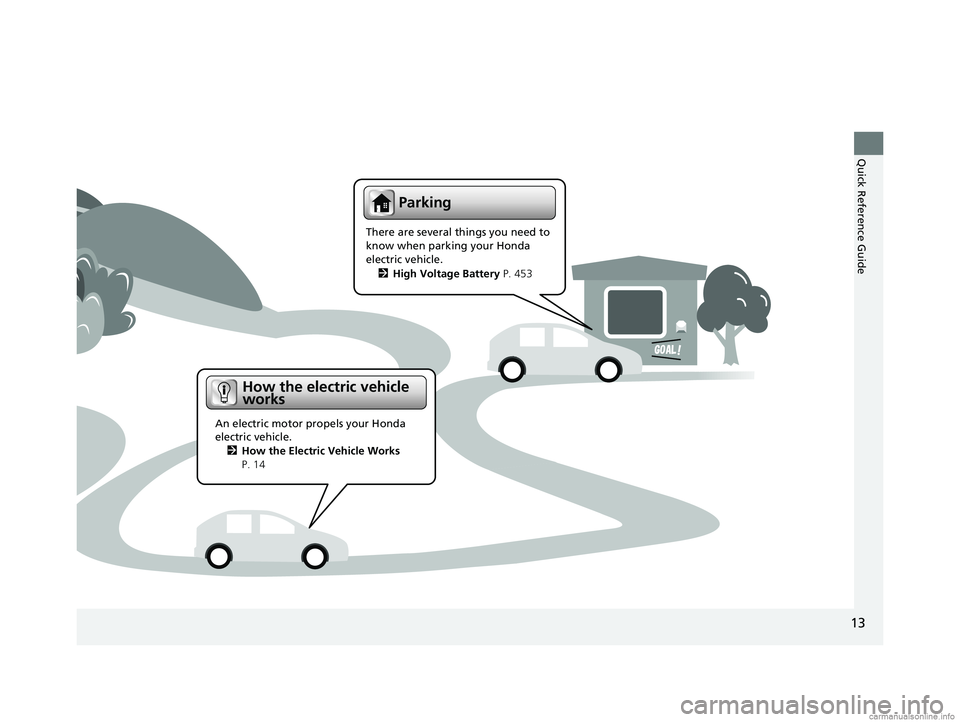

Parking
There are several things you need to
know when parking your Honda
electric vehicle.2 High Voltage Battery P. 453
How the electric vehicle
works
An electric motor propels your Honda
electric vehicle.
2 How the Electric Vehicle Works
P. 14
18 CLARITY ELECTRIC CSS-31TRV6100.book 13 ページ 2018年2月5日 月曜日 午後12時0分
Page 16 of 559
14
Quick Reference Guide

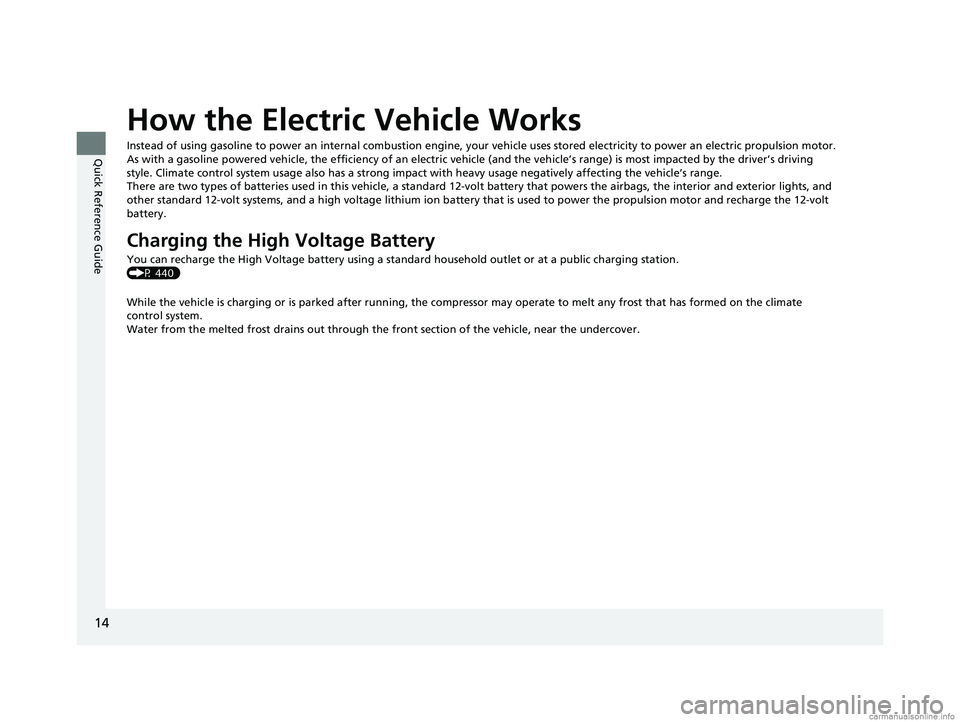

How the Electric Vehicle Works
Instead of using gasoline to power an internal combustion engine, your vehicle uses stored electricity to power an electric pro pulsion motor.
As with a gasoline powered vehicle, the efficiency of an electri c vehicle (and the vehicle’s range) is most impacted by the driver’s driving
style. Climate control system usage also has a strong impact with heavy usage negatively affecting the vehicle’s range.
There are two types of batteries used in this vehicle, a standa rd 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems, and a high voltage lithium ion ba ttery that is used to power the propulsion motor and recharge the 12-volt
battery.
Charging the High Voltage Battery
You can recharge the High Voltage battery using a standar d household outlet or at a public charging station.
(P 440)
While the vehicle is charging or is parked after running, the co mpressor may operate to melt any frost that has formed on the climate
control system.
Water from the melted frost drains out through the fr ont section of the vehicle, near the undercover.
18 CLARITY ELECTRIC CSS-31TRV6100.book 14 ページ 2018年2月5日 月曜日 午後12時0分
Page 17 of 559
15
Quick Reference Guide
Electric Vehicle Precautions
High Voltage Components, High Voltage Cables and High Temperature
Components
Electric vehicles have high voltage components (about 500 V maximum) such as the power control unit, High Voltage battery, high voltage
cables (identified by their orange covers), electric motor, and high temperature parts such as the radiator. Labels with handli ng warnings
are attached to these components.
WARNING
This vehicle has high voltage circuits and
parts. Failure to observe the following
precautions can result in burns or electric
shock.
●Do not remove, disassemble, or replace
the high voltage parts, cables (orange) or
their connectors.
●Never touch the High Voltage battery
service plugs.
In an emergency or during maintenance or
repair, the service plugs are removed to cut
off the electric flow from the battery. These
plugs are in contact with the battery and
can cause severe electric shock if not
handled properly.
Only a qualified technician should handle
any electrical equipment. For inspection
and repair, consult an authorized Honda
Clarity Electric dealer.
DC/DC Converter
●A/C Compressor●A/C Heater
Radiator a High Voltage Battery
Label
a Radiator Cap
Power Control Unit
Electric Motor
High Voltage Battery
Service Plug Lid c
High Voltage Battery
System Coolant
Reserve Tank b
b High Voltage Battery
System Coolant Reserve
Tank Cap c
High Voltage Battery
Service Plug Lid
18 CLARITY ELECTRIC CSS-31TRV6100.book 15 ページ 2018年2月5日 月曜日 午後12時0分
Page 18 of 559
16
Quick Reference Guide

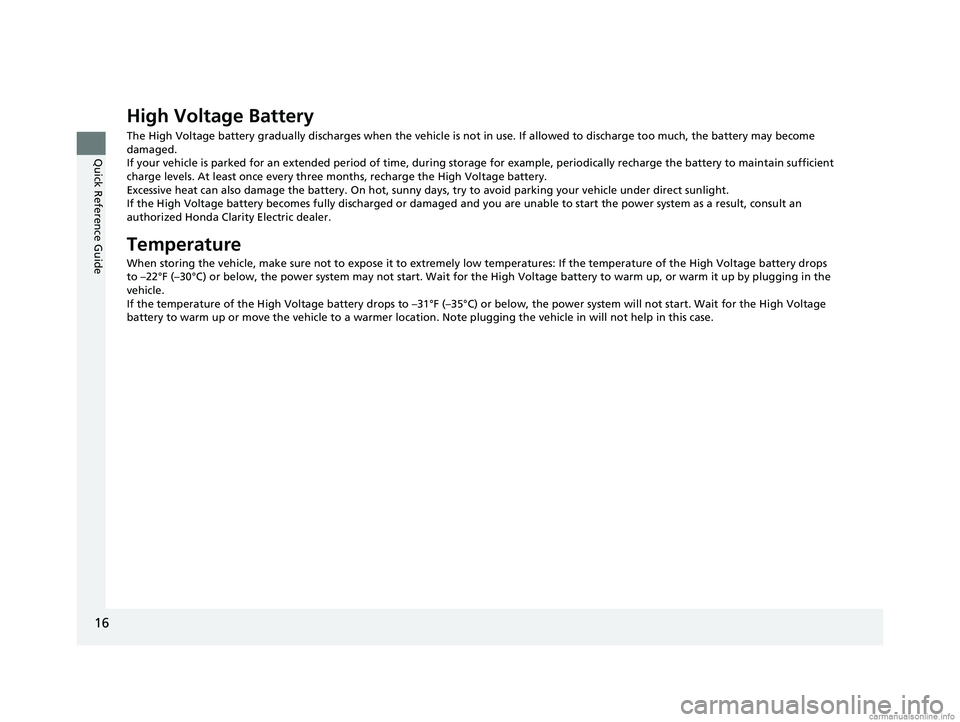

High Voltage Battery
The High Voltage battery gradually discharges when the vehicle is not in use. If allowed to discharge too much, the battery may become
damaged.
If your vehicle is parked for an extended period of time, du ring storage for example, periodically recharge the battery to main tain sufficient
charge levels. At least once every three months, recharge the High Voltage battery.
Excessive heat can also damage the batter y. On hot, sunny days, try to avoid parking your vehicle under direct sunlight.
If the High Voltage battery becomes fully discharged or damaged and you are unable to start the power system as a result, consult an
authorized Honda Clarity Electric dealer.
Temperature
When storing the vehicle, make sure not to expose it to extrem ely low temperatures: If the temperature of the High Voltage battery drops
to –22°F (–30°C) or below, the power system may not start. Wait for the High Voltage batt ery to warm up, or warm it up by plugging in the
vehicle.
If the temperature of the High Voltage battery drops to –31°F (– 35°C) or below, the power system will not start. Wait for the High Voltage
battery to warm up or move the vehicle to a warmer location. Note plugging the vehicle in will not help in this case.
18 CLARITY ELECTRIC CSS-31TRV6100.book 16 ページ 2018年2月5日 月曜日 午後12時0分
Page 19 of 559
17
Quick Reference Guide

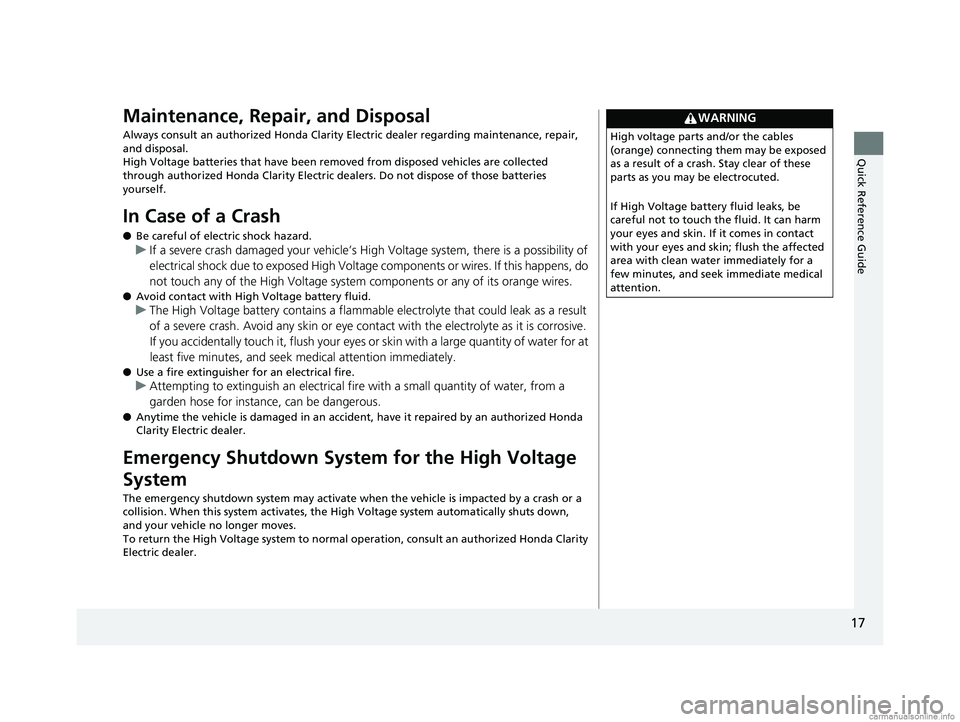

Maintenance, Repair, and Disposal
Always consult an authorized Honda Clarity Electric dealer regarding maintenance, repair,
and disposal.
High Voltage batteries that have been removed from disposed vehicles are collected
through authorized Honda Clarity Electric dealers. Do not dispose of those batteries
yourself.
In Case of a Crash
● Be careful of electric shock hazard.
uIf a severe crash damaged your vehicle’s Hi gh Voltage system, there is a possibility of
electrical shock due to exposed High Voltage components or wires. If this happens, do
not touch any of the High Vo ltage system components or any of its orange wires.
●Avoid contact with High Voltage battery fluid.
uThe High Voltage battery contains a flammabl e electrolyte that could leak as a result
of a severe crash. Avoid any skin or eye cont act with the electrolyte as it is corrosive.
If you accidentally touch it, flush your eyes or skin with a large quantity of water for at
least five minutes, and seek medical attention immediately.
● Use a fire extinguisher for an electrical fire.
uAttempting to extinguish an electrical fire with a small quantity of water, from a
garden hose for instance, can be dangerous.
● Anytime the vehicle is damaged in an accident, have it repaired by an authorized Honda
Clarity Electric dealer.
Emergency Shutdown System for the High Voltage
System
The emergency shutdown system may activate when the vehicle is impacted by a crash or a
collision. When this system activates, the Hi gh Voltage system automatically shuts down,
and your vehicle no longer moves.
To return the High Voltage syste m to normal operation, consult an authorized Honda Clarity
Electric dealer.
WARNING
High voltage parts and/or the cables
(orange) connecting them may be exposed
as a result of a crash. Stay clear of these
parts as you may be electrocuted.
If High Voltage battery fluid leaks, be
careful not to touch the fluid. It can harm
your eyes and skin. If it comes in contact
with your eyes and skin; flush the affected
area with clean water immediately for a
few minutes, and seek immediate medical
attention.
18 CLARITY ELECTRIC CSS-31TRV6100.book 17 ページ 2018年2月5日 月曜日 午後12時0分
Page 20 of 559
18
Quick Reference Guide

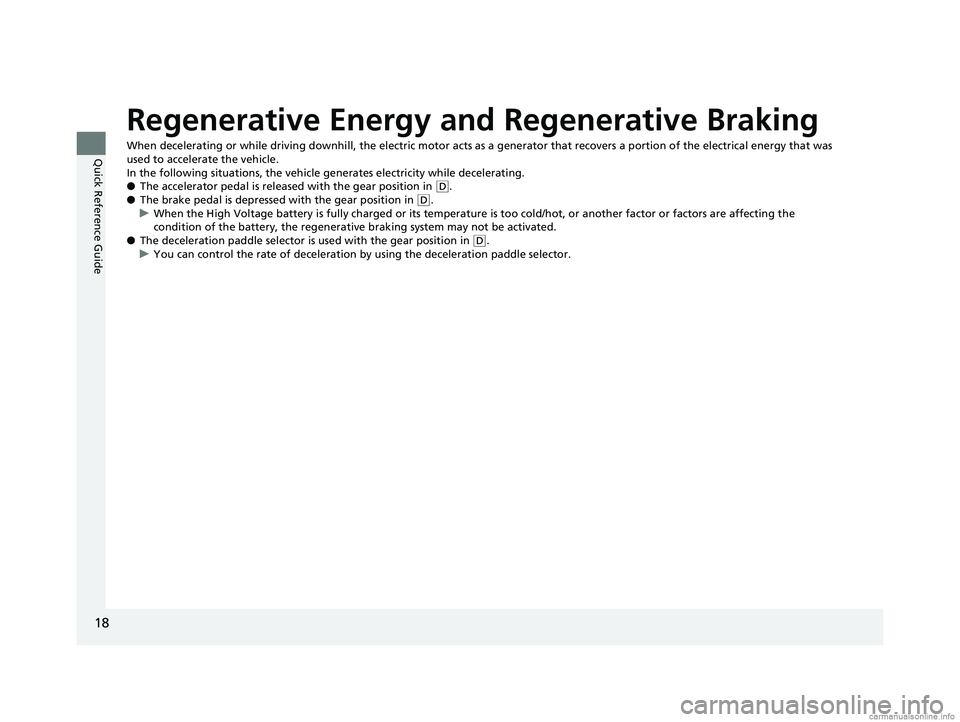

Regenerative Energy and Regenerative Braking
When decelerating or while driving downhill, the electric motor acts as a generator that recovers a portion of the electrical energy that was
used to accelerate the vehicle.
In the following situations, the vehicle generates electricity while decelerating.
● The accelerator pedal is released with the gear position in
(D.
● The brake pedal is depressed with the gear position in
(D.
u When the High Voltage battery is fully charged or its temperature is too cold/hot, or another factor or factors are affecting t he
condition of the battery, the regenerative braking system may not be activated.
● The deceleration paddle selector is used with the gear position in
(D.
u You can control the rate of deceleration by using the deceleration paddle selector.
18 CLARITY ELECTRIC CSS-31TRV6100.book 18 ページ 2018年2月5日 月曜日 午後12時0分
