179
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Pull the handle to open the console
compartment.
You can use the card holder located in the
console compartment lid.

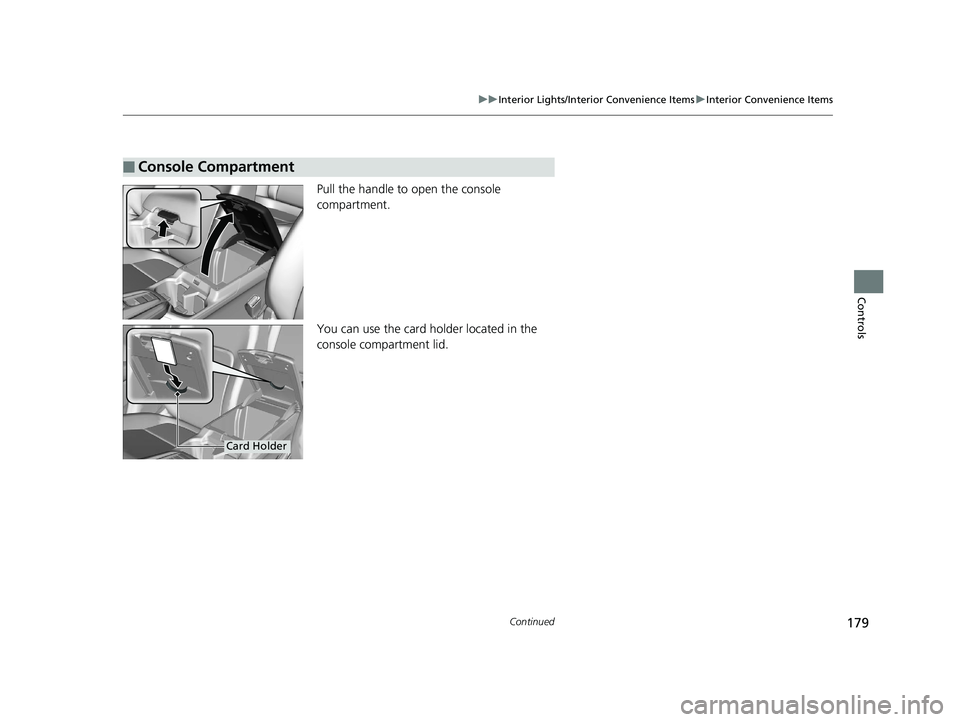

■Console Compartment
Card Holder
19 CLARITY BEV-31TRV6200.book 179 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
180
Controls

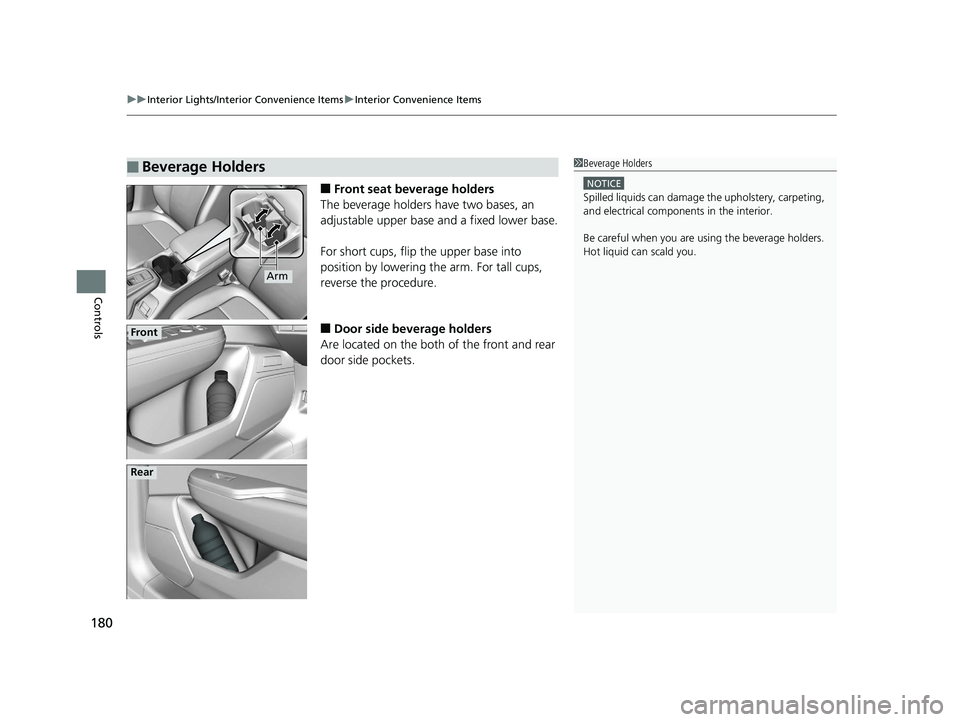

■Front seat beverage holders
The beverage holders have two bases, an
adjustable upper base and a fixed lower base.
For short cups, flip the upper base into
position by lowering the arm. For tall cups,
reverse the procedure.
■Door side beverage holders
Are located on the both of the front and rear
door side pockets.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Arm
Front
Rear
19 CLARITY BEV-31TRV6200.book 180 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

181
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

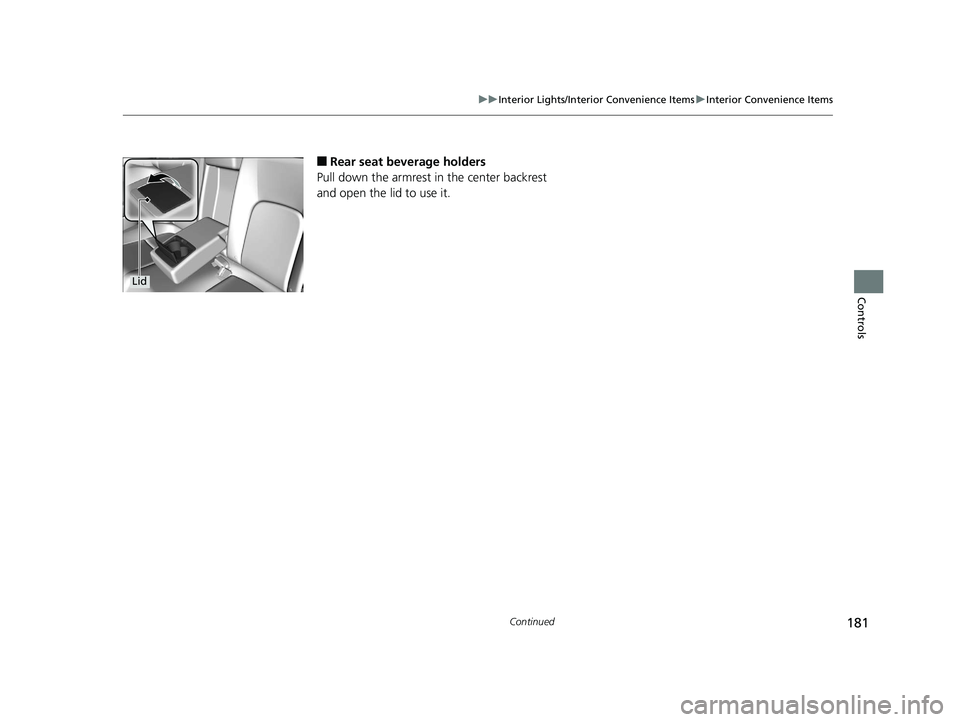

■Rear seat beverage holders
Pull down the armrest in the center backrest
and open the lid to use it.
Lid
19 CLARITY BEV-31TRV6200.book 181 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
182
Controls

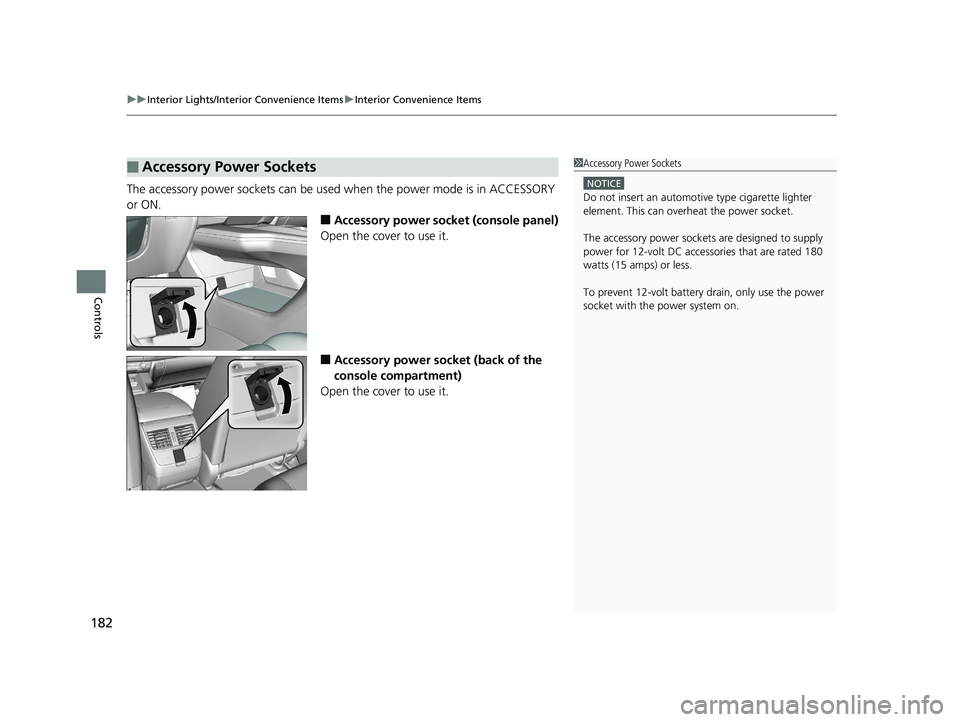

The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory power socket (back of the
console compartment)
Open the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket s are designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent 12-volt battery drain, only use the power
socket with the power system on.
19 CLARITY BEV-31TRV6200.book 182 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

Continued183
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

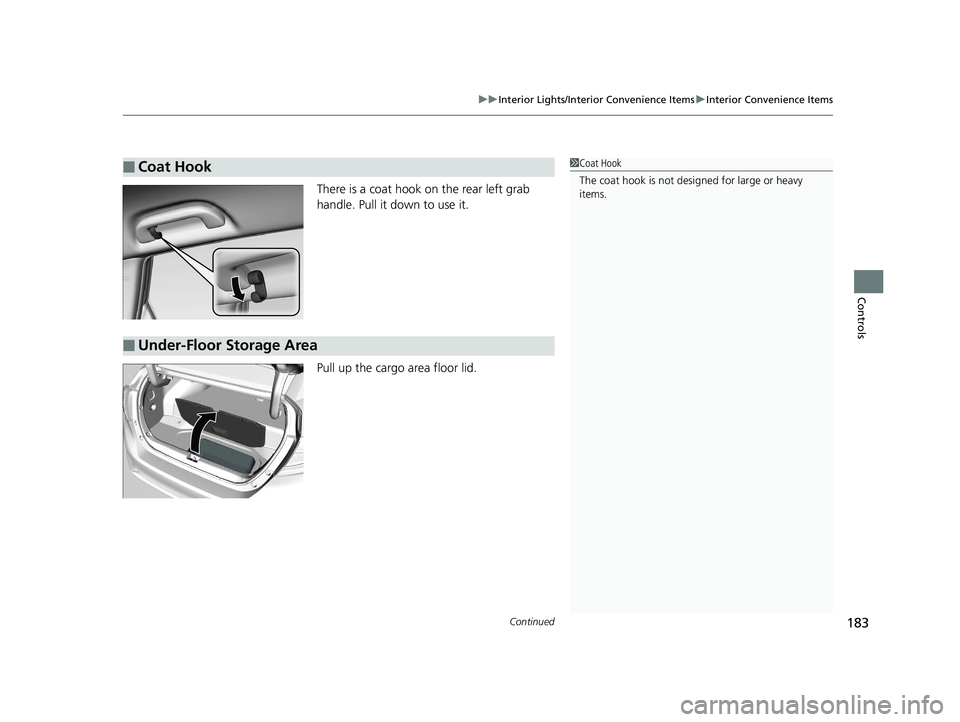

There is a coat hook on the rear left grab
handle. Pull it down to use it.
Pull up the cargo area floor lid.
■Coat Hook1Coat Hook
The coat hook is not desi gned for large or heavy
items.
■Under-Floor Storage Area
19 CLARITY BEV-31TRV6200.book 183 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
184
Controls

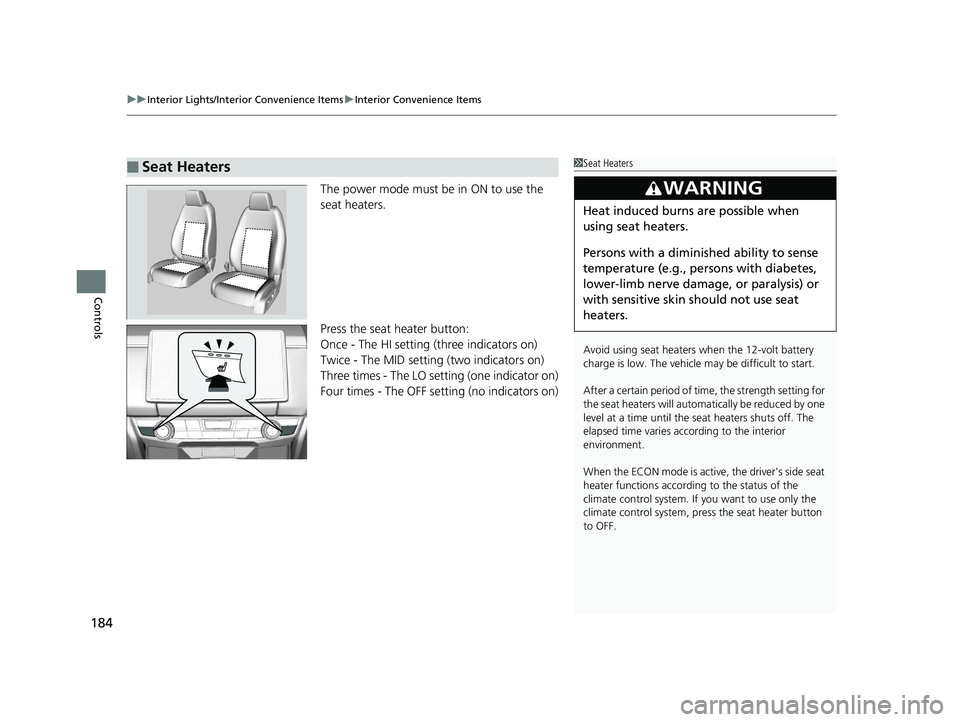

The power mode must be in ON to use the
seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
■Seat Heaters1Seat Heaters
Avoid using seat heaters when the 12-volt battery
charge is low. The vehicle may be difficult to start.
After a certain period of time, the strength setting for
the seat heaters will automatically be reduced by one
level at a time until the seat heaters shuts off. The
elapsed time varies according to the interior
environment.
When the ECON mode is active, the driver’s side seat
heater functions accordi ng to the status of the
climate control system. If you want to use only the
climate control system, press the seat heater button
to OFF.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
19 CLARITY BEV-31TRV6200.book 184 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

185
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

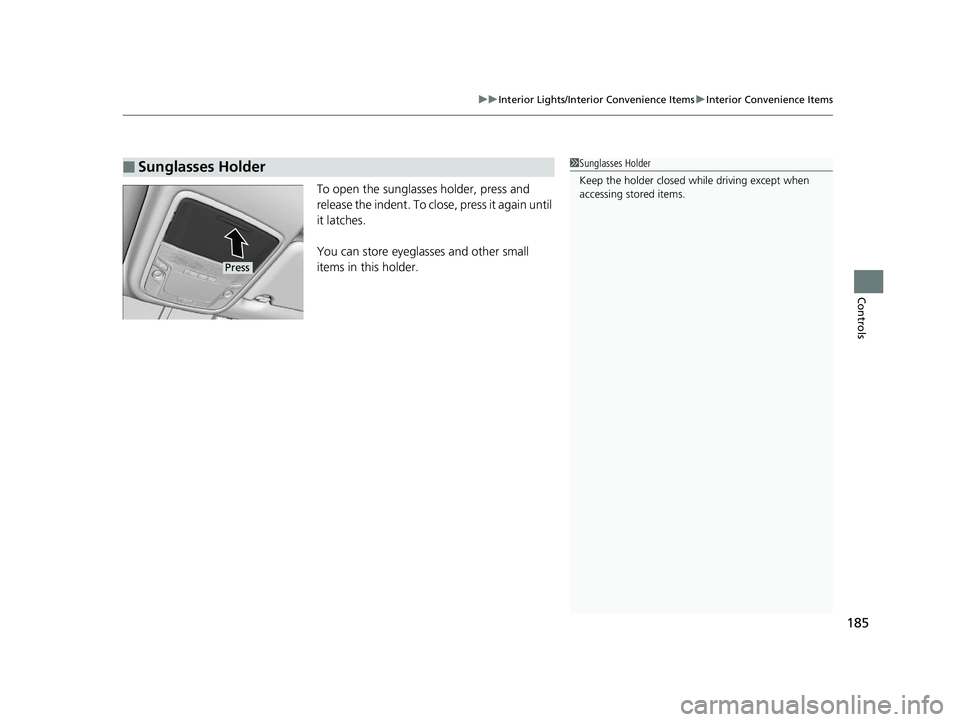

To open the sunglasses holder, press and
release the indent. To close, press it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Sunglasses Holder1Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Press
19 CLARITY BEV-31TRV6200.book 185 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

186
Controls

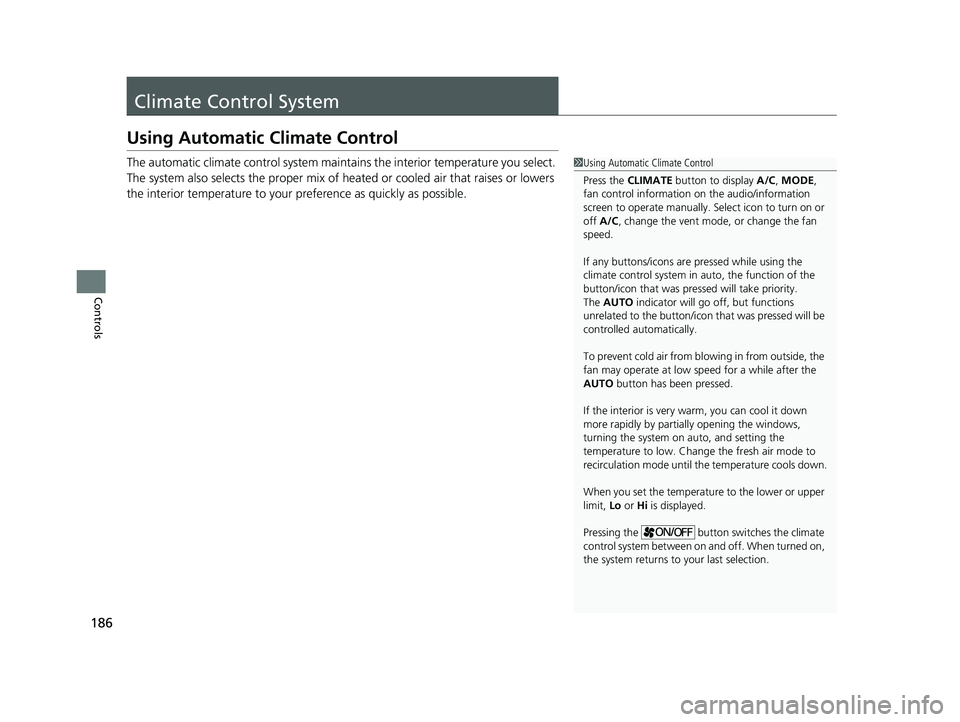

Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.1Using Automatic Climate Control
Press the CLIMATE button to display A/C, MODE,
fan control information on the audio/information
screen to operate manually. Select ic on to turn on or
off A/C , change the vent mode , or change the fan
speed.
If any buttons/icons are pressed while using the
climate control system in auto, the function of the
button/icon that was presse d will take priority.
The AUTO indicator will go off, but functions
unrelated to the button/icon that was pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may operate at low speed for a while after the
AUTO button has been pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
19 CLARITY BEV-31TRV6200.book 186 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

187
uuClimate Control System uUsing Automatic Climate Control
Continued
Controls

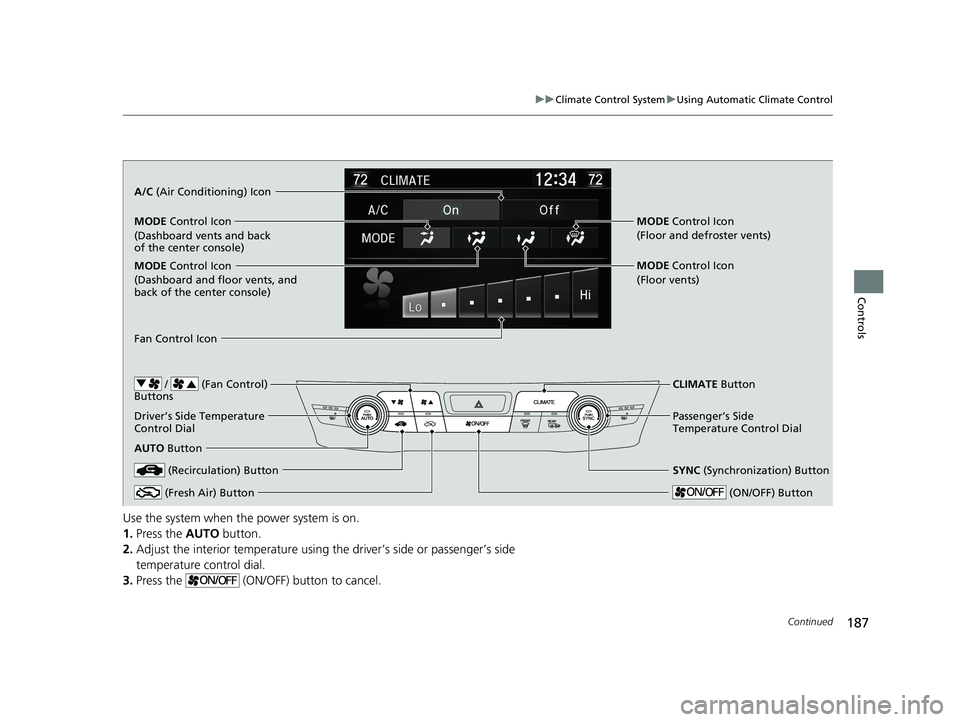

Use the system when the power system is on.
1. Press the AUTO button.
2. Adjust the interior temperature using the driver’s side or passenger’s side
temperature control dial.
3. Press the (ON/OFF) button to cancel.
/ (Fan Control)
Buttons
A/C (Air Conditioning) Icon
MODE Control Icon
(Dashboard vents and back
of the center console)
MODE Control Icon
(Dashboard and floor vents, and
back of the center console)
CLIMATE Button
Driver’s Side Temperature
Control Dial
AUTO Button
SYNC (Synchronization) Button
Passenger’s Side
Temperature Control Dial
MODE Control Icon
(Floor vents) MODE Control Icon
(Floor and defroster vents)
(Recirculation) Button
(Fresh Air) Button (ON/OFF) Button
Fan Control Icon
19 CLARITY BEV-31TRV6200.book 187 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

uuClimate Control System uUsing Automatic Climate Control
188
Controls

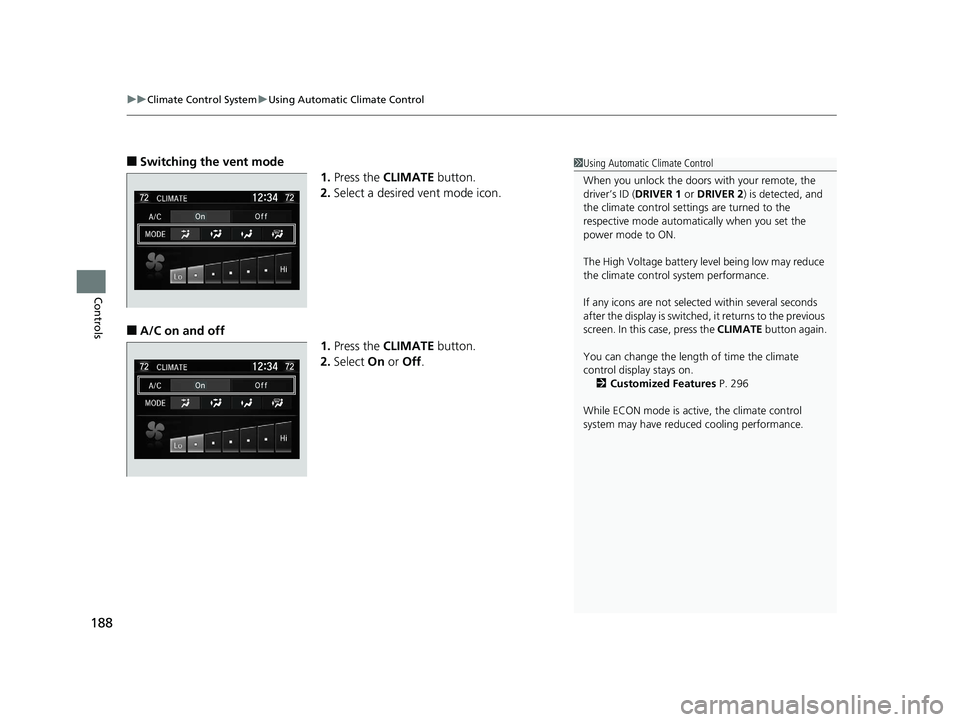

■Switching the vent mode
1.Press the CLIMATE button.
2. Select a desired vent mode icon.
■A/C on and off
1.Press the CLIMATE button.
2. Select On or Off .
1Using Automatic Climate Control
When you unlock the doors with your remote, the
driver’s ID (DRIVER 1 or DRIVER 2) is detected, and
the climate control settings are turned to the
respective mode automatically when you set the
power mode to ON.
The High Voltage battery level being low may reduce
the climate control system performance.
If any icons are not select ed within several seconds
after the display is switched, it returns to the previous
screen. In this case, press the CLIMATE button again.
You can change the length of time the climate
control display stays on. 2 Customized Features P. 296
While ECON mode is active, the climate control
system may have reduced cooling performance.
