uuCharging uCharge the High Voltage battery using a Level 1, 2 or SAE J1772 DC charger
Driving

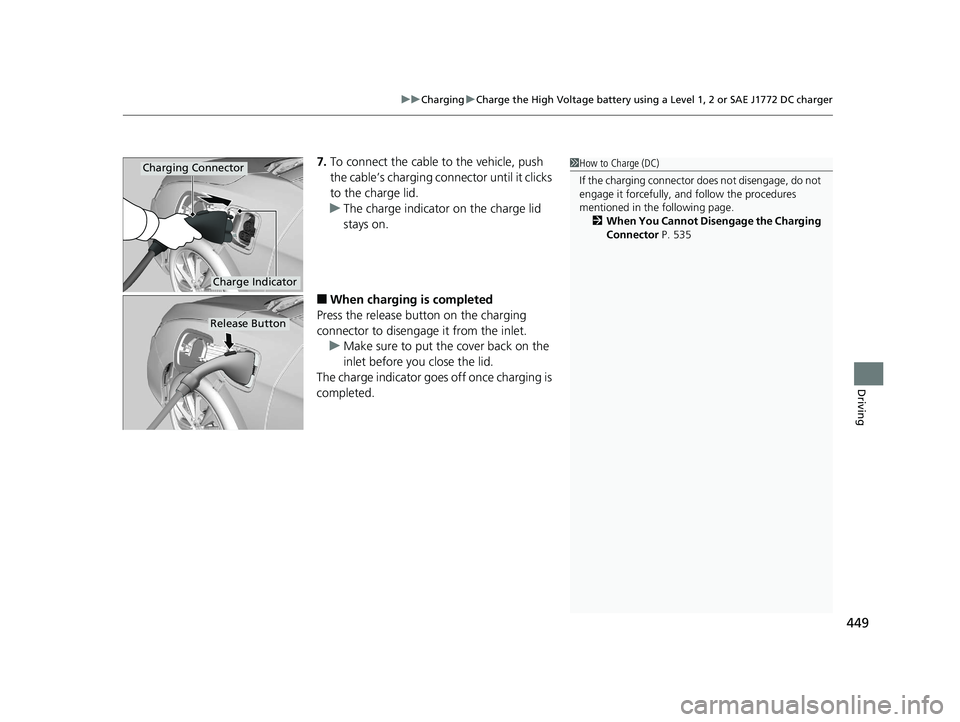

7. To connect the cable to the vehicle, push
the cable’s charging conn ector until it clicks
to the charge lid.
u The charge indicator on the charge lid
stays on.
■When charging is completed
Press the release button on the charging
connector to disengag e it from the inlet.
u Make sure to put the cover back on the
inlet before you close the lid.
The charge indicator goes off once charging is
completed.
1 How to Charge (DC)
If the charging connector does not disengage, do not
engage it forcefully, a nd follow the procedures
mentioned in the following page. 2 When You Cannot Disengage the Charging
Connector P. 535Charging Connector
Charge Indicator
Release Button
19 CLARITY BEV-31TRV6200.book 449 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

450

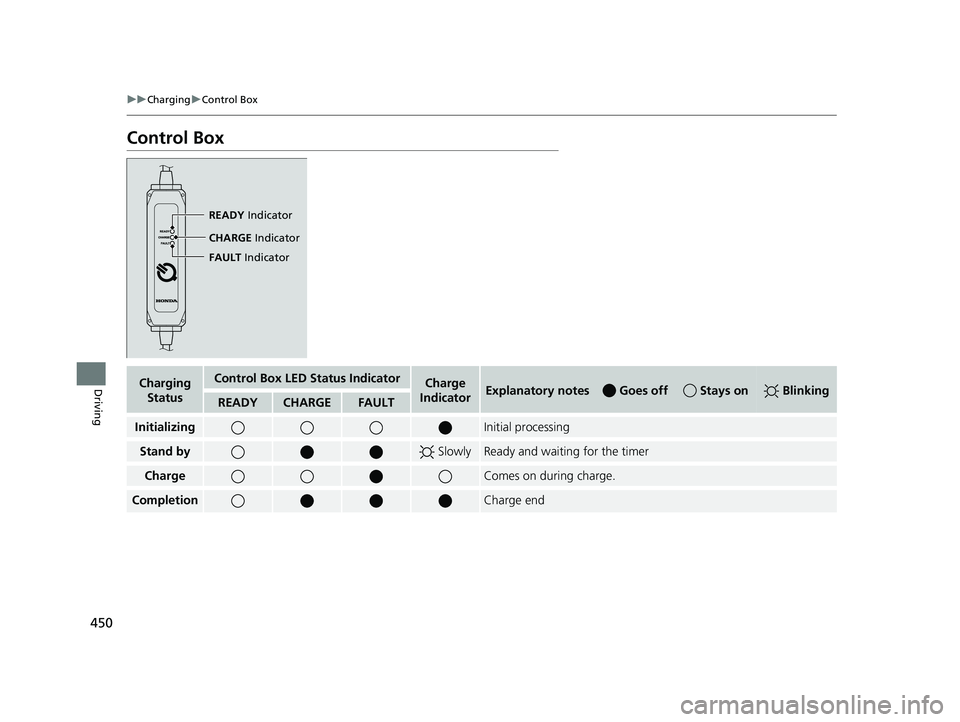

uuCharging uControl Box
Driving
Control Box
READY Indicator
CHARGE Indicator
FAULT Indicator
Charging
StatusControl Box LED Status IndicatorCharge
IndicatorExplanatory notes Goes off Stays on BlinkingREADYCHARGEFAULT
InitializingInitial processing
Stand by SlowlyReady and waiting for the timer
ChargeComes on during charge.
CompletionCharge end
19 CLARITY BEV-31TRV6200.book 450 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

451
uuCharging uControl Box
Continued
Driving
Timer OnControl Box LED Status IndicatorCharge
IndicatorExplanatory notes Goes off Stays on BlinkingREADYCHARGEFAULT

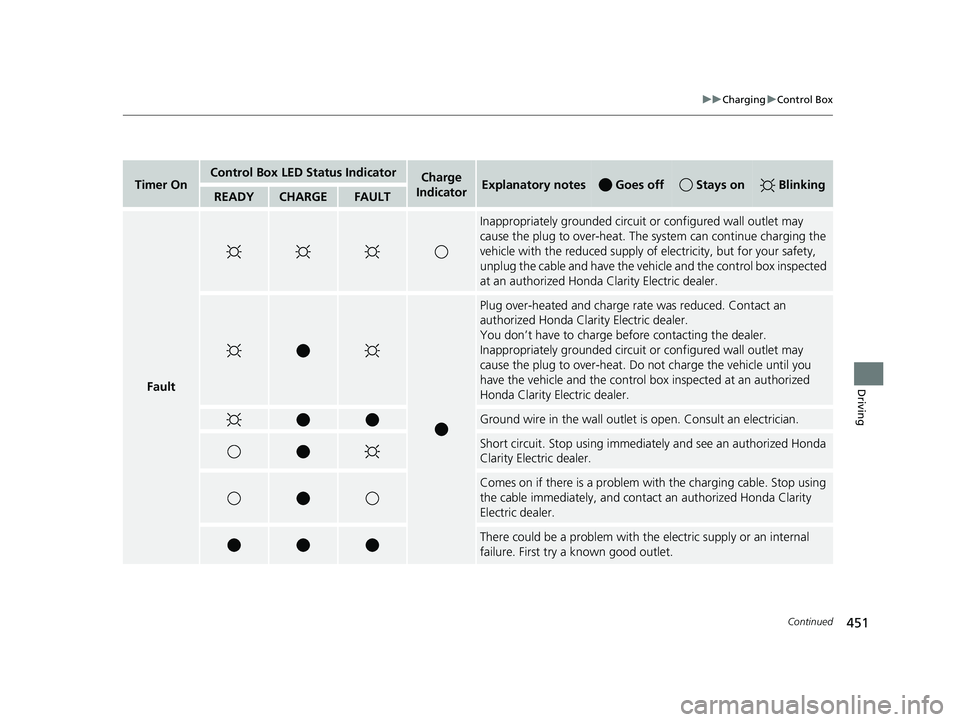

Fault
Inappropriately grounded circuit or configured wall outlet may
cause the plug to over-heat. The sy stem can continue charging the
vehicle with the reduced supply of electricity, but for your safety,
unplug the cable and have the vehi cle and the control box inspected
at an authorized Honda Clarity Electric dealer.
Plug over-heated and charge rate was reduced. Contact an
authorized Honda Clarity Electric dealer.
You don’t have to charge be fore contacting the dealer.
Inappropriately grounded circuit or configured wall outlet may
cause the plug to over-heat. Do not charge the vehicle until you
have the vehicle and the control box inspected at an authorized
Honda Clarity Electric dealer.
Ground wire in the wall outlet is open. Consult an electrician.
Short circuit. Stop using immediat ely and see an authorized Honda
Clarity Electric dealer.
Comes on if there is a problem wi th the charging cable. Stop using
the cable immediately, and contac t an authorized Honda Clarity
Electric dealer.
There could be a problem with the electric supply or an internal
failure. First try a known good outlet.
19 CLARITY BEV-31TRV6200.book 451 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

452
uuCharging uControl Box
Driving

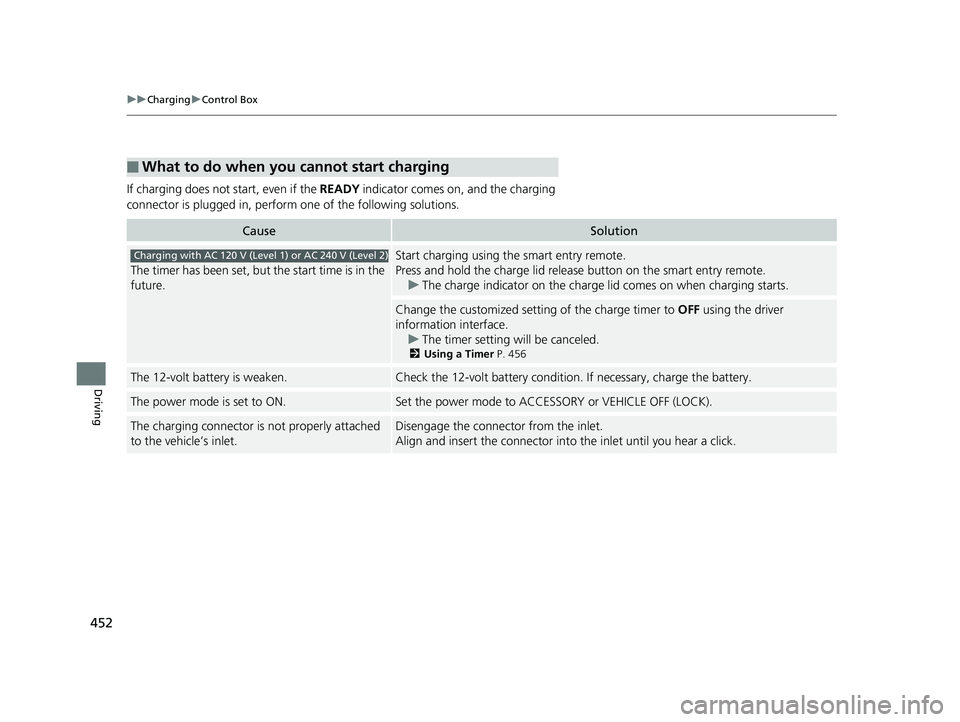

If charging does not start, even if the READY indicator comes on, and the charging
connector is plugged in, perform one of the following solutions.
■What to do when you cannot start charging
CauseSolution
The timer has been set, but the start time is in the
future.
Start charging using the smart entry remote.
Press and hold the charge lid releas e button on the smart entry remote.
u The charge indicator on the charge lid comes on when charging starts.
Change the customized setting of the charge timer to OFF using the driver
information interface.
u The timer setting will be canceled.
2Using a Timer P. 456
The 12-volt battery is weaken.Check the 12-volt battery condition. If necessary, charge the battery.
The power mode is set to ON.Set the power mode to ACCESSORY or VEHICLE OFF (LOCK).
The charging connector is not properly attached
to the vehicle’s inlet.Disengage the connector from the inlet.
Align and insert the connector into the inlet until you hear a click.
Charging with AC 120 V (Level 1) or AC 240 V (Level 2)
19 CLARITY BEV-31TRV6200.book 452 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

453
uuCharging uControl Box
Continued
Driving

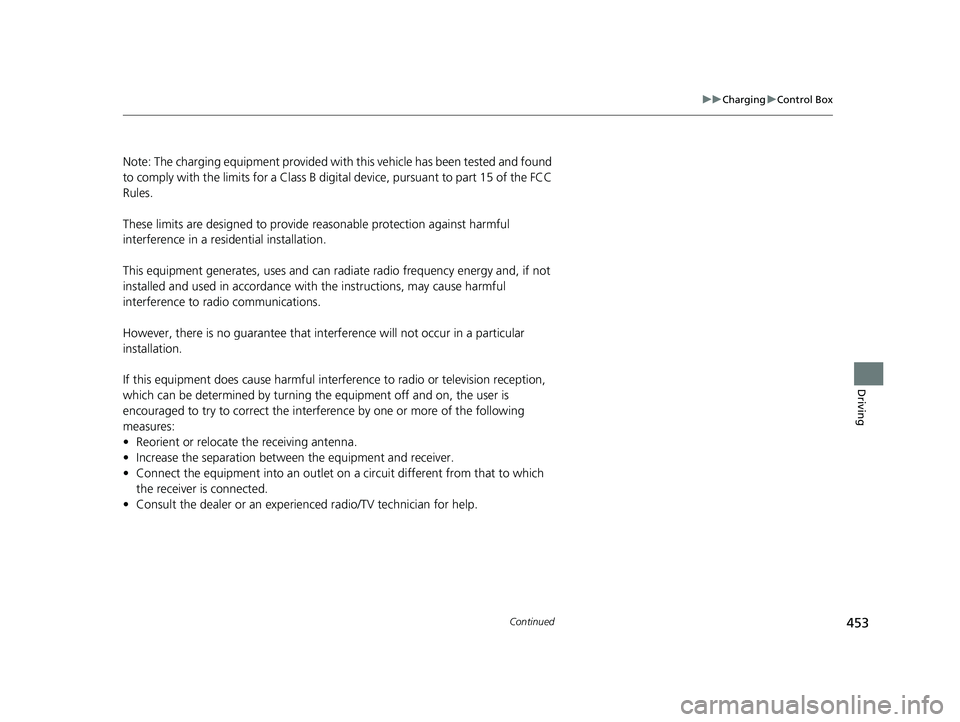

Note: The charging equipment provided with this vehicle has been tested and found
to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can ra diate radio frequency energy and, if not
installed and used in ac cordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that inte rference will not occur in a particular
installation.
If this equipment does cause harmful interfe rence to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interfe rence by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experien ced radio/TV technician for help.
19 CLARITY BEV-31TRV6200.book 453 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

454
uuCharging uControl Box
Driving

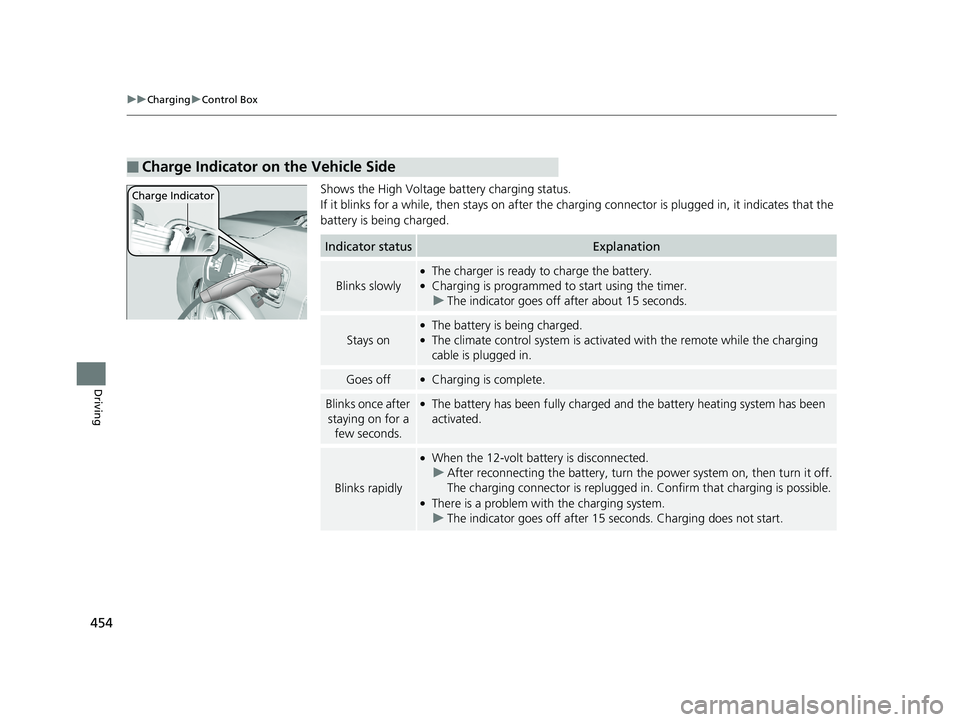

Shows the High Voltage battery charging status.
If it blinks for a while, then st ays on after the charging connector is plugged in, it indicates that the
battery is being charged.
■Charge Indicator on the Vehicle Side
Charge Indicator
Indicator statusExplanation
Blinks slowly
●The charger is ready to charge the battery.●Charging is programmed to start using the timer. u The indicator goes off after about 15 seconds.
Stays on
●The battery is being charged.●The climate control system is activate d with the remote while the charging
cable is plugged in.
Goes off●Charging is complete.
Blinks once after
staying on for a few seconds.●The battery has been fully charged and the battery heating system has been
activated.
Blinks rapidly
●When the 12-volt batte ry is disconnected.
u After reconnecting the batt ery, turn the power system on, then turn it off.
The charging connector is replugged in . Confirm that charging is possible.
●There is a problem with the charging system.
u The indicator goes off after 15 seconds. Charging does not start.
19 CLARITY BEV-31TRV6200.book 454 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

455
uuCharging uHigh Voltage Battery
Driving

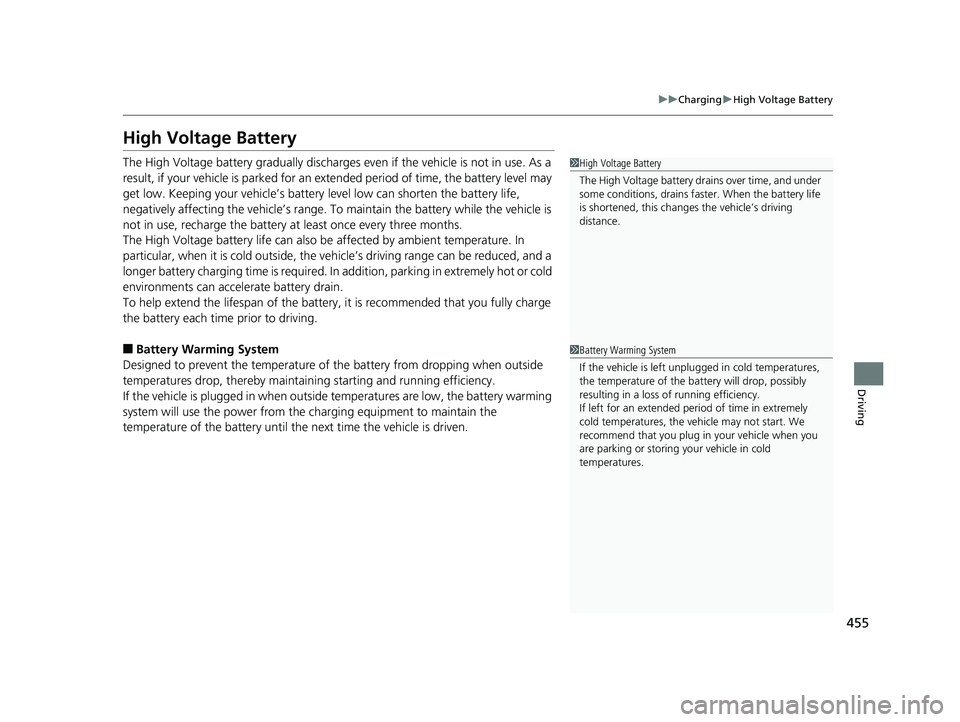

High Voltage Battery
The High Voltage battery gradually discharges even if the vehicle is not in use. As a
result, if your vehicle is parked for an ex tended period of time, the battery level may
get low. Keeping your vehicle’s battery level low can shorten the battery life,
negatively affecting the vehicle’s range. To maintain the battery while the vehicle is
not in use, recharge the battery at least once every three months.
The High Voltage battery life can also be affected by ambient temperature. In
particular, when it is cold outside, the ve hicle’s driving range can be reduced, and a
longer battery charging time is required. In addition, parking in extremely hot or cold
environments can accelerate battery drain.
To help extend the lifespan of the battery , it is recommended that you fully charge
the battery each time prior to driving.
■Battery Warming System
Designed to prevent the temperature of the battery from dropping when outside
temperatures drop, thereby maintainin g starting and running efficiency.
If the vehicle is plugged in when outside temperatures are low, the battery warming
system will use the power from the ch arging equipment to maintain the
temperature of the battery until the next time the vehicle is driven.
1 High Voltage Battery
The High Voltage battery dr ains over time, and under
some conditions, drains fast er. When the battery life
is shortened, this cha nges the vehicle’s driving
distance.
1 Battery Warming System
If the vehicle is left unplug ged in cold temperatures,
the temperature of the ba ttery will drop, possibly
resulting in a loss of running efficiency.
If left for an extended period of time in extremely
cold temperatures, the vehicle may not start. We
recommend that you plug in your vehicle when you
are parking or storing your vehicle in cold
temperatures.
19 CLARITY BEV-31TRV6200.book 455 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

456

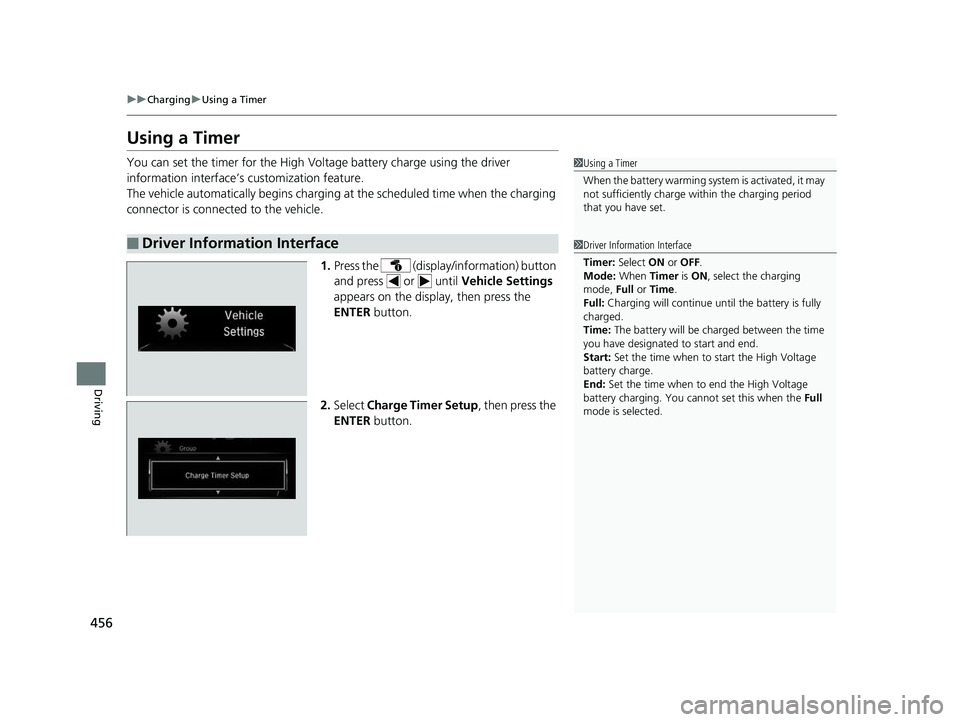

uuCharging uUsing a Timer
Driving
Using a Timer
You can set the timer for the High Volt age battery charge using the driver
information interface’s customization feature.
The vehicle automatically begins charging at the scheduled time when the charging
connector is connected to the vehicle.
1.Press the (display/information) button
and press or until Vehicle Settings
appears on the display, then press the
ENTER button.
2. Select Charge Timer Setup , then press the
ENTER button.
■Driver Information Interface
1Using a Timer
When the battery warming system is activated, it may
not sufficiently charge within the charging period
that you have set.
1 Driver Information Interface
Timer: Select ON or OFF.
Mode: When Timer is ON , select the charging
mode, Full or Time .
Full: Charging will continue unt il the battery is fully
charged.
Time: The battery will be ch arged between the time
you have designated to start and end.
Start: Set the time when to start the High Voltage
battery charge.
End: Set the time when to end the High Voltage
battery charging. You cannot set this when the Full
mode is selected.
19 CLARITY BEV-31TRV6200.book 456 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

457
uuCharging uUsing a Timer
Driving

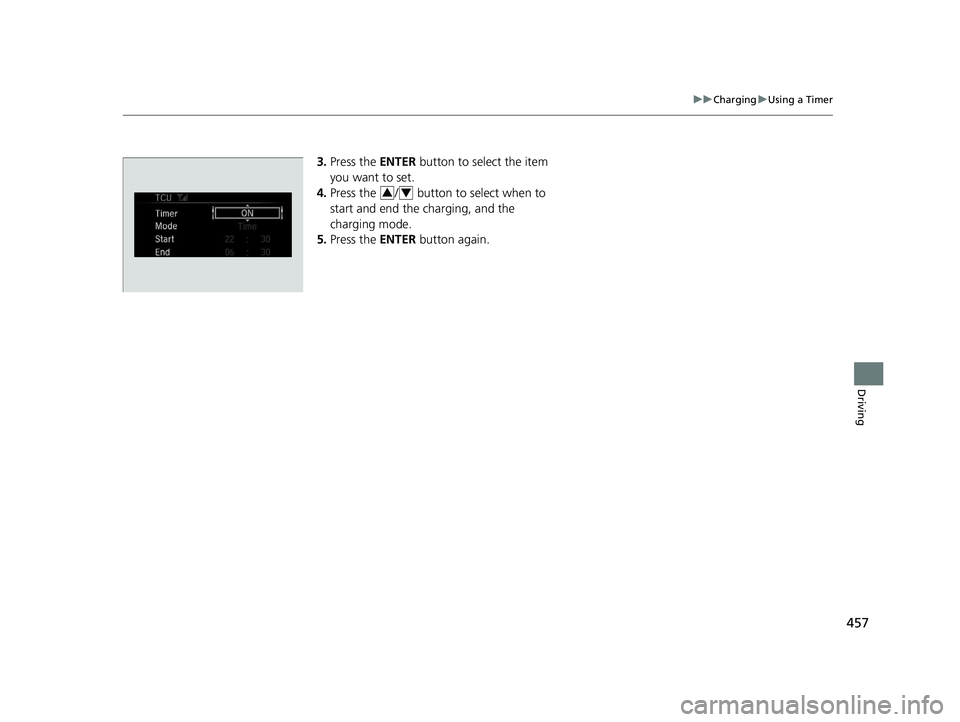

3. Press the ENTER button to select the item
you want to set.
4. Press the / button to select when to
start and end the charging, and the
charging mode.
5. Press the ENTER button again.
34
19 CLARITY BEV-31TRV6200.book 457 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

458
Driving

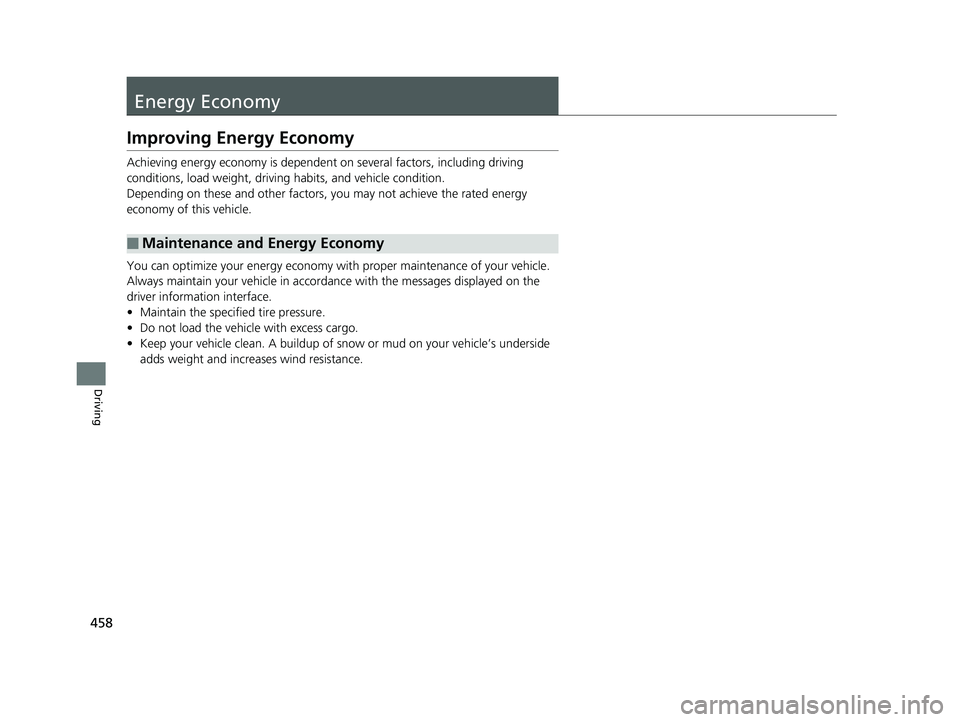

Energy Economy
Improving Energy Economy
Achieving energy economy is dependent on several factors, including driving
conditions, load weight, driving habits, and vehicle condition.
Depending on these and other factors, you may not achieve the rated energy
economy of this vehicle.
You can optimize your energy economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
driver information interface.
• Maintain the specified tire pressure.
• Do not load the vehicl e with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.
■Maintenance and Energy Economy
