Continued119
uuGauges and Displays uDriver Information Interface
Instrument Panel

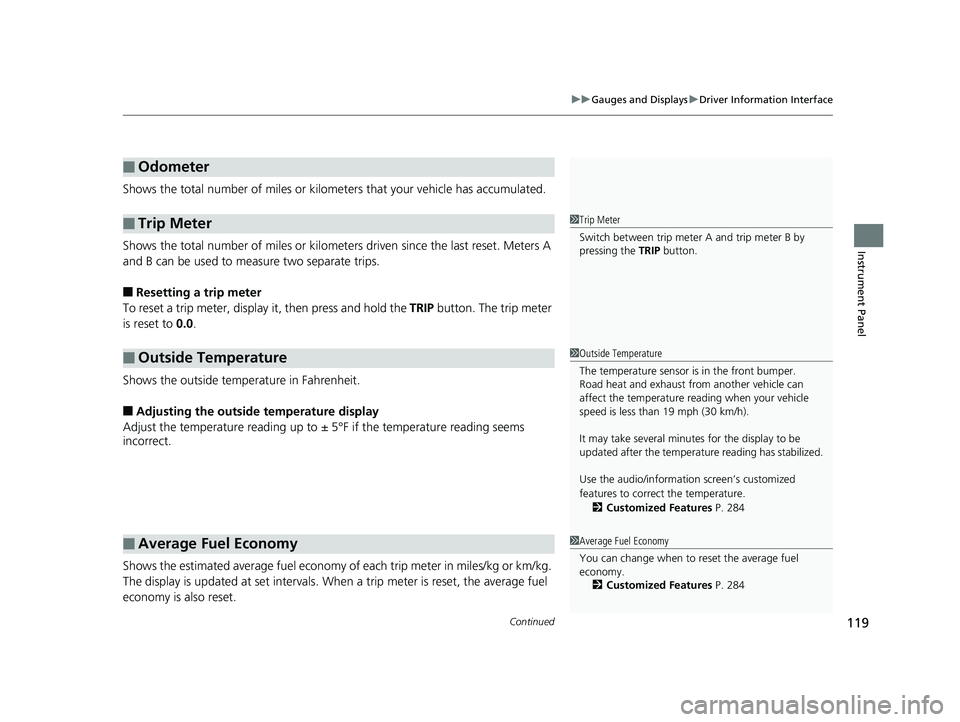

Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP button. The trip meter
is reset to 0.0.
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5°F if the temperature reading seems
incorrect.
Shows the estimated average fuel economy of each trip meter in miles/kg or km/kg.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
■Odometer
■Trip Meter
■Outside Temperature
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the audio/information screen’s customized
features to correct the temperature.
2 Customized Features P. 284
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 284
17 CLARITY FCV PPO-31TRT6000.book 119 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

uuGauges and Displays uDriver Information Interface
120
Instrument Panel

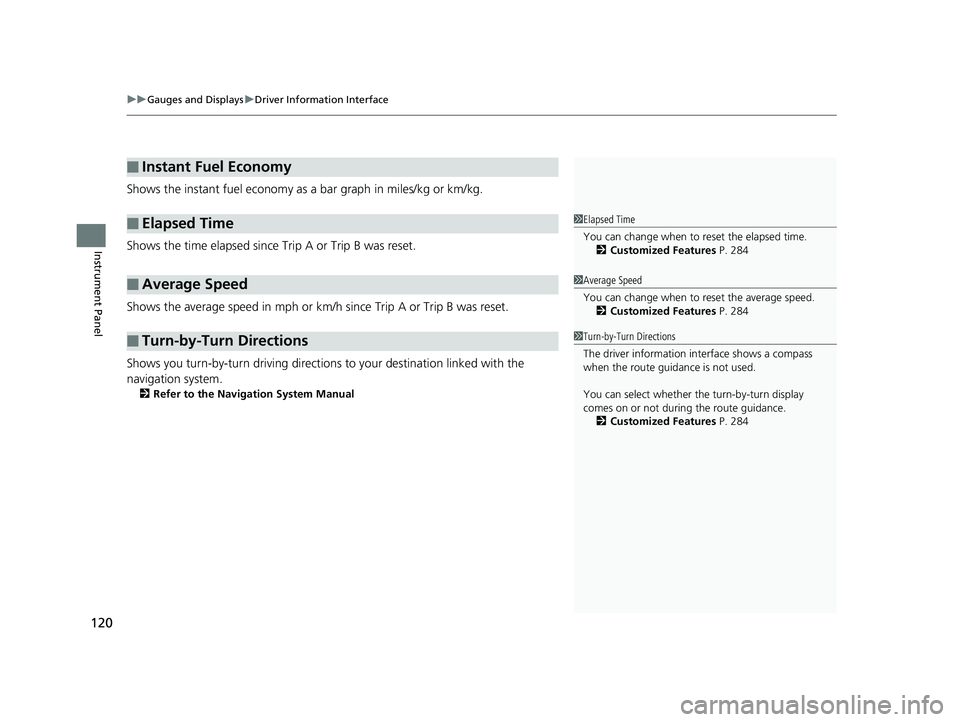

Shows the instant fuel economy as a bar graph in miles/kg or km/kg.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows you turn-by-turn driving directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Instant Fuel Economy
■Elapsed Time
■Average Speed
■Turn-by-Turn Directions
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 284
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 284
1Turn-by-Turn Directions
The driver information in terface shows a compass
when the route guidance is not used.
You can select whether the turn-by-turn display
comes on or not during the route guidance. 2 Customized Features P. 284
17 CLARITY FCV PPO-31TRT6000.book 120 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

121
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
Shows the Maintenance MinderTM.
2 Maintenance MinderTM P. 431
Shows the current audio information.
2Audio System Basic Operation P. 200
Shows the current mail information.
2Bluetooth ® HandsFreeLink ® P. 312
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 312
■Maintenance MinderTM
■Audio
■Mail
■Phone
17 CLARITY FCV PPO-31TRT6000.book 121 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

122
uuGauges and Displays uDriver Information Interface
Instrument Panel

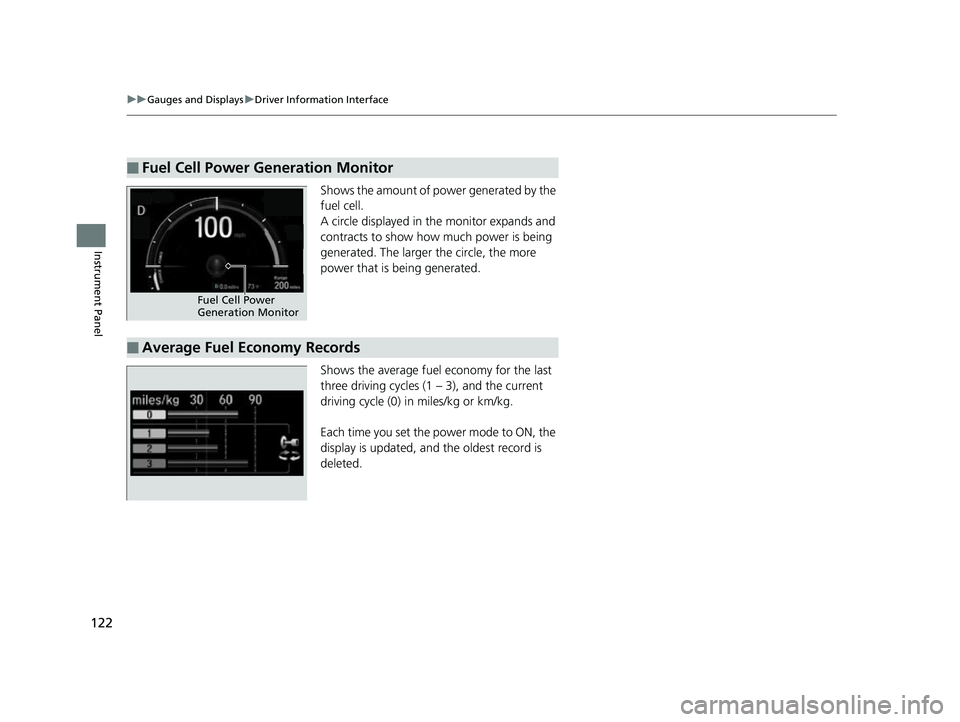

Shows the amount of power generated by the
fuel cell.
A circle displayed in the monitor expands and
contracts to show how much power is being
generated. The larger the circle, the more
power that is being generated.
Shows the average fuel economy for the last
three driving cycles (1 – 3), and the current
driving cycle (0) in miles/kg or km/kg.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.
■Fuel Cell Power Generation Monitor
Fuel Cell Power
Generation Monitor
■Average Fuel Economy Records
17 CLARITY FCV PPO-31TRT6000.book 122 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

Continued123
uuGauges and Displays uDriver Information Interface
Instrument Panel

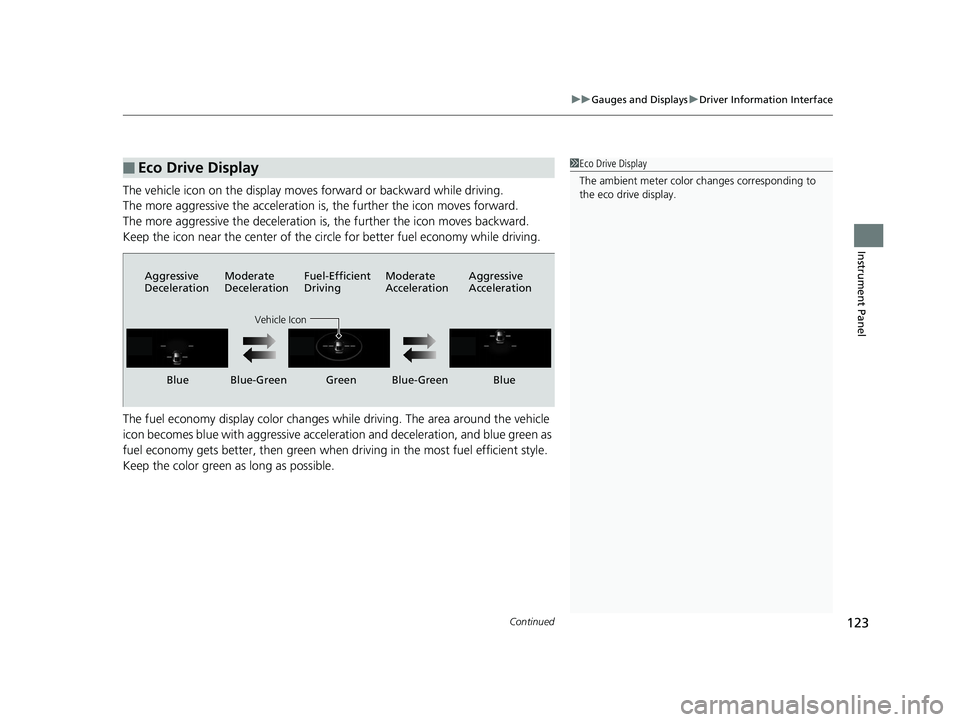

The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is , the further the icon moves forward.
The more aggressive the deceleration is , the further the icon moves backward.
Keep the icon near the cent er of the circle for better fuel economy while driving.
The fuel economy display color changes while driving. The area around the vehicle
icon becomes blue with aggressive acceleration and deceleration, and blue green as
fuel economy gets better, then green when driving in the most fuel efficient style.
Keep the color green as long as possible.
■Eco Drive Display1Eco Drive Display
The ambient meter color changes corresponding to
the eco drive display.
Aggressive
Deceleration Moderate
DecelerationFuel-Efficient
Driving Moderate
Acceleration Aggressive
Acceleration
Vehicle Icon
Blue Blue-Green Green Blue-Green Blue
17 CLARITY FCV PPO-31TRT6000.book 123 ページ ２０１６年１０月２７日　木曜日　午後３
時１１分

124
uuGauges and Displays uDriver Information Interface
Instrument Panel

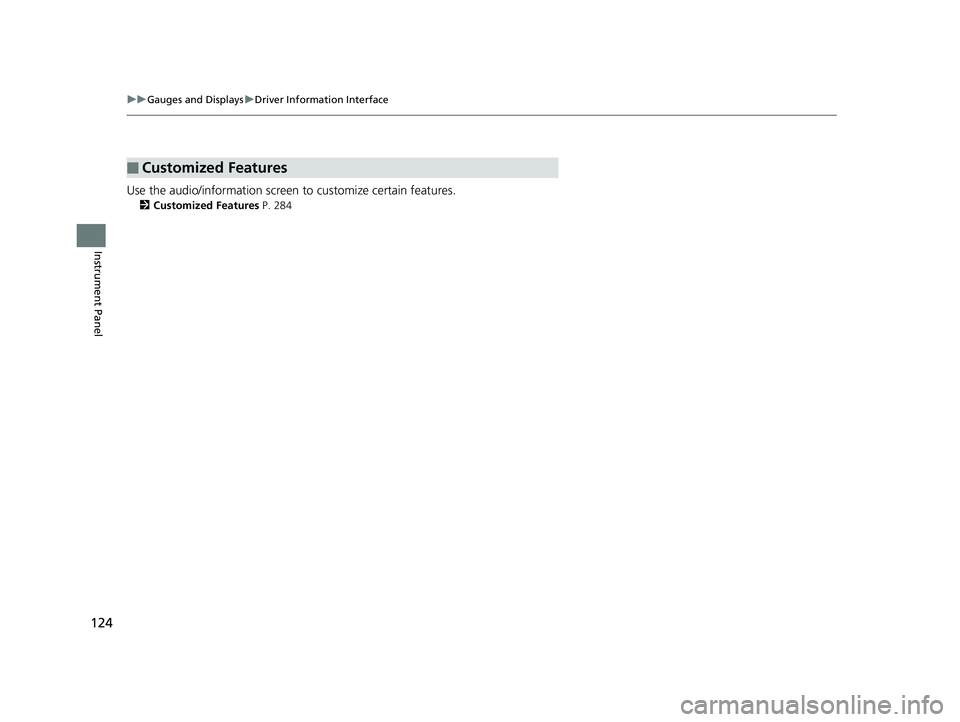

Use the audio/information screen to customize certain features.
2Customized Features P. 284
■Customized Features
17 CLARITY FCV PPO-31TRT6000.book 124 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

125
uuGauges and Displays uHead-Up Display
Continued
Instrument Panel

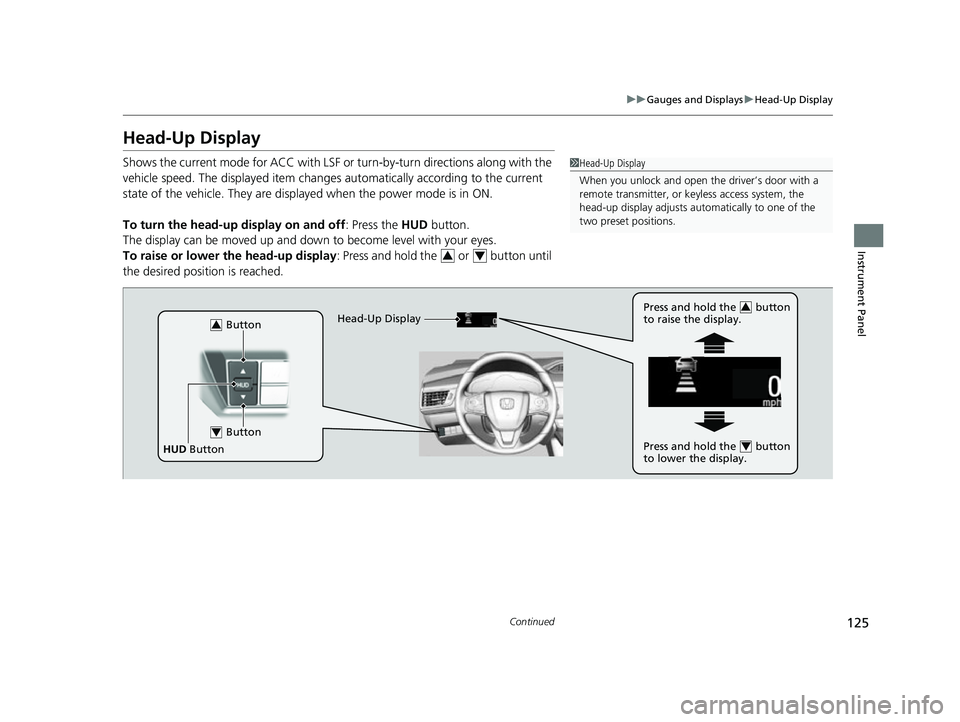

Head-Up Display
Shows the current mode for ACC with LSF or turn-by-turn directions along with the
vehicle speed. The displaye d item changes automaticall y according to the current
state of the vehicle. They are displa yed when the power mode is in ON.
To turn the head-up display on and off: Press the HUD button.
The display can be moved up and down to become level with your eyes.
To raise or lower the head-up display : Press and hold the or button until
the desired position is reached.1 Head-Up Display
When you unlock and open the driver’s door with a
remote transmitter, or keyless access system, the
head-up display adjusts auto matically to one of the
two preset positions.
34
Button3
Button4
HUD Button Head-Up Display
Press and hold the button
to raise the display.
3
Press and hold the button
to lower the display.4
17 CLARITY FCV PPO-31TRT6000.book 125 ページ ２０１６年１０月２７日　木曜日　午後３
時１１分

126
uuGauges and Displays uHead-Up Display
Instrument Panel

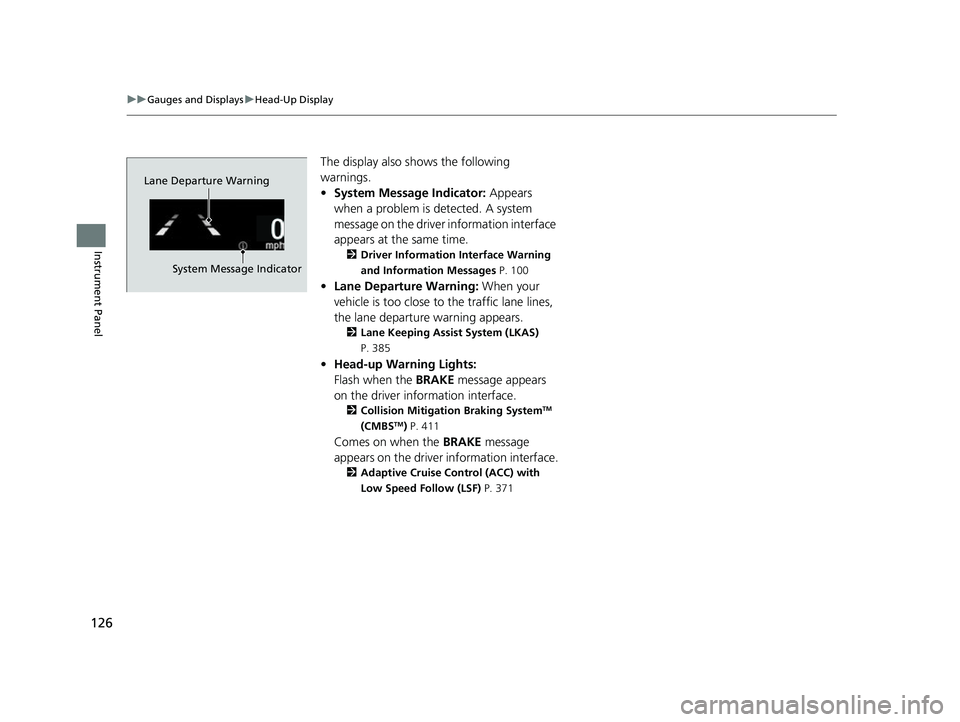

The display also sh ows the following
warnings.
• System Message Indicator: Appears
when a problem is detected. A system
message on the driver information interface
appears at the same time.
2 Driver Information Interface Warning
and Information Messages P. 100
•Lane Departure Warning: When your
vehicle is too close to the traffic lane lines,
the lane departure warning appears.
2 Lane Keeping Assist System (LKAS)
P. 385
• Head-up Warning Lights:
Flash when the BRAKE message appears
on the driver information interface.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 411
Comes on when the BRAKE message
appears on the driver information interface.
2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) P. 371
Lane Departure Warning
System Message Indicator
17 CLARITY FCV PPO-31TRT6000.book 126 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

127
uuGauges and Displays uHead-Up Display
Instrument Panel

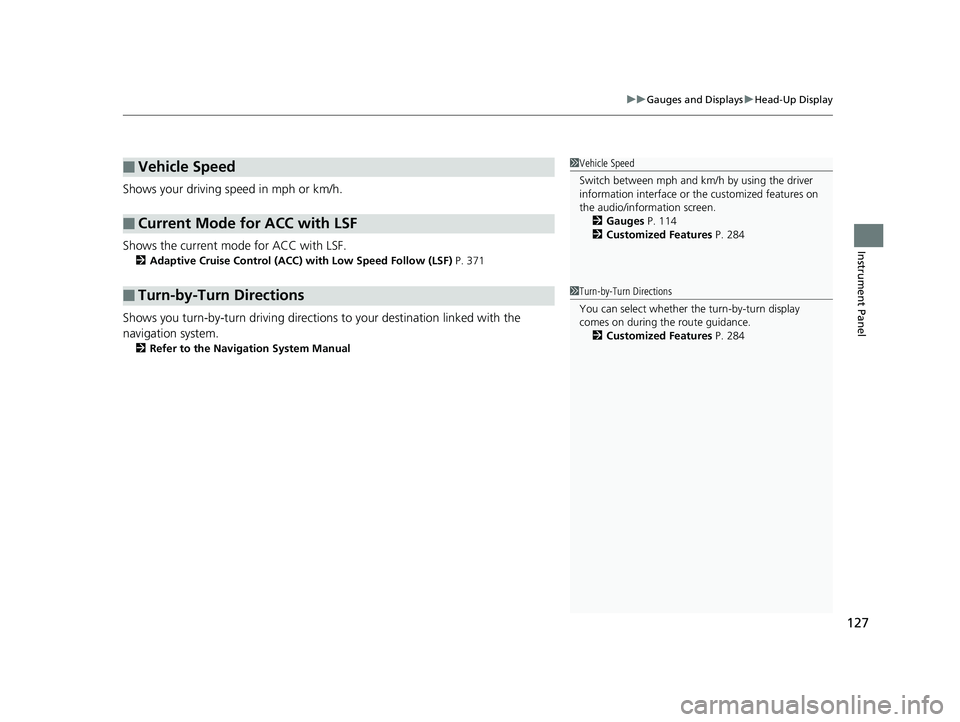

Shows your driving speed in mph or km/h.
Shows the current mode for ACC with LSF.
2 Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) P. 371
Shows you turn-by-turn driving directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Vehicle Speed
■Current Mode for ACC with LSF
■Turn-by-Turn Directions
1Vehicle Speed
Switch between mph and km/h by using the driver
information interface or the customized features on
the audio/information screen.
2 Gauges P. 114
2 Customized Features P. 284
1Turn-by-Turn Directions
You can select whether the turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 284
17 CLARITY FCV PPO-31TRT6000.book 127 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分
