2017
Clarity Fuel Cell
OWNER’S MANUAL
Page 2 of 527

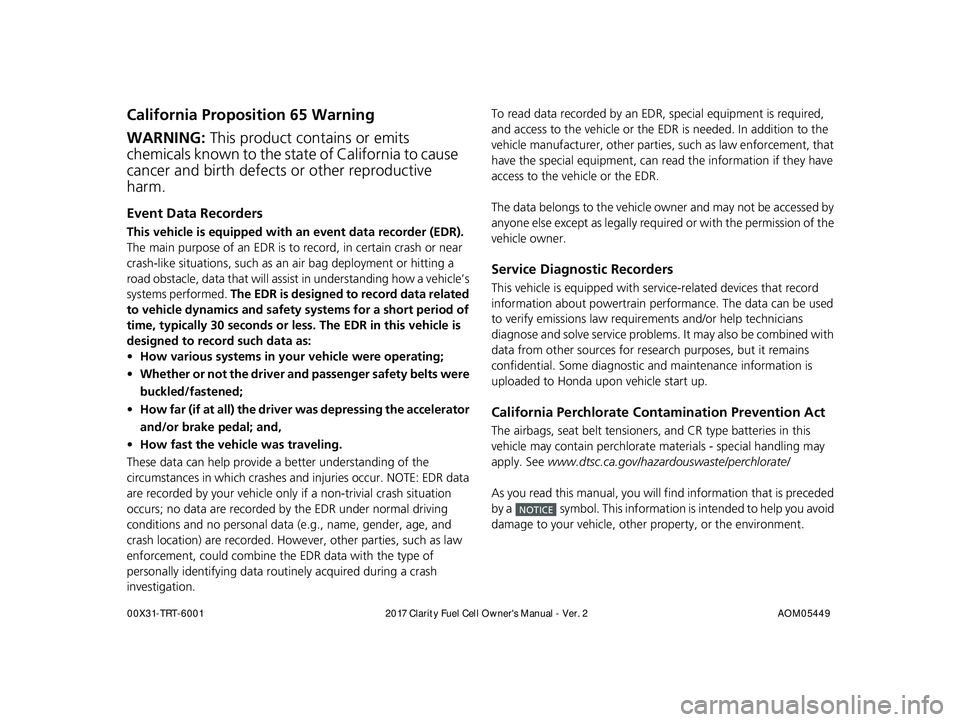

California Proposition 65 Warning
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or le ss. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understandi
ng of the
ci
rcumstances in which crashes and injuries occur. NOTE: EDR
data
are recorded
by your vehicle only if a non-trivial crash
situation
oc
curs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, an
d
crash location) are
recorded. However, other parties, such as
law
enforcem
ent, could combine the EDR data with the
type of
perso
nally identifying data routinely acquired during a cr
ash
investig
ation.
WARNING: This product contains or emits
chemicals known to the state of California to cause
cancer and birth defects or other reproductive
harm.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can re ad the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle ow ner and may not be accessed by
anyone else except as legally requir ed or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with se rvice-related devices that record
information about powertrain perfo rmance. The data can be used
to verify emissions law requirem ents and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for res earch purposes, but it remains
confidential. Some diagnostic and maintenance information is
uploaded to Honda upon vehicle start up.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate ma terials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
NOTICE
17 CLARITY FCV PPO-31TRT6000.book 0 ページ 2016年10月27日 木曜日 午後3時11分
Page 3 of 527

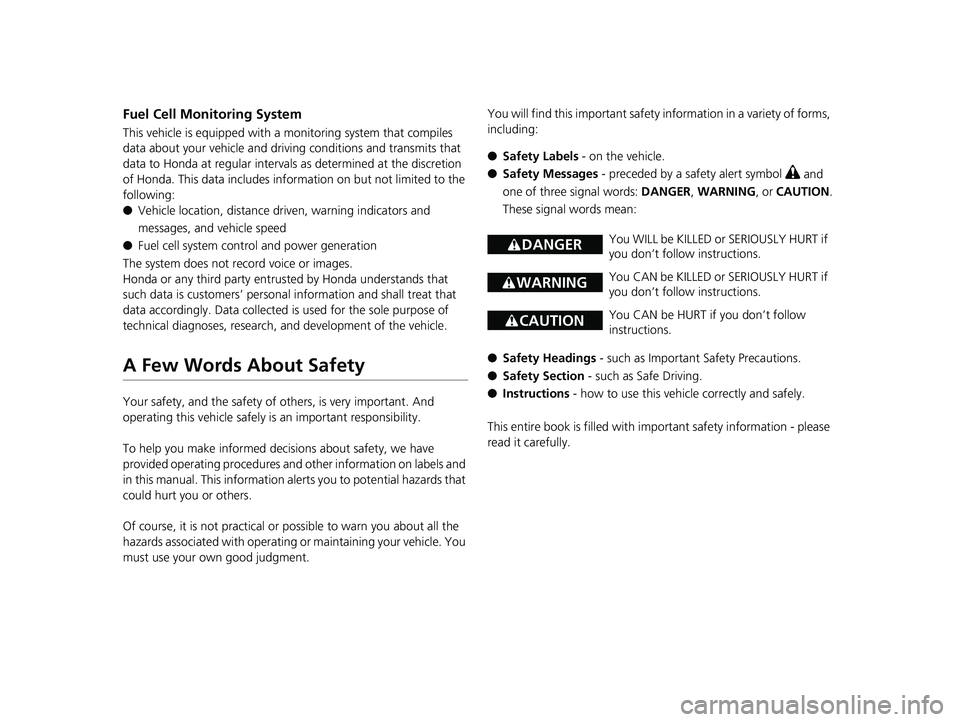

Fuel Cell Monitoring System
This vehicle is equipped with a monitoring system that compiles
data about your vehicle and driving conditions and transmits that
data to Honda at regular intervals as determined at the discretion
of Honda. This data includes information on but not limited to the
following:
● Vehicle location, distance driven, warning indicators and
messages, and vehicle speed
● Fuel cell system control and power generation
The system does not record voice or images.
Honda or any third party entrusted by Honda understands that
such data is customers’ personal information and shall treat that
data accordingly. Data collected is used for the sole purpose of
technical diagnoses, research, and development of the vehicle.
A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment. You will find this impo
rtant safety information in a variety of forms,
including:
● Safety Labels - on the vehicle.
● Safety Messages - preceded by a safety alert symbol
3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
● Safety Headings - such as Important Safety Precautions.
● Safety Section - such as Safe Driving.
● Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3CAUTIONYou CAN be HURT if you don’t follow
instructions.
17 CLARITY FCV PPO-31TRT6000.book 1 ページ 2016年10月27日 木曜日 午後3時11分
Page 4 of 527
Contents

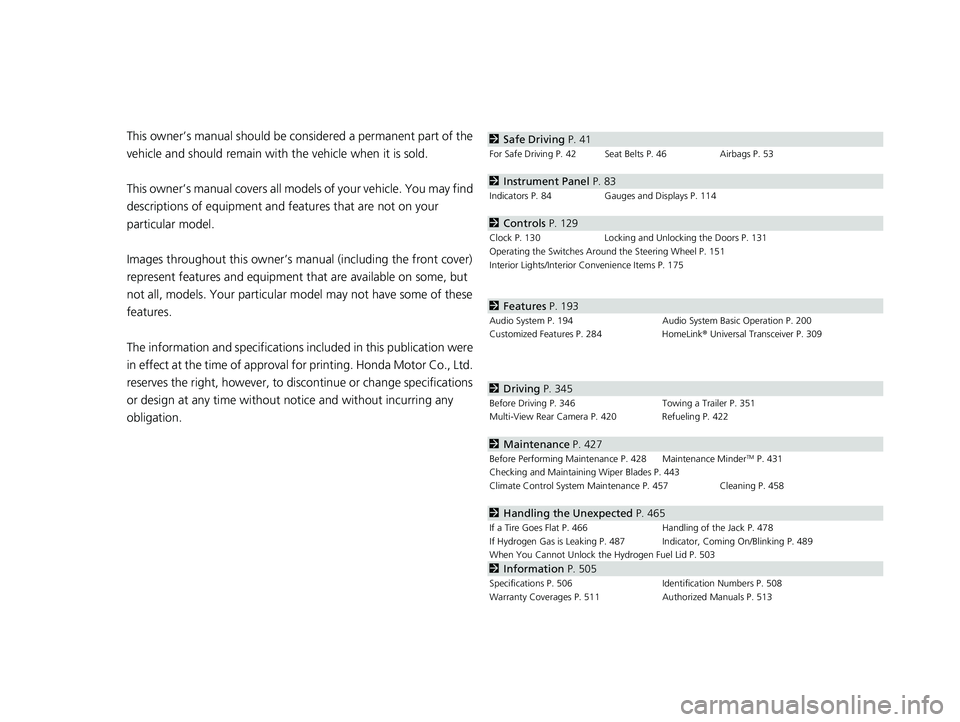

This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 41
For Safe Driving P. 42 Seat Belts P. 46 Airbags P. 53
2Instrument Panel P. 83
Indicators P. 84 Gauges and Displays P. 114
2Controls P. 129
Clock P. 130 Locking and Unlocking the Doors P. 131
Operating the Switches Ar ound the Steering Wheel P. 151
Interior Lights/Interior Convenience Items P. 175
2 Features P. 193
Audio System P. 194 Audio System Basic Operation P. 200
Customized Features P. 284 HomeLink® Universal Transceiver P. 309
2 Driving P. 345
Before Driving P. 346 Towing a Trailer P. 351
Multi-View Rear Camera P. 420 Refueling P. 422
2 Maintenance P. 427
Before Performing Maintenance P. 428 Maintenance MinderTM P. 431
Checking and Maintaining Wiper Blades P. 443
Climate Control System Main tenance P. 457 Cleaning P. 458
2Handling the Unexpected P. 465
If a Tire Goes Flat P. 466 Handling of the Jack P. 478
If Hydrogen Gas is Leaking P. 487 Indicator, Coming On/Blinking P. 489
When You Cannot Unlock the Hydrogen Fuel Lid P. 503
2 Information P. 505
Specifications P. 506 Identification Numbers P. 508
Warranty Coverages P. 511 Authorized Manuals P. 513
17 CLARITY FCV PPO-31TRT6000.book 2 ページ 2016年10月27日 木曜日 午後3時11分
Page 5 of 527
Contents
Child Safety P. 68Safety Labels P. 81
Opening and Closing the Trunk P. 143 Security System P. 146 Opening and Closing the Windows P. 149
Adjusting the Mirrors P. 167 Adjusting the Seats P. 169
Climate Control System P. 185
Audio Error Messages P. 273 General Information on the Audio System P. 277
Bluetooth® HandsFreeLink ® P. 312
When Driving P. 352 Braking P. 404Parking Your Vehicle P. 419
Fuel Economy P. 425
Maintenance Under the Hood P. 435 Replacing Light Bulbs P. 441
Checking and Maintaining Tires P. 446 12-Volt Battery P. 455 Remote Transmitter Care P. 456
Accessories and Modifications P. 463
Power System Won’t Start P. 479 Jump Starting P. 482 Overheating P. 485
Fuses P. 494 Emergency Towing P. 502
When You Cannot Open the Trunk P. 504
Devices that Emit Radio Waves P. 509 Reporting Safety Defects P. 510
Customer Service Information P. 514
Quick Reference GuideP. 4
Safe DrivingP. 41
Instrument PanelP. 83
ControlsP. 129
FeaturesP. 193
DrivingP. 345
MaintenanceP. 427
Handling the UnexpectedP. 465
InformationP. 505
IndexP. 516
17 CLARITY FCV PPO-31TRT6000.book 3 ページ 2016年10月27日 木曜日 午後3時11分
Page 6 of 527
4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Steering Wheel Adjustments (P 166)
❙ (Vehicle Stability Assist (VSA®)
System OFF) Button
(P 393)
❙Road Departure Mitigation (RDM)
Button
(P 368)
❙System Indicators (P 84)
❙Gauges (P 114)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P 414)
❙Head-Up Display Buttons (P 125)
❙Driver Information Interface
(P 117)
❙Navigation System
() See the Navigation System Manual
❙Audio System (P 194)
❙Hazard Warning Button
❙Climate Control System (P 185)
❙Rear Window Defogger (P 163)
❙POWER Button (P 151)
❙Seat Heater Buttons (P 183)
17 CLARITY FCV PPO-31TRT6000.book 4 ページ 2016年10月27日 木曜日 午後3時11分
Page 7 of 527
5
Quick Reference Guide

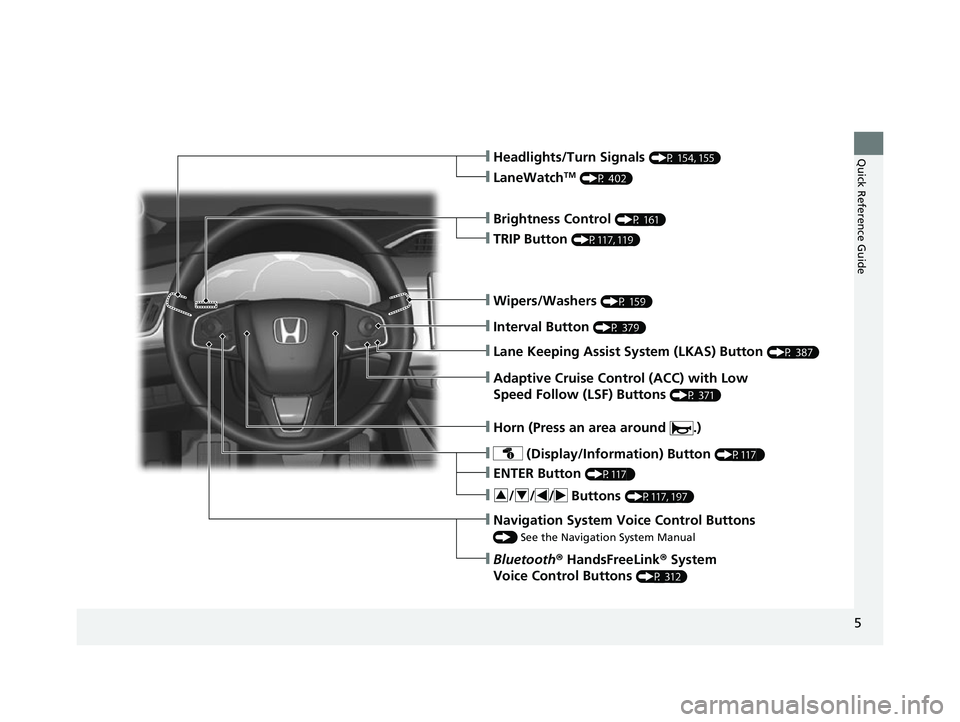

❙Wipers/Washers (P 159)
❙Headlights/Turn Signals (P 154, 155)
❙Brightness Control (P 161)
❙LaneWatchTM (P 402)
❙TRIP Button (P117, 119)
❙Interval Button (P 379)
❙Lane Keeping Assist System (LKAS) Button (P 387)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons
(P 371)
❙ (Display/Information) Button (P117 )
❙/ // Buttons (P117, 197)34
❙ENTER Button (P117 )
❙Navigation System Voice Control Buttons
() See the Navigation System Manual
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 312)
❙Horn (Press an area around .)
17 CLARITY FCV PPO-31TRT6000.book 5 ページ 2016年10月27日 木曜日 午後3時11分
Page 8 of 527

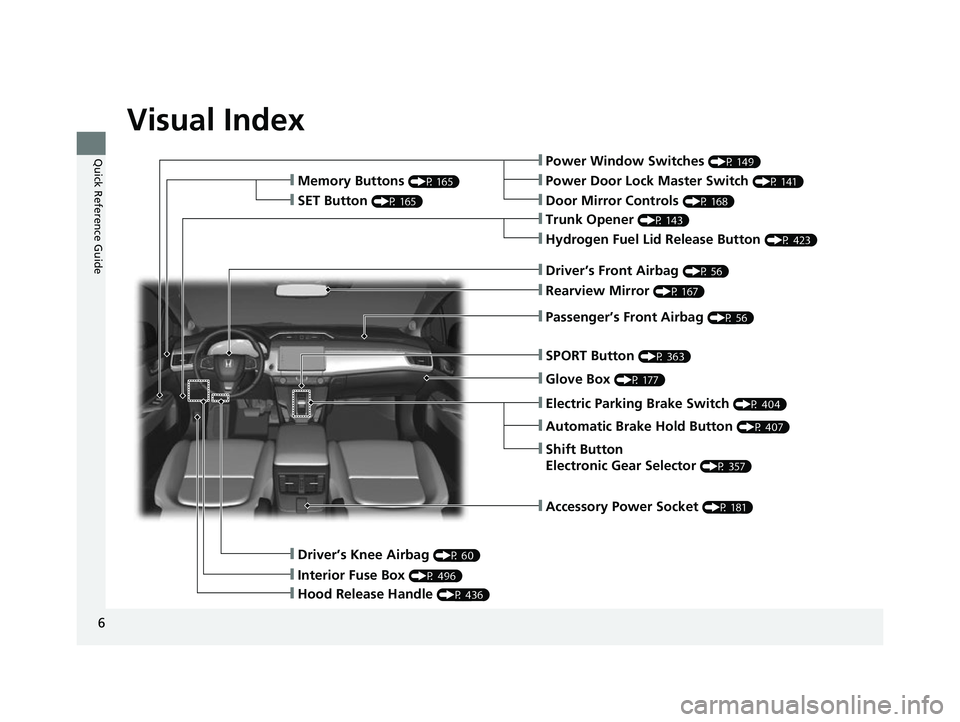

Visual Index
6
Quick Reference Guide❙Power Window Switches (P 149)
❙Trunk Opener (P 143)
❙Driver’s Knee Airbag (P 60)
❙Door Mirror Controls (P 168)
❙Power Door Lock Master Switch (P 141)
❙Hydrogen Fuel Lid Release Button (P 423)
❙Memory Buttons (P 165)
❙SET Button (P 165)
❙Interior Fuse Box (P 496)
❙Automatic Brake Hold Button (P 407)
❙Driver’s Front Airbag (P 56)
❙Passenger’s Front Airbag (P 56)
❙Rearview Mirror (P 167)
❙SPORT Button (P 363)
❙Glove Box (P 177)
❙Electric Parking Brake Switch (P 404)
❙Shift Button
Electronic Gear Selector
(P 357)
❙Accessory Power Socket (P 181)
❙Hood Release Handle (P 436)
17 CLARITY FCV PPO-31TRT6000.book 6 ページ 2016年10月27日 木曜日 午後3時11分
Page 9 of 527
7
Quick Reference Guide
❙Side Airbags (P 62)
❙Side Curtain Airbags (P 64)
❙Seat Belts (P 46)
❙Seat Belt (Installing a Child Seat) (P 75)
❙Rear Seat
❙Coat Hook (P 182)
❙Map Lights (P 176)
❙Sun Visors
❙Vanity Mirrors
❙Seat Belt to Secure a Child Seat (P 77)
❙Map Lights (P 176)
❙Grab Handle
❙Sunglasses Holder
(P 184)
❙Accessory Power
Socket
(P 181)
❙Front Seat (P 169)
❙USB Ports (P 195)
❙LATCH to Secure a Child Seat (P 73)
17 CLARITY FCV PPO-31TRT6000.book 7 ページ 2016年10月27日 木曜日 午後3時11分
Page 10 of 527
Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P 435)
❙Windshield Wipers (P 159, 443)
❙Tires (P 446, 466)
❙Door Lock/Unlock Control (P 133)
❙Power Door Mirrors (P 168)
❙Headlights (P 155, 441)
❙Front Side Marker Lights (P 155, 441)
❙Front Turn Signal Lights (P 154, 441)
❙How to Refuel (P 423)
❙High-Mount Brake Light (P 442)
❙Emergency Trunk Release Lever (P 145)
❙Opening/Closing the Trunk (P 143)
❙Tail/Rear Side Marker Lights (P 442)
❙Brake Lights (P 442)
❙Rear Turn Signal Lights (P 442)
❙Back-Up Lights (P 442)
❙Taillights (P 442)
❙Trunk Release Button (P 144)
❙Rear License Plate Light (P 442)
❙Multi-View Rear Camera (P 420)
❙Parking/Daytime Running Lights (P 155, 158, 441)
17 CLARITY FCV PPO-31TRT6000.book 8 ページ 2016年10月27日 木曜日 午後3時11分
