HONDA CLARITY FUEL CELL 2017 Owner's Manual (in English)

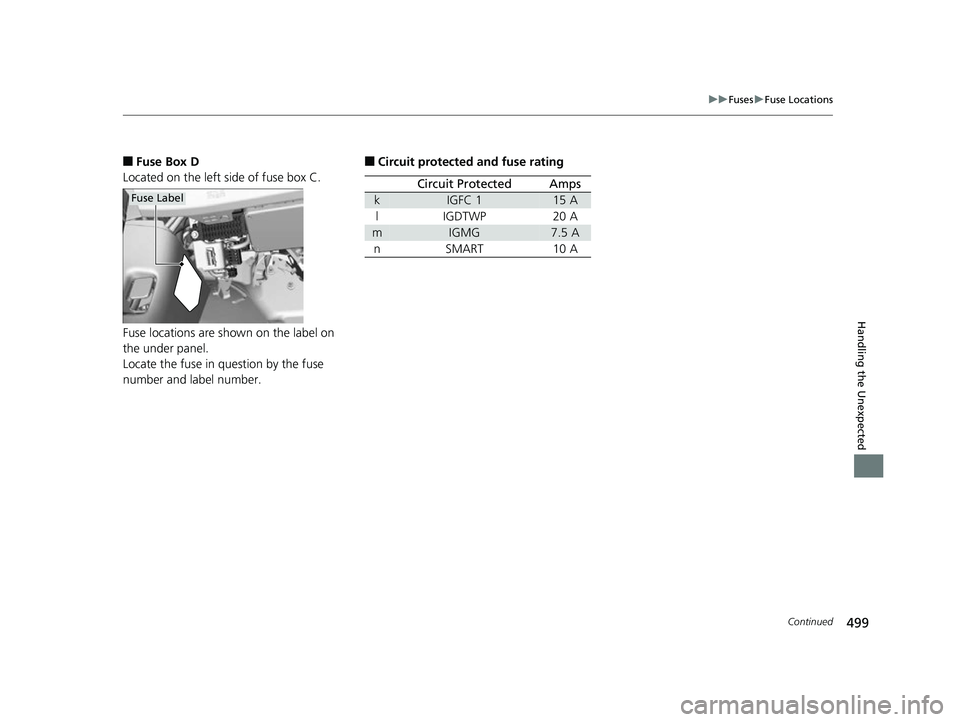

499
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Fuse Box D
Located on the left side of fuse box C.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
kIGFC 115 A
lIGDTWP20 A
mIGMG7.5 A
nSMART10 A
17 CLARITY FCV PPO-31TRT6000.book 499 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

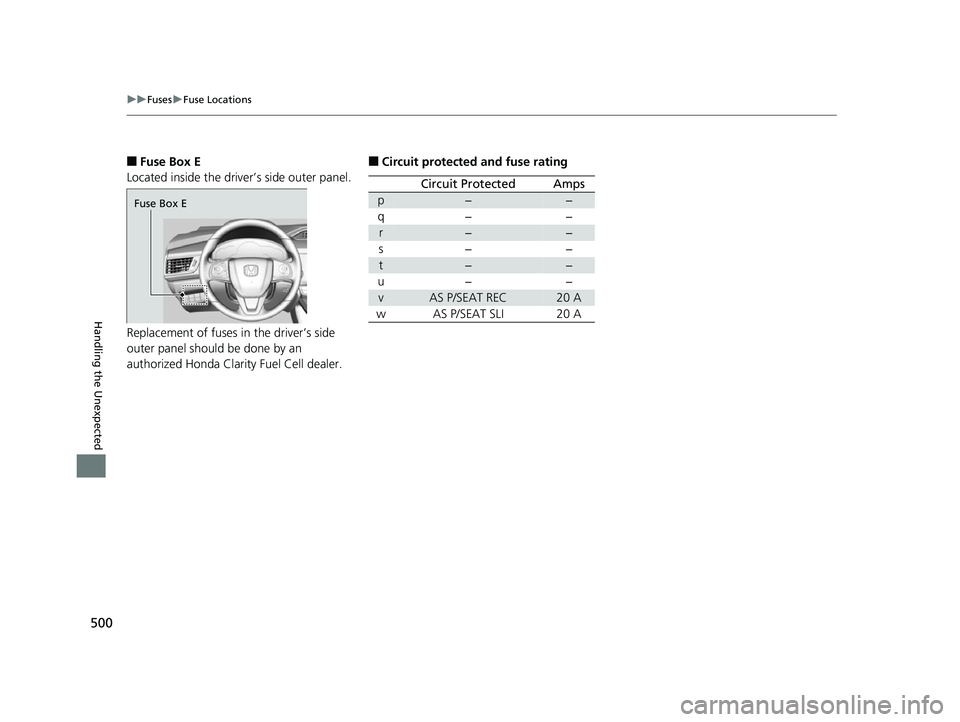

500
uuFuses uFuse Locations
Handling the Unexpected
■Fuse Box E
Located inside the driver’s side outer panel.
Replacement of fuses in the driver’s side
outer panel should be done by an
authorized Hond a Clarity Fuel Cell dealer.
Fuse Box E
■Circuit protected and fuse rating
Circuit ProtectedAmps
p−−
q−−
r−−
s−−
t−−
u−−
vAS P/SEAT REC20 A
wAS P/SEAT SLI20 A
17 CLARITY FCV PPO-31TRT6000.book 500 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

501
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Check the fuses on the battery in the motor
compartment.
u If the fuse is blown, have it replaced by
an authorized Honda Clarity Fuel Cell
dealer.
3. Inspect the small fuses in the motor
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.
4. Check the large fuse in the motor
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw, and
replace it with a new one.1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace the fuse with a spare fuse of the same
specified amperage.
Confirm the specified amperage using the charts on
P. 494 to 500.
There is a fuse puller on the back of the cover of the
motor compartment fuse box A.
12-Volt Battery
Fuse Puller
Blown Fuse
17 CLARITY FCV PPO-31TRT6000.book 501 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

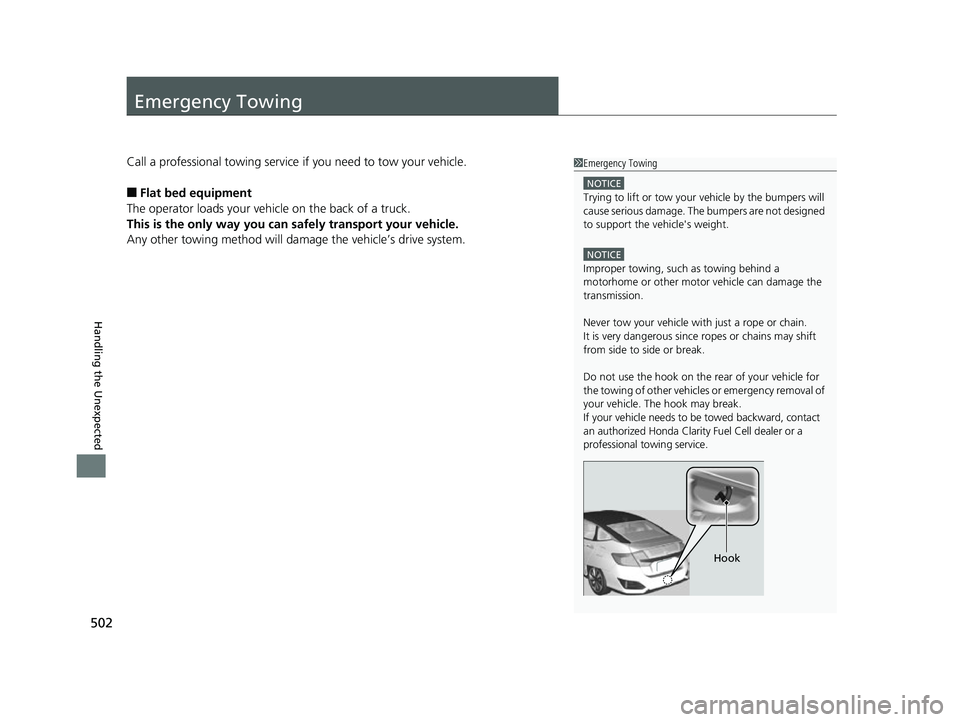

502
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
Do not use the hook on the rear of your vehicle for
the towing of other vehicles or emergency removal of
your vehicle. The hook may break.
If your vehicle needs to be towed backward, contact
an authorized Honda Clarity Fuel Cell dealer or a
professional towing service.
Hook
17 CLARITY FCV PPO-31TRT6000.book 502 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

503
Handling the Unexpected
When You Cannot Unlock the Hydrogen Fuel Lid
If you cannot unlock the hydrogen fuel lid, use the following procedure:
1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever opens the hydrogen
fuel lid when it is pulled.
■What to Do When Unable to Unlock the Hydrogen Fuel Lid1When You Cannot Unlock the Hydrogen Fuel Lid
After taking these steps, contact an authorized
Honda Clarity Fuel Cell dealer to have your vehicle
checked.
Cover
Release Lever
17 CLARITY FCV PPO-31TRT6000.book 503 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

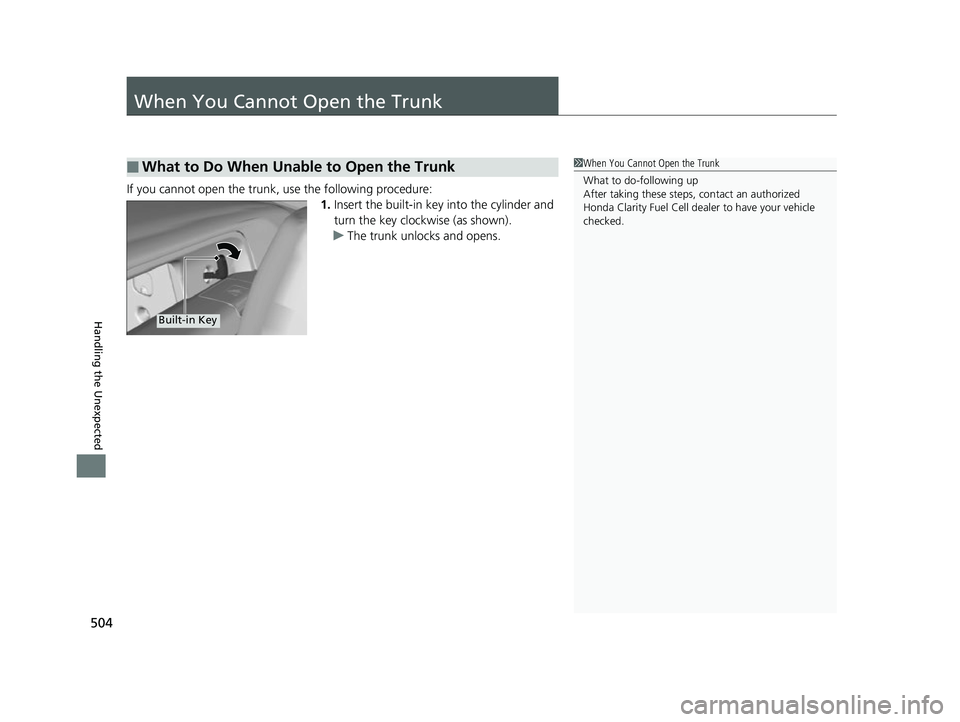

504
Handling the Unexpected
When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure:1.Insert the built-in key into the cylinder and
turn the key clockwise (as shown).
u The trunk unlocks and opens.
■What to Do When Unable to Open the Trunk1When You Cannot Open the Trunk
What to do-following up
After taking these steps, contact an authorized
Honda Clarity Fuel Cell dealer to have your vehicle
checked.
Built-in Key
17 CLARITY FCV PPO-31TRT6000.book 504 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

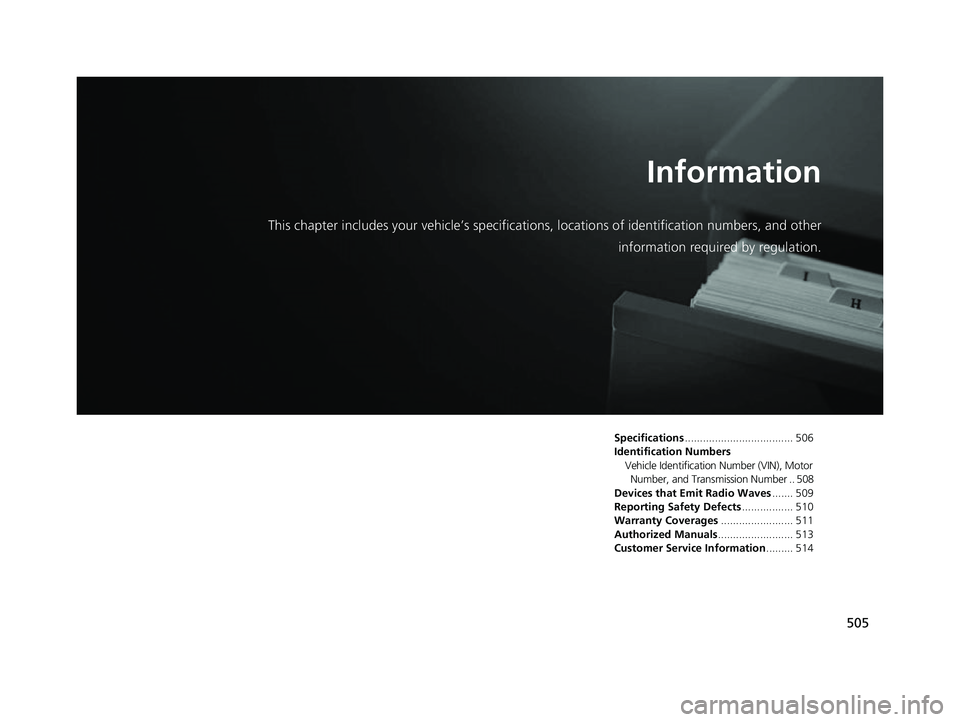

505
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 506
Identification Numbers Vehicle Identification Number (VIN), Motor
Number, and Transmission Number .. 508
Devices that Emit Radio Waves ....... 509
Reporting Safety Defects ................. 510
Warranty Coverages ........................ 511
Authorized Manuals ......................... 513
Customer Service Information ......... 514
17 CLARITY FCV PPO-31TRT6000.book 505 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

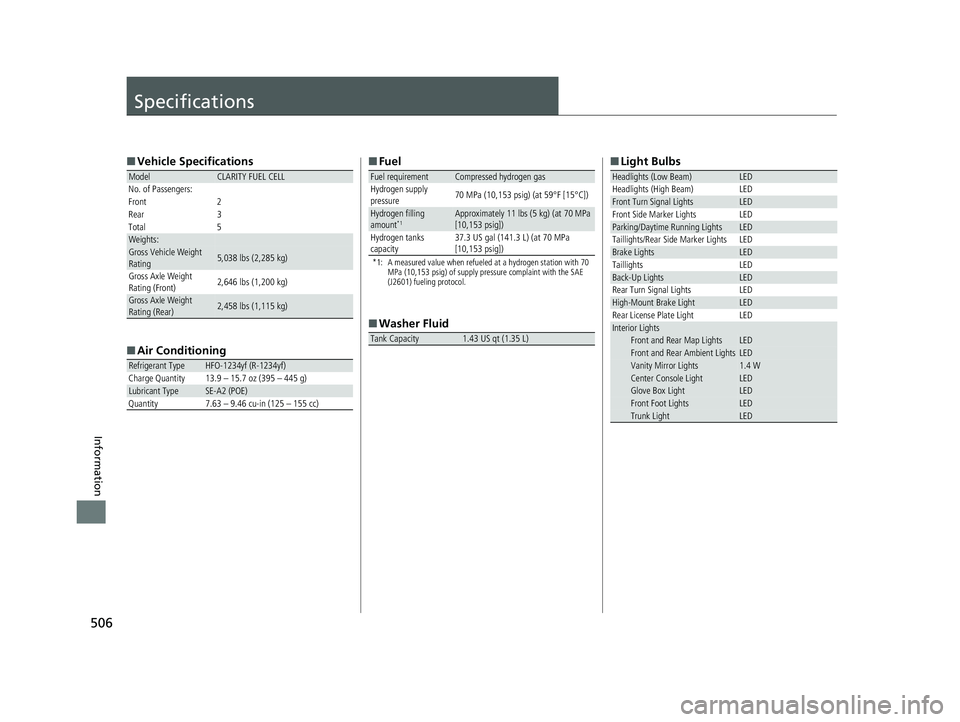

506
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCLARITY FUEL CELL
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating 5,038 lbs (2,285 kg)
Gross Axle Weight
Rating (Front)2,646 lbs (1,200 kg)
Gross Axle Weight
Rating (Rear)2,458 lbs (1,115 kg)
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeSE-A2 (POE)
Quantity 7.63 – 9.46 cu-in (125 – 155 cc)
■ Fuel
*1: A measured value when refueled at a hydrogen station with 70
MPa (10,153 psig) of supply pressure complaint with the SAE
(J2601) fueling protocol.
■Washer Fluid
Fuel requirementCompressed hydrogen gas
Hydrogen supply
pressure 70 MPa (10,153 psig) (at 59°F [15°C])
Hydrogen filling
amount*1Approximately 11 lbs (5 kg) (at 70 MPa
[10,153 psig])
Hydrogen tanks
capacity 37.3 US gal (141.3 L) (at 70 MPa
[10,153 psig])
Tank Capacity1.43 US qt (1.35 L)
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot LightsLEDTrunk LightLED
17 CLARITY FCV PPO-31TRT6000.book 506 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

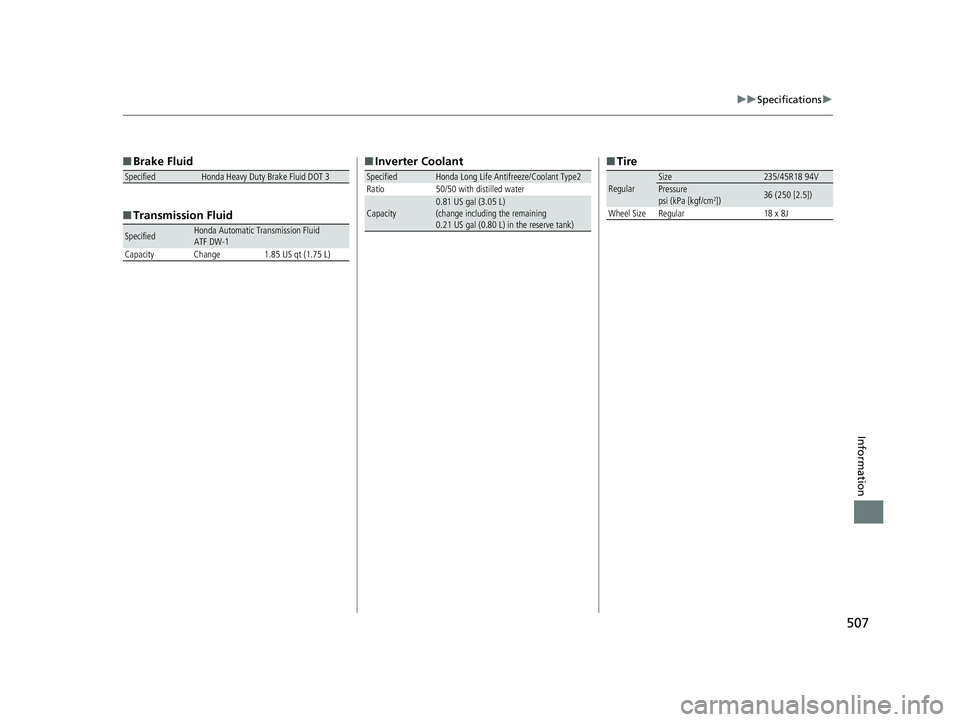

507
uuSpecifications u
Information
■Brake Fluid
■ Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF DW-1
Capacity Change 1.85 US qt (1.75 L)
■ Inverter Coolant
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.81 US gal (3.05 L)
(change including the remaining
0.21 US gal (0.80 L) in the reserve tank)
■ Tire
RegularSize235/45R18 94VPressure
psi (kPa [kgf/cm2])36 (250 [2.5])
Wheel Size Regular 18 x 8J
17 CLARITY FCV PPO-31TRT6000.book 507 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

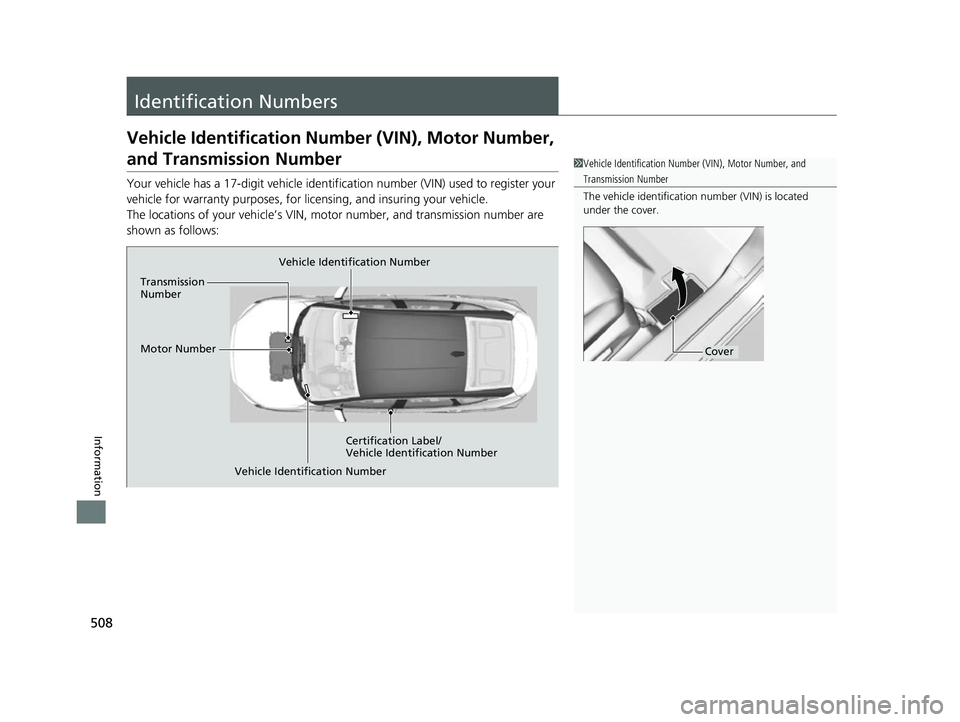

508
Information
Identification Numbers
Vehicle Identification Number (VIN), Motor Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, for licensing, and insuring your vehicle.
The locations of your vehicle’s VIN, motor number, and transmission number are
shown as follows:
1 Vehicle Identification Number (VIN), Motor Number, and
Transmission Number
The vehicle identification number (VIN) is located
under the cover.
Cover
Vehicle Identification Number
Transmission
Number
Certification Label/
Vehicle Identification Number
Vehicle Identification Number
Motor Number
