29
uu Map & Vehicle u Vehicle
System Setup
• myMaps : Sets which installed maps the system uses.
2myMaps P. 35

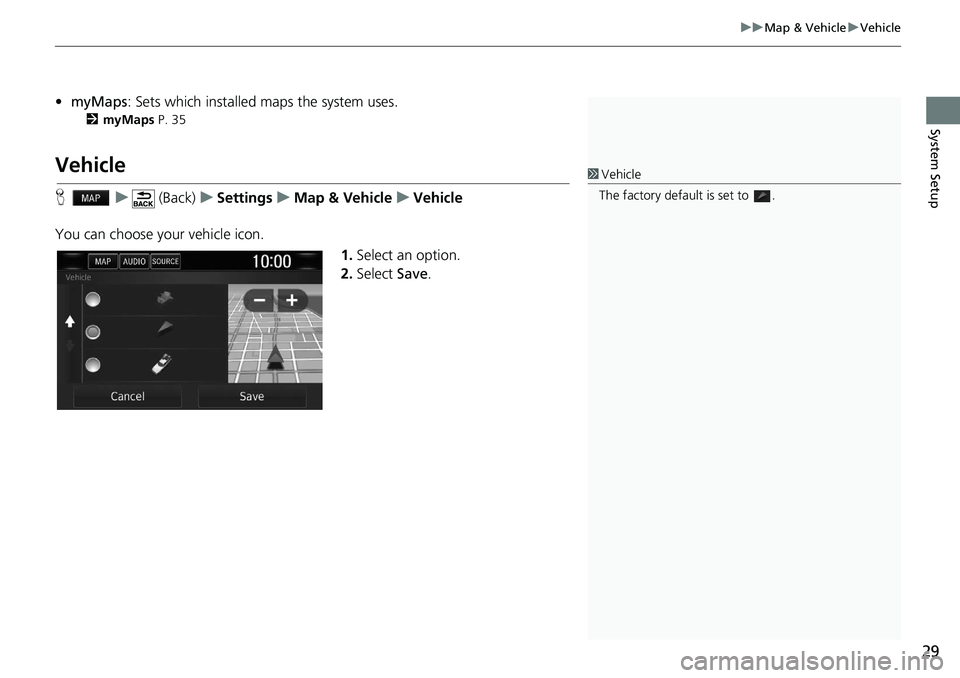

Vehicle
H u (Back) u Settings u Map & Vehicle u Vehicle
You can choose your vehicle icon. 1.Select an option.
2.Select Save.
1Vehicle
The factory default is set to .

30
uu Map & Vehicle u Driving Map View (Map Orientation)
System Setup

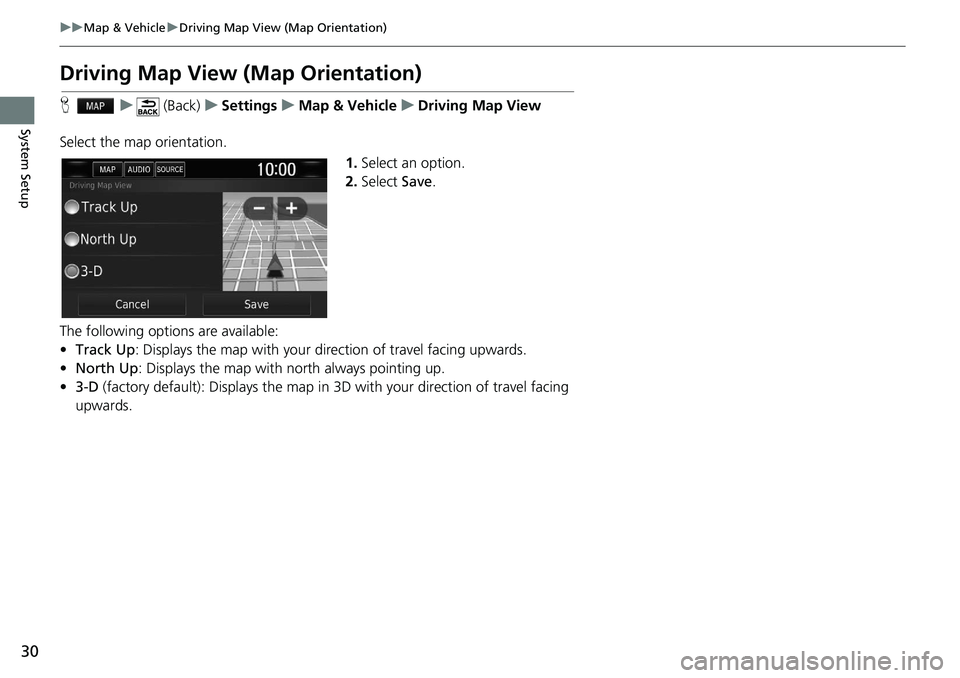

Driving Map View (Map Orientation)
H u (Back) u Settings u Map & Vehicle u Driving Map View
Select the map orientation. 1.Select an option.
2.Select Save.
The following options are available:
•Track Up : Displays the map with your di rection of travel facing upwards.
• North Up: Displays the map with no rth always pointing up.
• 3-D (factory default): Displays the map in 3D with your direction of travel facing
upwards.

31
uu Map & Vehicle u Map Detail
System Setup

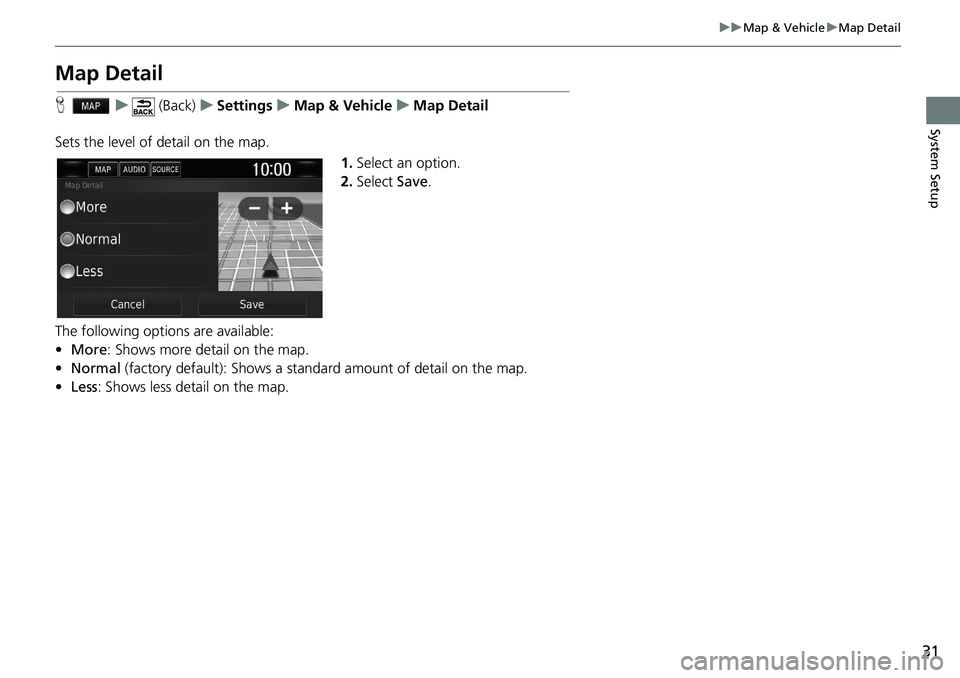

Map Detail
H u (Back) u Settings u Map & Vehicle u Map Detail
Sets the level of detail on the map. 1.Select an option.
2.Select Save.
The following options are available:
•More : Shows more detail on the map.
• Normal (factory default): Shows a standard amount of detail on the map.
• Less : Shows less detail on the map.

32
uu Map & Vehicle u Map Theme
System Setup

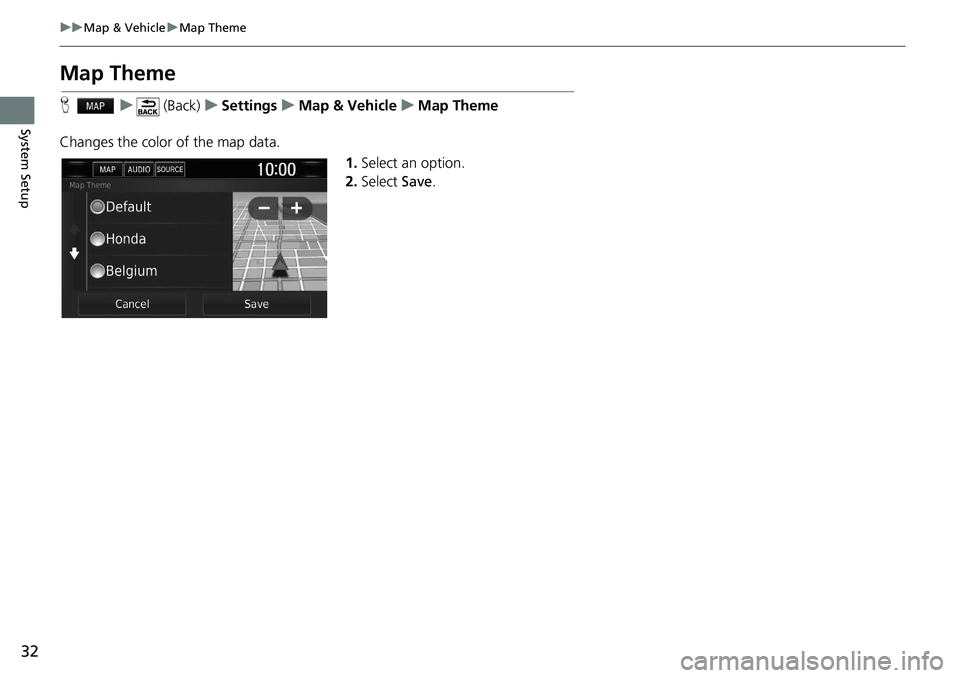

Map Theme
H u (Back) u Settings u Map & Vehicle u Map Theme
Changes the color of the map data. 1.Select an option.
2.Select Save.

33
uu Map & Vehicle u Map Buttons
System Setup
Map Buttons
H u (Back) u Settings u Map & Vehicle u Map Buttons
Sets up to three shortcuts that appear in the map tools menu. 1.Select if you want to delete a
shortcut and then select OK.
2.Select to add a new shortcut.
3.Select an option.
4. Select Save.
1Map Buttons
Reset to Defaults
Resets the settings to the factory defaults.

34
uu Map & Vehicle u Map Layers
System Setup

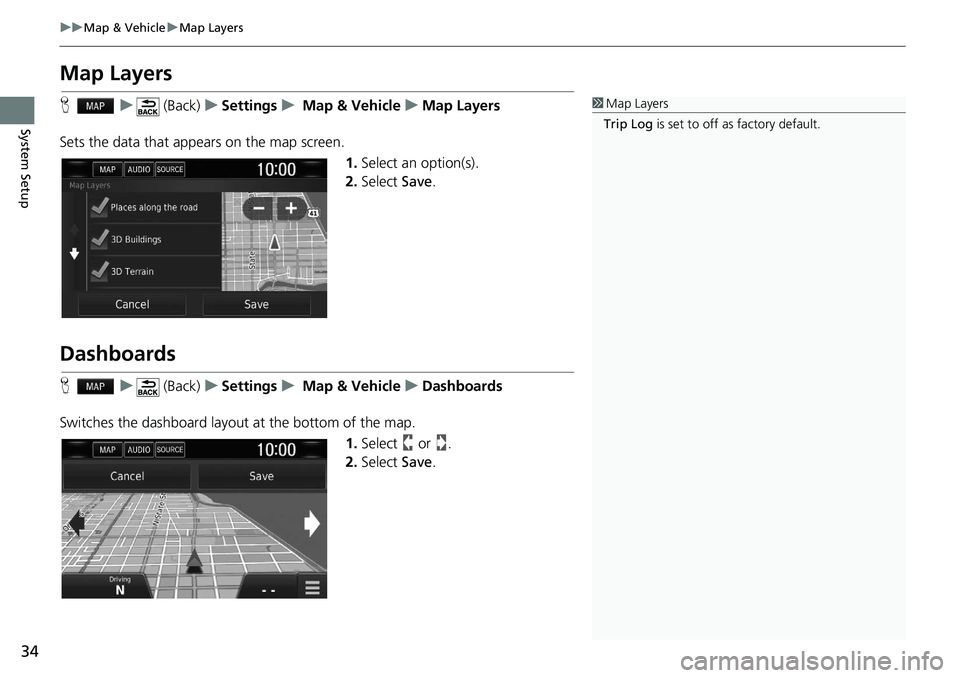

Map Layers
H u (Back) u Settings u Map & Vehicle u Map Layers
Sets the data that appears on the map screen. 1.Select an option(s).
2.Select Save.
Dashboards
H u (Back) u Settings u Map & Vehicle u Dashboards
Switches the dashboard layout at the bottom of the map.
1.Select or .
2.Select Save.
1Map Layers
Trip Log is set to off as factory default.

35
uu Map & Vehicle u myMaps
System Setup

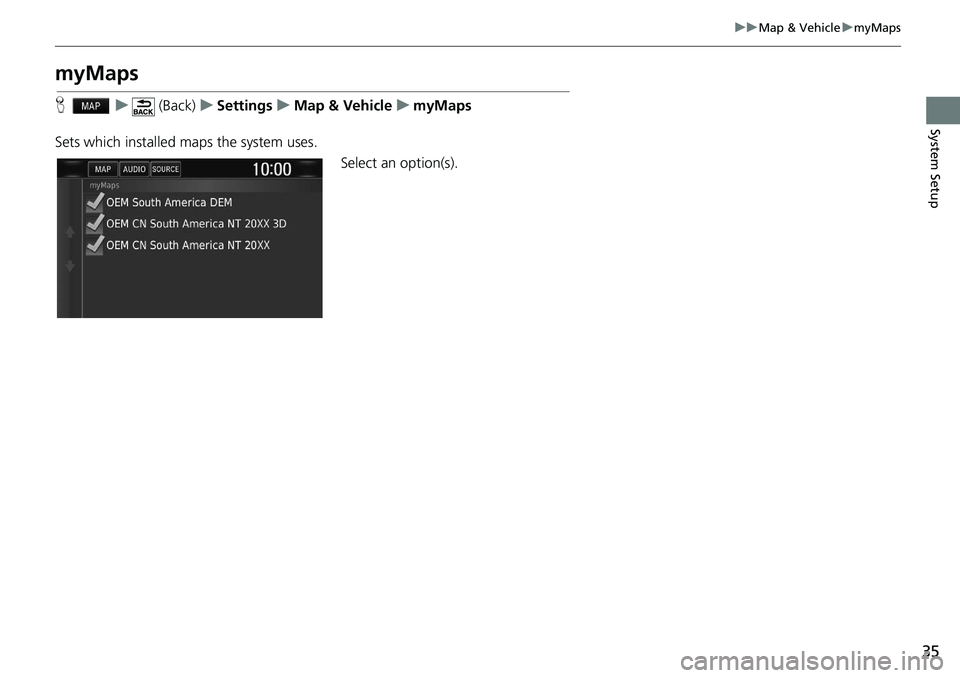

myMaps
H u (Back) u Settings u Map & Vehicle u myMaps
Sets which installed maps the system uses. Select an option(s).

36

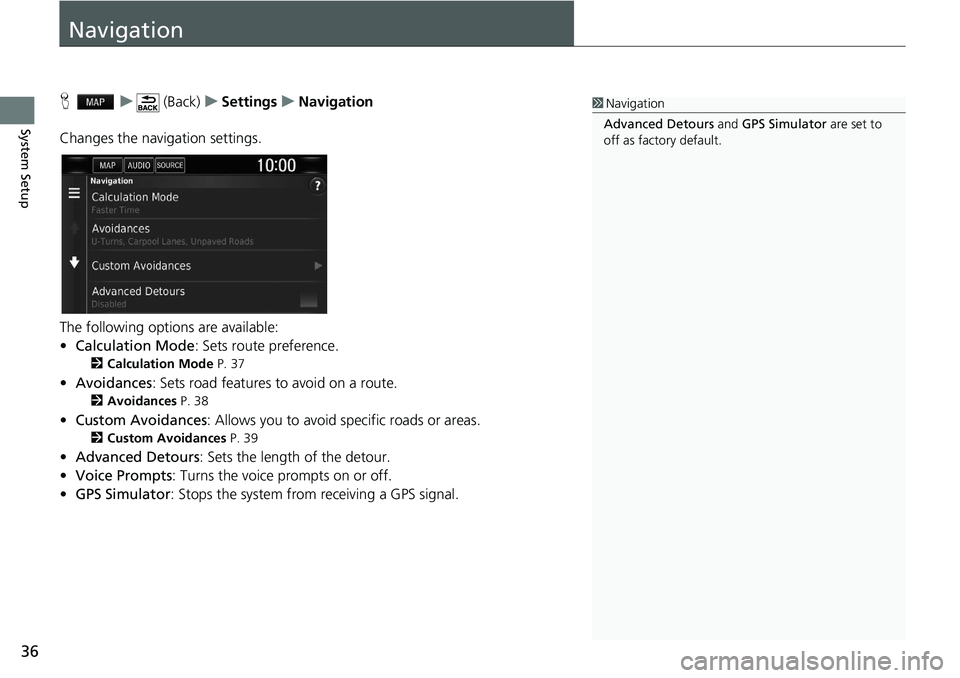

System Setup
Navigation
H u (Back) u Settings u Navigation
Changes the navigation settings.
The following options are available:
• Calculation Mode : Sets route preference.
2Calculation Mode P. 37
•Avoidances : Sets road features to avoid on a route.
2Avoidances P. 38
•Custom Avoidances : Allows you to avoid sp ecific roads or areas.
2Custom Avoidances P. 39
•Advanced Detours : Sets the length of the detour.
• Voice Prompts : Turns the voice prompts on or off.
• GPS Simulator : Stops the system from receiving a GPS signal.
1Navigation
Advanced Detours and GPS Simulator are set to
off as factory default.

37
uu Navigation u Calculation Mode
System Setup

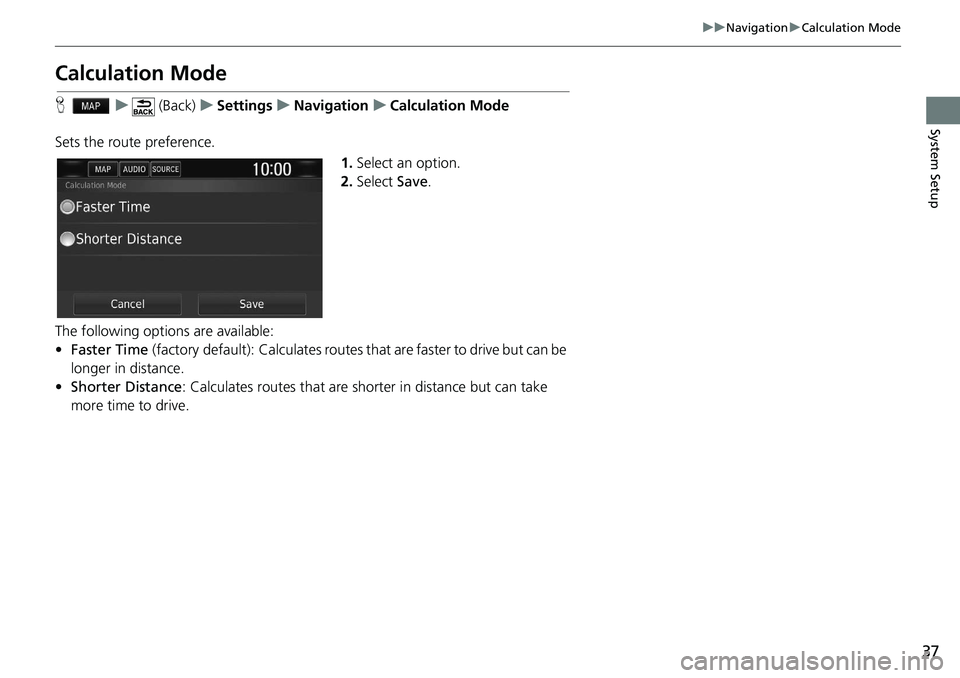

Calculation Mode
H u (Back) u Settings u Navigation u Calculation Mode
Sets the route preference. 1.Select an option.
2.Select Save.
The following options are available:
•Faster Time (factory default): Calculates routes that are faster to drive but can be
longer in distance.
• Shorter Distance : Calculates routes that are shorter in distance but can take
more time to drive.

38
uu Navigation u Avoidances
System Setup

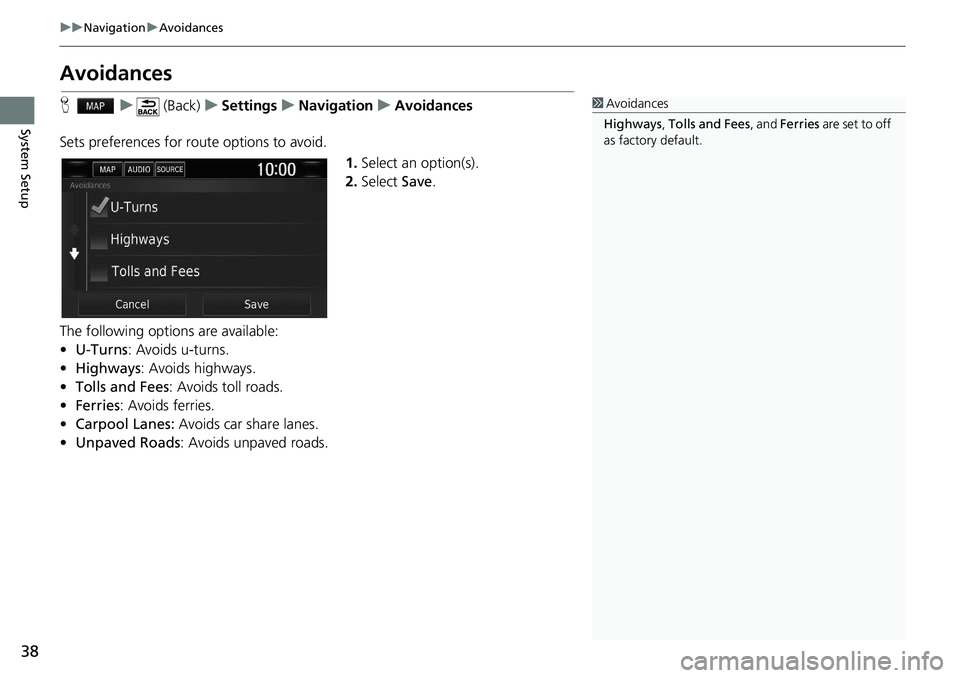

Avoidances
H u (Back) u Settings u Navigation u Avoidances
Sets preferences for route options to avoid. 1.Select an option(s).
2.Select Save.
The following options are available:
•U-Turns : Avoids u-turns.
• Highways : Avoids highways.
• Tolls and Fees : Avoids toll roads.
• Ferries : Avoids ferries.
• Carpool Lanes: Avoids car share lanes.
• Unpaved Roads : Avoids unpaved roads.
1Avoidances
Highways , Tolls and Fees , and Ferries are set to off
as factory default.
