uuFuses uFuse Locations
Continued
Handling the Unexpected
■Fuse box B
Tab
Pull up the cover on the + terminal, then
remove it while pulling out the tab as
shown.
Replacement of motor compartment fuses
should be done by an authorized Honda
Clarity Fuel Cell dealer.■Circuit protected and fuse rating
Circuit ProtectedAmps
a−−
bFC WP70 A
c−−
d SUB FUSE BOX 1 60 A
20 CLARITY FCV CSS-31TRT6300.book 519 ページ 2019年9月10日 火曜日 午前11 時3分
Page 522 of 551
520
uuFuses uFuse Locations
Handling the Unexpected

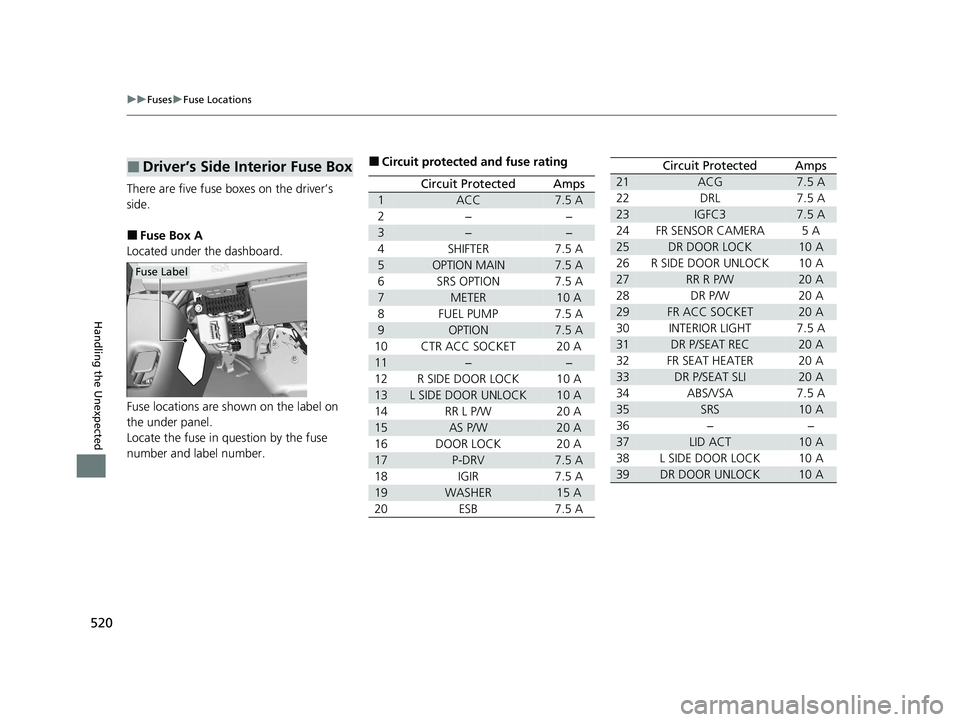

There are five fuse boxes on the driver’s
side.
■Fuse Box A
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACC7.5 A
2−−
3−−
4SHIFTER7.5 A
5OPTION MAIN7.5 A
6SRS OPTION7.5 A
7METER10 A
8FUEL PUMP7.5 A
9OPTION7.5 A
10CTR ACC SOCKET20 A
11−−
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14RR L P/W20 A
15AS P/W20 A
16DOOR LOCK20 A
17P-DRV7.5 A
18IGIR7.5 A
19WASHER15 A
20ESB7.5 A
21ACG7.5 A
22DRL7.5 A
23IGFC37.5 A
24FR SENSOR CAMERA5A
25DR DOOR LOCK10 A
26R SIDE DOOR UNLOCK10 A
27RR R P/W20 A
28DR P/W20 A
29FR ACC SOCKET20 A
30INTERIOR LIGHT7.5 A
31DR P/SEAT REC20 A
32FR SEAT HEATER20 A
33DR P/SEAT SLI20 A
34ABS/VSA7.5 A
35SRS10 A
36−−
37LID ACT10 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK10 A
Circuit ProtectedAmps
20 CLARITY FCV CSS-31TRT6300.book 520 ページ 2019年9月10日 火曜日 午前11 時3分
Page 523 of 551
521
uuFuses uFuse Locations
Continued
Handling the Unexpected

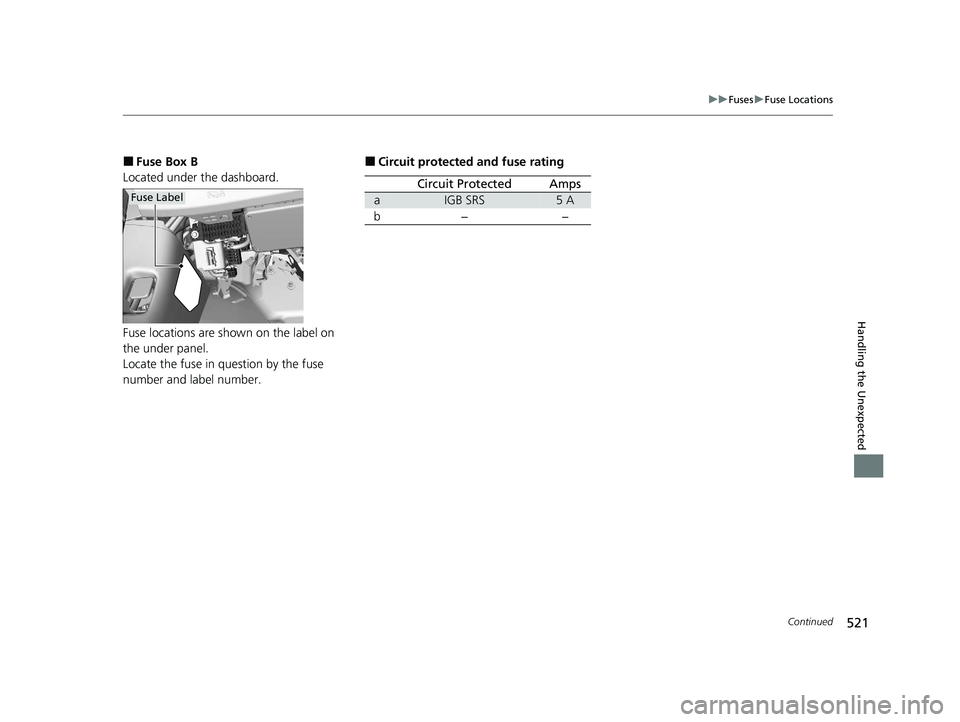

■Fuse Box B
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
aIGB SRS5A
b−−
20 CLARITY FCV CSS-31TRT6300.book 521 ページ 2019年9月10日 火曜日 午前11 時3分
Page 524 of 551
522
uuFuses uFuse Locations
Handling the Unexpected

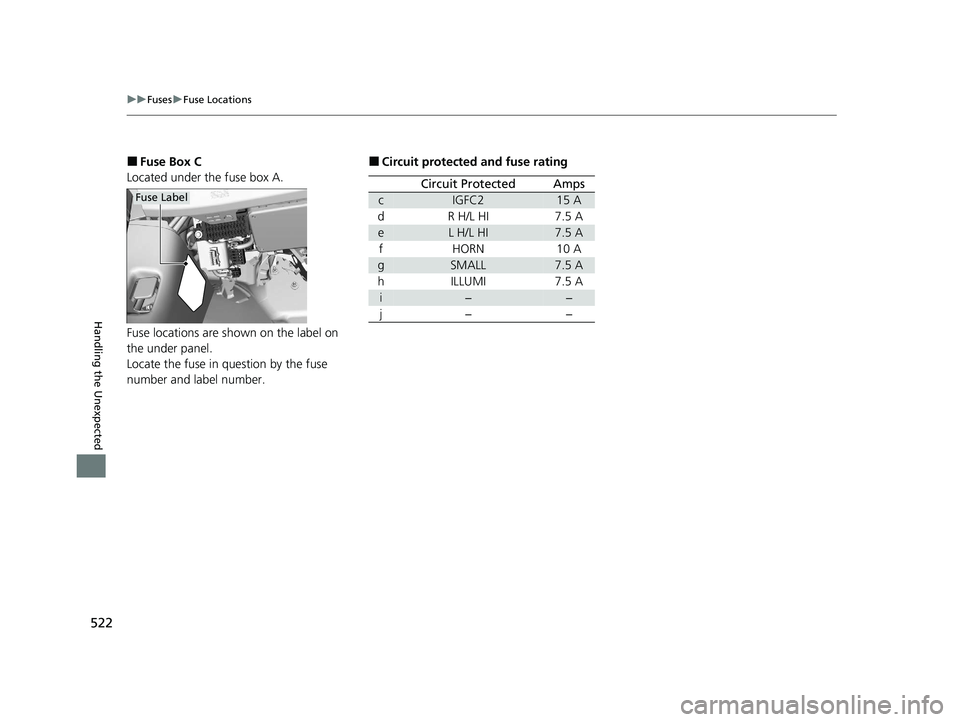

■Fuse Box C
Located under the fuse box A.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
cIGFC215 A
dR H/L HI7.5 A
eL H/L HI7.5 A
fHORN10 A
gSMALL7.5 A
hILLUMI7.5 A
i−−
j−−
20 CLARITY FCV CSS-31TRT6300.book 522 ページ 2019年9月10日 火曜日 午前11 時3分
Page 525 of 551
523
uuFuses uFuse Locations
Continued
Handling the Unexpected

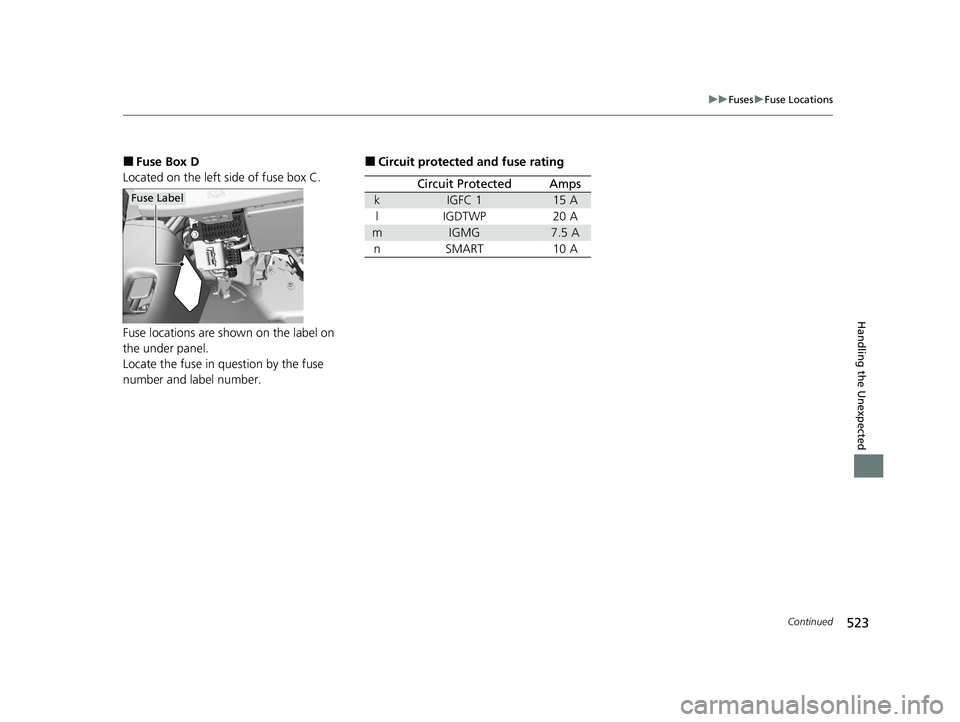

■Fuse Box D
Located on the left side of fuse box C.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
kIGFC 115 A
lIGDTWP20 A
mIGMG7.5 A
nSMART10 A
20 CLARITY FCV CSS-31TRT6300.book 523 ページ 2019年9月10日 火曜日 午前11 時3分
Page 526 of 551
524
uuFuses uFuse Locations
Handling the Unexpected

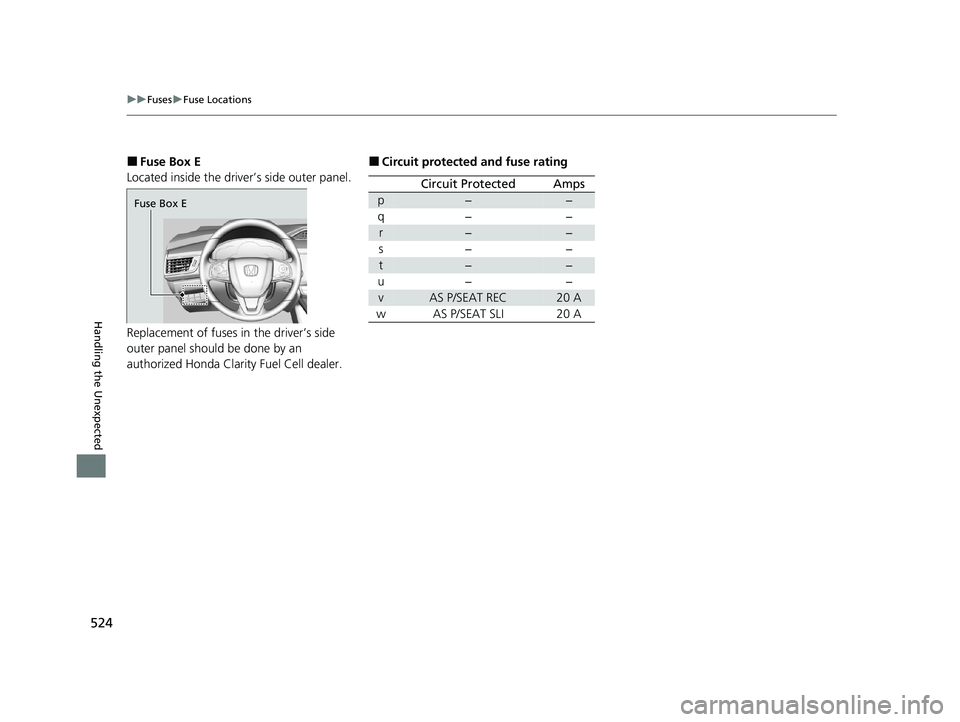

■Fuse Box E
Located inside the driver’s side outer panel.
Replacement of fuses in the driver’s side
outer panel should be done by an
authorized Hond a Clarity Fuel Cell dealer.
Fuse Box E
■Circuit protected and fuse rating
Circuit ProtectedAmps
p−−
q−−
r−−
s−−
t−−
u−−
vAS P/SEAT REC20 A
wAS P/SEAT SLI20 A
20 CLARITY FCV CSS-31TRT6300.book 524 ページ 2019年9月10日 火曜日 午前11 時3分
Page 527 of 551
525
uuFusesuInspecting and Changing Fuses
Handling the Unexpected

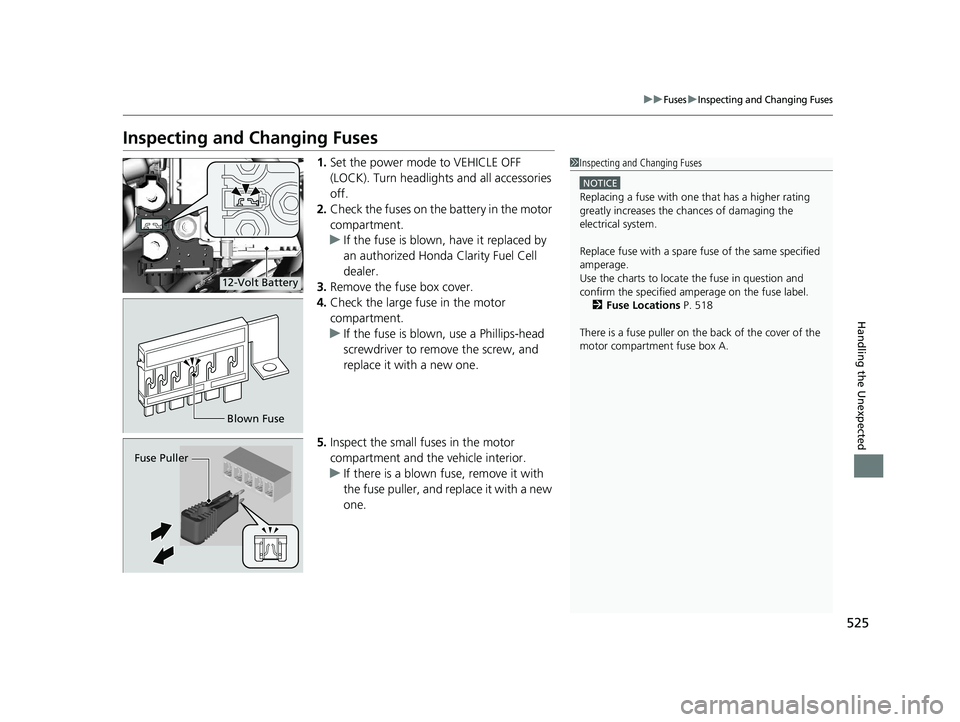

Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Check the fuses on the battery in the motor
compartment.
u If the fuse is blown, have it replaced by
an authorized Honda Clarity Fuel Cell
dealer.
3. Remove the fuse box cover.
4. Check the large fuse in the motor
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw, and
replace it with a new one.
5. Inspect the small fuses in the motor
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 518
There is a fuse puller on the back of the cover of the
motor compartment fuse box A.
12-Volt Battery
Blown Fuse
Fuse Puller
20 CLARITY FCV CSS-31TRT6300.book 525 ページ 2019年9月10日 火曜日 午前11 時3分
Page 528 of 551
526
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Do not use the hook on the rear of your vehicle for
the towing of other vehicles or emergency removal of
your vehicle. The hook may break.
If your vehicle needs to be towed backward, contact
an authorized Honda Clarity Fuel Cell dealer or a
professional towing service.
Hook
20 CLARITY FCV CSS-31TRT6300.book 526 ページ 2019年9月10日 火曜日 午前11 時3分
Page 529 of 551
527
Handling the Unexpected

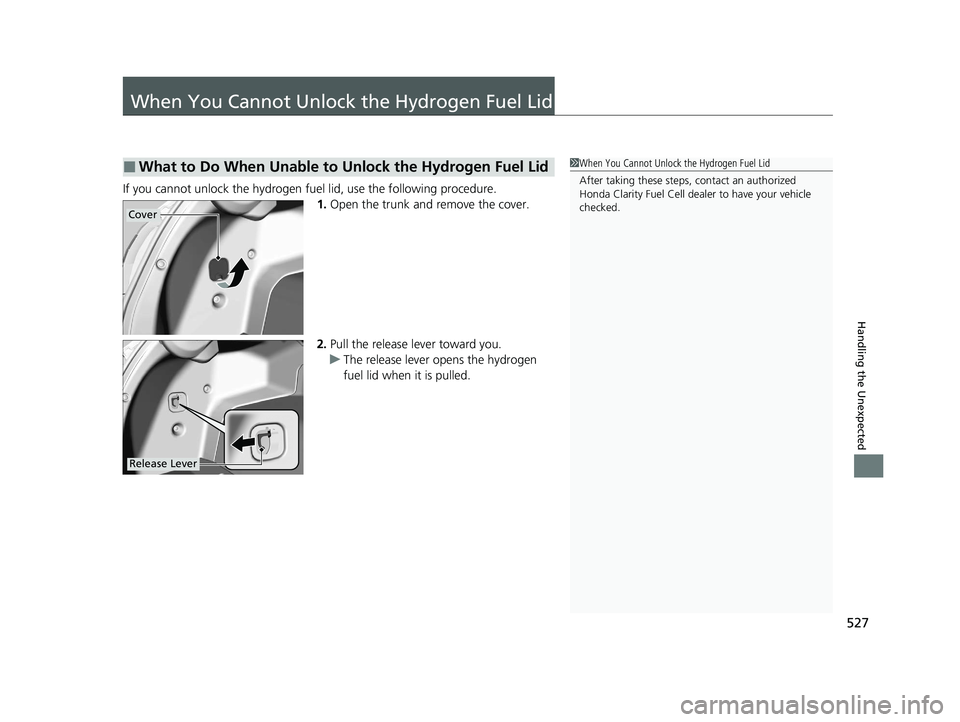

When You Cannot Unlock the Hydrogen Fuel Lid
If you cannot unlock the hydrogen fuel lid, use the following procedure.
1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever opens the hydrogen
fuel lid when it is pulled.
■What to Do When Unable to Unlock the Hydrogen Fuel Lid1When You Cannot Unlock the Hydrogen Fuel Lid
After taking these steps, contact an authorized
Honda Clarity Fuel Cell dealer to have your vehicle
checked.
Cover
Release Lever
20 CLARITY FCV CSS-31TRT6300.book 527 ページ 2019年9月10日 火曜日 午前11 時3分
Page 530 of 551
528
Handling the Unexpected

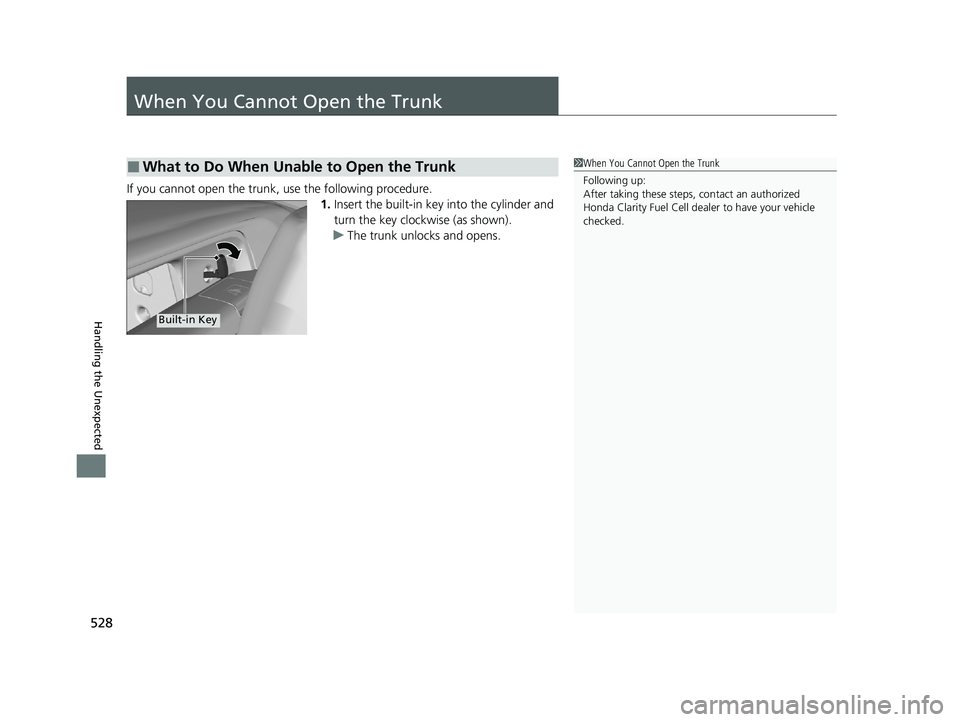

When You Cannot Open the Trunk
