HONDA CLARITY FUEL CELL 2021 Owner's Manual (in English)

359
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

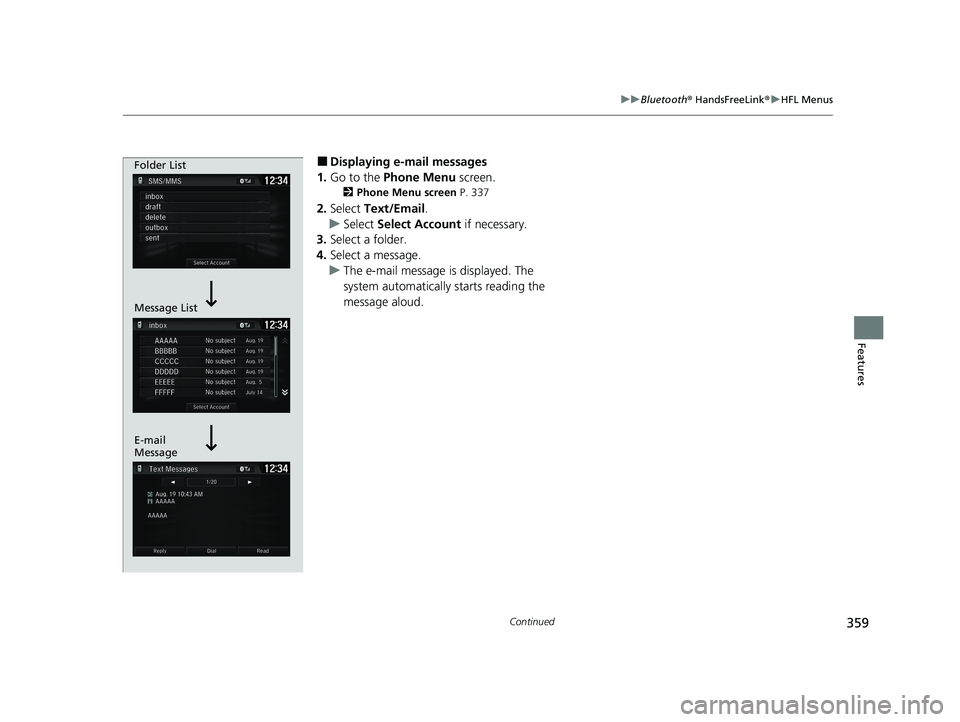

■Displaying e-mail messages
1. Go to the Phone Menu screen.
2Phone Menu screen P. 337
2.Select Text/Email .
u Select Select Account if necessary.
3. Select a folder.
4. Select a message.
u The e-mail message is displayed. The
system automatically starts reading the
message aloud.
Folder List
Message List
E-mail
Message
21 CLARITY FCV CSS-31TRT6400_02.book 359 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

uuBluetooth ® HandsFreeLink ®u HFL Menus
360
Features

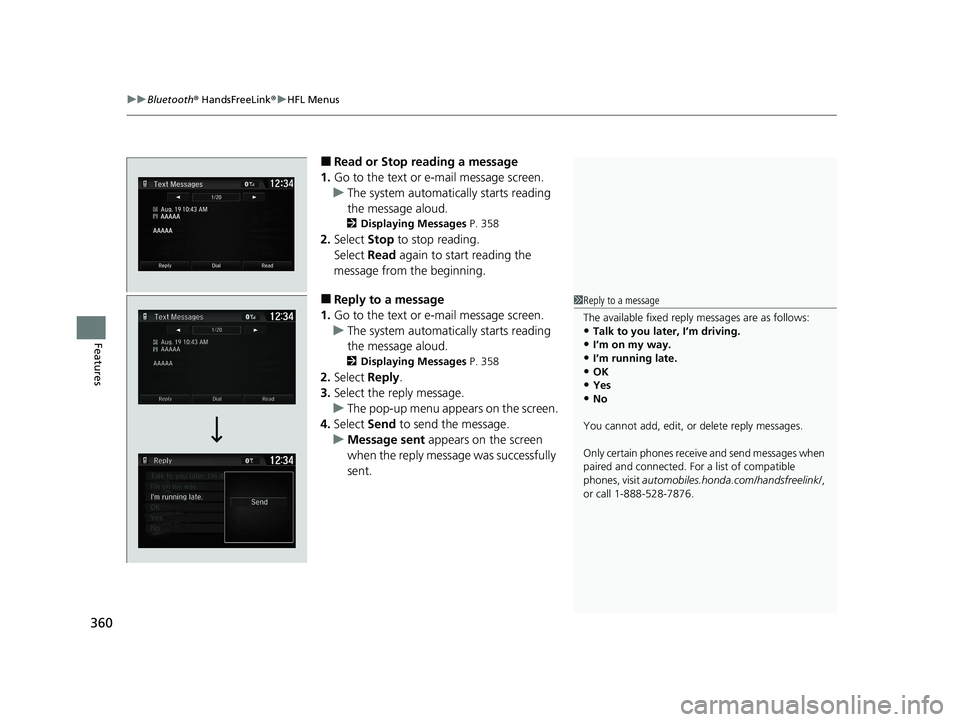

■Read or Stop reading a message
1. Go to the text or e-mail message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 358
2.Select Stop to stop reading.
Select Read again to start reading the
message from the beginning.
■Reply to a message
1. Go to the text or e-mail message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 358
2.Select Reply.
3. Select the reply message.
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Message sent appears on the screen
when the reply messag e was successfully
sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.•I’m on my way.
•I’m running late.
•OK•Yes
•No
You cannot add, edit, or delete reply messages.
Only certain phones receive and send messages when
paired and connected. For a list of compatible
phones, visit automobiles.honda.com/handsfreelink/ ,
or call 1-888-528-7876.
21 CLARITY FCV CSS-31TRT6400_02.book 360 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

361
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

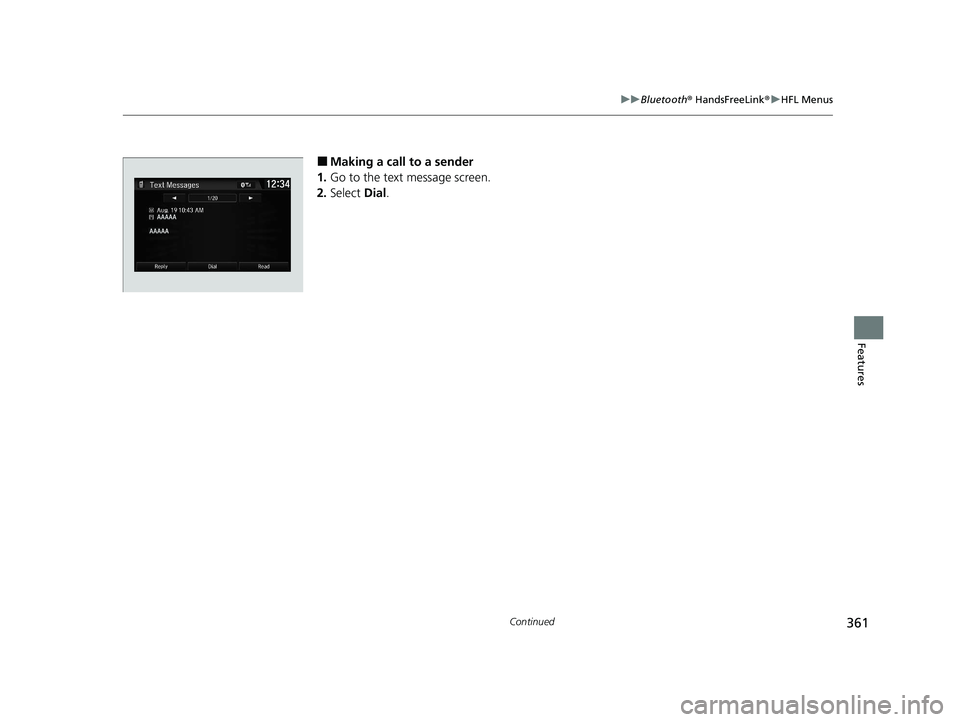

■Making a call to a sender
1. Go to the text message screen.
2. Select Dial.
21 CLARITY FCV CSS-31TRT6400_02.book 361 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

uuBluetooth ® HandsFreeLink ®u HFL Menus
362
Features

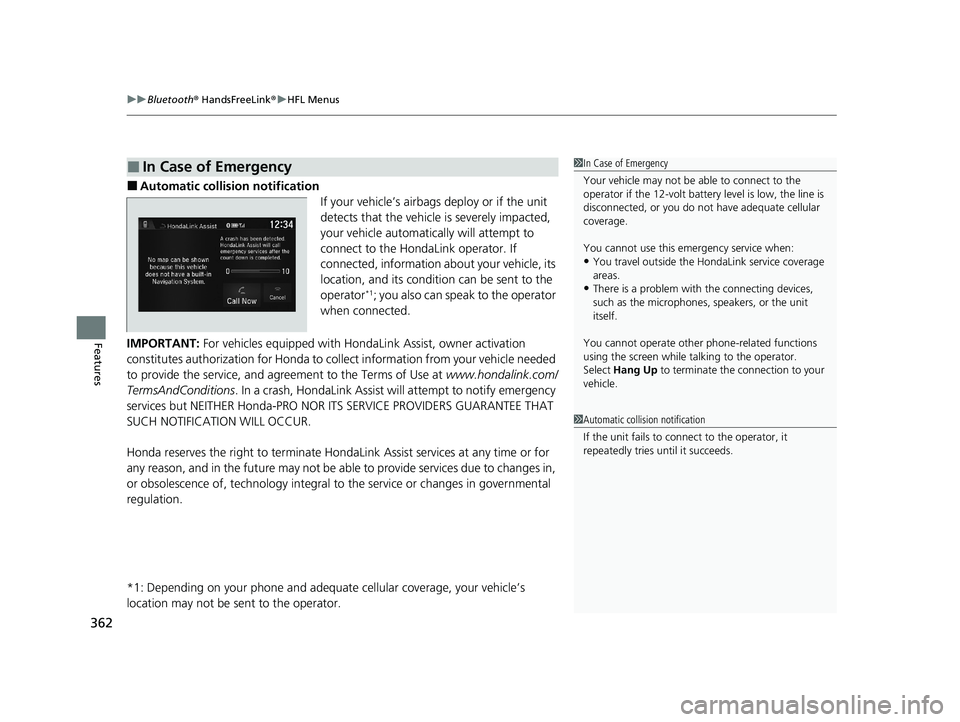

■Automatic collision notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with Hond aLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agr eement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink Assist w ill attempt to notify emergency
services but NEITHER Honda-PRO NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequa te cellular coverage, your vehicle’s
location may not be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the 12-volt battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the H ondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
21 CLARITY FCV CSS-31TRT6400_02.book 362 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

363
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

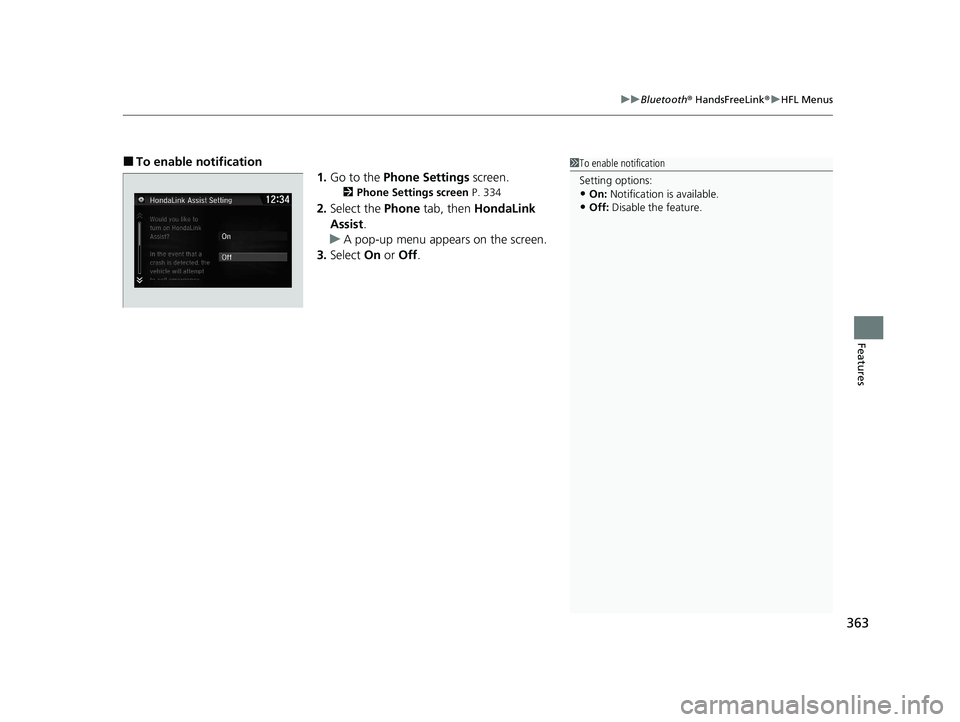

■To enable notification
1.Go to the Phone Settings screen.
2Phone Settings screen P. 334
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
21 CLARITY FCV CSS-31TRT6400_02.book 363 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

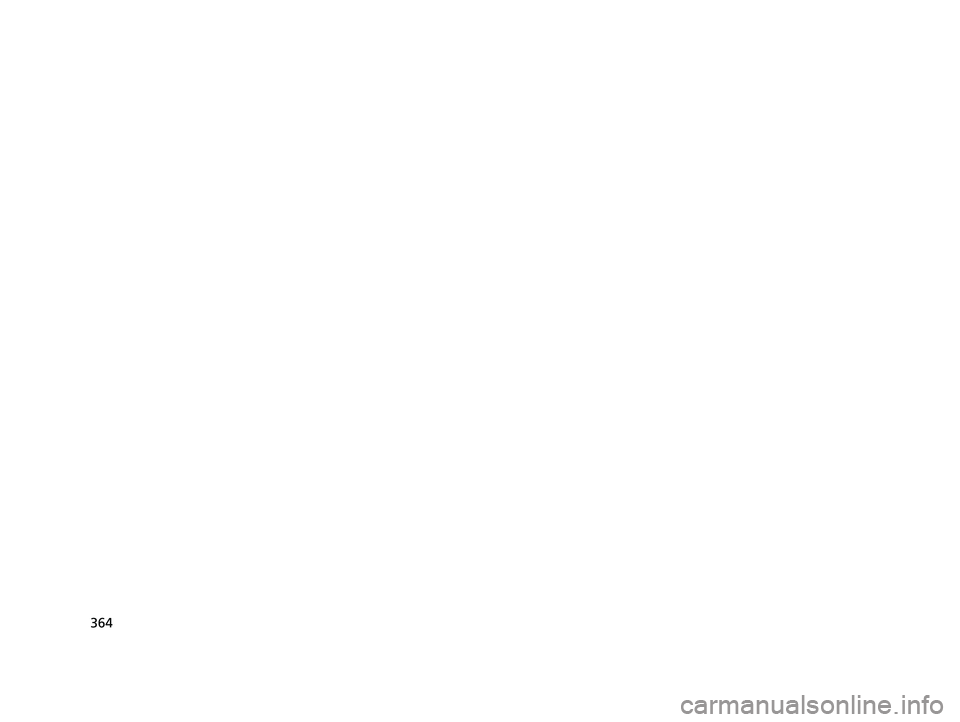

364
21 CLARITY FCV CSS-31TRT6400_02.book 364 ページ ２０２０年９月２５日　金曜日　午後３時１５分

365

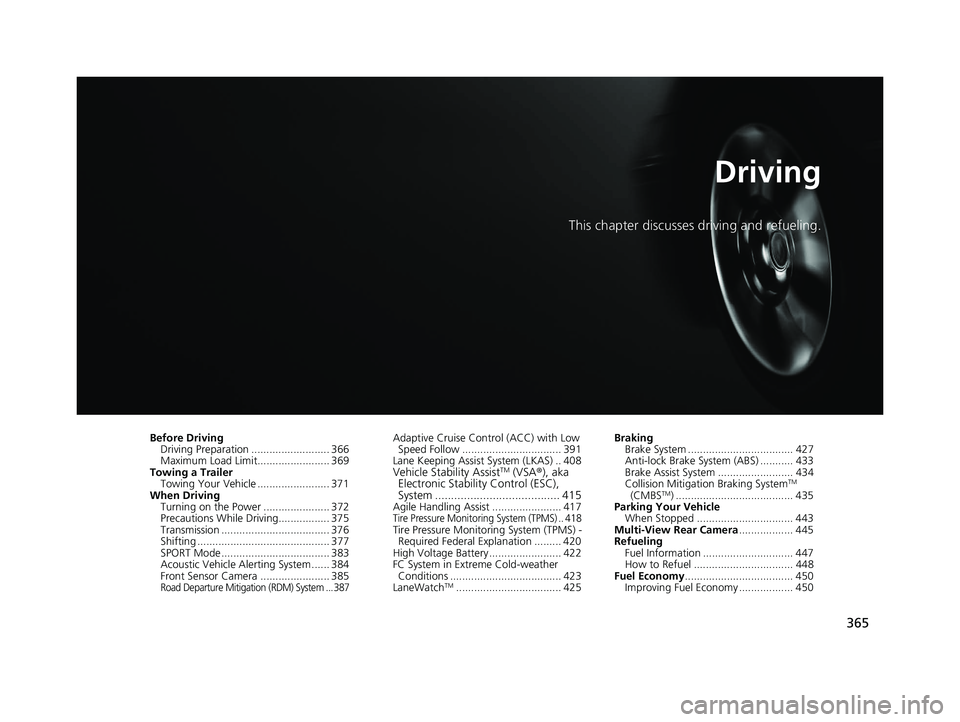

Driving
This chapter discusses driving and refueling.
Before DrivingDriving Preparation .......................... 366
Maximum Load Limit........................ 369
Towing a Trailer Towing Your Vehicle ........................ 371
When Driving Turning on the Power ...................... 372
Precautions While Driving................. 375
Transmission .................................... 376
Shifting ............................................ 377
SPORT Mode.................................... 383
Acoustic Vehicle Al erting System ...... 384
Front Sensor Camera ....................... 385
Road Departure Mitigation (RDM) System ... 387
Adaptive Cruise Control (ACC) with Low Speed Follow ................................. 391
Lane Keeping Assist System (LKAS) .. 408
Vehicle Stability AssistTM (VSA®), aka
Electronic Stability Control (ESC),
System ....................................... 415
Agile Handling Assist ....................... 417Tire Pressure Monitoring System (TPMS) .. 418Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 420
High Voltage Battery ........................ 422
FC System in Extreme Cold-weather
Conditions ..................................... 423
LaneWatch
TM................................... 425 Braking
Brake System ................................... 427
Anti-lock Brake System (ABS) ........... 433
Brake Assist System ......................... 434
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 435
Parking Your Vehicle When Stopped ................................ 443
Multi-View Rear Camera .................. 445
Refueling Fuel Information .............................. 447
How to Refuel ................................. 448
Fuel Economy .................................... 450
Improving Fuel Economy .................. 450
21 CLARITY FCV CSS-31TRT6400_02.book 365 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

366
Driving

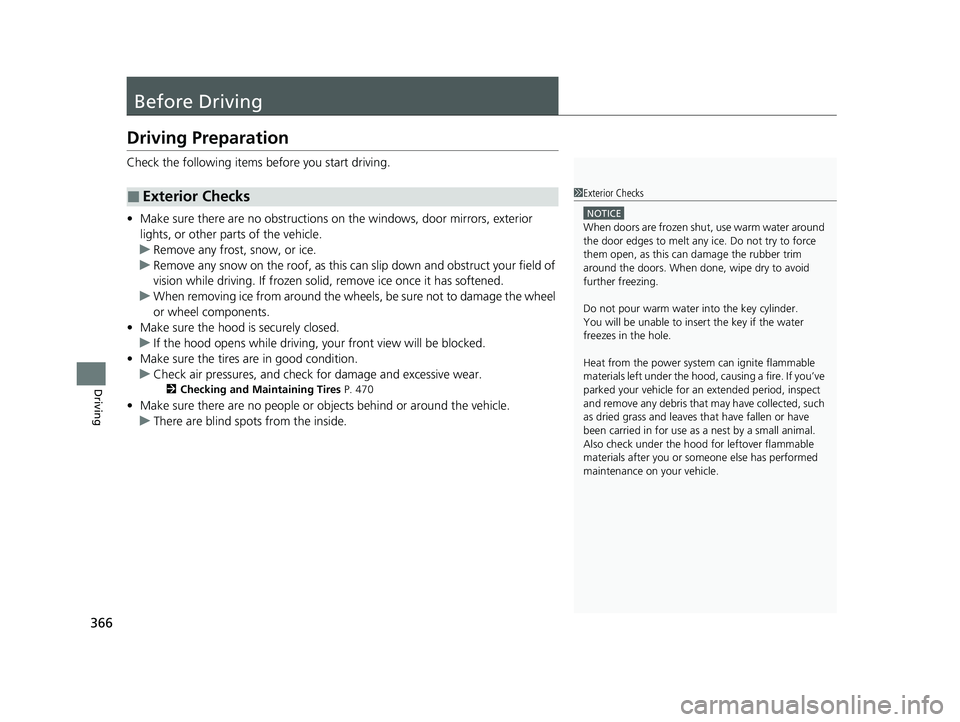

Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 470
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the power syst em can ignite flammable
materials left under the hood, causing a fire. If you’ve
parked your vehicle for an extended period, inspect
and remove any debris that may have collected, such
as dried grass and leaves th at have fallen or have
been carried in for use as a nest by a small animal.
Also check under the hood fo r leftover flammable
materials after you or so meone else has performed
maintenance on your vehicle.
21 CLARITY FCV CSS-31TRT6400_02.book 366 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

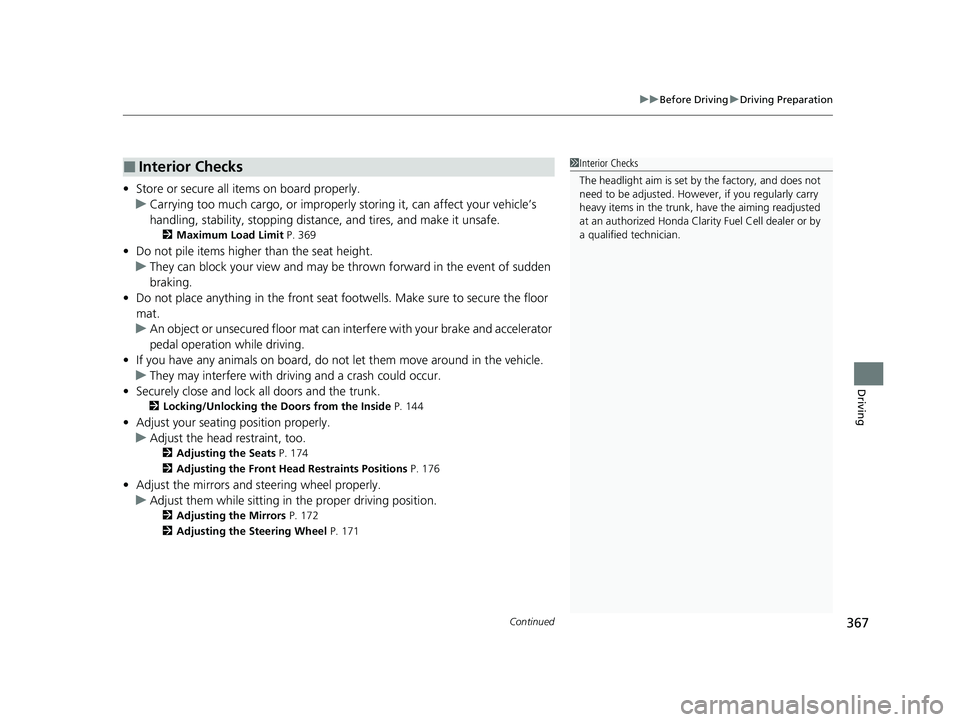

Continued367
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 369
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driv ing and a crash could occur.
• Securely close and lock all doors and the trunk.
2 Locking/Unlocking the Doors from the Inside P. 144
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 174
2 Adjusting the Front Head Restraints Positions P. 176
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 172
2 Adjusting the Steering Wheel P. 171
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at an authorized Honda Clar ity Fuel Cell dealer or by
a qualified technician.
21 CLARITY FCV CSS-31TRT6400_02.book 367 ページ ２０２０年９月２５日　金曜日　午 後３時１５分

368
uuBefore Driving uDriving Preparation
Driving

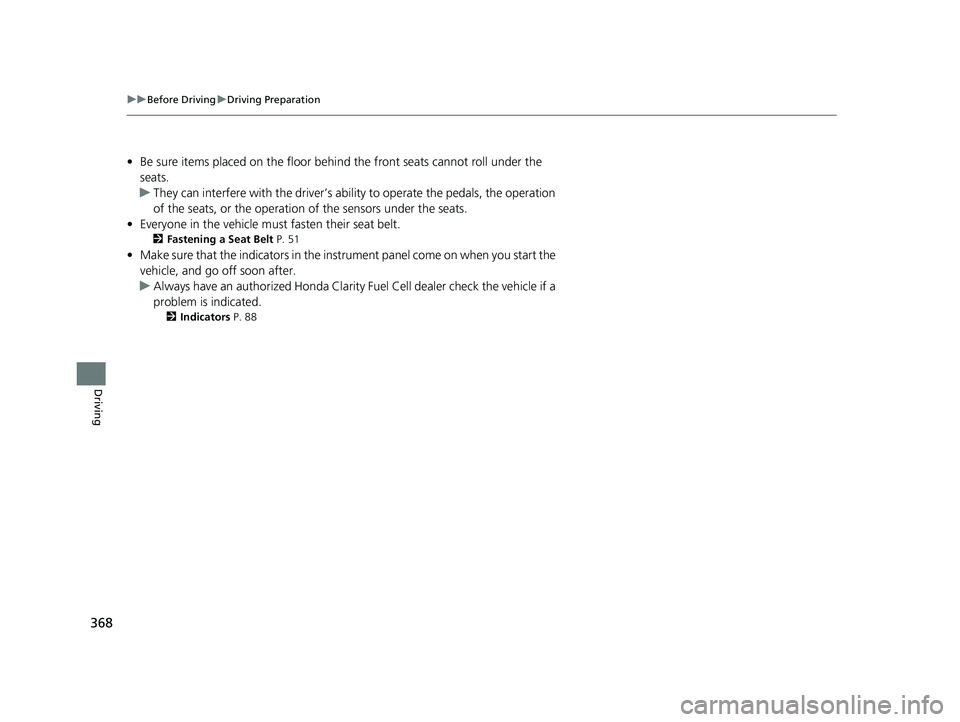

• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 51
•Make sure that the indicators in the in strument panel come on when you start the
vehicle, and go off soon after.
u Always have an authorized Honda Clarity Fuel Cell dealer check the vehicle if a
problem is indicated.
2 Indicators P. 88
