508
Maintenance

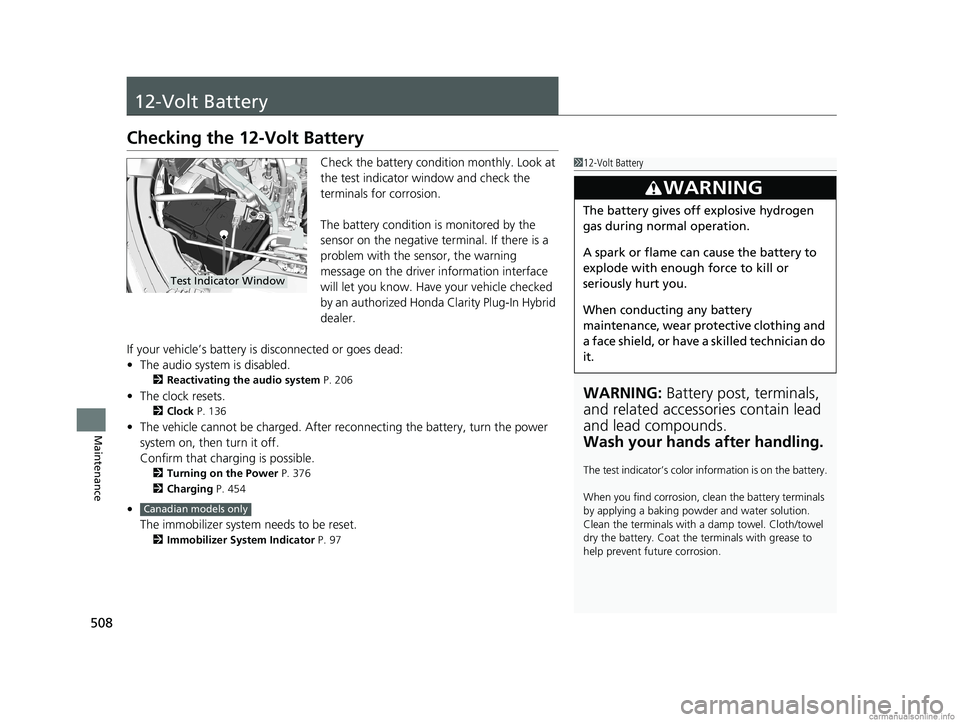

12-Volt Battery
Checking the 12-Volt Battery
Check the battery condition monthly. Look at
the test indicator window and check the
terminals for corrosion.
The battery condition is monitored by the
sensor on the negative terminal. If there is a
problem with the sensor, the warning
message on the driver information interface
will let you know. Have your vehicle checked
by an authorized Honda Clarity Plug-In Hybrid
dealer.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 206
•The clock resets.
2 Clock P. 136
•The vehicle cannot be charged. After reconnecting the batte ry, turn the power
system on, then turn it off.
Confirm that charging is possible.
2 Turning on the Power P. 376
2 Charging P. 454
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 97
112-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
The test indicator’s color in formation is on the battery.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Test Indicator Window
Canadian models only
18 CLARITY PHEV CSS-31TRW6000.book 508 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

580
Index
B
Battery....................................................... 466
12-Volt .................................................... 508
12-Volt Battery Charging System Indicator .......................................... 90, 546
Charging (12-Volt Battery) ....................... 509
Charging (High Voltage Battery) .............. 454
High Voltage ........................................... 466
Jump Starting .......................................... 539
Maintenance (Checking the 12-Volt Battery) .................................................. 508
Maintenance (Replacing).......................... 510
Belts (Seat) .................................................. 47
Beverage Holders ...................................... 187
Bluetooth ® Audio ..................................... 267
Bluetooth ® HandsFreeLink ®..................... 335
Booster Seats (For Children) ....................... 81
Brake System ............................................. 431
Anti-lock Brake System (ABS) ................... 437
Automatic Brake Hold.............................. 435
Brake Assist System ................................. 438
Fluid ........................................................ 492
Foot Brake ............................................... 433
Indicator (Red) ......................................... 550
Parking Brake .......................................... 431
Brake System (Amber) Indicator .................................................... 88
Brake System (Red)
Indicator ...................................... 86, 87, 548 Bulb Replacement
.................................... 494
Front Turn Signal and Front Side Marker
Lights .................................................... 494
Headlights ............................................... 494
High-Mount Brake Light .......................... 495
Parking/Daytime Running Lights .............. 494
Rear License Plate Lights .......................... 495
Taillights and Back-Up Lights ................... 495
Taillights/Rear Side Marker, Brake and
Rear Turn Signal Lights .......................... 495
Bulb Specifications ................................... 566
C
Carbon Monoxide Gas ............................... 82
Carrying Cargo ................................. 371, 373
Certification Label .................................... 568
Changing Bulbs ........................................ 494
Charge Connector ............................ 457, 460
Charge Lid ......................................... 457, 460
Charge Lid Release Button .............. 456, 459
Charge Timer Setting ............................... 467
Charging (High Voltage Battery) ............ 454
120V AC (AC Level 1).............................. 456
240V AC (AC Level 2).............................. 459
Cannot Start Charging ............................ 463
Charge Connector........................... 457, 460
Charge Indicator (vehicle side) ................. 465
Charge Lid ...................................... 457, 460
Control Box ............................................. 461
High Voltage Battery ............................... 466 Timer ...................................................... 467
Charging System Indicator ...................... 546
Child Safety ................................................ 69
Childproof Door Locks ............................ 148
Child Seat ................................................... 69
Booster Seats ............................................ 81
Child Seat for Infants ................................ 71
Child Seat for Small Children .................... 72
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 76
Larger Children ......................................... 80
Rear-facing Child Seat............................... 71
Selecting a Child Seat ............................... 73
Using a Tether .......................................... 78
Childproof Door Locks ............................. 148
Cleaning the Exterior ............................... 515
Cleaning the Interior ............................... 513
Climate Control System ........................... 193
Changing the Mode................................ 195
Defrosting the Windshield and Windows .............................................. 197
Dust and Pollen Filter .............................. 512
Sensors ................................................... 201
Using Automatic Climate Control............ 193
Clock ......................................................... 136
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 439
Coat Hook ................................................ 190
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 439
Console Compartment ............................. 186
18 CLARITY PHEV CSS-31TRW6000.book 580 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

585
Index
READY Indicator........................................ 90
Rear Defogger Button ............................. 169
Rear Seats ................................................. 181
Rearview Mirror ....................................... 173
Refueling .................................................. 451
Fuel ........................................................ 566
Fuel Gauge ............................................. 121
Gasoline ................................................. 451
Regulations ...................... 427, 464, 502, 569
Remote Transmitter ................................. 143
Replacement
Battery .................................................... 510
Bulbs ...................................................... 494
Fuses .............................................. 553, 556
Tires........................................................ 505
Wiper Blade Rubber ................................ 496
Reporting Safety Defects ......................... 571
Resetting a Trip Meter ............................. 126
Road Departure Mitigation (RDM) ......... 396
On and Off ............................................. 398
S
Safe Driving ................................................ 41
Safety Checklist .......................................... 46
Safety Labels .............................................. 83
Safety Message ............................................ 4
Seat Belts .................................................... 47
Adjusting the Shoulder Anchor ................. 51
Automatic Seat Belt Tensioners ................. 49
Checking .................................................. 53 Fastening ................................................... 50
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 76
Pregnant Women ...................................... 52
Reminder............................................. 49, 93
Warning Indicator ................................ 49, 93
Seat Heaters .............................................. 191
Seats .......................................................... 175
Adjusting ................................................. 175
Front Seats .............................................. 175
Rear Seats ............................................... 181
Seat Heaters ............................................ 191
Security System ......................................... 153
Immobilizer System Indicator ..................... 97
Security System Alarm Indicator ................. 98
Selecting a Child Seat ................................. 73
Setting the Clock ...................................... 136
Shift Button ........................................ 31, 382
Operation ................................................ 384
Shifting (Transmission) ....................... 31, 382
Shoulder Anchor ......................................... 51
Side Airbags ................................................ 63
Side Curtain Airbags ................................... 65
Siri Eyes Free ............................................. 276
SiriusXM ® Radio ................................ 247, 288
Smart Entry System ................................... 139
Snow Tires ................................................. 507
Song By Voice
TM (SBV) .............................. 258
Specifications ............................................ 566
Specified Fuel .................................... 451, 566 SPORT HYBRID i-MMD Plug-in (Intelligent
Multi-mode Drive Plug-in) ....................... 11
SPORT Mode ............................................. 389
SPORT Mode Indicator ....................... 98, 389
SRS Airbags (Airbags) ................................. 57
Status Area ............................................... 232
Steering Wheel Adjusting ................................................ 172
Stopping ................................................... 447
Summer Tires ............................................ 507
Sunglasses Holder ..................................... 192
Supplemental Restraint System (SRS) ........ 57
Switches (Around the Steering Wheel) ............................................. 6, 7, 158
Synchronization Mode ............................. 198
System Message Indicator .......................... 98
T
Telematics Control Unit........................... 133
Temperature Sensor ................................. 201
Temporary Tire Repair Kit ....................... 523
Time (Setting) ........................................... 136
Timer ......................................................... 467
Tire Pressure Monitoring System (TPMS) ..................................................... 425
Indicator............................................ 96, 551
