HONDA CLARITY PLUG-IN 2018 Owner's Manual (in English)

559
uuFuses uFuse Locations
Handling the Unexpected

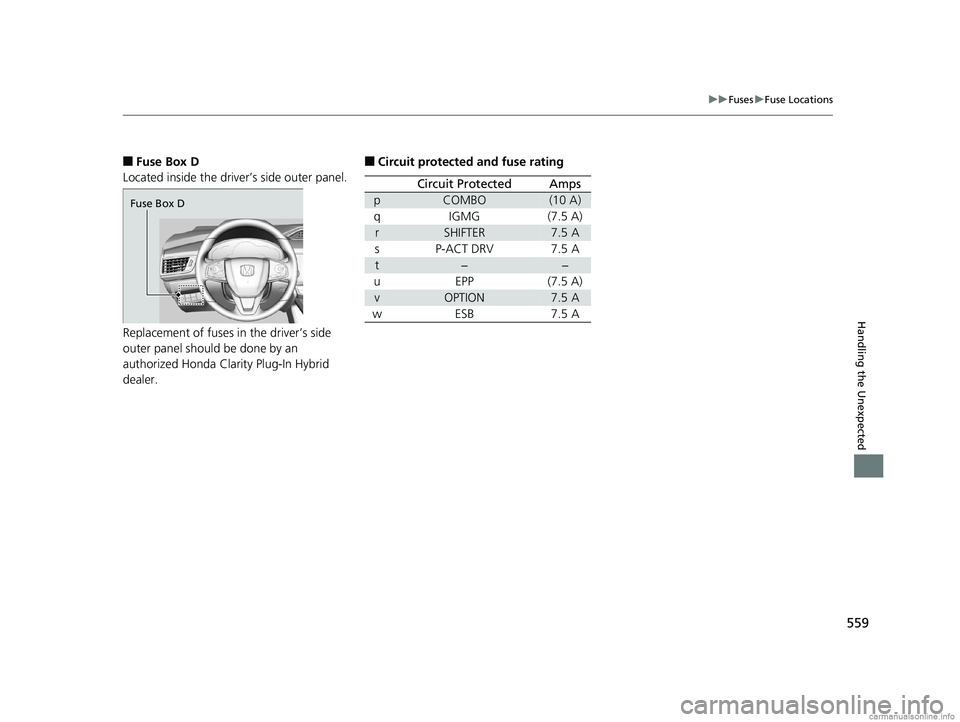

■Fuse Box D
Located inside the driver’s side outer panel.
Replacement of fuses in the driver’s side
outer panel should be done by an
authorized Honda Clarity Plug-In Hybrid
dealer.
Fuse Box D
■Circuit protected and fuse rating
Circuit ProtectedAmps
pCOMBO(10 A)
qIGMG(7.5 A)
rSHIFTER7.5 A
sP-ACT DRV7.5 A
t−−
uEPP(7.5 A)
vOPTION7.5 A
wESB7.5 A
18 CLARITY PHEV CSS-31TRW6000.book 559 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

560
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by
an authorized Honda Clarity Plug-In
Hybrid dealer.
3. Remove the fuse box cover.
4. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw, and
replace it with a new one.
5. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace the fuse with a spare fuse of the same
specified amperage.
Confirm the specified amperage using the charts on
P. 553 to 559.
There is a fuse puller on the back of the cover of the
engine compartment fuse box A.
12-Volt Battery
Blown Fuse
Fuse Puller
18 CLARITY PHEV CSS-31TRW6000.book 560 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

561
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a flat bed truck.
This is the only way you can safely transport your vehicle.
Any other towing method will dama ge the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
Do not use the hook on the rear of your vehicle for
the towing of other vehicles or emergency removal of
your vehicle. The hook may break.
If your vehicle needs to be towed backward, contact
an authorized Honda Clarity Plug-In Hybrid dealer or a
professional towing service.
Hook
18 CLARITY PHEV CSS-31TRW6000.book 561 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

562
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
■What to Do When Unable to Unlock the Fuel Fill Door
If you cannot open the fuel fill door, use the following procedure. 1.Open the trunk and pull off the left inside
cover.
2. Pull the release lever towards you.
u The release lever opens the fuel fill door
when it is pulled.
3. Slowly remove the fuel fill cap by turning it
to the left. If you hear a release of pressure,
wait until it stops, then continue to slowly
remove the fuel fill cap.
2 How to Refuel P. 452
4.Add fuel very slowly.
u The automatic fuel tank vent valve does
not operate when the fuel fill door is
opened manually. Trying to add fuel too
rapidly when the vent valve is closed will
cause fuel vapors to be pushed out the
filler pipe and can cause a small amount
of liquid fuel to be spilled onto the
ground.
1When You Cannot Unlock the Fuel Fill Door
The automatic fuel tank ve nt does not operate when
using the manual fuel door release. Gradually release
pressure by slowly turning th e fuel fill cap to the left.
If you hear a release of fuel vapors, wait until it stops,
then continue to slowly remove the fuel fill cap.
The malfunction indicator lamp may come on when
driving after you have refueled by manually opening
the fuel fill door.
2 If the Malfunction Indicator Lamp Comes
On or Blinks P. 547
After taking these steps, contact an authorized
Honda Clarity Plug-In Hybrid dealer to have the
vehicle checked.
3WARNING
Gasoline vapors in tank are under pressure.
• If using the manual fuel door release,
open the cap slowly to gradually release
pressure.
• Stop the engine, and keep all sparks,
heat, and flame away.
Release Lever
18 CLARITY PHEV CSS-31TRW6000.book 562 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

563
Handling the Unexpected

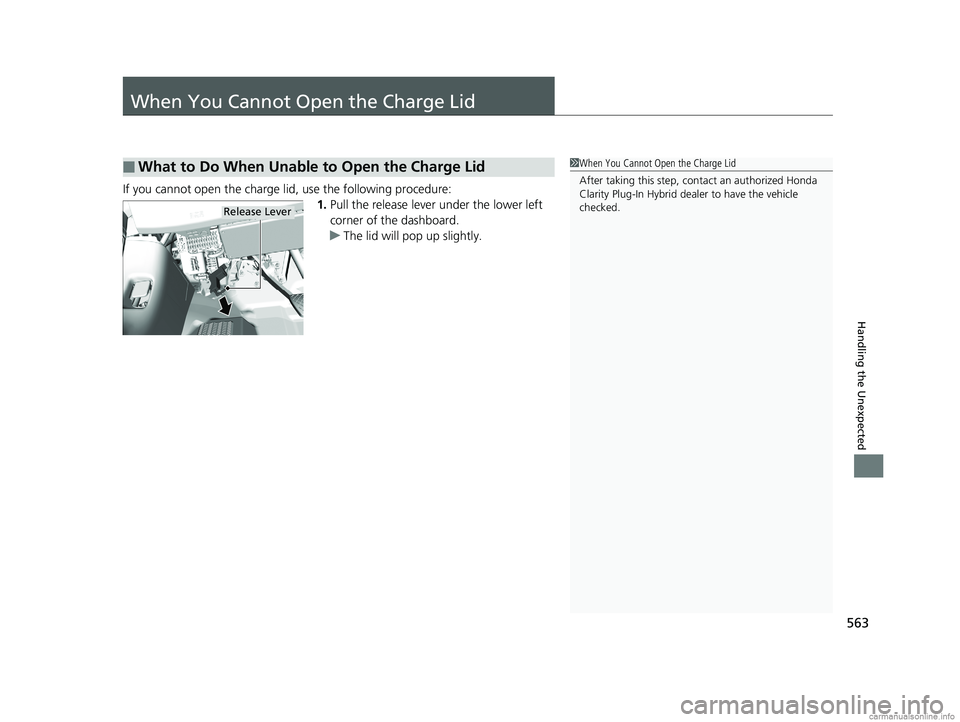

When You Cannot Open the Charge Lid
If you cannot open the charge lid, use the following procedure:1.Pull the release lever under the lower left
corner of the dashboard.
u The lid will pop up slightly.
■What to Do When Unable to Open the Charge Lid1When You Cannot Open the Charge Lid
After taking this step, cont act an authorized Honda
Clarity Plug-In Hybrid deal er to have the vehicle
checked.
Release Lever
18 CLARITY PHEV CSS-31TRW6000.book 563 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

564
Handling the Unexpected
When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure:1.Insert the built-in key into the cylinder and
turn the key clockwise (as shown).
u The trunk unlocks and opens.
■What to Do When Unable to Open the Trunk1When You Cannot Open the Trunk
Following up:
After taking these steps, contact an authorized
Honda Clarity Plug-In Hybrid dealer to have your
vehicle checked.
Built-in Key
18 CLARITY PHEV CSS-31TRW6000.book 564 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

565

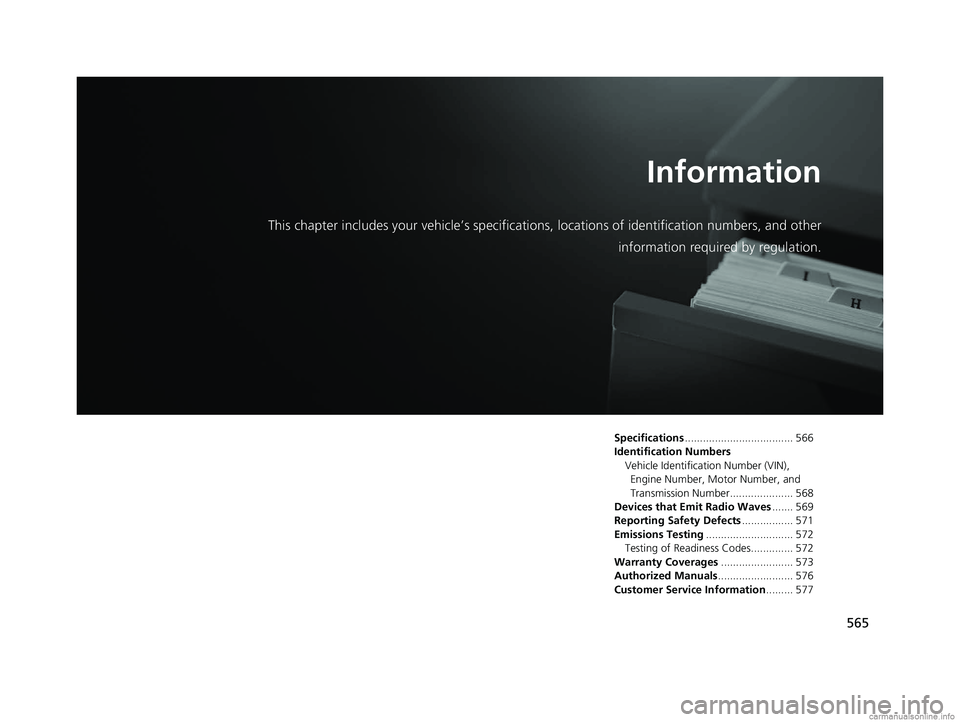

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 566
Identification Numbers Vehicle Identification Number (VIN), Engine Number, Motor Number, and
Transmission Number..................... 568
Devices that Emit Radio Waves ....... 569
Reporting Safety Defects ................. 571
Emissions Testing ............................. 572
Testing of Readiness Codes.............. 572
Warranty Coverages ........................ 573
Authorized Manuals ......................... 576
Customer Service Information ......... 577
18 CLARITY PHEV CSS-31TRW6000.book 565 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

566
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
■ Engine Specifications
ModelCLARITY PLUG-IN HYBRID
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.:4,965 lbs (2,252 kg)Canada:2,252 kgGross Axle Weight
Rating (Front)U.S.:2,579 lbs (1,170 kg)Canada:1,170 kgGross Axle Weight
Rating (Rear)U.S.:2,460 lbs (1,116 kg)Canada:1,116 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeSE-A2 (POE)
Quantity 8.54 – 10.4 cu-in (140 – 170 cc)
Displacement91.4 cu-in (1,498 cm3)
Spark Plugs NGK DILZKAR7C11H
■ Fuel
■ Washer Fluid
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 7.0 US gal (26.5 L)
Tank Capacity1.43 US qt (1.35 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot Lights*LEDTrunk LightLEDCharge Indicator LightLED
* Not available on all models
18 CLARITY PHEV CSS-31TRW6000.book 566 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

567
uuSpecifications u
Information
■Brake Fluid
■ Transmission Fluid
■ Engine Oil
■ Engine Coolant
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.23 US qt (2.11 L)
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.3 US qt (3.1L)
Change including filter 3.5 US qt (3.3L)
Specified Honda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.31 US gal (4.97 L)
(change including the remaining
0.14 US gal (0.52 L) in the reserve tank)
■ High Voltage Battery System Coolant
■ Inverter Coolant
SpecifiedHonda Long Life Antifreeze/Coolant Type2
SpecifiedHonda Long Life Antifreeze/Coolant Type2
■Tire
RegularSize235/45R18 94VPressure
psi (kPa [kgf/cm2])36 (250 [2.5])
Wheel Size Regular 18 x 8J
18 CLARITY PHEV CSS-31TRW6000.book 567 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

568
Information

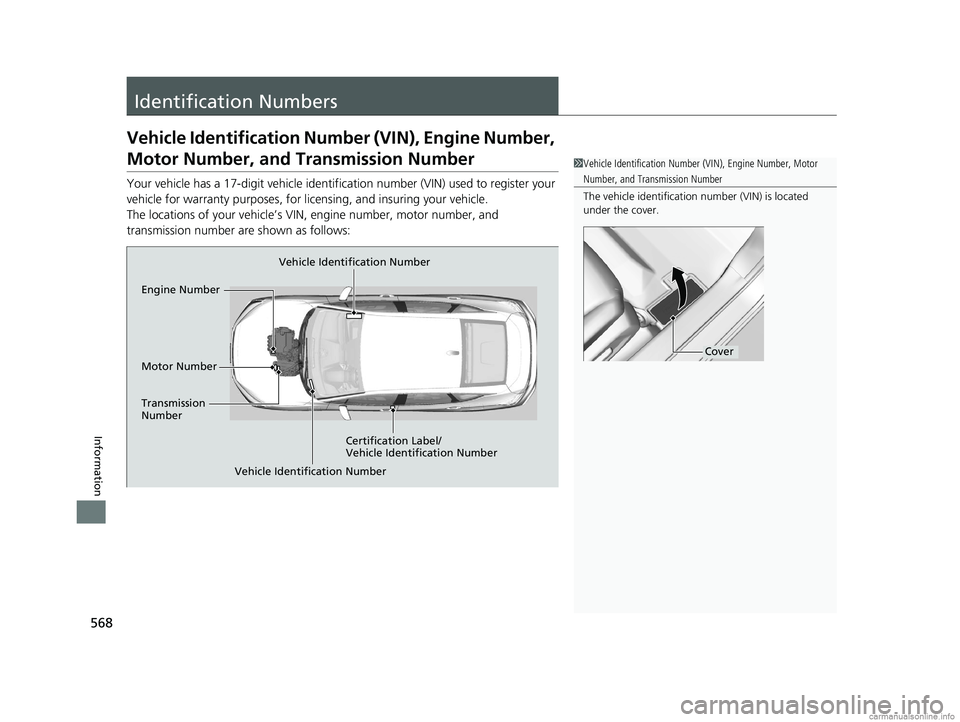

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, for licensing, and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows:
1 Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number
The vehicle identification number (VIN) is located
under the cover.
Cover
Vehicle Identification Number
Transmission
Number Certification Label/
Vehicle Identification Number
Vehicle Identification Number
Motor Number
Engine Number
18 CLARITY PHEV CSS-31TRW6000.book 568 ページ ２０１７年１２月２５日　月曜日　午後２時２２分
