engine oil capacity HONDA CLARITY PLUG-IN 2018 Owner's Manual (in English)

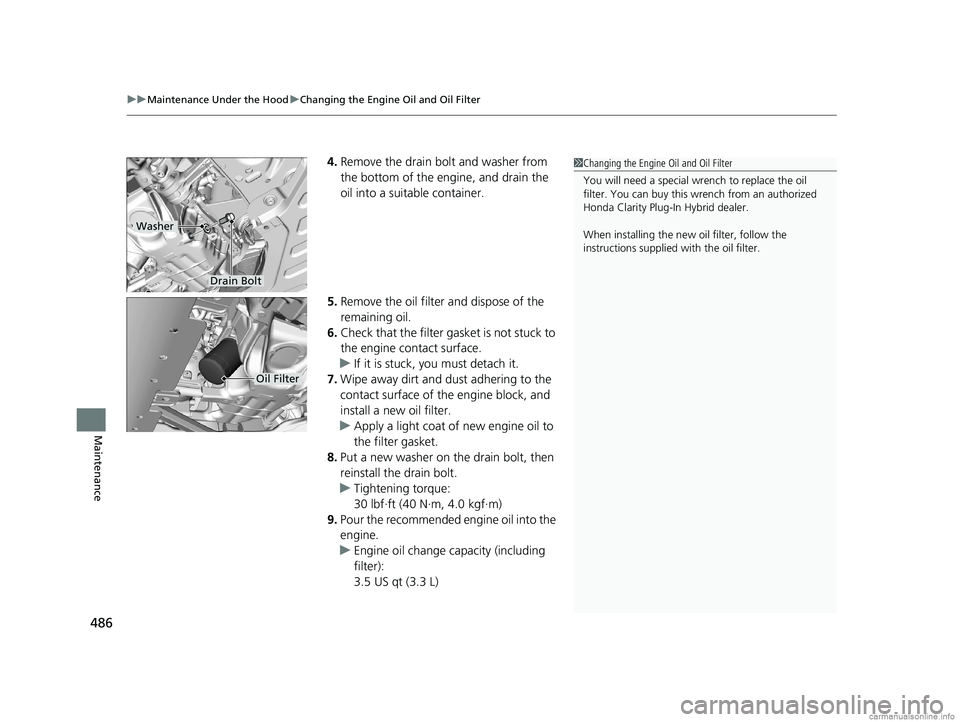

uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
486
Maintenance
4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
3.5 US qt (3.3 L)1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wr ench from an authorized
Honda Clarity Plug-In Hybrid dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Drain Bolt
Washer
Oil Filter
18 CLARITY PHEV CSS-31TRW6000.book 486 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

567
uuSpecifications u
Information
■Brake Fluid
■ Transmission Fluid
■ Engine Oil
■ Engine Coolant
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.23 US qt (2.11 L)
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.3 US qt (3.1L)
Change including filter 3.5 US qt (3.3L)
Specified Honda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.31 US gal (4.97 L)
(change including the remaining
0.14 US gal (0.52 L) in the reserve tank)
■ High Voltage Battery System Coolant
■ Inverter Coolant
SpecifiedHonda Long Life Antifreeze/Coolant Type2
SpecifiedHonda Long Life Antifreeze/Coolant Type2
■Tire
RegularSize235/45R18 94VPressure
psi (kPa [kgf/cm2])36 (250 [2.5])
Wheel Size Regular 18 x 8J
18 CLARITY PHEV CSS-31TRW6000.book 567 ページ ２０１７年１２月２５日　月曜日　午後２時２２分
