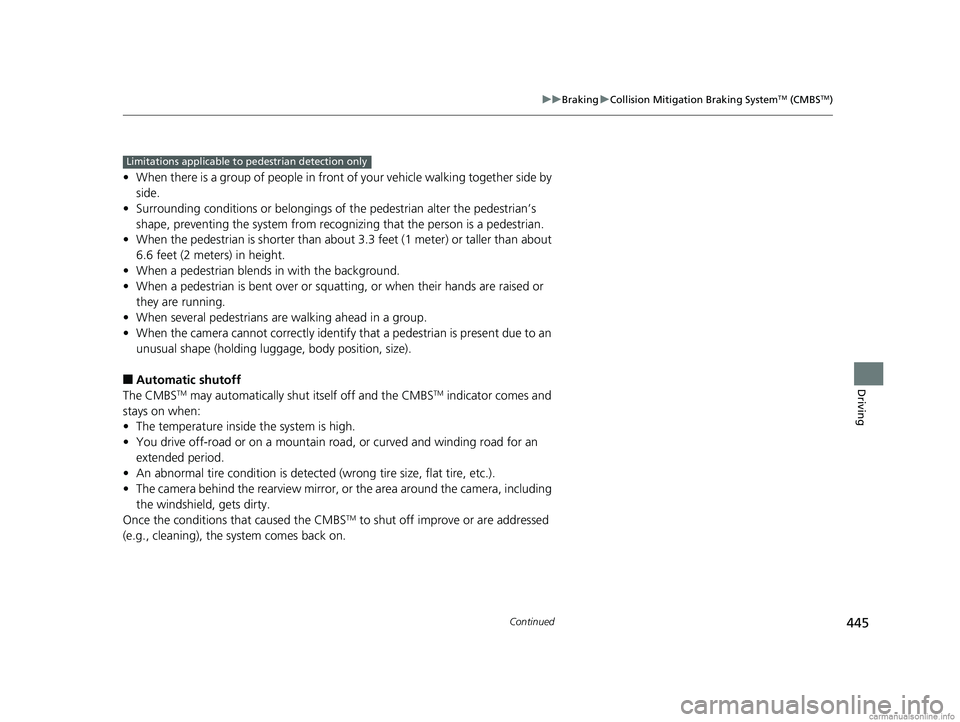

445
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
• When there is a group of people in front of your vehicle walking together side by
side.
• Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recogn izing that the person is a pedestrian.
• When the pedestrian is shorte r than about 3.3 feet (1 meter) or taller than about
6.6 feet (2 meters) in height.
• When a pedestrian blends in with the background.
• When a pedestrian is bent over or squatting, or when their hands are raised or
they are running.
• When several pedestrians are walking ahead in a group.
• When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).
■Automatic shutoff
The CMBSTM may automatically shut itself off and the CMBSTM indicator comes and
stays on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain road, or curved and winding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions that caused the CMBS
TM to shut off improve or are addressed
(e.g., cleaning), the system comes back on.
Limitations applicable to pedestrian detection only
18 CLARITY PHEV CSS-31TRW6000.book 445 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

521
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
If a Tire Goes FlatTemporarily Repairi ng a Flat Tire....... 522
Handling of the Jack ......................... 534
Power System Won’t Start Checking the Procedure ................... 535
If the Smart Entry Remote Battery is Weak .......................................... 537
Emergency Power System Off........... 538
Jump Starting .................................... 539
Overheating How to Handle Overheating ............. 542
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears .. 545
If the 12-Volt Battery Charging System Indicator Comes On ....................... 546
If the Malfunction Indicator Lamp Comes
On or Blinks ..................................... 547
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 548
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 549
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On ...................... 550
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 551
If the Transmission System Indicator Blinks
along with the Warning Message .... 552
Fuses Fuse Locations ................................. 553
Inspecting and Changing Fuses ........ 560
Emergency Towing ........................... 561
When You Cannot Unlock the Fuel Fill
Door ................................................. 562
When You Cannot Open the Charge
Lid ................................................. 563
When You Cannot Open the Trunk .. 564
18 CLARITY PHEV CSS-31TRW6000.book 521 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

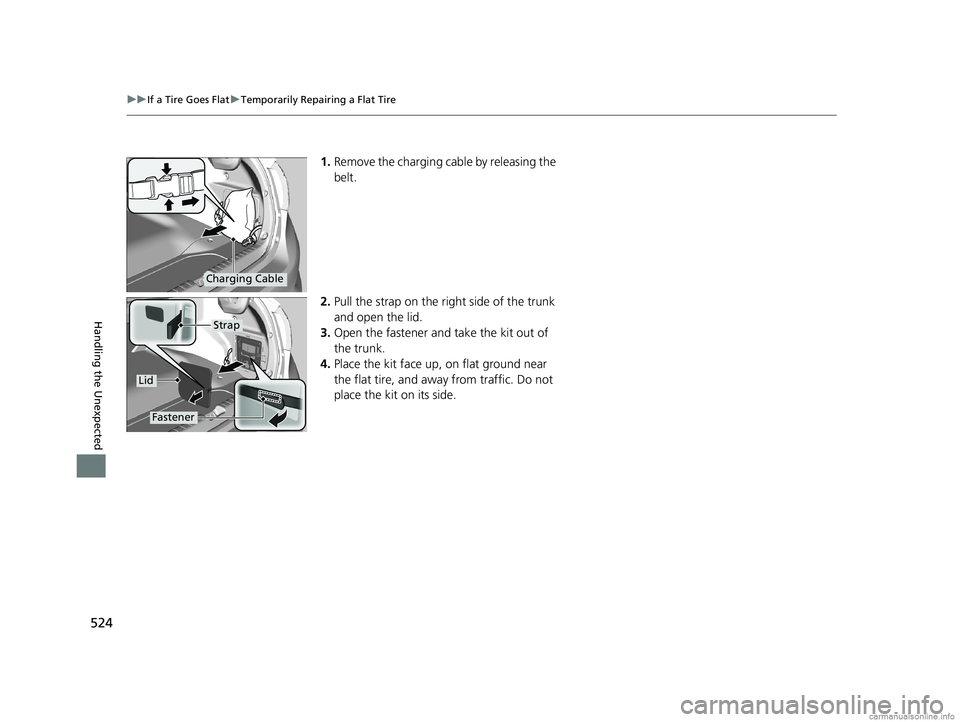

524
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
1. Remove the charging cable by releasing the
belt.
2. Pull the strap on the right side of the trunk
and open the lid.
3. Open the fastener and take the kit out of
the trunk.
4. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Charging Cable
Fastener
Strap
Lid
18 CLARITY PHEV CSS-31TRW6000.book 524 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire

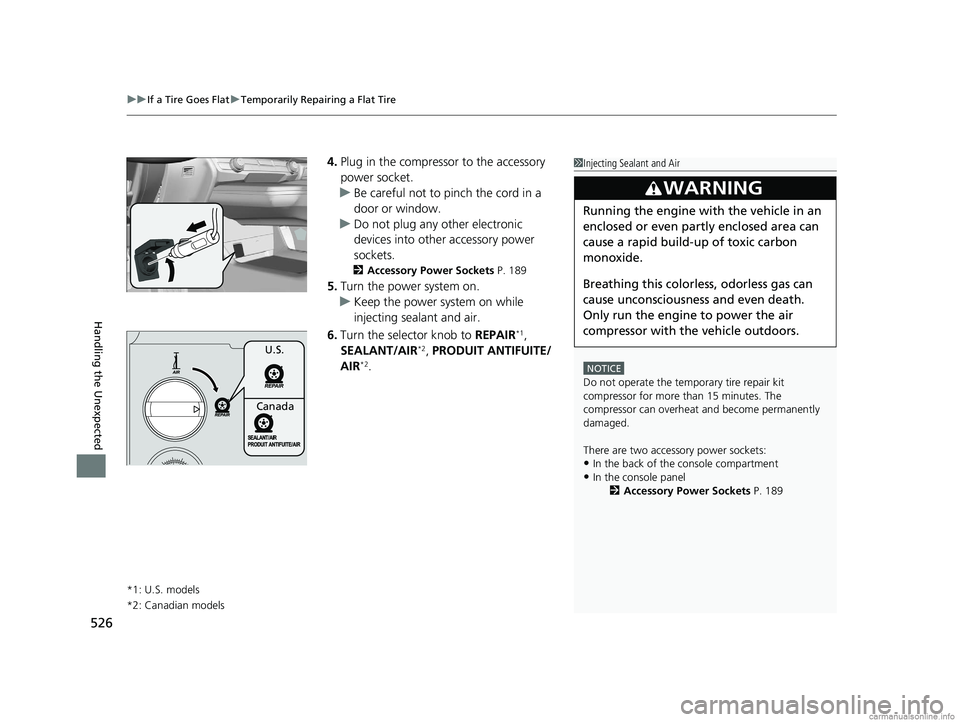

526
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets.
2 Accessory Power Sockets P. 189
5.Turn the power system on.
u Keep the power system on while
injecting sealant and air.
6. Turn the selector knob to REPAIR
*1,
SEALANT/AIR*2, PRODUIT ANTIFUITE/
AIR*2.
*1: U.S. models
*2: Canadian models
1 Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
There are two accessory power sockets:
•In the back of the console compartment
•In the console panel 2Accessory Power Sockets P. 189
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
18 CLARITY PHEV CSS-31TRW6000.book 526 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire

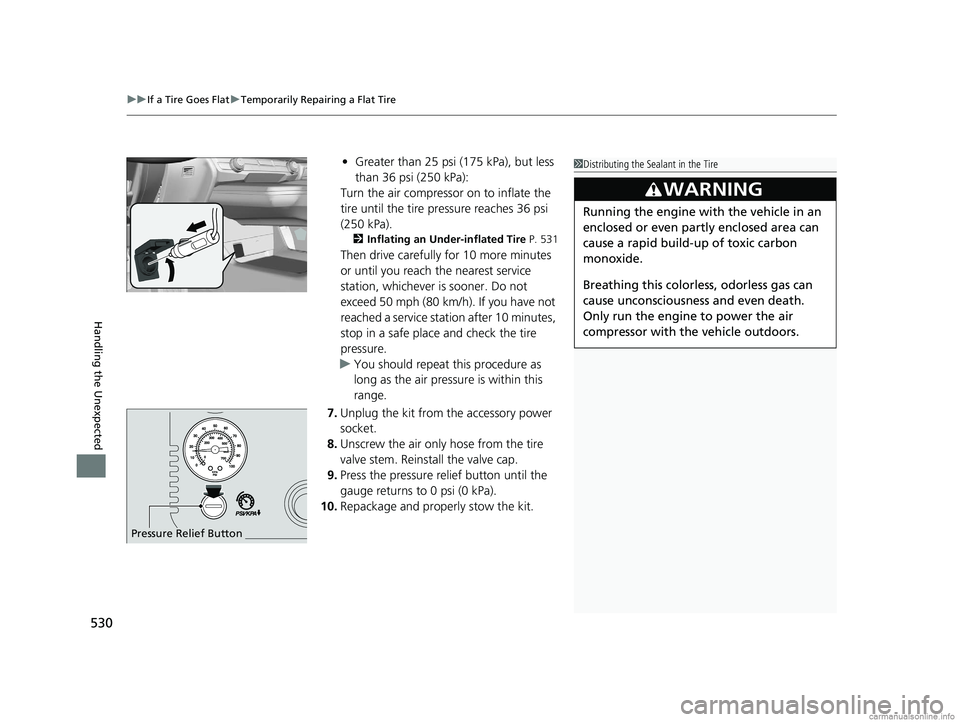

530
Handling the Unexpected
• Greater than 25 psi (175 kPa), but less
than 36 psi (250 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches 36 psi
(250 kPa).
2 Inflating an Under-inflated Tire P. 531
Then drive carefully for 10 more minutes
or until you reach the nearest service
station, whichever is sooner. Do not
exceed 50 mph (80 km/h). If you have not
reached a service station after 10 minutes,
stop in a safe place and check the tire
pressure.
u You should repeat this procedure as
long as the air pressure is within this
range.
7. Unplug the kit from the accessory power
socket.
8. Unscrew the air only hose from the tire
valve stem. Reinstall the valve cap.
9. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
10. Repackage and proper ly stow the kit.
Pressure Relief Button
1Distributing the Sealant in the Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
18 CLARITY PHEV CSS-31TRW6000.book 530 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

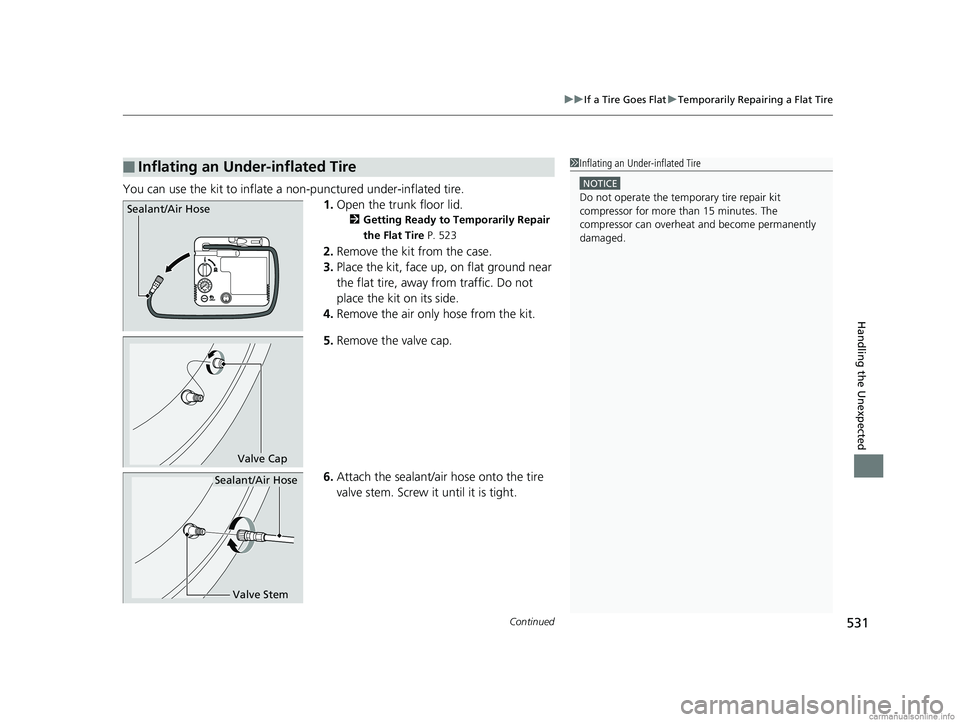

Continued531
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Open the trunk floor lid.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 523
2.Remove the kit from the case.
3. Place the kit, face up, on flat ground near
the flat tire, away from traffic. Do not
place the kit on its side.
4. Remove the air only hose from the kit.
5. Remove the valve cap.
6. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Inflating an Under-inflated Tire1Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.Sealant/Air Hose
Valve Cap
Valve Stem
Sealant/Air Hose
18 CLARITY PHEV CSS-31TRW6000.book 531 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire

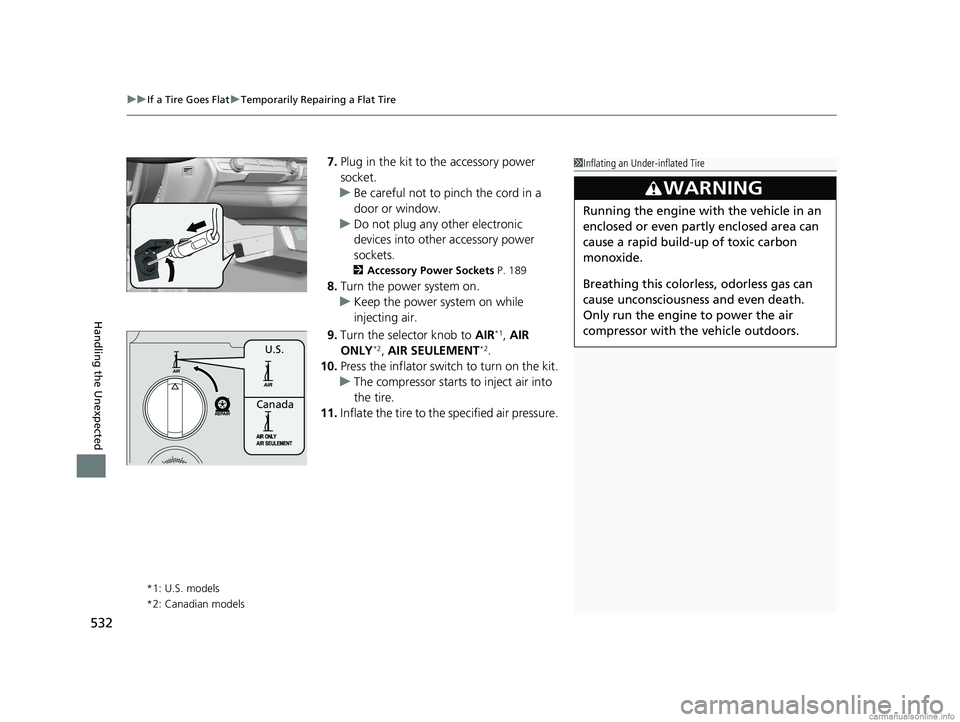

532
Handling the Unexpected
7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets.
2 Accessory Power Sockets P. 189
8.Turn the power system on.
u Keep the power system on while
injecting air.
9. Turn the selector knob to AIR
*1, AIR
ONLY*2, AIR SEULEMENT*2.
10. Press the inflator swit ch to turn on the kit.
u The compressor starts to inject air into
the tire.
11. Inflate the tire to the specified air pressure.
*1: U.S. models
*2: Canadian models
1Inflating an Under-inflated Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
18 CLARITY PHEV CSS-31TRW6000.book 532 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

581
Index
Control Box.............................................. 461
Controls .................................................... 135
Coolant (Engine) ...................................... 488
Adding to the Radiator ........................... 489
Adding to the Reserve Tank .................... 488
Overheating ............................................ 542
Creeping (Transmission) .......................... 381
Cup Holders .............................................. 187
Customer Service Information ................ 577
Customized Features ....................... 133, 306
D
Daytime Running Lights .......................... 165
Dead Battery (12-Volt) ............................. 539
Deceleration Paddle Selector .................. 390
Deceleration Paddl e Selector Indicator....... 91
Defrosting the Windshield and
Windows ................................................. 197
Devices that Emit Radio Waves ............... 569
Dimming
Headlights .............................................. 162
Rearview Mirror ...................................... 173
Dipstick (Engine Oil) ................................ 483
Directional Signals (Turn Signal) ............. 161
Display Button .......................................... 211
Door Mirrors ............................................. 174
Doors ........................................................ 137
Auto Door Locking.................................. 149
Auto Door Unlocking .............................. 149
Door Open Message ................................. 46 Keys ........................................................ 137
Locking/Unlocking the Doors from the
Inside............................................... 25, 146
Locking/Unlocking the Doors from the Outside.................................................. 139
Lockout Prevention System ...................... 145
DOT Tire Quality Grading ........................ 502
Drive Cycle Score/Lifetime Points ............ 131
Driver Information Interface ................... 124
Driver’s Knee Airbag .................................. 61
Driving ....................................................... 369
Braking .................................................... 431
Shifting Gear ........................................... 382
Transmission ............................................ 381
Turning on the Power .............................. 376
Driving Position Memory System ............. 170
Dust and Pollen Filter ............................... 512
E
Eco Assist® System ...................................... 20
Eco Drive Display ...................................... 130
ECON Mode .............................................. 388
Elapsed Time ............................................. 127
Electric Power Steering (EPS) System Indicator .................................................... 94
Electronic Stability Control (ESC) ............. 422
Emergency ................................................ 561
Emissions Testing (Readiness Codes) ....... 572
Energy Flow Screen .................................. 215 Engine
Coolant ................................................... 488
Oil ........................................................... 482
Engine Coolant ......................................... 488
Adding to the Radiator ............................ 489
Adding to the Reserve Tank..................... 488
Overheating ............................................ 542
Engine Oil ................................................. 482
Adding .................................................... 484
Checking................................................. 483
Recommended Engine Oil ....................... 482
EPS (Electric Power Steering) System ........ 94
EV Indicator ................................................ 89
Exhaust Gas Hazard (Carbon Monoxide) .. 82
Expanded View Driver’s Mirror ............... 174
Exterior Care (Cleaning) ........................... 515
Exterior Mirrors ........................................ 174
F
Features.................................................... 203
Filters Dust and Pollen ....................................... 512
Oil ........................................................... 485
Flat Tire ..................................................... 522
Floor Mats ................................................. 514
Fluids
Brake ...................................................... 492
Engine Coolant ....................................... 488
Transmission ........................................... 492
Windshield Washer ................................. 493
18 CLARITY PHEV CSS-31TRW6000.book 581 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

586
Index
Tires........................................................... 499
Air Pressure ..................................... 500, 567
Chains ..................................................... 507
Checking and Maintaining ....................... 499
Flat Tire (Puncture) ................................... 522
Inspection ................................................ 499
Labeling................................................... 500
Regulations.............................................. 502
Rotation .................................................. 506
Summer................................................... 507
Temporary Tire Repair Kit......................... 523
Wear Indicators ....................................... 504
Winter ..................................................... 507
Towing a Trailer ........................................ 375
Towing Your Vehicle ................................ 375
Emergency............................................... 561
TPMS (Tire Pressure Monitoring
System) .................................................... 425
Transmission ................................ 31, 381, 382
Creeping ................................................. 381
Fluid ........................................................ 492
Gear Position Indicator....................... 91, 384
Indicator .................................................... 92
Number ................................................... 568
Operating the Shift Button................. 31, 384
Shifting.................................................... 382
Warning Message .................................... 552
Trip Meter ................................................. 126
Troubleshooting ....................................... 521
Blown Fuse ...................................... 553, 556
Brake Pedal Vibrates .................................. 37 Buzzer Sounds When Opening Door.......... 37
Cannot Start Charging ............................ 463
Emergency Towing .................................. 561
Flat Tire/Puncture .................................... 522
Noise When Braking .................................. 39
Overheating ............................................ 542
Power System Won’t Start ....................... 535
Rear Door Won’t Open...................... 37, 148
Unable to Open the Charge Lid ............... 563
Unable to Unlock the Fuel Fill Door.......... 562
Warning Indicators .................................... 86
Trunk ......................................................... 150
Lid........................................................... 150
Light Bulbs .............................................. 566
Unable to Open....................................... 564
Turn Signals .............................................. 161
Indicators (Instrument Panel) ..................... 97
Turn-by-Turn Directions ........................... 127
Turning on the Power .............................. 376
Does Not Activate ................................... 535
Jump Starting .......................................... 539
U
Under-Floor Storage Area ....................... 190
Unlocking the Doors ................................ 139
Unlocking the Front Doors from the
Inside ................................................. 25, 146
USB Flash Drives ............................... 264, 290
USB Ports ................................................... 205 Using the Smart Entr
y with Push Button
Start System ............................................ 139
V
Vanity Mirrors .............................................. 9
Vehicle Identification Number ................ 568
Vehicle Monitoring System ......................... 3
Vehicle Stability Assist (VSA ®) ................. 422
Off Button .............................................. 423
Off Indicator ..................................... 95, 423
System Indicator ............................... 95, 422
Viscosity (Oil) ............................................ 482
Voice Control Operation ......................... 239
Audio Commands ................................... 241
Climate Control Commands.................... 242
General Commands ................................ 242
Music Search Commands ........................ 242
On Screen Commands ............................ 242
Phone Commands .................................. 241
Useful Commands .................................. 241
Voice Portal Screen ................................. 240
Voice Recognition ................................... 239
VSA ® (Vehicle Stability Assist) ................. 422
W
Wallpaper................................................. 223
Warning and Information Messages ...... 103
Warning Indicator On/Blinking ............... 545
Warning Labels .......................................... 83
18 CLARITY PHEV CSS-31TRW6000.book 586 ページ ２０１７年１２月２５日　月曜日　午後２時２２分
