HONDA CLARITY PLUG-IN 2020 Navigation Manual (in English)

19

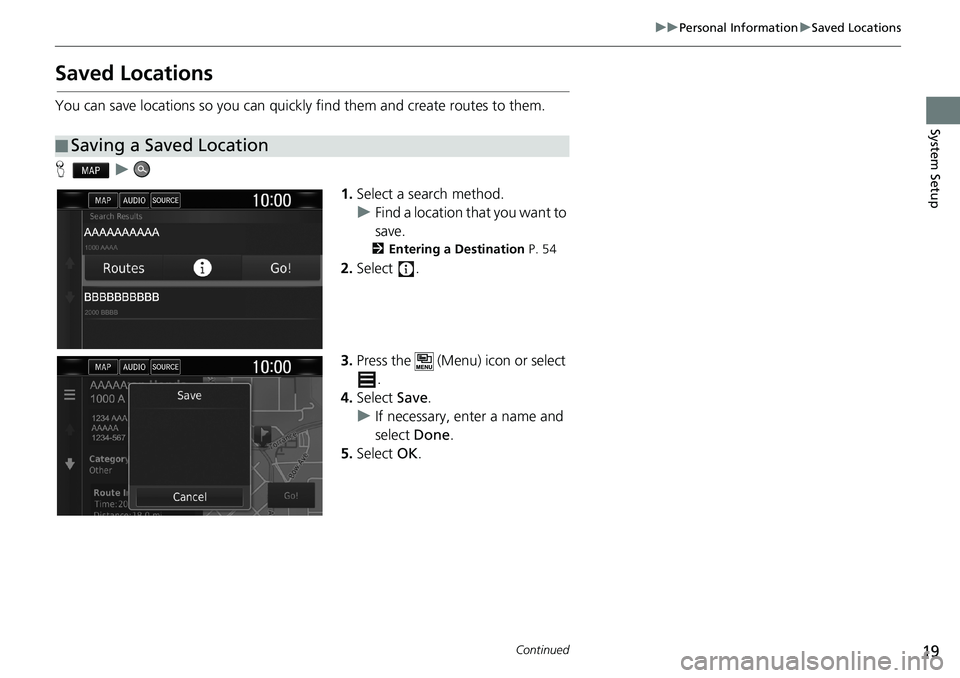

uuPersonal InformationuSaved Locations
Continued
System Setup
Saved Locations
You can save locations so you can quickly find them and create routes to them.
Hu
1.Select a search method.
uFind a location that you want to
save.
2Entering a Destination P. 54
2.Select .
3.Press the (Menu) icon or select
.
4.Select Save.
uIf necessary, enter a name and
select Done.
5.Select OK.
■Saving a Saved Location

20

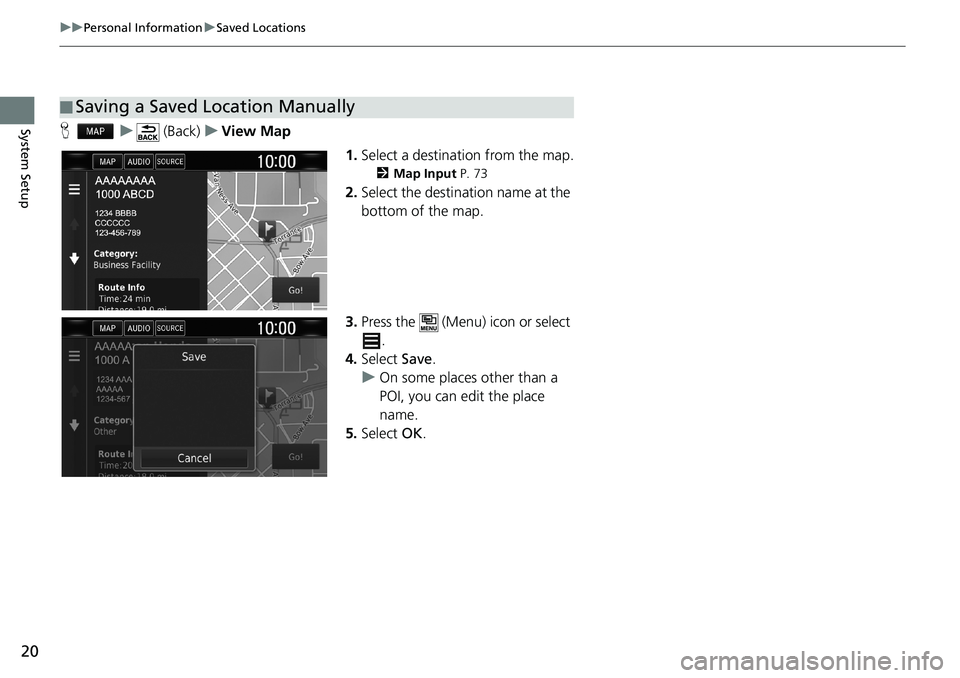

uuPersonal InformationuSaved Locations
System SetupHu (Back)uView Map
1.Select a destination from the map.
2Map Input P. 73
2.Select the destination name at the
bottom of the map.
3.Press the (Menu) icon or select
.
4.Select Save.
uOn some places other than a
POI, you can edit the place
name.
5.Select OK.
■Saving a Saved Location Manually

Continued21

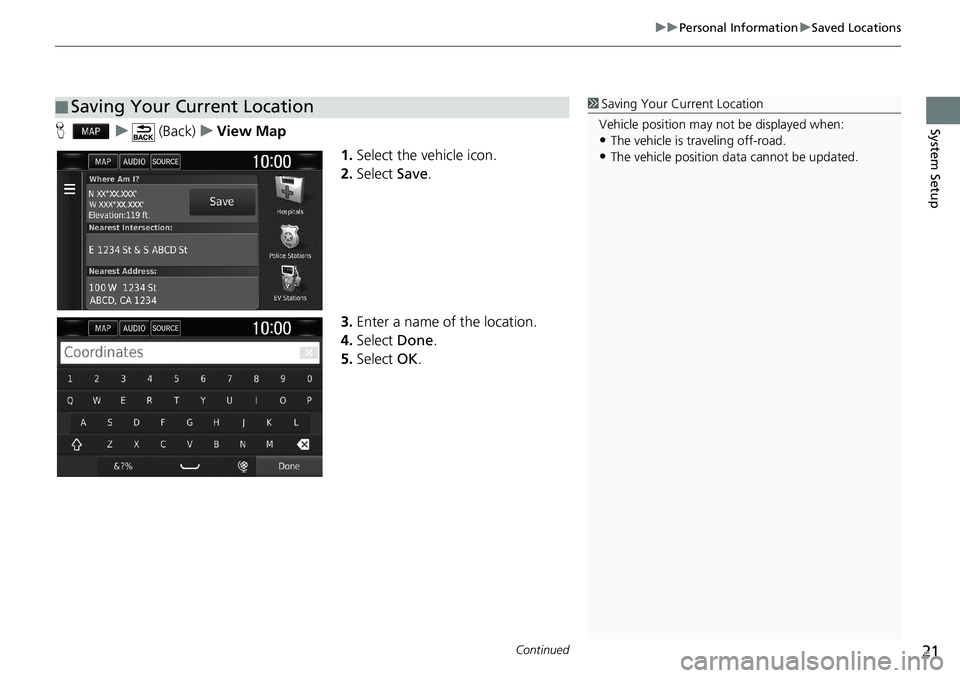

uuPersonal InformationuSaved Locations
System SetupHu (Back)uView Map
1.Select the vehicle icon.
2.Select Save.
3.Enter a name of the location.
4.Select Done.
5.Select OK.
■Saving Your Current Location1Saving Your Current Location
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position data cannot be updated.

22

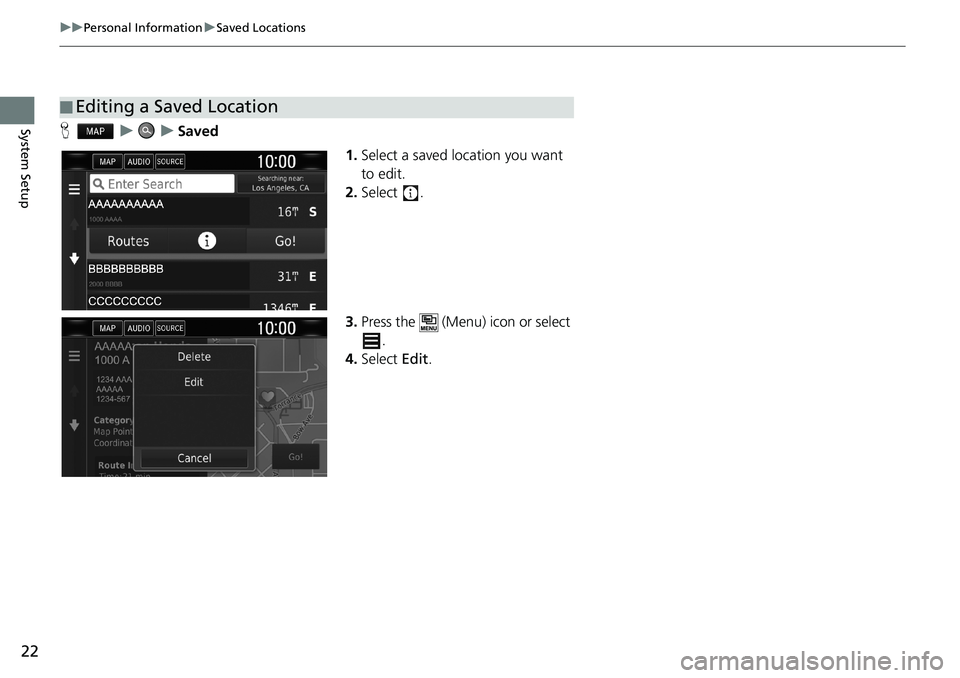

uuPersonal InformationuSaved Locations
System SetupHuuSaved
1.Select a saved location you want
to edit.
2.Select .
3.Press the (Menu) icon or select
.
4.Select Edit.
■Editing a Saved Location

23
uuPersonal InformationuSaved Locations
Continued
System Setup
5.Select an option.
The following options are available:
•Name: Enters a new name for the location.
•Phone Number: Enters a phone number.
•Categories: Creates or changes the category in which this location is saved.
•Change Map Symbol: Select a new symbol.

24
uuPersonal InformationuSaved Locations
System SetupHuuSaved
1.Select a saved location you want
to delete.
2.Select .
3.Press the (Menu) icon or select
.
4.Select Delete.
5.Select Yes.
■Deleting a Saved Location

25

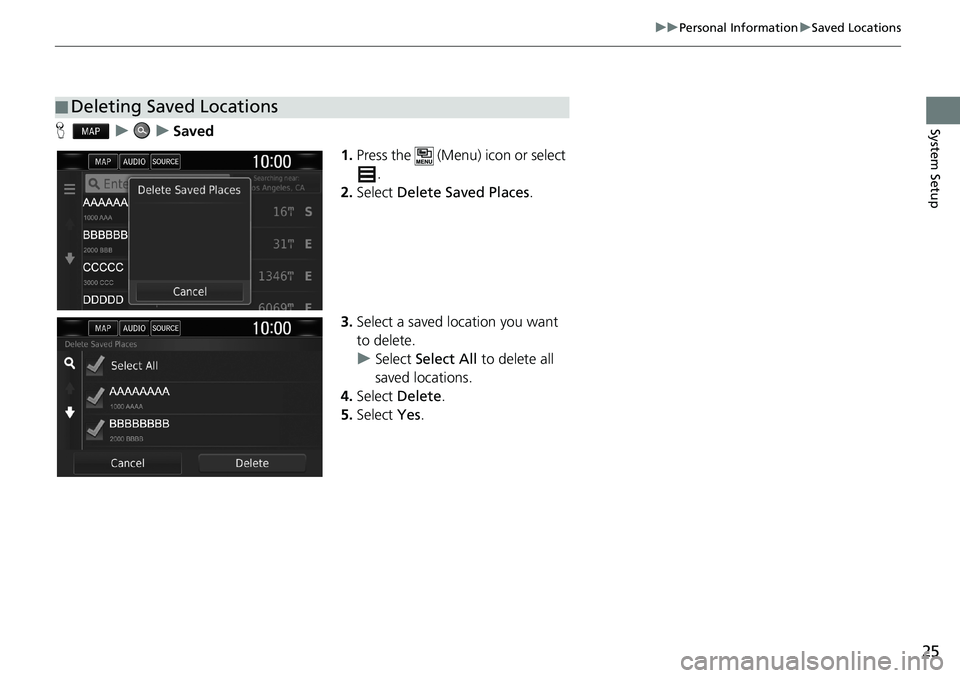

uuPersonal InformationuSaved Locations
System SetupHuuSaved
1.Press the (Menu) icon or select
.
2.Select Delete Saved Places.
3.Select a saved location you want
to delete.
uSelect Select All to delete all
saved locations.
4.Select Delete.
5.Select Yes.
■Deleting Saved Locations

26

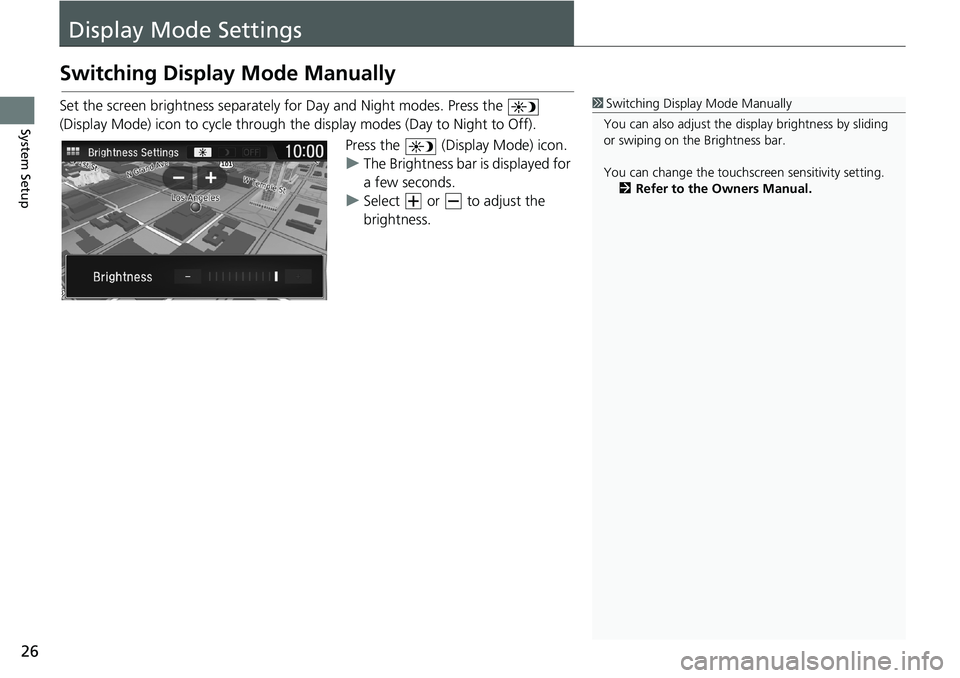

System Setup
Display Mode Settings
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display Mode) icon to cycle through the display modes (Day to Night to Off).
Press the (Display Mode) icon.
uThe Brightness bar is displayed for
a few seconds.
uSelect or to adjust the
brightness.1Switching Display Mode Manually
You can also adjust the display brightness by sliding
or swiping on the Brightness bar.
You can change the touchscreen sensitivity setting.
2Refer to the Owners Manual.

27

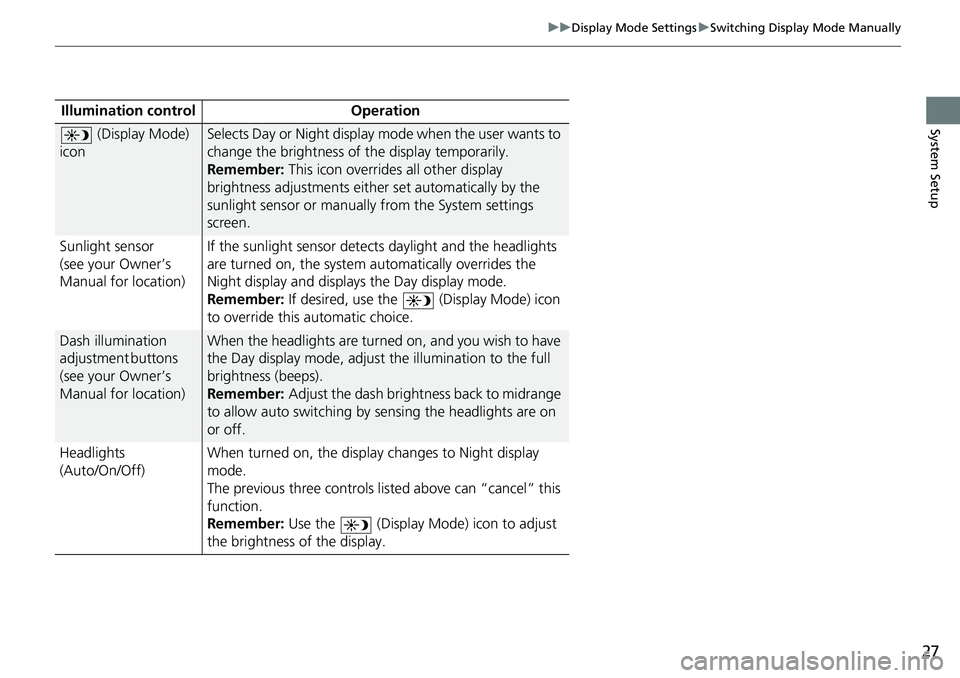

uuDisplay Mode SettingsuSwitching Display Mode Manually
System SetupIllumination control Operation
(Display Mode)
iconSelects Day or Night display mode when the user wants to
change the brightness of the display temporarily.
Remember: This icon overrides all other display
brightness adjustments either set automatically by the
sunlight sensor or manually from the System settings
screen.
Sunlight sensor
(see your Owner’s
Manual for location)If the sunlight sensor detects daylight and the headlights
are turned on, the system automatically overrides the
Night display and displays the Day display mode.
Remember: If desired, use the (Display Mode) icon
to override this automatic choice.
Dash illumination
a d j u s t m e n t b u t t o n s
(see your Owner’s
Manual for location)When the headlights are turned on, and you wish to have
the Day display mode, adjust the illumination to the full
brightness (beeps).
Remember: Adjust the dash brightness back to midrange
to allow auto switching by sensing the headlights are on
or off.
Headlights
(Auto/On/Off)When turned on, the display changes to Night display
mode.
The previous three controls listed above can “cancel” this
function.
Remember: Use the (Display Mode) icon to adjust
the brightness of the display.

28
System Setup
Map & Vehicle
Hu (Back)uSettingsuMap & Vehicle
Change the map settings.
Select an option.
The following options are available:
•Vehicle: Changes the icon to represent your position on the map.
2Vehicle P. 29
•Driving Map View: Sets the perspective on the map.
2Driving Map View (Map Orientation) P. 30
•Map Detail: Sets the level of detail on the map. More detail may cause the map
to draw slower.
2Map Detail P. 31
•Map Theme: Changes the color of the map data.
2Map Theme P. 32
•Map Buttons: Sets which icons are included on the map. Up to three icons can
be included on the map.
2Map Buttons P. 33
•Map Layers: Sets the data that appears on the map.
2Map Layers P. 34
•Dashboards: Sets the map dashboard layout.
2Dashboards P. 34
