HONDA CLARITY PLUG-IN 2020 Owner's Manual (in English)

459
uuCharging uCharge the High Voltage battery using a Level 1 or 2 charger
Continued
Driving

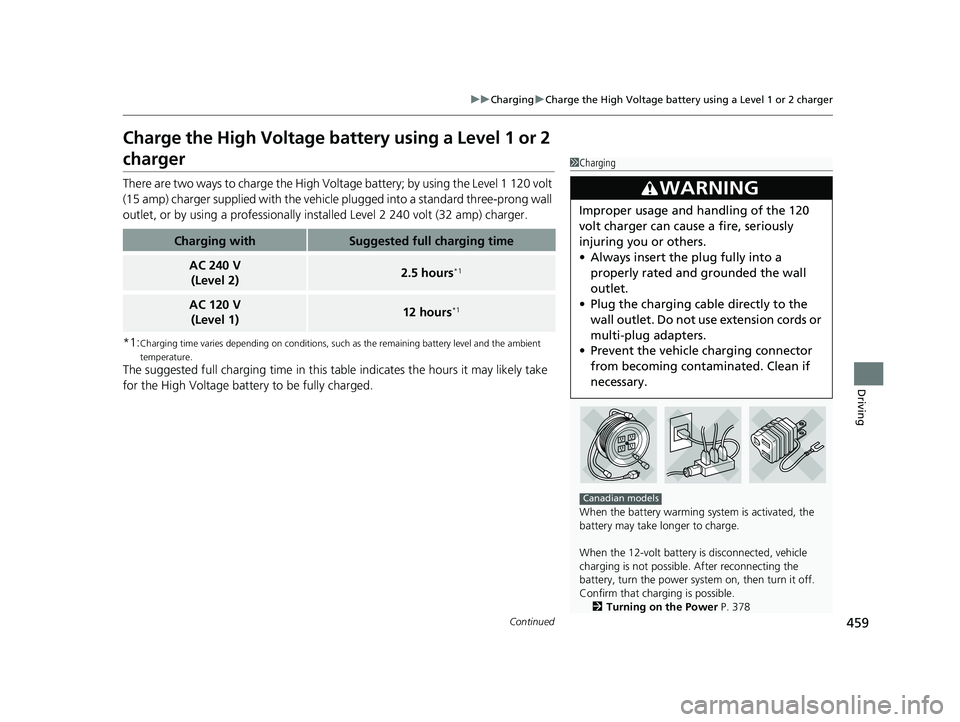

Charge the High Voltage battery using a Level 1 or 2
charger
There are two ways to charge the High Volt age battery; by using the Level 1 120 volt
(15 amp) charger supplied with the vehicle plugged into a standard three-prong wall
outlet, or by using a professionally inst alled Level 2 240 volt (32 amp) charger.
*1:
Charging time varies depending on conditions, such as the remaining battery level and the ambient
temperature.
The suggested full charging time in this table indicates the hours it may likely take
for the High Voltage batte ry to be fully charged.
Charging withSuggested full charging time
AC 240 V
(Level 2)2.5 hours*1
AC 120 V(Level 1)12 hours*1
1 Charging
When the battery warming system is activated, the
battery may take longer to charge.
When the 12-volt battery is disconnected, vehicle
charging is not possible. After reconnecting the
battery, turn the power system on, then turn it off.
Confirm that charging is possible.
2 Turning on the Power P. 378
3WARNING
Improper usage and handling of the 120
volt charger can cause a fire, seriously
injuring you or others.
•Always insert the plug fully into a
properly rated and grounded the wall
outlet.
• Plug the charging cable directly to the
wall outlet. Do not use extension cords or
multi-plug adapters.
• Prevent the vehicle charging connector
from becoming contaminated. Clean if
necessary.
Canadian models
20 CLARITY PHEV-31TRW6200.book 459 ページ ２０１９年９月２４日　火曜日　午後１２時９分

uuCharging uCharge the High Voltage battery using a Level 1 or 2 charger
460
Driving

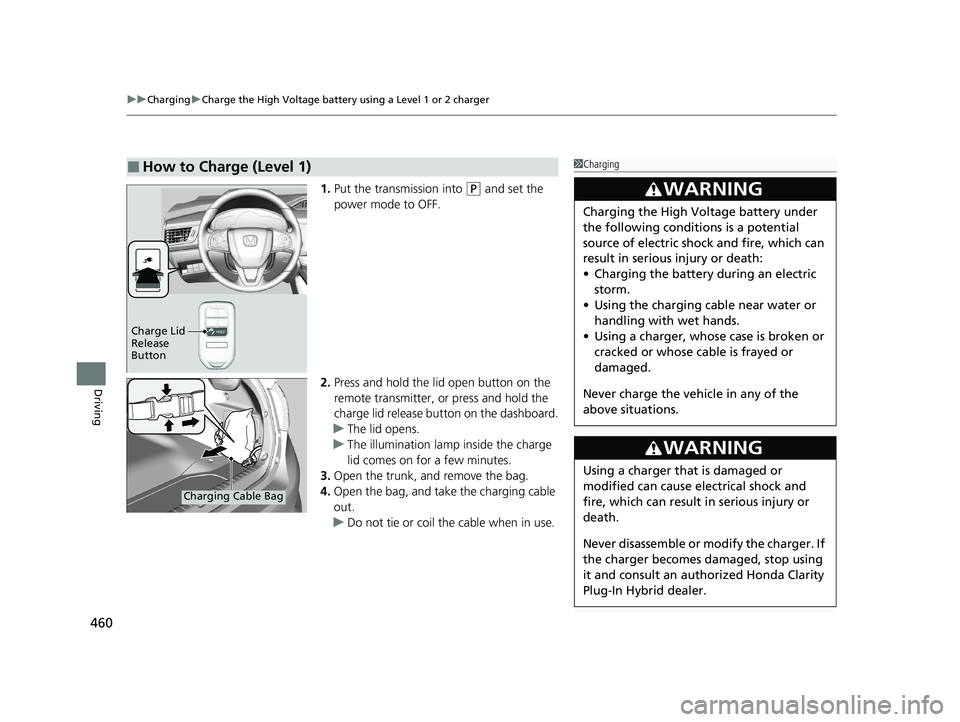

1. Put the transmission into (P and set the
power mode to OFF.
2. Press and hold the lid open button on the
remote transmitter, or press and hold the
charge lid release button on the dashboard.
u The lid opens.
u The illumination lamp inside the charge
lid comes on for a few minutes.
3. Open the trunk, and remove the bag.
4. Open the bag, and take the charging cable
out.
u Do not tie or coil the cable when in use.
■How to Charge (Level 1)1Charging
3WARNING
Charging the High Vo ltage battery under
the following conditions is a potential
source of electric shock and fire, which can
result in serious injury or death:
• Charging the battery during an electric
storm.
• Using the charging cable near water or
handling with wet hands.
• Using a charger, whose case is broken or
cracked or whose cable is frayed or
damaged.
Never charge the vehi cle in any of the
above situations.
3WARNING
Using a charger that is damaged or
modified can cause electrical shock and
fire, which can result in serious injury or
death.
Never disassemble or modify the charger. If
the charger becomes damaged, stop using
it and consult an authorized Honda Clarity
Plug-In Hybrid dealer.
Charge Lid
Release
Button
Charging Cable Bag
20 CLARITY PHEV-31TRW6200.book 460 ページ ２０１９年９月２４日　火曜日　午後１２時９分

Continued461
uuCharging uCharge the High Voltage battery using a Level 1 or 2 charger
Driving

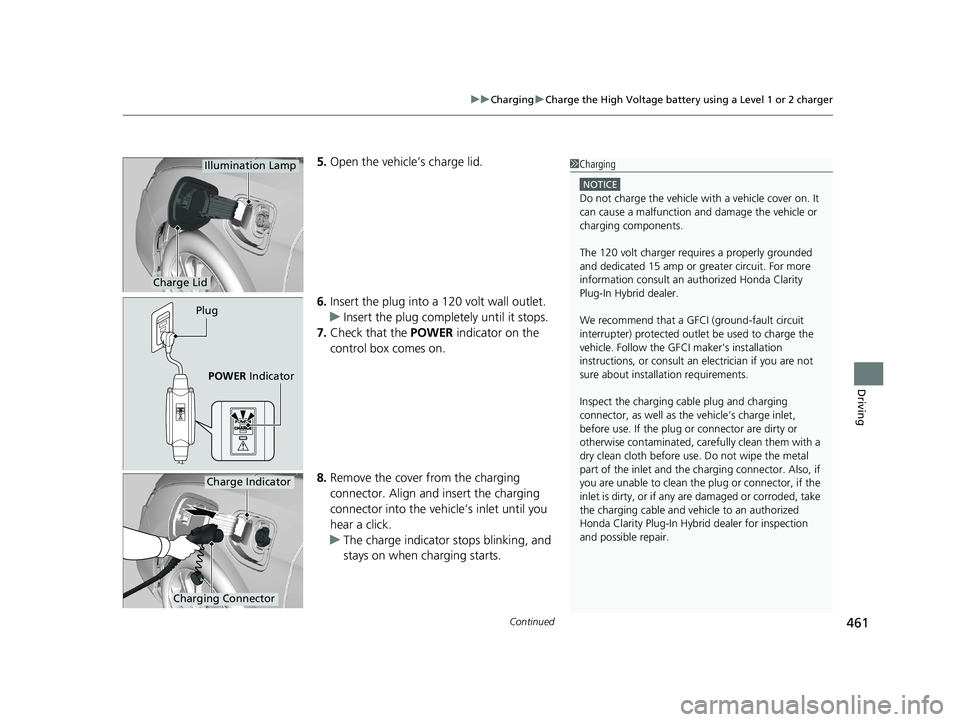

5. Open the vehicle’s charge lid.
6. Insert the plug into a 120 volt wall outlet.
u Insert the plug completely until it stops.
7. Check that the POWER indicator on the
control box comes on.
8. Remove the cover from the charging
connector. Align and insert the charging
connector into the vehicle’s inlet until you
hear a click.
u The charge indicator stops blinking, and
stays on when charging starts.
Charge Lid
Illumination Lamp
Plug
POWER Indicator
1Charging
NOTICE
Do not charge the vehicle wi th a vehicle cover on. It
can cause a malfunction and damage the vehicle or
charging components.
The 120 volt charger requires a properly grounded
and dedicated 15 amp or gr eater circuit. For more
information consult an au thorized Honda Clarity
Plug-In Hybrid dealer.
We recommend that a GFCI (ground-fault circuit
interrupter) protected outlet be used to charge the
vehicle. Follow the GF CI maker's installation
instructions, or consult an electrician if you are not
sure about installation requirements.
Inspect the charging cable plug and charging
connector, as well as the vehicle’s charge inlet,
before use. If the plug or connector are dirty or
otherwise contaminated, care fully clean them with a
dry clean cloth before use. Do not wipe the metal
part of the inlet and the ch arging connector. Also, if
you are unable to clean the plug or connector, if the
inlet is dirty, or if any ar e damaged or corroded, take
the charging cable and vehi cle to an authorized
Honda Clarity Plug-In Hybrid dealer for inspection
and possible repair.
Charging Connector
Charge Indicator
20 CLARITY PHEV-31TRW6200.book 461 ページ ２０１９年９月２４日　火曜日　午後１２時９分

uuCharging uCharge the High Voltage battery using a Level 1 or 2 charger
462
Driving

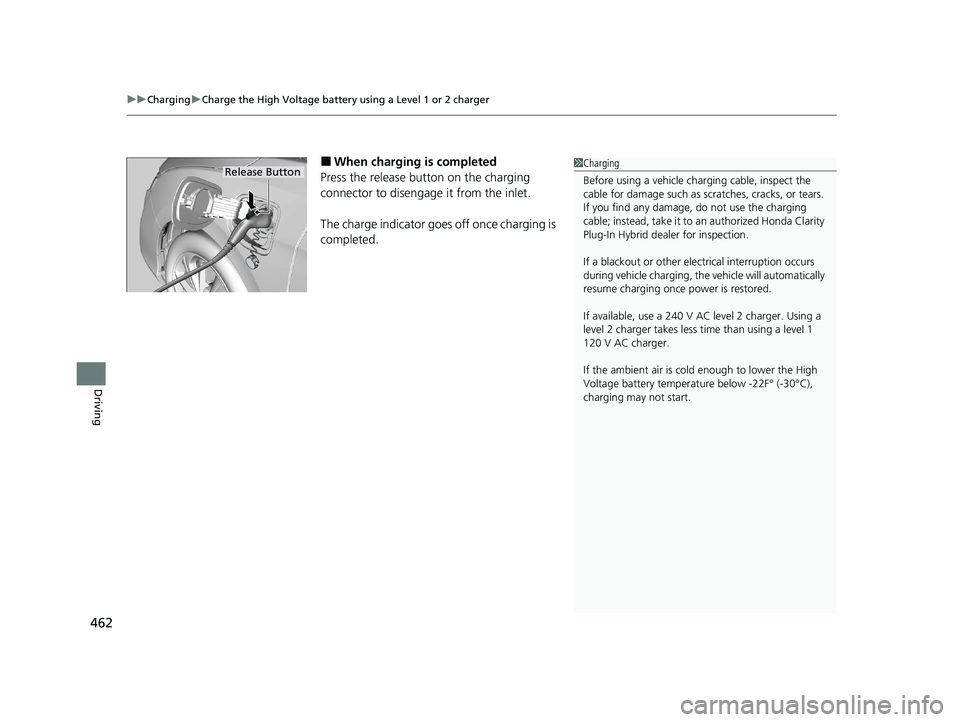

■When charging is completed
Press the release button on the charging
connector to disengage it from the inlet.
The charge indicator goes off once charging is
completed.1 Charging
Before using a vehicle char ging cable, inspect the
cable for damage such as scratches, cracks, or tears.
If you find any damage, do not use the charging
cable; instead, take it to an authorized Honda Clarity
Plug-In Hybrid deal er for inspection.
If a blackout or other elec trical interruption occurs
during vehicle charging, the vehicle will automatically
resume charging once power is restored.
If available, use a 240 V AC level 2 charger. Using a
level 2 charger takes less ti me than using a level 1
120 V AC charger.
If the ambient air is cold enough to lower the High
Voltage battery temperat ure below -22F° (-30°C),
charging may not start.Release Button
20 CLARITY PHEV-31TRW6200.book 462 ページ ２０１９年９月２４日　火曜日　午後１２時９分

Continued463
uuCharging uCharge the High Voltage battery using a Level 1 or 2 charger
Driving

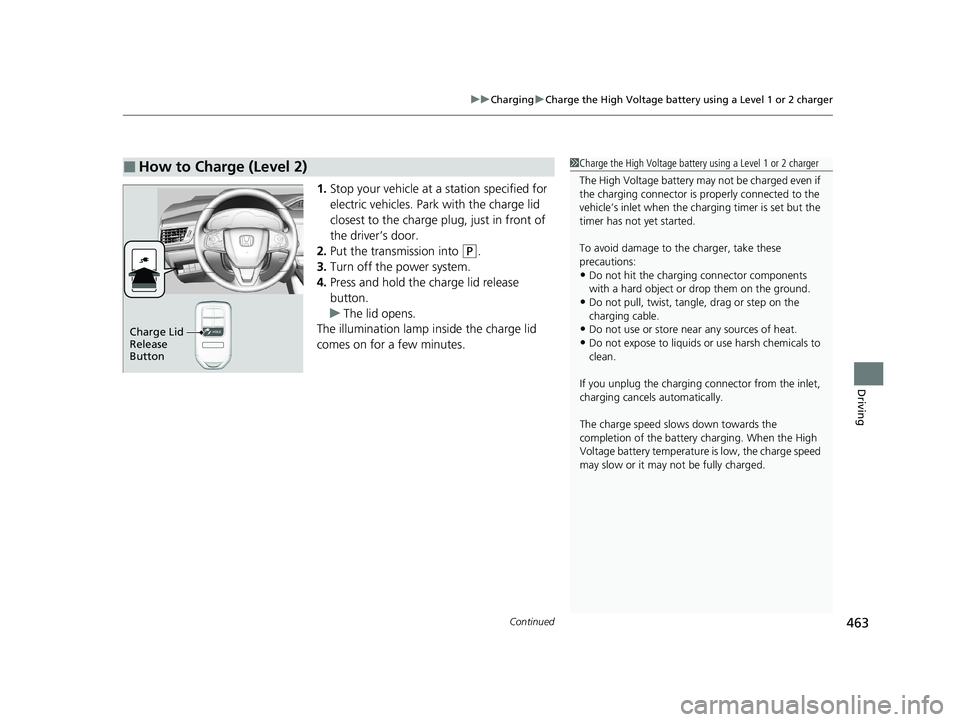

1. Stop your vehicle at a station specified for
electric vehicles. Park with the charge lid
closest to the charge plug, just in front of
the driver’s door.
2. Put the transmission into
(P.
3. Turn off the power system.
4. Press and hold the charge lid release
button.
u The lid opens.
The illumination lamp inside the charge lid
comes on for a few minutes.
■How to Charge (Level 2)1 Charge the High Voltage battery using a Level 1 or 2 charger
The High Voltage battery may not be charged even if
the charging connector is properly connected to the
vehicle’s inlet when the charging timer is set but the
timer has not yet started.
To avoid damage to th e charger, take these
precautions:
•Do not hit the charging connector components
with a hard object or drop them on the ground.
•Do not pull, twist, tangle, drag or step on the
charging cable.
•Do not use or store near any sources of heat.
•Do not expose to liquids or use harsh chemicals to
clean.
If you unplug the charging connector from the inlet,
charging cancels automatically.
The charge speed slows down towards the
completion of the battery charging. When the High
Voltage battery temperature is low, the charge speed
may slow or it may not be fully charged.Charge Lid
Release
Button
20 CLARITY PHEV-31TRW6200.book 463 ページ ２０１９年９月２４日　火曜日　午後１２時９分

uuCharging uCharge the High Voltage battery using a Level 1 or 2 charger
464
Driving

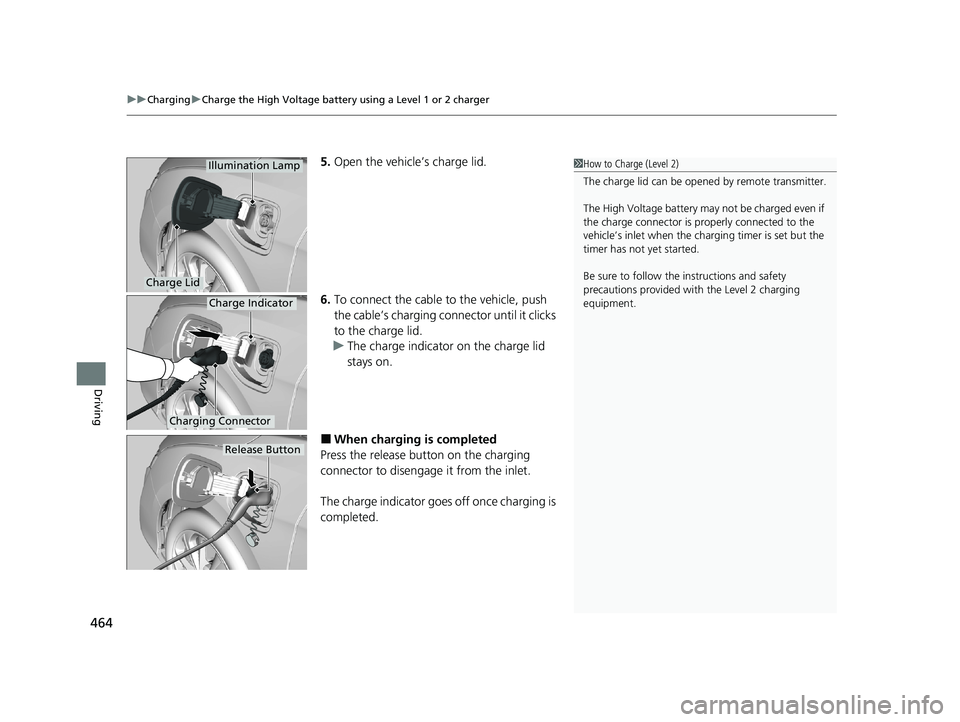

5. Open the vehicle’s charge lid.
6. To connect the cable to the vehicle, push
the cable’s charging connector until it clicks
to the charge lid.
u The charge indicator on the charge lid
stays on.
■When charging is completed
Press the release button on the charging
connector to disengage it from the inlet.
The charge indicator goes off once charging is
completed.
Charge Lid
Illumination Lamp1 How to Charge (Level 2)
The charge lid can be open ed by remote transmitter.
The High Voltage battery may not be charged even if
the charge connector is properly connected to the
vehicle’s inlet when the charging timer is set but the
timer has not yet started.
Be sure to follow the instructions and safety
precautions provided with the Level 2 charging
equipment.
Charging Connector
Charge Indicator
Release Button
20 CLARITY PHEV-31TRW6200.book 464 ページ ２０１９年９月２４日　火曜日　午後１２時９分

465
uuCharging uControl Box
Continued
Driving

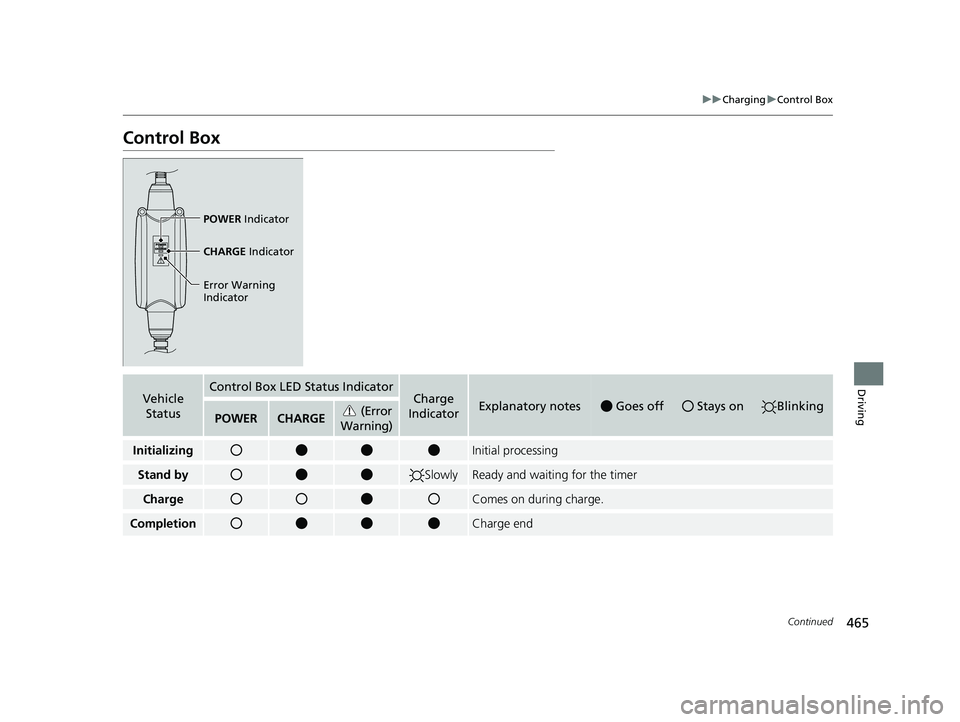

Control Box
POWER Indicator
CHARGE Indicator
Error Warning
Indicator
Vehicle StatusControl Box LED Status IndicatorCharge
IndicatorExplanatory notesGoes offStays onBlinkingPOWERCHARGE (Error
Warning)
InitializingInitial processing
Stand bySlowlyReady and waiting for the timer
ChargeComes on during charge.
CompletionCharge end
20 CLARITY PHEV-31TRW6200.book 465 ページ ２０１９年９月２４日　火曜日　午後１２時９分

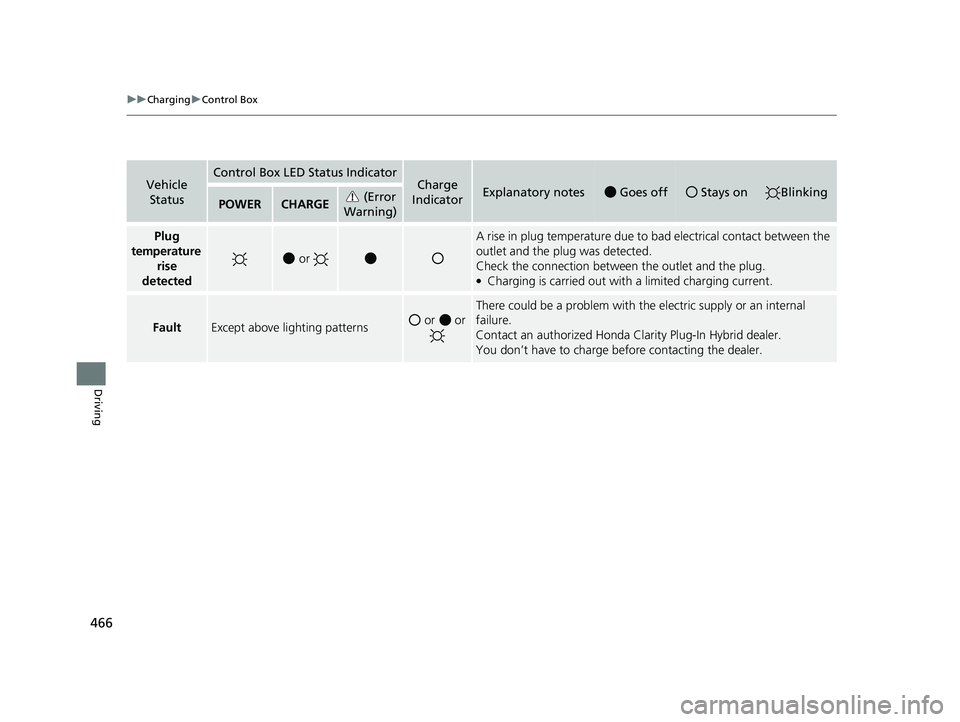

466
uuCharging uControl Box
Driving
Vehicle
StatusControl Box LED Status IndicatorCharge
IndicatorExplanatory notesGoes offStays onBlinkingPOWERCHARGE (Error
Warning)
Plug
temperature rise
detected
or
A rise in plug temperature due to bad electrical contact between the
outlet and the plug was detected.
Check the connection between the outlet and the plug.
●Charging is carried out with a limited charging current.
FaultExcept above lighting patterns or or
There could be a problem with the electric supply or an internal
failure.
Contact an authorized Honda Cl arity Plug-In Hybrid dealer.
You don’t have to charge before contacting the dealer.
20 CLARITY PHEV-31TRW6200.book 466 ページ ２０１９年９月２４日　火曜日　午後１２時９分

467
uuCharging uControl Box
Continued
Driving

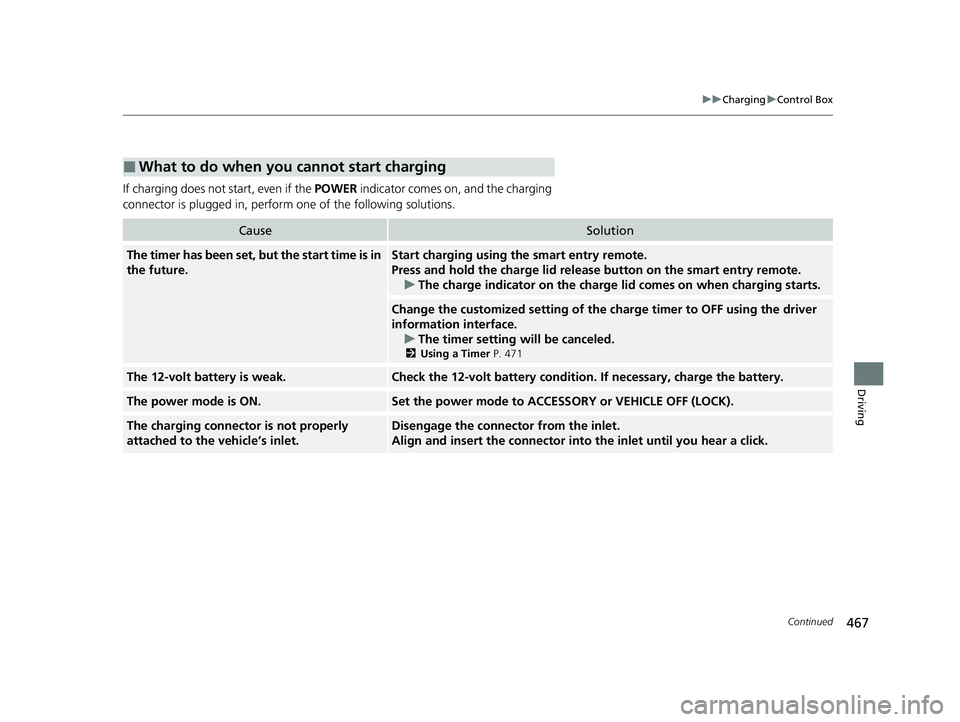

If charging does not start, even if the POWER indicator comes on, and the charging
connector is plugged in, perform one of the following solutions.
■What to do when you cannot start charging
CauseSolution
The timer has been set, but the start time is in
the future.Start charging using the smart entry remote.
Press and hold the charge lid release button on the smart entry remote. u The charge indicator on the charge lid comes on when charging starts.
Change the customized setting of the charge timer to O FF using the driver
information interface. u The timer setting wi ll be canceled.
2Using a Timer P. 471
The 12-volt battery is weak.Check the 12-volt battery condition. If necessary, charge the battery.
The power mode is ON.Set the power mode to ACCESS ORY or VEHICLE OFF (LOCK).
The charging connector is not properly
attached to the vehicle’s inlet. Disengage the connector from the inlet.
Align and insert the connector into the inlet until you hear a click.
20 CLARITY PHEV-31TRW6200.book 467 ページ ２０１９年９月２４日　火曜日　午後１２時９分

468
uuCharging uControl Box
Driving
Note: The charging equipment provided with this vehicle has been tested and found
to comply with the limits fo r a Class B digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can ra diate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that inte rference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experien ced radio/TV technician for help.
20 CLARITY PHEV-31TRW6200.book 468 ページ ２０１９年９月２４日　火曜日　午後１２時９分
