HONDA CLARITY PLUG-IN 2020 Owner's Manual (in English)

469
uuCharging uControl Box
Driving
Shows the High Voltage battery charging status.
If it blinks for a while, then st ays on after the charge connector is plugged in, it indicates that the
battery is being charged.

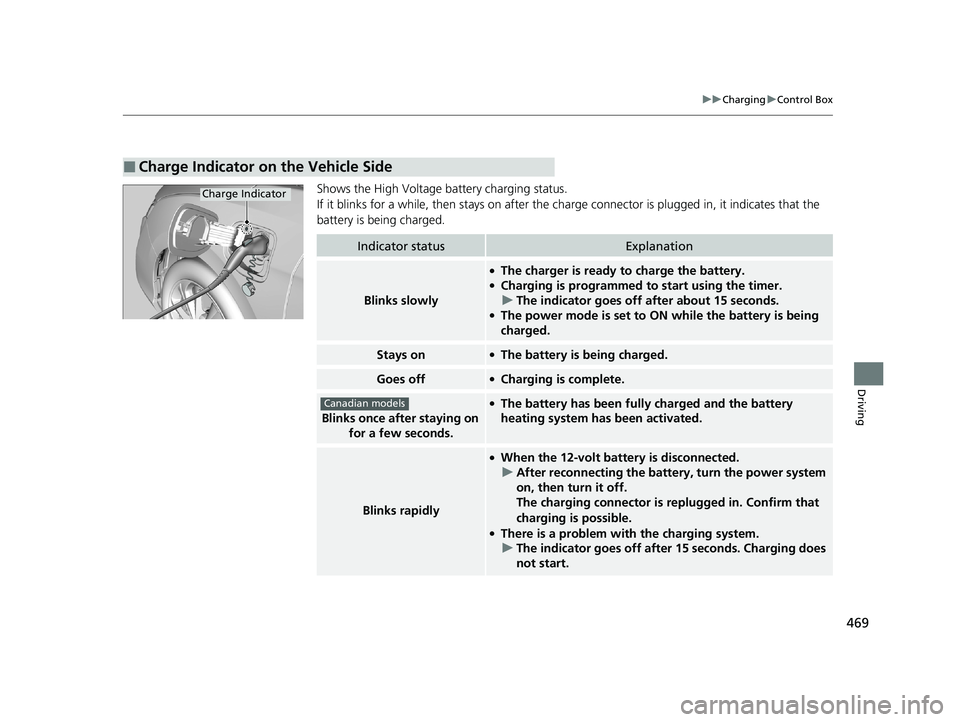

■Charge Indicator on the Vehicle Side
Charge Indicator
Indicator statusExplanation
Blinks slowly
●The charger is ready to charge the battery.●Charging is programmed to start using the timer.
u The indicator goes off after about 15 seconds.
●The power mode is set to ON while the battery is being
charged.
Stays on●The battery is being charged.
Goes off●Charging is complete.
Blinks once after staying on
for a few seconds.
●The battery has been fully charged and the battery
heating system has been activated.
Blinks rapidly
●When the 12-volt battery is disconnected.u After reconnecting the battery, turn the power system
on, then turn it off.
The charging connector is replugged in. Confirm that
charging is possible.
●There is a problem with the charging system.
u The indicator goes off after 15 seconds. Charging does
not start.
Canadian models
20 CLARITY PHEV-31TRW6200.book 469 ページ ２０１９年９月２４日　火曜日　午後１２時９分

470
uuCharging uHigh Voltage Battery
Driving

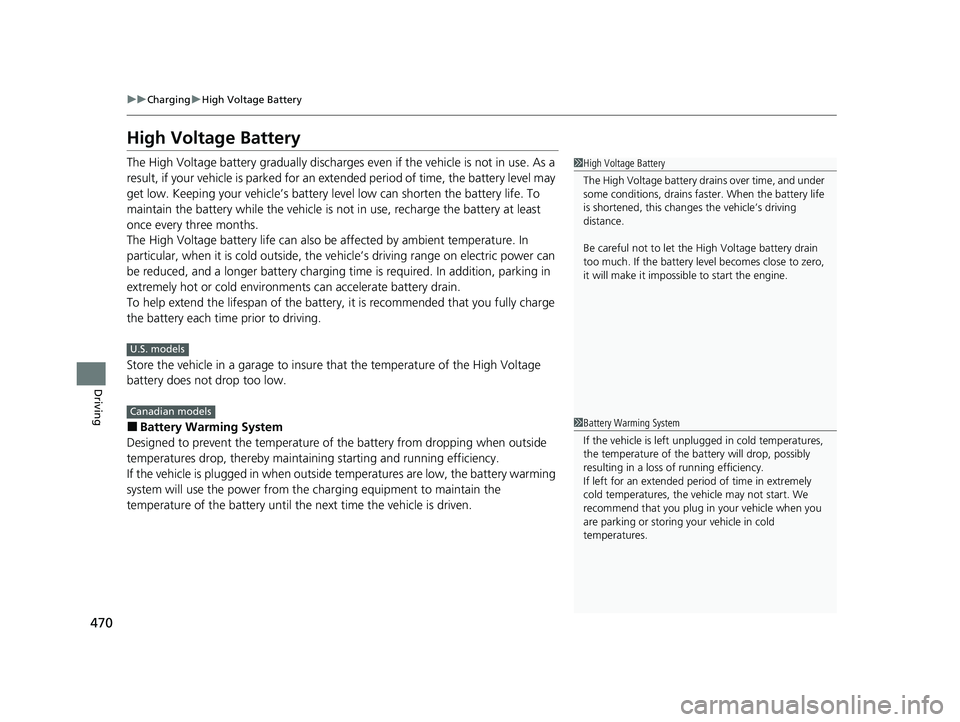

High Voltage Battery
The High Voltage battery gradually discharges even if the vehicle is not in use. As a
result, if your vehicle is parked for an ex tended period of time, the battery level may
get low. Keeping your vehicle’s battery le vel low can shorten the battery life. To
maintain the battery while the vehicle is not in use, recharge the battery at least
once every three months.
The High Voltage battery life can also be affected by ambient temperature. In
particular, when it is cold outside, the ve hicle’s driving range on electric power can
be reduced, and a longer battery charging ti me is required. In addition, parking in
extremely hot or cold environments can accelerate battery drain.
To help extend the lifespan of the battery, it is recommended that you fully charge
the battery each time prior to driving.
Store the vehicle in a garage to insure that the temperature of the High Voltage
battery does not drop too low.
■Battery Warming System
Designed to prevent the temperature of the battery from dropping when outside
temperatures drop, thereby maintainin g starting and running efficiency.
If the vehicle is plugged in when outside temperatures are low, the battery warming
system will use the power from the charging equipment to maintain the
temperature of the battery until the next time the vehicle is driven.
1 High Voltage Battery
The High Voltage battery dr ains over time, and under
some conditions, drains fast er. When the battery life
is shortened, this cha nges the vehicle’s driving
distance.
Be careful not to let the High Voltage battery drain
too much. If the battery level becomes close to zero,
it will make it impossible to start the engine.
U.S. models
1 Battery Warming System
If the vehicle is left unplug ged in cold temperatures,
the temperature of the ba ttery will drop, possibly
resulting in a loss of running efficiency.
If left for an extended period of time in extremely
cold temperatures, the vehicle may not start. We
recommend that you plug in your vehicle when you
are parking or storing your vehicle in cold
temperatures.Canadian models
20 CLARITY PHEV-31TRW6200.book 470 ページ ２０１９年９月２４日　火曜日　午後１２時９分

471
uuCharging uUsing a Timer
Continued
Driving

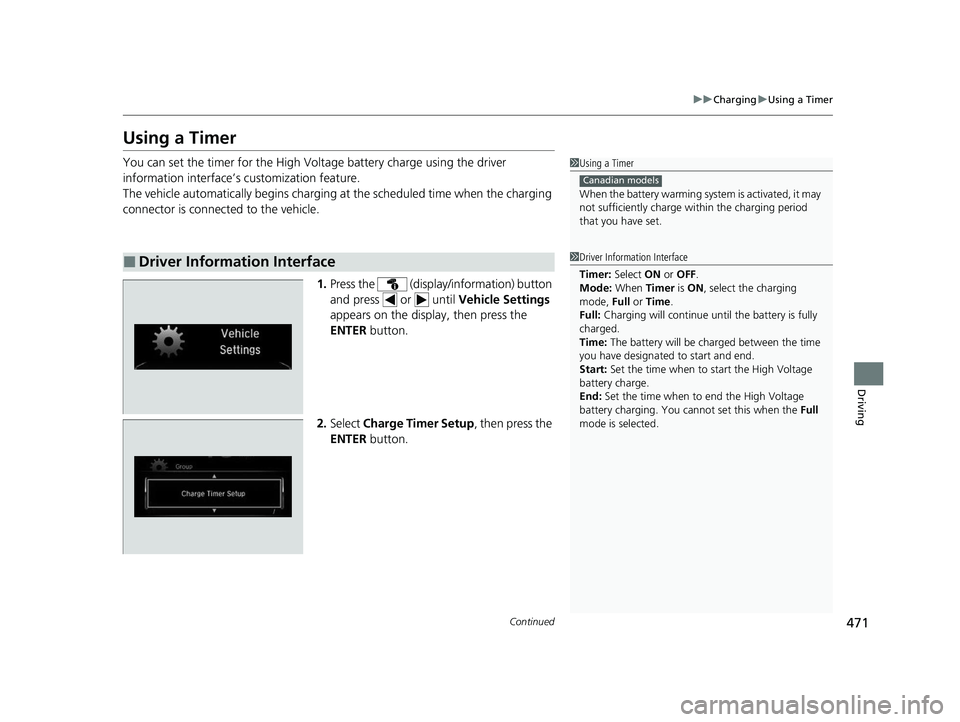

Using a Timer
You can set the timer for the High Volt age battery charge using the driver
information interface’s customization feature.
The vehicle automatically begi ns charging at the scheduled time when the charging
connector is connected to the vehicle.
1.Press the (display /information) button
and press or until Vehicle Settings
appears on the display, then press the
ENTER button.
2. Select Charge Timer Setup , then press the
ENTER button.
■Driver Information Interface
1Using a Timer
When the battery warming syst em is activated, it may
not sufficiently charge within the charging period
that you have set.
Canadian models
1 Driver Information Interface
Timer: Select ON or OFF.
Mode: When Timer is ON , select the charging
mode, Full or Time .
Full: Charging will continue unt il the battery is fully
charged.
Time: The battery will be ch arged between the time
you have designated to start and end.
Start: Set the time when to start the High Voltage
battery charge.
End: Set the time when to end the High Voltage
battery charging. You cannot set this when the Full
mode is selected.
20 CLARITY PHEV-31TRW6200.book 471 ページ ２０１９年９月２４日　火曜日　午後１２時９分

472
uuCharging uUsing a Timer
Driving

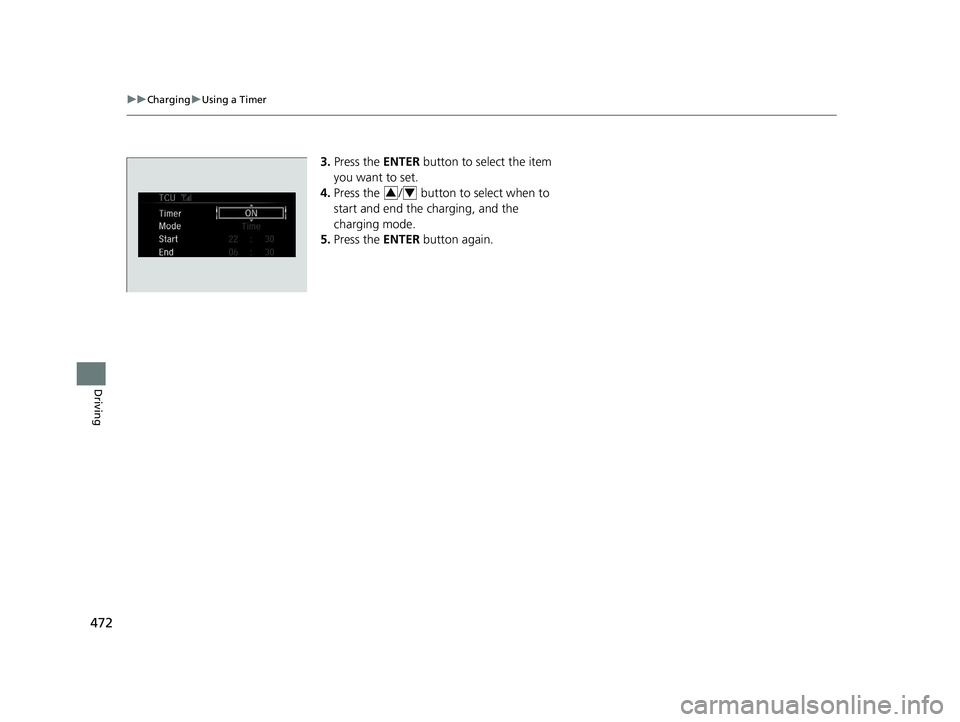

3. Press the ENTER button to select the item
you want to set.
4. Press the / button to select when to
start and end the charging, and the
charging mode.
5. Press the ENTER button again.
34
20 CLARITY PHEV-31TRW6200.book 472 ページ ２０１９年９月２４日　火曜日　午後１２時９分

473
Driving

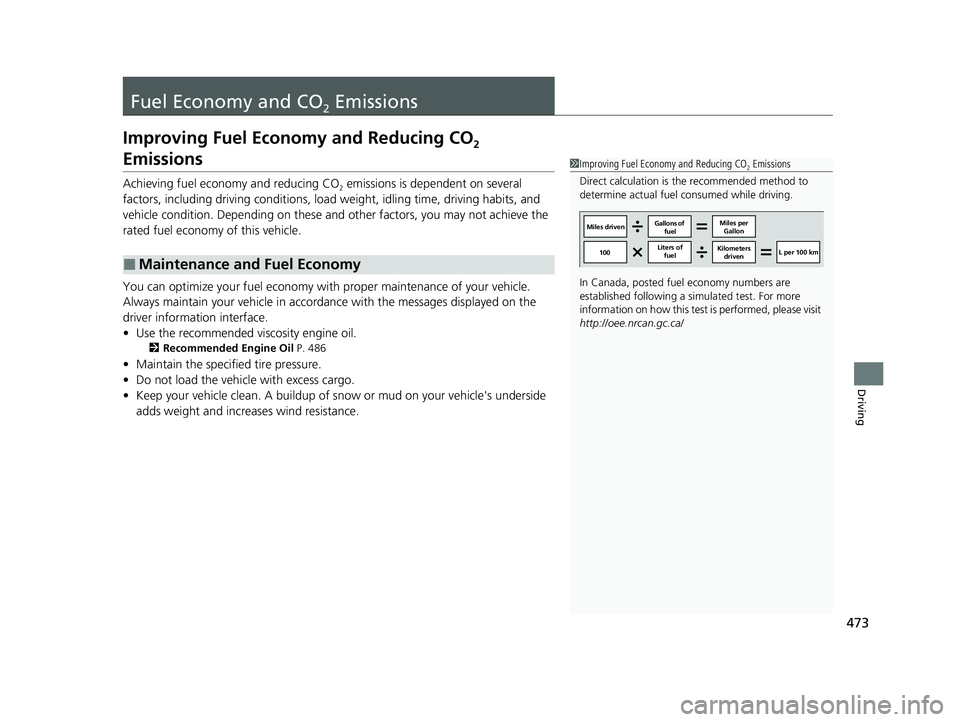

Fuel Economy and CO2 Emissions
Improving Fuel Economy and Reducing CO2
Emissions
Achieving fuel economy and reducing CO2 emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accord ance with the messages displayed on the
driver information interface.
• Use the recommended vi scosity engine oil.
2Recommended Engine Oil P. 486
•Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle's underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1Improving Fuel Economy and Reducing CO2 Emissions
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/
Miles driven Gallons of
fuel Miles per
Gallon
100 Liters of
fuel Kilometers
driven L per 100 km
20 CLARITY PHEV-31TRW6200.book 473 ページ ２０１９年９月２４日　火曜日　午後１２時９分

474
20 CLARITY PHEV-31TRW6200.book 474 ページ ２０１９年９月２４日　火曜日　午後１２時９分

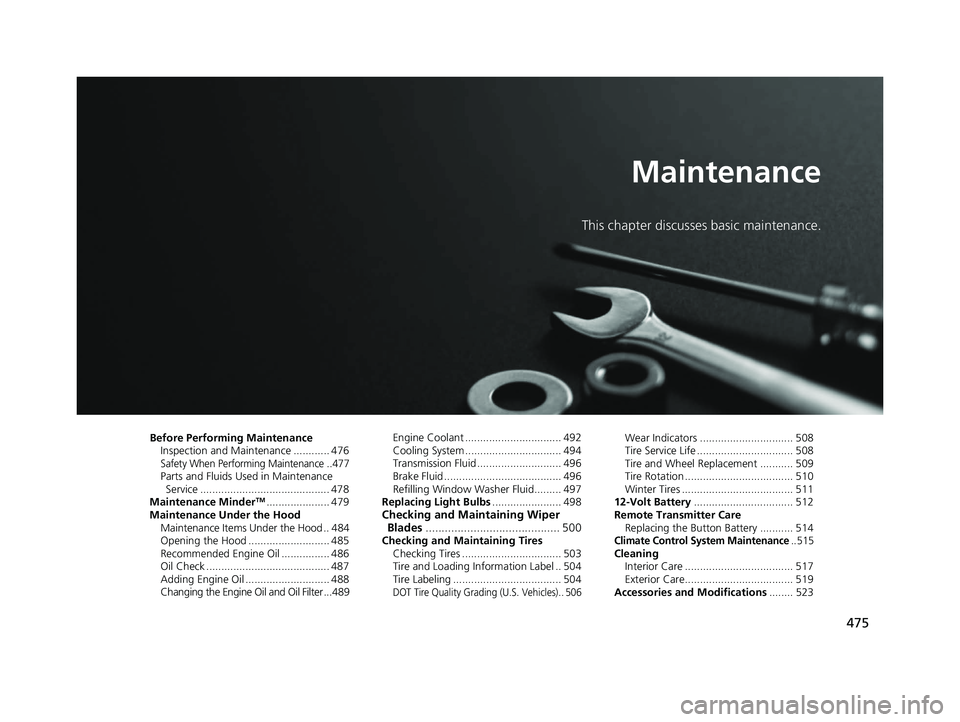

475
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 476
Safety When Performing Maintenance ..477Parts and Fluids Used in Maintenance Service ........................................... 478
Maintenance Minder
TM..................... 479
Maintenance Under the Hood Maintenance Items Under the Hood .. 484
Opening the Hood ........................... 485
Recommended Engine Oil ................ 486
Oil Check ......................................... 487
Adding Engine Oil ............................ 488
Changing the Engine Oil and Oil Filter ...489 Engine Coolant ................................ 492
Cooling System ................................ 494
Transmission Fluid ............................ 496
Brake Fluid ....................................... 496
Refilling Window Washer Fluid......... 497
Replacing Light Bulbs ....................... 498Checking and Maintaining Wiper
Blades .......................................... 500
Checking and Maintaining Tires
Checking Tires ................................. 503
Tire and Loading Information Label .. 504
Tire Labeling .................................... 504
DOT Tire Quality Grading (U.S. Vehicles).. 506
Wear Indicators ............................... 508
Tire Service Life ................................ 508
Tire and Wheel Replacement ........... 509
Tire Rotation .................................... 510
Winter Tires ..................................... 511
12-Volt Battery ................................. 512
Remote Transmitter Care Replacing the Button Battery ........... 514
Climate Control System Maintenance.. 515CleaningInterior Care .................................... 517
Exterior Care.................................... 519
Accessories and Modifications ........ 523
20 CLARITY PHEV-31TRW6200.book 475 ページ ２０１９年９月２４日　火曜日　午後１２時９分

476
Maintenance

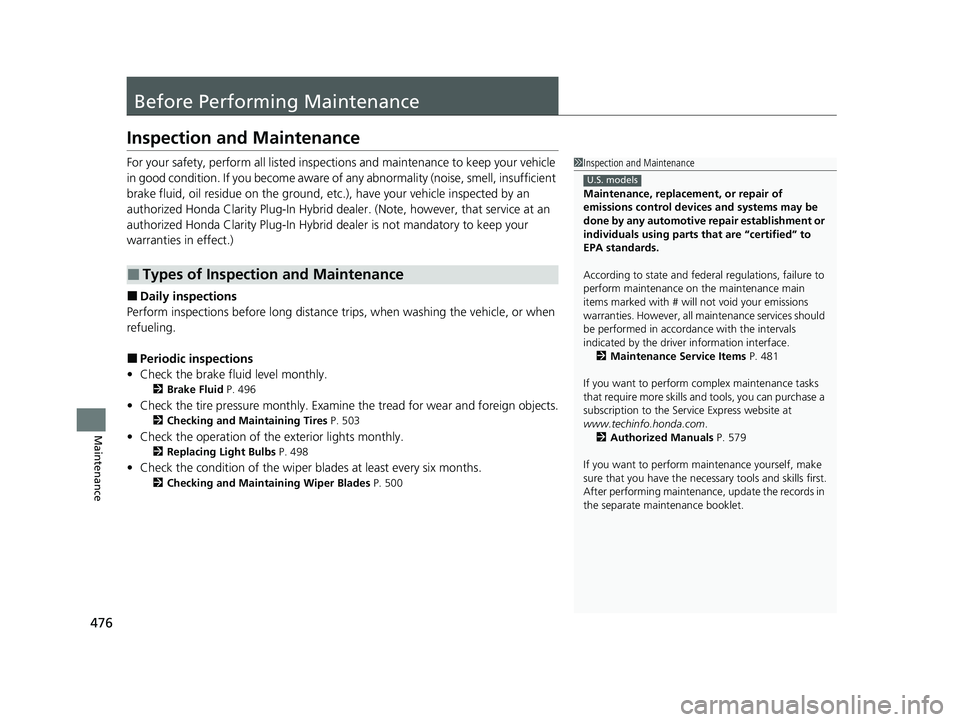

Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of an y abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc .), have your vehicle inspected by an
authorized Honda Clar ity Plug-In Hybrid dealer. (Note, however, that service at an
authorized Honda Clar ity Plug-In Hybrid dealer is not mandatory to keep your
warranties in effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 496
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 503
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 498
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 500
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 481
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 579
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenanc e, update the records in
the separate maintenance booklet.
U.S. models
20 CLARITY PHEV-31TRW6200.book 476 ページ ２０１９年９月２４日　火曜日　午後１２時９分

477
uuBefore Performing Maintenance uSafety When Performing Maintenance
Continued
Maintenance

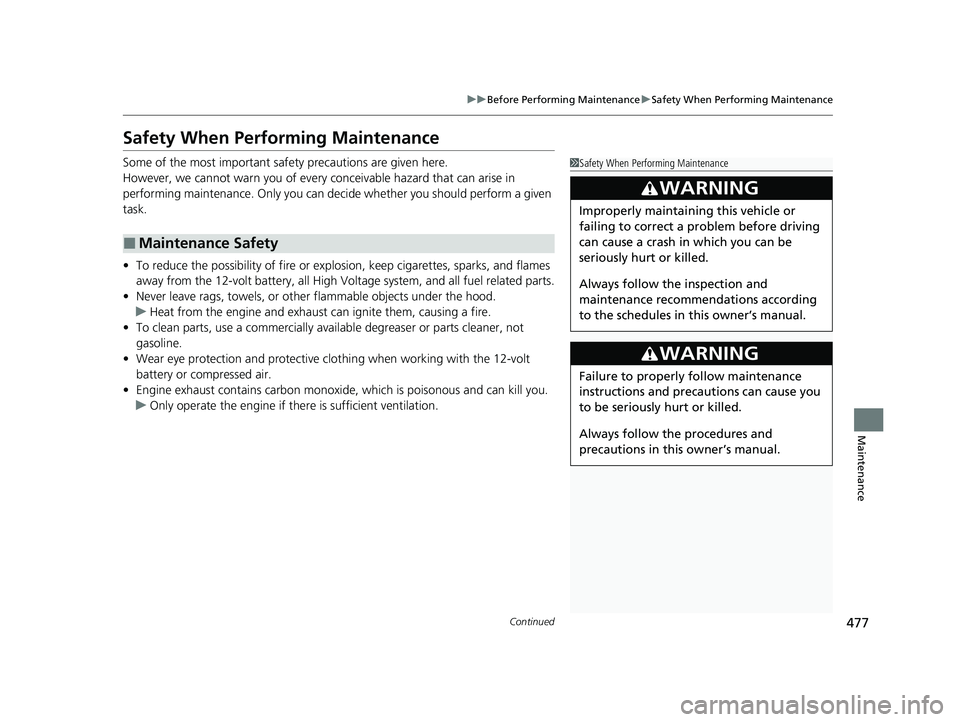

Safety When Performing Maintenance
Some of the most important safe ty precautions are given here.
However, we cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether you should perform a given
task.
• To reduce the possibility of fire or explos ion, keep cigarettes, sparks, and flames
away from the 12-volt battery, all High Volt age system, and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood.
u Heat from the engine and exhaust can ignite them, causing a fire.
• To clean parts, use a co mmercially available degreaser or parts cleaner, not
gasoline.
• Wear eye protection and pr otective clothing when working with the 12-volt
battery or compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if th ere is sufficient ventilation.
■Maintenance Safety
1Safety When Performing Maintenance
3WARNING
Improperly maintaining this vehicle or
failing to correct a pr oblem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.
3WARNING
Failure to properly follow maintenance
instructions and prec autions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
20 CLARITY PHEV-31TRW6200.book 477 ページ ２０１９年９月２４日　火曜日　午後１２時９分

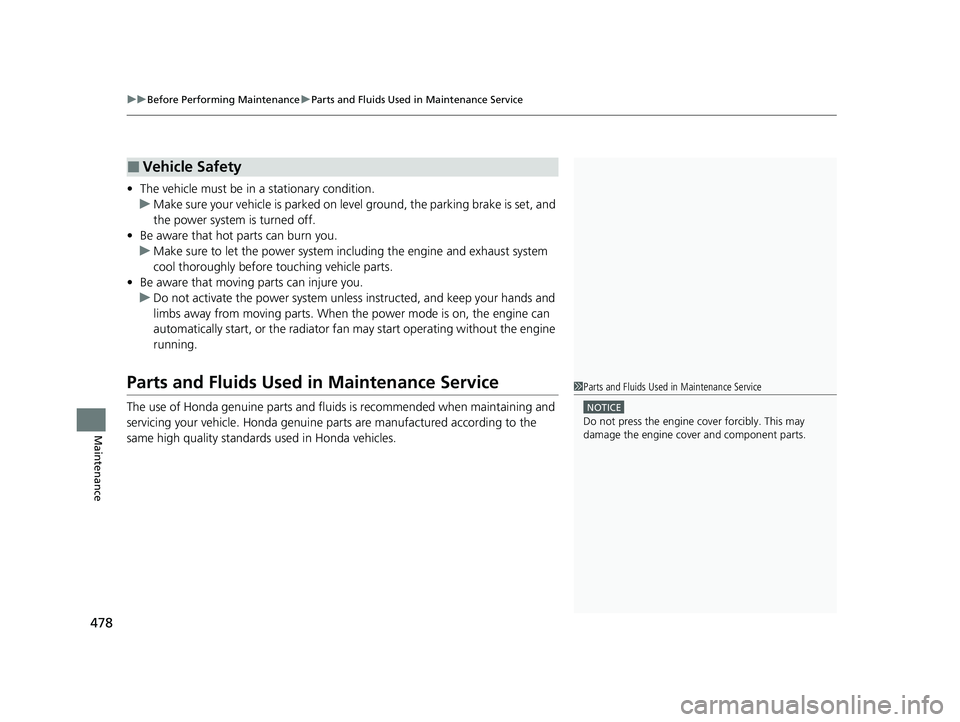

uuBefore Performing Maintenance uParts and Fluids Used in Maintenance Service
478
Maintenance
• The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on leve l ground, the parking brake is set, and
the power system is turned off.
• Be aware that hot parts can burn you.
u Make sure to let the power system incl uding the engine and exhaust system
cool thoroughly before touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not activate the power system unle ss instructed, and keep your hands and
limbs away from moving parts. When the power mode is on, the engine can
automatically start, or the radiator fan may start operating without the engine
running.
Parts and Fluids Used in Maintenance Service
The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles.
■Vehicle Safety
1 Parts and Fluids Used in Maintenance Service
NOTICE
Do not press the engine cover forcibly. This may
damage the engine cover and component parts.
20 CLARITY PHEV-31TRW6200.book 478 ページ ２０１９年９月２４日　火曜日　午後１２時９分
