HONDA CLARITY PLUG-IN 2021 Owner's Manual (in English)

569
Handling the Unexpected
If You Cannot Open the Charge Lid
If you cannot open the charge lid, use the following procedure:1.Pull the release lever under the lower left
corner of the dashboard.
u The lid will pop up slightly.
■What to Do If Unable to Open the Charge Lid1If You Cannot Open the Charge Lid
After taking this step, cont act a dealer to have the
vehicle checked.
Release Lever
21 CLARITY PHEV CSS-31TRW6300.book 569 ページ ２０２０年５月１９日　火曜日　午前１０時４６分

570
Handling the Unexpected
If You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure:1.Insert the built-in key into the cylinder and
turn the key clockwise (as shown).
u The trunk unlocks and opens.
■What to Do If Unable to Open the Trunk1If You Cannot Open the Trunk
Following up:
After taking these steps, contact a dealer to have
your vehicle checked.
Built-in Key
21 CLARITY PHEV CSS-31TRW6300.book 570 ページ ２０２０年５月１９日　火曜日　午前１０時４６分

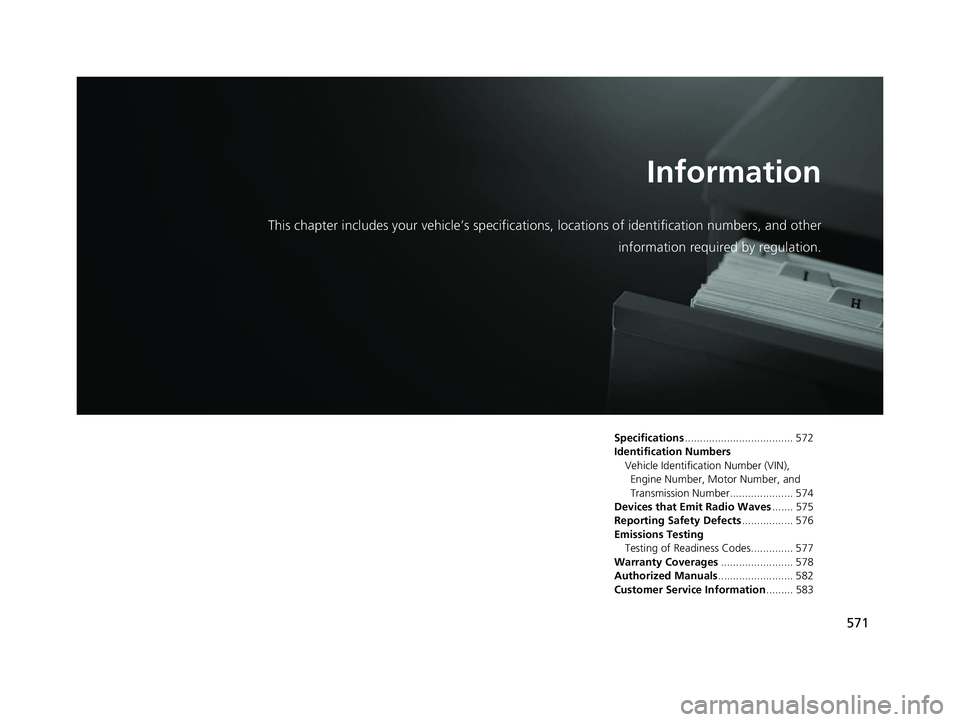

571
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 572
Identification Numbers Vehicle Identification Number (VIN), Engine Number, Motor Number, and
Transmission Number..................... 574
Devices that Emit Radio Waves ....... 575
Reporting Safety Defects ................. 576
Emissions Testing Testing of Readiness Codes.............. 577
Warranty Coverages ........................ 578
Authorized Manuals ......................... 582
Customer Service Information ......... 583
21 CLARITY PHEV CSS-31TRW6300.book 571 ページ ２０２０年５月１９日　火曜日　午前１０時４６分

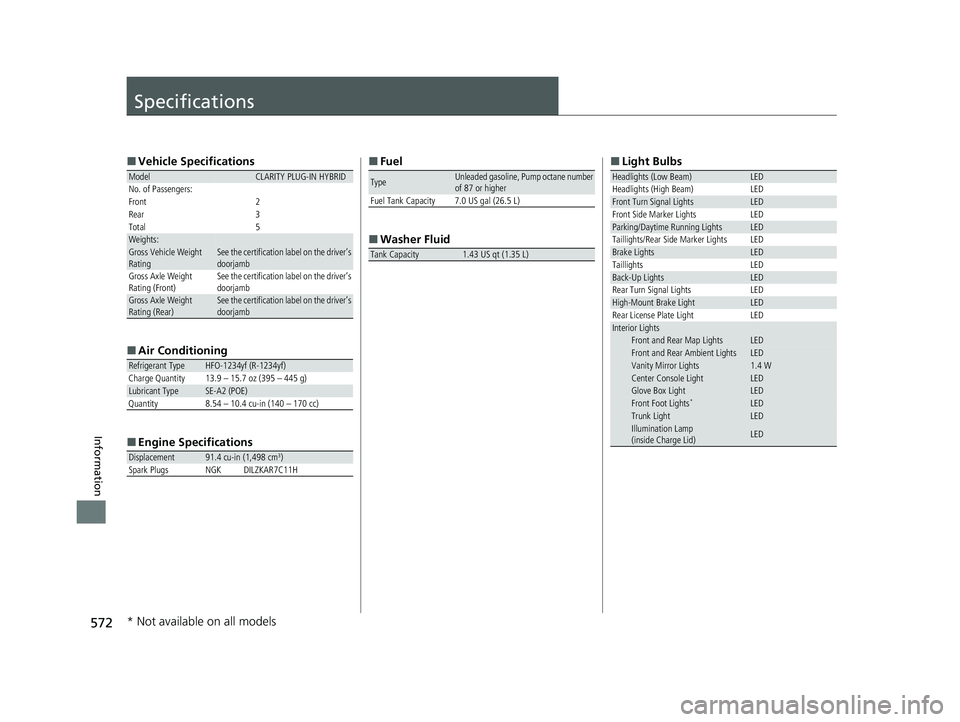

572
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
■ Engine Specifications
ModelCLARITY PLUG-IN HYBRID
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification la bel on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification la bel on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification la bel on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeSE-A2 (POE)
Quantity 8.54 – 10.4 cu-in (140 – 170 cc)
Displacement91.4 cu-in (1,498 cm3)
Spark Plugs NGK DILZKAR7C11H
■ Fuel
■ Washer Fluid
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 7.0 US gal (26.5 L)
Tank Capacity1.43 US qt (1.35 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot Lights*LEDTrunk LightLEDIllumination Lamp
(inside Charge Lid)LED
* Not available on all models
21 CLARITY PHEV CSS-31TRW6300.book 572 ページ ２０２０年５月１９日　火曜日　午前１０時４６分

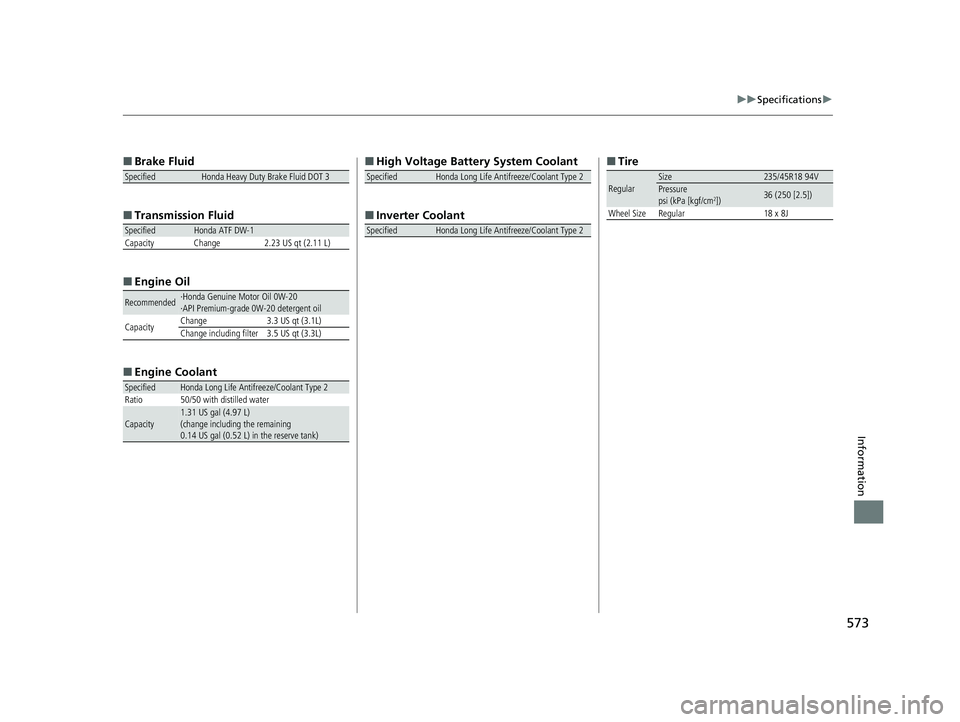

573
uuSpecifications u
Information
■
Brake Fluid
■ Transmissi on Fluid
■ Engine Oil
■ Engine Coolant
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
Capacity Change 2.23 US qt (2.11 L)
Recommended·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.3 US qt (3.1L)
Change including filter 3.5 US qt (3.3L)
Specified Honda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.31 US gal (4.97 L)
(change including the remaining
0.14 US gal (0.52 L) in the reserve tank)
■ High Voltage Battery System Coolant
■ Inverter Coolant
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
■Tire
RegularSize235/45R18 94VPressure
psi (kPa [kgf/cm2])36 (250 [2.5])
Wheel Size Regular 18 x 8J
21 CLARITY PHEV CSS-31TRW6300.book 573 ページ ２０２０年５月１９日　火曜日　午前１０時４６分

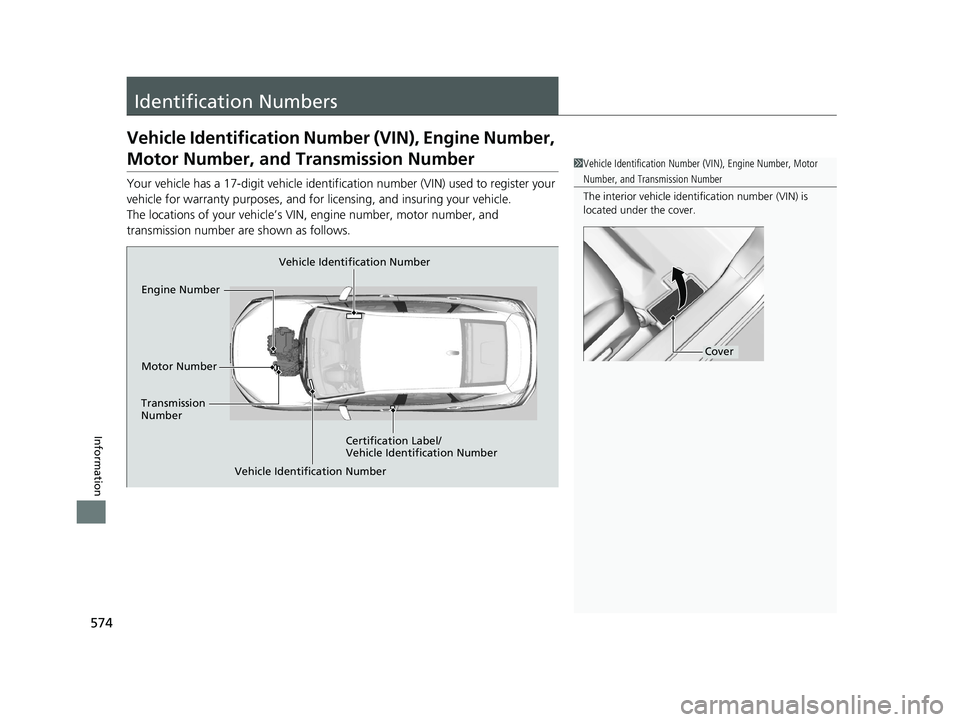

574
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing, and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Transmission
Number Certification Label/
Vehicle Identification Number
Vehicle Identification Number
Motor Number
Engine Number
21 CLARITY PHEV CSS-31TRW6300.book 574 ページ ２０２０年５月１９日　火曜日　午前１０時４６分

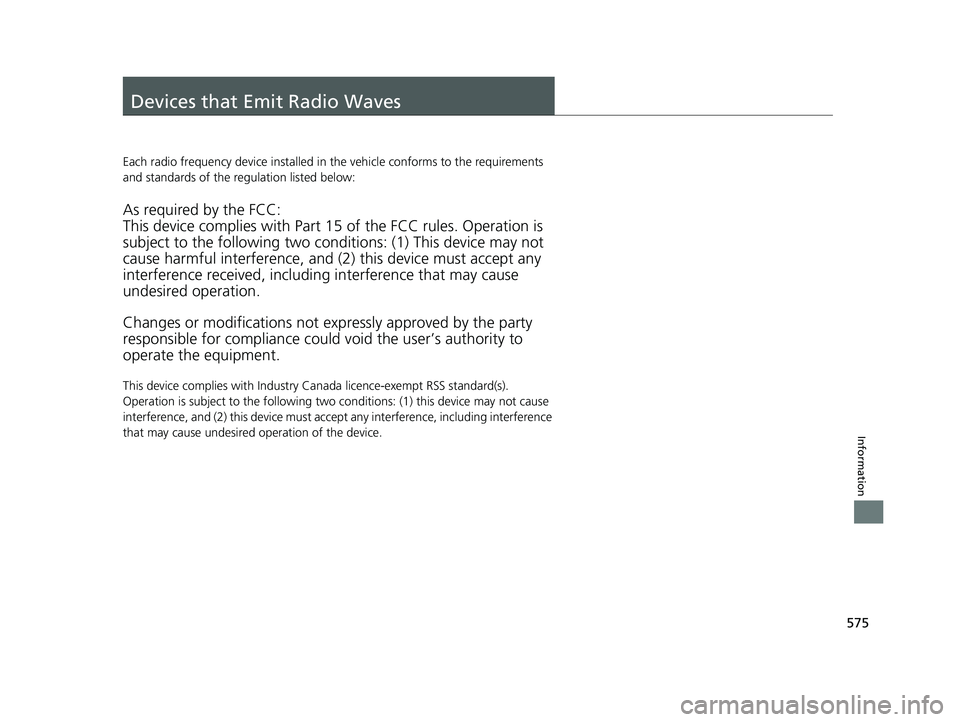

575
Information
Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
21 CLARITY PHEV CSS-31TRW6300.book 575 ページ ２０２０年５月１９日　火曜日　午前１０時４６分

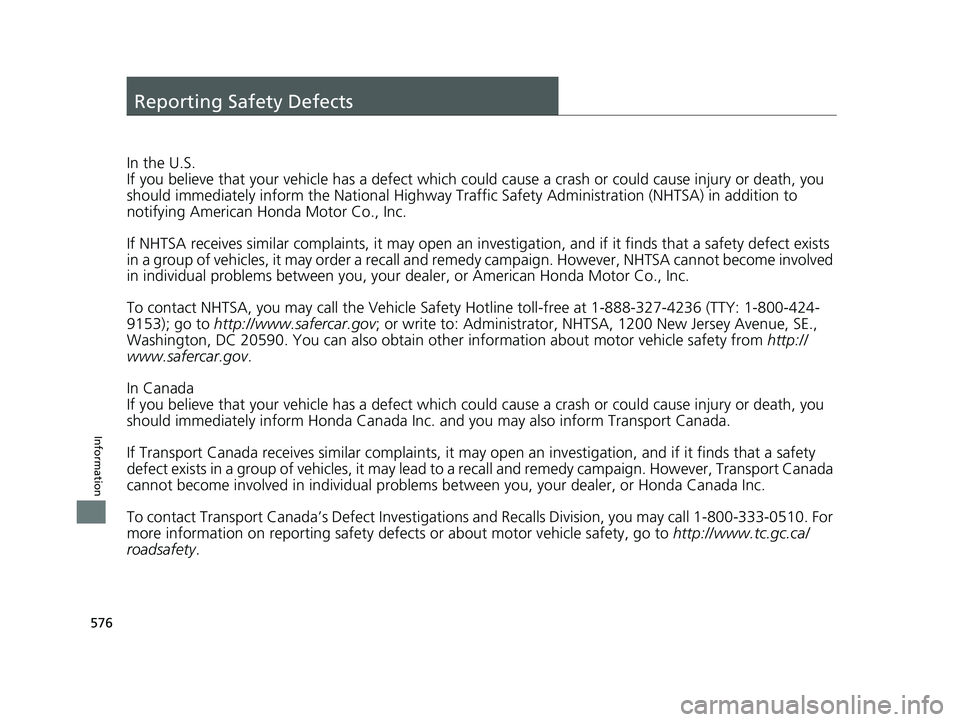

576
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and reme dy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
21 CLARITY PHEV CSS-31TRW6300.book 576 ページ ２０２０年５月１９日　火曜日　午前１０時４６分

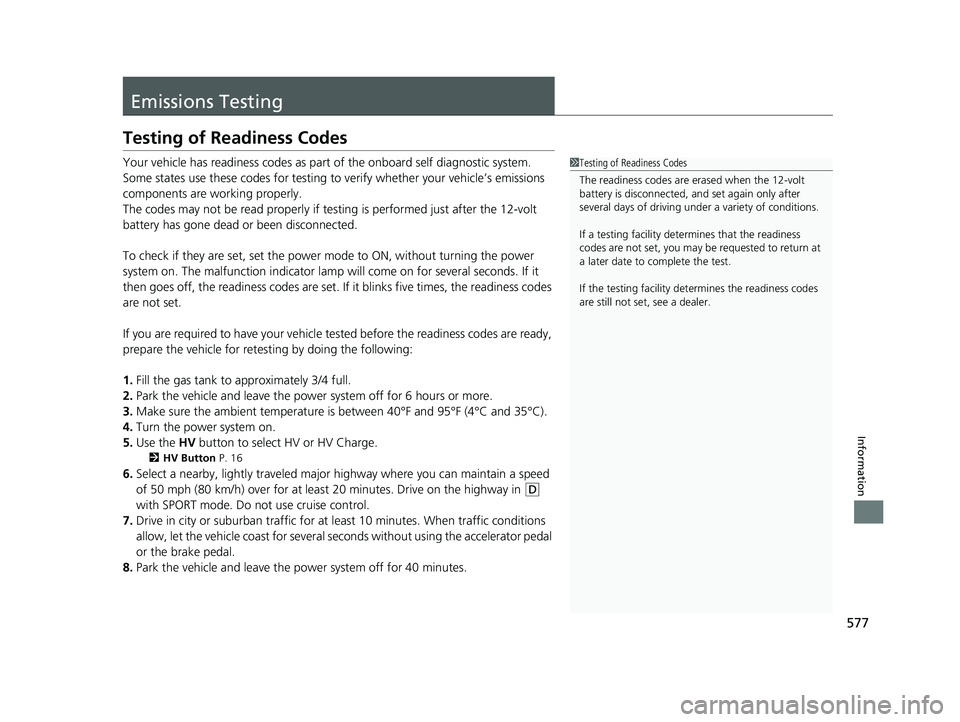

577
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the powe r mode to ON, without turning the power
system on. The malfunction indicator lamp will come on for several seconds. If it
then goes off, the readiness co des are set. If it blinks five times, the readiness codes
are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Turn the power system on.
5. Use the HV button to select HV or HV Charge.
2HV Button P. 16
6.Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 mph (80 km/h) over for at least 20 minutes. Drive on the highway in
(D
with SPORT mode. Do not use cruise control.
7. Drive in city or suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
8. Park the vehicle and leave the po wer system off for 40 minutes.
1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
21 CLARITY PHEV CSS-31TRW6300.book 577 ページ ２０２０年５月１９日　火曜日　午前１０時４６分

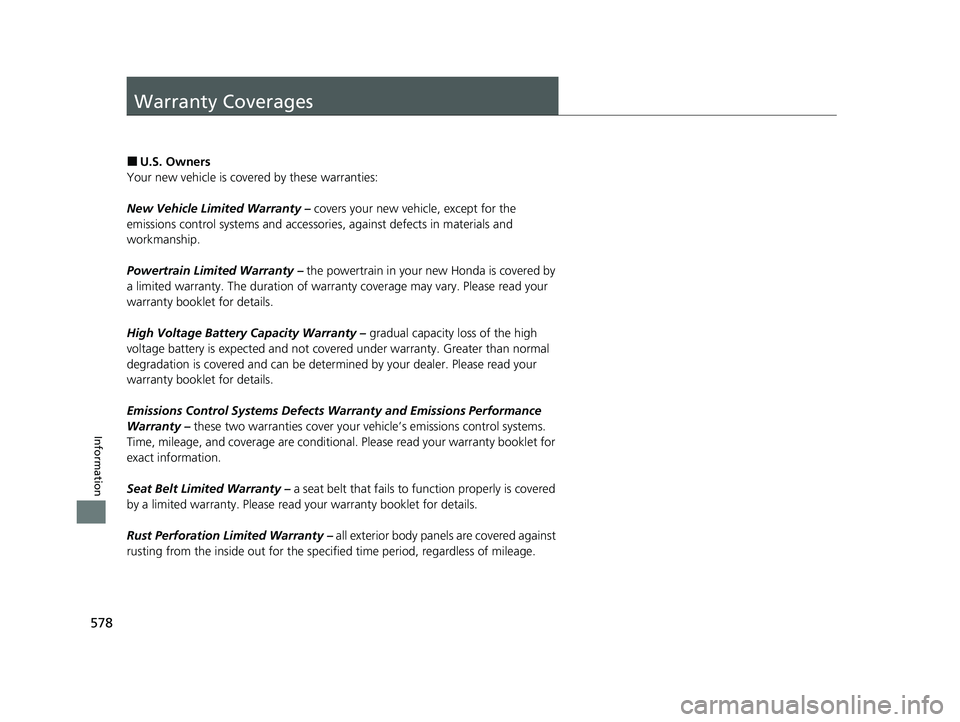

578
Information
Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Powertrain Limited Warranty – the powertrain in your new Honda is covered by
a limited warranty. The duration of warran ty coverage may vary. Please read your
warranty booklet for details.
High Voltage Battery Capacity Warranty – gradual capacity loss of the high
voltage battery is expected and not covered under warranty. Greater than normal
degradation is covered and can be determined by your dealer. Please read your
warranty booklet for details.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditiona l. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
21 CLARITY PHEV CSS-31TRW6300.book 578 ページ ２０２０年５月１９日　火曜日　午前１０時４６分
