HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

Continued

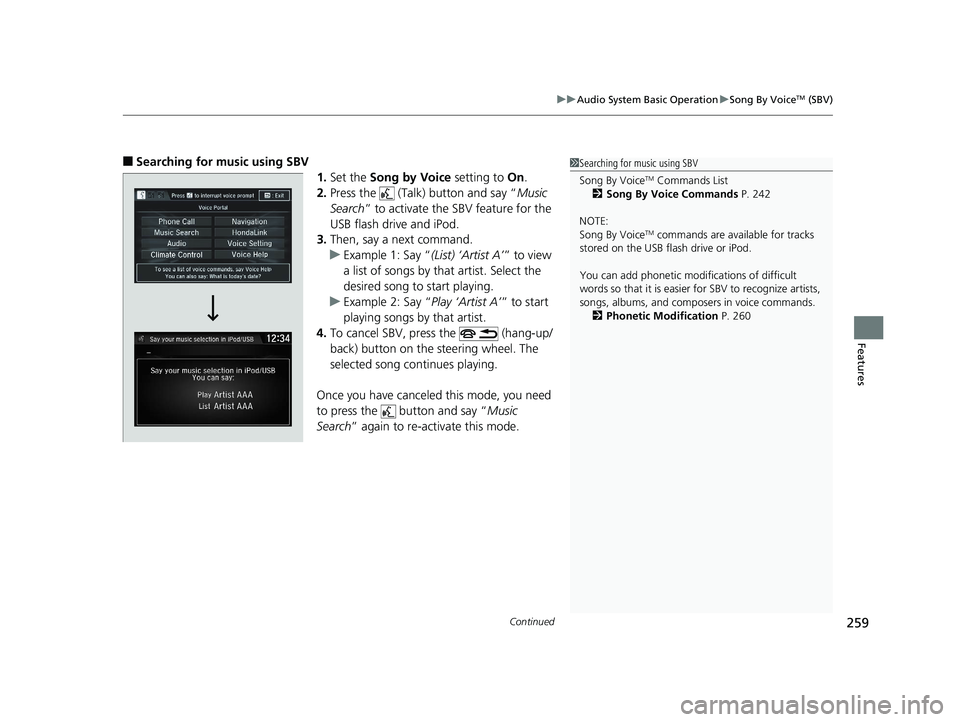

259uu Audio System Basic Operation u Song By Voice TM
(SBV)
Features
■ Searching for music using SBV
1. Set the Song by Voice setting to On .
2. Press the (Talk) button and say “ Music
Search ” to activate the SBV feature for the
USB flash drive and iPod.
3. Then, say a next command.
u Example 1: Say “ (List) ‘Artist A’ ” to view
a list of songs by th at artist. Select the
desired song to start playing.
u Example 2: Say “ Play ‘Artist A’ ” to start
playing songs by that artist.
4. To cancel SBV, press the (hang-up/
back) button on the steering wheel. The
selected song continues playing.
Once you have canceled this mode, you need
to press the button and say “ Music
Search ” again to re-activate this mode. 1 Searching for music using SBV
Song By Voice TM
Commands List
2 Song By Voice Commands P. 242
NOTE:
Song By Voice TM
commands are available for tracks
stored on the USB flash drive or iPod.
You can add phonetic modi fications of difficult
words so that it is easier for SBV to recognize artists,
songs, albums, and composers in voice commands.
2 Phonetic Modification P. 26018 CLARITY PHEV CSS-31TRW6000.book 259 ページ ２０１７年８月３１日　木曜日　午後２時４９分

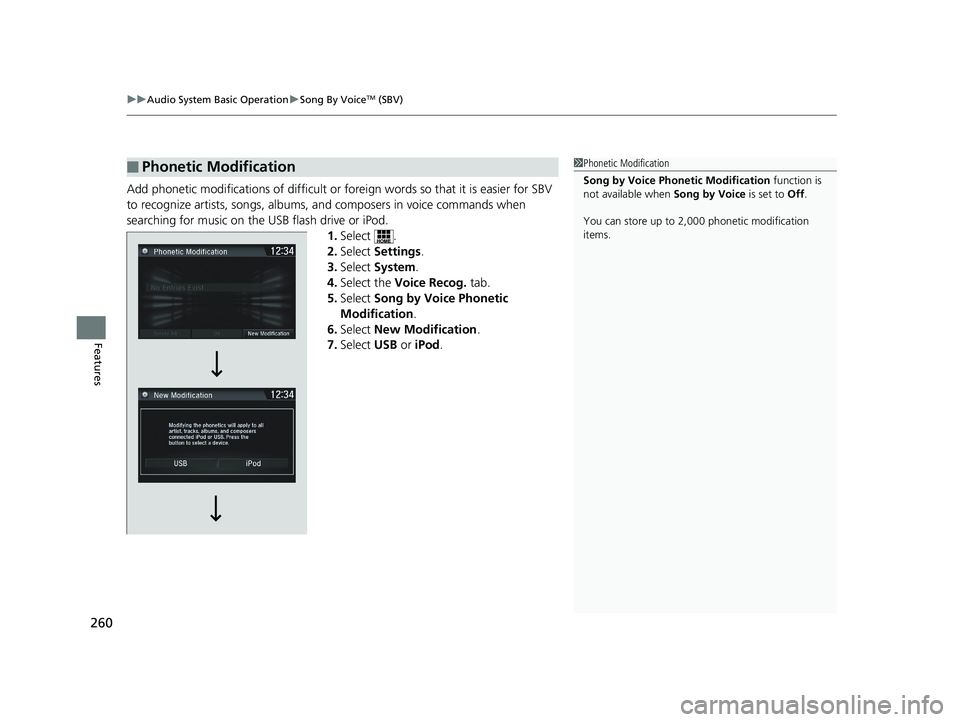

uu Audio System Basic Operation u Song By Voice TM
(SBV)
260
Features Add phonetic modifications of difficult or fo reign words so that it is easier for SBV
to recognize artists, songs, albums, and composers in voice commands when
searching for music on the USB flash drive or iPod.
1. Select .
2. Select Settings .
3. Select System .
4. Select the Voice Recog. tab.
5. Select Song by Voice Phonetic
Modification .
6. Select New Modification .
7. Select USB or iPod .■ Phonetic Modification 1 Phonetic Modification
Song by Voice Phonetic Modification function is
not available when Song by Voice is set to Off .
You can store up to 2, 000 phonetic modification
items.18 CLARITY PHEV CSS-31TRW6000.book 260 ページ ２０１７年８月３１日　木曜日　午後２時４９分

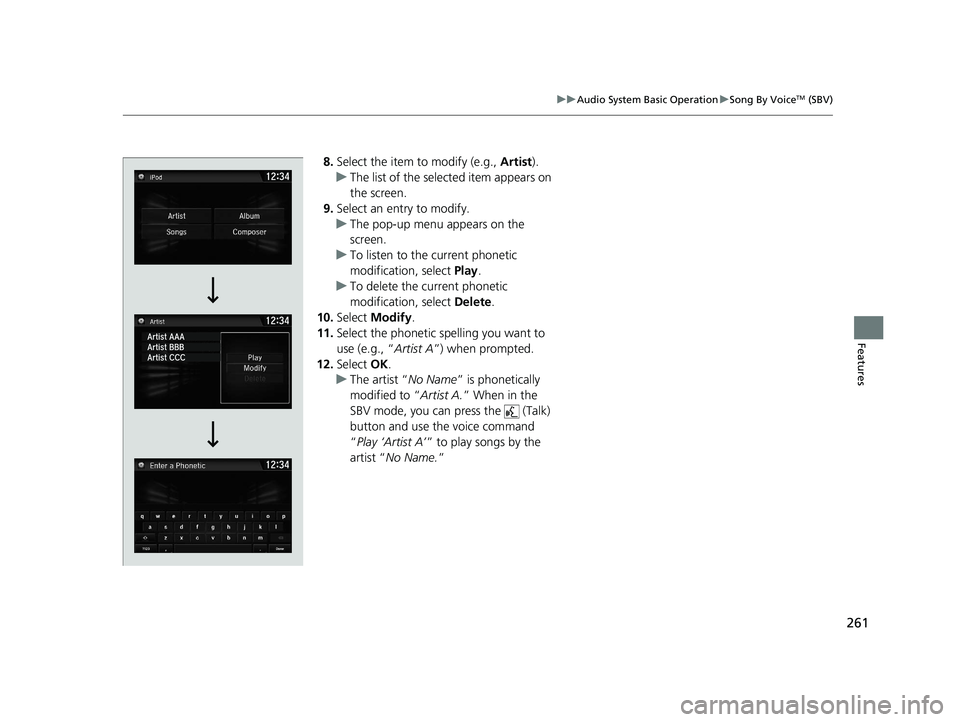

261uu Audio System Basic Operation u Song By Voice TM
(SBV)
Features
8. Select the item to modify (e.g., Artist ).
u The list of the selected item appears on
the screen.
9. Select an entry to modify.
u The pop-up menu appears on the
screen.
u To listen to the current phonetic
modification, select Play .
u To delete the current phonetic
modification, select Delete .
10. Select Modify .
11. Select the phonetic spelling you want to
use (e.g., “ Artist A ”) when prompted.
12. Select OK .
u The artist “ No Name ” is phonetically
modified to “ Artist A. ” When in the
SBV mode, you can press the (Talk)
button and use the voice command
“ Play ‘Artist A’ ” to play songs by the
artist “ No Name. ”18 CLARITY PHEV CSS-31TRW6000.book 261 ページ ２０１７年８月３１日　木曜日　午後２時４９分

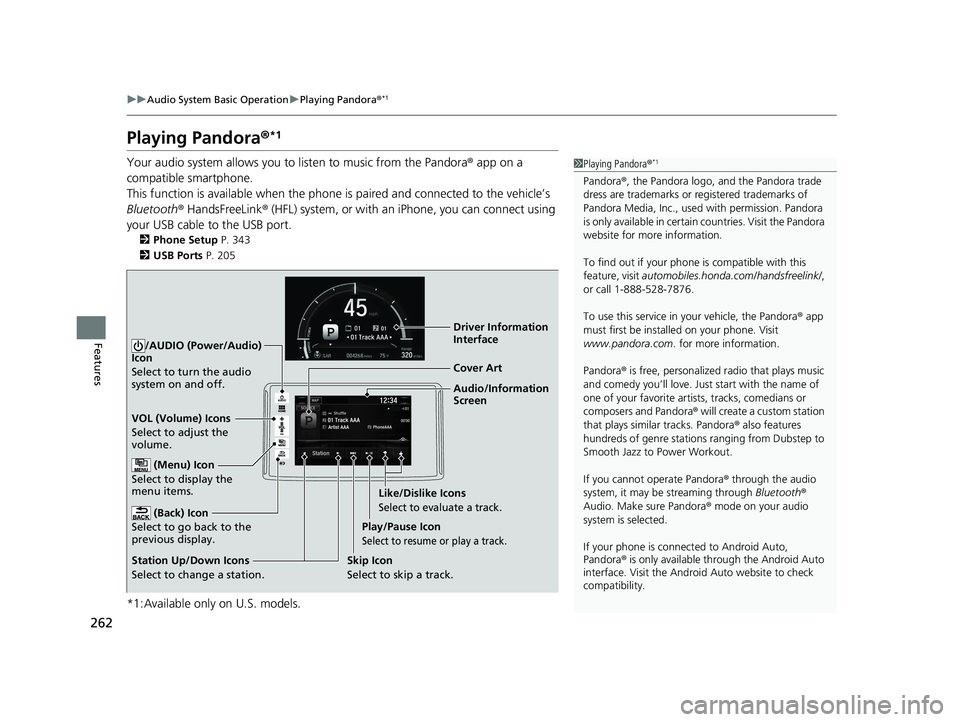

262 uu Audio System Basic Operation u Playing Pandora ® *1
Features Playing Pandora ® *1
Your audio system allows you to listen to music from the Pandora ® app on a
compatible smartphone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth ® HandsFreeLink ® (HFL) system, or with an iPhone, you can connect using
your USB cable to the USB port. 2 Phone Setup P. 343
2 USB Ports P. 205
*1:Available only on U.S. models. 1 Playing Pandora ® *1
Pandora ® , the Pandora logo, and the Pandora trade
dress are trademarks or registered trademarks of
Pandora Media, Inc., used with permission. Pandora
is only available in certai n countries. Visit the Pandora
website for more information.
To find out if your phone is compatible with this
feature, visit automobiles.honda.com /handsfreelink/ ,
or call 1-888-528-7876.
To use this service in your vehicle, the Pandora ® app
must first be installed on your phone. Visit
www.pandora.com . for more information.
Pandora ® is free, personalized radio that plays music
and comedy you’ll love. Just start with the name of
one of your favorite arti sts, tracks, comedians or
composers and Pandora ® will create a custom station
that plays similar tracks. Pandora ® also features
hundreds of genre stations ranging from Dubstep to
Smooth Jazz to Power Workout.
If you cannot operate Pandora ® through the audio
system, it may be streaming through Bluetooth ®
Audio. Make sure Pandora ® mode on your audio
system is selected.
If your phone is connec ted to Android Auto,
Pandora ® is only available th rough the Android Auto
interface. Visit the Android Auto website to check
compatibility.Audio/Information
ScreenCover Art
VOL (Volume) Icons
Select to adjust the
volume.
(Back) Icon
Select to go back to the
previous display. /AUDIO (Power/Audio)
Icon
Select to turn the audio
system on and off.
(Menu) Icon
Select to display the
menu items.
Play/Pause Icon
Select to resume or play a track.
Station Up/Down Icons
Select to change a station. Skip Icon
Select to skip a track. Like/Dislike Icons
Select to evaluate a track. Driver Information
Interface18 CLARITY PHEV CSS-31TRW6000.book 262 ページ ２０１７年８月３１日　木曜日　午後２時４９分

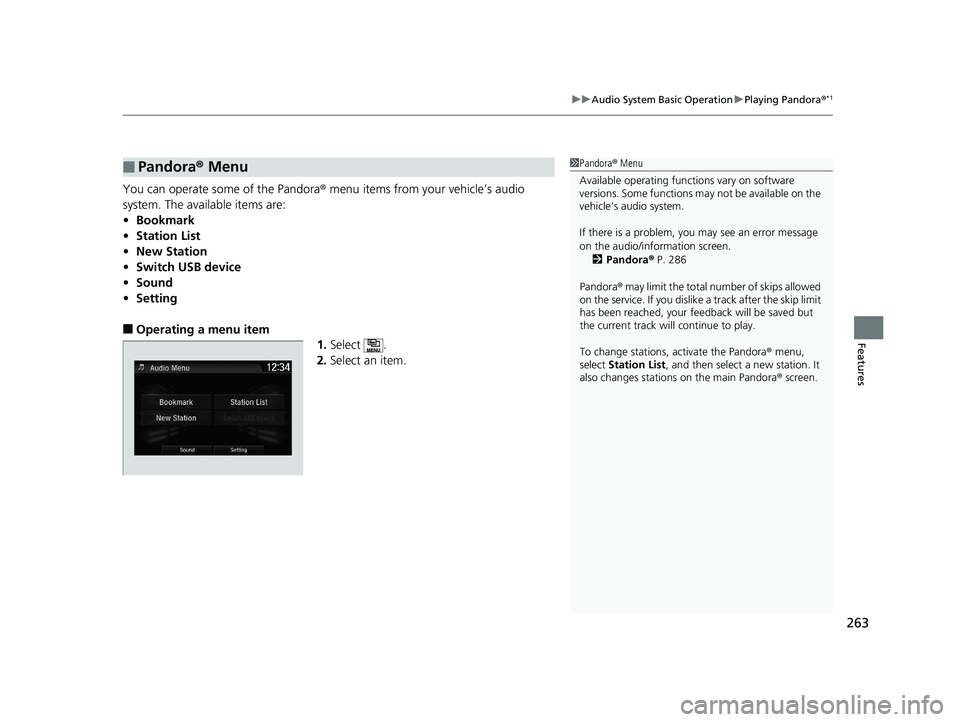

263uu Audio System Basic Operation u Playing Pandora ® *1
Features
You can operate some of the Pandora ® menu items from your vehicle’s audio
system. The available items are:
• Bookmark
• Station List
• New Station
• Switch USB device
• Sound
• Setting
■ Operating a menu item
1. Select .
2. Select an item.■ Pandora ® Menu 1 Pandora ® Menu
Available operating functi ons vary on software
versions. Some functions ma y not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen.
2 Pandora ® P. 286
Pandora ® may limit the total number of skips allowed
on the service. If you dislike a track after the skip limit
has been reached, your fe edback will be saved but
the current track will continue to play.
To change stations, activate the Pandora ® menu,
select Station List , and then select a new station. It
also changes stations on the main Pandora ® screen.18 CLARITY PHEV CSS-31TRW6000.book 263 ページ ２０１７年８月３１日　木曜日　午後２時４９分

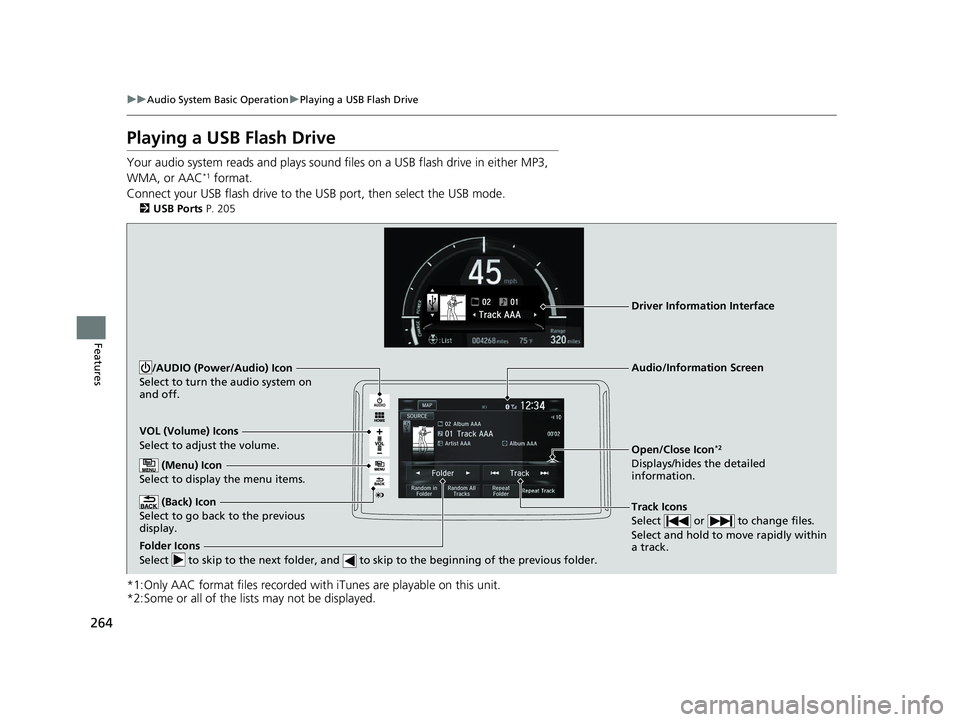

264 uu Audio System Basic Operation u Playing a USB Flash Drive
Features Playing a USB Flash Drive Your audio system reads and plays sound fi les on a USB flash drive in either MP3,
WMA, or AAC *1
format.
Connect your USB flash drive to the USB port, then select the USB mode.2 USB Ports P. 205
*1:Only AAC format files recorded with iTunes are playable on this unit.
*2:Some or all of the lists may not be displayed. VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous
display. Track Icons
Select or to change files.
Select and hold to move rapidly within
a track./AUDIO (Power/Audio) Icon
Select to turn the audio system on
and off.
Open/Close Icon *2
Displays/hides the detailed
information. (Menu) Icon
Select to display the menu items.
Folder Icons
Select to skip to the next folder, and to skip to the beginning of the previous folder. Audio/Information ScreenDriver Information Interface18 CLARITY PHEV CSS-31TRW6000.book 264 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued

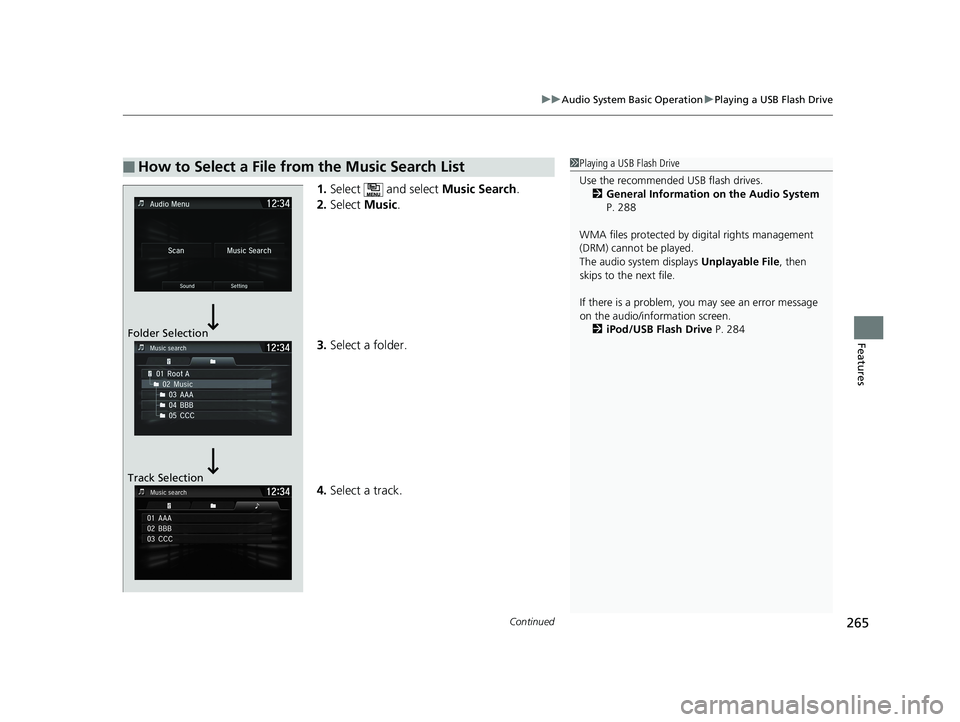

265uu Audio System Basic Operation u Playing a USB Flash Drive
Features
1. Select and select Music Search .
2. Select Music .
3. Select a folder.
4. Select a track.■ How to Select a File from the Music Search List 1 Playing a USB Flash Drive
Use the recommended USB flash drives.
2 General Information on the Audio System
P. 288
WMA files protected by di gital rights management
(DRM) cannot be played.
The audio system displays Unplayable File , then
skips to the next file.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 284
Folder Selection
Track Selection18 CLARITY PHEV CSS-31TRW6000.book 265 ページ ２０１７年８月３１日　木曜日　午後２時４９分

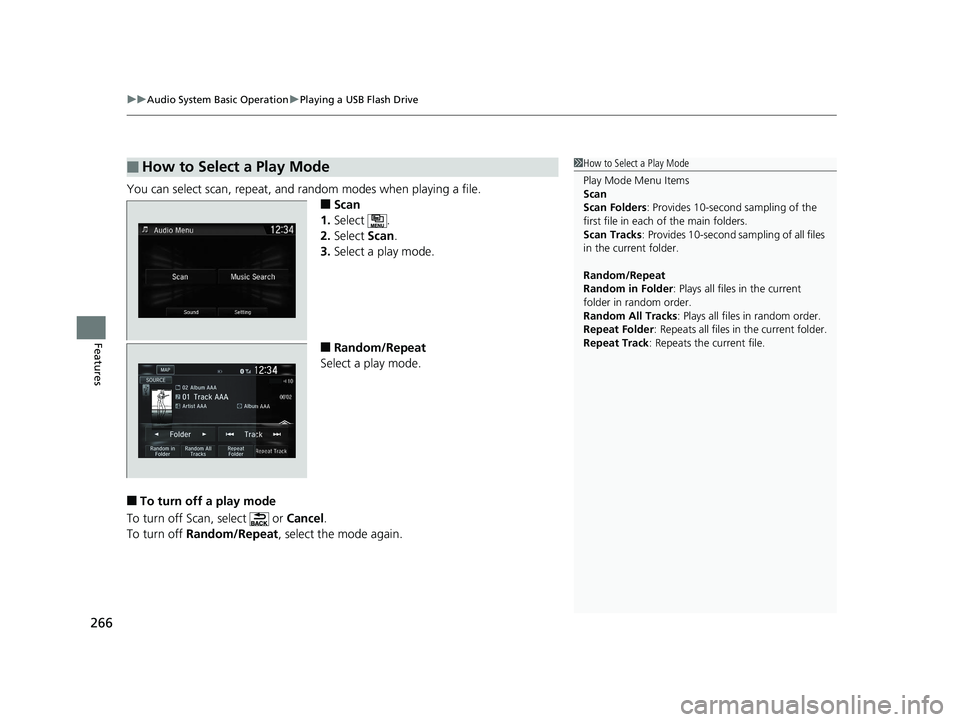

uu Audio System Basic Operation u Playing a USB Flash Drive
266
Features You can select scan, repeat, and random modes when playing a file.
■ Scan
1. Select .
2. Select Scan .
3. Select a play mode.
■ Random/Repeat
Select a play mode.
■ To turn off a play mode
To turn off Scan, select or Cancel .
To turn off Random/Repeat , select the mode again.■ How to Select a Play Mode 1 How to Select a Play Mode
Play Mode Menu Items
Scan
Scan Folders : Provides 10-second sampling of the
first file in each of the main folders.
Scan Tracks : Provides 10-second sa mpling of all files
in the current folder.
Random/Repeat
Random in Folder : Plays all files in the current
folder in random order.
Random All Tracks : Plays all files in random order.
Repeat Folder : Repeats all files in the current folder.
Repeat Track : Repeats the current file.18 CLARITY PHEV CSS-31TRW6000.book 266 ページ ２０１７年８月３１日　木曜日　午後２時４９分

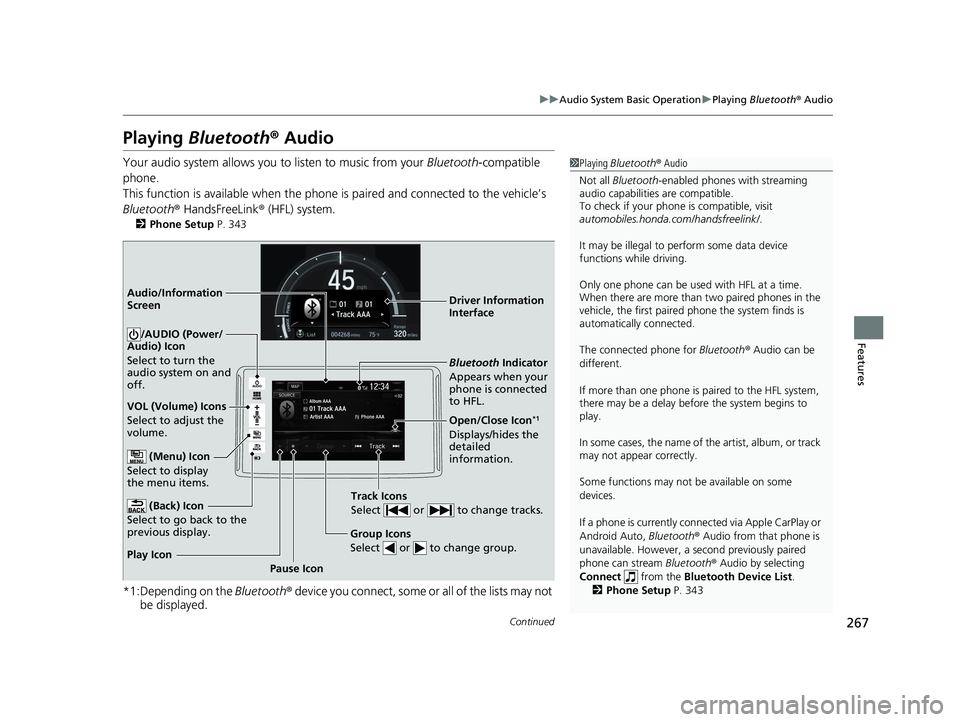

267uu Audio System Basic Operation u Playing Bluetooth ® Audio
Continued
Features
Playing Bluetooth ® AudioYour audio system allows you to listen to music from your Bluetooth -compatible
phone.
This function is available when the phone is paired an d connected to the vehicle’s
Bluetooth ® HandsFreeLink ® (HFL) system.2 Phone Setup P. 343
*1:Depending on the Bluetooth ® device you connect, some or all of the lists may not
be displayed. 1 Playing Bluetooth ® Audio
Not all Bluetooth -enabled phones with streaming
audio capabilities are compatible.
To check if your phone is compatible, visit
automobiles.honda.com /handsfreelink/ .
It may be illegal to pe rform some data device
functions while driving.
Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically connected.
The connected phone for Bluetooth ® Audio can be
different.
If more than one phone is paired to the HFL system,
there may be a delay before the system begins to
play.
In some cases, the name of the artist, album, or track
may not appear correctly.
Some functions may not be available on some
devices.
If a phone is currently conne cted via Appl e CarPlay or
Android Auto, Bluetooth ® Audio from that phone is
unavailable. However, a se cond previously paired
phone can stream Bluetooth ® Audio by selecting
Connect from the Bluetooth Device List .
2 Phone Setup P. 343Audio/Information
Screen
VOL (Volume) Icons
Select to adjust the
volume.
(Back) Icon
Select to go back to the
previous display. /AUDIO (Power/
Audio) Icon
Select to turn the
audio system on and
off.
(Menu) Icon
Select to display
the menu items.
Group Icons
Select or to change group.
Pause IconPlay Icon Bluetooth Indicator
Appears when your
phone is connected
to HFL.
Track Icons
Select or to change tracks. Open/Close Icon *1
Displays/hides the
detailed
information.Driver Information
Interface18 CLARITY PHEV CSS-31TRW6000.book 267 ページ ２０１７年８月３１日　木曜日　午後２時４９分

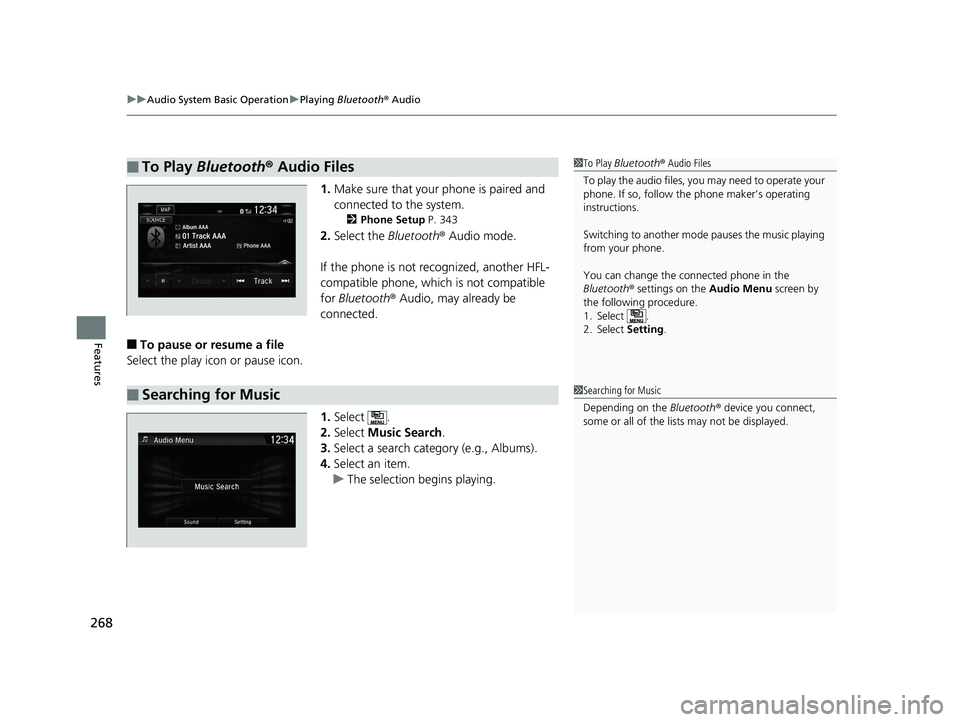

uu Audio System Basic Operation u Playing Bluetooth ® Audio
268
Features 1. Make sure that your phone is paired and
connected to the system. 2 Phone Setup P. 343
2. Select the Bluetooth ® Audio mode.
If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth ® Audio, may already be
connected.
■ To pause or resume a file
Select the play icon or pause icon.
1. Select .
2. Select Music Search .
3. Select a search cate gory (e.g., Albums).
4. Select an item.
u The selection begins playing.■ To Play Bluetooth ® Audio Files 1 To Play Bluetooth ® Audio Files
To play the audio files, y ou may need to operate your
phone. If so, follow the phone maker’s operating
instructions.
Switching to another mode pauses the music playing
from your phone.
You can change the connected phone in the
Bluetooth ® settings on the Audio Menu screen by
the following procedure.
1. Select .
2. Select Setting .
■ Searching for Music 1 Searching for Music
Depending on the Bluetooth ® device you connect,
some or all of the list s may not be displayed.18 CLARITY PHEV CSS-31TRW6000.book 268 ページ ２０１７年８月３１日　木曜日　午後２時４９分
