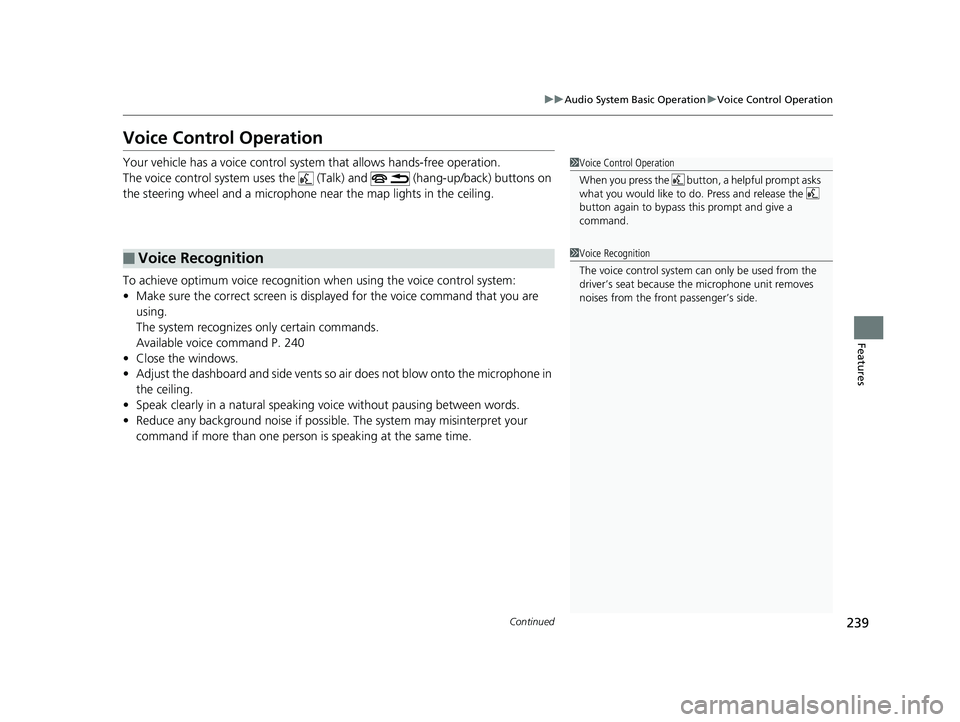

239uu Audio System Basic Operation u Voice Control Operation
Continued
Features
Voice Control Operation Your vehicle has a voice control syst em that allows hands-free operation.
The voice control system uses the ( Talk) and (hang-up/back) buttons on
the steering wheel and a microphone near the map lights in the ceiling.
To achieve optimum voice recognition when using the voic e control system:
• Make sure the correct screen is displa yed for the voice command that you are
using.
The system recognizes only certain commands.
Available voice command P. 240
• Close the windows.
• Adjust the dashboard and side vents so air does not blow onto the microphone in
the ceiling.
• Speak clearly in a natural speaking vo ice without pausing between words.
• Reduce any background noise if possibl e. The system may misinterpret your
command if more than one person is speaking at the same time.■ Voice Recognition 1 Voice Control Operation
When you press the button, a helpful prompt asks
what you would like to do. Press and release the
button again to bypass th is prompt and give a
command.
1 Voice Recognition
The voice control system can only be used from the
driver’s seat because the microphone unit removes
noises from the front passenger’s side.18 CLARITY PHEV CSS-31TRW6000.book 239 ページ ２０１７年８月３１日　木曜日　午後２時４９分

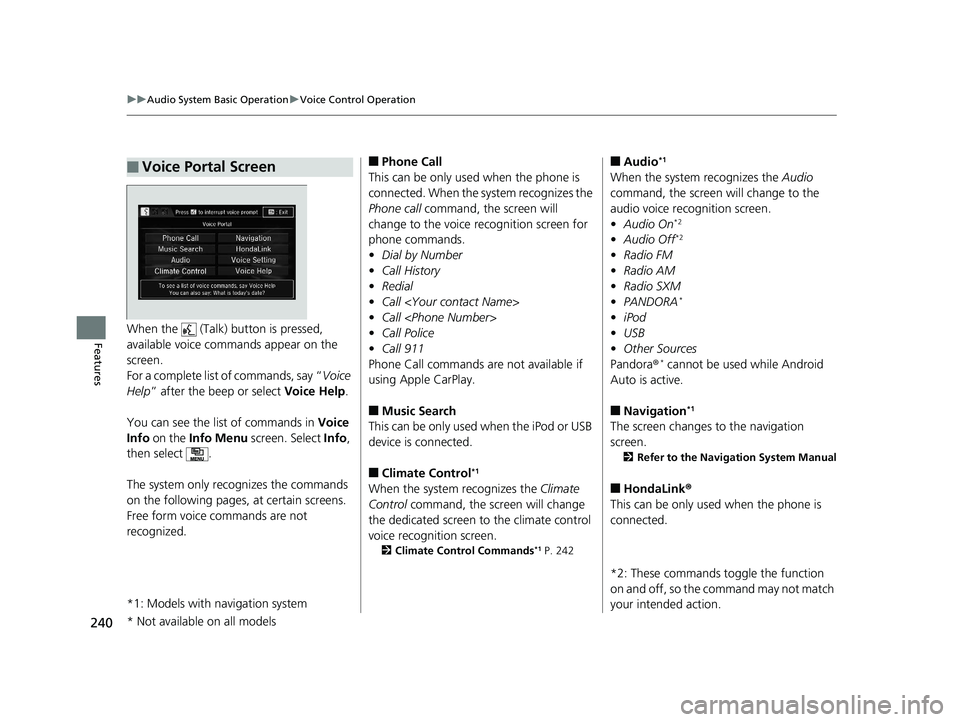

240 uu Audio System Basic Operation u Voice Control Operation
Features When the (Talk) button is pressed,
available voice commands appear on the
screen.
For a complete list of commands, say “ Voice
Help ” after the beep or select Voice Help .
You can see the list of commands in Voice
Info on the Info Menu screen. Select Info ,
then select .
The system only reco gnizes the commands
on the following pages, at certain screens.
Free form voice commands are not
recognized.
*1: Models with navigation system■ Voice Portal Screen ■ Phone Call
This can be only used when the phone is
connected. When the sy stem recognizes the
Phone call command, the screen will
change to the voice re cognition screen for
phone commands.
• Dial by Number
• Call History
• Redial
• Call
• Call
• Call Police
• Call 911
Phone Call commands are not available if
using Apple CarPlay.
■ Music Search
This can be only used when the iPod or USB
device is connected.
■ Climate Control *1
When the system recognizes the Climate
Control command, the screen will change
the dedicated screen to the climate control
voice recognition screen. 2 Climate Control Commands *1
P. 242■ Audio *1
When the system recognizes the Audio
command, the screen will change to the
audio voice recognition screen.
• Audio On *2
• Audio Off *2
• Radio FM
• Radio AM
• Radio SXM
• PANDORA *
• iPod
• USB
• Other Sources
Pandora ® *
cannot be used while Android
Auto is active.
■ Navigation *1
The screen changes to the navigation
screen. 2 Refer to the Navigation System Manual
■ HondaLink ®
This can be only used when the phone is
connected.
*2: These commands to ggle the function
on and off, so the command may not match
your intended action.
* Not available on all models 18 CLARITY PHEV CSS-31TRW6000.book 240 ページ ２０１７年８月３１日　木曜日　午後２時４９分

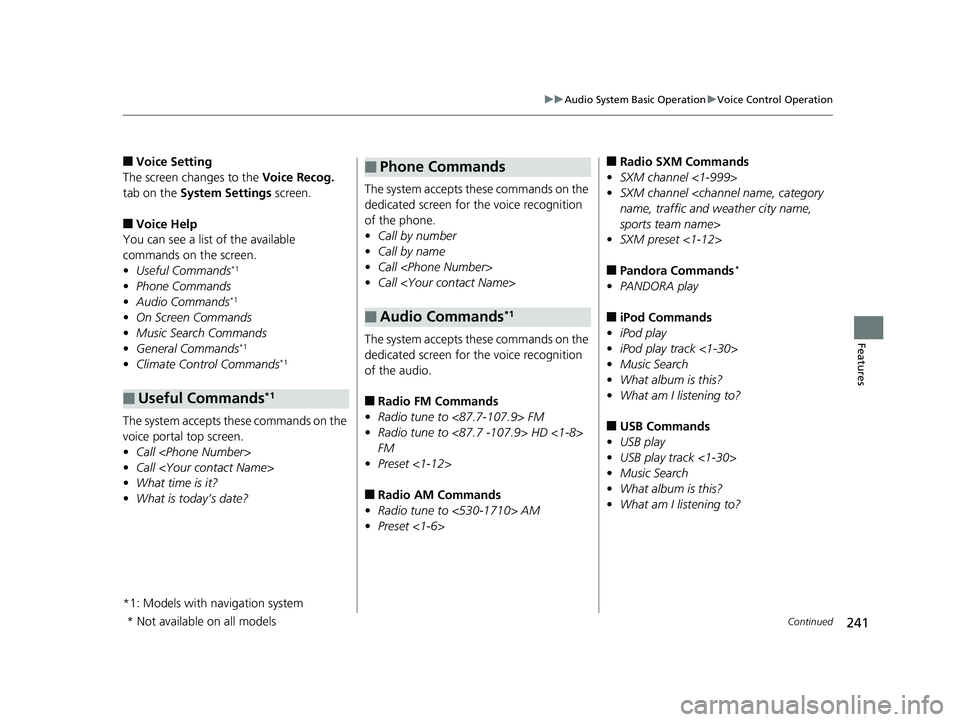

241uu Audio System Basic Operation u Voice Control Operation
Continued
Features
■ Voice Setting
The screen changes to the Voice Recog.
tab on the System Settings screen.
■ Voice Help
You can see a list of the available
commands on the screen.
• Useful Commands *1
• Phone Commands
• Audio Commands *1
• On Screen Commands
• Music Search Commands
• General Commands *1
• Climate Control Commands *1
The system accepts these commands on the
voice portal top screen.
• Call
• Call
• What time is it?
• What is today’s date?
*1: Models with navigation system■ Useful Commands *1 The system accepts these commands on the
dedicated screen for the voice recognition
of the phone.
• Call by number
• Call by name
• Call
• Call
The system accepts these commands on the
dedicated screen for the voice recognition
of the audio.
■ Radio FM Commands
• Radio tune to <87.7-107.9> FM
• Radio tune to <87.7 -107.9> HD <1-8>
FM
• Preset <1-12>
■ Radio AM Commands
• Radio tune to <530-1710> AM
• Preset <1-6>■ Phone Commands
■ Audio Commands *1
■ Radio SXM Commands
• SXM channel <1-999>
• SXM channel name, traffic and weather city name,
sports team name>
• SXM preset <1-12>
■ Pandora Commands *
• PANDORA play
■ iPod Commands
• iPod play
• iPod play track <1-30>
• Music Search
• What album is this?
• What am I listening to?
■ USB Commands
• USB play
• USB play track <1-30>
• Music Search
• What album is this?
• What am I listening to?
* Not available on all models 18 CLARITY PHEV CSS-31TRW6000.book 241 ページ ２０１７年８月３１日　木曜日　午後２時４９分

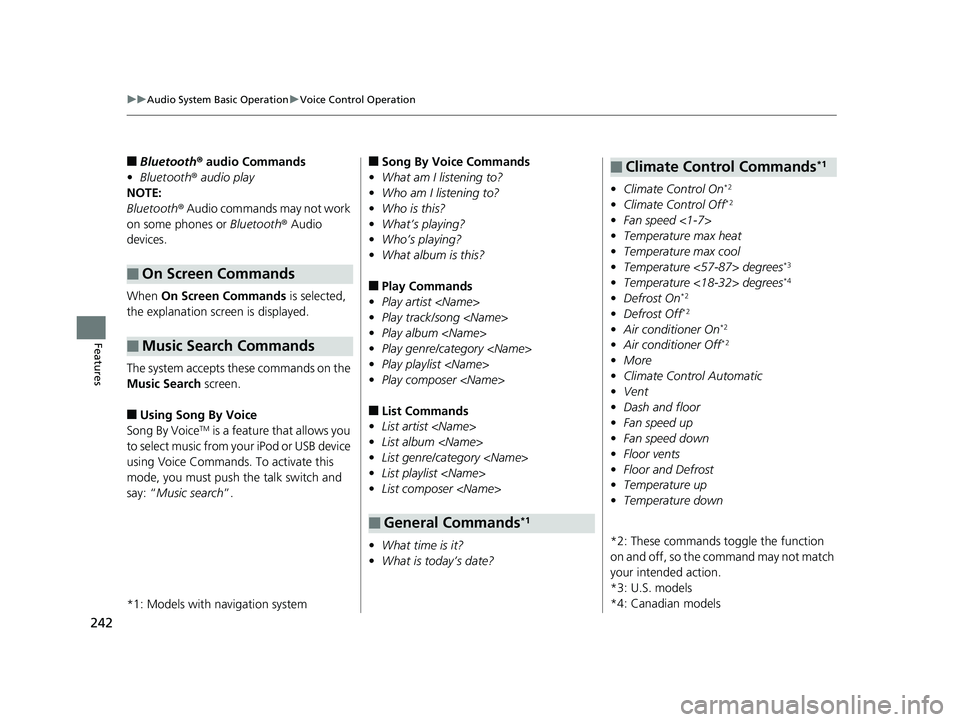

242 uu Audio System Basic Operation u Voice Control Operation
Features ■ Bluetooth ® audio Commands
• Bluetooth ® audio play
NOTE:
Bluetooth ® Audio commands may not work
on some phones or Bluetooth ® Audio
devices.
When On Screen Commands is selected,
the explanation screen is displayed.
The system accepts these commands on the
Music Search screen.
■ Using Song By Voice
Song By Voice TM
is a feature that allows you
to select music from your iPod or USB device
using Voice Commands. To activate this
mode, you must push the talk switch and
say: “ Music search ”.
*1: Models with navigation system■ On Screen Commands
■ Music Search Commands ■ Song By Voice Commands
• What am I listening to?
• Who am I listening to?
• Who is this?
• What’s playing?
• Who’s playing?
• What album is this?
■ Play Commands
• Play artist
• Play track/song
• Play album
• Play genre/category
• Play playlist
• Play composer
■ List Commands
• List artist
• List album
• List genre/category
• List playlist
• List composer
• What time is it?
• What is today’s date?
■ General Commands *1• Climate Control On *2
• Climate Control Off *2
• Fan speed <1-7>
• Temperature max heat
• Temperature max cool
• Temperature <57-87> degrees *3
• Temperature <18-32> degrees *4
• Defrost On *2
• Defrost Off *2
• Air conditioner On *2
• Air conditioner Off *2
• More
• Climate Control Automatic
• Vent
• Dash and floor
• Fan speed up
• Fan speed down
• Floor vents
• Floor and Defrost
• Temperature up
• Temperature down
*2: These commands to ggle the function
on and off, so the command may not match
your intended action.
*3: U.S. models
*4: Canadian models■ Climate Control Commands *118 CLARITY PHEV CSS-31TRW6000.book 242 ページ ２０１７年８月３１日　木曜日　午後２時４９分

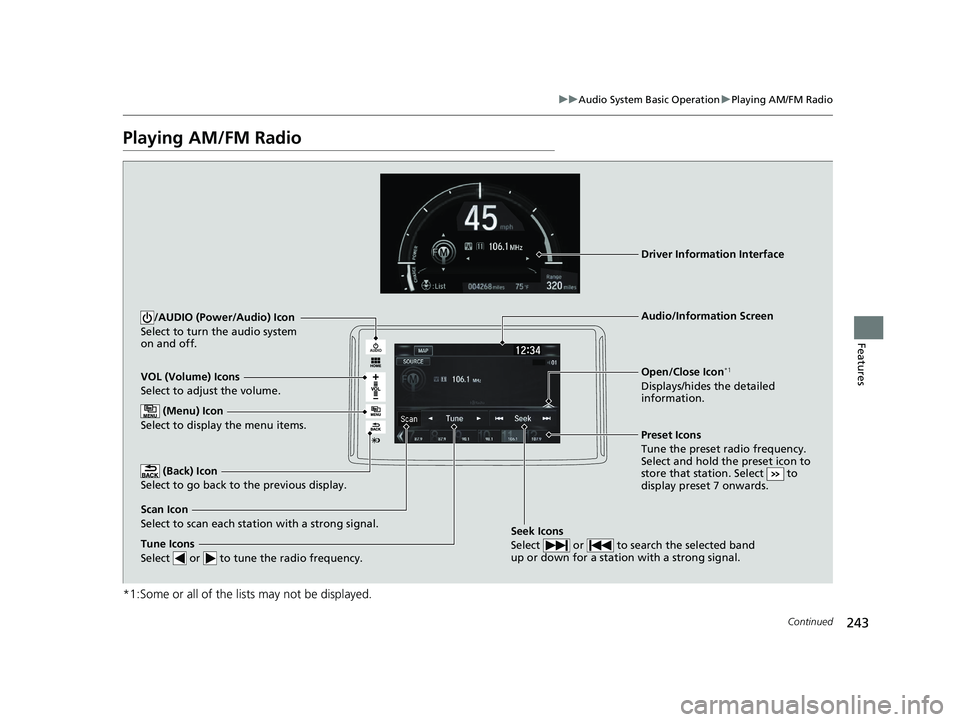

243uu Audio System Basic Operation u Playing AM/FM Radio
Continued
Features
Playing AM/FM Radio
*1:Some or all of the lists may not be displayed. VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous display. /AUDIO (Power/Audio) Icon
Select to turn the audio system
on and off.
Open/Close Icon *1
Displays/hides the detailed
information.
(Menu) Icon
Select to display the menu items.
Tune Icons
Select or to tune the radio frequency. Audio/Information Screen
Scan Icon
Select to scan each station with a strong signal. Preset Icons
Tune the preset radio frequency.
Select and hold the preset icon to
store that station. Select to
display preset 7 onwards.Driver Information Interface
Seek Icons
Select or to search the selected band
up or down for a station with a strong signal.18 CLARITY PHEV CSS-31TRW6000.book 243 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Audio System Basic Operation u Playing AM/FM Radio
244
Features To store a station:
1. Tune to the selected station.
2. Select and hold the preset number for the station you want to store.
You can also store a preset station by the following procedure.
1. Tune to the selected station.
2. Select the open/close ic on to display a list.
3. Select the Preset tab.
4. Select and hold the preset number for the station you want to store.
Lists the strongest stations on the selected band.
1. Select the open/close ic on to display a list.
2. Select the Station List tab.
3. Select the station.
■ Manual update
Updates your available station list at any time.
1. Select the open/close ic on to display a list.
2. Select the Station List tab.
3. Select Refresh .■ Preset Memory
■ Station List 1 Playing AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the or button on the steering wheel or
select SOURCE on the screen.
2 Audio Remote Controls P. 207
You can store 6 AM stations and 12 FM stations into
preset memory.
HD Radio Technology manufactured under license
from iBiquity Digital Cor poration. U.S. and Foreign
Patents. HD Radio TM
and the HD, HD Radio, and
“Arc” logos are proprietary trademarks of iBiquity
Digital Corp.
HD Radio TM
stations not availabl e in all locations in
Canada. 3 4
Models with HD Radio TM
feature18 CLARITY PHEV CSS-31TRW6000.book 244 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued

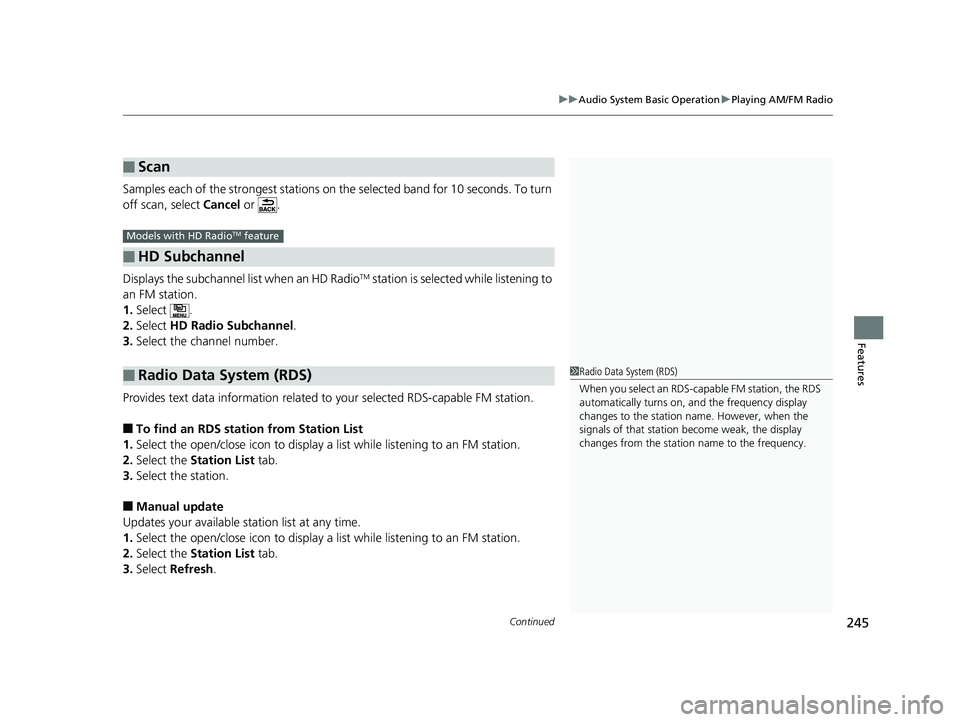

245uu Audio System Basic Operation u Playing AM/FM Radio
Features
Samples each of the strongest stations on th e selected band for 10 seconds. To turn
off scan, select Cancel or .
Displays the subchannel list when an HD Radio TM
station is selected while listening to
an FM station.
1. Select .
2. Select HD Radio Subchannel .
3. Select the channel number.
Provides text data information related to your selected RDS-capable FM station.
■ To find an RDS station from Station List
1. Select the open/close icon to display a list while listening to an FM station.
2. Select the Station List tab.
3. Select the station.
■ Manual update
Updates your available st ation list at any time.
1. Select the open/close icon to display a list while listening to an FM station.
2. Select the Station List tab.
3. Select Refresh .■ Scan
■ HD Subchannel
■ Radio Data System (RDS) Models with HD Radio TM
feature
1 Radio Data System (RDS)
When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station become weak, the display
changes from the statio n name to the frequency.18 CLARITY PHEV CSS-31TRW6000.book 245 ページ ２０１７年８月３１日　木曜日　午後２時４９分

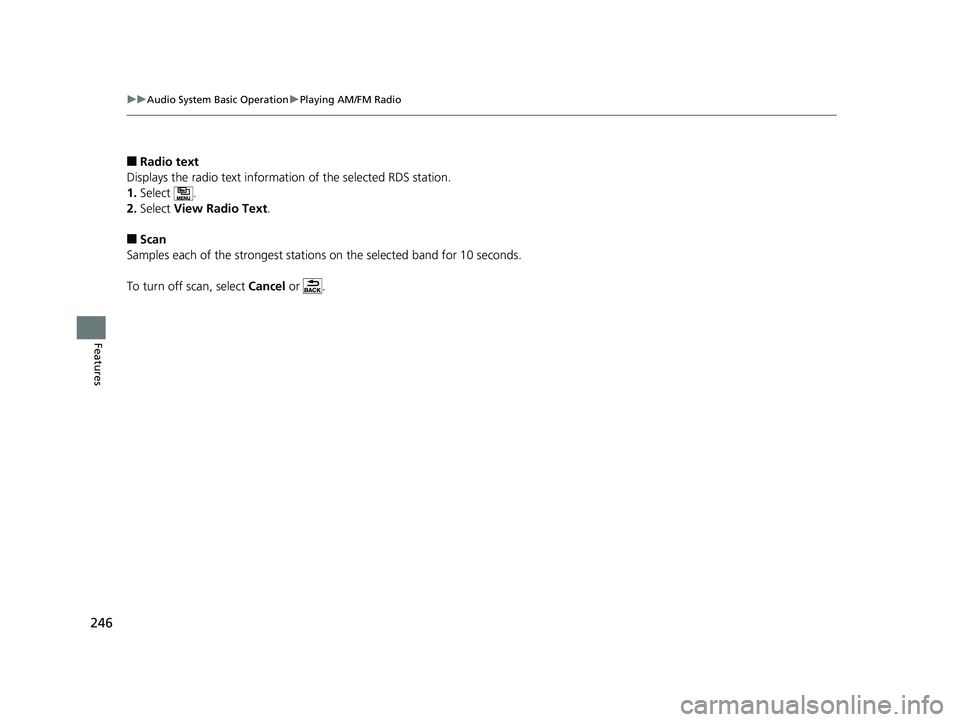

246 uu Audio System Basic Operation u Playing AM/FM Radio
Features ■ Radio text
Displays the radio text informat ion of the selected RDS station.
1. Select .
2. Select View Radio Text .
■ Scan
Samples each of the strongest stations on the selected band for 10 seconds.
To turn off scan, select Cancel or .18 CLARITY PHEV CSS-31TRW6000.book 246 ページ ２０１７年８月３１日　木曜日　午後２時４９分

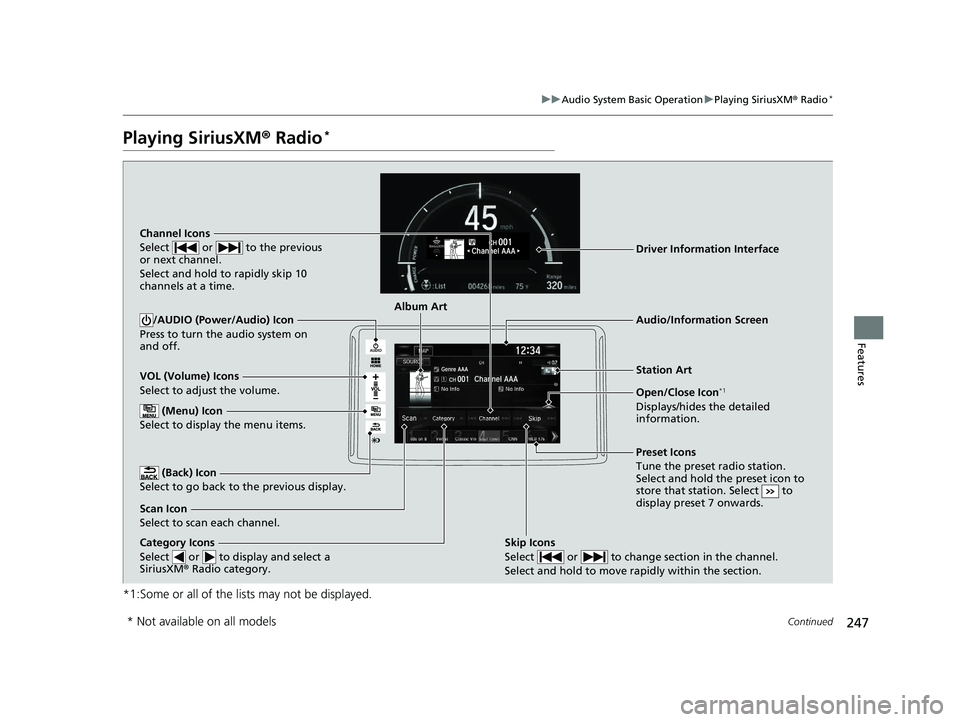

247uu Audio System Basic Operation u Playing SiriusXM ® Radio *
Continued
Features
Playing SiriusXM ® Radio *
*1:Some or all of the lists may not be displayed. VOL (Volume) Icons
Select to adjust the volume.
(Back) Icon
Select to go back to the previous display. /AUDIO (Power/Audio) Icon
Press to turn the audio system on
and off.
Open/Close Icon *1
Displays/hides the detailed
information. (Menu) Icon
Select to display the menu items.
Category Icons
Select or to display and select a
SiriusXM ® Radio category. Audio/Information Screen
Scan Icon
Select to scan each channel. Preset Icons
Tune the preset radio station.
Select and hold the preset icon to
store that station. Select to
display preset 7 onwards.
Skip Icons
Select or to change section in the channel.
Select and hold to move rapidly within the section. Driver Information Interface
Album Art
Station ArtChannel Icons
Select or to the previous
or next channel.
Select and hold to rapidly skip 10
channels at a time.
* Not available on all models 18 CLARITY PHEV CSS-31TRW6000.book 247 ページ ２０１７年８月３１日　木曜日　午後２時４９分

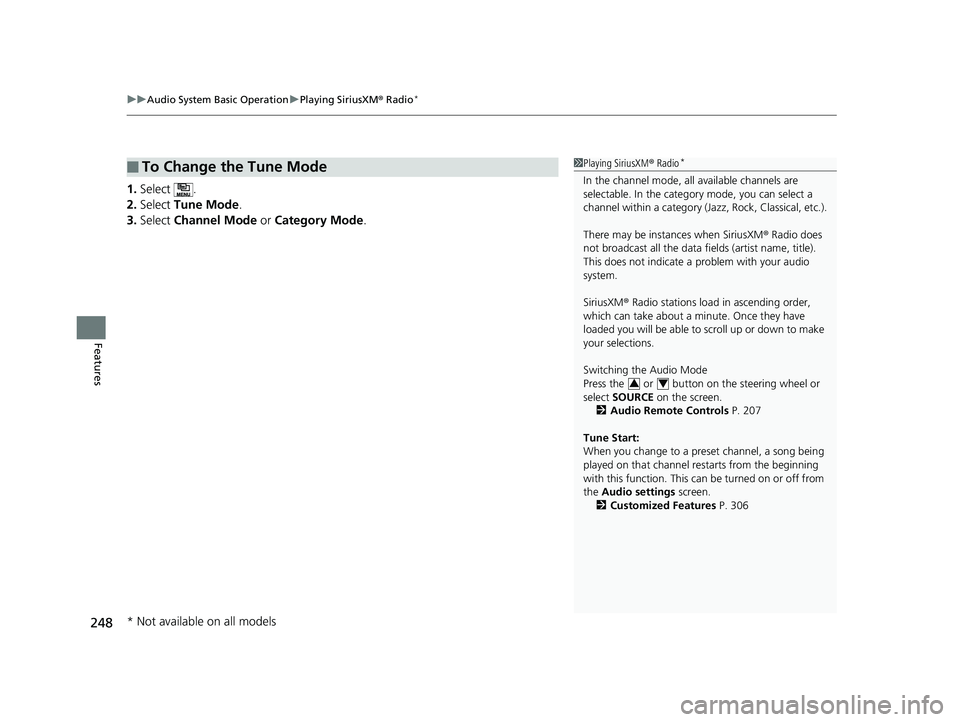

uu Audio System Basic Operation u Playing SiriusXM ® Radio *
248
Features 1. Select .
2. Select Tune Mode .
3. Select Channel Mode or Category Mode .
■ To Change the Tune Mode 1 Playing SiriusXM ® Radio *
In the channel mode, all available channels are
selectable. In the categor y mode, you can select a
channel within a ca tegory (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM ® Radio does
not broadcast all the data fi elds (artist name, title).
This does not indicate a problem with your audio
system.
SiriusXM ® Radio stations load in ascending order,
which can take about a minute. Once they have
loaded you will be able to scroll up or down to make
your selections.
Switching the Audio Mode
Press the or button on the steering wheel or
select SOURCE on the screen.
2 Audio Remote Controls P. 207
Tune Start:
When you change to a preset channel, a song being
played on that channel restarts from the beginning
with this function. This can be turned on or off from
the Audio settings screen.
2 Customized Features P. 3063 4
* Not available on all models 18 CLARITY PHEV CSS-31TRW6000.book 248 ページ ２０１７年８月３１日　木曜日　午後２時４９分
