HONDA CLARITY PLUG IN HYBRID 2019 Owners Manual
Manufacturer: HONDA, Model Year: 2019, Model line: CLARITY PLUG IN HYBRID, Model: HONDA CLARITY PLUG IN HYBRID 2019Pages: 591, PDF Size: 24.8 MB
Page 341 of 591

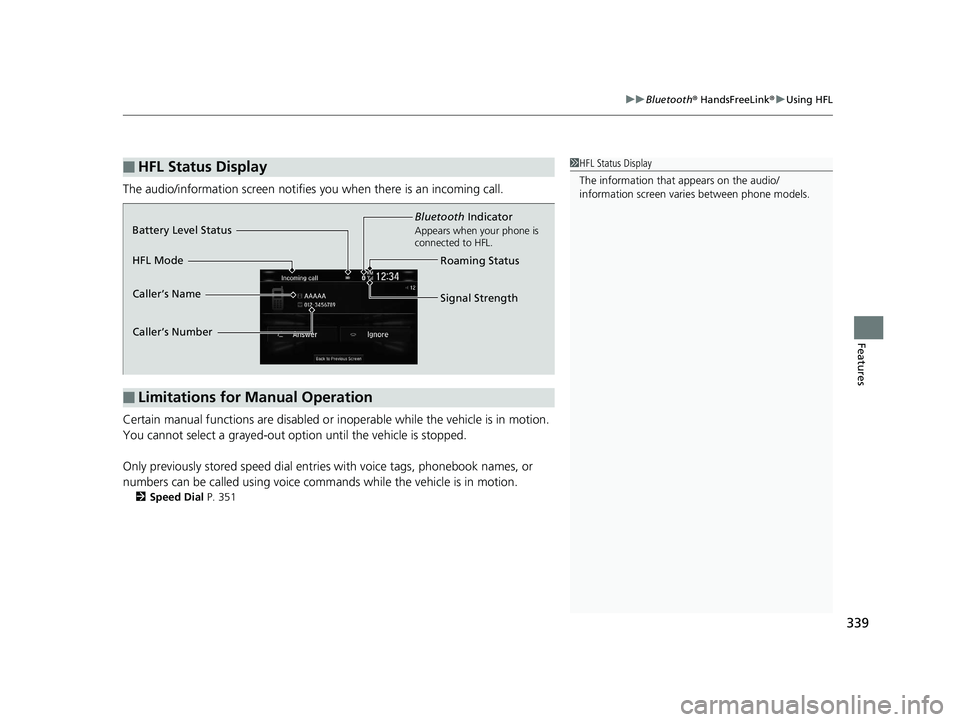

339uu Bluetooth ® HandsFreeLink ® u Using HFL
Features
The audio/information scr een notifies you when there is an incoming call.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries with voice tags, phonebook names, or
numbers can be called using voice commands while the vehicle is in motion. 2 Speed Dial P. 351■ HFL Status Display 1 HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
■ Limitations for Manual Operation Bluetooth IndicatorAppears when your phone is
connected to HFL.
Signal StrengthHFL ModeBattery Level Status
Caller’s Name
Caller’s Number Roaming Status19 CLARITY PHEV-31TRW6100.book 339 ページ 2018年10月25日 木曜日 午後2時29分
Page 342 of 591

340 uu Bluetooth ® HandsFreeLink ® u HFL Menus
Features HFL Menus The power mode must be in ACCESSORY or ON to use HFL.
■ Phone Settings screen
1. Select .
2. Select Settings .
3. Select Phone . 1 HFL Menus
To use HFL, you must first pair your Bluetooth -
compatible cell phone to th e system while the vehicle
is parked.
Some functions are li mited while driving.
Disconnect a paired phone
from the system.Bluetooth Device List (Existing entry list)
Disconnect
Delete
Delete a paired phone.
Add Bluetooth Device
Pair a new phone to the system.Phone
Connect a paired device to
the system.Connect
Connect
Connect 19 CLARITY PHEV-31TRW6100.book 340 ページ 2018年10月25日 木曜日 午後2時29分
Page 343 of 591

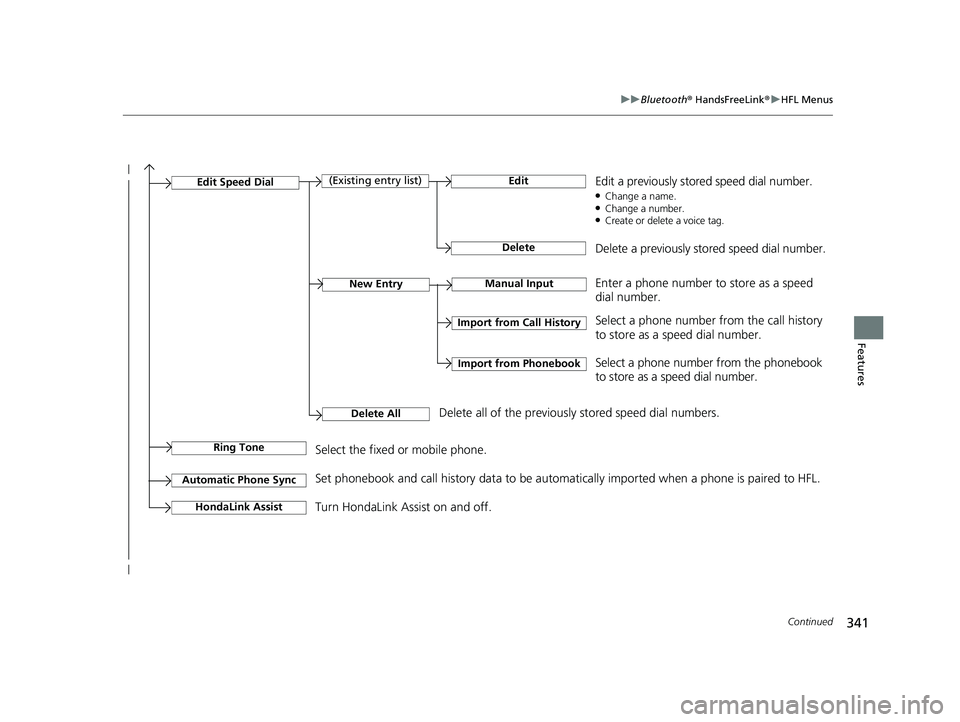

341uu Bluetooth ® HandsFreeLink ® u HFL Menus
Continued
Features
Manual Input
New Entry
Import from Call History
Import from Phonebook Edit
Delete(Existing entry list)
Edit Speed Dial
Delete All Enter a phone number to store as a speed
dial number.
Select a phone number from the call history
to store as a speed dial number.
Delete all of the previously stored speed dial numbers. Select a phone number from the phonebook
to store as a speed dial number.Edit a previously stored speed dial number. ●
Change a name. ●
Change a number. ●
Create or delete a voice tag.
Delete a previously stored speed dial number.
Ring Tone
Select the fixed or mobile phone.Automatic Phone Sync
Set phonebook and call history data to be automa tically imported when a phone is paired to HFL.
Turn HondaLink Assist on and off.HondaLink Assist19 CLARITY PHEV-31TRW6100.book 341 ページ 2018年10月25日 木曜日 午後2時29分
Page 344 of 591

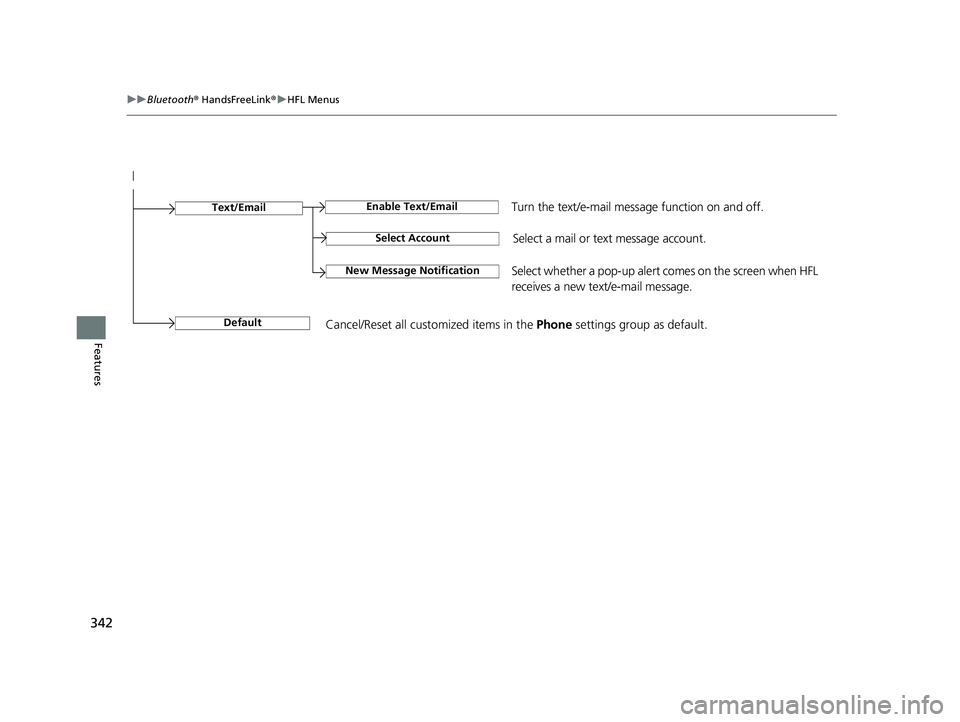

342 uu Bluetooth ® HandsFreeLink ® u HFL Menus
Features Select AccountEnable Text/Email
Text/Email
New Message Notification
Select whether a pop-up alert co mes on the screen when HFL
receives a new text/e-mail message.Turn the text/e-mail message function on and off.
Select a mail or te xt message account.
Default
Cancel/Reset all customized items in the Phone settings group as default.19 CLARITY PHEV-31TRW6100.book 342 ページ 2018年10月25日 木曜日 午後2時29分
Page 345 of 591

343uu Bluetooth ® HandsFreeLink ® u HFL Menus
Continued
Features

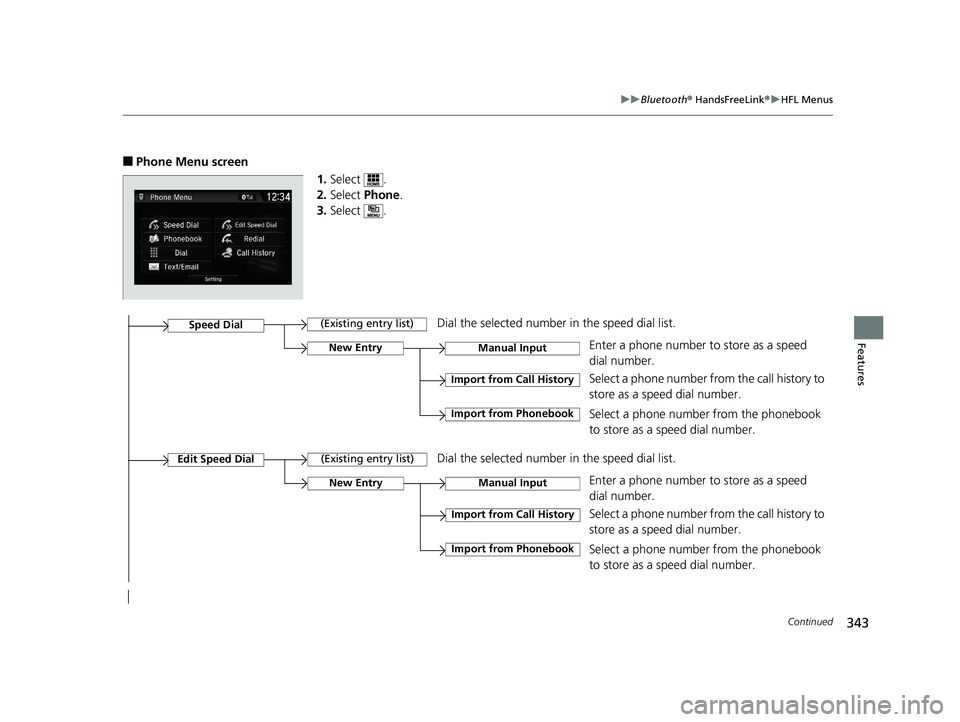

■ Phone Menu screen
1. Select .
2. Select Phone .
3. Select .
Select a phone number from the call history to
store as a speed dial number.Speed Dial
Manual InputNew Entry
Import from Call History
Import from Phonebook
Select a phone number from the phonebook
to store as a speed dial number.Enter a phone number to store as a speed
dial number.(Existing entry list)
Dial the selected number in the speed dial list.
Select a phone number from the call history to
store as a speed dial number.Manual InputNew Entry
Import from Call History
Import from Phonebook
Select a phone number from the phonebook
to store as a speed dial number.Enter a phone number to store as a speed
dial number.(Existing entry list)
Dial the selected number in the speed dial list.Edit Speed Dial19 CLARITY PHEV-31TRW6100.book 343 ページ 2018年10月25日 木曜日 午後2時29分
Page 346 of 591

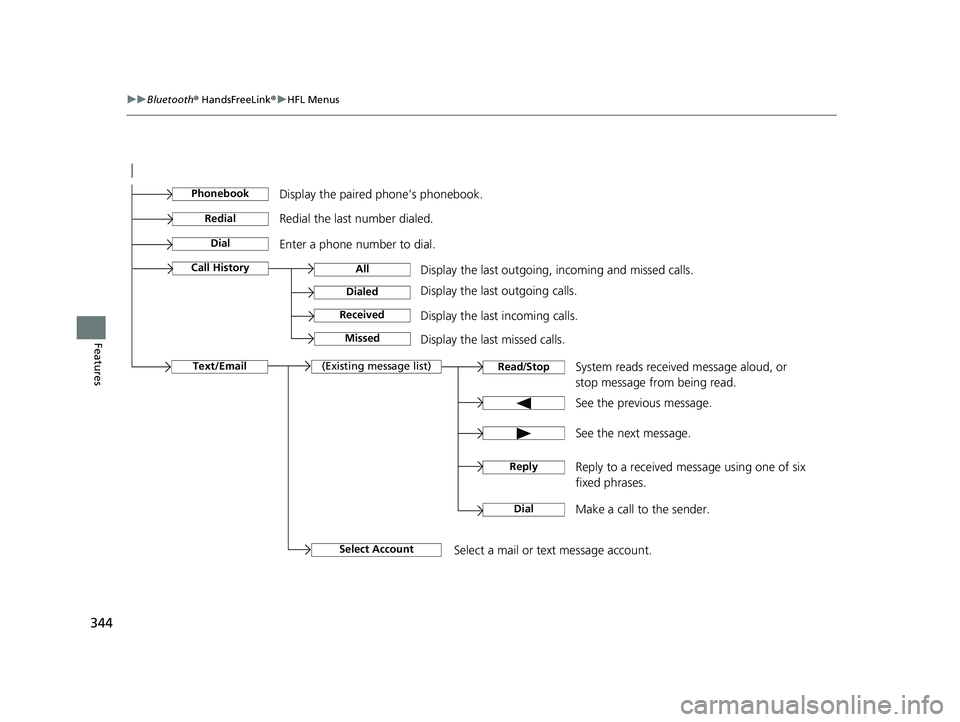

344 uu Bluetooth ® HandsFreeLink ® u HFL Menus
Features See the previous message.Text/Email
Read / Stop(Existing message list)
See the next message.System reads received message aloud, or
stop message from being read.
Select Account
Select a mail or text message account. Reply to a received message using one of six
fixed phrases. Dial
Make a call to the sender.ReplyDisplay the last outgoing, incoming and missed calls.Call History
All
Dialed
Received
Display the last outgoing calls.
Display the last incoming calls.Missed
Display the last missed calls.DialRedial
Enter a phone number to dial.Redial the last number dialed.Phonebook
Display the paired phone’s phonebook.19 CLARITY PHEV-31TRW6100.book 344 ページ 2018年10月25日 木曜日 午後2時29分
Page 347 of 591

Continued
345uu Bluetooth ® HandsFreeLink ® u HFL Menus
Features

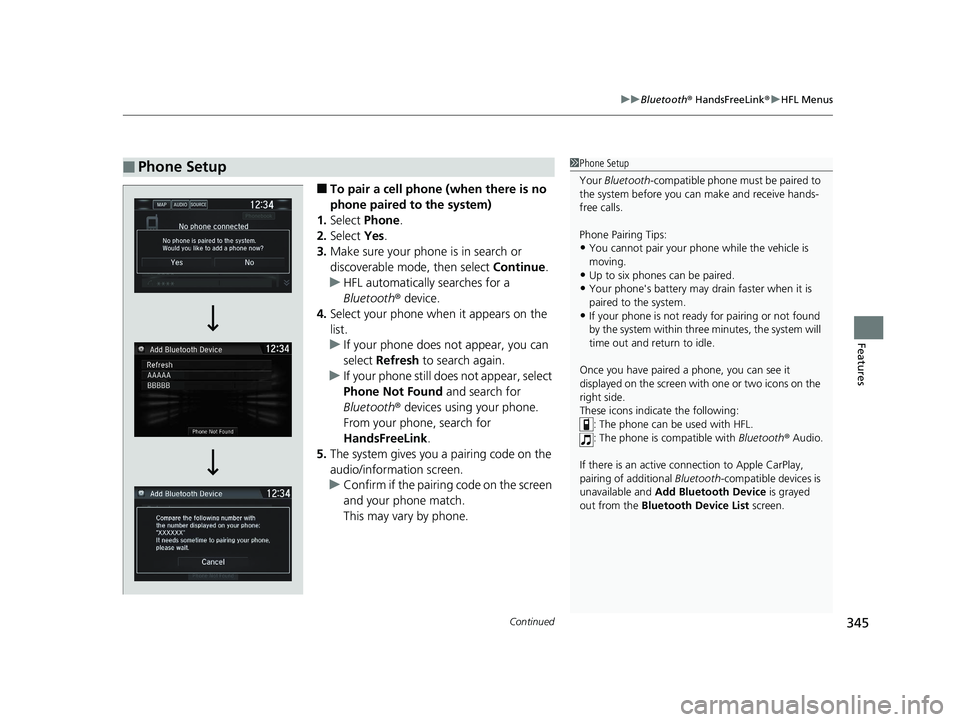

■ To pair a cell phone (when there is no
phone paired to the system)
1. Select Phone .
2. Select Yes .
3. Make sure your phone is in search or
discoverable mode, then select Continue .
u HFL automatically searches for a
Bluetooth ® device.
4. Select your phone when it appears on the
list.
u If your phone does not appear, you can
select Refresh to search again.
u If your phone still do es not appear, select
Phone Not Found and search for
Bluetooth ® devices using your phone.
From your phone, search for
HandsFreeLink .
5. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.
This may vary by phone.■ Phone Setup 1 Phone Setup
Your Bluetooth -compatible phone must be paired to
the system before you ca n make and re ceive hands-
free calls.
Phone Pairing Tips:
• You cannot pair your phone while the vehicle is
moving.
• Up to six phones can be paired.
• Your phone's battery may dr ain faster when it is
paired to the system.
• If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and return to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the
right side.
These icons indicate the following:
: The phone can be used with HFL.
: The phone is compatible with Bluetooth ® Audio.
If there is an active c onnection to A pple CarPlay,
pairing of additional Bluetooth -compatible devices is
unavailable and Add Bluetooth Device is grayed
out from the Bluetooth Device List screen.19 CLARITY PHEV-31TRW6100.book 345 ページ 2018年10月25日 木曜日 午後2時29分
Page 348 of 591

uu Bluetooth ® HandsFreeLink ® u HFL Menus
346

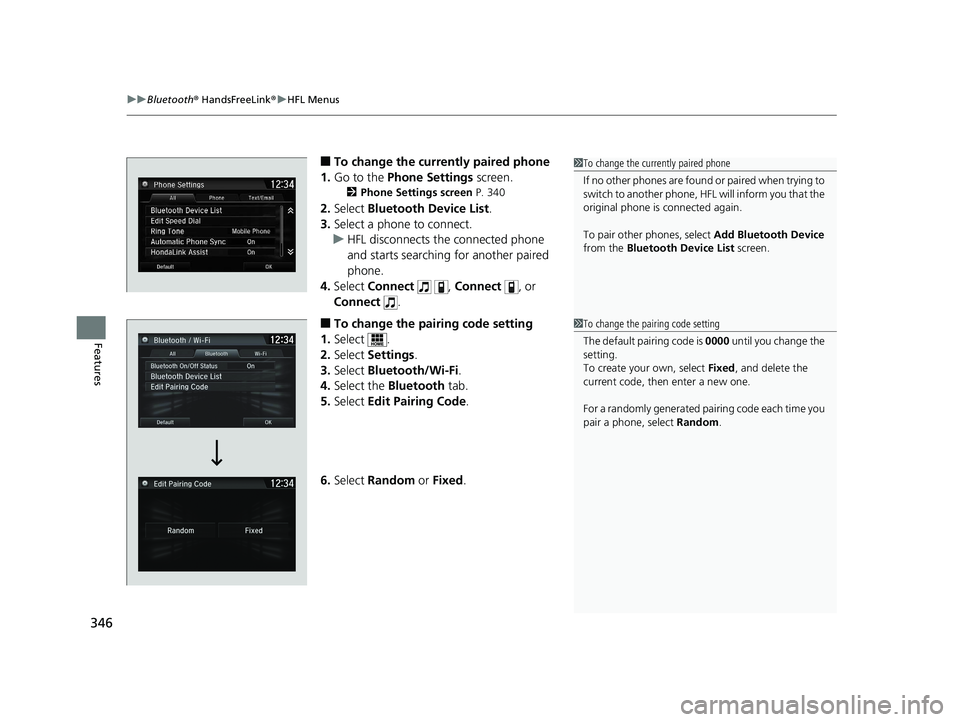

Features ■ To change the currently paired phone
1. Go to the Phone Settings screen.2 Phone Settings screen P. 340
2. Select Bluetooth Device List .
3. Select a phone to connect.
u HFL disconnects the connected phone
and starts searching for another paired
phone.
4. Select Connect , Connect , or
Connect .
■ To change the pairing code setting
1. Select .
2. Select Settings .
3. Select Bluetooth/Wi-Fi .
4. Select the Bluetooth tab.
5. Select Edit Pairing Code .
6. Select Random or Fixed . 1 To change the currently paired phone
If no other phones are found or paired when trying to
switch to another phone, HFL will inform you that the
original phone is connected again.
To pair other phones, select Add Bluetooth Device
from the Bluetooth Device List screen.
1 To change the pairing code setting
The default pair ing code is 0000 until you change the
setting.
To create your own, select Fixed , and delete the
current code, then enter a new one.
For a randomly generated pa iring code each time you
pair a phone , select Random .19 CLARITY PHEV-31TRW6100.book 346 ページ 2018年10月25日 木曜日 午後2時29分
Page 349 of 591

347uu Bluetooth ® HandsFreeLink ® u HFL Menus
Continued
Features

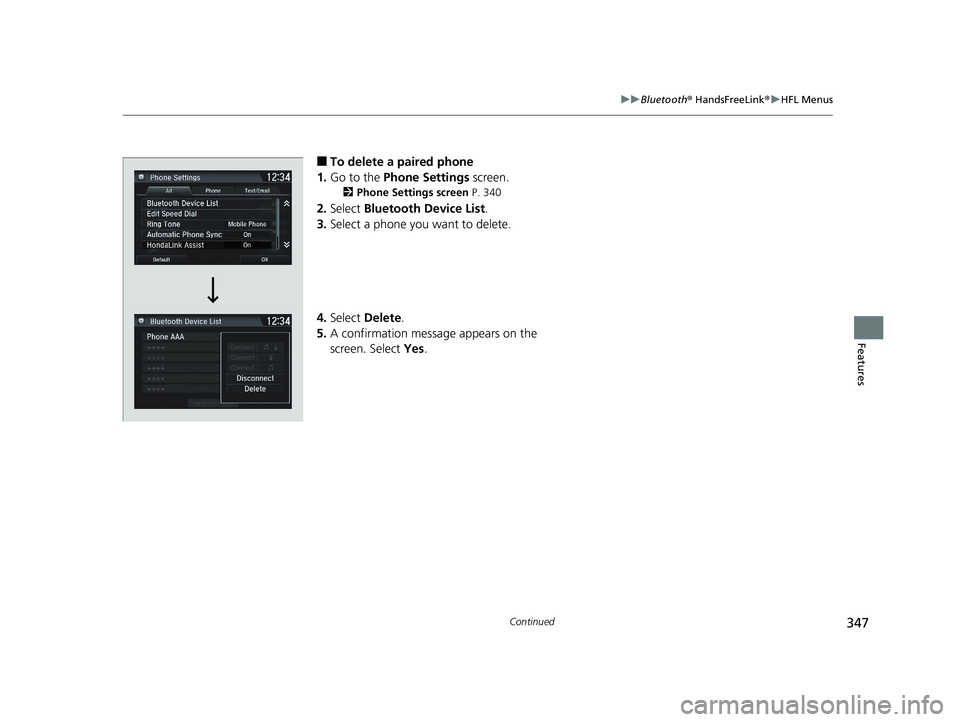

■ To delete a paired phone
1. Go to the Phone Settings screen.2 Phone Settings screen P. 340
2. Select Bluetooth Device List .
3. Select a phone you want to delete.
4. Select Delete .
5. A confirmation message appears on the
screen. Select Yes .19 CLARITY PHEV-31TRW6100.book 347 ページ 2018年10月25日 木曜日 午後2時29分
Page 350 of 591

uu Bluetooth ® HandsFreeLink ® u HFL Menus
348
Features ■ To turn on or off the text/e-mail
message function
1. Go to the Phone Settings screen.2 Phone Settings screen P. 340
2. Select the Text/Email tab, then Enable
Text/Email .
u A pop-up menu appears on the screen.
3. Select On or Off .
■ To turn on or off the text/e-mail
message notice
1. Go to the Phone Settings screen.2 Phone Settings screen P. 340
2. Select the Text/Email tab, then New
Message Notification .
u A pop-up menu appears on the screen.
3. Select On or Off .■ To Set Up Text/E-mail Message Options 1 To Set Up Text/E-mail Message Options
To use the text/e-mail message function, it may be
necessary to set up on your phone.
Some text/e-mail message features may not be
available depending on a cellular phone.
1 To turn on or off the text/e-mail message notice
On: A pop-up notification comes on every time you
receive a new message.
Off: The message you receive is stored in the system
without not ification.19 CLARITY PHEV-31TRW6100.book 348 ページ 2018年10月25日 木曜日 午後2時29分
