key HONDA CLARITY PLUG IN HYBRID 2019 Owners Manual

Continued

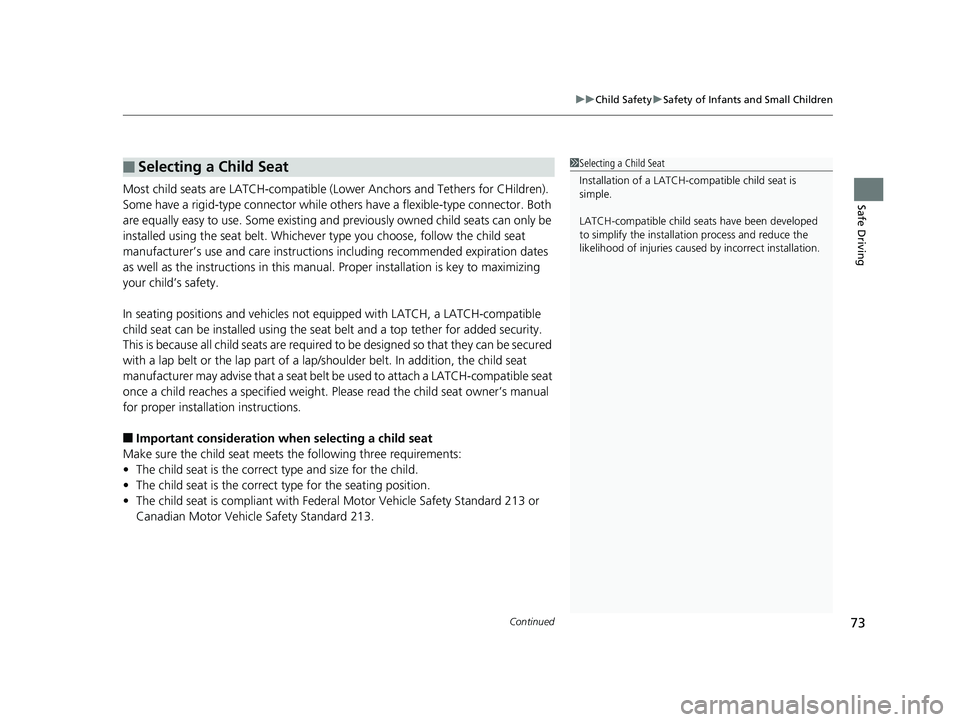

73uu Child Safety u Safety of Infants and Small Children
Safe Driving
Most child seats are LATCH-compatible (L ower Anchors and Tethers for CHildren).
Some have a rigid-type connector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not e quipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seat s are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Pl ease read the child seat owner’s manual
for proper installation instructions.
■ Important consideration when selecting a child seat
Make sure the child seat meets the following thr ee requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federa l Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.■ Selecting a Child Seat 1 Selecting a Child Seat
Installation of a LATCH-co mpatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.19 CLARITY PHEV-31TRW6100.book 73 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

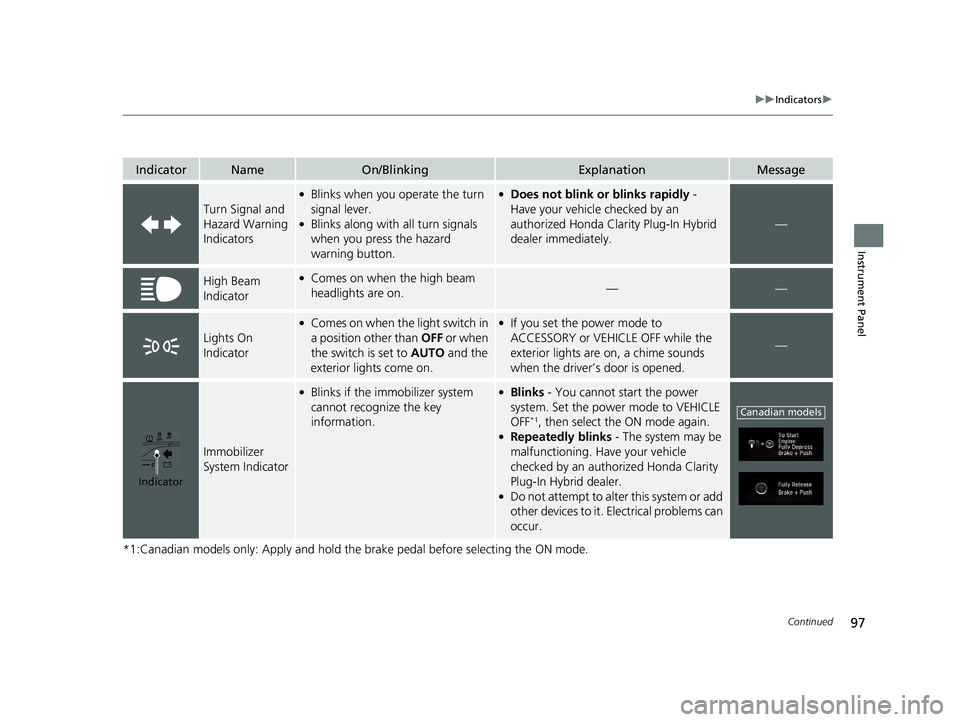

97 uu Indicators u
Continued
Instrument Panel
*1:Canadian models only: Apply and hold th e brake pedal before selecting the ON mode.Indicator Name On/Blinking Explanation Message
Turn Signal and
Hazard Warning
Indicators ●
Blinks when you operate the turn
signal lever. ●
Blinks along with all turn signals
when you press the hazard
warning button. ●
Does not blink or blinks rapidly -
Have your vehicle checked by an
authorized Honda Clarity Plug-In Hybrid
dealer immediately. —
High Beam
Indicator ●
Comes on when the high beam
headlights are on. — —
Lights On
Indicator ●
Comes on when the light switch in
a position other than OFF or when
the switch is set to AUTO and the
exterior lights come on. ●
If you set the power mode to
ACCESSORY or VEHICLE OFF while the
exterior lights are on, a chime sounds
when the driver’s door is opened. —
Immobilizer
System Indicator ●
Blinks if the immobilizer system
cannot recognize the key
information. ●
Blinks - You cannot start the power
system. Set the power mode to VEHICLE
OFF *1
, then select the ON mode again. ●
Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by an author ized Honda Clarity
Plug-In Hybrid dealer. ●
Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.Indicator Canadian models19 CLARITY PHEV-31TRW6100.book 97 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

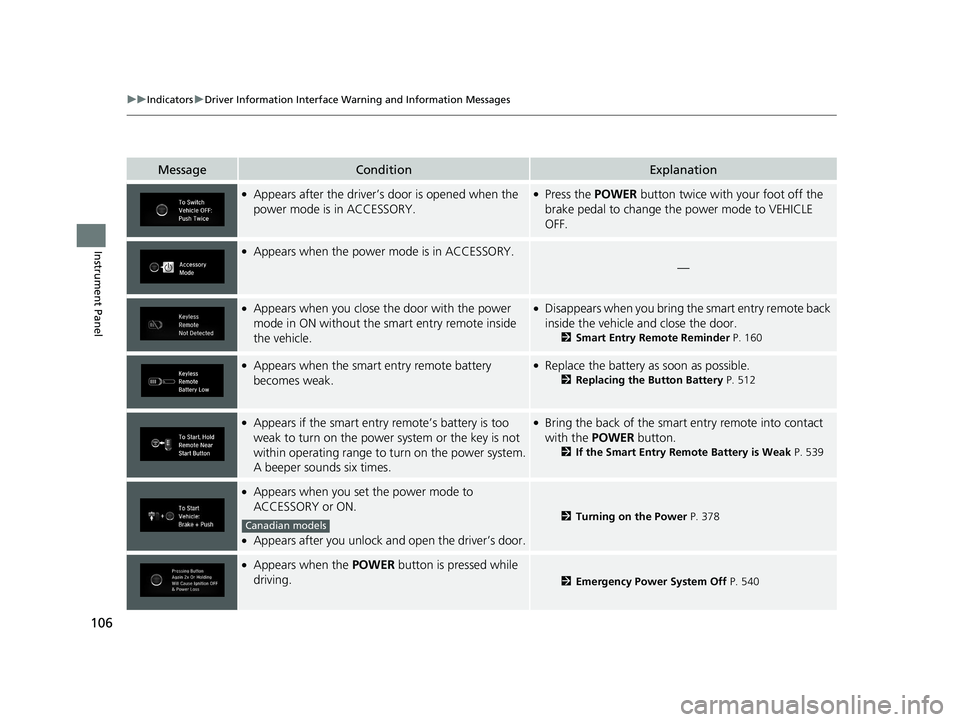

106 uu Indicators u Driver Information Interface Wa rning and Information Messages
Instrument Panel Message Condition Explanation●
Appears after the driver’s door is opened when the
power mode is in ACCESSORY. ●
Press the POWER button twice with your foot off the
brake pedal to change the power mode to VEHICLE
OFF.●
Appears when the power mode is in ACCESSORY.
—●
Appears when you close th e door with the power
mode in ON without the smart entry remote inside
the vehicle. ●
Disappears when you bring the smart entry remote back
inside the vehicle and close the door. 2 Smart Entry Remote Reminder P. 160●
Appears when the smart entry remote battery
becomes weak. ●
Replace the battery as soon as possible. 2 Replacing the Button Battery P. 512●
Appears if the smart entry remote’s battery is too
weak to turn on the power system or the key is not
within operating range to turn on the power system.
A beeper sounds six times. ●
Bring the back of the smart entry remote into contact
with the POWER button.2 If the Smart Entry Remote Battery is Weak P. 539●
Appears when you set the power mode to
ACCESSORY or ON. ●
Appears after you unlock a nd open the driver’s door. 2 Turning on the Power P. 378●
Appears when the POWER button is pressed while
driving. 2 Emergency Power System Off P. 540Canadian models19 CLARITY PHEV-31TRW6100.book 106 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

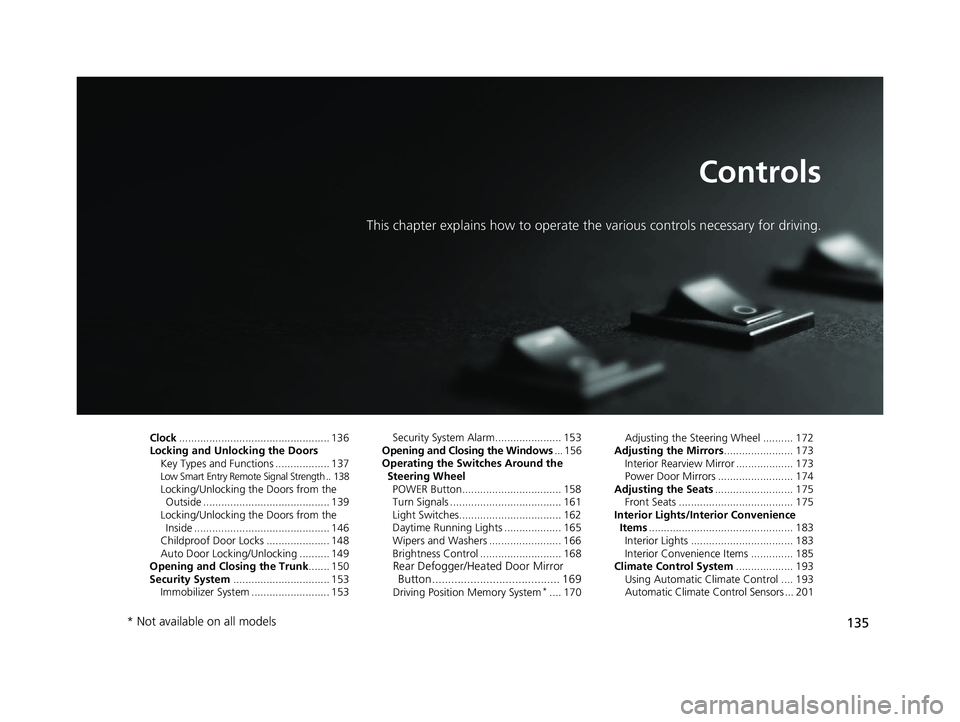

135Controls This chapter explains how to operate th e various controls necessary for driving.
Clock .................................................. 136
Locking and Unlocking the Doors
Key Types and Functions .................. 137 Low Smart Entry Remote Signal Strength .. 138
Locking/Unlocking the Doors from the
Outside .......................................... 139
Locking/Unlocking the Doors from the
Inside ............................................. 146
Childproof Door Locks ..................... 148
Auto Door Locking/Unlocking .......... 149
Opening and Closing the Trunk ....... 150
Security System ................................ 153
Immobilizer System .......................... 153 Security System Alarm...................... 153
Opening and Closing the Windows ... 156
Operating the Switches Around the
Steering Wheel
POWER Button................................. 158
Turn Signals ..................................... 161
Light Switches.................................. 162
Daytime Running Lights ................... 165
Wipers and Washers ........................ 166
Brightness Control ........................... 168
Rear Defogger/Heated Door Mirror
Button........................................ 169
Driving Position Memory System *
.... 170 Adjusting the Steering Wheel .......... 172
Adjusting the Mirrors ....................... 173
Interior Rearview Mirror ................... 173
Power Door Mirrors ......................... 174
Adjusting the Seats .......................... 175
Front Seats ...................................... 175
Interior Lights/Interior Convenience
Items ................................................ 183
Interior Lights .................................. 183
Interior Convenience Items .............. 185
Climate Control System ................... 193
Using Automatic Climate Control .... 193
Automatic Climate Control Sensors ... 201
* Not available on all models 19 CLARITY PHEV-31TRW6100.book 135 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

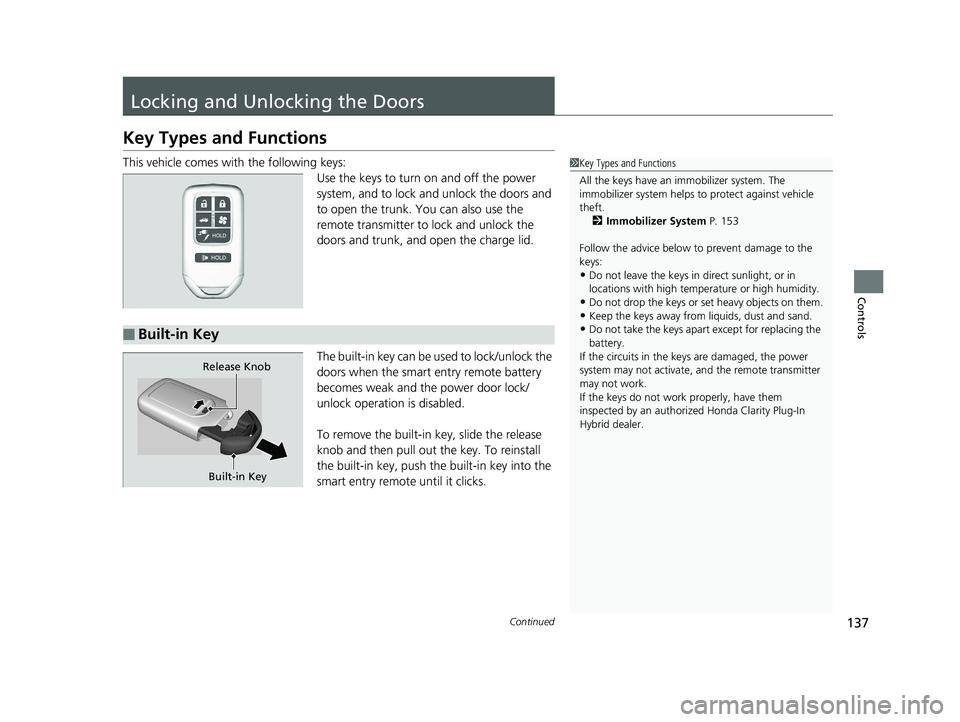

137Continued
Controls
Locking and Unlocking the Doors Key Types and Functions This vehicle comes wi th the following keys:
Use the keys to turn on and off the power
system, and to lock and unlock the doors and
to open the trunk. You can also use the
remote transmitter to lock and unlock the
doors and trunk, and open the charge lid.
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
smart entry remote until it clicks. 1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.
2 Immobilizer System P. 153
Follow the advice below to prevent damage to the
keys:
• Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
• Do not drop the keys or set heavy objects on them.
• Keep the keys away from liquids, dust and sand.
• Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by an authorized Honda Clarity Plug-In
Hybrid dealer.
■ Built-in Key
Built-in KeyRelease Knob19 CLARITY PHEV-31TRW6100.book 137 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

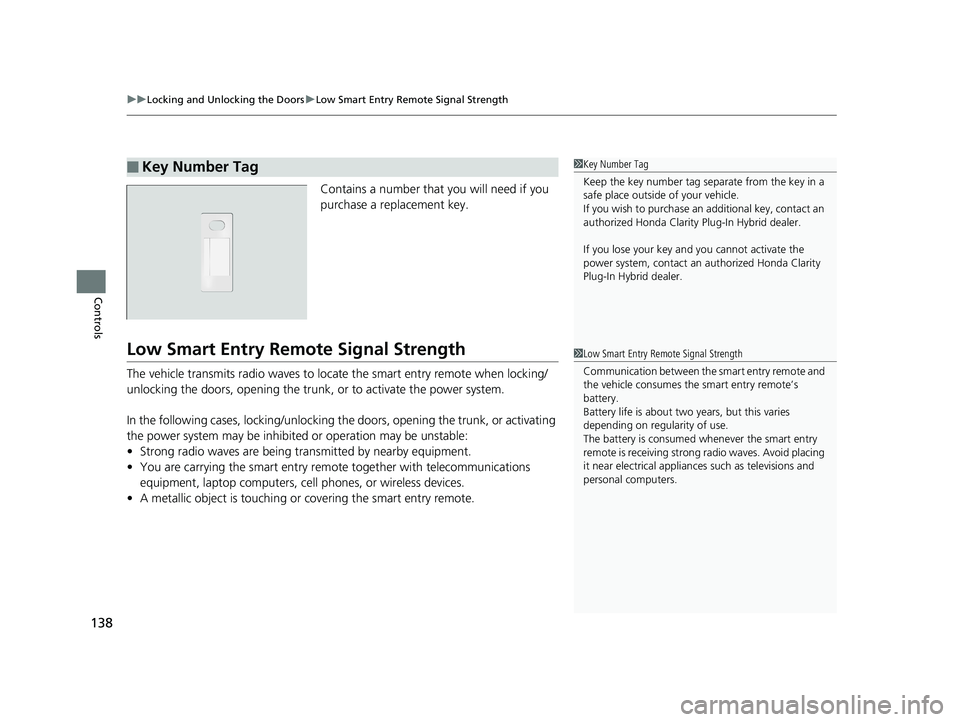

uu Locking and Unlocking the Doors u Low Smart Entry Remote Signal Strength
138
Controls Contains a number that you will need if you
purchase a replacement key.
Low Smart Entry Remo te Signal StrengthThe vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors, opening the trunk, or to activate the power system.
In the following cases, locking/unlocking the doors, opening the trunk, or activating
the power system may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.■ Key Number Tag 1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact an
authorized Honda Clarity Plug-In Hybrid dealer.
If you lose your key an d you cannot activate the
power system, contact an authorized Honda Clarity
Plug-In Hybrid dealer.
1 Low Smart Entry Remote Signal Strength
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.19 CLARITY PHEV-31TRW6100.book 138 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

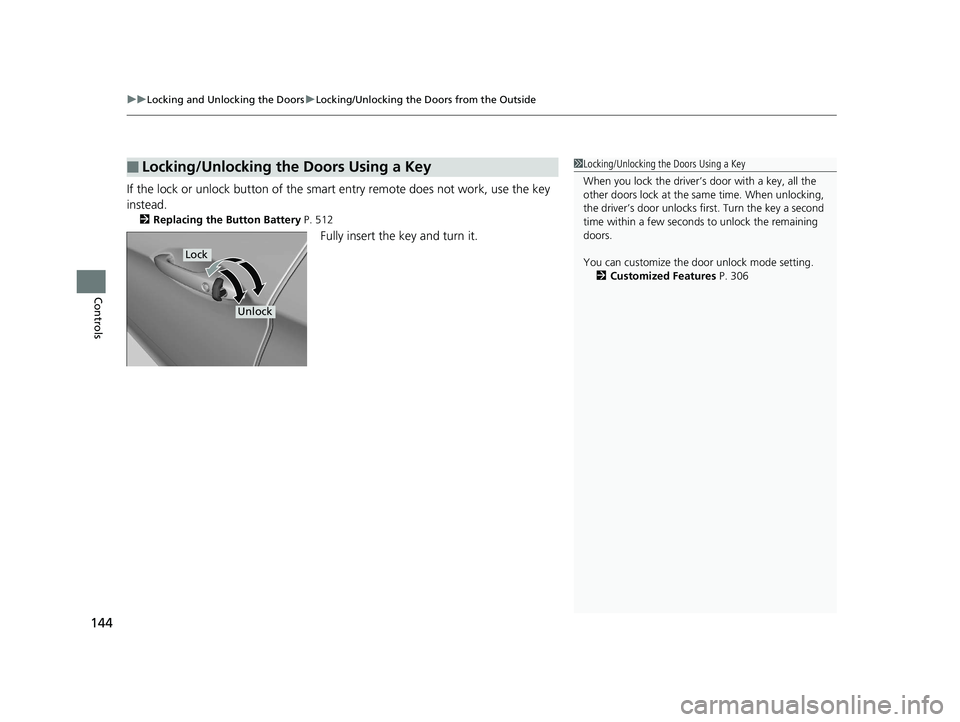

uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
144
Controls If the lock or unlock button of the sma rt entry remote does not work, use the key
instead. 2 Replacing the Button Battery P. 512
Fully insert the key and turn it.
■ Locking/Unlocking the Doors Using a Key 1 Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors lock at the sa me time. When unlocking,
the driver’s door unlocks first. Turn the key a second
time within a few seconds to unlock the remaining
doors.
You can customize the door unlock mode setting.
2 Customized Features P. 306Lock
Unlock19 CLARITY PHEV-31TRW6100.book 144 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

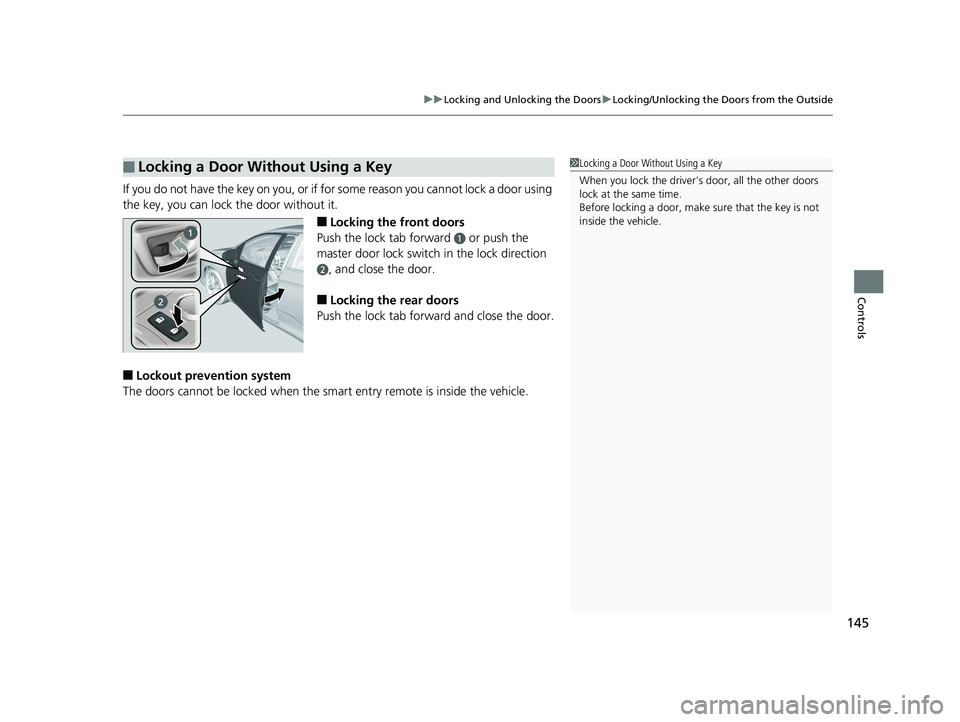

145uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Controls
If you do not have the key on you, or if for some reason you cannot lock a door using
the key, you can lock the door without it.
■ Locking the front doors
Push the lock tab forward a
or push the
master door lock switch in the lock direction b
, and close the door.
■ Locking the rear doors
Push the lock tab forward and close the door.
■ Lockout prevention system
The doors cannot be locked when the sm art entry remote is inside the vehicle.■ Locking a Door Without Using a Key 1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.19 CLARITY PHEV-31TRW6100.book 145 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

153Continued
Controls
Security System Immobilizer System The immobilizer system prevents a key th at has not been pre-registered from
starting the power system. Each key cont ains electronic transmitters that use
electronic signals to verify the key.
Pay attention to the follo wing when pressing the POWER button:
• Do not allow objects that emit strong radio waves near the POWER button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the POWER
button.
• Do not put the key near magnetic items. Electronic devices, such as televisions
and audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm The security system alarm activates when the trunk, hood or doors are forcibly
opened. The alarm does not activate if the trunk or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm activates if a door is op ened with the key and then the hood is
opened before the power mode is set to ON.
■ When the security system alarm activates
The horn sounds intermittently and some exterior lights flash.
■ To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter or smart entry system. The
system, along with the horn and flashing lights, is deactivated. 1 Immobilizer System NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the 12-volt battery ha s been disconnected.
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.19 CLARITY PHEV-31TRW6100.book 153 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

uu Security System u Security System Alarm
154
Controls ■ Setting the security system alarm
The security system alarm automatically sets when th e following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The hood is closed.
• All doors and the trunk are locked from outside with the key , remote transmitter
or smart entry system.
■ When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.
■ To cancel the security system alarm
The security system alarm is canceled when the vehicle is unloc ked using the remote
transmitter, smart entry system, or the power mode is set to ON. The security system
alarm indicator goes off at the same time. 1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
• Unlocking the door with the lock tab.
• Opening the trunk with the trunk opener or the
emergency trunk opener.
• Opening the hood with the hood release.
If the 12-volt battery goes dead after you have set the
security system alarm, the security alarm may go off
once the 12-volt battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the key, remote transmitter or
smart entry system.19 CLARITY PHEV-31TRW6100.book 154 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
