Light HONDA CR-V 2000 RD1-RD3 / 1.G Workshop Manual

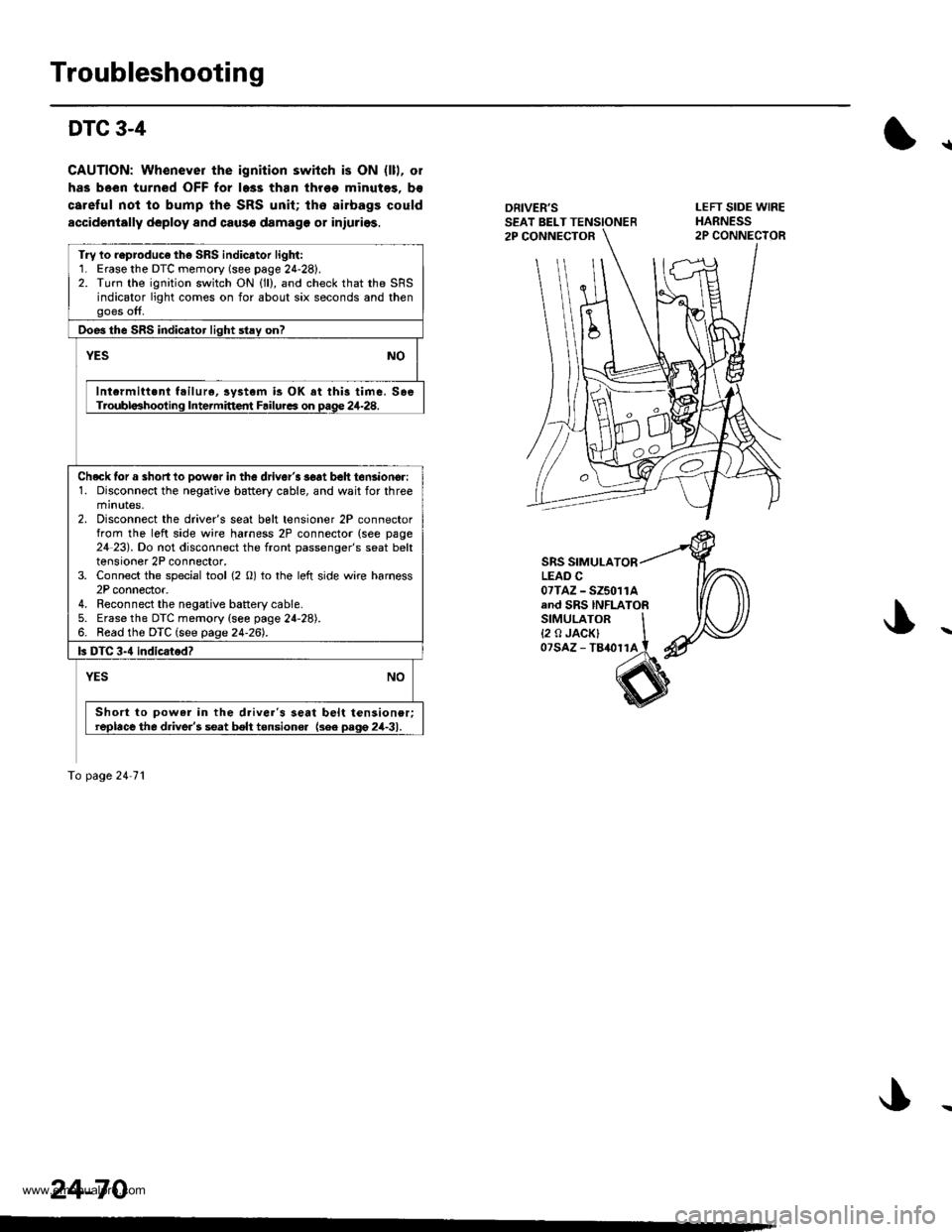

Troubleshooting
DTC 3-4
CAUTION: Whenever the ignition switch is ON (lll, ol
has been turned OFF for l6ss than thr6e minutes, b€
careful not to bump the SRS unit; lho airbags could
accidentally deploy and caus€ damage or iniuries.
{
DRIVER'SSEAT BELT TENSIONER2P CONNECTOR
LEFT SIDE WIREHARNESS2P CONNECIOR
SRS SIMULATORLEAD C07TAZ - SZ5011Aand SRS INFLATORSIMULATOR I{2 o JACK} Iozsaz - tamrrl i
Try lo reproduco th6 SRS indicator light:1. Erasethe DTC memory (see page 24-28).2. Turn the ignition switch ON (ll), and check that the SRSindicator light comes on for about six seconds and thenooes off,
Doe3 the SRS indicator liqht stav on?
NOYES
Intcrmitt.nt f.ilur., iystem is OK at this time. SoeTroubla3hooting Intermittent Failurca on Dage 24-28.
Checklor a shortlo Dowar in the driver'3 3€at beh tonsioncr:1. Disconnoct the negative battery cable, and wait for threeminutes.2. Disconnect the driver's seat belt tensioner 2P connectorfrom the left side wire harness 2P connector (see page24 23). Do not disconnect the front passenger's seat belttensioner 2P connector,3. Connect the special tool {2 0) to the left side wire harness2P connector.4. Reconnect the negative battery cable.5. Erase the DTC memory {see page 24-28).6. Read the DTC (see page 24-26).
ls DTC 3-4 indicsted?
NOYES
Short to powar in the d.iver's seat belt tensioner;replace the d.iver's seat belt tensione. {3ee pago 2il-31.
To page 24'71
24-70
www.emanualpro.com

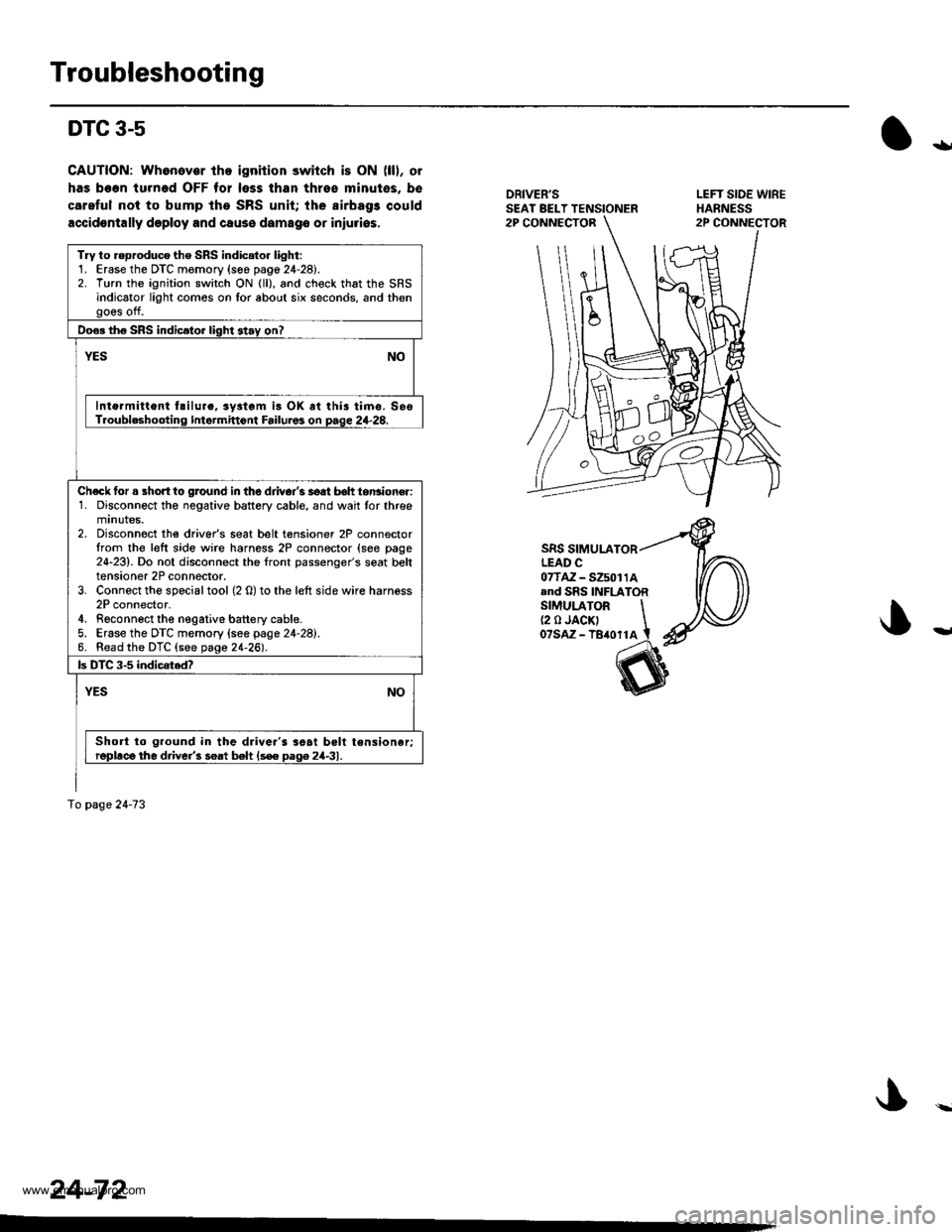

Troubleshooting
DTC 3-5
CAUTION: Whonover tho ignition switch is ON (ll), or
has been turned OFF for less than thres minutes, b€
careful not to bump the SRS unit; the airbags could
accidontally deploy and cause damsgo or iniurirs.
*r
DRIVER'SSEAT BELT TENSIONER
SRS SIMULATORLEAD C07TAZ-S25011Aand SRS INFLATORSIMULATOR \(2 0 JACK' Iozsnz -teronl t
Try to reproduco the SRS indioto. light:1. Erase the DTC memory (s66 pag6 24-28).2. Turn the ignition switch ON (ll), and check that the SRSindicator light comos on Ior about six seconds, and thengoes off.
Do€. the SRS indicsto. light 3tav on?
YESNO
lnto.mitlont hilure, ryltom is OK at thia timc. SesT.oubleshootinq Intermittont Failuros on page 2+28.
Ch€ck for a short to ground in the djivoi's soat b6h tonsioner:1. Disconnect the negative battery cable, and wait tor threemtnutes.2. Disconnoct the driver's seat belt tensioner 2P connectorIrom the l€ft side wire harness 2P connector (see page24-23). Do not disconnect the front passenger's seat belttensioner 2P connector.3. Connect the special tool (2 0) to the left side wire harness2P connector,4. Rgconnect the negative battery cable.5. Erase the DTC memory (see page 24-28).6. Read the DTC (see page 21-26).
ls DTC 3-5 indicated?
YESNO
Short to ground in the driver's soai belt tensioner;repllce the driver'3 seat belt ls€e Daq6 24-31.
To page 2a-73
24-72
www.emanualpro.com

Troubleshooting
DTC 4-1 and DTC 4-2
CAUTION: Whenever tho ignition 3witch is ON (ll), ot
has boen turn€d OFF for less than thro6 minutos, bo
car€ful not to bump ihe SRS unit; the airbags could
accidentally deploy and causo damage or iniurios,
!|
RIGH1 SIDE WIREHARNESS2P CONNECTOR
FRONTPASSENGER'S
Try to roproduca the SRS indicator light:1. Erase the DTC momory (see page 24'28i.2. Turn the ignition switch ON (ll). and check that the SRSindicator light comes on for about six seconds. and thenooes off,
Does the SRS indicator lisht stay on?
YESNO
Intermittent failure, syatem i3 OK at this tim6. SooTrouble3hooting Inta.mittent Failuros on page 24-28.
Ched( for an open in the front p.ssongo/s 3eat bolt teruiona.:1. Disconnect the negative battery cable, and wait for threemrnutes.2. Disconnect the front passenger's seat belt tensioner 2Pconnector from the right side wire harn€ss 2P conneclor(see page 24-23). Do not disconnect the driver's seat belttensioner 2P connector.3. Connect the special tool (2 O) to the right sido wire har-ness 2P connector.4. Reconnect the negative battery cable.5. Erase the DTC memory lsee page 24 28).6. Read the DTC (see page 24'26).
k DTC 4-1 or DTC 4-2 indicatodT
YESNO
Open or increaaad resistance in lhe tront pa$enger'sseat belt tensioner; roplace the front p.s3engar's 3eatbelt lsee p.ge 24-31.
fo page24-75
24-74
SRS SIMULATORLEAD C07TAZ - SZ5n11Aand SRs INFLATORSIMULATOR
/iz o.ncri
f ozsAz - T8.011Ao
www.emanualpro.com

Troubleshooting
DTC 4-3
CAUTION: Whonev.r ths ignition switch is ON (ll), or
has been turned OFF tor less than throe minutes, b€
careful not to bump tho SRS unit; the airbags could
accidentally deploy and csuse damage or iniuries.
{
RIGHT SIDE WIREHARNESS2P CONNECTOR
FRONTPASSENGER'S
SRS SIMULATORLEAD C07TM - SZ5011Aand SRS INFLATORSIMULATOR
/2 o JACKIl07sAz - TB4011A
tnat2s>,-ar'--\>
Try lo reproducothc SRS indicator light:'1. Erase the DTC memory (see page 2{-28).2. Turn the ignition switch ON {ll}, and check that the SRSindicator light comes on for about six seconds, and thengoes off.
Doos the SRS indicstor light stay on?
YESNO
Intermittent failure, rystgm ia OK rt this timo. S6cTroubloshooting Intermittont Failu.os on pago 2+28.
Chock to. a short to .nothor wira or decre8od ro3btance inthe froni pa3sengor'3 aoat belt ten3ioner:1. Disconnect the negative battery cable, and wait for threemrnutes.2. Disconnect the front passenger's seat belt tensioner 2Pconnector from the right side wire hamess 2P connector(see page 24-23). Do not disconnect the driver's seat belttensioner 2P connector.3. Connect the special tool (2 O) to the right side wire har-ness 2P connoctor.4. Reconnect the negative battgry cable.5. Erase the DTC memory (see page 24-28).6. Read the DTC lsee page 24-261.
|3 DTC G3 indicatod?
YESNO
Short to .noth6r wire o. dc6e.r€d r€aktanco in the frontpassenger'3 s€at boh teniioner; roplacc the lront pass6n-g6r's aeat belt (s€e psge 2a-31.
To page 24-77
24-76
www.emanualpro.com

Troubleshooting
DTC 4-4
CAUTION: Whenever the ignition switch is ON (ll), or
has been turned OFF tor less than thlee minutes. be
careful nol to bump the SRS unit; the airbags could
accidontally deploy and cause damage or iniuries.
RIGHT SIDE WIREHARNESS2P
FRONTPASSENGER'S
SRS SIMULATORLEAD C07TAZ - SZ5011Aand SRS INFLATOR
,StMULATOR/(2 o JACK)
t _07SAZ - TBiro1 1A
Try to reproduce the SRS indicator light:1. Erase the DTC memory {see page 24-28).2. Turn the ignition switch ON (ll), and check that the SRSindicator light comes on for about six seconds, and thengoes off.
Doos the SRS indicator light 3t.y on?
vEsNO
Intermittent f!ilure, system is OK at this time. SeeT.oubleshooting Intermittent F.ilures on page 24-28.
Check tor a 3horl lo power in the frolt pass€nge.'s s€at belttensaoneri'1. Disconnect the negative battery cable, and wait for threemrnutes.2. Disconnect the front passenger's seat belt tensioner 2Pconnector from the right side wire harness 2P connector{see page 24-23}. Do not disconnect the driver's seat belttensioner 2P connector.3. Connect the special tool (2 O) to the right side wire har-ness 2P connector.4. Reconnect the negaiive baftery cable.5. Erase the DTC memory (see page 24-28).6. Read the DTC lsee page24-261.
ls DTC 4-,1 indicated?
YESNO
Short to power in the front passong6r'3 seat belt ten-sioner; replace the front passongar'3 s€at beh {see page21-31.
To page 24'79
24-78.
www.emanualpro.com

Troubleshooting
DTC 4-5
GAUTION: Whonever the ignition switch is ON fll). olhas be6n turned OFF for less than thrso minuter. becareful not to bump the SRS unit; the airbags couldaccidontally deploy and causo damage or iniurias.
\
RIGXT SIOE WIREHARNESS2P
FRONTPASSENG€R'S
SRS SIMULATORLEAD C07lAz - s2501 1Aand SRS INFLATORSIMULATOR
t2 0 JACKTo?saz - Taaol 1A
Try to roproduco th. SRS indicrtor tighi:1. Erase the DTC memory (see page 24-28).2. Turn the ignition switch ON (ll), and check that the SRSindicator light comes on for about six seconds, and thengoes off.
Doe3 the SRS indicator light stay on?
YESNO
Int€rmittent t.ilurG, syst.m is OK at thi! timo. So€Troubleshooting Inte.mift€nt Failure3 on psqa 2+28.
Chcck Ior a shon to ground in the trodt pars€nge/s lert behtensionea:1. Disconnect the negative battery cable, and wait for threemrnutes.2. Disconnect the front passenger's seat belt tensioner 2pconnector trom the right side wire harness 2p connector(see page 24-23). Do not disconnect the driver's seat bektensioner 2P connector.3. Connect the special tool (2 0) to the right side wire har-ness 2P connector,4. Reconnect the negative battery cable.5. Erase the DTC memory lsee page 24-28).6. Read the DTC (seo page 24-26!-.
k DIC G5 indicated?
NOYES
Short to ground in the Lont passengc.'3 3€rt boh ton-sioner; replace tho from p.rlenger's sort beh ls€a page21-3t.
To page 24-81
24-80
www.emanualpro.com

Driver's Airbag
Replacement lcont'd)
CAUTION: 8. sure to instattthe SRS wiring so that it isnot plnched or inlerfsring with other parts.
4. Place the new driver's airbag into the steeringwheel, and secure it with new Torx bolts.
TORX EOLTS9.8 N,m 11.0 kgl.m, 7.2 tbf,ftlFeplace.
24-88,
5. Connect the driver's airbsg 2p connector to thecable reel 2P connector, then install the accesspanel on the steering wheel.
Connect the battery positive cable. then connect thenegative cable.
After installing the airbag assembly, confirm proper
system operation:
. Turn the ignition switch ON llt); the SRS indica-tor light should come on for about six secondsand then go off.. Mske sure both horn buttons work.o Take a test-drive, and make sure the cruise con-trol switches work.
7.
2P CONNECTOR
www.emanualpro.com

Front Passenger's Airbag
Replacement (cont'd)
GAUTION: Be sure to installthe SRS wiring so that it isnot pinched or interfering with olher parts.
6. Place the new front passenger's airbag into thedashboard. Tighten the front passenger,s airbagmountrng nuts.
FRONT PASSENGER'SAIRBAG MOUNTING NUTS9.8 N.m {1.0 kgJ.m,7.2 lbf ft)Replace.
FRONT PASSENGER'S
24-90
7. Attach the airbag connector to the connector hold_er, then reinstall the glove box.
Connect the b8ttery positive cable, then connect thenegative cable.
After installing the airbag. confirm proper sysremooerauon:
Turn the ignition switch ON ( ); the SRS indicatorlight should come on for about six seconds andthen go off.
FRONT PASSENGER'S
www.emanualpro.com

Cable Reel
16.
Replacement (cont'dl
11.
Tighten the steering wheel bolt to the specifiedtorque, and connect the horn connector to the steering wheel. Then install the driver's airbag.
TORX BOLTS9.8 N.m (1.0 kgd.m,7.2 lbnftlReplace.DRIVER'S
Attach the cable reel 2P connector to the connectorholder. Then install (the knee bolster and)the driver,sdashboard lower cover.
BOLSTERl'98 - 00 modalsl
STEERING WHEEL BOLT38 N.m (3.9 kgl.m,28lbf.ftlReplace.
CABLE REEL
24-94
DRIVER'S DASHEOARD LOWER COVER
19.
20.
Reconnect the driver's airbag 2P connector to thecable reel 2P connector, and reinstall the accesspanel on the steering wheel.
Reconnect the battery positive cable, then the nega-tive cable.
After installing the cable reel, confirm proper sys-tem operation:
. Turn the ignition switch ON (ll); the SRS indica-tor light should come on for about six secondsand then go off.
a Make sure both horn buttons work.. Go for a test drive. and make sure the cruise con-trol switches work.
www.emanualpro.com

SRS Unit
Replacement (cont'dl
6. lnstall the new SRS unit. lf the Torx bolts you
removed in the previous step have red threads,
replace the Torx bolts.
TORX BOLTS9.8 N.m 11.0 kgf.m,7.2 lbtft)Uso a Torx T30 bit.
Connect the SRS main harness l8P connector to the
SRS uniu push it into position until it clicks.
Install the SRS unit covers (right and left). Make
sure the covers snap together in the middle.
7.
8.
TORX BOLTS9.8 N.m {1.0 kgf.m, ?.2Use . Torx T30 bh,
SRS UNIT
24-96
-
9. Reconnect the driver's aibag 2P connector to the
cable reel 2P connector, then reinstall the access
panel on the steering wheel.
Reconnect the front passenger's airbag connector
to the SRS main harness.
Reconnect the left side wire harness 2P connector
to the driver's seat belt tensioner and the right side
wire harness 2P connector to the front passenger's
seat belt tensioner ('98 - 00 models).
Reinstall the center pillar lower trim panels {'98 - 99
modelsl.
Reconnect the battery positive cable, then the nega-
tive cable.
After installing the SRS unit, confirm proper system
operation: Turn the ignition switch ON (ll); the SRS
indicator light should come on for about six seconds
and then go off,
10.
1't.
12.
13.
