You can use the SKIP buttons while
a disc is playing to select passages
and change tracks.
This feature,
when activated, plays the tracks on
the CD in random order, rather than
in the order they are recorded on the
CD. To activate Random Play, press
the RDM button. You will see RDM
in the display. The system will then
select and play tracks randomly.
This continues until you deactivate
RandomPlaybypressingtheRDM
button again.
To move rapidly within a track, press
and hold an appropriate SKIP button.
Press the button to move f orward,
or the button to move backward.
Release the button when the system
reaches the point you want.
To activate the Repeat
feature, press and release the Repeat
button. You will see REPEAT in the
display. The system continuously
replays the current track. Press the
Repeat button again to turn it off.
Each time you press the button
and release it, the system skips
f orward to the beginning of the next
track. Press and release the
buttontoskipbackwardtothe
beginning of the current track. Press
and release it again to skip to the
beginning of the previous track.
When the system reaches the end of
the disc, it will return to the begin-
ning and play that disc again.
You can switch to the radio while a
CD is playing by pressing the AM or
FM button. Press the CD button to
return to playing the CD. The CD
will begin playing where it lef t of f .
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
Press the eject button to remove the
disc f rom the drive.
If you eject the disc, but do not
remove it from the slot, the system
will automatically reload the disc
af ter 15 seconds and put the CD
player in pause mode. To begin
playing the disc, press the CD button.
For inf ormation on how to handle
and protect compact discs, see page
.
176
RANDOM PLAY REPEAT
Protecting Compact Discs
Audio System
Comf ort and Convenience Feat ures147

Indication
If you see an error indication in the
display while operating the CD
player,findthecauseinthechartto
the right. If you cannot clear the
error indication, take the vehicle to
your Honda dealer. Solution
Cause
Press the EJECT button and pull out the disc.
Cheak the disc for damage or deformation.
If the CD cannot be pilled out or the error
indication does not disappear after the disc is
ejected, see your Honda dealer.
Do not try to force the disc out of the player.
Will disappear when the temperatue returns to
normal.
Mechanical Error
High temperature
CD Player Error Indications
Audio System
Comf ort and Convenience Feat ures148

µ
A Compact Disc changer is available
f rom your dealer. It holds up to six
discs, providing several hours of
continuous entertainment. You
operate this CD changer with the
same controls used f or the in-dash
CD player.
Load the desired CD’s in the
magazine and load the magazine in
the changer according to the
instructions that came with the unit.
Play only standard round discs. Odd-
shaped CDs may jam in the drive or
cause other problems.
For best results when using CD-R
discs, use only high quality discs
labeled f or audio use. When
recording a CD-R, the recording
must be closed in order f or the disc
to be used by CD players. CD-RW
discs will not work in this unit. To select the CD changer, press the
CD button. The disc and track
numbers will be displayed.
To select a dif f erent disc, press the
appropriate preset button (1 6). If
you select an empty slot in the
magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot. This
continues until it f inds a CD to load
and play.
If you load a CD in the in-dash player
while the changer is playing a CD,
the system will stop the changer and
begin playing the in-dash CD. To
select the changer again, press the
CD button. Play will begin where it
left off. Use the CD button to switch
between the player and the changer.
If youejectthediscinthein-dash
CD while it is playing, the system
will automatically switch to the CD
changer and begin play where it lef t
off. If there are no CDs in the
changer, the display will flash. You
will have to select another mode
(AM or FM) with the button.
To use the SKIP, REPEAT, and
RANDOM f unctions, ref er to the in-
dash player operating instructions. When you switch back to CD mode,
the system selects the same unit (in-
dash or changer) that was playing
when you switched out of CD mode.
For inf ormation on how to handle
and protect compact discs, see page
.
176
Operating the CD Changer
(Optional)
Protecting Compact Discs
Audio System
Comf ort and Convenience Feat ures149

Indication
If you see an error indication in the
display while operating the optional
CD changer, f ind the cause in the
chart to the right. If you cannot clear
the error indication, take the vehicle
to your Honda dealer. Cause
Solution
Disc-changer
malf unction
Disc is in changer
mechanism
High temperature
Misconnection or
disconnection of CD
changer
No CD magazine in the
CD changer
No CD in magazine Consult your Honda dealer.
Press the magazine eject button, and insert an
empty magazine.
Will disappear when the temperature returns to
normal.
See your Honda dealer.
Insert CD magazine.
Insert CD in magazine.
CD Changer Error Indications
Audio System
Comf ort and Convenience Feat ures150

Î
Î
CONT INUED
The cassette system f eatures Dolby
noise reduction, automatic sensing of
chromium-dioxide (CrO ) tape, and
autoreverse f or continuous play.
To operate the cassette player, the
ignition switch must be in
ACCESSORY(I) or ON(II). Make
sure the tape opening on the cassette
is f acing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of
the way, and begin to play.
2
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Operating the Cassette Player
Audio System
Comf ort and Convenience Feat ures151

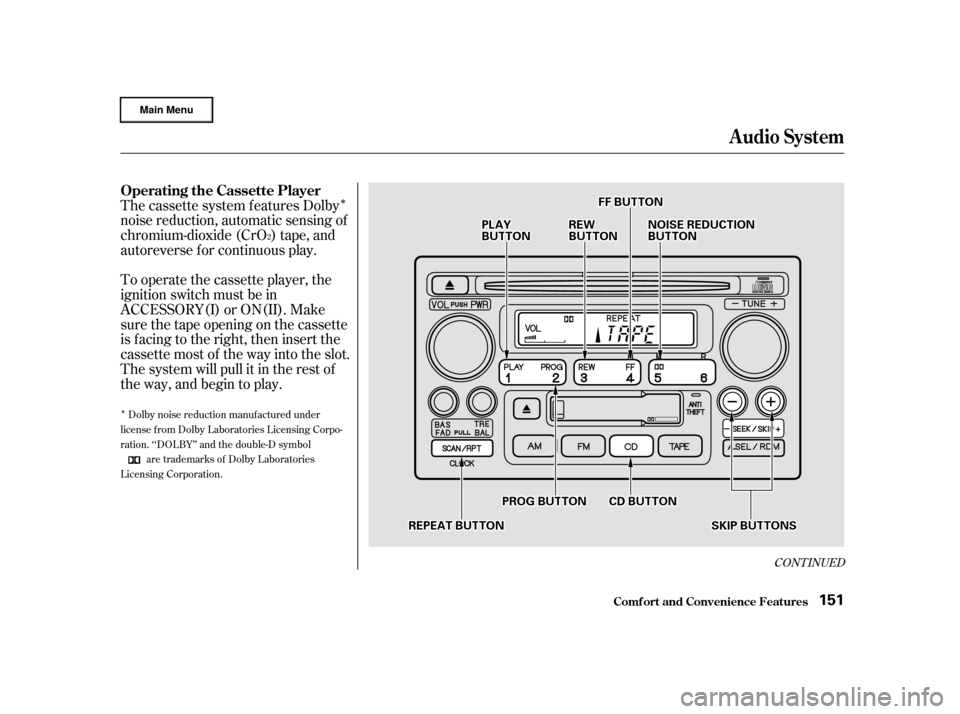

F FF F B
BUUT TT
TO
ON N
P
P L
LAA Y
Y
B
BU UT TT
TO
ON N
R
RE EP
PE
EA
A T
T B
BUUT TT
TO
ON NP
P
R
RO OG G B
BUUT TT
TO
ON N C
CDD B
BUUT TT
TO
ON N
S
SKKIIPP B
BUUT TT
TO
ON NSS
N
NO
OIISSE E R
REED
D U
UC CTTI
IOON N
B
BU UT TT
TO
ON N
R
RE
EW
W
B
BU UT TT
TO
ON N

Ûµ
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PROG
button. With a cassette playing, you can use
the FF, REW, SKIP, or REPEAT
f unction to f ind a desired program.
Fast Forward and Re-
wind move the tape rapidly. To re-
wind the tape, push the REW button.
You will see REW in the display. To
f ast f orward the tape, push the FF
button. You will see FF displayed.
Press the PLAY button to take the
system out of rewind or f ast f orward.
If the system reaches the end of the
tape while in f ast f orward or rewind,
it automatically stops that function,
reverses direction, and begins to play.
Dolby noise reduction turns on when
you insert a cassette. The indi-
cator will light in the display. If the
tape was not recorded with Dolby
noise reduction, turn it of f by
pressing the button.
Noise reduction remains of f until you
turn it on by pressing the button
again.
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
f rom the drive, press the EJECT
button. To switch to the radio or CD player
while a tape is playing, press the AM,
FM or CD button. To change back to
the cassette player, push the TAPE
button. If you turn the system of f while a
tape is playing, either with the PWR/
VOL knob or by turning of f the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the tape will begin playing
where it lef t of f . You can remove the cassette with
the ignition switch in any position,
even if the audio system is turned of f .
T ape Search Functions
FF/REW
Audio System
Comf ort and Convenience Feat ures152

µ
µ
Ó
Ó
µ
´
The SKIP and REPEAT f unctions
use silent periods on the tape to f ind
the end of a song or passage. These
f eatures may not work to your
satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection.
The Repeat f unction
continuously replays the current
song or passage. Press the REPEAT
button to activate it; you will see
REPEAT displayed as a reminder.
When the system reaches the end of
the song or passage currently
playing, it will automatically go into
rewind. When it senses the
beginning of the same song or
passage, the system returns to PLAY
mode. It will continue to repeat this
same program until you deactivate
REPEAT by pressing the button
again.
The SKIP f unction allows
you to f ind the beginning of a song
or passage. To skip to the beginning
of a song or passage currently
playing, push the button. You will
see REW flashing in the display as
thetaperewinds.Toskiptothe
beginning of the next song, push the button. You will see FF f lashing in
the display as the tape fast forwards.
When the system f inds the begin-
ning of a song or passage, it goes
back to PLAY. Damaged cassettes can jam inside
the drive or cause other problems.
See page for information on
cassette care and protection.
168
REPEAT
SK IP
Caring f or Cassettes
Audio System
Comf ort and Convenience Feat ures153

Î
Î
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
The in-dash CD changer holds up to
six discs. You operate the CD
changer with the same controls used
f or the radio. See page f or CD
changer operation. Your Honda’s audio system provides
clear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your f avorite
stations.
The cassette system f eatures Dolby
noise reduction, automatic sensing of
chromium-dioxide (CrO ) tape, and
autoreverse f or continuous play.
169
2
On EX model in the U.S., and EX andEX-L models in Canada
A M/FM/Cassette/CD Changer
Audio System
Audio System
Comf ort and Convenience Feat ures154
T T U
UN NEE K
KNNO OBB
F
FM M B
BUUT TT
TO
ON N S
STTE
ER
RE EO
O
I
IN ND DI
ICCA A T
TO
OR R
P
P
W
WR R//V
V O
OL L K
KNNO OBB A
A
M
M B
BUUT TT
TO
ON N
S
SC CAA N
N B
BUUT TT
TO
ON N S
SEEE
EK
K B
BUUT TT
TO
ON NSS
P
P R
RE ES
SE ET
T B
BUUT TT
TO
ON NSS

µ
µ ÓÓ
µ´
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pressing the PWR/
VOL knob, or the AM or FM button.
Adjust the volume by turning the
knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available. You can use any of f ive methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN, AUTO
SELECT, and the Preset buttons.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the TUNE knob to the right to
tune to a higher f requency, or to the
lef t to tune to a lower f requency.
Turn the knob right or lef t until the
display reaches the desired
f requency.
The SEEK f unction
searches the band for a station with
a strong signal. To activate it, press
either SEEK button ( or ), then
release it. Depending on which
SEEK button you press, the system
scans upward or downward f rom the
current f requency. It stops when it
finds a station with a strong signal.
The anti-thef t f eature will disable the
system if it is disconnected f rom the
vehicle’s battery. To get the system
working again, you must enter a
code number (see page ).
178
CONT INUED
Operating the Radio
TUNE
SEEK
Audio System
Comf ort and Convenience Feat ures155

µµThe SCAN f unction
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan up
the band for a station with a strong
signal. When it f inds one, it will stop
and play that station for
approximately f ive seconds. If you do
nothing, the system will then scan
f or the next strong station and play
that f or f ive seconds. When it plays a
station that you want to continue
listening to, press the SCAN button
again. You can store the
f requencies of your f avorite radio
stations in the six preset buttons.
Each button will store one f requency
on the AM band, and two
f requencies on the FM band.
To store a f requency: Once a station’s f requency is stored,
simply press and release the proper
preset button to tune to it.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM. Pick the Preset button you want
for that station. Press the button
and hold it until you hear a beep. UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station. Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each Preset
button.
1.
2.
3.
4.
SCA N
Preset
Audio System
Comf ort and Convenience Feat ures156
