CD player HONDA CR-V 2003 RD4-RD7 / 2.G User Guide

ÛYou can remove the cassette with
the ignition switch in any position,
even if the audio system is turned of f .
If you turn the system of f while a
tape is playing, either with the PWR/
VOL knob or by turning of f the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the tape will begin playing
where it lef t of f .
To switch to the radio or CD
changer while listening to a tape,
presstheAM,FMorCDbutton.To
change back to the cassette player,
press the TAPE button.
The ignition switch must be in
ACCESSORY (I) or ON (II).
Make sure the tape opening on the
cassette is facing to the right, then
insert the cassette most of the way
into the slot. The system will pull it
in the rest of the way, and begin to
play.
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PROG
button. Dolby noise reduction turns on when
you insert a cassette. The indi-
cator will light in the display. If the
tape was not recorded with Dolby
noise reduction, turn it of f by
pressing the button.
Noise reduction remains of f until you
turn it on by pressing the button
again.
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
f rom the drive, press the EJECT
button.
Audio System
Comf ort and Convenience Feat ures
Operating the Cassette Player
164

The cassette player picks up dirt and
oxides f rom the tape. This contami-
nation builds up over time and
causes the sound quality to degrade.
To prevent this, you should clean the
player af ter every 30 hours of use.
Your dealer has a cleaning kit
available.
If you do not clean the cassette
player regularly, it may eventually
become impossible to remove the
contamination with a normal
cleaning kit.
Use 100-minute or shorter cassettes.
Cassettes longer than that use
thinner tape that may break or jam
the drive.Look at the cassette before you
insert it. If the tape is loose, tighten
it by turning a hub with a pencil or
your f inger.
Never try to insert f oreign objects
into the cassette player. When they are not in use, store
cassettes in their cases to protect
them f rom dust and moisture. Never
place cassettes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a cassette is
exposed to extreme heat or cold, let
it reach a moderate temperature
bef ore inserting it in the player. If the label is peeling of f , remove it
from the cassette or it could cause
the cassette to jam in the player.
Never try to insert a warped or
damaged cassette in the player.
If you see the error indication
‘‘ ’’ on U.S. EX, and Canadian
EX and EX-L models/‘‘ ’’ on
LX model on the display, press the
TAPE EJECT button to remove the
cassette from the unit. Make sure
thetapeisnotdamaged.If the
cassette will not eject or the error
indication stays on after the cassette
ejects, take the vehicle to your
Honda dealer.
Audio System
Comf ort and Convenience Feat ures
Caring f or the Cassette Player
168

To load CDs or operate the CD
changer, the ignition switch must be
in ACCESSORY (I) or ON (II).
Load and play only standard round
discs. Odd-shaped CDs may jam in
the drive or cause other problems.
You cannot load and play 3-inch
(8-cm)discsinthissystem. Your Honda’s audio system has an
in-dash CD changer that holds up to
six discs, providing several hours of
continuous entertainment. You
operate this CD changer with the
same controls used f or the radio and
cassette player.
For best results when using CD-R
discs, use only high quality discs
labeled f or audio use. When
recording a CD-R, the recording
must be closed in order f or the disc
to be used by CD players. CD-RW
discs will not work in this unit.
CONT INUED
Operating the CD Changer
Audio System
Comf ort and Convenience Feat ures169

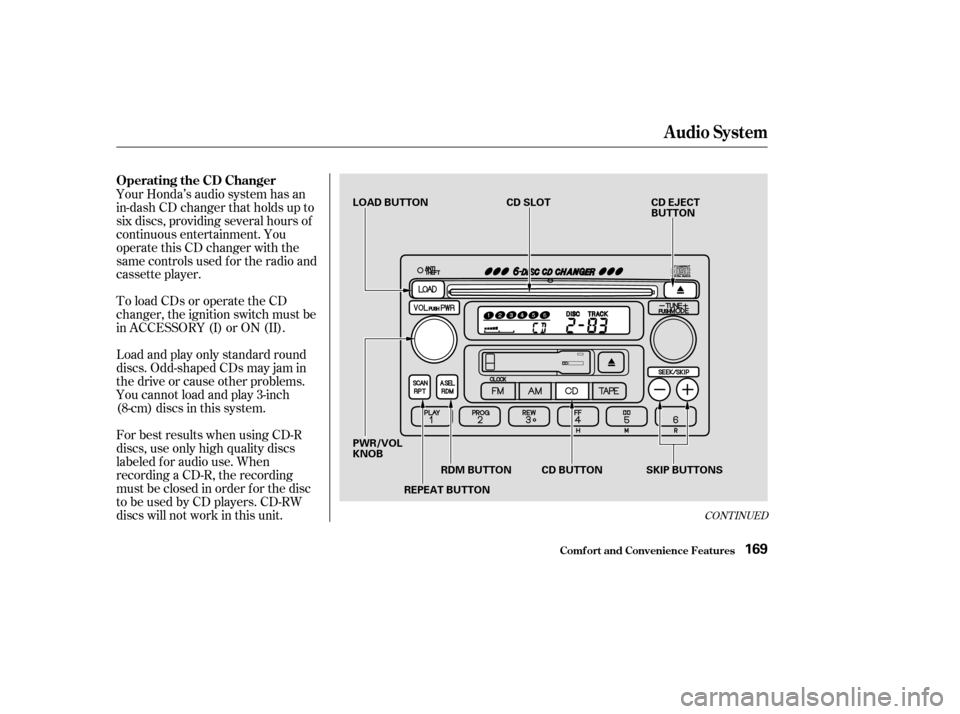

LOAD BUTTONCD SLOT
PWR/VOL
KNOB REPEAT BUTTONRDM BUTTON
SKIP BUTTONSCD EJECT
BUTTON
CD BUTTON

To take the system out of CD mode,
press the AM or FM button, or insert
a cassette in the player. If a tape is
already in the cassette player, press
the TAPE button. When you return
to CD mode by pressing the CD
button, play will continue at the same
point that it left off.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or the ignition switch, play will
continue at the same point when you
turn it back on.
CONT INUED
Audio System
Comf ort and Convenience Feat ures173

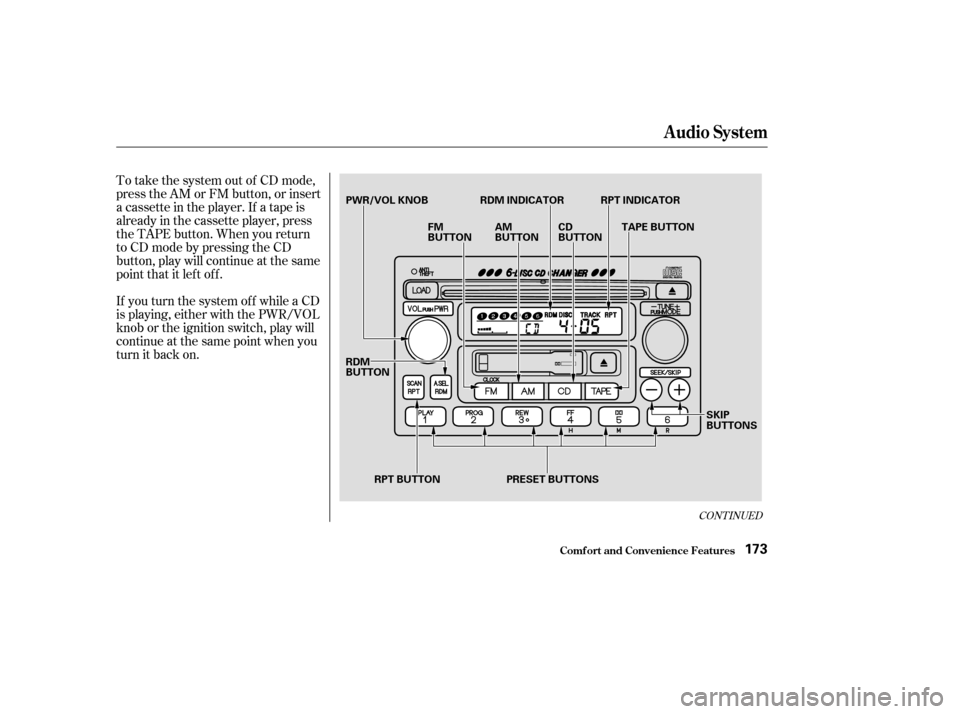

PWR/VOL KNOB RDM INDICATOR RPT INDICATORFM
BUTTONAM
BUTTONCD
BUTTON
RDM
BUTTON RPT BUTTON PRESET BUTTONS SKIP
BUTTONS
TAPE BUTTON

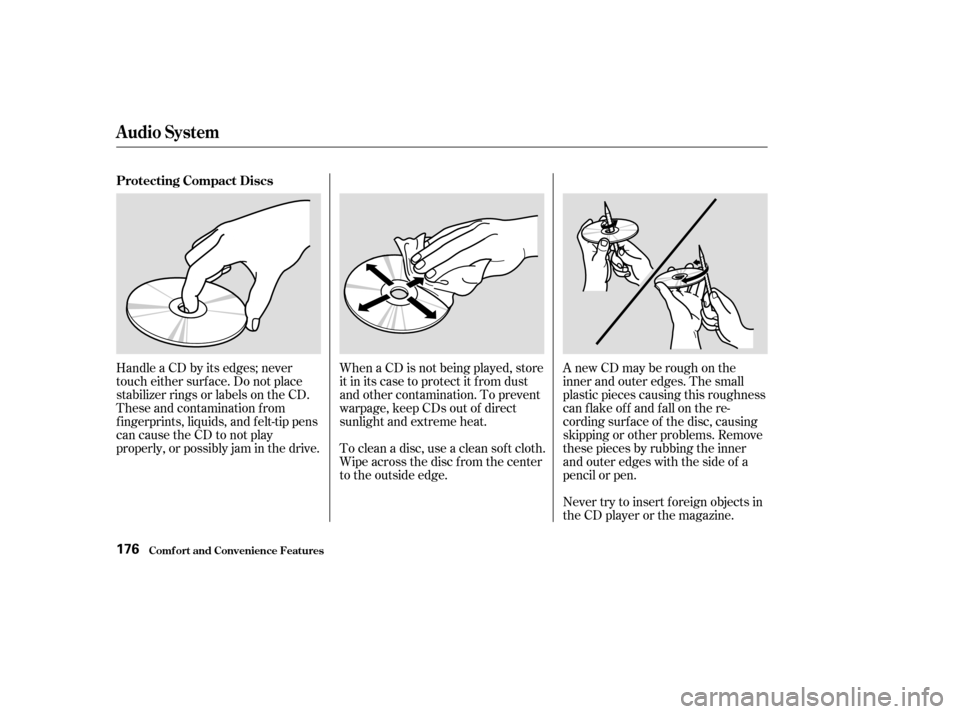

When a CD is not being played, store
it in its case to protect it f rom dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a disc, use a clean sof t cloth.
Wipe across the disc f rom the center
to the outside edge.A new CD may be rough on the
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the re-
cording surf ace of the disc, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert f oreign objects in
the CD player or the magazine.
Handle a CD by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the CD.
These and contamination f rom
f ingerprints, liquids, and f elt-tip pens
can cause the CD to not play
properly, or possibly jam in the drive. Protecting Compact Discs
Audio System
Comf ort and Convenience Feat ures176

ÎBulb Replacement.........
Rear Side Marker Lights . 290
............................
Specif ications .343
...................................
Spotlights .293
....................
Turn Signal Lights . 288
..............................
Bulbs, Halogen .287
............................
Capacities Chart .342
.............
Carbon Monoxide Hazard . 60
..........................
Cargo Area Light .125
.................................
Cargo Hooks .196
.............................
Carrying Cargo .193
Cassette Player ............................................
Care .168
...........................
Operation .151, 164
..............
CAUTION, Explanation of . ii
..........................
CD Changer .149, 169
.......................................
CD Player .146
...............................
Center Pocket .119
..................................
Center Table .115
........................
Certif ication Label .340
............................................
Chains .284
....................
Changing a Flat Tire .308
............
Changing Engine Coolant . 253.................................
Changing Oil .249
........................................
How to .249
......................................
When to .238
...
Charging System Indicator . 66,326
............
Checklist, Bef ore Driving . 199
.....................................
Child Saf ety .24
.......................................
Child Seats .29
......
LATCH Anchorage System . 47
...........................
Lower Anchors .47
............
Tether Anchorage Point . 46
..................
Childproof Door Locks . 93
....................
Cleaner Element, Air . 265
Cleaning ....................
Aluminum Wheels .299
...................................
Carpeting .301
......................................
Exterior .298
.........................................
Fabric .302
.......................................
Interior .301
.......................................
Leather .302
...................................
Seat Belts .302
...........................................
Vinyl .302
....................................
Windows .303
.................
Clock, Setting the . 144,162
...................................
Clutch Fluid .264
........................
CO in the Exhaust .349
............
Cold Weather, Starting in . 201...............
Consumer Inf ormation . 356
.............
Controls, Instruments and . 63
Coolant ........................................
Adding .251
....................................
Checking .189
.........................
Proper Solution .251
...................................
Replacing .253
...................
Temperature Gauge . 74
....................
Corrosion Protection .304
Crankcase Emissions Control ........................................
System .349
............
Cruise Control Operation . 179
..........
Customer Relations Of f ice . 356
................
DANGER, Explanation of . ii
.......................................
Dashboard .64
................
Daytime Running Lights . 77
............
Def ects, Reporting Saf ety . 358
........................
Def og and Def rost .134
................
Def ogger, Rear Window . 81
..............
Def rosting the Windows . 134
.......................
Detachable Anchor .108
....................................
Dimensions .342
...............
Dimming the Headlights . 76
Index
C
D
II

..........
SRS, Additional Inf ormation . 54
...
Additional Safety Precautions . 59
.............................
Airbag Service .59
How the Side Airbag Cutof f ...........
Indicator Light Works . 58
..
How the SRS Indicator Works . 57
How Your Front Airbags .........................................
Work .54
...
How Your Side Airbags Work . 56
........................
SRS Components .54
.............................
SRS Indicator .57 ,67
....
START (Ignition Key Position) . 87
..............
State Emissions Testing . 350
.......................
Starting the Engine .200
In Cold Weather at High ..................................
Altitude .201
................
With a Dead Battery . 320
........
Steam Coming f rom Engine . 323
Steering Wheel ..................................
Adjustment .83
.............
Anti-theft Column Lock . 87
...................
Stereo Sound System . 137
...................................
Storage Box .119
....................
Storing Your Vehicle .295
........................
Sunglasses Holder .121 Supplemental Restraint
................................
System .10, 54
......................................
Servicing .59
.........................
SRS Indicator .57 ,67
...................
System Components . 54
..................................
Synthetic Oil .248
.....................................
Tachometer .72
Tailgate .................................
Hatch Glass .94
............................
Open Indicator .70
.................................
Opening the .93
..........
Taillights, Changing Bulbs . 290
.
Taking Care of the Unexpected . 307
...........................
Tape Player .151, 164
Technical Descriptions ......
DOT Tire Quality Grading . 344
.....
Emissions Control Systems . 349
.....................
Oxygenated Fuels .347
Three Way Catalytic ...............................
Converter .351
.......................
Temperature Gauge .74
..............
Tether Anchorage Points . 46
............................
Thef t Protection .178 ..
Three Way Catalytic Converter . 351
..................
Time, Setting the . 144,162
....................................
Tire Chains .284
.........
Tire, How to Change a Flat . 308
...........................
Tire Inf ormation .346
...............................................
Tires .278
..............................
Air Pressure .279
.........................
Checking Wear .280
......
DOT Tire Quality Grading . 344
......................................
Inf lation .278
..................................
Inspection .280
..............................
Maintenance .280
...................................
Replacing .282
......................................
Rotating .281
...........................................
Snow .283
............................
Specif ications .343
................................
Tire Chains .284
...................
Tools, Tire Changing . 308
Towing .....................................
A Trailer .217
...............
Behind a Motorhome . 224
................................
Emergency .337
Index
T
VIII
