To make sure you and your
passengers get the maximum
protection f rom your vehicle’s saf ety
f eatures, check the f ollowing each
time before you drive away:All adults, and children who have
outgrown child saf ety seats, are
wearing their seat belts and
wearingthemproperly(seepage ).
Any inf ant or small child is
properly restrained in a child seat
inthebackseat(seepage ).
Frontseatoccupantsaresitting
upright and as f ar back as possible
f rom the steering wheel and
dashboard (see page ).
Seat-backs are upright (see page ). Head restraints are properly
adjusted (see page ).
Alldoorsandthetailgateare
closed and locked (see page ).
All cargo is properly stored or
secured (see page ).
The rest of this section gives more
detailed inf ormation about how you
can maximize your saf ety.
Remember, however, that no saf ety
system can prevent all injuries or
deaths that can occur in severe
crashes, even when seat belts are
properly worn and the airbags deploy.
17
24
13
15 16
13
193
Pre-Drive Saf ety Checklist
Your Vehicle’s Saf ety Features
Driver and Passenger Saf ety12

The f ollowing pages provide
instructions on how to properly
protect the driver and other adult
occupants.
These instructions also apply to
children who have outgrown child
seats and are large enough to wear
lap/shoulder belts. (See page f or
important additional guidelines on
how to properly protect larger
children.)
Af ter everyone has entered the
vehicle, be sure the doors and
tailgate (including the hatch glass)
are closed.Your vehicle has a door
monitor light on the
instrument panel to indicate when
any door is not tightly closed. Your vehicle also has a
tailgate and hatch glass
open indicator light on the
instrument panel to indicate when
the tailgate or the hatch glass is not
tightly closed.
For saf ety, locking the doors reduces
the chance that a passenger,
especially a child, will open a door
while the vehicle is moving and
accidentally f all out. It also reduces
the chance of someone being thrown
out of the vehicle during a crash.
For security, locked doors can
prevent an outsider f rom
unexpectedly opening a door when
you come to a stop.
See page f or how to lock the
doors. Any driver who sits too close to the
steering wheel is at risk of being
seriously injured or killed by striking
the steering wheel, or f rom being
struck by an inflating front airbag
during a crash.
42
88
CONT INUED
Introduction
Close and L ock the Doors Adjust the Front Seats
1. 2.
Protecting Adults
Driver and Passenger Saf ety13

CONT INUED
Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous. For
example, inf ants and small
childrenleftinavehicleonahot
day can die f rom heatstroke. And
children lef t alone with the key in
the ignition can accidentally set
the vehicle in motion, possibly
injuring themselves or others. The f ollowing pages give general
guidelines f or selecting and installing
child seats f or inf ants and small
children.
Children who play in vehicles can
accidentally get trapped inside the
vehicle. Teach your children not to
play in or around vehicles.
Even very young
children learn how to unlock
vehicle doors, turn on the ignition,
and open the tailgate or hatch
glass, which can lead to accidental
injury or death.
Driver and Passenger Saf ety
Protecting Children
Do not leave children alone in your
vehicle. Lock all doors and the tailgate
when your vehicle is not in use.
K eep vehicle keys and remot etransmitters out of the reach ofchildren.General Guidelines f or Using
Child Seats
29

Your vehicle has three tether
anchorage points on the ceiling near
the tailgate opening f or securing a
tether-style child seat to the vehicle.Remove the head restraint where
you want to place the child seat.
You can remove the head restraint in
each outside position by pressing the
release button. The head restraint in
the center position can be removed
by pulling it up (see page ).
The tether anchorage points are
located under plastic covers. Select
the anchorage point you want to use,
and remove the cover with a small
f lat-tipped screwdriver or f ingernail
f ile.
Since a tether can provide additional
security, we recommend using a
tether whenever one is required or
available. 99
Using Child Seats with T ethers
Protecting Children
Driver and Passenger Saf ety46
COVER
TETHER ANCHORAGE POINT

Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the under-
side. With the tailgate/hatch glass open,
air flow can pull exhaust gas into
your vehicle’s interior and create a
hazardous condition. If you must
drive with the tailgate/hatch glass
open, open all the windows and set
the heating and cooling system as
shown below.
If you must sit in your parked vehicle,
even in an unconf ined area, with the
engine running, adjust the heating
and cooling system as f ollows:
Select the Fresh Air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety60
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach............................
Control Locations .64
...............................
Indicator Lights .65
.............................................
Gauges .72
...............................
Speedometer .72
.................................
Tachometer .72
..............
Odometer/Trip Meter . 73
Outside Temperature ..................................
Indicator .73
..................................
Fuel Gauge .74
...................
Temperature Gauge . 74
Controls Near the Steering .......................................
Wheel .75
...................................
Headlights .76 ............
Daytime Running Lights . 77
....
Instrument Panel Brightness . 77
................................
Turn Signals .77
.....................
Windshield Wipers .78
..................
Windshield Washers . 79
Rear Window Wiper and .....................................
Washer .80
..........................
Hazard Warning .81
.............
Rear Window Def ogger . 81
.............................
Parking Brake .82
......
Steering Wheel Adjustment . 83
...............................
Keys and Locks .84
..............................................
Keys .84
....................
Immobilizer System . 85
............................
Ignition Switch .86
......................
Power Door Locks .88
...................
Remote Transmitter . 89
..............
Childproof Door Locks . 93
........................................
Tailgate .93
....................................
Glove Box .96
.................................................
Seats .97
.............
Front Seat Adjustments . 97
Driver’s Seat Height ..............................
Adjustment .98
...................
FrontSeatArmrests . 98
..........................
Head Restraints .99 ............
Rear Seat Adjustments . 100
....................
Rear Seat Armrest .101
........
Reclining the Front Seats . 102
.............
Folding the Rear Seats . 104
...................
Detachable Anchor . 108
..................................
Seat Heaters .109
............................
Power Windows .110
.......................................
Moonroof .113
...........................................
Mirrors .114
..
Adjusting the Power Mirrors . 114
..................................
Center Table .115
.........................
Beverage Holders .116
.................................
Built-in Table .117
...............................
Center Pocket .119
...................................
Storage Box .119
.............................
Driver’s Pocket .120
.......................................
Coin Tray .120
........................
Sunglasses Holder .121
............
Accessory Power Sockets . 122
........................
Dashboard Pocket .123
...............................
Interior Lights .124
..............................
Ceiling Light .124
...................................
Spotlights .124
......................
Cargo Area Light .125
................
Ignition Switch Light . 125
Instruments and Controls
Inst rument s and Cont rols63

Î
Î
Î
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.

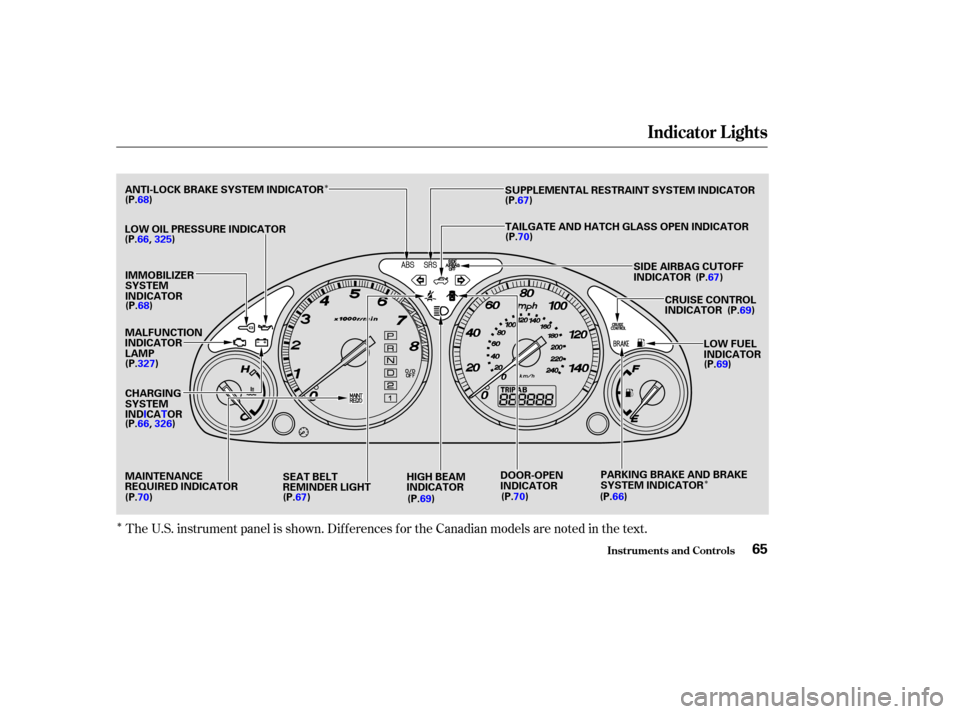

Indicator L ights
Inst rument s and Cont rols65
(P.68)
LOW OIL PRESSURE INDICATOR
(P.66, 325)
(P.68) IMMOBILIZER
SYSTEM
INDICATOR
MALFUNCTION
INDICATOR
LAMP
(P.66, 326)
CHARGING
SYSTEM
IND
ICATOR
(P.327)
MAINTENANCE
REQUIRED INDICATOR
(P.70) (P.67) SEAT BELT
REMINDER LIGHTHIGH BEAM
INDICATOR
(P. 69) DOOR-OPEN
INDICATOR
(P.70) (P.66)PARKING BRAKE AND BRAKE
SYSTEM INDICATOR (P.69) LOW FUEL
INDICATOR
CRUISE CONTROL
INDICATOR
SIDE AIRBAG CUTOFF
INDICATOR
(P.67)
(P.69)
(P.70) TAILGATE AND HATCH GLASS OPEN INDICATOR
(P.67) SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM INDICATOR

µBetween 8,000 miles (12,800 km)
and 10,000 miles (16,000 km) this
indicator will light f or two seconds
when you f irst turn the ignition
switch to ON (II), and then flash for
ten seconds.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
This light comes on if the tailgate or
the hatch glass is not closed tightly.
This light comes on if any door is not
closed tightly.
For the f irst 8,000 miles (12,800 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch to ON (II). Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages.
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
238 242
Indicator L ights
Maintenance Required
Indicator
Tailgate and Hatch Glass
Open Indicator
Door-open Indicator
Inst rument s and Cont rols70

These keys contain electronic
circuits that are activated by the
Immobilizer System. They will not
work to start the engine if the
circuits are damaged.Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
The keys do not contain batteries.
Do not try to take them apart. Keep the keys away f rom liquids.
If they get wet, dry them immedi-
ately with a soft cloth. Donotdropthekeysorsetheavy
objects on them.
Your vehicle comes with two master
keys and a valet key.
The master key fits all the locks on
your vehicle:
 Ignition
 Doors
GloveBox
 Tailgate The valet key works only in the
ignition, the door locks and the
tailgate. You can keep the glove box
locked when you leave your vehicle
and the valet key at a parking f acility.
When replacing keys, use only
Honda-approved key blanks. Youshouldhavereceivedakey
number tag with your set of keys.
You will need this key number if you
ever have to get a lost key replaced.
Keep the tag stored in a saf e place.
Keys
Keys and Locks
Inst rument s and Cont rols84
VALET
KEY
(Gray)
MASTER
KEYS
(Black)
KEY NUMBER
TAG

To lock any passenger’s door when
getting out the vehicle, push the lock
tab down and close the door. To lock
the driver’s door, remove the key
from the ignition switch, pull the
outside door handle and push the
locktabdownorpushthemaster
switch down. Release the handle,
then close the door.
Each door has a lock tab at the top of
the door. When you push down the
lock tab on the driver’s door, all
doors and the tailgate lock. Pulling
up the lock tab on the driver’s door
unlocks only that door. The lock tab
on each passenger’s door only locks
and unlocks that door. The f ront doors can be locked and
unlocked f rom the outside with the
key.
The master door lock switch on the
driver’s door locks and unlocks all of
the doors and tailgate. Push the
switch down to lock all of the doors
and the tailgate, and up to unlock
them.
Keys and Locks
Inst rument s and Cont rols
Power Door L ocks
88
MASTER DOOR LOCK SWITCH
