Page 7 of 256
Î
Î
To use the horn, press the center pad of the steering wheel.
:
Your Vehicle at a Glance
3
HEADLIGHTS/TURN SIGNALS
MOONROOF
CRUISE CONTROL
A/T model is shown. HORN
PARKING BRAKE REAR WINDOW
DEFOGGERWINDSHIELD
WIPERS/WASHERS
SHIFT LEVER (A/T)
STEERING WHEEL ADJUSTMENT AUDIO SYSTEM
DIGITAL CLOCK
(P.88)
(P.119) (P.68) (P.67)(P.
66)
(P.64)
(P.
66)
(P.142)
(P.65) (P.102)
(P.118)
HAZARD WARNING
BUTTON
Page 58 of 256

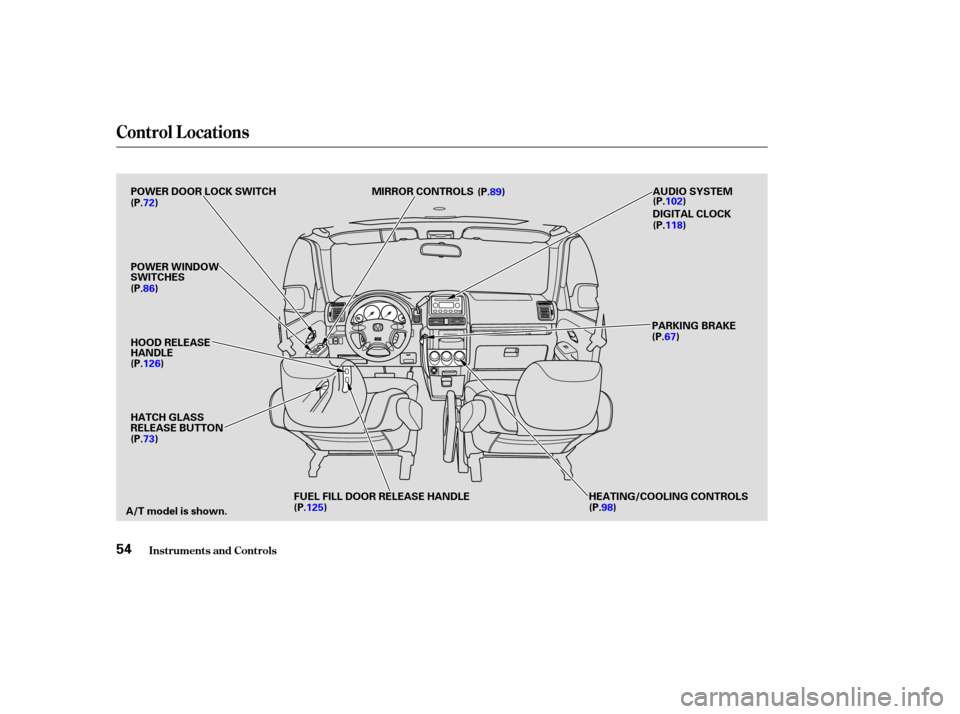

Control L ocations
Inst rument s and Cont rols54
POWER DOOR LOCK SWITCH
POWER WINDOW
SWITCHES
HOOD RELEASE
HANDLE
HATCH GLASS
RELEASE BUTTON
A/T model is shown. FUEL FILL DOOR RELEASE HANDLE
HEATING/COOLING CONTROLSPARKING BRAKE
DIGITAL CLOCK AUDIO SYSTEM
MIRROR CONTROLS
(P.72)
(P.86)
(P.126)
(P.73)
(P.125) (P.98)(P.67)
(P.118)
(P.89)
(P.102)
Page 68 of 256
µ
µ
µ µ
µ
µ
µ
µ µ
MIST
OFF
INT Intermittent
LO Low
HI High
Windshield Washers Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated.
The wipers operate every
f ew seconds.
The wipers run at low speed.
The wipers run at high speed. Pull
f orward and hold the wiper control
lever. The washers spray until you
release the lever. The wipers run
at low speed, then complete one
more sweep af ter you release the
lever. Hold past ON to turn the window
wiper on and the window washer
to spray.
Rotate counterclockwise to turn
the window wiper on and the
window washer to spray. OFF Rotate clockwise to turn the rear
window wiper ON.
1.
2.
3.
4.
5.
6. 1.
2.
3.
4.
Windshield Wiper
MIST
OFF
INT
LO
HI
Windshield WasherRear Window Wiper and Washer
Wipers and Washers
Inst rument s and Cont rols64
Page 79 of 256
´
Ü
Õ
CONT INUED
If it takes several pushes on the
button to lock or unlock the doors
and the tailgate, replace the battery
as soon as possible.
Battery type: CR2025 To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up. Align the mark on the
cover with the mark on the
transmitter. Set the cover in place
andturnitclockwise.
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperatures.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by a Honda dealer.
As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Inst rument s and Cont rols
Remote Transmitter
Replacing the Transmitter Battery
Remote Transmitter Care
75
BATTERYROUND
COVER
Page 101 of 256
The heating and air conditioning
systems in your Honda provide a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.)
Your Honda has an anti-thef t audio
system that requires a code number
to enable it................
Vents, Heating, and A/C . 98
.........................
Air Flow Buttons .99
..........................
Playing the Radio .102
............................
Radio Reception .106
..................................
Playing a CD .108
...................................
CD Changer .110
....................
Protecting Your CDs .111
.........
CD Player Error Messages . 112
.....
CD Changer Error Messages . 113
...............................
Playing a Tape .114
.................
Radio Thef t Protection . 117
..........................
Setting the Clock .118
...............................
Cruise Control .119
Comf ort and Convenience Features
Comf ort and Convenience Feat ures97
Page 103 of 256
Turn this dial clockwise to increase
fan speed and increase the airflow.
Turning this dial clockwise increases
the temperature of the airflow.
This button turns the air
conditioning on and of f . The light in
thebuttonisonwhentheA/Cison.
When the light in the button is on,
air f rom the vehicle’s interior is sent
throughout the system again. When
the light is of f , air is brought in f rom
the outside of the vehicle (Fresh Air
mode).The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
def ogger of f and on (see page ).
The system automatically
turns on the A/C and switches to
Recirculation mode. Air f lows f rom
the center and side vents in the
dashboard.
Air flows from the center
and corner vents in the dashboard.
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
Fresh Air mode.
Air f low is divided between
the f loor vents and the def roster
vents at the base of the windshield. Air f low is divided between
the vents in the dashboard and the
f loor vents.
Use the mode control dial to select
the vents the air flows from. Some
air will f low f rom the dashboard
vents in all modes. 66
Fan Control Dial
T emperature Control Dial
Air Conditioning (A/C) Button
Recirculation Button
Rear Window Def ogger Button
Mode Control Dial
Comf ort and Convenience Feat ures
Air Flow Buttons
99
Page 122 of 256
If your vehicle’s battery is
disconnected or goes dead, you will
need to set the clock.
Press the CLOCK button until you
hear a beep. The displayed time
begins to blink. Change the hours by
pressing the H button until the
numbers advance to the desired time.
Change the minutes by press the M
button until the numbers advance to
the desired time.
When you are f inished, press the
CLOCK button again.
You can quickly set the time to the
nearest hour. If the displayed time
is bef ore the half hour, press the
CLOCK button until you hear a
beep, then press the R (RESET)
button to set the clock back to the
previous hour. If the displayed
time is af ter the half hour, the
clock sets f orward to the
beginning of the next hour.For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
Setting the Clock
Comf ort and Convenience Feat ures118
LX Model
RESET BUTTON
CLOCK BUTTON H BUTTON
H BUTTON CLOCK BUTTON
M BUTTON M BUTTON
RESET BUTTON
U.S.: EX Model
Canada: EX and EX-L Models
Page 181 of 256
When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Pourthecoolantslowlyand
caref ully so you do not spill. Clean
up any spill immediately; it could
damage components in the engine
compartment.
Put the radiator cap back on and
tighten it.Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
3.
4. 5.
2. 1.
Engine Coolant
Maint enance177
RADIATOR CAP RESERVE TANK
Page 188 of 256
Unclip the end of the hold-down
wire f rom its slot. Pivot it out of
the way and remove the bulb.
Insert the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
Reinstall the rubber seal. Make
sure it is right side up; it is marked
‘‘TOP.’’
Push the electrical connector onto
the new bulb.Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
The f ront side marker/turn signal
light is next to the headlight bulb.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
4.
5.
6.
1.
2.3.
4.
5.
3.
Replacing the Front Side Marker/
Turn Signal Light Bulb
Lights
Maint enance184
BULB
Page 189 of 256
The f ront parking light is next to
the headlight bulb.Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the parking lights and
check that the new bulb is
working.
Reinstall the radiator support
cover. Lock the holding clips by
pushing on the center of each clip.
Tighten the bolt on the battery
hold-down.
Use a wrench to loosen the bolt on
the battery hold-down. Remove
the seven holding clips f rom the
cover by using a flat-tipped
screwdriver. Then pull the
radiator support cover away.
1.
2.
3.
4.5.
6.
7.
Replacing a Front Parking L ight
Bulb
Lights
Maint enance185
BOLT
BULB
HOLDING
CLIP
COVER
