Page 63 of 256
µ
Canadian models onlyThis indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages.
For the f irst 8,000 miles (12,800 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch to ON (II). Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km), it will
light f or two seconds when you f irst
turn the ignition switch to ON (II),
andthenflashfortenseconds.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as
f ollows.
Turn of f the engine.
This indicator comes on if the
tailgate or the hatch glass is not
closed tightly. Thiscomesonwhenthewasher
f luid level is low. Add washer f luid
when you see this light comes on
(see page ).
This indicator comes on if any door
is not closed tightly.
1.
168 169
178
Inst rument s and Cont rols
Washer Level Indicator
Tailgate and Hatch Glass
Open Indicator Maintenance Required
Indicator
Door-open Indicator
Instrument Panel
59
Page 64 of 256
Hold the button for about 10
seconds until the indicator goes
off. Press and hold the Select/Reset
button the instrument panel, then
turn the ignition switch to ON (II).
2.
3.
Inst rument s and Cont rols
Instrument Panel
60
SELECT/RESET BUTTON
Page 65 of 256
This shows the total distance your
vehicle has been driven. It measures
miles in U.S. models and kilometers
in the Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display (Canadian
models only) by pressing the Select/
Reset button repeatedly. This shows the number of miles (U.S.)
or kilometers (Canada) driven since
you last reset it.
Each trip meter works independently, so you can keep track of two
dif f erent distances.
To reset a trip meter, display it, and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0’’. Both trip meters will reset if
the vehicle’s battery goes dead or is
disconnected.Odometer
Trip Meter Fuel Gauge
Gauges
Inst rument s and Cont rols61
SELECT/RESET BUTTON
TEMPERATURE GAUGE SPEEDOMETER
ODOMETER/TRIP METER
TACHOMETER
FUEL GAUGE
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
Page 66 of 256
¶µµµµ
µ µµµ
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (Hot) mark, pull
safely to the side of the road. Turn to
page f or instructions and
precautions on checking the engine’s
cooling system.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 30 km/h.If the outside temperature is
incorrectly displayed, you can adjust
it up to 3°C warmer or cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob f or ten seconds. The f ollowing
sequence will appear f or one second
each:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When it reaches the desired value,
release the Select/Reset knob. You
should see the new outside
temperature displayed.
In certain weather conditions,
temperature readings near f reezing 0
°Ccouldmeanthaticeisformingon
the road surface.
This light displays the outside
temperature Centigrade.
211
Canadian models only
Temperature Gauge
Outside Temperature Indicator
Gauges
Inst rument s and Cont rols62
OUTSIDE TEMPERATURE INDICATOR
Page 91 of 256
If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window f use is removed, the
AUTO f unction will be disabled. The
power window system needs to be
reset af ter reconnecting the battery
or installing the f use.Start the engine. Push down and
hold the driver’s window switch
until the window is f ully open.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
f or a second or two more.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by a Honda dealer. Open the glove box by pulling the
bottom of the handle. Close it with a
f irm push. Lock or unlock the glove
box with the master key.
The glove box light comes on only
when the instrument panel indicators
are on.
1.
2.
Glove Box
Inst rument s and Cont rols
Power Windows, Glove Box
87
Lock
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
Page 106 of 256

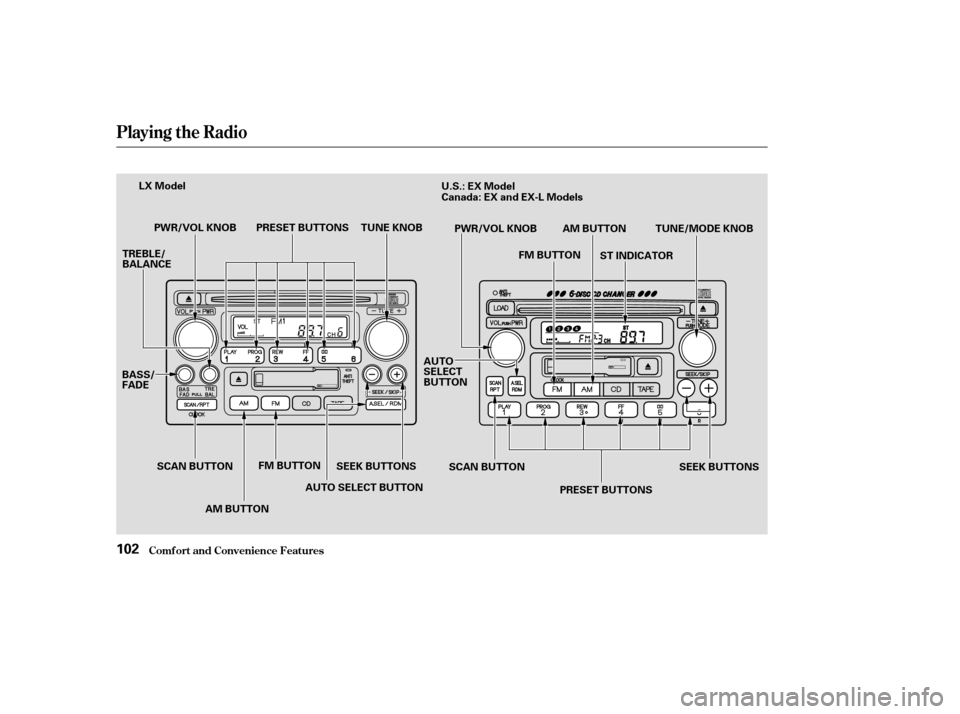

Playing the Radio
Comf ort and Convenience Feat ures102
PWR/VOL KNOBSEEK BUTTONSTUNE KNOB
SCAN BUTTON FM BUTTON
AM BUTTON PRESET BUTTONS
FM BUTTONAM BUTTON
PRESET BUTTONS
PWR/VOL KNOB
SCAN BUTTON SEEK BUTTONS
ST INDICATOR
LX Model
Canada: EX and EX-L Models
U.S.: EX Model
TREBLE/
BALANCE
BASS/
FADE AUTO SELECT BUTTONAUTO
SELECT
BUTTON TUNE/MODE KNOB
Page 107 of 256
µµ
ÓÓ
µ µ
µ´
The ignition switch must be in
ACCESSORY (I) or ON (II). Turn
the system on by pushing the PWR/
VOL knob or the AM or FM button.
Adjust the volume by turning the
same knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
You can use any of f ive methods to
f ind radio stations on the selected
band:
the
preset buttons, and .
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a lower f requency.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press either SEEK button ( or ),
then release it.
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station f or about f ive seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it for five seconds. When it
plays a station you want to listen to,
press the SCAN button again. Each preset button can
store one f requency on AM, and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
stations on FM.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed. 2.
3.
4. 1.
To Play the Radio
To Select a Station
TUNE,SEEK,SCAN, AUTO SELECT
TUNE SEEK
SCAN
Preset
Playing the Radio
Comf ort and Convenience Feat ures103
Page 108 of 256
µµ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the Auto Select f eature
to find stations in the local area.
Press the A. SEL Button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if Auto
Select cannot f ind a strong station
f or every preset button.
If you do not like the stations Auto
Select has stored, you can store
other f requencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN functions to find stations, then
store them in the preset buttons as
described. press the
A. SEL button. This restores the
presets you originally set.
Press the knob to get it
to pop out. Turn it to adjust the Bass
level. Pull it out slightly f arther to
adjust the Fade, or front-to-back
strength. Push the knob back in
when you are done adjusting the
sound. Use the TRE/BAS
modes or controls to adjust the tone
to your liking.
These two
modes adjusts the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.To turn of f Auto Select,
On LX model in the U.S. and CanadaAUTO SELECT Adjusting the Sound
BAS/FAD: Treble/Bass
Balance/Fader
Playing the Radio
Comf ort and Convenience Feat ures104
Page 113 of 256
Ó
Ó ÓÓ
µ
µ´
µ ´µWith the ignition in the
ACCESSORY (I) or ON (II) position,
insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way and begin to play it. You
operate the CD player with the same
controls used f or the radio. The
number of the track playing is shown
in the display. The system will
continuously play a CD until you
change modes.
Press the LOAD button until you
hear a beep and see ‘‘LOAd’’ in the
display.
The disc number f or an empty
position is highlighted and the red
light starts blinking.
Insert the disc into the CD slot
when the green CD load indicator comes on. Insert it only about
half way, the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display. The CD
load indicator turns red and blinks
as the CD is loaded.
Repeat steps 1 through 3 until all
six positions are loaded. If you are
not loading all six positions, the
system begins playing the last CD
loaded.
You can also load a CD into an empty
position while a CD is playing. Select
the empty position (the disc number
indicator is not highlighted) and
press the appropriate preset bar or
touch a disc icon. The current CD
stops playing and starts the loading
sequence. The CD just loaded will
play. Each time you press and release ,
the player skips forward to the
beginning of the next track. Press
and release to skip backward to
the beginning of the current track.
To move rapidly within a track, press
and hold the or . You will see
CUE or REW in the display.
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press the RPT button again
to turn it off.
This f eature plays the
tracks in random order. To activate
Random Play, press and release the
RDM button. You will see RDM in
the display. This continues until you
press the RDM button again.
1. 4.
3. 2.
OnEXmodelinU.S.,andEXandEX-L models in Canada
Comf ort and Convenience Feat ures
CD Player To Change Tracks (SK IP)
REPEAT
RANDOM
L oading t he In-Dash CD Changer
Playing a CD
109
Page 114 of 256
µ
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 15 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM/FM button to switch
to the radio while a CD is playing.
Press the CD button to play the CD.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the CD will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
A CD changer is available f or your
vehicle. It holds up to six CDs. You
operate the CD changer with the
same controls used f or the in-dash
CD player.
To select the CD changer, press the
CD button. The CD and track
numbers will be displayed. To select
a different CD, use the preset button
(1 6). If you select an empty slot in
the magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot. Load the desired CDs in the
magazine, and load the magazine in
the changer according to the
instructions that came with it.
OnLXModelintheU.S.andCanada
Playing a CD, CD Changer
Comf ort and Convenience Feat ures
T o Stop Playing a CD
Operating Optional CD Changer
110
