HONDA CR-V 2006 RD4-RD7 / 2.G Owners Manual

If you see an error message in the
display while playing a CD, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
the vehicle to your dealer.Error
Message Solution
Cause
Press the CD eject button and pull out the CDs.
Check f or an error message, and insert the CDs
again. If the message does not disappear or the
CDs cannot be pulled out, see your dealer.
Insert CDs.
FOCUS Error
Mechanical Error
No CD in the CD
changer
Disc Changer Error Messages
CD Changer
128

Playing a T ape
Features
129

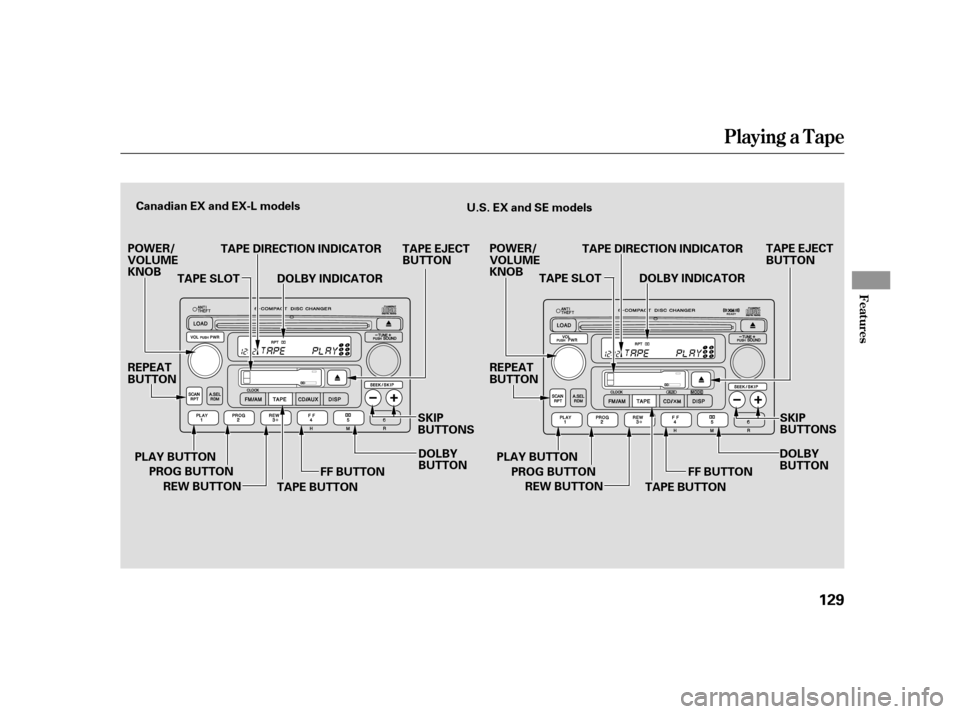

TAPE DIRECTION INDICATOR TAPE EJECTBUTTON
DOLBY
BUTTON
REPEAT
BUTTON
SKIP
BUTTONS
Canadian EX and EX-L models
U.S. EX and SE models
POWER/
VOLUME
KNOB
REW BUTTON FF BUTTON
TAPE BUTTON TAPE DIRECTION INDICATOR
DOLBY INDICATOR TAPE EJECT
BUTTON
DOLBY
BUTTON
REPEAT
BUTTON
SKIP
BUTTONS
POWER/
VOLUME
KNOB
TAPE SLOT
FF BUTTON
TAPE BUTTON
TAPE SLOT DOLBY INDICATOR
PLAY BUTTONPROG BUTTON
PLAY BUTTON
PROG BUTTON REW BUTTON

Î
Î
Ûµ
µÓ Ó
µ
´
Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Dolby noise reduction turns on
when you insert a tape. The indicator will light in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the button. Dolby remains of f until
you press the button again.
To remove the tape, press the eject
button. If you want to turn the player
off, press the PWR/VOL knob or
turn off the ignition. The tape will
remain in the drive. When you turn
the system back on, the tape will
begin playing where it lef t of f .
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Make sure the open side of
thetapeisfacingright,theninsert
thetapemostof thewayintotheslot.
Thesystemwillpullthetapeinthe
rest of the way and begin to play it.
Thetapedirectionindicatorinthe
display comes on to show you which
side of the tape is playing. The
indicates the side you inserted
upward is now playing. If you want to
play the other side, press the PROG
button. When the player reaches the
end of the tape, it will automatically
reverse direction and play the other
side.
To switch to the radio, XM Radio
(optional on U.S. EX and SE models),
or CD changer while a Tape is
playing, press the FM/AM or CD/
XM button. To change back to the
tape player, press the TAPE button.
To rewind the tape,
push the REW button. You will see
REW in the display. To fast forward
the tape, push the FF button. You
will see FF displayed. Press the FF,
REW, or PLAY button to take the
system out of rewind or f ast f orward.
Press the button to find
the beginning of the current song or
passage. Press the button to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
To Play a Tape
To Stop Playing a TapeT ape Search Functions
FF/REW
SK IP
Playing a T ape
130

µThetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player af ter every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive. Store tapes in their cases to protect
them f rom dust and moisture. Never
placetapeswheretheywillbe
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in the player.
Never try to insert f oreign objects
into the tape player.
If you see the error message
‘‘ ’’ on the display, press the
tape eject button to remove the tape
from the unit. Make sure the tape is
not damaged. If the tape will not
eject or the error message stays on
after the tape ejects, take your
vehicle to your dealer.
Press the RPT button
to continuously play a song or
passage. You will see RPT displayed.
The track will repeat until you press
the RPT button again.
The skip and repeat
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection. Caring f or the T ape and Player
REPEAT
Playing a T ape
Features
131
NOTE:

The radio can receive the complete
AM and FM bands.
Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kilohertz
FM band: 87.7 to 107.9 megahertzHow well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.

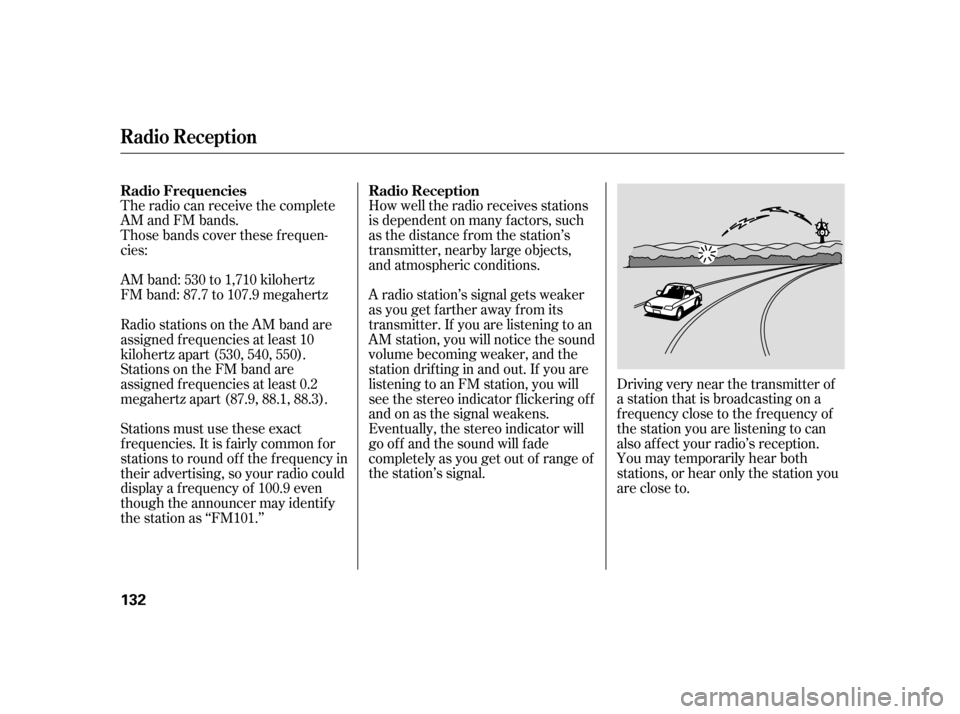

A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned f requencies at least 10
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’ Radio Frequencies
Radio Reception
Radio Reception
132

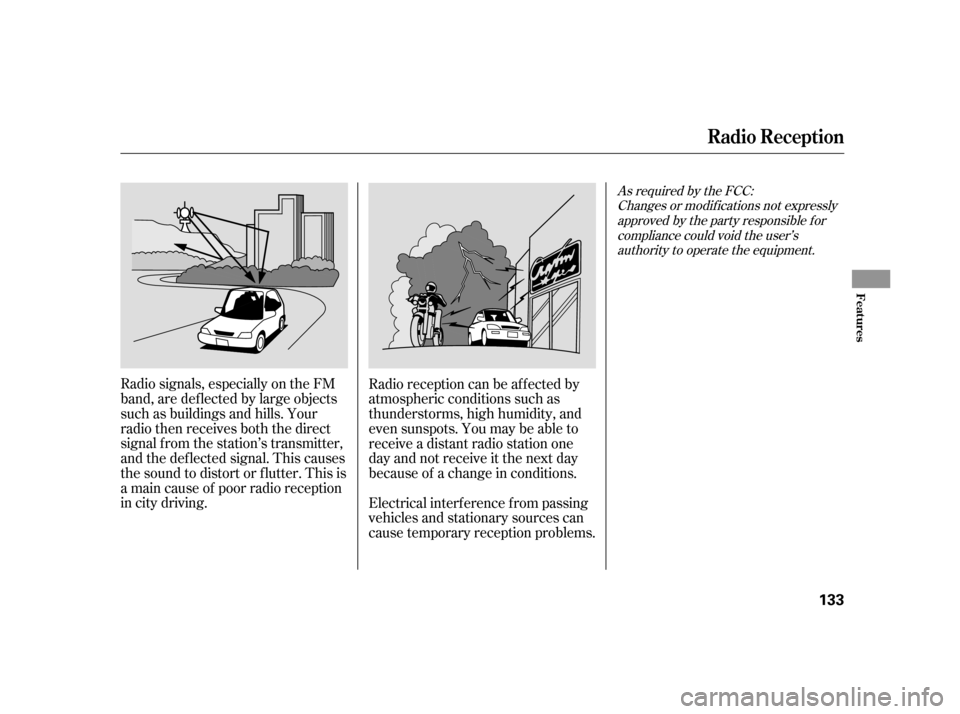

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
Radio Reception
Features
133

When using CD-R/CD-RW discs,
use only high quality CDs labeled
f or audio use.
When recording a CD-R/CD-RW,
the recording must be closed f or it
to be used by the system.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
Handle your CDs properly to
prevent damage and skipping.When a CD is not being played, store
it in its case to protect it f rom dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean sof t cloth.
Wipe across the CD f rom the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the re-
cording surf ace of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert f oreign objects in
theCDplayer/CDchangerorthe
magazine.
Handle a CD by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
f rom f ingerprints, liquids, and f elt-tip
pens, can cause the CD to not play
properly or possibly jam in the drive.
Protecting Your Discs
Protecting Your CDs
General Inf ormat ion
Prot ect ing CDs
134

ÛÝ

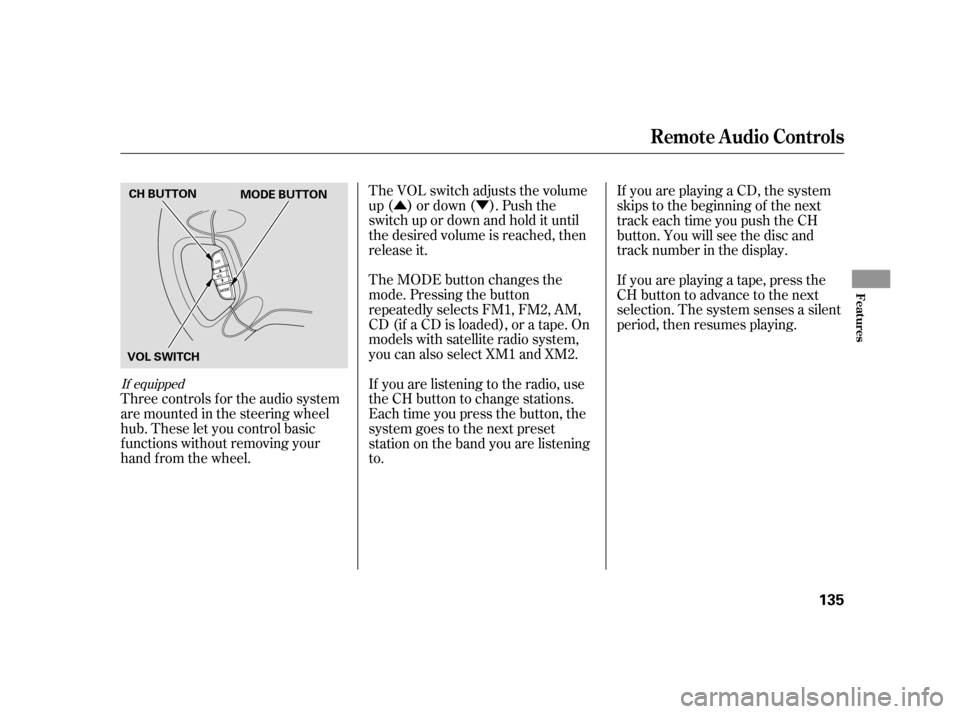

Three controls f or the audio system
are mounted in the steering wheel
hub. These let you control basic
f unctions without removing your
hand f rom the wheel. The VOL switch adjusts the volume
up ( ) or down ( ). Push the
switch up or down and hold it until
the desired volume is reached, then
release it.
The MODE button changes the
mode. Pressing the button
repeatedly selects FM1, FM2, AM,
CD (if a CD is loaded), or a tape. On
models with satellite radio system,
you can also select XM1 and XM2.
If you are listening to the radio, use
the CH button to change stations.
Each time you press the button, the
system goes to the next preset
station on the band you are listening
to.If youareplayingaCD,thesystem
skips to the beginning of the next
track each time you push the CH
button. You will see the disc and
track number in the display.
If youareplayingatape,pressthe
CH button to advance to the next
selection. The system senses a silent
period, then resumes playing.
If equipped
Remote Audio Controls
Features
135
CH BUTTON
MODE BUTTON
VOL SWITCH

Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic f ive-digit code in the
preset buttons. Because there are
hundreds of number combinations
possible f rom f ive digits, making the
system work without knowing the
exact code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.
If you lose the card, you must obtain
the code number f rom a dealer. To
do this, you will need the system’s
serial number.If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have 10 tries to
enter the correct code. If you are
unsuccessf ul in 10 attempts, you
must then leave the system on for 1
hour bef ore trying again.You will have to store your favorite
stations in the preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
If your vehicle’s battery is
disconnected or goes dead, or the
radio f use is removed, the audio
system will disable itself . If this
happens, you will see CODE in the
frequencydisplaythenexttimeyou
turn on the system. Use the preset
buttons to enter the five-digit code.
Thecodeisontheradiocodecard
included in your owner’s manual kit.
When it is entered correctly, the
radio will start playing.
Radio T hef t Protection
136

If your vehicle’s battery is
disconnected or goes dead, you will
need to set the clock.
Press the CLOCK button until you
hear a beep. The displayed time
begins to blink. Change the hours by
pressing the H (preset 4) button
until the numbers advance to the
desired time. Change the minutes by
press the M (preset 5) button until
the numbers advance to the desired
time.
When you are f inished, press the
CLOCK button again.
You can quickly set the time to the
nearest hour. If the displayed time
is bef ore the half hour, press the
CLOCK button until you hear a
beep, then press the R (preset 6)
button to set the clock back to the
previous hour. If the displayed
time is af ter the half hour, the
clock sets f orward to thebeginning of the next hour.
1:06 will reset to 1:00
1:53 will reset to 2:00 For example:
Setting the Clock
Features
137
RESET BUTTON
CLOCK BUTTON H BUTTON
H BUTTON CLOCK BUTTON
M BUTTON M BUTTON
RESET BUTTON
CLOCK CLOCK
U.S.modelis
shown.
U.S.: EX and SE models
Canada: EX and EX-L models
U.S.: LX model
Canada: SE model
