This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red
(hot) mark, pull saf ely to the side of
the road. See page f or
instructions and precautions on
checking the engines cooling system.
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models).
231
If equipped
Gauges
Outside Temperature Indicator
Temperature Gauge
Odometer
Fuel Gauge
62
OUTSIDE TEMPERATURE INDICATOR
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.

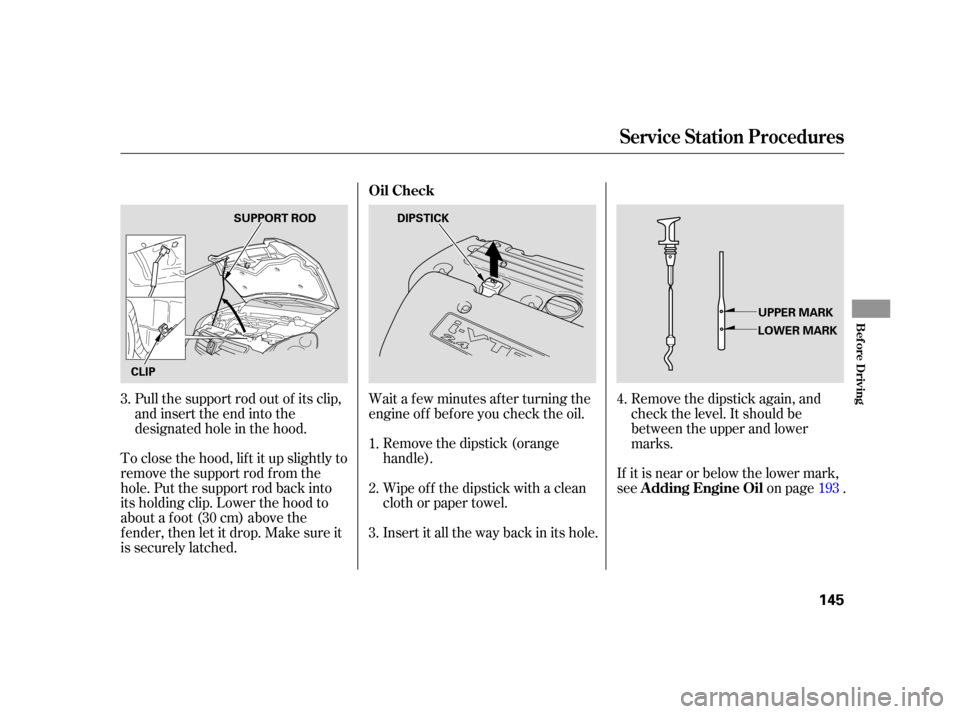

Wait a f ew minutes af ter turning the
engine of f bef ore you check the oil.Remove the dipstick (orange
handle).
Wipe of f the dipstick with a clean
cloth or paper towel.
Insert it all the way back in its hole.
To close the hood, lif t it up slightly to
remove the support rod f rom the
hole. Put the support rod back into
its holding clip. Lower the hood to
about a f oot (30 cm) above the
f ender, then let it drop. Make sure it
is securely latched. Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page .
Pull the support rod out of its clip,
and insert the end into the
designated hole in the hood.
1.
2.
3.
3.
4.
193
Oil Check
A dding Engine Oil
Service Station Procedures
Bef ore Driving
145
DIPSTICK
SUPPORT ROD
CLIP UPPER MARK
LOWER MARK

Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove f rost, snow,
or ice.
Check that the hood is f ully closed.Check the seat adjustment (see
page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Check the steering wheel
adjustment (see page ).
Make sure the doors, the tailgate,
and the hatch glass are securely
closed and locked.
Fasten your seat belt. Check that
your passengers have f astened
their seat belts (see page ).
When you start the engine, check
the gauges and indicators in the
instrument panel (see page ).
Check that any items you may be
carrying are stored properly or
f astened down securely. Visually check the tires. If a tire
looks low, use a gauge to check its
pressure (see page ).
Youshoulddothesechecksand
adjustments bef ore you drive your
vehicle:
1.
2.
10.78
88
14
3.
4. 5.
6.
7.
8.
9.
55
213 69
Driving Guidelines
Preparing to Drive
Driving
157

Your vehicle is equipped with disc
brakes at all f our wheels. A power
assist helps reduce the ef f ort needed
on the brake pedal. The anti-lock
brake system (ABS) helps you retain
steering control when braking very
hard.Check your brakes af ter driving
through deep water. Apply the
brakes moderately to see if they f eel
normal. If not, apply them gently and
f requently until they do. Be extra
cautious and alert in your driving.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the lef t-f ront brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.The f ront and rear disc brakes on all
models have audible brake wear
indicators.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal f or
the brakes to occasionally squeal or
squeak when you apply them.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their ef f ective-
ness. Use the engine to assist the
brakes by taking your f oot of f the
accelerator and downshif ting to a
lower gear. Resting your f oot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their ef f ectiveness.
It also keeps your brake lights on all
the time, conf using drivers behind
you.
Braking System
Braking System Design Brake Pad Wear Indicators
Driving
167

This section explains why it is
important to keep your vehicle well
maintained and how to f ollow basic
maintenance saf ety precautions.
If you have the skills and tools to
perf orm more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page f or inf ormation on how to
obtain a copy, or see your dealer.......................
Maintenance Saf ety .184
.................
Maintenance Schedule . 185
....................
Maintenance Record .189
..............................
Fluid Locations .192
........................
Adding Engine Oil .193
.........
Changing the Oil and Filter . 194
..............................
Engine Coolant .196
....................
Windshield Washers .198
.......................
Transmission Fluid .199
Automatic Transmission .......................................
Fluid .199
....
Manual Transmission Fluid . 200
.................
Rear Dif f erential Fluid . 201
................
Brake and Clutch Fluid . 201
....................
Power Steering Fluid . 202
.............................................
Lights .203
................
Cleaning the Seat Belts . 208
.....................................
Floor Mats .208
..............................
Audio Antenna .209
..................
DustandPollenFilter . 209
.................................
Wiper Blades .210
...............................................
Tires .211
...................
Checking the Battery . 217
.............................
Vehicle Storage .218
This section also includes
maintenance schedules f or normal
driving and severe driving conditions,
a maintenance record, and
instructions f or simple maintenance
tasks you may want to take care of
yourself .
259
Maintenance
Maint enance
183

̵
µµ
µ
µ
µ
We recommend the use of Honda
parts and f luids whenever you have
maintenance done. U.S. Vehicles:
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
perf ormed at the recommended time
or mileage period to ensure long-
term reliability.
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you f ill the f uel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Automatic transmission Check
the f luid level monthly. See page .
Brakes Check the f luid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page .
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate light monthly.
See page .
Your authorized dealer knows your
vehicle best and can provide
competent, ef f icient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
skilled person to keep your
warranties in ef f ect. Keep all the
receipts as proof of completion, and
have the person who does the work
f ill out the maintenance record.
Check your warranty booklet f or
more inf ormation.
145
146
199
212 203 201
Maintenance Schedule
Servicing Your Vehicle
Maintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certif ied’’ to EPA standards. Owner’s Maintenance Checks
186

Ì
Î
Î
Ì
Ì
Î
Î
188
Replace at 60,000 miles (96,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years. See dust and pollen filter on page for replacement information under special driving conditions.
See information on maintenance and emissions warranty, middle column, page . Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000 10
1620
3230
4840
6450
8060
9670
112 80
128 90
144 100
160110
176120
192130
208140
224150
240
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 5,000 miles (8,000 km) or every 6 months, whichever comes first Every 10,000 miles (16,000 km)
Every 20,000 miles (32,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Clean every 15,000 miles (24,000 km), and replace every 30,000 miles (48,000 km) (Use normal schedule except in dusty condition)
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy Every 60,000 miles (96,000 km) or every 3 years, whichever comes first
Every 60,000 miles (96,000 km) or every 4 years, whichever comes first Every 160,000 miles (256,000 km)
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)
Every 10,000 miles (16,000 km) or every 1 year, whichever comes first
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 214 )
Replace engine oil filter
Check front and rear brakes
Lubricate all hinges, locks and latches
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belt
Replace dust and pollen filter
Clean and replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Replace rear differential fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
:
1:
2: 186
209
1
2
Maintenance Schedule for Severe Conditions

Diagnosing why the engine won’t
start f alls into two areas, depending
on what you hear when you turn the
ignition switch to the START (III)
position:When you turn the ignition switch to
the START (III) position, you do not
hear the normal noise of the engine
trying to start. You may hear a
clicking sound or series of clicks, or
nothing at all. Turn the ignition switch to the
START (III) position. If the
headlights do not dim, check the
condition of the f uses. If the f uses
areOK,thereisprobably
something wrong with the
electrical circuit f or the ignition
switch or starter motor. You will
need a qualif ied technician to
determine the problem (see
on page ).
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is dis-
charged or the connections are
corroded. Check the condition of the
battery and terminal connections
(see page ). You can then try
jump starting the vehicle from a
booster battery (see page ).
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
f aster than normal, but the engine
does not start up and run. You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
Turn the ignition switch to the ON
(II) position. Turn on the
headlights, and check their
brightness. If the headlights are
very dim or do not come on at all,
the battery is discharged. Seeon page .
Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the f loor or the
starter will not operate. With an
automatic transmission, it must be
in Park or neutral.
Check these things:
229217
229242
Nothing Happens or the Starter
Motor Operates Very Slowly
Emergency T owing
Jump Starting
If theEngineWon’tStart
T aking Care of t he Unexpect ed
227

Let the vehicle sit f or a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Immediately turn of f all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
Saf ely pull of f the road, and shut
of f the engine. Turn on the hazard
warning lights.
This indicator should never
come on when the engine is
running. If it starts f lashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible, and you should
take immediate action.
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn of f the
engine. There is a mechanical
problem that needs to be repaired
bef ore you can continue driving
(seeon page
).
1.
2.
4. 3.
145
193
242
L ow Oil Pressure Indicator
Charging System Indicator
Emergency T owing
L ow Oil Pressure Indicator, Charging System Indicator
T aking Care of t he Unexpect ed
233
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the vehicle stopped.

CONT INUED
BatteryCharging System ...........................
Indicator .56, 233
............................
Jump Starting .229
..............................
Maintenance .217
............................
Specif ications .247
..............................
Bef ore Driving .141
....................................
Belts,Seat .8,18
...........................
Beverage Holders .91
..................................
Booster Seats .47
Brakes ...........
Anti-lock System (ABS) . 168
.............
Break-in, New Linings . 142
....................
Bulb Replacement .205
...........................................
Fluid .201
.........................................
Parking .68
.................
System Indicator . 56,235 ..........................
System Design .167
........................
Wear Indicators .167
.............................
Braking System .167
.................
Break-in, New Vehicle . 142
..
Brightness Control, Instruments . 67
..................
Brights, Headlights . 66,67
...................................
Built-in Table .91
Bulb Replacement ..........................
Back-up Lights .205
..............................
Brake Lights .205
................
Front Parking Lights . 205
........
Front Side Marker Lights . 205
.................................
Headlights .203
.........
High-mount Brake Light . 207
.........
Rear Side Marker Lights . 205
............................
Specif ications .247
....................
Turn Signal Lights . 205
..............................
Bulbs, Halogen .203
............................
Capacities Chart .246
.............
Carbon Monoxide Hazard . 50
..............................................
Cargo .150
....................................
Accessories .148
ACCESSORY (Ignition Key .......................................
Position) .72
..............
Accessory Power Sockets . 95
....................
Additives, Engine Oil . 193
.......
Adjusting the Steering Wheel . 69
...........................
Advanced Airbags .25
...............................
Airbag (SRS) .9, 21
................
Air Conditioning System . 98
.........................................
Usage .100
.......................
Air Pressure, Tires .213
.......................
Alcohol in Gasoline .142
......................................
Antif reeze .196
Anti-lock Brakes (ABS) ...............................
Indicator .57, 168
...................................
Operation .168
..............
Anti-thef t, Audio System . 136
.
Anti-thef t Steering Column Lock . 72
................................
Audio System .103
...
Automatic Seat Belt Tensioners . 19
.............
Automatic Speed Control . 138
..............
Automatic Transmission . 161
..........................
Capacity, Fluid .246
...............
Checking Fluid Level . 199....................................
D3 Mode .163
.......................................
Shif ting .161
Shif t Lever Position ...............................
Indicators .161
................
Shif t Lever Positions . 162
....................
Shif t Lock Release . 165
Index
A
B
C
INDEX
I
