tailgate HONDA CR-V 2007 RD1-RD5, RE7 / 3.G User Guide

Make sure the shif t lever is in
Park (P), and open the driver’s
door.
Turn the ignition switch to the ON
(II) position.
Set the parking brake.Make sure the shif t lever is in
Park (P), and close the driver’s
door.
Turn the ignition switch to the ON
(II) position.
Set the parking brake.
Pushandholdthefrontof the
master door lock switch on the
driver’s door. You will hear a
clicking sound af ter about 5
seconds.
Release the switch and then,
within 5 seconds, turn the ignition
switch to the LOCK (0) position.
1. 1.
2.
3. 2.
3.
4.
5.
Locks all doors and tailgate when the
vehicle’s speed reaches about 9 mph(15 km/h).
CONT INUED
To turn the auto door lock modesoff: To activate an auto door lock mode:
Door L ocks
Inst rument s and Cont rols
85

Release the switch and then,
within 5 seconds, turn the ignition
switch to the ACCESSORY (I)
position. Pushandholdthefrontof the
master door lock switch on the
driver’s door. You will hear a
clicking sound, and af ter about 5
seconds, you will hear another
clicking sound. Push and hold the brake pedal,
then move the shift lever out of
Park (P).The auto door unlocking f eature has
f ive possible settings:
Make sure the shif t lever is in
Park (P), and close the driver’s
door.
The driver’s door unlocks when
you move the shif t lever to the
Park position.
This is the factory setting.
The driver’s door unlocks
whenever you turn the ignition
switch to the ACCESSORY (I)
position.
All doors and the tailgate unlock
when you move the shif t lever to
the Park position.
All doors and tailgate unlock
whenever you turn the ignition
switch to the ACCESSORY (I)
position.
The auto door unlocking is
deactivated all the time.
Set the parking brake. Turn the ignition switch to the ON
(II) position.
4.
5.
6.
1.
2.
3.
Unlocks driver’s door when the ignitionswitch is moved out of the ON (II)position.
A uto Door UnlockingTo activate an auto door unlockmode:
Door L ocks
86
Move the shift lever to the
PARK (P) position, then turn the
ignition switch to the LOCK (0)
position.
7.

Push and hold the brake pedal,
then move the shift lever out of
Park (P).
Pushandholdtherearof the
master door lock switch on the
driver’s door. You will hear a
clicking sound. Continue to hold
down the switch:Set the parking brake. Make sure the shif t lever is in
Park (P), and open the driver’s
door.
Turn the ignition switch to the ON
(II) position.Pushandholdtherearof the
master door lock switch on the
driver’s door. You will hear a
clicking sound, and af ter about 5
seconds, you will hear another
clicking sound.
Until you hear one click (af ter
about 5 seconds) to activate the
driver’s door unlock f eature.
Or, until you hear a second click
(af ter about 10 seconds) to
activate the all doors and tailgate
unlock f eature.
4.
4.
5.
1.
2.
3.
CONT INUED
To turn the auto door unlock modesoff:
Door L ocks
Inst rument s and Cont rols
87
Release the switch and then,
within 5 seconds, turn the ignition
switch to the ACCESSORY (I)
position.
6.
Move the shift lever to the
PARK (P) position, then turn the
ignition switch to the LOCK (0)
position.
7. Release the switch and then,
within 5 seconds, turn the ignition
switch to the LOCK (0) position.
5.

Unlocks the driver’s door or all doorsand the tailgate when the shif t lever ismoved to Park (P).
Make sure the shif t lever is in
Park (P), and close the driver’s
door.
Turn the ignition switch to the ON
(II) position. Pushandholdtherearof the
master door lock switch on the
driver’s door. You will hear a
clicking sound. Continue to hold
down the switch:
Until you hear one click (af ter
about 5 seconds) to activate the
driver’s door unlock f eature.
Or, until you hear a second click
(af ter about 10 seconds) to
activate the all doors and tailgate
unlock f eature.
The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position (lever is
down), the door cannot be opened
fromtheinsideregardlessof the
position of the lock tab. To open the
door, push the lock tab f orward and
use the outside door handle.
1.
2. 3.
4.
Childproof Door L ocks
To activate an auto door unlock
mode:
Door L ocks
88
LEVER
Lock Unlock
Release the switch and then,
within 5 seconds, turn the ignition
switch to the LOCK (0) position.

µ
µ µ
Press this button once
to unlock the driver’s door. Push it
twice to unlock the remaining doors
and the tailgate. Some exterior lights
will f lash twice each time you press
the button.
Press this button once to
lock all doors and the tailgate. Some
exterior lights will f lash once. When
you push LOCK twice within 5
seconds, you will hear a beep to
verify that the doors and the tailgate
arelockedandthesecuritysystem
(if equipped) has set. You cannot
lockthedoorsandthetailgateif any
door or the tailgate is not f ully closed
or the key is in the ignition switch. The ceiling light and the spot light (if
equipped) comes on when you press
the UNLOCK button if the lights are
in the door activated position. If you
do not open any door or the tailgate
within 30 seconds, the light f ades out.
If you relock the doors and the
tailgate with the remote transmitter
bef ore 30 seconds have elapsed, the
light(s) will go of f immediately.
If you do not open any door or the
tailgate within 30 seconds, they will
automatically relock, and the
security system (if equipped) will
reset. Pressthisbuttonfor
about 2 seconds to attract attention:
the horn will sound, and the exterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
CONT INUED
UNL OCK
LOCK PA NIC
Remote Transmitter
Inst rument s and Cont rols
89
LED
UNLOCK
BUTTON
LOCK
BUTTON
PANIC
BUTTON

Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.If it takes several pushes on the
button to lock or unlock the doors
and the tailgate, replace the battery
as soon as possible.
Battery type: CR1616
To replace the battery:Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
1.
Remote Transmitter
Remote Transmitter CareReplacing the Transmitter
Battery
90
SCREW

To open the tailgate, push the
release, and lift up. To close the
tailgate, use the tailgate handle to
lower it, then press down on the
back edge. Keep
the tailgate closed at all times
while driving to avoid damaging the
tailgate and to prevent exhaust gas
f rom getting into the interior. See on page
.
The tailgate will lock when you lock
the driver’s door with the key, the
remote transmitter, the master door
lock switch, or the lock tab on the
driver’s door.
To unlock the tailgate, turn the key
clockwise twice, push the rear of the
master door lock switch, or push the
UNLOCK twice on the remote
transmitter.
54
Carbon Monoxide Hazard
Tailgate
92
HANDLE
RELEASE

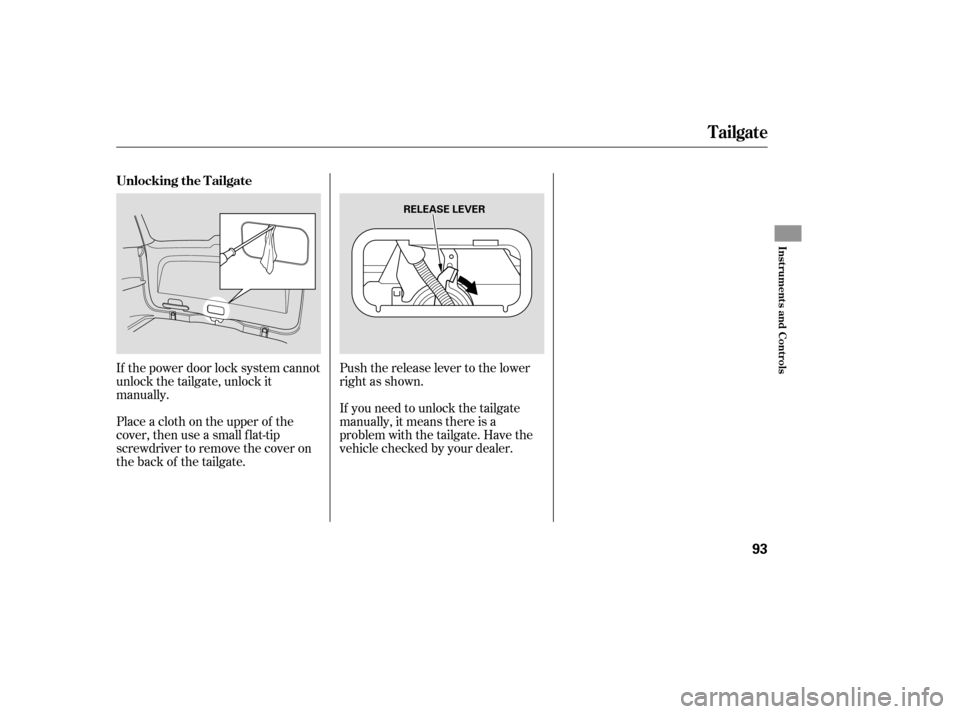

If the power door lock system cannot
unlock the tailgate, unlock it
manually.Push the release lever to the lower
right as shown.
If you need to unlock the tailgate
manually, it means there is a
problem with the tailgate. Have the
vehicle checked by your dealer.
Place a cloth on the upper of the
cover, then use a small flat-tip
screwdriver to remove the cover on
the back of the tailgate. Unlocking the T ailgate
Tailgate
Inst rument s and Cont rols
93
RELEASE LEVER

The ceiling light has a three-position
switch; ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:Open any door.
Unlock the doors and the tailgate
with the key or remote transmitter.
Your vehicle has a seat under tray
located under the f ront passenger
seat. Use the tray by pulling on the
f ront center edge of the tray.
Touseacoathook,slideitout
slightly, then pull it down.
Make sure the coat hook is f olded up
when you are not using it. This hook
is not designed f or large or heavy
items.If equipped
Interior Convenience Items, Interior L ights
Ceiling L ight
Seat Under T ray
Coat Hook
Inst rument s and Cont rols
119
ON
OFF DOOR ACTIVATED

Turn on the spotlight by pushing the
lens. Push the lens again to turn it
of f . You can use the spotlights at all
times.
The spotlights have a two-position
switch. In the DOOR position, the
lights come on when you open any
door. In the OFF position, the lights
do not come on.
The spotlights (with the switch in
the DOOR position) also come on
when you unlock the door with the
key or the remote transmitter, and
when you remove the key f rom the
ignition switch.
Af ter all doors and the tailgate are
closed tightly, the light fades out in
about 30 seconds.
The ceiling light (with the switch in
the center position) comes on when
you remove the key f rom the ignition
switch. If you do not open a door and
the tailgate, the light f ades out in
about 30 seconds.
If you leave any door or the tailgate
open without the key in the ignition
switch, the ceiling light goes of f af ter
3 minutes.
Interior Lights
Spotlights
120
Push
Push
EX, EX-L models LX model
Push
Push
Courtesy light Courtesy light
