window HONDA CR-V 2007 RD1-RD5, RE7 / 3.G Owner's Manual

Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set f irmly, or
your vehicle may roll if it is parked
on an incline.Make sure the moonroof (if
equipped) and the windows are
closed.
Turn of f the lights.
Place any packages, valuables, etc.
in the cargo area or take them
with you.
Set the parking brake bef ore you put
the transmission in Park. This keeps
the vehicle from moving and putting
pressure on the parking mechanism
in the transmission. If the vehicle is f acing uphill, turn
the front wheels away from the
If the vehicle is f acing downhill,
turn the front wheels toward the
Make sure the parking brake is
f ully released bef ore driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Lock the doors and the tailgate.
Check the indicator on the
instrument panel to verif y that the
security system is set. Never park over dry leaves, tall
grass, or other f lammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
On EX and EX-L models
Parking T ips
Parking
236
curb and set the parking brake.
curb and set the parking brake.

Lower the wiper arm against the
windshield. Install the wiper blade assembly
onto the wiper arm. Make sure it
locks in place. Slide the new blade into the holder.
Make sure it is engaged in the slot
along its f ull length.
Insert both ends of the blade into
the holder. Make sure they are
secure.
Pull one end of the blade out f rom
the holder.
Slide the blade out of the holder.
Examine the new wiper blades. If
they have no plastic or metal
reinf orcement along the back
edge, remove the metal
reinf orcement strips f rom the old
wiper blade, and install them in
the slots along the edge of the new
blade.
To replace a rear wiper blade:
Raise the wiper arm of f the rear
window.
Disconnect the blade assembly
f rom the wiper arm by pivoting the
blade assembly upward. 3. 5.
4. 6.
7.
1.
2.
Wiper Blades
Maint enance
287
REAR

µ
Check
the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicato r’s
colors.
Check the terminals for corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it off with plain
water. Dry off the battery with a cloth
or paper towel. Coat the
terminals with grease to help prevent
future corrosion.
If additional battery maintenance is
needed, see your dealer or a
qualified technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehic le’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last. If
your vehicle’s battery is
disconnected, or goes dead, the
audio system will disable itsel f. The
nexttimeyouturnontheradio,you
may see ‘‘ENTER CODE’’ in the
f requency display. Use the preset
buttons to enter the code (see page ).
205
WARNING:
Wash your hands af ter handling.
Checking the Battery
294
TEST INDICATOR WINDOW
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
technician do the battery
maintenance.

Fill the f uel tank.
Change the engine oil and f ilter.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.Block the rear wheels.
If the vehicle is to be stored f or a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Cover the vehicle with a
‘‘breathable’’ cover, one made
f rom a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
If you need to park your vehicle f or
an extended period (more than 1
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors. Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the battery.
Support the f ront and rear wiper
blade arms with a f olded towel or
ragsotheydonottouchthe
windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and tailgate seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and tailgate seals.If possible, periodically run the
engine until it reaches f ull
operating temperature (the
cooling f ans cycle on and of f
twice). Pref erably, do this once a
month.
Leave the parking brake off. Put
the transmission in Park.
Vehicle Storage
Maint enance
295

Let the vehicle sit for a minute.
Op en the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipsti ck (see page ). If
the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Immediately turn off all electri cal
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
Safely
pull off the road, and shut
off the engine. Turn on the hazard
warning lights.
This
indicator should never
come on when the engine is
running. If it starts flashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible, and you should
take immediate action.
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn of f the
engine. There is a mechanical
problem that needs to be repaired
bef ore you can continue driving
(see on page
).
1.
2.
4. 3.
218
317 267
L ow Oil Pressure Indicator
Charging System Indicator
Emergency T owing
L ow Oil Pressure Indicator, Charging System Indicator
T aking Care of t he Unexpect ed
309
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the vehicle stopped.

Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
Remove the cover f rom the f use
box.Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse box by
pulling out each one with the f use
pullerprovidedonthebackof the
under-hood f use box cover.
Check each of the large f uses in
the under-hood f use box by
looking through the side window
at the wire inside. Removing these
f uses requires a Phillips-head
screwdriver.
3. 4.
1.
2.
CONT INUED
Fuses
T aking Care of t he Unexpect ed
313
FUSE BLOWN FUSEBLOWN
FUSE PULLER

µ
µ
µ
Î
ÎÎ Î
Î
No. Amps.
No. Amps. Circuits Protected Circuits Protected
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38 7.5 A
20 A
(20 A) 20 A
20 A
(20 A) 15 A
15 A
20 A
(15 A)
20 A
20 A
7.5 A
7.5 A 10 A
7.5 A 30 A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19 7.5 A
15 A
10 A
7.5 A
(15 A)
(20 A)
10 A
7.5 A
7.5 A 10 A
10 A
10 A
7.5 A
7.5 A 10 A
10 A
20 A
15 A Power Window Relay
Fuel Pump
ACG
ABS/VSA
Heated Seats
Front Fog Lights
Not used
Rear Wiper
ODS (Ocupant Detection
System)
Meter
SRS
Right Headlight High Beam
Left Headlight High Beam
Small Light (Interior)
Small Light (Exterior)
Right Headlight Low Beam
Left Headlight Low Beam
Main Headlight High Beam
Small Lights MAIN TPMS
Headlight Low Beam
Not used
Not used
Moonroof
Door Lock
Front Left Power Window
HAC Option
Rear Accessory Socket
Accessory
Front Right Power Window
Accessory Power Socket on
the Center Table
Rear Right Power Window
Rear Left power window
ACC Radio
ACC Key lock
HAC
Daytime Running Lights
Front Wiper
: If equipped
Fuse Locations
T aking Care of t he Unexpect ed
315
INTERIOR FUSE BOX

ÎÎ Î
Î
Î Î
Î
No. No. Amps.
Circuits Protected
Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
19
20
21
22
23
(20 A)
(20 A)
7.5 A
(30 A)
(15 A) 15 A
15 A
7.5 A 15 A
7.5 A 10 A
Battery
EPS
Option Main
Ignition Switch Main
ABS/VSA FSR
ABS/VSA Motor
Headlight Main
Power Window Main
EPT-R
Sub Fan Motor
Main Fan Motor
Rear Defogger
Blower
Hazard
LAF
Stop and Horn
100 A
(70 A) 80 A
50 A
20 A
40 A
50 A
40 A
(30 A) 20 A
20 A
30 A
40 A
15 A
15 A
15 A PowerSeatDRRRHI/
Reclining
Power Seat DR FR HI/Sliding
IGPS OIL LEVEL
EPT-L
High Power Sound
IG Coil
FI Main
MG Clutch
DBW
Interior Light
Back Up
: If equipped
Fuse Locations
316
UNDER-HOOD FUSE BOX

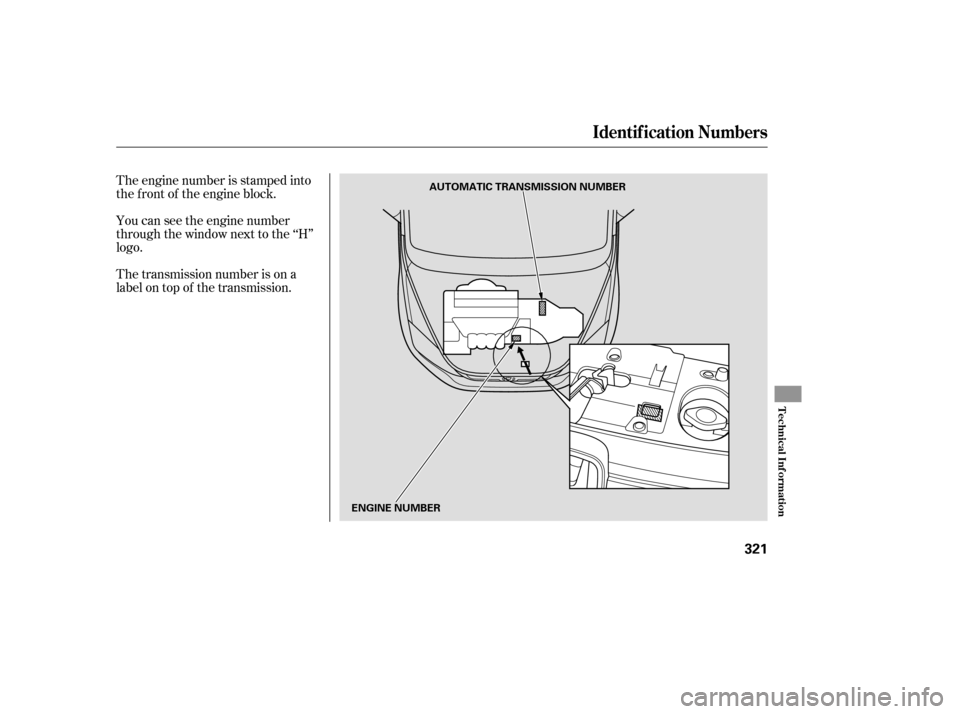

The engine number is stamped into
the f ront of the engine block.
You can see the engine number
through the window next to the ‘‘H’’
logo.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
Technical Inf ormation
321
ENGINE NUMBERAUTOMATIC TRANSMISSION NUMBER

Î
...............
DANGER, Explanation of .iii
...................................
Dashboard . 4, 72
................
Daytime Running Lights .75
Daytime Running Lights
.......................................
Indicator .63
.................................
Dead Battery .305
............
Def ects, Reporting Saf ety .336
................
Def ogger, Rear Window .77
..............
Def rosting the Windows .128
.......................
Detachable Anchor .104
....................................
Dimensions .322
.........
Dimming the Headlights . 74, 75
Dipstick ..........
Automatic Transmission .273
..................................
Engine Oil .218
..........................
Directional Signals .74
........
Disc Brake Wear Indicators .237
.....................
Disposal of Used Oil .269
..............................................
Cargo .222
...........................
Cargo area Light .121
.................................
Cargo Hooks .225
.............................
Carrying Cargo .222
....................
Cargo, How to Carry .222
.............
CAUTION, Explanation of .iii
.........................................
CD Care .202
..........................
CD Changer . 154, 181
CD Changer Error ...........................
Messages . 159, 187
.............
CD Error Messages . 159, 187
......................
CD Player . 135, 152, 172
...............................
Center Pocket .110
..................................
Center Table .114
........................
Certif ication Label .320
.................................
Chains, Tires .292
....................
Changing a Flat Tire .299
.................................
Changing Oil .267
........................................
How to .267
......................................
When to .263
....
Charging System Message . 60,309
............
Check Fuel Cap Indicator . 216
............
Checklist, Bef ore Driving . 229
.....................................
Child Saf ety . 34
..............................
Booster Seats .51
.............................
Child Seats . 34, 39 .....
Important Saf ety Reminders . 34
..........................................
Inf ants .39
............................
Large Children .50
.........................................
LATCH .43
......................
Risks with Airbags .35
.............................
Small Children .40
.........................................
Tethers .48
...........................
Warning Labels .36
.........
Where Should a Child Sit? . 35
.................................
Child Seats . 34, 39
.........................................
LATCH .43
..........
Tether Anchorage Points . 48
..................
Childproof Door Locks . 88
.......................
Cleaning Seat Belts .283
..............................................
Clock .206
........................
CO in the Exhaust .329
............
Cold Weather, Starting in . 230
...............
Consumer Inf ormation . 334
.............
Controls, Instruments and . 57
....................
Conversation Mirror .117
Coolant ........................................
Adding .270
....................................
Checking .218
.........................
Proper Solution .270
...................
Temperature Gauge . 69
..............................
Courtesy Light .121 Crankcase Emissions Control
........................................
System .329
................
Cruise Control Indicator . 62
............
Cruise Control Operation . 209
.............
Customer Service Of f ice . 334
Index
D
II
