HONDA CR-V 2009 RD1-RD5, RE7 / 3.G Owners Manual

Your audio system is capable of
receiving XM Radio anywhere in the
United States, except Hawaii and
Alaska.
XM
is a registered trademark of
XM Satellite Radio
,Inc.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
Playing the XM
Radio
Playing the XMRadio (U.S. EX-L model without navigation system)
Features
On U.S. EX-L wit hout Navigat ion Syst em
157

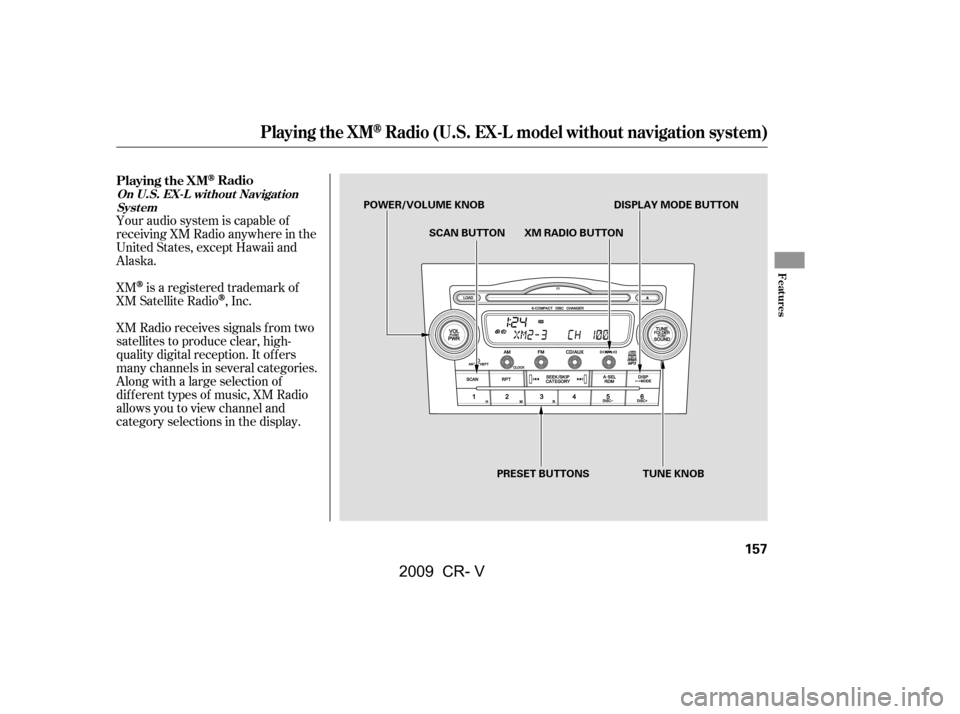

SCAN BUTTON
PRESET BUTTONS TUNE KNOBXM RADIO BUTTON
POWER/VOLUME KNOB
DISPLAY MODE BUTTON
\f—\f—y
\fy
(,\fy\f
y
2009 CR- V

µ
µ
µ
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
power/volume knob to turn on the
audio system, and press the ‘‘XM’’
button. Adjust the volume by turning
the knob. The last channel you
listened to will show in the display.
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
Turn the TUNE knob to
change channel selections. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels. In the category
mode, you can only select channels
within that category.
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
Channel name, channel number,
category, artist name, and music title.
Press either side of the CATEGORY
bar ( or ) to select another
category.
Operating the XM Radio
TUNE
MODE
SEEK /SK IP (CA T EGORY)
Playing the XMRadio (U.S. EX-L model without navigation system)
158
\f—\f—y
\fy
(,\fy\f
y
2009 CR- V

µµ µ
µ
µ
µ
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again. Usethetune,seek,orscan
function to tune to a desired
channel.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.
Repeat steps 2 and 3 to store the
f irst six channels.
Press the XM button again. Store
the next six channels using steps 2
and 3.
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel:
Press the XM button. Either XM1
or XM2 will show in the display. Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
Once a channel is stored, press and
release the proper preset button to
tune to it. XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally.
The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
1. 2.
3.
4.
5.
CONT INUED
SCAN
XM Radio Display Messages
Preset ‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’
‘‘NO SIGNA L ’’
Playing the XMRadio (U.S. EX-L model without navigation system)
Features
159
\f—\f—y
\fy
(,\fy\f
y
2009 CR- V

µµ
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer.
‘‘----’’
‘‘A NT ENNA ’’
Playing the XMRadio (U.S. EX-L model without navigation system)
160

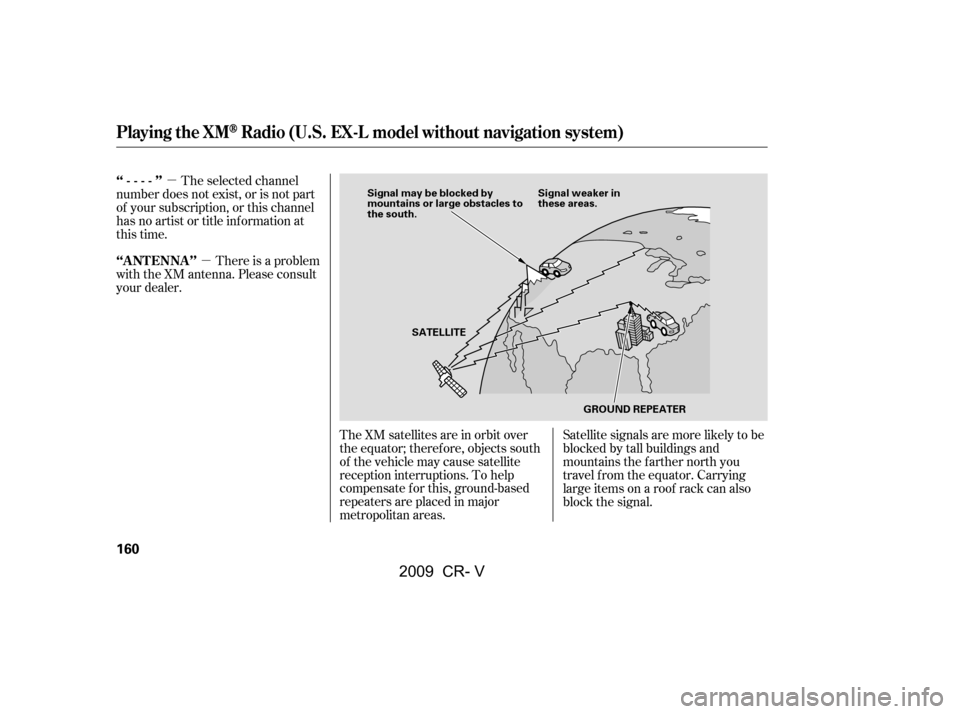

Signal may be blocked by
mountains or large obstacles to
the south. Signal weaker in
these areas.
SATELLITE GROUND REPEATER
\f—\f—y
\fy
(,\fy\f
y
2009 CR- V

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Driving on the north side of an
east/west mountain road.
Large items carried on a roof rack.
There may be other geographic
situations that could af f ect XM Radio
reception. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Radio. With the ignition
switch in the ACCESSORY (I) or ON
(II) position, push the power/volume
knob to turn on the audio system and
press the XM button. A variety of
music types and styles will play.
If you decide to purchase XM Radio
service, contact XM Radio at
,orat
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, press TUNE until
‘‘0’’ appears in the display. Your I.D. will appear in the display.
After you’ve registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, you’ll be
able to listen to XM Radio broadcasts.
XM Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact
XM
Radio.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.com
Receiving XM Radio Service
Playing the XMRadio (U.S. EX-L model without navigation system)
Features
161
\f—\f—y
\fy
(,\fy\f
y
2009 CR- V

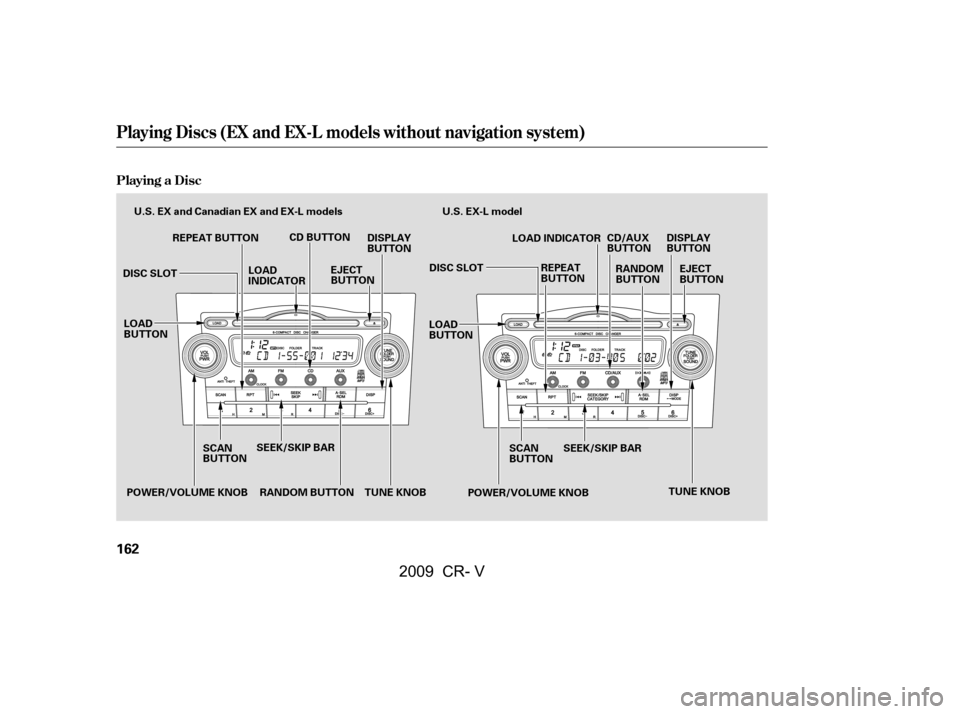

Playing a Disc
Playing Discs (EX and EX-L models without navigation system)
162
TUNE KNOBDISPLAY
BUTTON
CD BUTTON
POWER/VOLUME KNOB SCAN
BUTTON EJECT
BUTTON
REPEAT BUTTON
EJECT
BUTTON
SCAN
BUTTON SEEK/SKIP BAR
LOAD INDICATOR
CD/AUX
BUTTONDISPLAY
BUTTON
RANDOM
BUTTON
POWER/VOLUME KNOB
SEEK/SKIP BAR
RANDOM BUTTON
LOAD
INDICATOR
DISC SLOT
REPEAT
BUTTON
DISC SLOT
LOAD
BUTTON
U.S. EX and Canadian EX and EX-L models
U.S. EX-L model
LOAD
BUTTON
TUNE KNOB
\f—\f—y
\f\fy
(,\fy\f
y
2009 CR- V

µ
µ
µ
µ
µ µ
µ
µ
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the disc changer with
the same controls used f or the radio.
To select the disc changer, press the
CD button (CD/AUX button on
models with satellite radio), the disc
and track numbers are displayed.
The system will continuously play a
disc until you change modes.
Compatible with variable bitrate
and multi-session
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays FORMAT, and then skips to
the next f ile.
Video CDs and DVDs do not work in
this unit.
The specif ications f or compatible
MP3 f iles are:
Sampling f requency:
32/44.1/48 kHz (MPEG1)
24/22.05/16 kHz (MPEG2)
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
Maximum layers (including ROOT): 8 layers
The specif ications f or compatible
WMA f iles are:
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. You can select up to 99 f olders, or up to 255 tracks/f iles.
Bitrate:
32/40/48/64/80/96/128/160/192
kbps
Maximum layers
(including ROOT): 8 layers
Compatible with variable bitrate
and multi-session
Sampling f requency:
32/44.1/48 kHz
To Play a Disc
Playing Discs (EX and EX-L models without navigation system)
Features
163
NOTE:
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
\f—\f—y
\f
y
(,\fy\f
y
2009 CR- V

Your vehicle’s in-dash disc changer
holdsuptosixdiscs.Press the LOAD button until you
hear a beep and see ‘‘LOAD’’ on
the display.
To load only one CD, press and
release the LOAD button.
The disc number f or an empty
position is highlighted and the red
disc load indicator starts blinking. Insert the disc into the disc slot
when the green disc load indicator
comes on. Insert it only about
half way; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display while the
disc load indicator turns red and
blinks as the disc is loaded.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
When the disc load indicator turns
green and ‘‘LOAD’’ appears in the
display again, insert the next disc
in the slot. Do not try to insert a
disc until ‘‘LOAD’’ appears. You
could damage the audio unit.
Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system begins
playing the last disc loaded.You can also load a disc into an
empty position while a disc is playing
by pressing the appropriate preset
button. The system stops playing the
current disc and starts the loading
sequence. It then plays the disc just
loaded.
1.
2.
1. 3.
4.
5.
L oading Discs in the In-dash Disc
Changer
Playing Discs (EX and EX-L models without navigation system)
164
\f—\f—y
\fy
(,\fy\f
y
2009 CR- V

µµ
¼
Each time you press the DISP button,
the display shows you the text data
on a disc, if the disc was recorded
with text data.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
The display shows up to 16
characters of selected text data (the
foldername,filename,etc.).If the
text data has more than 16
characters, you will see the first 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown. You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
When you insert a disc, and the
system begins to play.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
To select a dif f erent disc, press the
appropriate preset button (1 6). If
youselectanemptypositioninthe
disc changer, the system will try to
load the disc in the next available
slot. You can use the SEEK/SKIP bar
while a disc is playing to select
passages and change tracks (f iles in
MP3/WMA mode).
Each time you
press and release the side of
the SEEK/SKIP bar, the player skips
f orward to the beginning of the next
track (f ile in MP3 or WMA mode).
Press and release the side, to
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track, press
and hold the or side of the
SEEK/SKIP bar.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
artist, album, and track tag.
CONT INUED
T ext Dat a Display Funct ion
T o Change or Select T racks/Files
SEEK /SK IP
Playing Discs (EX and EX-L models without navigation system)
Features
165
\f—\f—y
\f\fy
(,\fy\f
\fy
2009 CR- V

µ
µ µ µ
µ µ
To
select a different folder, turn the
TUNE knob to move to the
beginning of the next f older. Turn
theknobtotherighttoskiptothe
next f older, and to the lef t to move to
the beginning of the current f older.
Turn it again to skip to the beginning
of the previous f older. Turning the
TUNE knob more than one click
skips several f olders at a time.
To continuously replay
a track (f iles in MP3 or WMA mode),
press and release the RPT button.
You will see ‘‘RPT’’ in the display.
Press and hold the RPT button for 2
seconds to turn it off.
This feature,
when activated, replays all f iles in
the selected f older in the order they are compressed. To activate folder
repeat, press and release the RPT
button repeatedly until you see
F-RPT in the display. The system
continuously replays the current
folder.PressandholdtheRPT
button for 2 seconds to turn it off.
Selecting a dif f erent f older with the
TUNE knob also turns of f the repeat
feature.
You will hear a beep. To continuously
replay the current disc, press and
release the RPT button repeatedly
until you see D-RPT in the display.
Press and hold the RPT button for 2
seconds again to turn it of f .
Each time you press and release the
RPT button, the mode changes f rom
f ile repeat to f older repeat, to disc
repeat then to normal playing.
This f eature plays the
tracks within a disc (the f iles within a disc in MP3 or WMA mode) in
random order. To activate random
play, press and release the RDM
button. In MP3 or WMA mode, press
the RDM button repeatedly to select
RDM (within a disc random play).
You will see RDM in the display.
PresstheRDMbuttonfor2seconds
to return to normal play.
This
feature, when activated, plays all
f iles in the selected f older in random
order. To activate f older random,
press and release the RDM button.
You will see F-RDM in the display.
The system will then select and play
f iles randomly. This continues until
you deactivate folder random by
pressing and holding the RDM
button f or 2 seconds, or by selecting
a different folder with the TUNE
knob.
In MP3 or WMA mode
In MP3 or WMA mode In MP3 or WMA mode
FOLDER SELECTION
REPEAT (TRACK/FILE
REPEAT)
FOL DER-REPEA T
DISC-REPEA T
RANDOM (Random within a
disc)FOLDER-RANDOM
Playing Discs (EX and EX-L models without navigation system)
166
\f—\f—y
\fy
(,\fy\f

y
2009 CR- V
