Many parents say they pref er to put
an inf ant or a small child in the f ront
passenger seat so they can watch the
child, or because the child requires
attention.If they do, they
could be very seriously injured in a
crash.
Your vehicle has a back seat where
children can be properly restrained.
If you ever have to carry a group of
children, and a child must ride in
front:
Placing a child in the f ront seat
exposes the child to hazards in a
f rontal collision, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at risk.
If a child requires close physical
attention or f requent visual contact,
we strongly recommend that another
adult ride with the child in a back
seat. The back seat is far safer for a
child than the front. If you are not wearing a
seat belt in a crash, you could be
thrown forward and crush the
child against the dashboard or a
seat-back. If you are wearing a
seat belt, the child can be torn
from your arms and be seriously
hurt or killed.
Place the largest child in the f ront
seat, provided the child is large
enough to wear the lap/shoulder
belt properly (see page ).
Move the vehicle seat as far to the
rear as possible (see page ).
Have the child sit upright and well
backintheseat(seepage ).
Make sure the seat belt is properly
positioned and secured (see page
). During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
15
14 50
95
CONT INUED
If a Child Requires Close
Attention Additional Saf ety Precautions
If You Must Drive with Several
Children
Never let two children use the
same seat belt .
Neverholdaninfantorchildon
your lap.
Never put a seat belt over yourselfand a child.
Protecting Children General Guidelines
Driver and Passenger Saf ety
37
——y
y
(,yy
2009 CR- V

µ
Children who play in vehicles can
accidentally get trapped inside.
Teach your children not to play in
or around vehicles.Even very young
children learn how to unlock
vehicle doors, turn on the ignition
switch, and open the tailgate,
which can lead to accidental injury
or death.
Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous.
For example, infants and small
childrenleftinavehicleonahot
day can die f rom heatstroke. A
child lef t alone with the key in the
ignition switch can accidentally set
the vehicle in motion, possibly
injuring themselves or others.
If a child wraps a loose
seat belt around their neck, they
can be seriously or f atally injured.
(See pages and f or how to
activate and deactivate the
lockable retractor.)
This can prevent
children f rom accidentally f alling
out (see page ). 88
4647
Lock all doors and the tailgate
when your vehicle is not in use.
K eep vehicle keys/remot etransmitters out of the reach ofchildren.
Do not leave children alone in a
vehicle.
Make sure any unused seat belt
t hat a child can reach is buckled,the lockable retractor is activated,and the belt is f ully retracted andlocked.
Use t he childproof door locks t oprevent children f rom opening t herear doors.
Protecting Children General Guidelines
38
\f—\f—y
\fy
(,\fy\f\fy
2009 CR- V

Only a rear-f acing child seat provides
proper support f or a baby’s head,
neck, and back.
An inf ant must be properly
restrained in a rear-f acing, reclining
child seat until the child reaches the
seat maker’s weight or height limit
f or the seat, and the child is at least
one year old.Two types of seats may be used: a
seat designed exclusively f or inf ants,
or a convertible seat used in the rear-
f acing, reclining mode.
If placed
f acing f orward, an inf ant could be
very seriously injured during a
f rontal collision. A rear-f acing child seat can be placed
in any seating position in the back
seat, but not in the f ront.
If the passenger’s front airbag
inflates, it can hit the back of the
child seat with enough f orce to kill or
seriously injure an inf ant.
When properly installed, a rear-
f acing child seat may prevent the
driver or a f ront passenger f rom
moving their seat as far back as
recommended, or f rom locking their
seat-back in the desired position.
It could also interf ere with proper
operation of the passenger’s
advanced front airbag system.
CONT INUED
Do not put a rear-f acing child seat in
a f orward-f acing position.
Child Seat T ype Rear-f acing Child Seat Placement
Never put a
rear-f acing child seat in t he f ront seat .
Protecting Inf ants
Protecting Inf ants and Small Children
Driver and Passenger Saf ety
39
\f—\f—y

y
(,\fy\f\fy
2009 CR- V

Of the different seats available, we
recommend those that have a f ive-
point harness system as shown.
In any of these situations, we
strongly recommend that you install
the child seat directly behind the
f ront passenger’s seat, move the seat
as far forward as needed, and leave it
unoccupied. Or, you may wish to get
a smaller rear-f acing child seat.
We also recommend that a small
child use the child seat until the child
reaches the weight or height limit
for the seat.
We strongly recommend placing a
forward-facing child seat in a back
seat, not the f ront.
If the vehicle seat is too
f ar f orward, or the child’s head is
thrown f orward during a collision, an
inf lating airbag can strike the child
with enough force to cause very
serious or fatal injuries.
A child who is at least one year old,
and who fits within the child seat
maker’s weight and height limits,
should be restrained in a f orward-
f acing, upright child seat.
Protecting Small Children
Child Seat T ype Child Seat Placement
Placing a f orward-f acing child seat inthe f ront seat of a vehicle equippedwith a passenger’s airbag can behazardous.
Protecting Inf ants and Small Children
40
Placing a rear-facing child seat
in the front seat can result in
serious injury or death during a
collision.
Always place a rear-facing child
seat in the back seat, not the
front.
\f—\f—y

y
(,\fy\f\fy
2009 CR- V

In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt.
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:Look f or FMVSS
213 or CMVSS 213 on the box.
Rear-facing for infants, forward-
f acing f or small children.
Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
When buying a child seat, you need
to choose either a conventional child
seat, or one designed f or use with
the lower anchors and tethers for
children (LATCH) system.
If it is necessary to put a f orward-
f acing child seat in the f ront, move
the vehicle seat as far to the rear as
possible, and be sure the child seat is
f irmly secured to the vehicle and the
child is properly strapped in the seat.
Even with advanced front airbags
that automatically turn the
passenger’s front airbag off (see
page ), a back seat is the saf est
place f or a small child.
Conventional child seats must be
secured to a vehicle with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into each rear seating
position in the back seat.
32
CONT INUED
T he child seat should meet U.S. or
Canadian Mot or Vehicle Saf et ySt andard 213.
T he child seat should be of theproper type and size to f it the child.
1.
2.
Selecting a Child Seat
Protecting Inf ants and Small Children, Selecting a Child Seat
Driver and Passenger Saf ety
41

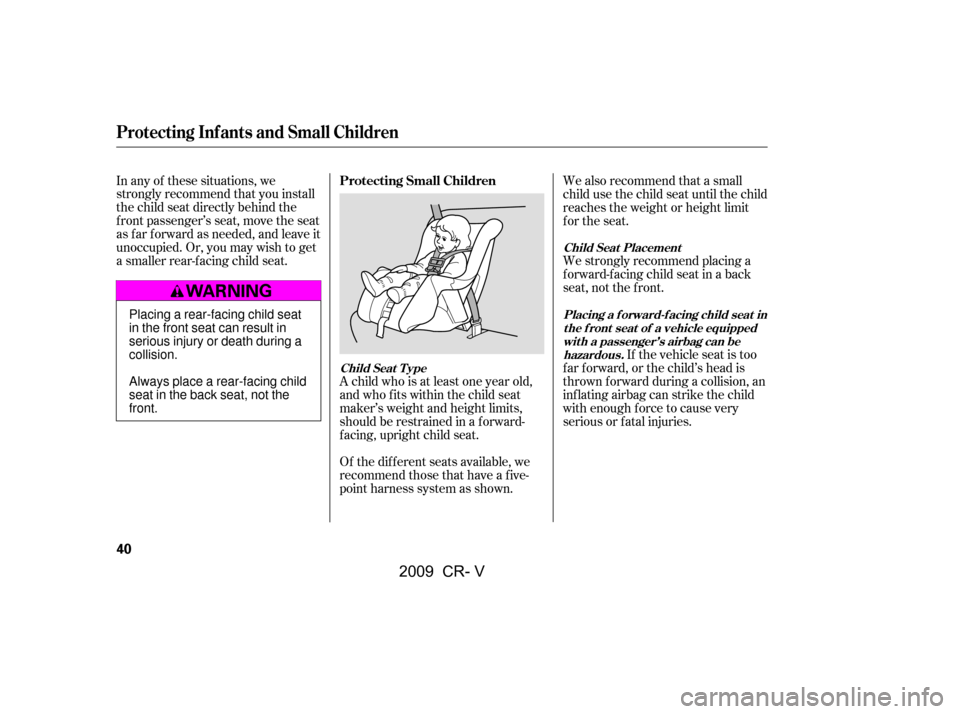

Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
\f—\f—y
y
(,\fy\f\fy
2009 CR- V

Af ter selecting a proper child seat
and a good place to install the seat,
there are three main steps in
installing the seat:Af ter installing a child
seat, push and pull the seat
f orward and f rom side-to-side to
verify that it is secure.
A child seat secured with a seat belt
should be installed as f irmly as
possible. However, it does not need
to be ‘‘rock solid.’’ Some side-to-side movement can be expected and
should not reduce the child seat’s
ef f ectiveness.
If the child seat is not secure, try
installing it in a dif f erent seating
position, or use a dif f erent style of
child seat that can be f irmly secured.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The f ollowing pages provide
guidelines on how to properly install
a child seat. A f orward-f acing child
seat is used in all examples, but the
instructions are the same f or rear-
f acing child seats.
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (lower anchors and
tethers for children) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
Bef ore purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specif ic
vehicle seating position or positions
where the seat will be used.
Installing a Child Seat
Make sure t he child seat is f irmly
secured. Secure the child in the child seat.
Properly secure t he child seat t o
the vehicle.
T he child seat should f it the
vehicle seat ing posit ion (orposit ions) where it will be used.
3.
1.
2. 3.
Selecting a Child Seat, Installing a Child Seat
42
\f—\f—y
y
(,\fy\f\fy
2009 CR- V

Your vehicle is equipped with
LATCH (lower anchors and tethers
for children) at the rear seats to
secure a child seat in any seating
position: one in each outer seating
position, or one in the center.

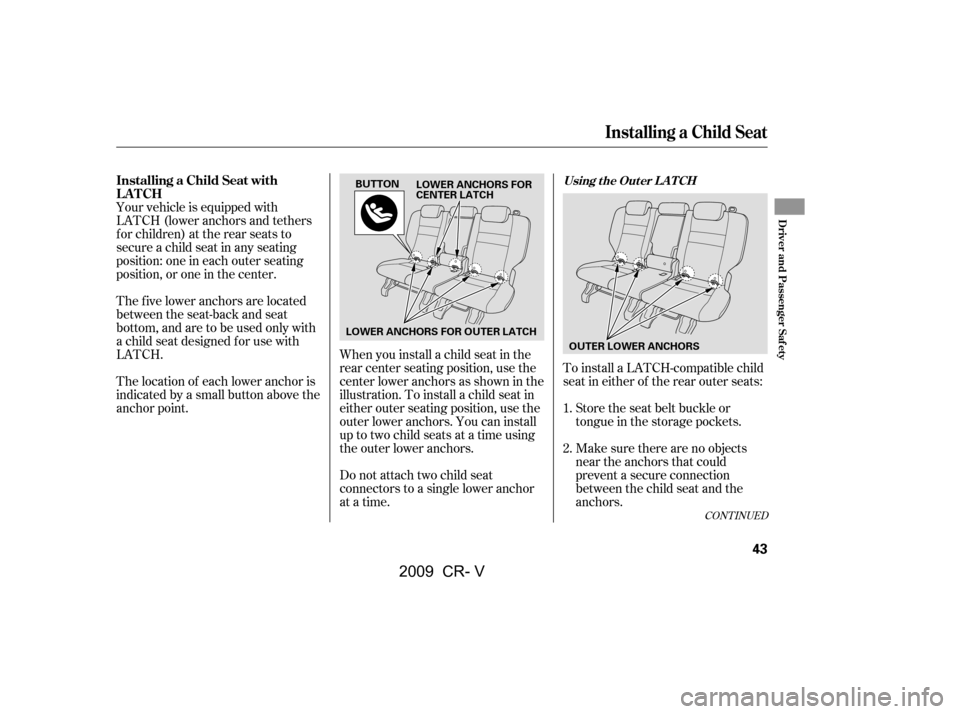

Thefiveloweranchorsarelocated
between the seat-back and seat
bottom, and are to be used only with
a child seat designed f or use with
LATCH.
The location of each lower anchor is
indicated by a small button above the
anchor point.When you install a child seat in the
rear center seating position, use the
center lower anchors as shown in the
illustration. To install a child seat in
either outer seating position, use the
outer lower anchors. You can install
up to two child seats at a time using
the outer lower anchors.
Do not attach two child seat
connectors to a single lower anchor
at a time. Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors.
Store the seat belt buckle or
tongue in the storage pockets.
To install a LATCH-compatible child
seat in either of the rear outer seats:
1.
2.
CONT INUED
Installing a Child Seat with
LATCHUsing t he Out er L A T CH
Installing a Child Seat
Driver and Passenger Saf ety
43
LOWER ANCHORS FOR OUTER LATCH BUTTON
LOWER ANCHORS FOR
CENTER LATCH
OUTER LOWER ANCHORS
\f—\f—y
y
(,\fy\f\fy
2009 CR- V

Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.

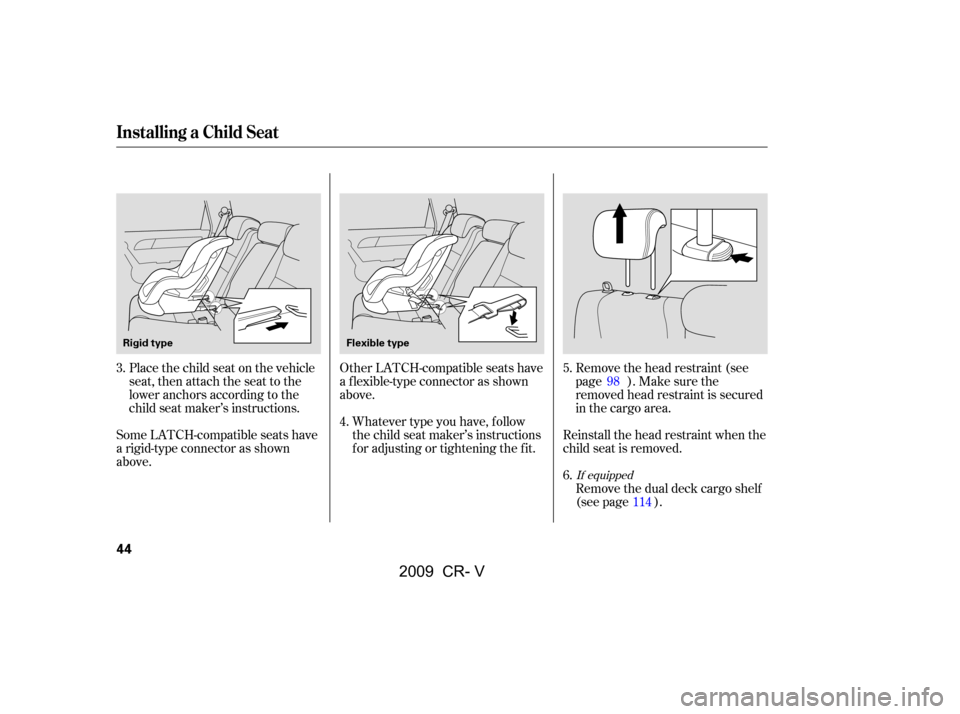

Some LATCH-compatible seats have
a rigid-type connector as shown
above. Other LATCH-compatible seats have
a f lexible-type connector as shown
above.
Whatever type you have, f ollow
the child seat maker’s instructions
f or adjusting or tightening the f it.
Remove the dual deck cargo shelf
(see page ).
Remove the head restraint (see
page ). Make sure the
removed head restraint is secured
in the cargo area.
Reinstall the head restraint when the
child seat is removed.
5.
4.
3.
6.114
98
If equipped
Installing a Child Seat
44
Flexible type
Rigid type
\f—\f—y
y
(,\fy\f\fy
2009 CR- V

Follow step 1 through 5 as
described previously to secure the
child seat.

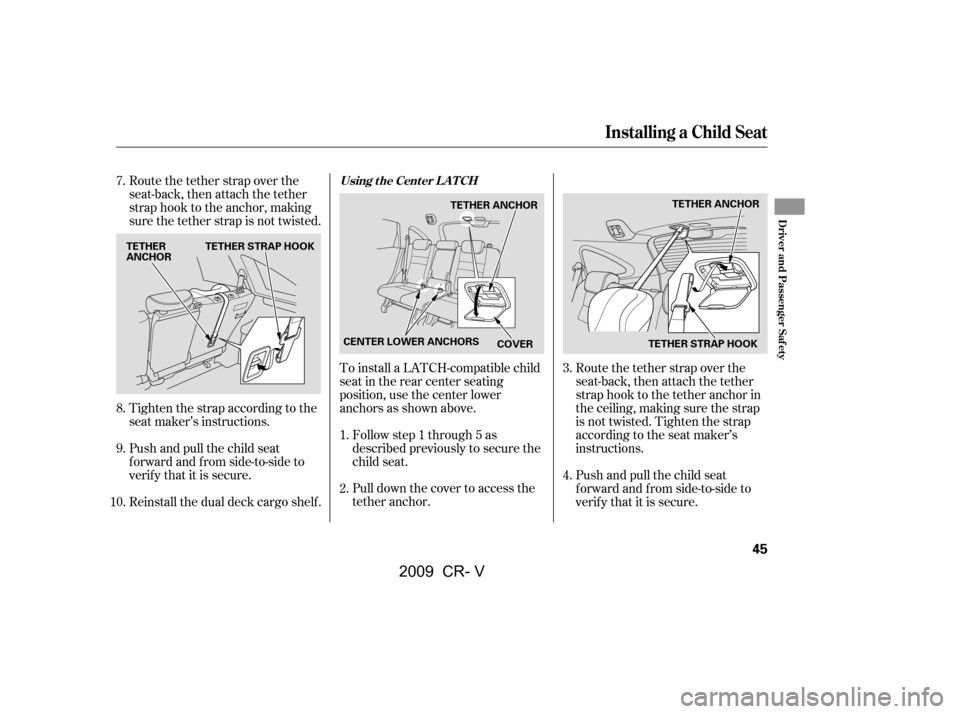

Pull down the cover to access the
tether anchor.Route the tether strap over the
seat-back, then attach the tether
strap hook to the tether anchor in
the ceiling, making sure the strap
is not twisted. Tighten the strap
according to the seat maker’s
instructions.
To install a LATCH-compatible child
seat in the rear center seating
position, use the center lower
anchorsasshownabove.
Route the tether strap over the
seat-back, then attach the tether
strap hook to the anchor, making
sure the tether strap is not twisted.
Tighten the strap according to the
seat maker’s instructions.
Push and pull the child seat
f orward and f rom side-to-side to
verif y that it is secure.
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure.
Reinstall the dual deck cargo shelf . 1.
2. 3.
4.
7.
8.
9.
10.
Using t he Cent er L A T CH
Installing a Child Seat
Driver and Passenger Saf ety
45
TETHER STRAP HOOK
TETHER
ANCHOR
TETHER STRAP HOOK TETHER ANCHOR
CENTER LOWER ANCHORS COVER TETHER ANCHOR
\f—\f—y
y
(,\fy\f\f\fy
2009 CR- V

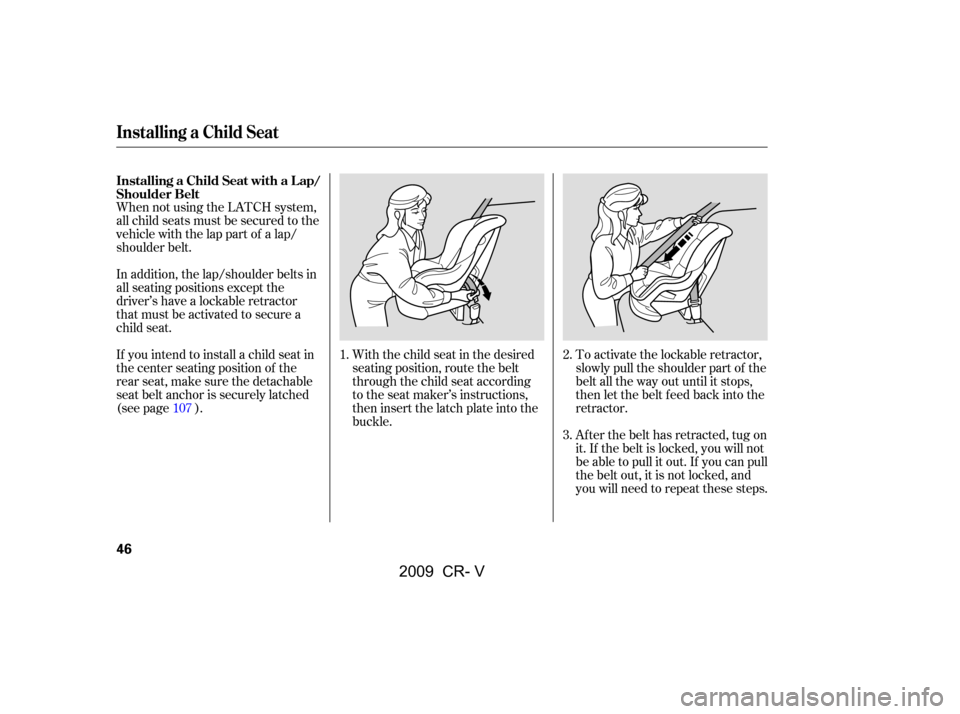

When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the

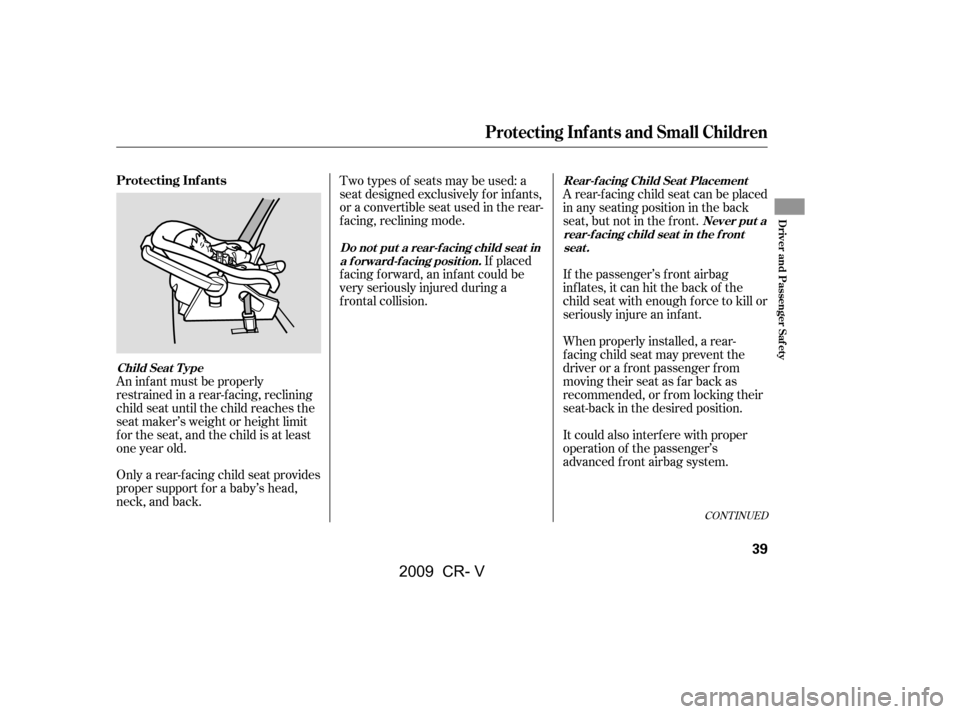

buckle.To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt f eed back into the
retractor.
Af ter the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a lockable retractor
that must be activated to secure a
child seat.
If you intend to install a child seat in
the center seating position of the
rear seat, make sure the detachable
seat belt anchor is securely latched
(see page ).
2.
1.
3.
107
Installing a Child Seat with a L ap/
Shoulder Belt
Installing a Child Seat
46
\f—\f—y
\fy
(,\fy\f\f
y
2009 CR- V
