This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
The inf ormation display consists of
threesegments.Theuppersegment
displays current f uel mileage, the
second segment displays the
odometer, average f uel mileage,
range (estimated distance), engine
oil lif e, and the lower segment
displays the trip meter, and
maintenance item code(s). To switch the display, press and
release the select/reset knob
repeatedly. When you turn the
ignition switch to the ON (II)
position the last selection is
displayed.There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the select/reset
knob repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
When you turn the ignition switch to
the ON (II) position, the last
selection is displayed.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to ‘‘0.0’’.
Trip Meter
Gauges
Inst rument s and Cont rols
67
Press the SELECT/RESET knob.
\f—\f—y

y
(,\fy\f\fy
2009 CR- V

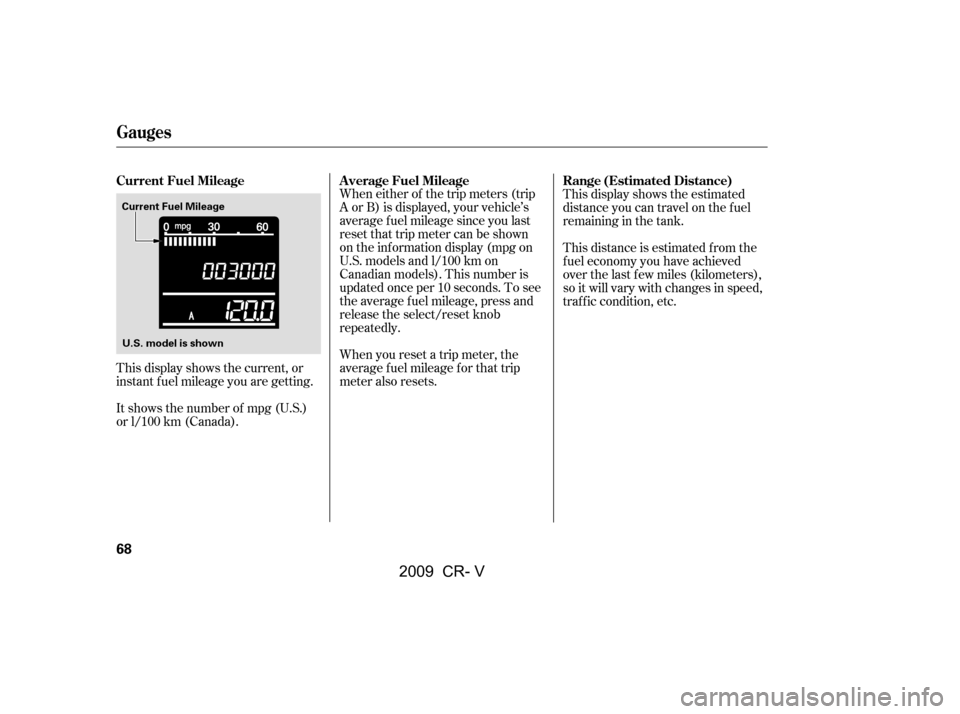

This display shows the current, or
instant fuel mileage you are getting.When either of the trip meters (trip
A or B) is displayed, your vehicle’s
average fuel mileage since you last
resetthattripmetercanbeshown
on the inf ormation display (mpg on
U.S. models and l/100 km on
Canadian models). This number is
updated once per 10 seconds. To see
the average f uel mileage, press and
release the select/reset knob
repeatedly.
When you reset a trip meter, the
average fuel mileage for that trip
meter also resets.This display shows the estimated
distance you can travel on the fuel
remaining in the tank.
This distance is estimated f rom the
f uel economy you have achieved
over the last f ew miles (kilometers),
so it will vary with changes in speed,
traffic condition, etc.
It shows the number of mpg (U.S.)
or l/100 km (Canada).
Current Fuel Mileage Average Fuel MileageRange (Estimated Distance)
Gauges
68
U.S. model is shown
Current Fuel Mileage
\f—\f—y

y
(,\fy\f\fy
2009 CR- V

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or

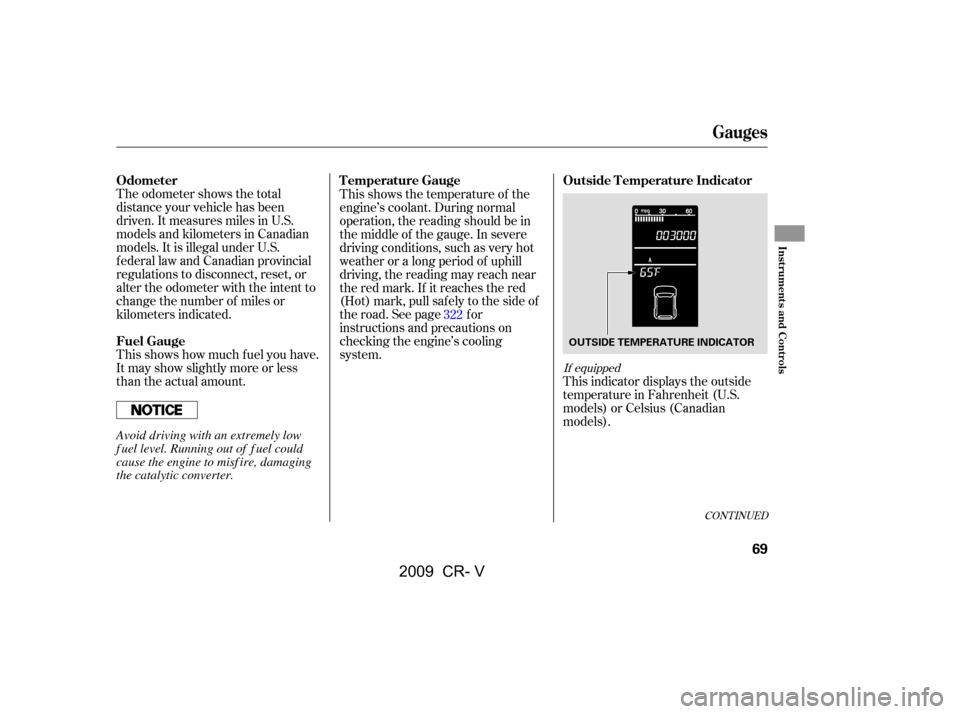

kilometers indicated.This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Celsius (Canadian
models).
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. This shows the temperature of the
engine’s coolant. During normal
operation, the reading should be in
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the reading may reach near
the red mark. If it reaches the red
(Hot) mark, pull saf ely to the side of
the road. See page f or
instructions and precautions on
checking the engine’s cooling
system.
322
If equipped
CONT INUED
Outside Temperature Indicator
Temperature Gauge
Odometer
Fuel Gauge
Gauges
Inst rument s and Cont rols
69
OUTSIDE TEMPERATURE INDICATOR
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
\f—\f—y
\fy
(,\fy\f\fy
2009 CR- V

¶¶µµµµµµµµ
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F in U.S. models ( 3°C
in Canadian models) warmer or
cooler.
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
To adjust the outside temperature
display, press and hold the select/
reset knob f or 10 seconds. The
display changes as shown above.
Select the outside temperature
indicator by turning the select/reset
knob. The display begins to blink.
Pushthesameknobtoenterthis
setting, then turn it to adjust the
temperature. The f ollowing
sequence will appear f or each: 0, 1, 2,
3, 4, 5, 5, 4, 3, 2, 1, 0 (U.S.)
or 0, 1, 2, 3, 3, 2, 1, 0 (Canada). When it reaches the desired value,
push the select/reset knob to enter
the setting. You should see the new
outside temperature displayed.
The temperature must be
stabilized bef ore doing this
procedure.
Gauges
70
NOTE:
\f—\f—y
y
(,\fy\f\fy
2009 CR- V

If your f uel f ill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
message appears on the information
display af ter you start the engine.
For more inf ormation, see page .The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.
228
273
Gauges
Maintenance Minder
Check Fuel Cap Message
Inst rument s and Cont rols
71
\f—\f—y
y
(,\fy\f\fy
2009 CR- V

Î
Î
Î
Î
Î
Î Î
To use the horn, press the center pad of the steering wheel.
If equipped.
Ref er to the navigation system manual.
1:
2:
3:
Controls Near the Steering Wheel
72
CRUISE CONTROL BUTTON
PARKING BRAKE PEDAL (P.78) HORN HAZARD WARNING
BUTTON
(P.76)
SHIFT LEVER
MIRROR CONTROL
VEHICLE STABILITY
ASSIST (VSA)
SYSTEM ON/OFF
SWITCH
REMOTE AUDIO CONTROLS
STEERING WHEEL
ADJUSTMENTS
(P.78)
HEADLIGHTS/TURN SIGNALS INSTRUMENT PANEL BRIGHTNESS
(P.74)
(P.32)
PASSENGER AIRBAG
OFF INDICATOR
WINDSHIELD WIPERS/
WASHERS
(P.73)
VOICE CONTROLS ACCESSORY POWER SOCKET
(P.257)
(P.112)
(P.216)
(P.120)(P.222)(P.247)
(P.76)
REAR WINDOW DEFOGGER
BUTTON (P.77)
(P.112)
HEATED MIRROR BUTTON1
2
3 2
\f—\f—y

y
(,\fy\f\fy
2009 CR- V

µ
µ
µ µ
µ µ µ
µ µ
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
The wipers run at high speed. The wipers run at low speed.

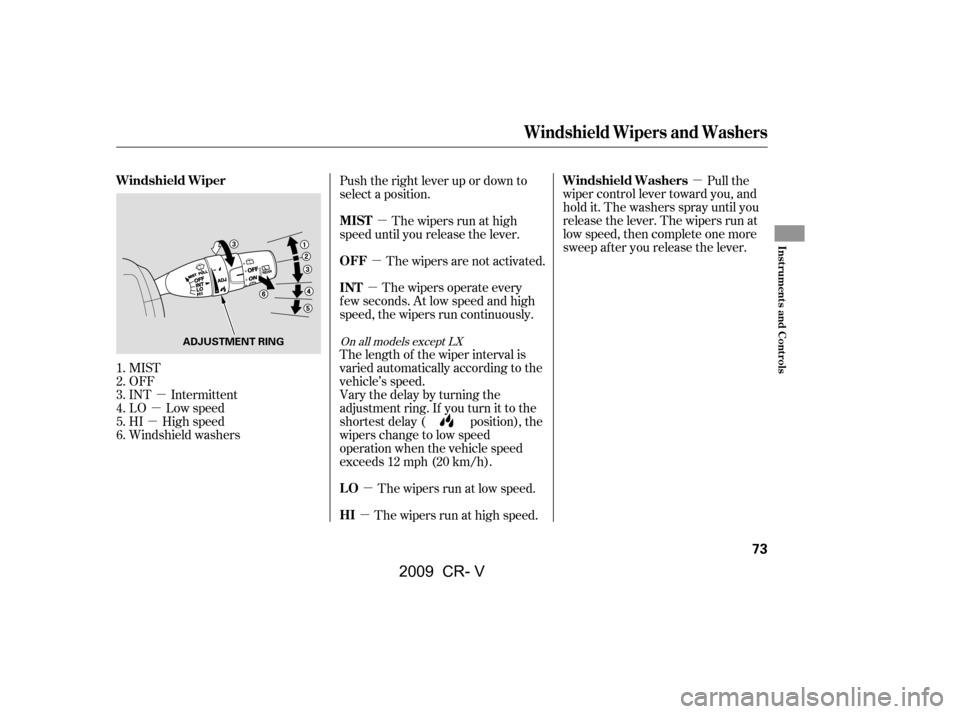

Vary the delay by turning the
adjustment ring. If you turn it to the
shortest delay ( position), the
wipers change to low speed
operation when the vehicle speed
exceeds 12 mph (20 km/h).
The length of the wiper interval is
varied automatically according to the
vehicle’s speed. The wipers operate every
f ew seconds. At low speed and high
speed, the wipers run continuously. The wipers are not activated.
Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
1.
2.
3.
4.
5.
6.
On all models except LX
Windshield Wiper Windshield Washers
HI
LO
INT
OFF
MIST
Windshield Wipers and Washers
Inst rument s and Cont rols
73
ADJUSTMENT RING
\f—\f—y
\f
y
(,\fy\f\fy
2009 CR- V

Turn Signal
OFF
Parking and interior lights
Headlights on
High Beams
Flashhighbeams
Rotate the switch
counterclockwise also to spray the
window washer and turn the wiper
on.
Hold past ON to activate the rear
window wiper a f ew times and to
spray the rear window washer.
Rotate the switch clockwise to
turn the rear window wiper ON.
The wiper operates every 7
seconds af ter completing two
sweeps.
When you turn the wiper switch to
the ‘‘OFF’’ position, the wiper will
return to its parked position.
OFF Therearwindowwasherusesthe
same f luid reservoir as the wind-
shield washer.
When you shif t the transmission to
the reverse position with the f ront
windshield wiper activated, the rear
wiper operates automatically even if
the rear wiper switch is of f .
1.
2.
3.
4.
5.
6.
4.
3.
1.
2. Turn Signal and Headlights
Rear Window Wiper and Washer
Windshield Wipers and Washers, Turn Signal and Headlights
74
\f—\f—y


y
(,\fy\f\fy
2009 CR- V

µ
µ µ
Push down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn.
Turning the switch to
the ‘‘ ’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate light.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If
you leave the lights on with the key
removed f rom the ignition switch,
you will hear a reminder chime when
you open the driver’s door. With the headlight switch in the of f
or position, the high beam
headlights and the high beam
indicator come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
When the light switch is in either of
these positions, the lights on
indicator comes on as a reminder.
This indicator stays on if you leave
the lights on and turn the ignition
switch to the ACCESSORY (I) or
LOCK (0) position.
Push the lever
f orward and the high beam indicator
will come on (see page ). Pull it
back to return to low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back. 63
Turn Signal
Headlights
Daytime Running L ights
High Beams
Turn Signals and Headlights
Inst rument s and Cont rols
75
\f—\f—y

y
(,\fy\f\f\fy
2009 CR- V

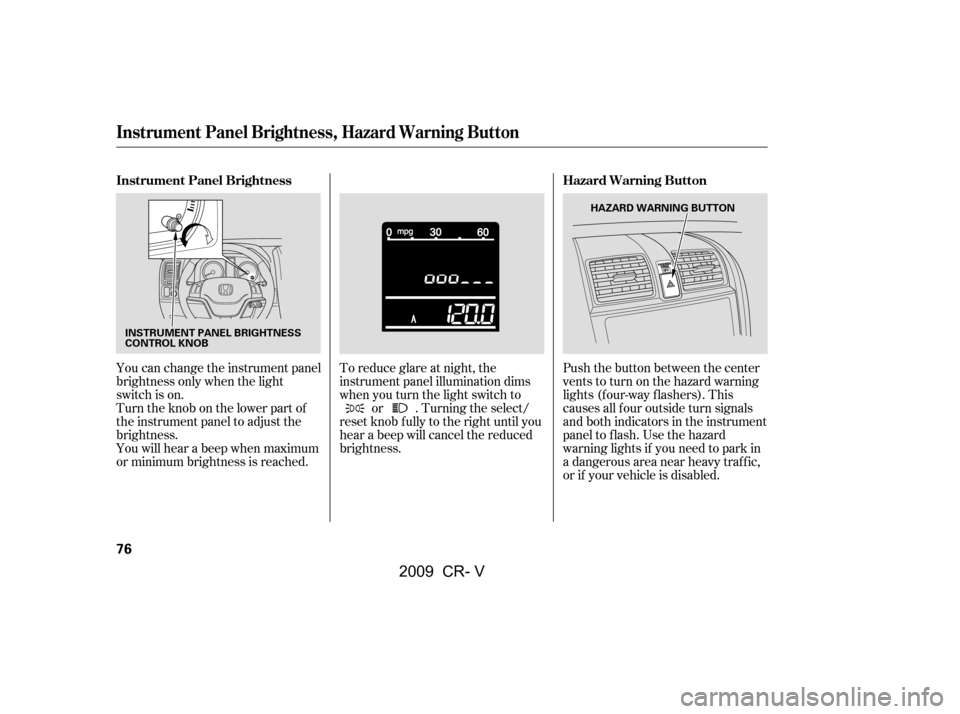

Push the button between the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both indicators in the instrument
panel to f lash. Use the hazard
warning lights if you need to park in
a dangerous area near heavy traffic,
or if your vehicle is disabled.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or . Turning the select/
reset knob f ully to the right until you
hear a beep will cancel the reduced
brightness.
You can change the instrument panel
brightness only when the light
switch is on.
Turntheknobonthelowerpartof
the instrument panel to adjust the
brightness.
You will hear a beep when maximum
or minimum brightness is reached.
Instrument Panel Brightness, Hazard Warning Button
Hazard Warning Button
Instrument Panel Brightness
76
HAZARD WARNING BUTTON
INSTRUMENT PANEL BRIGHTNESS
CONTROL KNOB
\f—\f—y
y
(,\fy\f\f
y
2009 CR- V
