HONDA CR-V 2011 RD1-RD5, RE7 / 3.G Owners Manual

µµ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune to
a higher f requency, and turn it to the
lef t to tune to a lower f requency.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM or
FM button. Adjust the volume by
turning the power/volume knob.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the right side of the A. SEL/SCAN
bar, then release it. You will see
SCAN in the display. The system will
scan f or a station with a strong signal.
When it f inds one, it will stop and
play that station for about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN side of the bar again.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
The seek f unction
searches up and down f rom the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK bar, then release it.
To Select a Station
TUNE
To Play the AM/FM Radio
SCAN
SEEK /SK IP
Playing the AM/FM Radio (LX model)
146
Main MenuTable of Contents

µµ µ
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described.
For inf ormation on AM/FM radio
f requencies and reception, see page
.
Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. You can store one f requency
on FM1, and one f requency on
FM2witheachpresetbutton.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. ,pressthe
A. SEL side of the bar. This restores
the presets you originally set.
Press the lef t side of the
A. SEL/SCAN bar. You will see
A. SEL f lashing in the display, and
the system goes into scan mode f or
several seconds. It stores the
f requencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button.
Pick a preset button (1 6), and
hold it until you hear a beep. If you are
traveling and can no longer receive
your preset stations, you can use the
auto select feature to find stations in
the local area.
1. 2. 3. 4. 250
To turn of f auto select
Preset A UT O SEL ECT
Playing the AM/FM Radio (LX model)
Features
147
Main MenuTable of Contents

µ
µ µ
µ
µ Adjusts the volume level
basedonthevehiclespeed.
Press the SOUND (TUNE) knob
repeatedly to display the BASS,
TREBLE, FADER, BALANCE, and
SVC (speed-sensitive volume
compensation) settings. Eachmodeisshowninthedisplayas
it changes. Turn the TUNE knob to
adjust the setting to your liking.
The SVC has f our modes: SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the TUNE knob toadjust the setting to your liking. If
you f eel the sound is too loud,
choose low. If you f eel the sound is
too quiet, choose high.
The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The system will return to the audio
display about 5 seconds af ter you
stop adjusting a mode.
When the level reaches the center,
you will see ‘‘C’’ in the display.
Adjusts the bass.
Adjusts the treble.
Adjusts the front-to-back
strength of the sound.
Adjusts the side-to-
side strength of the sound. You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
Except SVC adjustment
79
Adjusting the Sound SVC
BASS
TREBLE
FADER
BA L A NCE
A udio System L ighting
Speed-sensit ive Volume
Compensat ion (SVC)
Playing the AM/FM Radio (LX model)
148
Main MenuTable of Contents

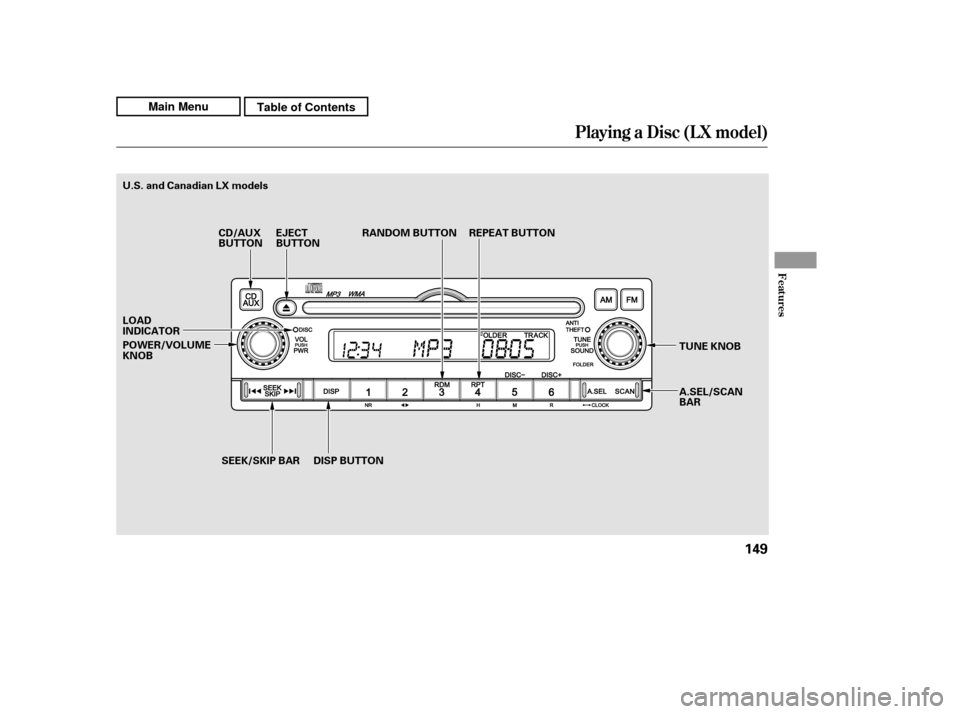

Playing a Disc (L X model)
Features
149
POWER/VOLUME KNOB
LOAD
INDICATOR
SEEK/SKIP BARDISP BUTTON
CD/AUX
BUTTON
EJECT
BUTTON RANDOM BUTTON REPEAT BUTTON
A.SEL/SCAN
BAR
TUNE KNOB
U.S. and Canadian LX models
Main MenuTable of Contents

You operate the disc player with the
same controls used f or the radio. To
select the disc player, press the CD/
AUX button. You will see ‘‘CD’’ in the
display.
To load or play a disc, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. You can select up to 99
f olders, or up to 255 tracks/f iles.
Depending on the sof tware the f iles
were made with, it may not be
possible to play some f iles, or display
some text data.
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays FORMAT, and then skips to
the next f ile.
Video CDs and DVDs do not work in
this unit.Insert a disc about half way into the
disc slot. The drive will pull the disc
intherestof thewaytoplayit.You
operate the disc player with the
same controls used f or the radio.
The number of the current track is
showninthedisplay.Whenplayinga
disc in MP3 or WMA, the numbers
of the current f older and f ile are
shown. The system will continuously
play a disc until you change modes.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
To Play a Disc
Playing a Disc (L X model)
To Load a Disc
150
NOTE:
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
Main MenuTable of Contents

¼
CONT INUED
Each time you press the DISP button,
the display shows you the text data
on a disc, if the disc was recorded
with text data.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
album, artist, and track tag.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.The display shows up to 10
characters of selected text data (the
foldername,filename,etc.).If the
text data has more than 10
characters, you will see the f irst 9
characters and the indicator in
the display. Press and hold the DISP
button until the next 10 characters
are shown.
You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
When you insert a disc, and the
system begins to play. When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
Playing a Disc (L X model)
T ext Dat a Display Funct ion
Features
151
Main MenuTable of Contents

µµ
You can use the SEEK/SKIP bar
while a disc is playing to select
passages and change tracks (f iles in
MP3/WMA mode). Each time you
press and release the side of
the SEEK/SKIP bar, the player skips
f orward to the beginning of the next
track (f ile in MP3 or WMA mode).
Press and release the side, to
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track, press
and hold the or side of the
SEEK/SKIP bar. To
select a dif f erent f older, turn the
TUNE knob to move to the
beginning of the next f older. Turn
theknobtotherighttoskiptothe
next f older, and to the lef t to move to
the beginning of the current f older.
Turnitagaintoskiptothebeginning
of the previous f older. Turning the
TUNE knob more than one click
skips several f olders at a time.In MP3 or WMA mode
Playing a Disc (L X model)
T o Change or Select T racks/FilesSEEK /SK IP FOLDER SELECTION
152
Main MenuTable of Contents

µ
µ
µ This f eature plays the
tracks within a disc (the f iles in MP3
or WMA mode) in random order. To
activate random play, press and
release the RDM button. In MP3 or
WMA mode, press the RDM button
repeatedly to select RDM (within a
disc random play). You will see
‘‘RDM’’ in the display. Press the
RDM button for 2 seconds to return
to normal play.
This feature,
when activated, replays all f iles in
the selected f older in the order they
are compressed. To activate folder
repeat, press the RPT button twice.
You will hear a beep and see F-RPT
in the display. The system
continuously replays the current
folder. Press the RPT button again to
turn it off. Pressing the RDM button,
or selecting a dif f erent f older with
the TUNE knob also turns of f the
repeat feature.
Each time you press and release the
RPT button, the mode changes f rom
f ile repeat to f older repeat, then to
normal play.
To continuously replay
a track (f iles in MP3 or WMA mode),
press and release the RPT button.
You will see ‘‘RPT’’ in the display.
Press and hold the RPT button for 2
seconds to turn it off.
In MP3 or WMA mode
CONT INUED
RANDOM (Random within adisc)
FOL DER-REPEA T
REPEAT (TRACK/FILE
REPEAT)
Playing a Disc (L X model)
Features
153
Main MenuTable of Contents

µ
µ
µ
In MP3 or WMA mode
In MP3 or WMA mode
This
feature, when activated, samples the
f irst f ile of each f older on the disc.
To activate folder scan, press the
SCAN bar twice. You will see
F-SCAN in the display.
The system plays the f irst f ile in the
f irst f older f or about 10 seconds. If
you do nothing, the system will then
play the f irst f iles in the next f olders
f or 10 seconds. Af ter playing the f irst
file in the last folder, the system
plays normally.
Pressing either side of the SEEK/
SKIP bar, selecting a dif f erent f older
with the TUNE knob, or pressing the
SCAN bar, also turns of f f older scan.
The scan f unction samples all tracks
(f iles in MP3 or WMA) on the disc in
the order they are recorded on the
disc. To activate scan, press and
release the SCAN bar. You will see
SCAN in the display. You will get a
10 second sampling of each track/
f ile on the disc. Press and hold the
SCAN button f or about 2 seconds to
get out of scan mode and play the
last track/f ile sampled.
Pressing either side of the SEEK/
SKIP bar also turns of f the scan
feature.
This
feature, when activated, plays all
f iles on the selected f older in random
order. To activate f older random,
press the RDM button 2 times. You
will hear a beep and see F-RDM in
the display. The system will then
select and play f iles randomly. This
continues until you deactivate f older
random by pressing and holding the
RDM button again, or by selecting a
dif f erent f older with the TUNE knob.
Each time you press and release the
RDM button, the mode changes
f rom f older random play to random
play (within a disc random play),
then to normal play.
Each time you press and release the
SCAN bar, the mode changes f rom
scan to f older scan, then to normal
play.
F-SCAN (FOLDER SCAN)
SCA N (T RA CK /FIL E SCA N)
FOLDER-RANDOM
Playing a Disc (L X model)
154
Main MenuTable of Contents

If you turn the system of f while a
disc is playing, either with the
power/volume knob or by turning
of f the ignition switch, the disc will
stay in the drive. When you turn the
system back on, the disc will begin
playing where it lef t of f .
Press the eject button ( ) to
remove the disc. If you eject the disc,
but do not remove it f rom the slot,
the system will automatically reload
the disc af ter 10 seconds and put it in
pause mode. To begin playing, press
the CD/AUX button.
You can also eject the disc when the
ignition switch is of f .
To play the radio when a disc is
playing, press the AM or FM button.
Press the CD/AUX button again to
switch back to the disc player. For inf ormation on how to handle
and protect compact discs, see page
.
252
To Stop Playing a Disc
Protecting Discs
Playing a Disc (L X model)
Features
155
Main MenuTable of Contents
