HONDA CR-V 2011 RD1-RD5, RE7 / 3.G Owners Manual

µ´
Playing a Disc (EX-L model with navigat ion system)
206

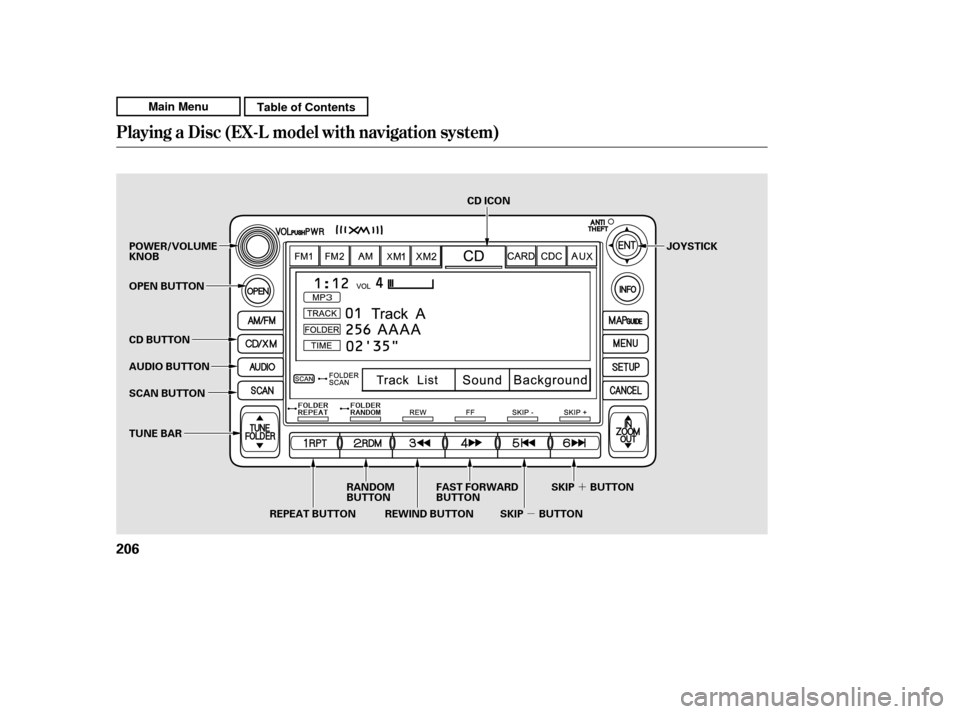

SCAN BUTTON JOYSTICK
AUDIO BUTTON
POWER/VOLUME KNOB
OPEN BUTTON
CD BUTTON
RANDOM
BUTTON
REPEAT BUTTON REWIND BUTTON FAST FORWARD
BUTTONCD ICON
TUNE BAR SKIP BUTTONSKIP BUTTON
Main MenuTable of Contents

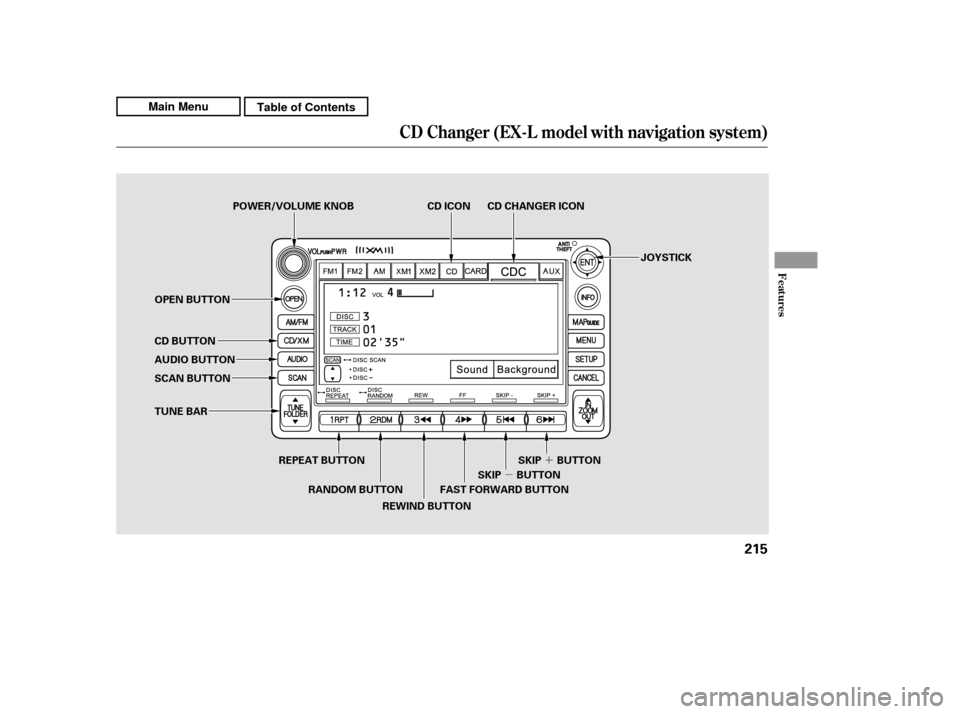

Your vehicle also has a CD changer
that operates with the same
f unctions as the in-dash disc player
(see page ).
You operate the in-dash disc player
with the same controls used for the
radio. To load or play discs, the
ignition switch must be in the
ACCESSORY (I) or ON (II) position.
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ on the screen. In WMA
f ormat, ‘‘WMA’’ will appear on the
screen. You can select up to 255
f olders and play up to 999 tracks. If
the disc has a complex structure, it
takes a while to read the disc before
the system begins to play it.
Video CDs and DVDs do not work in
this unit.
Depending on the sof tware the f iles
were made with, it may not be
possible to play some f iles, or display
some text data.If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays CD FORMAT, and then
skips to the next f ile.
215
CONT INUED
To Play a Disc
(In-dash single player)
Playing a Disc (EX-L model with navigat ion system)
Features
207
NOTE:
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
Main MenuTable of Contents

Insert a disc about half way into the
disc slot. The drive will pull the disc
in the rest of the way and begin to
play it.
You cannot load and play 3-inch
(8-cm)discsinthissystem.To return the screen to the upright
position, press the CLOSE button on
the edge of the screen panel. Do not
use the f olded down screen as a tray.
If you put a cup, f or example, on the
screen, the liquid inside the cup may
spill on the screen when you go over
a bump.
The in-dash disc player is behind the
navigation screen. To use the disc
player, press the OPEN button
beside the screen. The screen f olds
back, and the disc slot appears.
To Load a Disc
Playing a Disc (EX-L model with navigat ion system)
208
OPEN BUTTON DISC SLOT
CLOSE BUTTON
Main MenuTable of Contents

µµ
Push the AUDIO button beside the
screen to show the audio display and
operate the disc player.
You can also operate the audio
system without using the control
icons on the audio screen. Press the
CD button. The status bar appears
on the bottom of the screen. On the
navigation screen, you can see the
audio inf ormation whenever you
touch the AUDIO INFO icon on the
lower portion of the screen.
When playing a CD recorded with
text data, the track, album, and artist
name are shown on the audio display.
When playing a disc in MP3 or WMA,
the f older number and name, the f ile
number and name, the artist name,
and the elapsed time are shown. The
system will continuously play a disc
until you change modes. If the disc
was not recorded with text data, it
will not be displayed. You can also select an icon with the
joystick. Move it to left, right, up, or
down to change the highlighting and
scroll through lists. Then press ENT
on the top of the joystick to select
the icon.
Each time you press and
release (preset 6 button), the
player skips f orward to the
beginning of the next track (f ile in
MP3 or WMA mode). Press and
release (preset 5 button), to
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
You can use the preset buttons while
a disc is playing to select passages
and change tracks (files in MP3 or
WMA mode). Each preset button’s
f unction is shown on the bottom of
the screen.
To move rapidly within
a track/f ile, press and hold (preset 4 button) or
(preset 3 button).
CONT INUED
T o Change or Select T racks/Files
SK IP
FF/REW
Playing a Disc (EX-L model with navigat ion system)
Features
209
PRESET BUTTON’S FUNCTION
PRESET BUTTONS
Main MenuTable of Contents

µ
Û Ý
µ µ
µ µ
To
select a dif f erent f older, press either
side of the TUNE bar to move to the
beginning of the next f older. Press
the side of the TUNE bar to skip
to the next folder, and the side to
move to the beginning of the current
folder.Pressitagaintoskiptothe
beginning of the previous f older.
This
f eature plays the tracks/f iles within
a disc in random order. To activate
track random, press and release the
RDM button (preset 2 button). You
will see TRACK RANDOM in the
display. Press the RDM button again
to return to normal play. This
feature, when activated, plays all
f iles in the selected f older in random
order, rather than in the order they
are compressed. To activate folder
random, press and hold the RDM
button. You will see FOLDER
RANDOM in the display. The
system then selects and plays f iles
randomly. This continues until you
deactivate f older random by pressing
the RDM button again, or if you
select a dif f erent f older with the
TUNE bar.
To continuously replay
a track (f ile in MP3 or WMA mode),
press and release the RPT button
(preset 1 button). You will see
TRACK REPEAT in the display.
Press the RPT button again to turn it
off. This feature,
when activated, replays all f iles on
the selected f older in the order they
are compressed. To activate folder
repeat, press and hold the RPT
button (preset 1 button) for 2
seconds. You will see FOLDER
REPEAT in the display. The system
continuously replays the current
folder. Press the RPT button again to
turn it of f . Selecting a dif f erent
folder with the TUNE bar also turns
of f f older repeat.
In MP3 or WMA mode
In MP3 or WMA mode In MP3 or WMA mode
FOLDER SELECTION
TRACK RANDOM (Random
within a disc/f older)FOLDER RANDOM
T RA CK REPEA T (FIL E
REPEAT) FOLDER REPEAT
Playing a Disc (EX-L model with navigat ion system)
210
Main MenuTable of Contents

µµIn MP3 or WMA mode
The scan f unction samples all tracks
(f iles in MP3 or WMA) in the order
they were recorded. To activate scan,
press and release the SCAN button.
You will see TRACK SCAN in the
display. You will get a 10 second
sampling of each track/f ile on the
disc. Press the SCAN button to get
out of scan mode and play the last
track/f ile sampled.
Pressing either SKIP button (preset
5 button or 6 button) also turns off
scan. This feature,
when activated, samples the first file
in each f older on the disc in order.
To activate f older scan, press and
hold the SCAN button for 2 seconds.
You will see FOLDER SCAN in the
display.
The system plays the f irst f ile in
each f older f or about 10 seconds. If
you do nothing, the system then
plays the f irst f ile in each f older f or
10 seconds each. Af ter playing the
first file of the last folder, the system
goes to normal play.
Pressing either SKIP button (preset
5 or 6), or selecting a dif f erent f older
with the TUNE bar, or pressing the
SCAN button, also turns of f f older
scan. You can also select a track/f ile
directly f rom the f older and f ile lists
on the audio display. Press the
AUDIO button to show the audio
display.
Touch the Track List icon to switch
the display to the folder list, then
select and touch a desired f older.
CONT INUED
Using a T rack L istSCA N (T RA CK /FIL E SCA N)
FOLDER SCAN
Playing a Disc (EX-L model with navigat ion system)
Features
211
FOLDER ICON
RETURN ICON
Main MenuTable of Contents

ÛÝTo play the radio when a disc is
playing, press the AM/FM button or
touch the FM1, FM2, AM, XM1, or
XM2 icon. If a PC card is in the audio
unit, touch the CARD icon to play
the PC card. If a CD or CDs are
loaded in the CD changer, touch the
CDC icon to play the CD changer.
Press the CD button again or touch
the CD icon to switch back to the
disc player.
You can also press the MODE
buttononthesteeringwheelto
change modes.
If you turn the system of f while a
disc is playing, either with the
power/volume knob or by turning
of f the ignition switch, the disc will
stay in the drive. When you turn the
system back on, the disc will begin
playing where it lef t of f .
When playing a CD recorded with
text data, each track name is shown
on the audio display. With a disc
recorded in MP3 or WMA, the f older
number and the location are also
displayed.
If the disc was not recorded with text
data, only the track number is shown.
To select a desired icon with the
joystick, move it in the appropriate
direction, then press ENT.
PresstheAUDIObuttontogoback
to the normal audio playing display.
Pressing the CANCEL button goes
back to the previous screen, and
pressing the MAP button cancels the
audio control display on the screen.
To scroll through the display, touch
the or icononthesideof the
screen.Togobacktotheprevious
display, touch the Return icon on the
screen.
The display changes to the f ile list.
Then, select and touch a desired f ile.
Touch the f older icon on the upper
left of the screen to move to the
parent f older. To Stop Playing a Disc
Playing a Disc (EX-L model with navigat ion system)
212
FOLDER ICON TRACK/FILE ICON
RETURN ICON
Main MenuTable of Contents

You cannot close the screen if a disc
is partially inserted into its slot.
To return the screen to the upright
position, press the CLOSE button.
You can also eject the disc when the
ignition switch is of f . For inf ormation on how to handle
and protect discs, see page .
To remove a disc f rom the audio unit,
f old back the screen by pressing the
OPEN button (see page ). Press
the disc eject button ( ) to
remove the disc. If you eject the disc,
but do not remove it f rom the slot,
the system will automatically reload
it af ter 10 seconds and put it in pause
mode. To begin playing, press the
CD/XM button. 252
206
Removing a DiscProtecting Discs
Playing a Disc (EX-L model with navigat ion system)
Features
213
Main MenuTable of Contents

Cause Solution
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
For additional information on
damaged discs, see page .
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer. Error Message
253
FOCUS Error
Mechanical Error
TOC Error
High Temperature Press the eject button, and pull out the disc.
Check if it is inserted correctly in the discplayer.
Make sure the disc is not scratched or damaged.
For more inf ormation see page 253 .
Press the eject button, and pull out the disc.
Check the disc for damage or deformation. For
more information see page 253 .
If the disc cannot be pulled out, or the error
message does not disappear after the disc is
ejected, see your dealer.
Press the eject button, and pull out the disc.
Check the disc for damage or deformation.
Will disappear when the temperature returns to
normal.
Disc Player Error Messages (EX-L model with navigation system)
214
DISC ERROR
MECH ERROR CHECK DISC
HEAT ERROR
Main MenuTable of Contents

´
µ
CD Changer (EX-L model with navigation system)
Features
215
CD ICON CD CHANGER ICON
POWER/VOLUME KNOB
JOYSTICK
OPEN BUTTON
CD BUTTON
AUDIO BUTTON
SCAN BUTTON
TUNE BAR
REWIND BUTTONFAST FORWARD BUTTON
RANDOM BUTTON
REPEAT BUTTON SKIP BUTTON
SKIP BUTTON
Main MenuTable of Contents
