µ If youareplayingaUSBflash
memory device or iPod with the USB
adapter cable, press and release the
top ( ) of the CH button to skip
f orward to the beginning of the next
file. Press the bottom ( ) to skip
backward to the beginning to the
current f ile. Press it twice to return
to the previous file.
If you are playing a PC card, press
the top ( ) of the CH button to
advance to the next file. Press the
bottom( )togobacktothe
previous f ile.
If youareplayingadisc,iPodorUSB
f lash memory device, the system
skips to the beginning of the next
track/file each time you press the
top ( ) of the CH button. Press the
bottom ( ) to return to the
beginning of the current track/f ile.
Press it twice to return to the
previous track/f ile.
You can also use the seek f unction to
select f olders. Press and hold the top
( ) of the CH button until you hear
abeep,toskipforwardtothefirst
f ile in the next f older. Press the
bottom( )toskipbackwardtothe
previous f older.
When playing a USB f lash memory
device, you can also use the seek
function to skip the folder. To
activate this, press and hold either
side of the CH button until you hear
a beep.
On models with navigation system
Remote Audio Controls
256
Main MenuTable of Contents

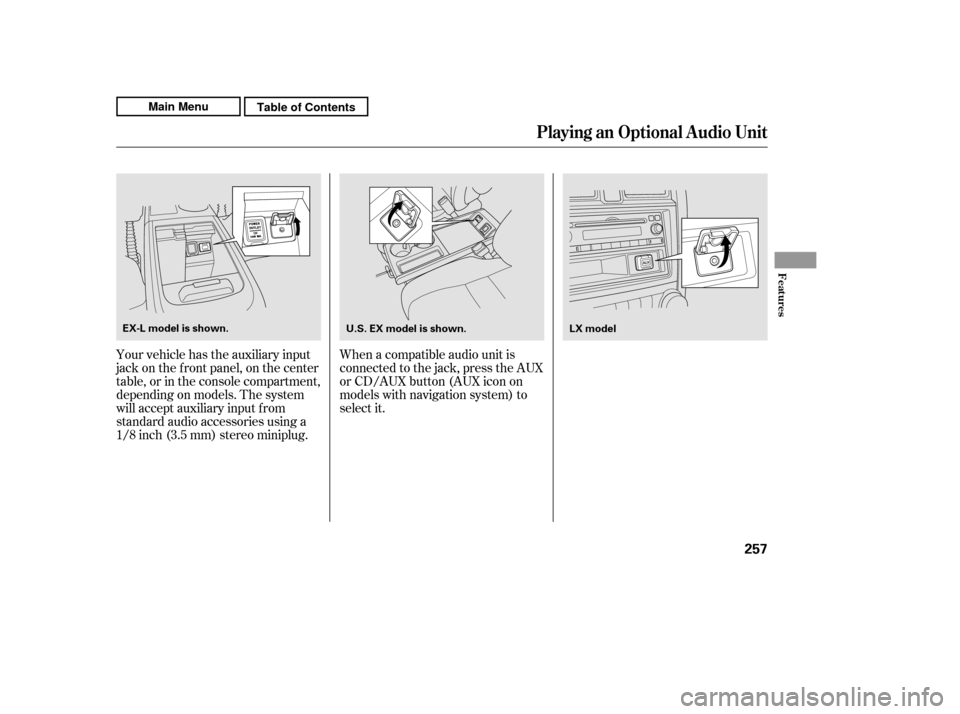

Your vehicle has the auxiliary input
jack on the f ront panel, on the center
table, or in the console compartment,
depending on models. The system
will accept auxiliary input f rom
standard audio accessories using a
1/8 inch (3.5 mm) stereo miniplug.When a compatible audio unit is
connected to the jack, press the AUX
or CD/AUX button (AUX icon on
models with navigation system) to
select it.
Playing an Opt ional A udio Unit
Features
257
LX model
U.S. EX model is shown.
EX-L model is shown.
Main MenuTable of Contents

If your vehicle’s battery is
disconnected or goes dead, the audio
system will disable itself . If this
happens, you will see ‘‘ENTER
CODE’’ in the f requency display the
nexttimeyouturnonthesystem.
Use the preset buttons to enter the
code. On vehicles with navigation
system, touch the icon to enter the
code number, then touch the Done
icon to set the code. The code is on
the radio code card included in your
owner’s manual kit. When it is
entered correctly, the radio will start
playing.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.
If you lose the card, you must obtain
the code number f rom a dealer. To
do this, you will need the system’s
serial number. If you make a mistake entering the
code, do not start over; complete the
sequence, then enter the correct
code. You have 10 tries to enter the
correct code. If you are unsuccessf ul
in 10 attempts, you must then leave
the system on f or 1 hour bef ore
trying again.The system will retain your AM and
FM presets even if power is
disconnected.
Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic code using the preset
buttons (icons on vehicles with
navigation system). Because there
are hundreds of number
combinations possible f rom specif ic
digits, making the system work
without knowing the exact code is
nearly impossible.
Radio T hef t Prot ection
258
Main MenuTable of Contents

On models with navigation system
On models without navigation system
The navigation system receives
signals f rom the global positioning
system (GPS), and the displayed
time is updated automatically by the
GPS. Ref er to the navigation system
manual f or how to adjust the time.
Change the hours by pressing the H
(hour) button until the numbers
advance to the desired time. Change
the minutes by pressing the M
(minute) button until the numbers
advance to the desired time.
Press the CLOCK button again to
enter the set time.
For example: 1:06 will reset to 1:001:52 will reset to 2:00
You can quickly set the time to the
nearest hour. If the displayed time is
bef ore the half hour, press and hold
the CLOCK button, then press the R
(reset) button to set the time back to
the previous hour. If the displayed
time is af ter the half hour, the same
procedure sets the time f orward to
the beginning of the next hour.

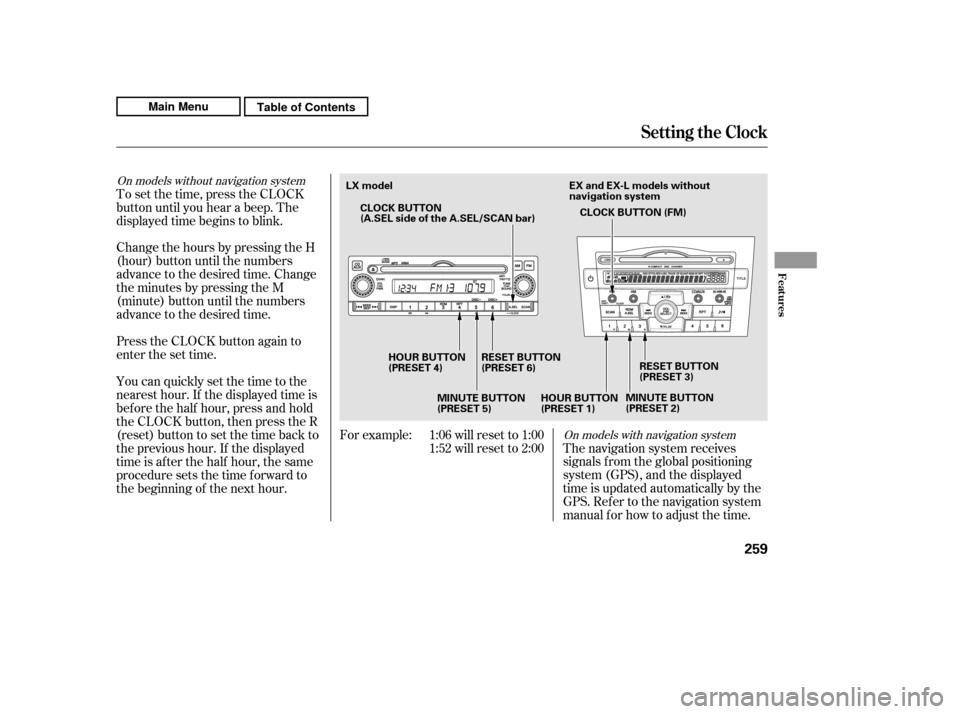

To set the time, press the CLOCK
button until you hear a beep. The
displayed time begins to blink.
Setting the Clock
Features
259
EX and EX-L models without
navigation system
CLOCK BUTTON
(A.SEL side of the A.SEL/SCAN bar)
HOUR BUTTON
(PRESET 4) RESET BUTTON
(PRESET 6)
LX model
MINUTE BUTTON
(PRESET 5) RESET BUTTON
(PRESET 3)
HOUR BUTTON
(PRESET 1) MINUTE BUTTON
(PRESET 2)
CLOCK BUTTON (FM)
Main MenuTable of Contents

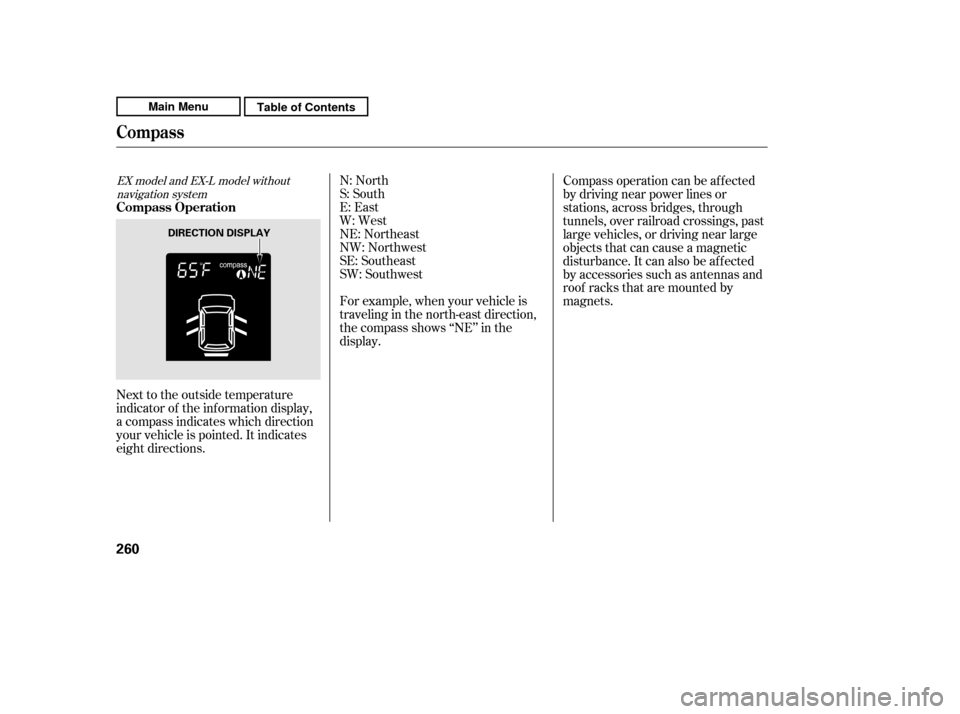

Next to the outside temperature
indicator of the inf ormation display,
a compass indicates which direction
your vehicle is pointed. It indicates
eight directions.N: North
S: South
E: East
W: West
NE: Northeast
NW: Northwest
SE: Southeast
SW: Southwest
For example, when your vehicle is
traveling in the north-east direction,
the compass shows ‘‘NE’’ in the
display.
Compass operation can be af f ected
by driving near power lines or
stations, across bridges, through
tunnels, over railroad crossings, past
large vehicles, or driving near large
objects that can cause a magnetic
disturbance. It can also be af f ected
by accessories such as antennas and
roof racks that are mounted by
magnets.
EX model and EX-L model without
navigation system
Compass
Compass Operation
260
DIRECTION DISPLAY
Main MenuTable of Contents

µµµµ
µµ

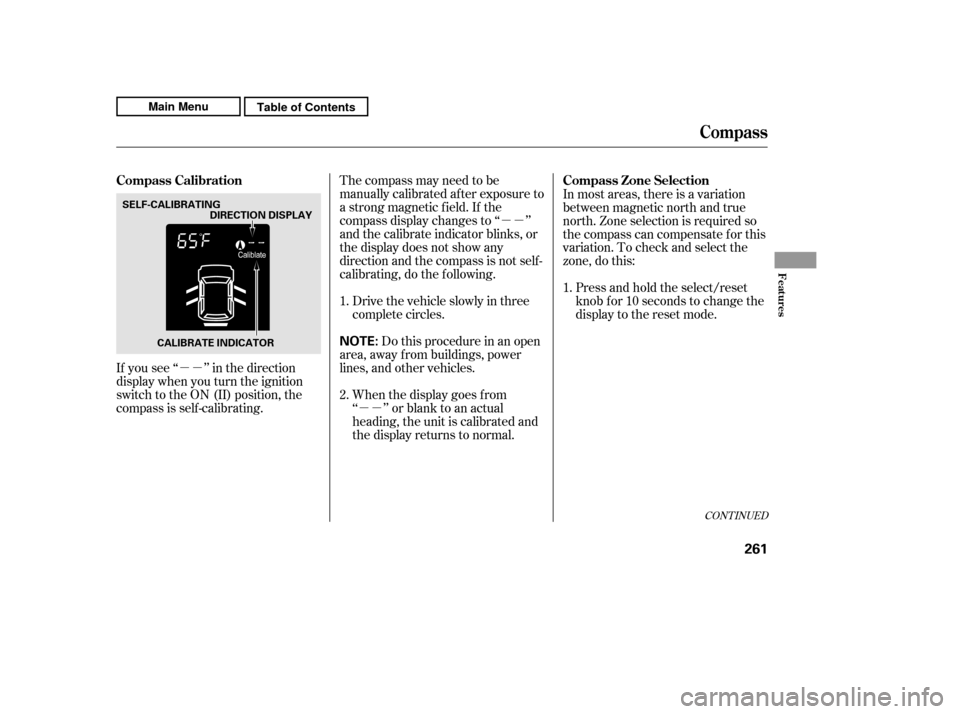

If you see ‘‘ ’’ in the direction
display when you turn the ignition
switch to the ON (II) position, the
compassisself-calibrating. The compass may need to be
manually calibrated af ter exposure to
a strong magnetic field. If the
compass display changes to ‘‘ ’’
and the calibrate indicator blinks, or
the display does not show any
direction and the compass is not self -
calibrating, do the f ollowing.
Do this procedure in an open
area, away f rom buildings, power
lines, and other vehicles. In most areas, there is a variation
between magnetic north and true
north. Zone selection is required so
the compass can compensate f or this
variation. To check and select the
zone, do this:
Drivethevehicleslowlyinthree
complete circles.
When the display goes f rom
‘‘ ’’ or blank to an actual
heading, the unit is calibrated and
the display returns to normal. Press and hold the select/reset
knob f or 10 seconds to change the
display to the reset mode.
1. 1.
2.
CONT INUED
Compass
Compass Calibration Compass Zone Selection
Features
261
NOTE:CALIBRATE INDICATOR
SELF-CALIBRATING
DIRECTION DISPLAY
Main MenuTable of Contents

µµ
When the system does not accept
the selected compass zone, you see
‘‘ ’’ in the direction display. Select
appropriate zone number again.

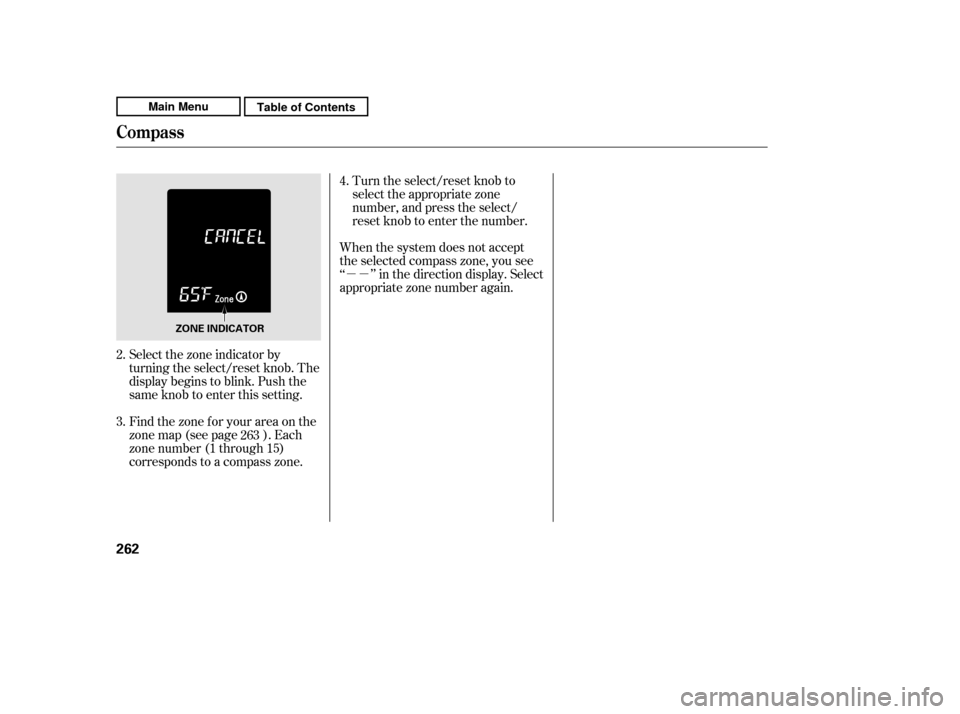

Select the zone indicator by
turning the select/reset knob. The
display begins to blink. Push the
same knob to enter this setting.
Find the zone f or your area on the
zone map (see page ). Each
zone number (1 through 15)
corresponds to a compass zone. Turn the select/reset knob to
select the appropriate zone
number, and press the select/
reset knob to enter the number.
2. 3. 4.
263
Compass
262
ZONE INDICATOR
Main MenuTable of Contents

Compass
Features
263

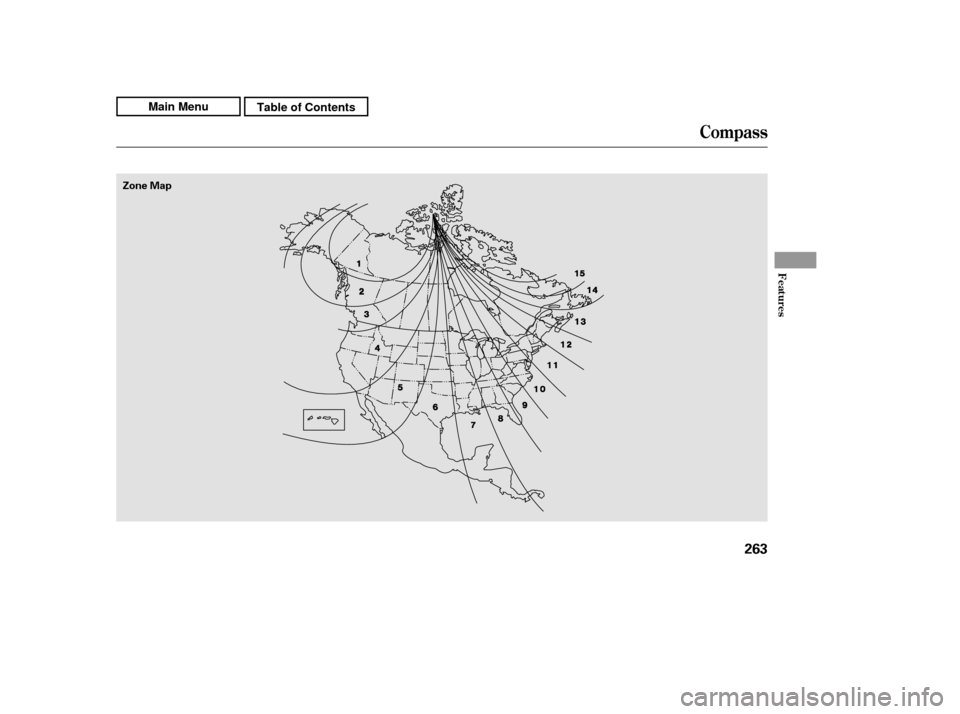

Zone Map
Main MenuTable of Contents

If equipped
Once the security system is set,
opening any door without using the
key or the remote transmitter, the
hood, or the tailgate will cause the
system to alarm.Use the remote transmitter
to quickly check that the hood, the
tailgate, and all doors are closed.
Push the lock button twice within 5
seconds. There should be an audible
conf irmation beep.
Do not attempt to alter this system
or add other devices to it.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and the tailgate. For the
system to activate, you must lock the
doorsandthetailgatefromthe
outside with the key, driver’s lock
tab, door lock master switch, or
remote transmitter. The security
system indicator on the instrument
panel starts blinking immediately to
show you the system is setting itself .
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, parking lights, side
marker lights and taillights f lash if
someone attempts to break into your
vehicle or remove the audio unit.
This alarm continues f or 2 minutes,
then the system resets. To reset an
activated system before the 2
minutes have elapsed, unlock the
driver’s door with the key or use the
remote transmitter.
The security system will not set if
the hood, tailgate, or any of the
doors are not f ully closed. If the
system will not set, check the doors
and the tailgate. You can also check
the open indicator on the instrument
panel (see page ), to see if the
doors and the tailgate are f ully
closed. Since it is not part of the
monitor display, manually check thehood.
65
Security System
264
NOTE:
SECURITY SYSTEM INDICATOR
Main MenuTable of Contents

Ref er to the navigation system
manual f or operation of the rearview
camera.
On EX-L model with navigation system
Rearview Camera and Monitor
