uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses1.Turn the ignition switch to LOCK
(0 . Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
uIf the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
uIf there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing Fuses
NOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 333 to 334.
There is a fuse puller on the back of the engine compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller

339
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other information required by regulation.
Specifications.................................... 340
Identification Numbers
Vehicle Identification Nu mber (VIN) ...... 342
Engine Number and Transmission
Number...................................... 342
Devices that Emit Radio Waves ....... 343
Reporting Safety Defects ................. 344Emissions Testing
Testing of Readiness Codes.............. 345
Warranty Coverages ........................ 347
Authorized Manuals ......................... 349
Customer Service Information ......... 350

340
Information

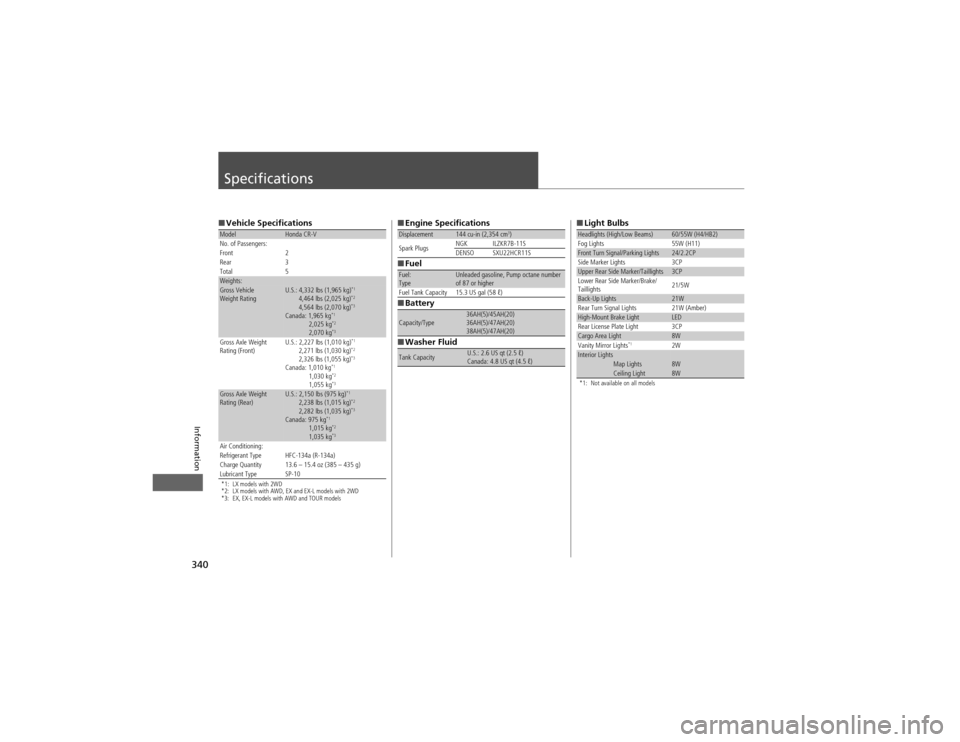

Specifications
■Vehicle Specifications
*1: LX models with 2WD
*2: LX models with AWD, EX and EX-L models with 2WD
*3: EX, EX-L models with AWD and TOUR modelsModelHonda CR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,332 lbs (1,965 kg) *1
4,464 lbs (2,025 kg) *2
4,564 lbs (2,070 kg) *3
Canada: 1,965 kg *1
2,025 kg *2
2,070 kg *3
Gross Axle Weight
Rating (Front)U.S.: 2,227 lbs (1,010 kg) *1
2,271 lbs (1,030 kg) *2
2,326 lbs (1,055 kg) *3
Canada: 1,010 kg *1
1,030 kg *2
1,055 kg *3
Gross Axle Weight
Rating (Rear)U.S.: 2,150 lbs (975 kg)
*1
2,238 lbs (1,015 kg) *2
2,282 lbs (1,035 kg) *3
Canada: 975 kg *1
1,015 kg *2
1,035 kg *3
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity13.6 – 15.4 oz (385 – 435 g)Lubricant TypeSP-10
■Engine Specifications
■Fuel
■Battery
■Washer Fluid
Displacement144 cu-in (2,354 cm 3
)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel: TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 15.3 US gal (58 )
Capacity/Type36AH(5)/45AH(20)
36AH(5)/47AH(20)
38AH(5)/47AH(20)
Tank CapacityU.S.: 2.6 US qt (2.5 )
Canada: 4.8 US qt (4.5 )
■Light Bulbs
*1: Not available on all modelsHeadlights (High/Low Beams)60/55W (H4/HB2)
Fog Lights 55W (H11)
Front Turn Signal/Parking Lights24/2.2CP
Side Marker Lights 3CP
Upper Rear Side Marker/Taillights3CP
Lower Rear Side Marker/Brake/
Taillights 21/5W
Back-Up Lights21W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 3CP
Cargo Area Light8W
Vanity Mirror Lights *1
2W
Interior LightsMap Lights8WCeiling Light8W

341
uuSpecificationsu
Information
■Brake Fluid
■Automatic Transmission Fluid
*1: 2WD models
*2: AWD models
■Rear Differential Fluid *
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.3 US qt (2.2 )
*1
2.7 US qt (2.6 ) *2
SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.32 US qt (1.247 )
Total 1.57 US qt (1.488 )
■Engine Oil
■Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.0 US qt (3.8 )
Change
including
filter
4.2 US qt (4.0 )
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.64 US gal (6.2 )
(change including the remaining
0.16 US gal (0.62 ) in the reserve tank)
■Tire
*1: LX
*2: EX, EX-L, TOUR
RegularSize215/70R16 100S *1
225/65R17 102T *2
Pressure
psi(kPa[kgf/cm
2
])32 (220 [2.2]) *1
31 (210 [2.1]) *2
Compact
Spare Size
T155/90D17 101M
T165/80D17 104M
Pressure
psi(kPa[kgf/cm 2
]) 60 (420 [4.2])
Wheel SizeRegular16 x 6.5J
*1
17 x 6.5J *2
Compact Spare17 x 4T
* Not available on all models

342
Information
Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.

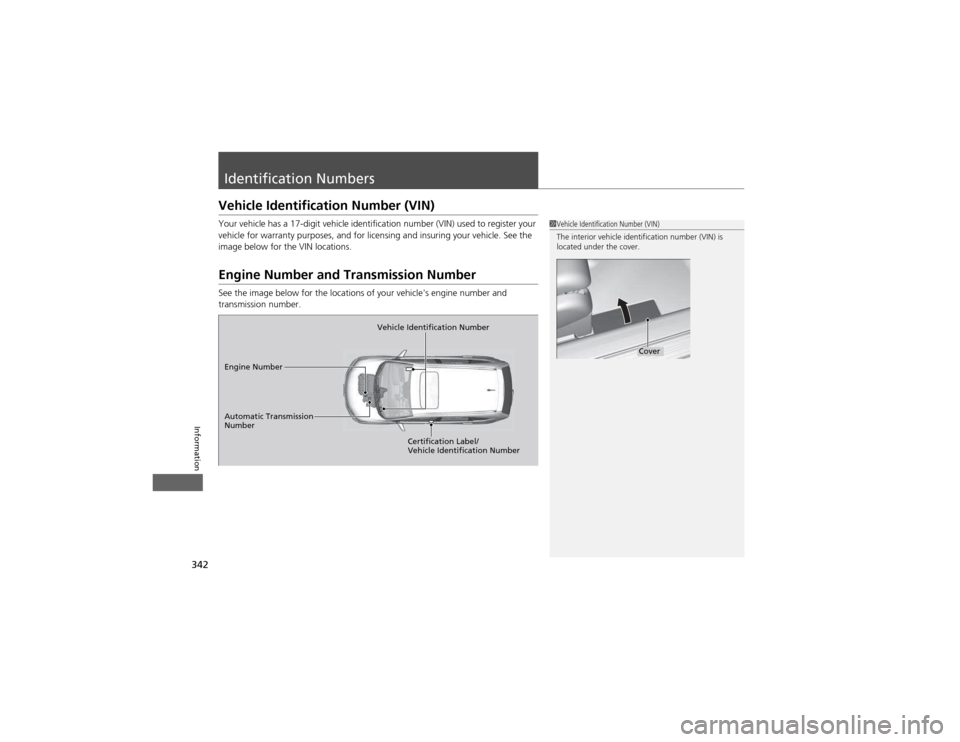

Engine Number and Transmission Number
See the image below for the locations of your vehicle's engine number and
transmission number.
1Vehicle Identification Number (VIN)
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Automatic Transmission
Number

345
Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle uses "readiness codes," as part of its onboard self diagnostic system.
Some states refer to these codes during testing to see if your vehicle's emissions
components are working properly.
The codes may not be read if you go through the testing just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w
, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following: 1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P . Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.

346
uuEmissions TestinguTesting of Readiness Codes
Information
7.Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D . Do not use cruise control. When traffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
