TPMS HONDA CR-V 2014 RM1, RM3, RM4 / 4.G User Guide

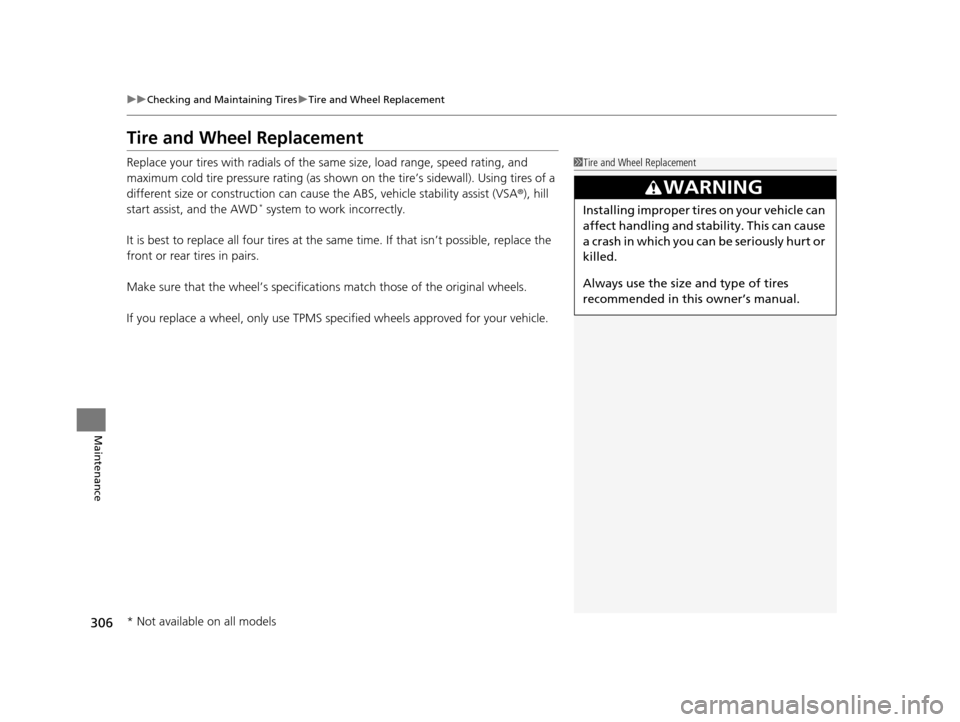

306
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure ra ting (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause the ABS, vehicle stability assist (VSA ®), hill
start assist, and the AWD
* system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
Make sure that the wheel’s specifications match thos e of the original wheels.
If you replace a wheel, only use TPMS sp ecified wheels approved for your vehicle.
1Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
* Not available on all models
14 CR-V-31T0A6200.book 306 ページ ２０１４年２月１０日　月曜日　午後７時１分

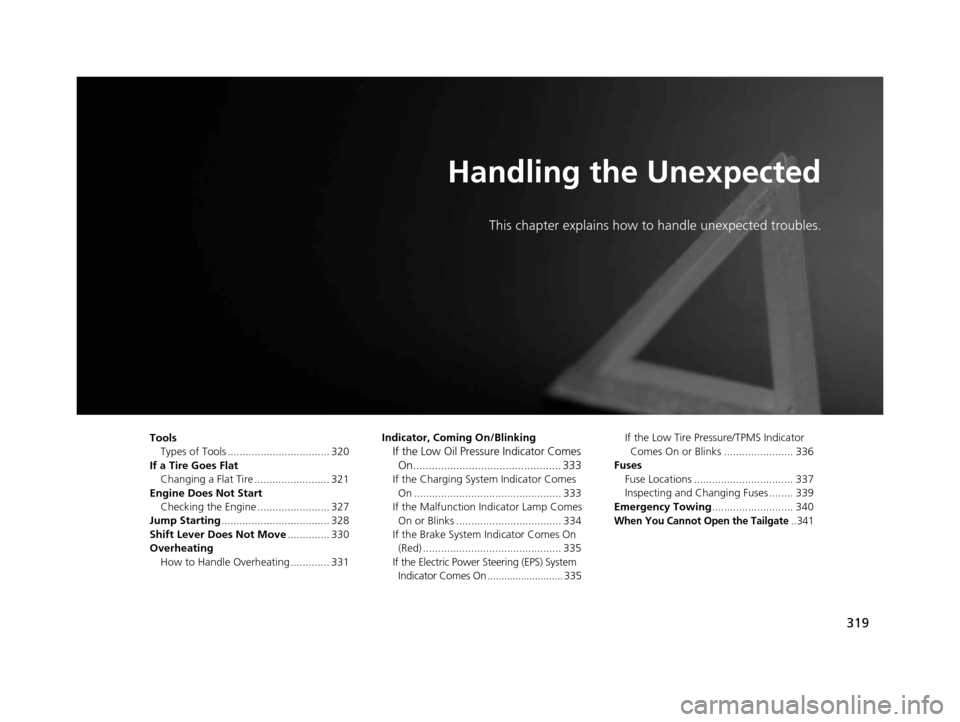

319
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 320
If a Tire Goes Flat Changing a Flat Tire ......................... 321
Engine Does Not Start Checking the Engine ........................ 327
Jump Starting .................................... 328
Shift Lever Does Not Move .............. 330
Overheating How to Handle Overheating ............. 331 Indicator, Coming On/Blinking
If the Low Oil Pressu
re Indicator Comes
On................................................ 333
If the Charging System Indicator Comes
On ................................................. 333
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 334
If the Brake System Indicator Comes On (Red) .............................................. 335
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 335 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 336
Fuses Fuse Locations ................................. 337
Inspecting and Changing Fuses ........ 339
Emergency Towing ........................... 340
When You Cannot Open the Tailgate.. 341
14 CR-V-31T0A6200.book 319 ページ ２０１４年２月１０日　月曜日　午後７時１分

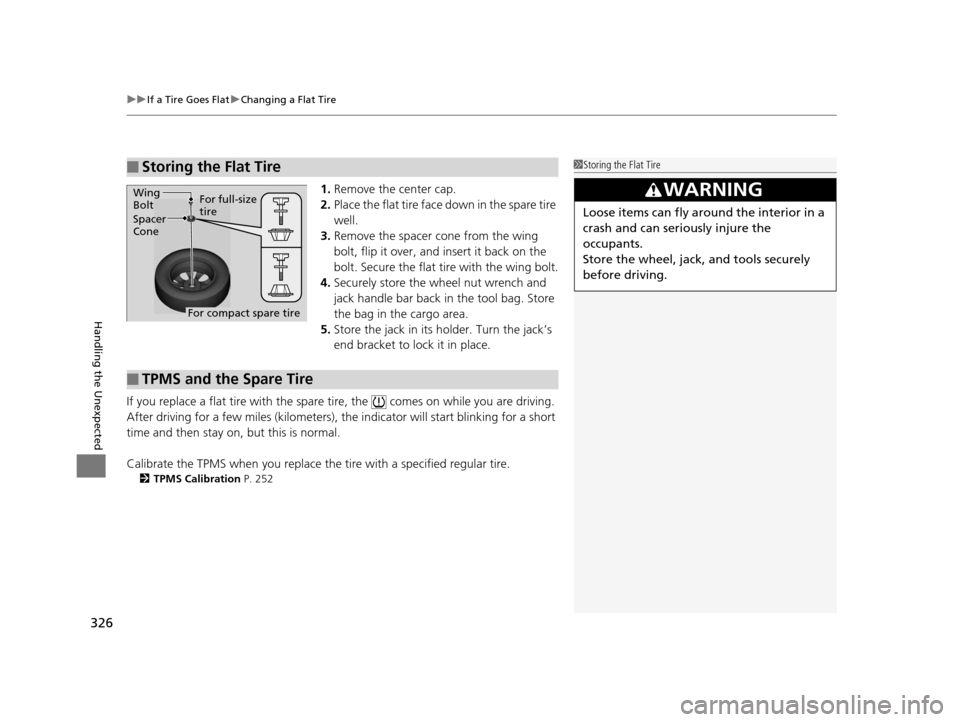

uuIf a Tire Goes Flat uChanging a Flat Tire
326
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely store the wheel nut wrench and
jack handle bar back in the tool bag. Store
the bag in the cargo area.
5. Store the jack in its holder. Turn the jack’s
end bracket to lock it in place.
If you replace a flat tire with the spare tire, the comes on while you are driving.
After driving for a few miles (kilometers), the indicator will start blinking for a short
time and then stay on, but this is normal.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 252
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.Spacer
ConeWing
Bolt
For compact spare tire For full-size
tire
■TPMS and the Spare Tire
14 CR-V-31T0A6200.book 326 ページ ２０１４年２月１０日　月曜日　午後７時１分

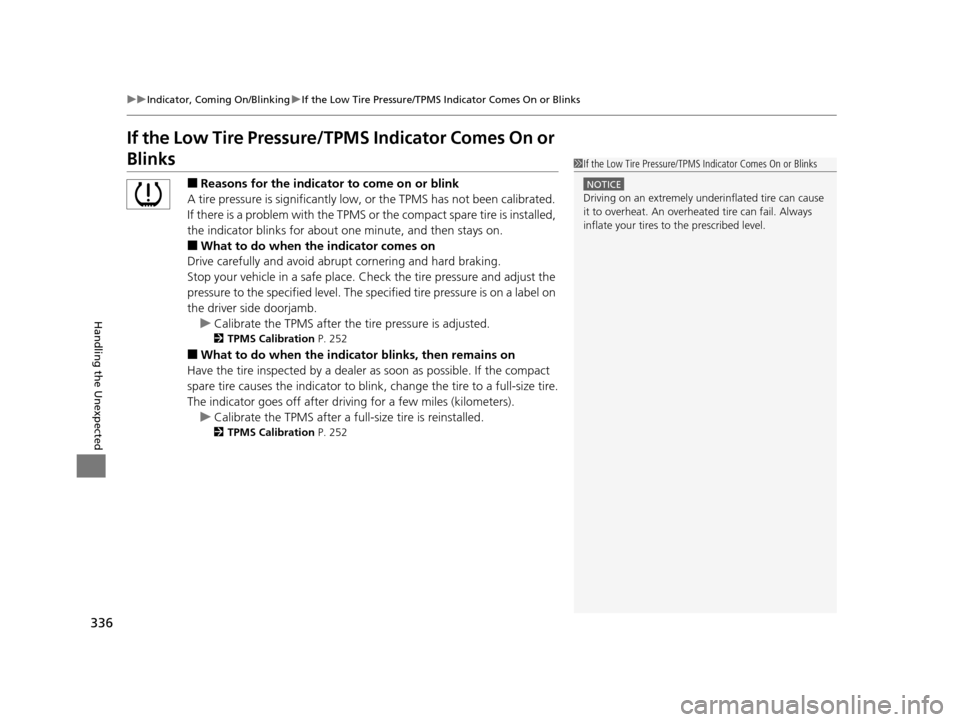

336
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is signifi cantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire is installed,
the indicator blinks for about one minute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 252
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
u Calibrate the TPMS after a full-size tire is reinstalled.
2 TPMS Calibration P. 252
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
14 CR-V-31T0A6200.book 336 ページ ２０１４年２月１０日　月曜日　午後７時１分

358
Index
Fuses.......................................................... 337
Inspecting and Changing ......................... 339
Locations ......................................... 337, 338
G
Gasoline (Fuel)
Economy ................................................. 265
Gauge ....................................................... 77
Information ............................................. 262
Low Fuel Indicator ..................................... 70
Refueling ................................................. 262
Gauges ......................................................... 77
Gear Shift Lever Positions Automatic Transmission ........................... 243
Glass (care) ................................................ 317
Glove Box .................................................. 133
H
Halogen Bulbs ................................... 289, 290
Handling the Unexpected ........................ 319
HandsFreeLink® (HFL)............................... 194
Automatic Import of Cellular Phonebook
and Call History ..................................... 210
Automatic Transferring ............................ 208
Caller’s ID Information ............................. 208
HFL Buttons ............................................. 194
HFL Menus .............................................. 196
HFL Status Display.................................... 195
Making a Call .......................................... 213 Options During a Call .............................. 217
Phone Setup............................................ 201
Receiving a Call ....................................... 216
Speed Dial ............................................... 211
Text Message .................................. 206, 218
To Clear the System ................................ 209
To Create a Security PIN .......................... 207
Hazard Warning Button .............................. 2
Head Restraints ........................................ 125
Headlights ................................................. 112
Aiming .................................................... 289
Automatic Operation............................... 113
Dimming ......................................... 112, 114
Operating................................................ 112
Heaters (Seat) ........................................... 139
Heating and Cooling System ................... 142
Cooling ................................................... 144
Defrosting the Windshield and Windows ............................................... 144
Dust and Pollen Filter............................... 313
Heating ................................................... 143
HFL (HandsFreeLink ®)............................... 194
High Beam Indicator .................................. 74
Hill Start Assist System ............................. 240
I
Identification Numbers ............................ 346
Engine and Transmission ......................... 346
Vehicle Identification ............................... 346
Ignition Switch ......................................... 111 Illumination Control
................................ 117
Knob ...................................................... 117
i-MID (intelligent Multi-Information Display) ..................................................... 81
Immobilizer System .................................. 106
Indicator ................................................... 75
Indicators .................................................... 68
All-Wheel Drive (AWD) System .................. 71
Anti-lock Brake System (ABS) .................... 71
Charging System............................... 69, 333
CRUISE CONTROL ............................. 76, 247
CRUISE MAIN.................................... 76, 246
Door Open.......................................... 28, 72
ECON Mode ..................................... 75, 245
Electric Power Steering (EPS) System ............................................ 73, 335
Fog Light .................................................. 74
High Beam ................................................ 74
Immobilizer System ................................... 75
Lights On .................................................. 74
Low Fuel ................................................... 70
Low Oil Pressure ............................... 68, 333
Low Tire Pressure/TPMS .................... 73, 254
Maintenance Minder......................... 76, 271
Malfunction Indicator Lamp .............. 69, 334
Parking Brake and Brak e System ....... 68, 335
Seat Belt Reminder .............................. 30, 70
Security System Alarm............................... 75
Shift Lever Position.................................... 69
Side Airbag Off ................................... 50, 74
Supplemental Restraint System ........... 48, 71
14 CR-V-31T0A6200.book 358 ページ ２０１４年２月１０日　月曜日　午後７時１分

361
Index
Seat Belts.................................................... 29
Adjusting the Shoulder Anchor ................. 33
Automatic Seat Belt Tensioners ................. 31
Checking .................................................. 36
Detachable Anchor ................................... 34
Fastening .................................................. 32
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 60
Pregnant Women...................................... 35
Reminder .................................................. 30
Warning Indicator ............................... 30, 70
Seat Heaters ............................................. 139
Seats .......................................................... 122
Adjusting ................................................ 122
Driver’s Seat Lumbar Support .................. 122
Front Seats.............................................. 122
Rear Seats ............................................... 129
Seat Heaters ........................................... 139
Security System ........................................ 106
Immobilizer System Indicator..................... 75
Security System Alarm Indicator ................ 75
Select Lever ........................................ 15, 243
Operation ......................................... 15, 244
Releasing ................................................ 330
Won’t Move ........................................... 330
Select/Reset Knob ...................................... 78
Selecting a Child Seat ................................ 56
Selector Knob (Audio) ............................. 153
Setting the Clock ........................................ 96
Shift Lever .......................................... 15, 243
Shift Lever Position Indicator ............ 69, 244Shifting (Transmission)
............................. 243
Shoulder Anchor ......................................... 33
Side Airbags ................................................ 44
Cutoff System ........................................... 46
Off Indicator .............................................. 46
Side Curtain Airbags ................................... 47
SMS Text Message ............................ 206, 218
Snow Tires ................................................. 308
Spare Tire .......................................... 321, 345
Spark Plugs ................................................ 344
Specifications ............................................ 344
Specified Fuel .................................... 262, 344
Speedometer .............................................. 77
SRS Airbags (Airbags) ................................. 40
Starting the Engine .................................. 239
Does Not Start ......................................... 327
Engine Switch Buzzer .............................. 111
Jump Starting .......................................... 328
Steering Wheel ......................................... 119
Adjusting ................................................. 119
Stopping .................................................... 260
Summer Tires ............................................ 308
Sunglasses Holder ..................................... 138
Supplemental Restraint System (SRS) ........ 40
Switches (Around the Steering
Wheel) ............................................. 2, 3, 111
Synchronized Mode .................................. 147
T
Tachometer................................................. 77 Tailgate
..................................................... 104
Unable to Open....................................... 341
Temperature Gauge ................................... 77
Temperature Sensor ................................. 148
Text Message .................................... 206, 218
Time (Setting) ............................................. 96
Tire Pressure Monitoring System (TPMS) ..................................................... 252
Button..................................................... 252
Indicator.................................................... 73
Tires ........................................................... 300
Air Pressure ..................................... 301, 345
Checking and Maintaining ...................... 300
Inspection ............................................... 300
Labeling .................................................. 301
Puncture (Flat Tire) .................................. 321
Regulations ............................................. 303
Rotation .................................................. 307
Spare Tire ........................................ 321, 345
Summer .................................................. 308
Tire Chains .............................................. 308
Wear Indicators ....................................... 305
Winter..................................................... 308
Tonneau Cover ......................................... 140
Tools .......................................................... 320
Towing a Trailer ....................................... 231
Equipment and Accessories ..................... 232
Load Limits .............................................. 231
Towing Your Vehicle ................................ 235
Behind a Motorhome .............................. 235
Emergency .............................................. 340
14 CR-V-31T0A6200.book 361 ページ ２０１４年２月１０日　月曜日　午後７時１分

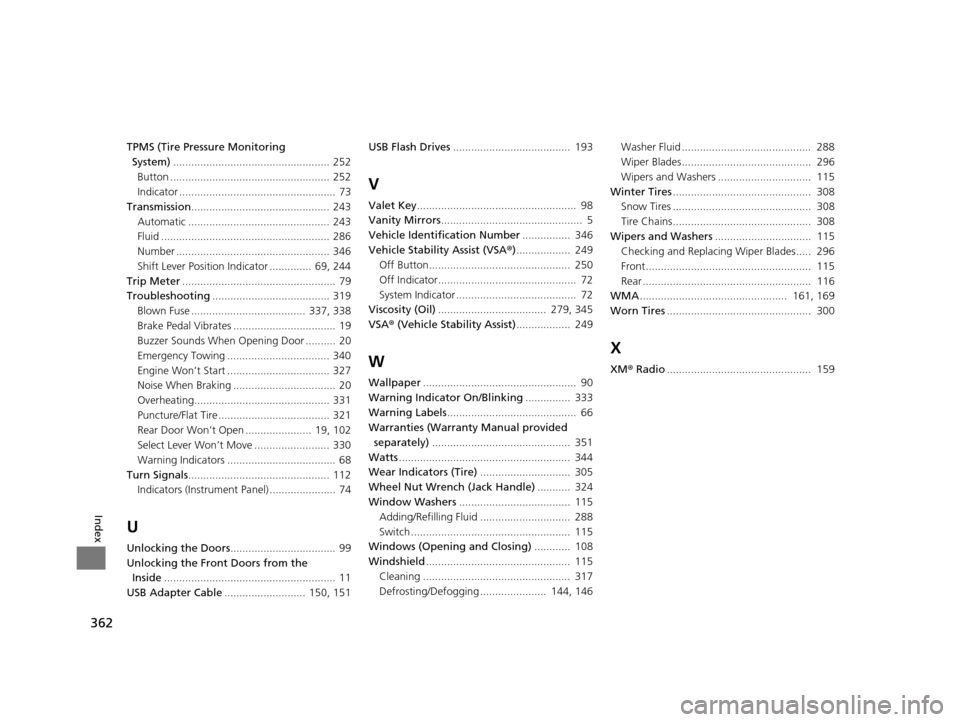

362
Index
TPMS (Tire Pressure Monitoring System) .................................................... 252
Button ..................................................... 252
Indicator .................................................... 73
Transmission .............................................. 243
Automatic ............................................... 243
Fluid ........................................................ 286
Number ................................................... 346
Shift Lever Position Indicator .............. 69, 244
Trip Meter ................................................... 79
Troubleshooting ....................................... 319
Blown Fuse ...................................... 337, 338
Brake Pedal Vibrates .................................. 19
Buzzer Sounds When Opening Door .......... 20
Emergency Towing .................................. 340
Engine Won’t Start .................................. 327
Noise When Braking .................................. 20
Overheating............................................. 331
Puncture/Flat Tire ..................................... 321
Rear Door Won’t Open ...................... 19, 102
Select Lever Won’t Move ......................... 330
Warning Indicators .................................... 68
Turn Signals ............................................... 112
Indicators (Instrum ent Panel) ...................... 74
U
Unlocking the Doors ................................... 99
Unlocking the Fron t Doors from the
Inside ......................................................... 11
USB Adapter Cable ........................... 150, 151 USB Flash Drives
....................................... 193
V
Valet Key..................................................... 98
Vanity Mirrors ............................................... 5
Vehicle Identification Number ................ 346
Vehicle Stability Assist (VSA ®).................. 249
Off Button............................................... 250
Off Indicator.............................................. 72
System Indicator ........................................ 72
Viscosity (Oil) .................................... 279, 345
VSA ® (Vehicle Stability Assist) .................. 249
W
Wallpaper................................................... 90
Warning Indicator On/Blinking ............... 333
Warning Labels ........................................... 66
Warranties (Warranty Manual provided
separately) .............................................. 351
Watts ......................................................... 344
Wear Indicators (Tire) .............................. 305
Wheel Nut Wrench (Jack Handle) ........... 324
Window Washers ..................................... 115
Adding/Refilling Fluid .............................. 288
Switch ..................................................... 115
Windows (Opening and Closing) ............ 108
Windshield ................................................ 115
Cleaning ................................................. 317
Defrosting/Defogging ...................... 144, 146 Washer Fluid ........................................... 288
Wiper Blades........................................... 296
Wipers and Washers ............................... 115
Winter Tires .............................................. 308
Snow Tires .............................................. 308
Tire Chains.............................................. 308
Wipers and Washers ................................ 115
Checking and Replacing Wiper Blades..... 296
Front....................................................... 115
Rear ........................................................ 116
WMA ................................................. 161, 169
Worn Tires ................................................ 300
X
XM® Radio ................................................ 159
14 CR-V-31T0A6200.book 362 ページ ２０１４年２月１０日　月曜日　午後７時１分
