clock reset HONDA CR-V 2014 RM1, RM3, RM4 / 4.G Owners Manual

13
Quick Reference Guide
Climate Control System* (P 145)
● Press the AUTO button to activate th e climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operabl e. See the Navigation System Manual for
complete details.
Models with navigation system
Driver's Side
Temperature
Control Dial
/ (Fan Control) Buttons
(Windshield
Defroster) Button
A/C (Air Conditioning)
Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents. Air flows from dashboard
vents.
SYNC (Synchronized) Button
(Recirculation) Button
AUTO Button
Passenger's Side
Temperature
Control Dial
(Rear Window Defogger/
Heated Mirror
*) Button
MODE Control Button
(On/Off) Button
Clock (P 96)
aPress the CLOCK (AUX)
button until the
displayed time begins flashing.
bPress the ( 4 (Hour) or (5 (Minute)
button to set the time. Press the
( 6
(Reset) button to set the time to the
nearest hour.
cPress the CLOCK button again to set
the time.
To set the time to the nearest hour:
Press and hold the CLOCK button until the
clock display begins to blink, then press the
( 6 (Reset) button.
Depending on the displayed time, the clock
sets forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation system
Models with navigation system
* Not available on all models
14 CR-V-31T0A6200.book 13 ページ ２０１４年２月１０日　月曜日　午後７時１分

87
uuGauges and Displays uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel
■List of customizable options
*1: Default Setting
*2: See the Navigation System Manual Setup Group Customizable Features
Description Selectable settings
Vehicle
InformationMaintenance infoReset the Maintenance MinderTM.No/Yes
Adjust
Clock
*Selects the 12 hour or 24 hour clock display, and
adjusts the time. 12h*1/
24h
Customize
SettingsDisplay
Setup
Select
WallpaperSelects the full-size analo gue clock or the wallpaper.Clock*1/Image 1/ Image 2/
Image 3
Import
WallpaperImports an image file for a new wallpaper.Three images can be stored.2 Importing wallpapers
from USB P. 90
Delete
WallpaperDeletes an image file for a wallpaper.Image 1/Image 2/Image 3
Trip Meter
Item to DisplaySelects an item to be di splayed along with average
fuel economy.Range*1/ Elapsed time /
Average speed
Welcome
ScreenSelects whether the welcome screen comes on or
not when you turn the ig nition switch to ON (w.On*1/Off
Color ThemeChanges the color of the screen.Blue*1/Red /Amber /Gray
Turn by Turn
Display *, *2Selects whether the turn-b y-turn display comes on
or not during the route guidance.On*1/ Off
Language
SelectionChanges the displayed language.English*1/Francais /Español
* Not available on all models
14 CR-V-31T0A6200.book 87 ページ ２０１４年２月１０日　月曜日　午後７時１分

96
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w.
■Using the MENU button
1. Press the MENU button.
2. Select Adjust Clock with the
(+ / (- button, then press the SOURCE button.
3. Press the
(+ / (- button to change the
setting between 12h and 24h.
4. Select hour or minute with the /
button.
5. Press the
(+ / (- button to adjust the
numbers up or down.
6. Select Set with the / button, then
press the SOURCE button to enter your
selection.
u The display will return to the Adjust
Clock display.
■Using the SETUP button
1. Press the SETUP button.
2. Rotate to select Adjust Clock, then press .
3. Rotate to select the item you want to change (12/24 hour mode, hour,
minute). Then press .
4. Rotate to make the adjustment.
5. Press to enter your select ion. The display returns to Adjust Clock. Repeat steps
4 to 6 to adjust other items.
6. To enter the selection, Rotate and select Set, then press .
7. Press the SETUP button to go back to the normal display.
1Adjusting the Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
To set the time to the nearest hour:
Press and hold the CLOCK button until the clock
display begins to blink, then press the
( 6 (Reset)
button.
Depending on the displayed time, the clock sets
forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
14 CR-V-31T0A6200.book 96 ページ ２０１４年２月１０日　月曜日　午後７時１分

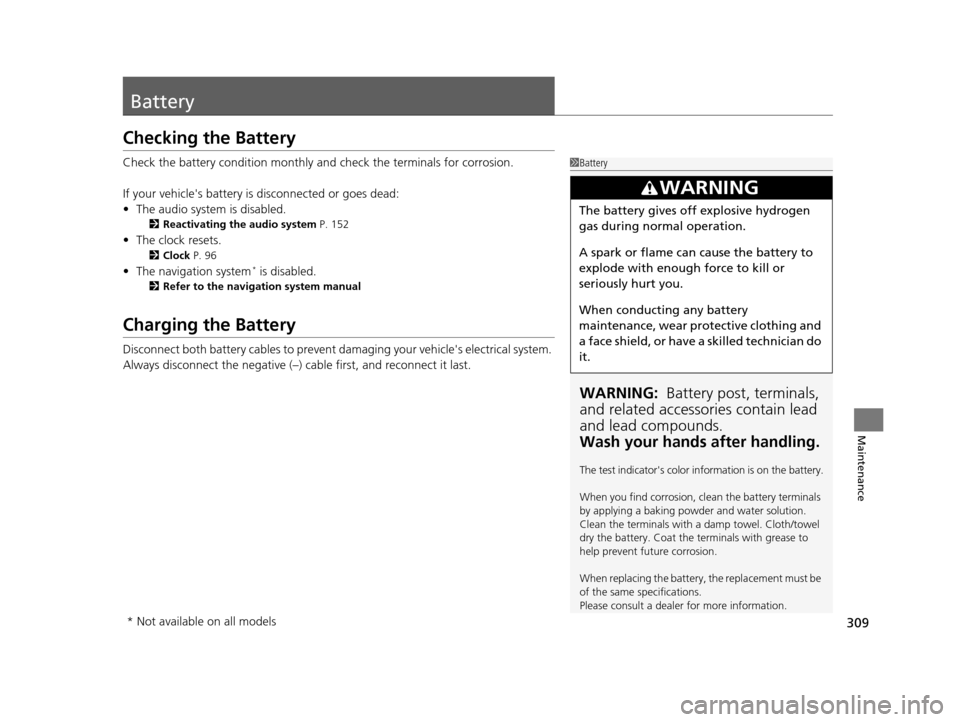

309
Maintenance
Battery
Checking the Battery
Check the battery condition monthly and check the terminals for corrosion.
If your vehicle's battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 152
•The clock resets.
2 Clock P. 96
•The navigation system* is disabled.
2 Refer to the navigation system manual
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
The test indicator's color in formation is on the battery.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
14 CR-V-31T0A6200.book 309 ページ ２０１４年２月１０日　月曜日　午後７時１分

361
Index
Seat Belts.................................................... 29
Adjusting the Shoulder Anchor ................. 33
Automatic Seat Belt Tensioners ................. 31
Checking .................................................. 36
Detachable Anchor ................................... 34
Fastening .................................................. 32
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 60
Pregnant Women...................................... 35
Reminder .................................................. 30
Warning Indicator ............................... 30, 70
Seat Heaters ............................................. 139
Seats .......................................................... 122
Adjusting ................................................ 122
Driver’s Seat Lumbar Support .................. 122
Front Seats.............................................. 122
Rear Seats ............................................... 129
Seat Heaters ........................................... 139
Security System ........................................ 106
Immobilizer System Indicator..................... 75
Security System Alarm Indicator ................ 75
Select Lever ........................................ 15, 243
Operation ......................................... 15, 244
Releasing ................................................ 330
Won’t Move ........................................... 330
Select/Reset Knob ...................................... 78
Selecting a Child Seat ................................ 56
Selector Knob (Audio) ............................. 153
Setting the Clock ........................................ 96
Shift Lever .......................................... 15, 243
Shift Lever Position Indicator ............ 69, 244Shifting (Transmission)
............................. 243
Shoulder Anchor ......................................... 33
Side Airbags ................................................ 44
Cutoff System ........................................... 46
Off Indicator .............................................. 46
Side Curtain Airbags ................................... 47
SMS Text Message ............................ 206, 218
Snow Tires ................................................. 308
Spare Tire .......................................... 321, 345
Spark Plugs ................................................ 344
Specifications ............................................ 344
Specified Fuel .................................... 262, 344
Speedometer .............................................. 77
SRS Airbags (Airbags) ................................. 40
Starting the Engine .................................. 239
Does Not Start ......................................... 327
Engine Switch Buzzer .............................. 111
Jump Starting .......................................... 328
Steering Wheel ......................................... 119
Adjusting ................................................. 119
Stopping .................................................... 260
Summer Tires ............................................ 308
Sunglasses Holder ..................................... 138
Supplemental Restraint System (SRS) ........ 40
Switches (Around the Steering
Wheel) ............................................. 2, 3, 111
Synchronized Mode .................................. 147
T
Tachometer................................................. 77 Tailgate
..................................................... 104
Unable to Open....................................... 341
Temperature Gauge ................................... 77
Temperature Sensor ................................. 148
Text Message .................................... 206, 218
Time (Setting) ............................................. 96
Tire Pressure Monitoring System (TPMS) ..................................................... 252
Button..................................................... 252
Indicator.................................................... 73
Tires ........................................................... 300
Air Pressure ..................................... 301, 345
Checking and Maintaining ...................... 300
Inspection ............................................... 300
Labeling .................................................. 301
Puncture (Flat Tire) .................................. 321
Regulations ............................................. 303
Rotation .................................................. 307
Spare Tire ........................................ 321, 345
Summer .................................................. 308
Tire Chains .............................................. 308
Wear Indicators ....................................... 305
Winter..................................................... 308
Tonneau Cover ......................................... 140
Tools .......................................................... 320
Towing a Trailer ....................................... 231
Equipment and Accessories ..................... 232
Load Limits .............................................. 231
Towing Your Vehicle ................................ 235
Behind a Motorhome .............................. 235
Emergency .............................................. 340
14 CR-V-31T0A6200.book 361 ページ ２０１４年２月１０日　月曜日　午後７時１分
